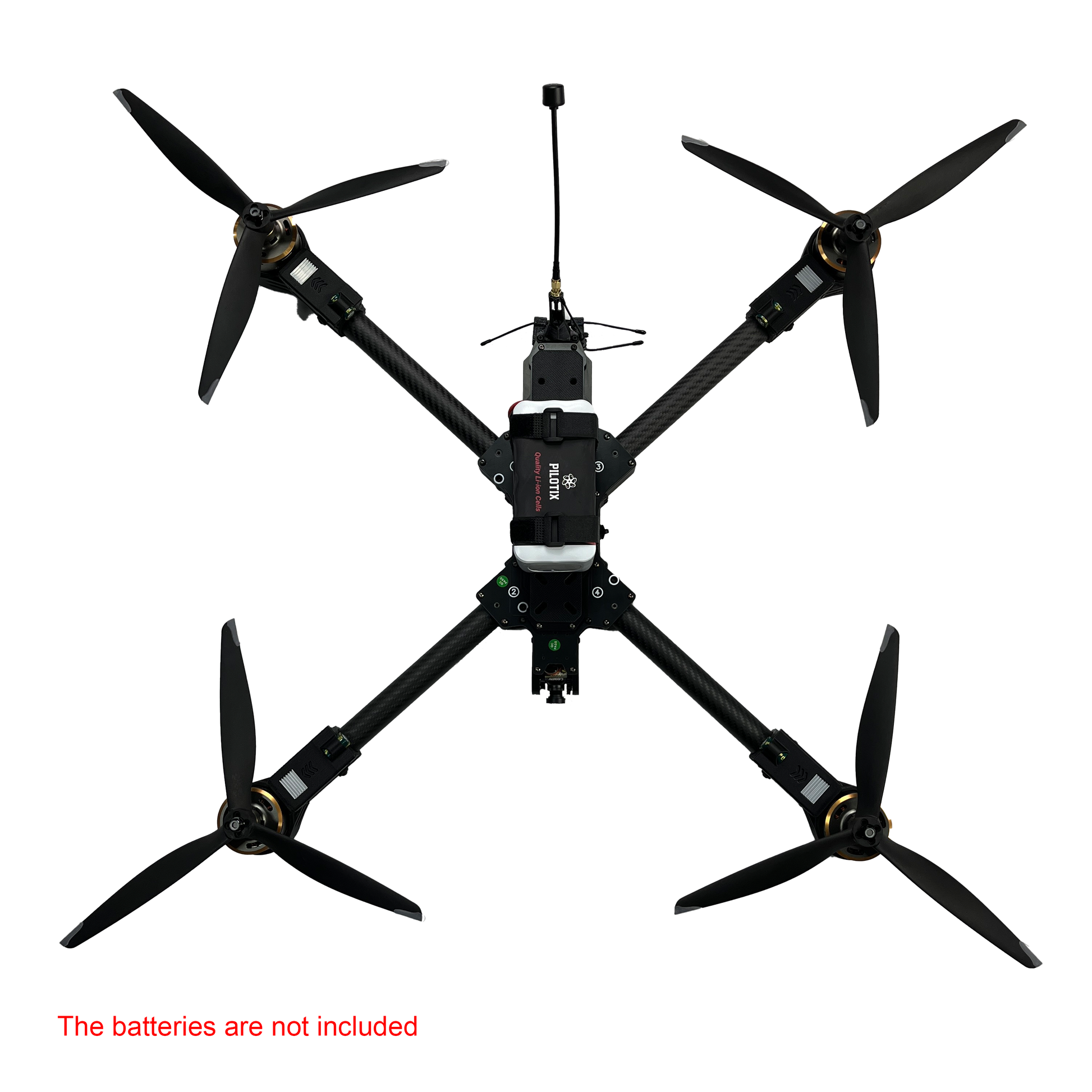

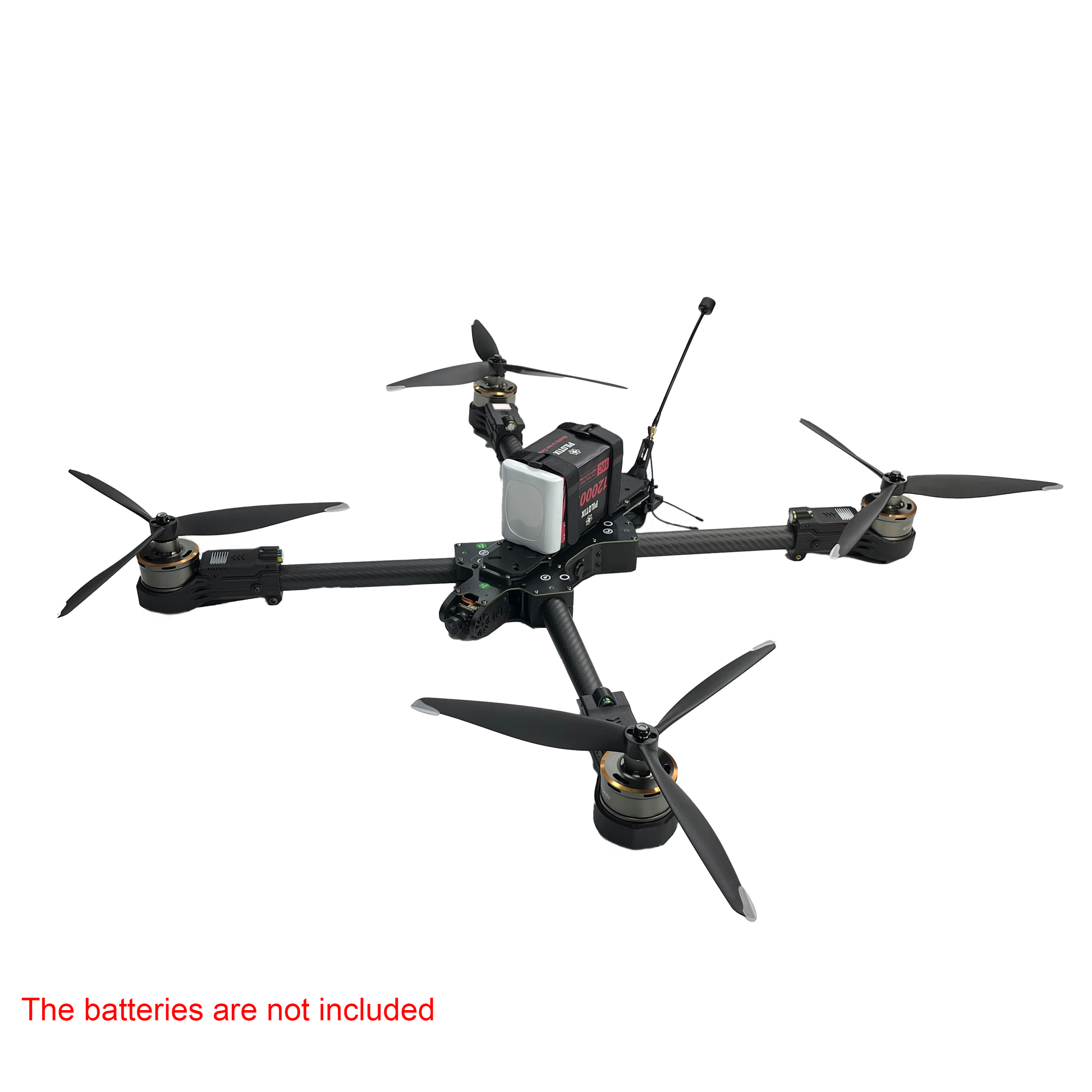

FPV Drone Pilotix Rocky13 Advanced ELRS868/915
The Pilotix Rocky13 Advanced is a rugged 13-inch quadcopter designed for heavy payloads. It is equipped with an ELRS 868/915Mhz Diversity receiver, which ensures a reliable connection with a long range. Designed to handle demanding tasks, this drone offers stability and performance for professional aerial photography and other uses. Its durable construction and advanced features make it an excellent choice for users who need a powerful and reliable FPV quadcopter.
Specifications:
Model: Rocky13 Advanced version

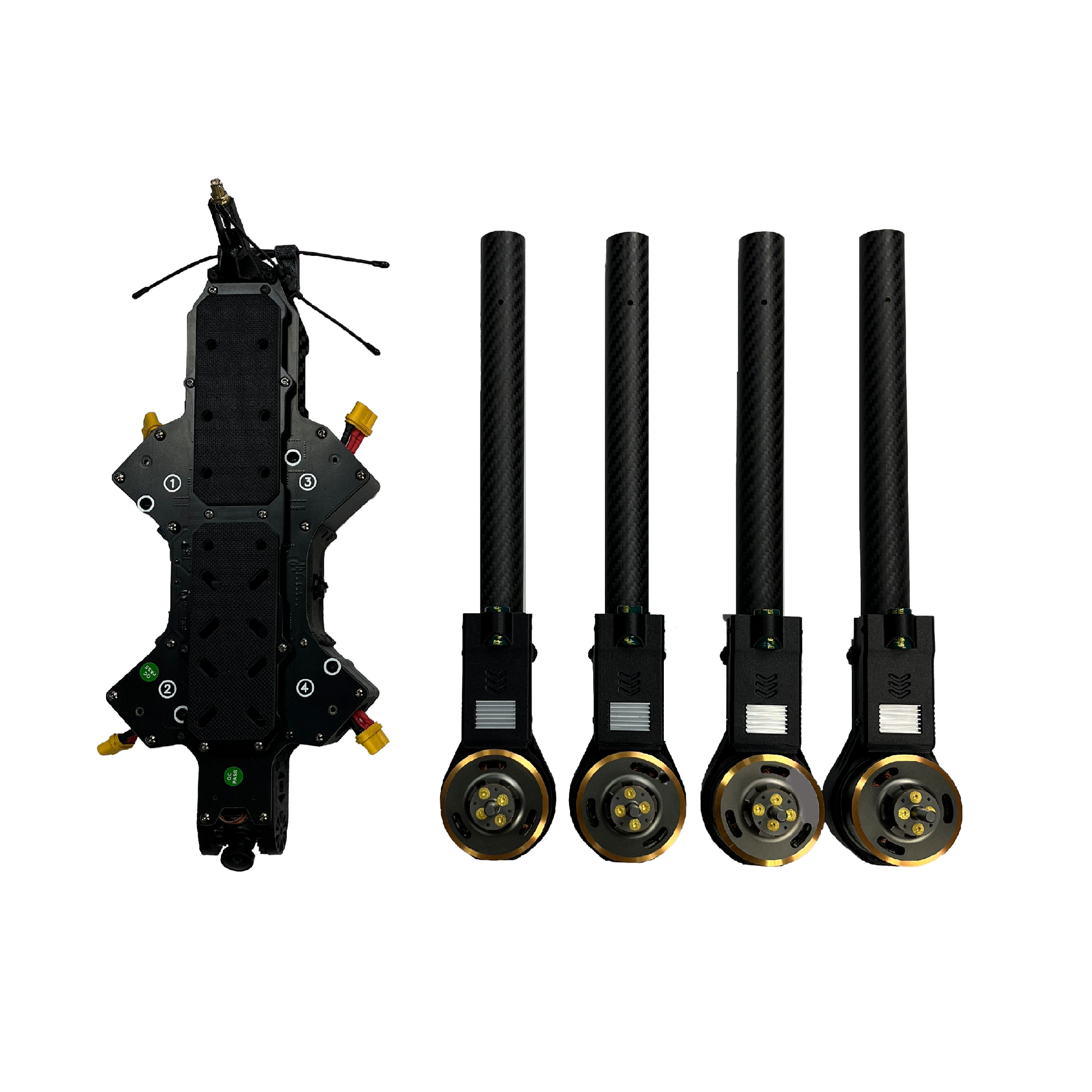

Frame: Pilotix 13" X-Class Frame
Dimensions: 480x470x100mm
Weight approx.: 2000 g
Wheelbase: 590 mm
Arm tube diameter: 25mm
Bottom/top plate thickness: 2 mm
FC: Pilotix F405 V3 Gyro
Firmware: Betaflight/INAV
ESC: 4x Pilotix 80A burst 90A one ESC with heatsink
VTX: PILOTIX 5.8G 3W
Antenna: Rush Cherry II 5.8G RP-SMA RHCP, 160mm
Engine: Pilotix 4218 540kv(6S)

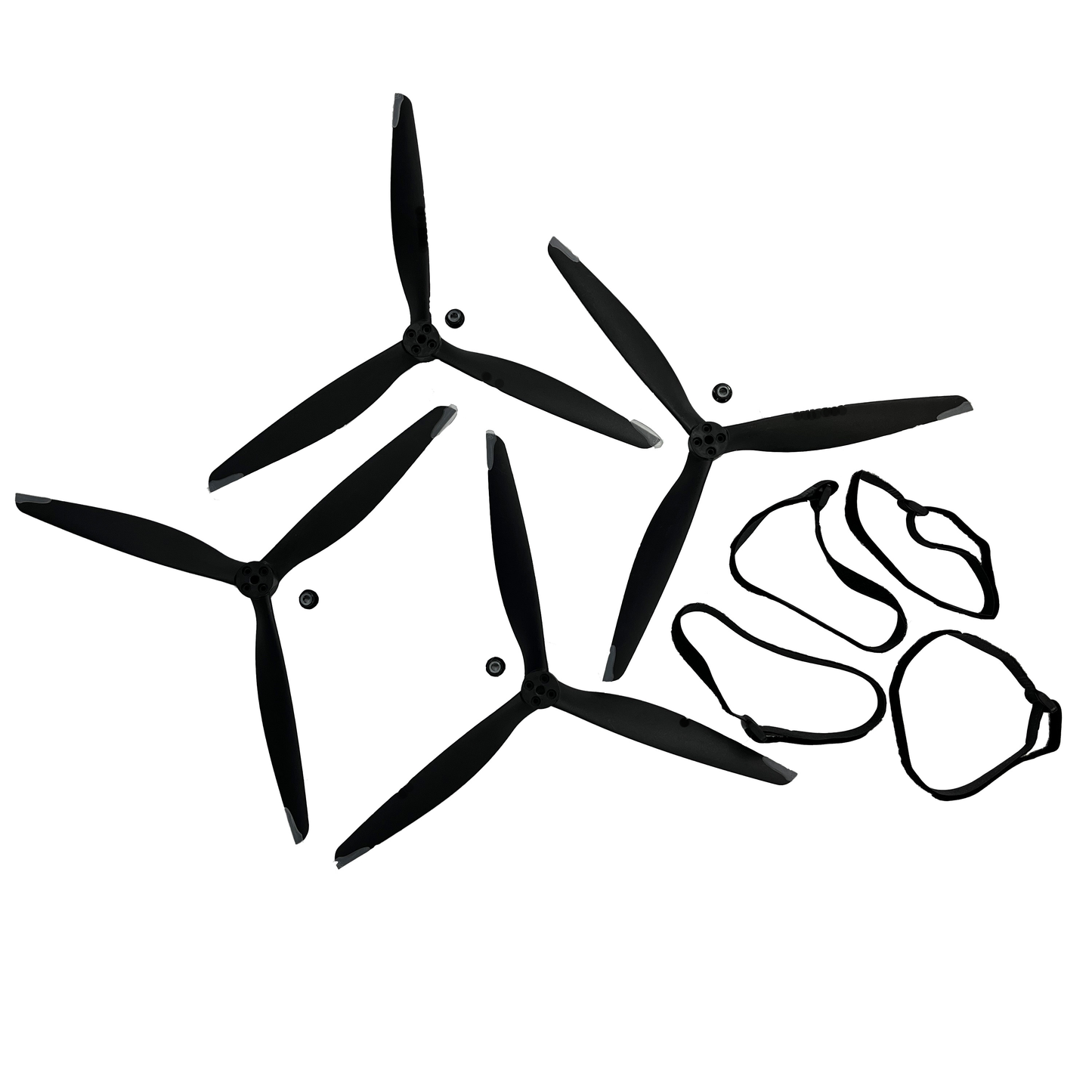

Propeller: GEMFAN 1310-3
Camera: Caddx Ratel PRO 1500tvl + SERVO
Chassis: None
Receiver: ELRS Diversity with 2x bit T-antenna 915Mhz
Positioning system: M10 GPS BZ251
Recommended battery: 2x 6S 8000Mah Lipo
Flight time with 2x 8000 mAh batteries:
- 35 minutes (without payload)
- 18 minutes (4kg payload)
- 10 minutes (6 kg payload)
Maximum speed: 160 km/h
Maximum flight height (MSL): 7000m
Maximum climb speed: 20 m/s
Stable working temperature: -20°C-50°C, -4°F to 122°
Payload: 6000-8000g
Note: The battery is not included, please order it separately.
The package includes:
1x Pilotix Rocky13 Advanced ELRS868/915 FPV drone
