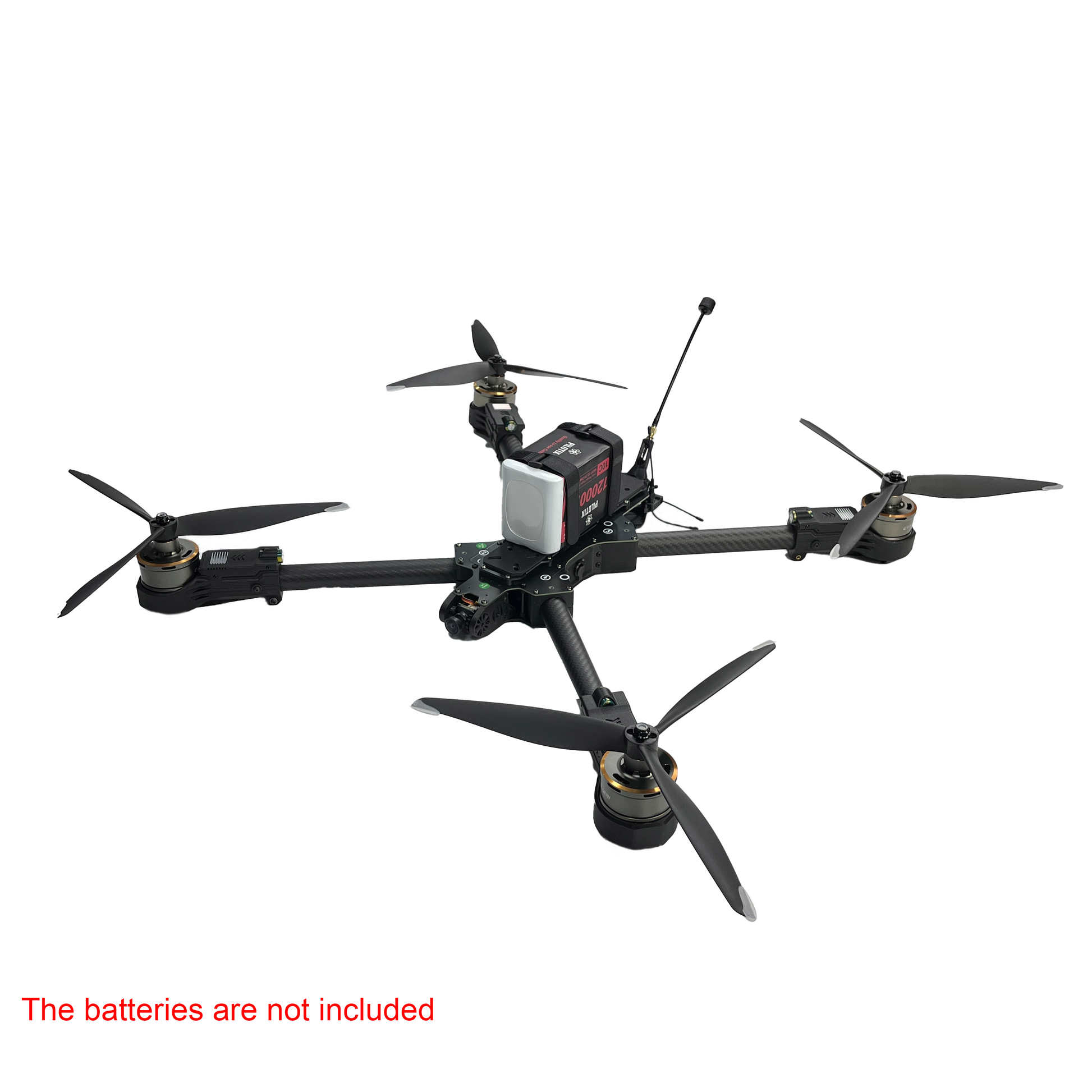

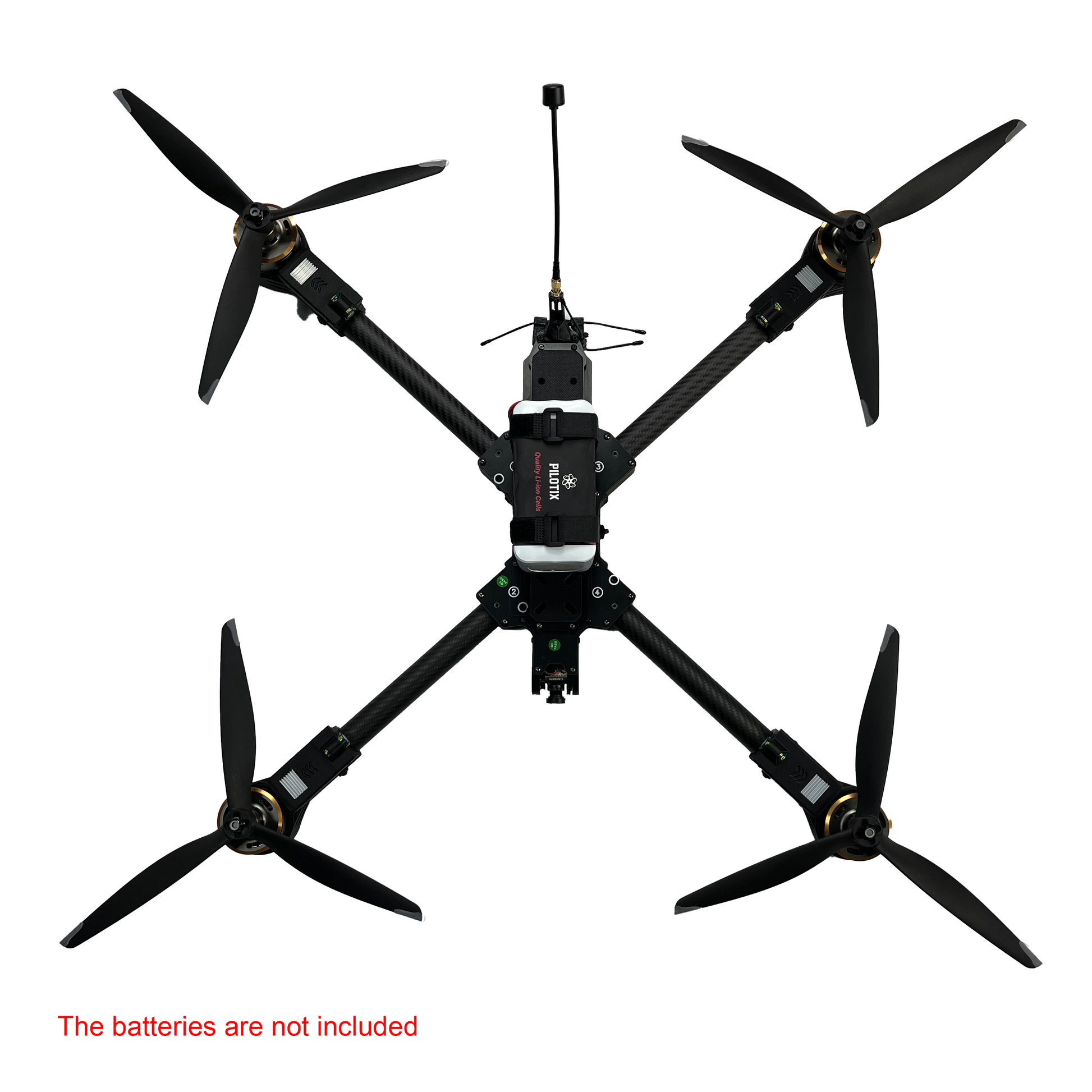

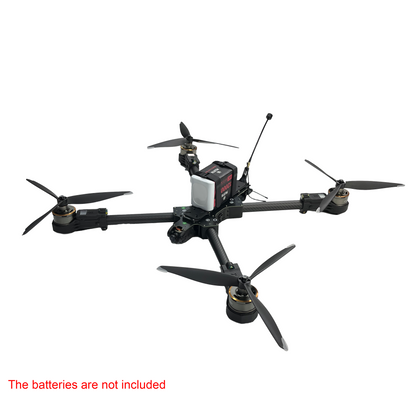

FPV Drone Pilotix Rocky 13 '' SV Elrs915
FPV Drone Pilotix Rocky 13 '' SV Elrs915 is a robust 13 -inch quadcopter designed for heavy costs. Equipped with a diversion receiver ELRS 868/915MHz, ensures reliable and long -term connection. This drone is built for demanding tasks and offers stability and performance for professional air photography and other use. Its durable construction and advanced features make it an excellent choice for users who need a powerful and reliable FPV quadcopter.
Note: This version does not contain VTX, antenna, camera or battery. These components must be ordered separately.
Specifications:
- Model: 13" single version
- Frame: PILOTIX 13” x-class frame
- Dimensions: 480x470x100mm
- Weight: Around 2000g
- Wheelbase: 590mm
- Diameter of shoulder tube: 25mm
- Bottom/top plate thickness: 2mm
- FC: PILOTIX F405 ICM42688P Gyroscope
- Firmware: Betaflight 4.4.3
- ESC: PILOTIX BLS 100A single ESC
- VTX: None
- VTX Antenna: None
- Motor: 4312 660KV

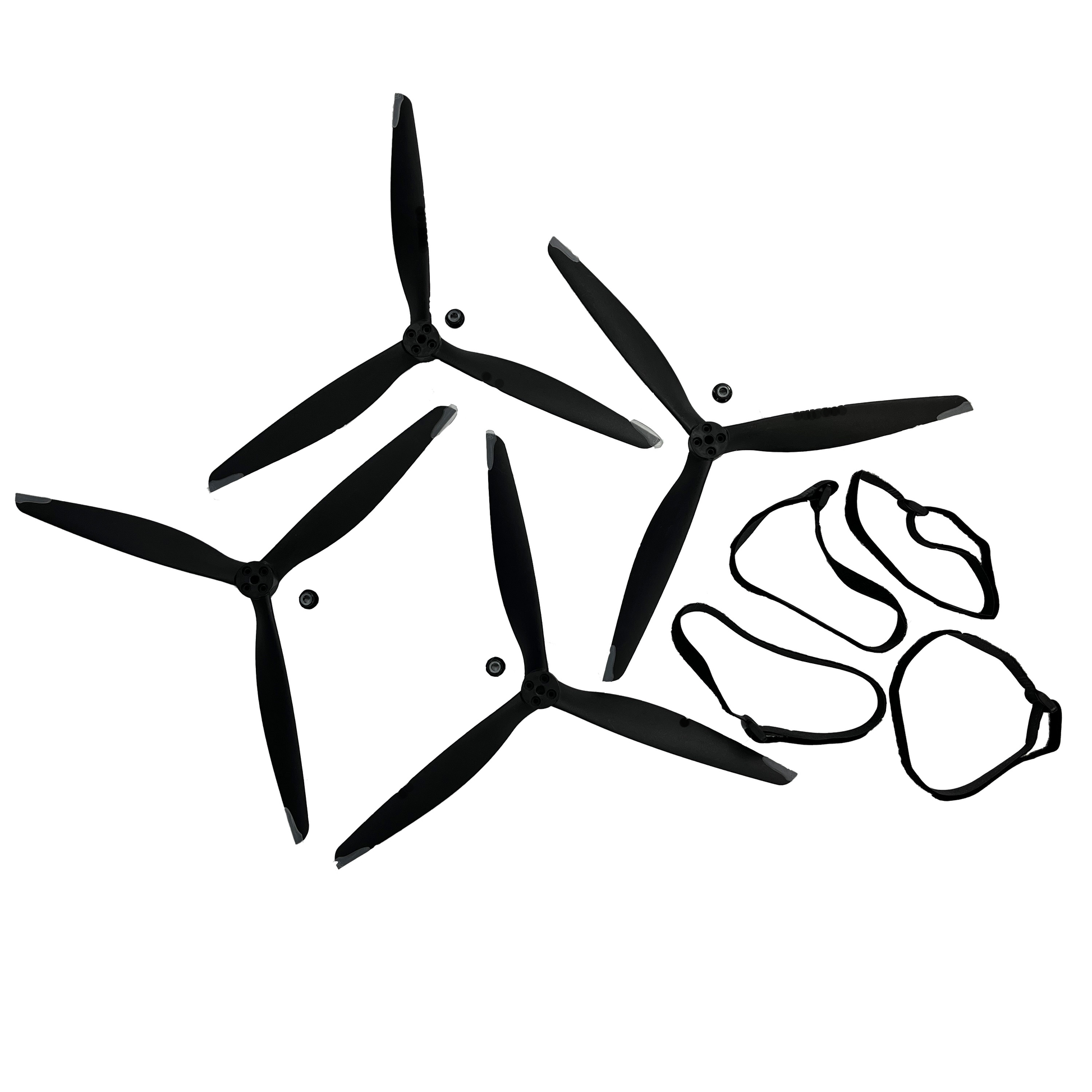

- Propeller: GEMFAN 1310-3 *4
- Receiver: ELRS 915Mhz diversity RX
- Camera: None
- Stabilization system: None
- Chassis: None
- GPS: None
- Positioning system: None
- Recommended battery: 6S 8000mAh Lipo *2
- Flight time with 8000mah*2 battery:
- 35 min (without load)
- 18 min (4kg load)
- 10 min (6kg load)
- Maximum speed: 140 km/h
- Maximum flight height (MSL): 7000 m
- Maximum climb speed: 20 m/s
- stable operating temperature range: -20 ℃ ~ 50 ℃, -4 ° F to 122 °
- Maximum load: 6000 g
The package contains:
- 1x FPV drone pilotix Rocky 13 '' sv elrs915
