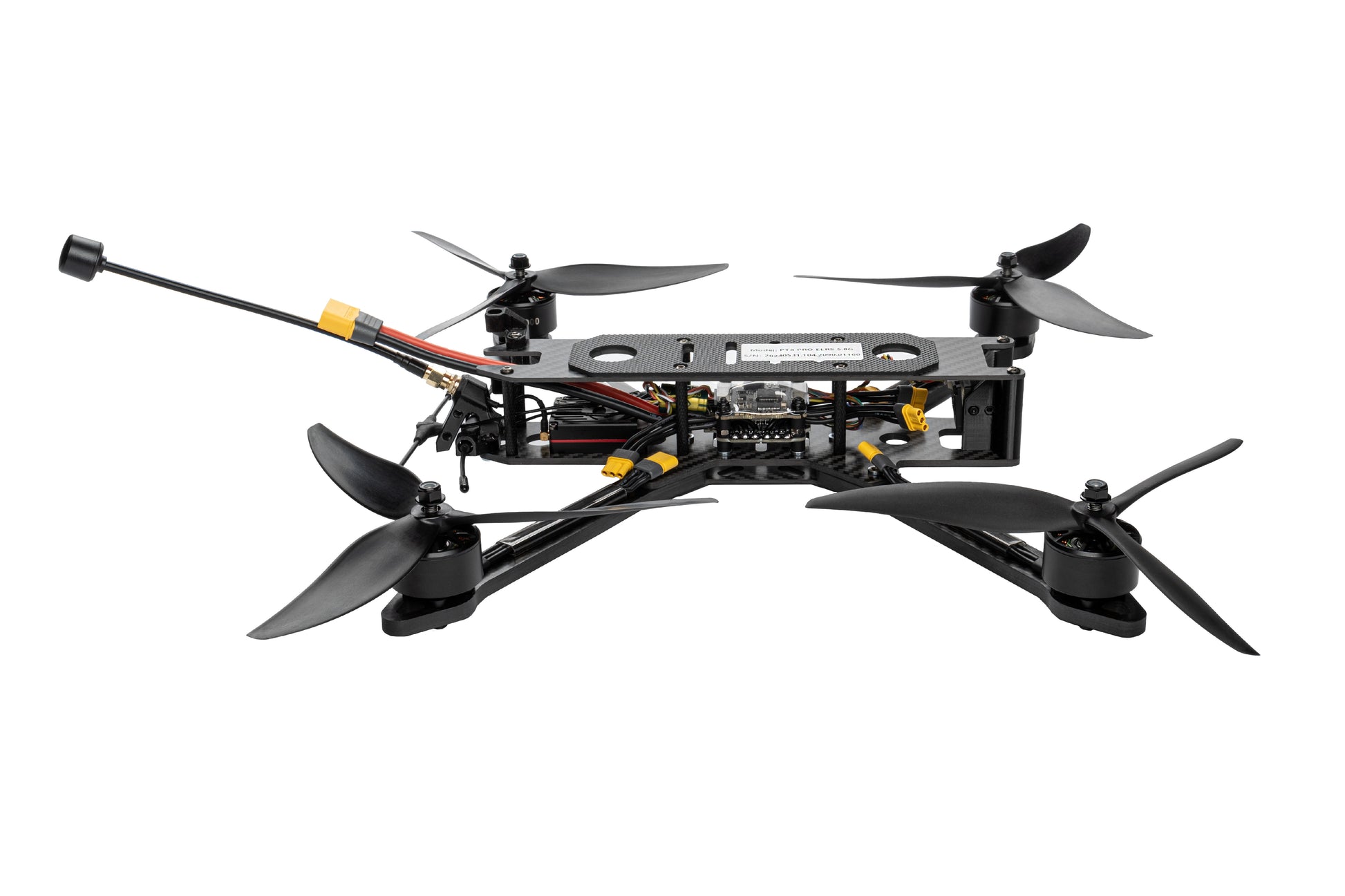

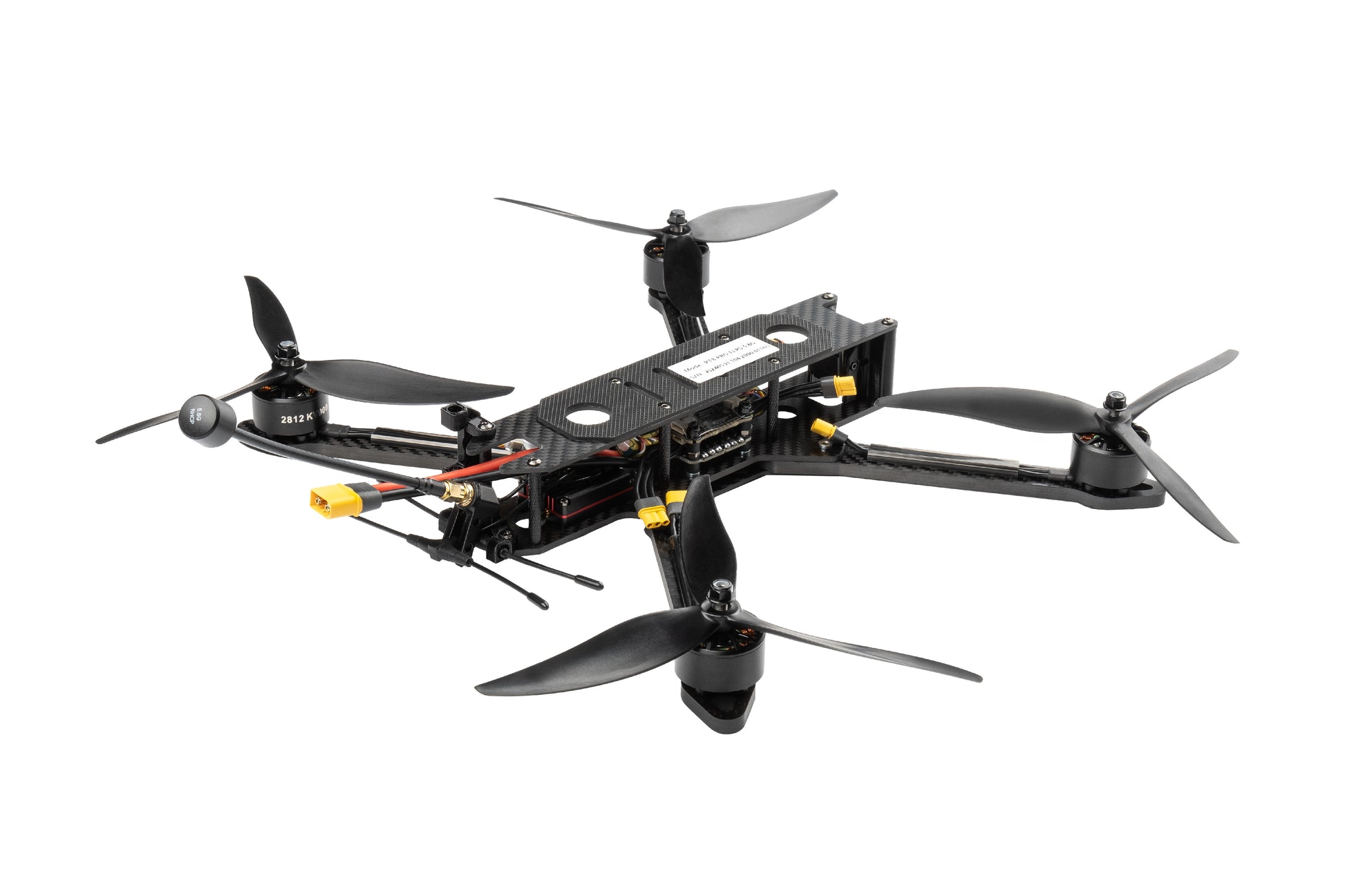

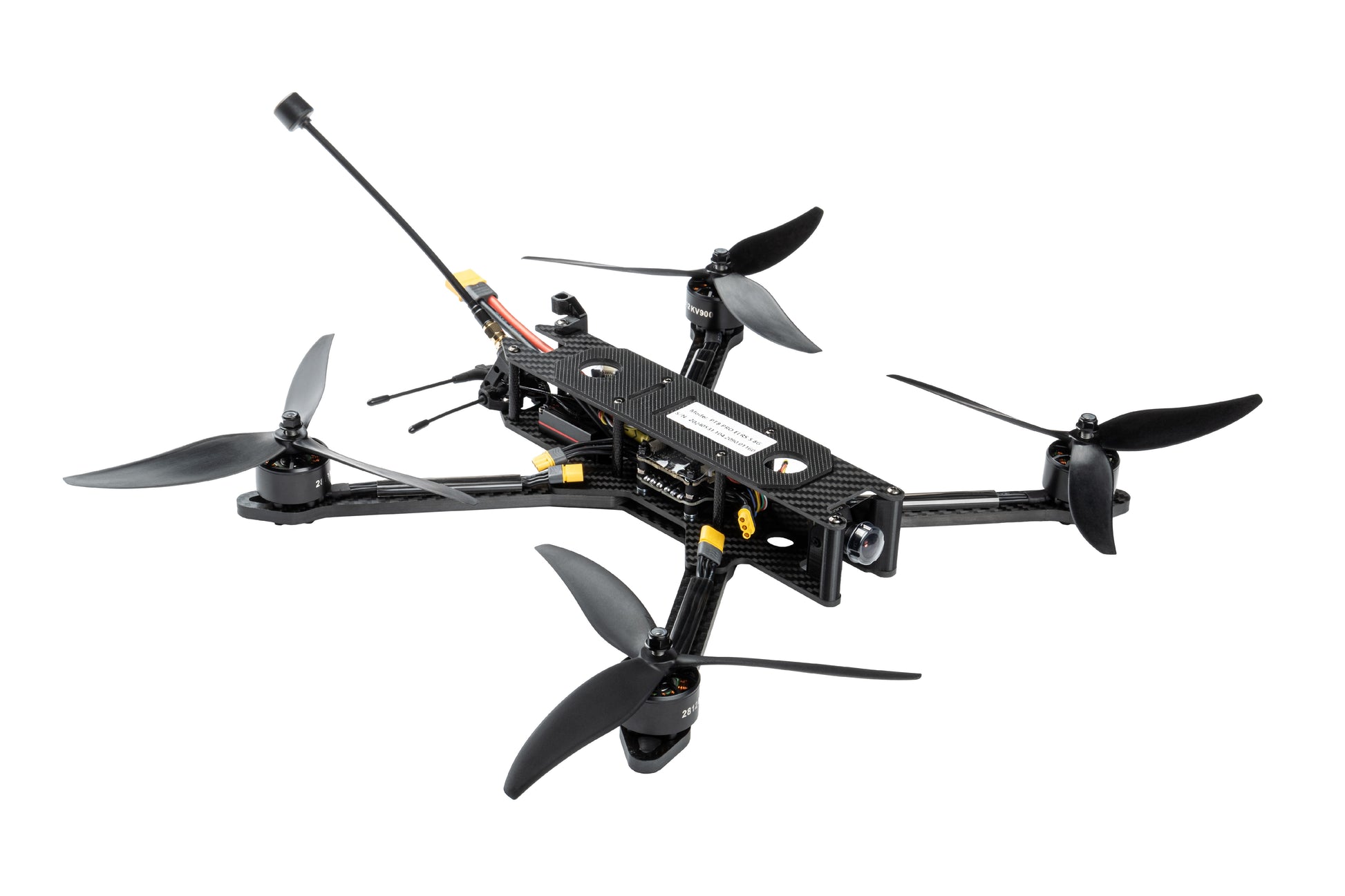

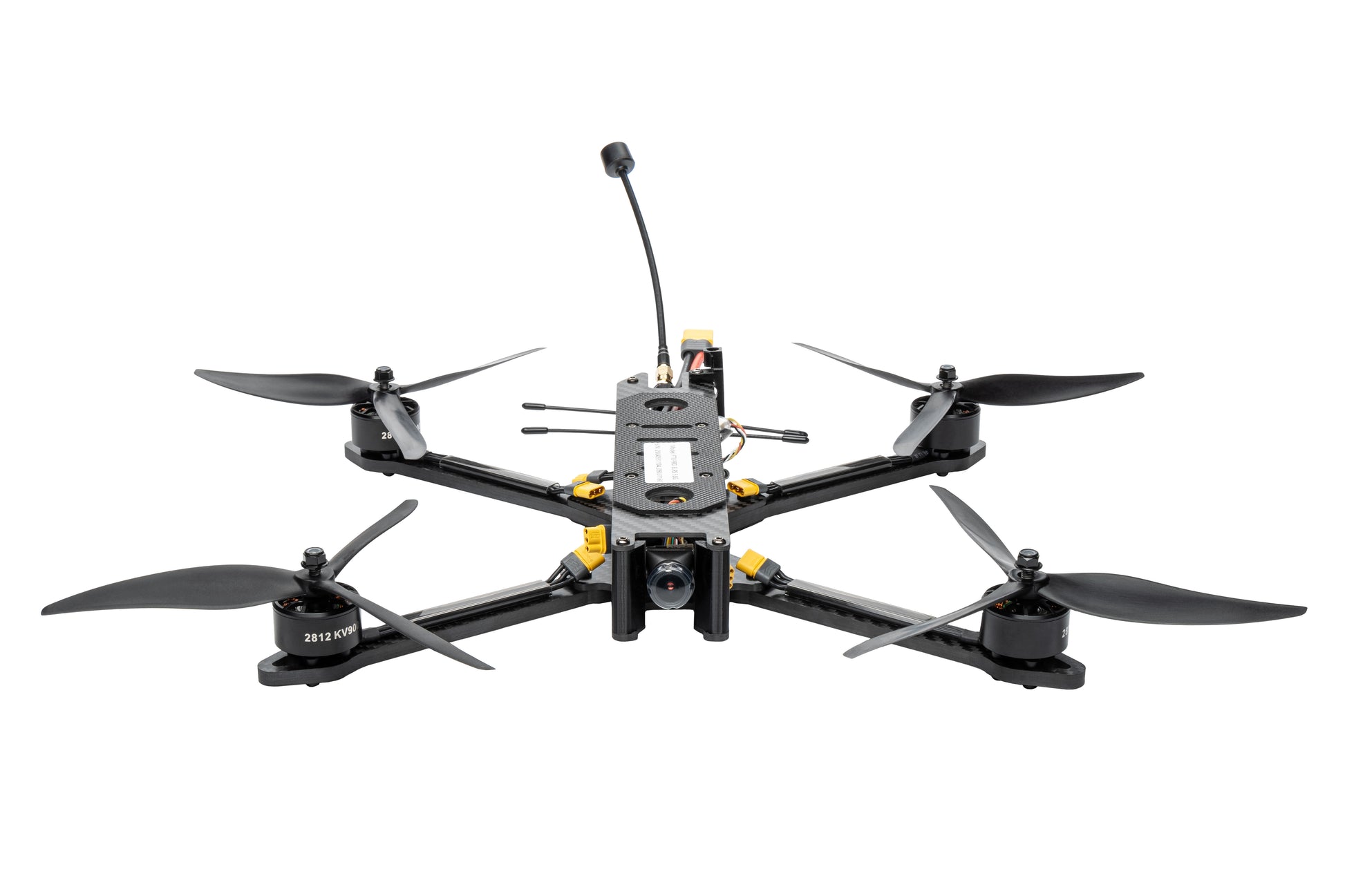

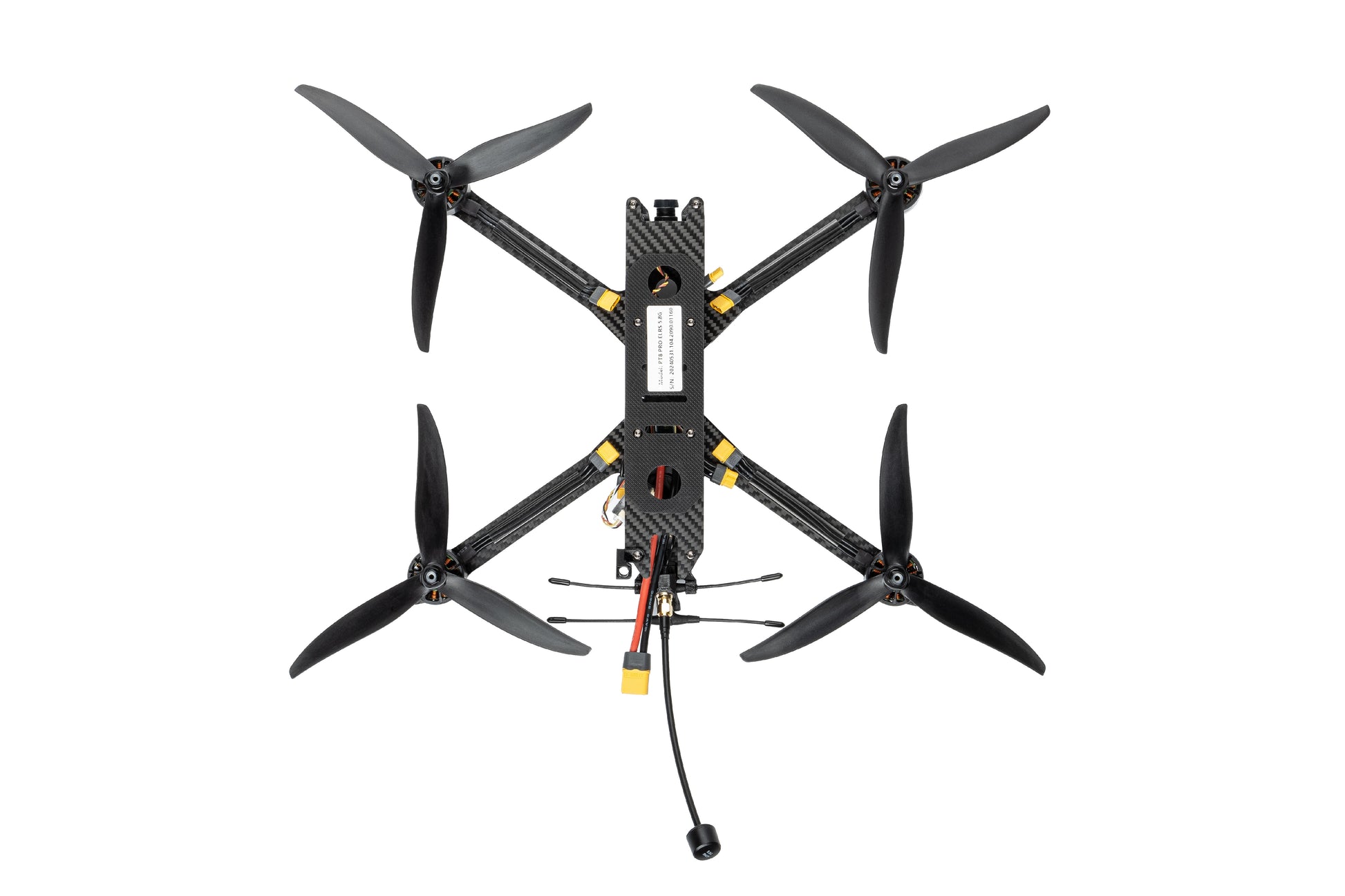

FPV drone Pilotix PT8 ELRS 4.9-5.8G Ratel PRO 2.5W
Pilotix PT8 is a high-performance 8-inch FPV drone with an ELRS 868/915MHz receiver. The Pilotix 4.9-5.8G 2.5W VTX provides strong and clear video signals in a wide range, ensuring more comfortable flights. The drone includes a Caddx Ratel Pro camera for clear, high-quality video. This new FPV drone combines premium components and cutting-edge technology for exceptional flight performance.
Specifications:
- Model: PT8 PRO ELRS 4.9-5.8G 2.5W
- Frame: Partizan PT8 new version
- Dimensions: 317 x 270 x 50 mm
- Weight: 700 g
- Wheelbase: 358 mm
- Arm thickness: 6 mm
- Bottom/top plate thickness: 2mm
- FC: F405 V2 ICM42688P with additional module
- Firmware: Betaflight 4.4.3
- ESC: 60A (burst 70A)
- VTX: 4.9-5.8G 2.5W
- VTX Antenna: Long 5.8G RHCP SMA
- Motor: 2812-900KV/1300KV
- Propeller: GEMFAN 8060-3
- Camera: Caddx Ratel Pro
- Gimbal system: none
- Receiver: ELRS 915Mhz Diversity Rx Cyclone
- GPS: none
- Recommended battery: 6S 8000mAh Lipo
Flight time with 8000mAh battery:
- 35 minutes (without load)
- 16 minutes (load 2.5 kg)
- 22 minutes (load 2 kg)
MAX speed: 150 km/h
Maximum flight altitude (MSL): 6000 m
Maximum climb speed: 15 m/s
Stable working temperature range: -20℃ - 50℃
Load: 2000-2500 g

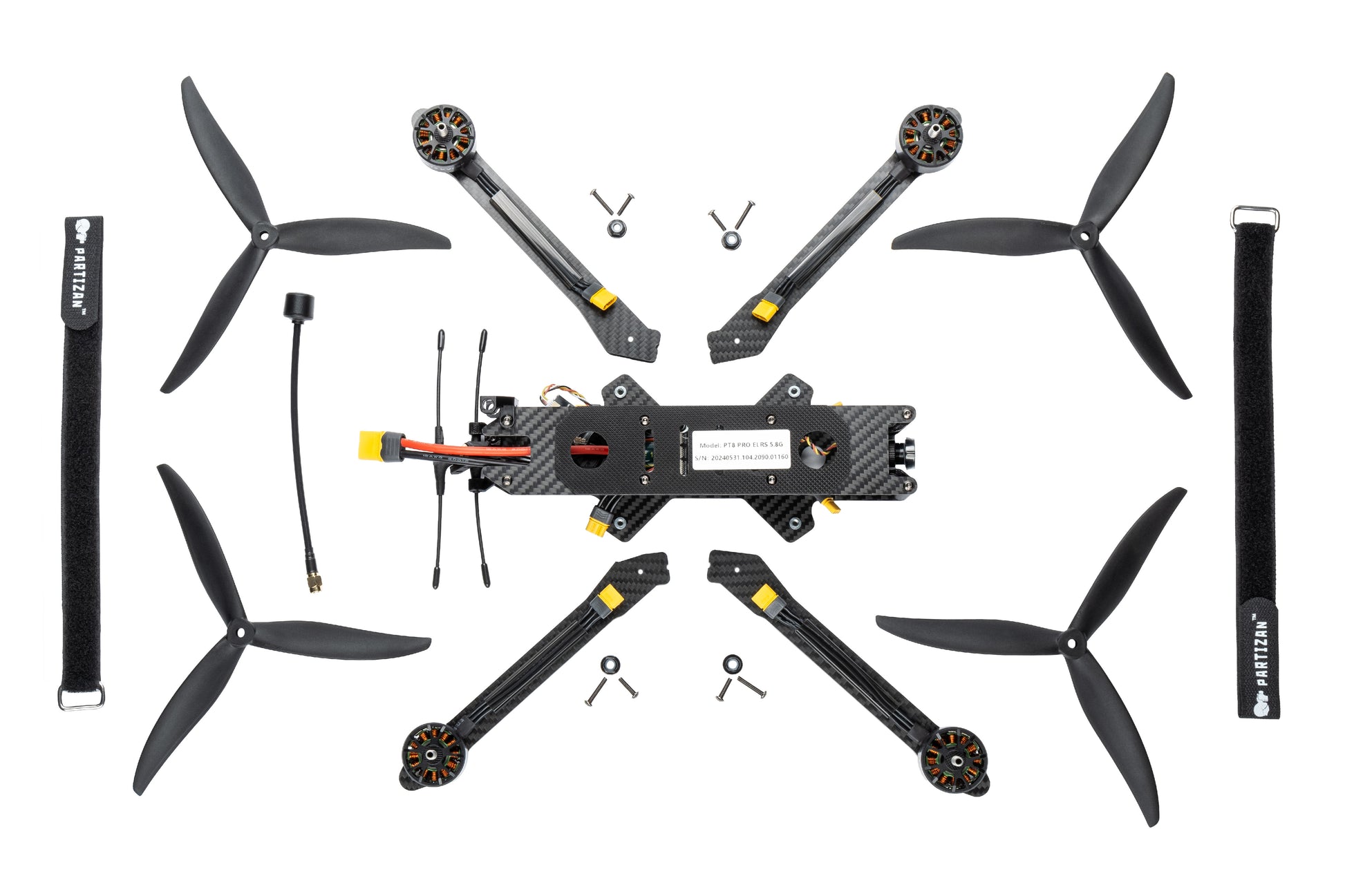

The package contains:
1x Pilotix PT8 ELRS 4.9-5.8G Ratel PRO
