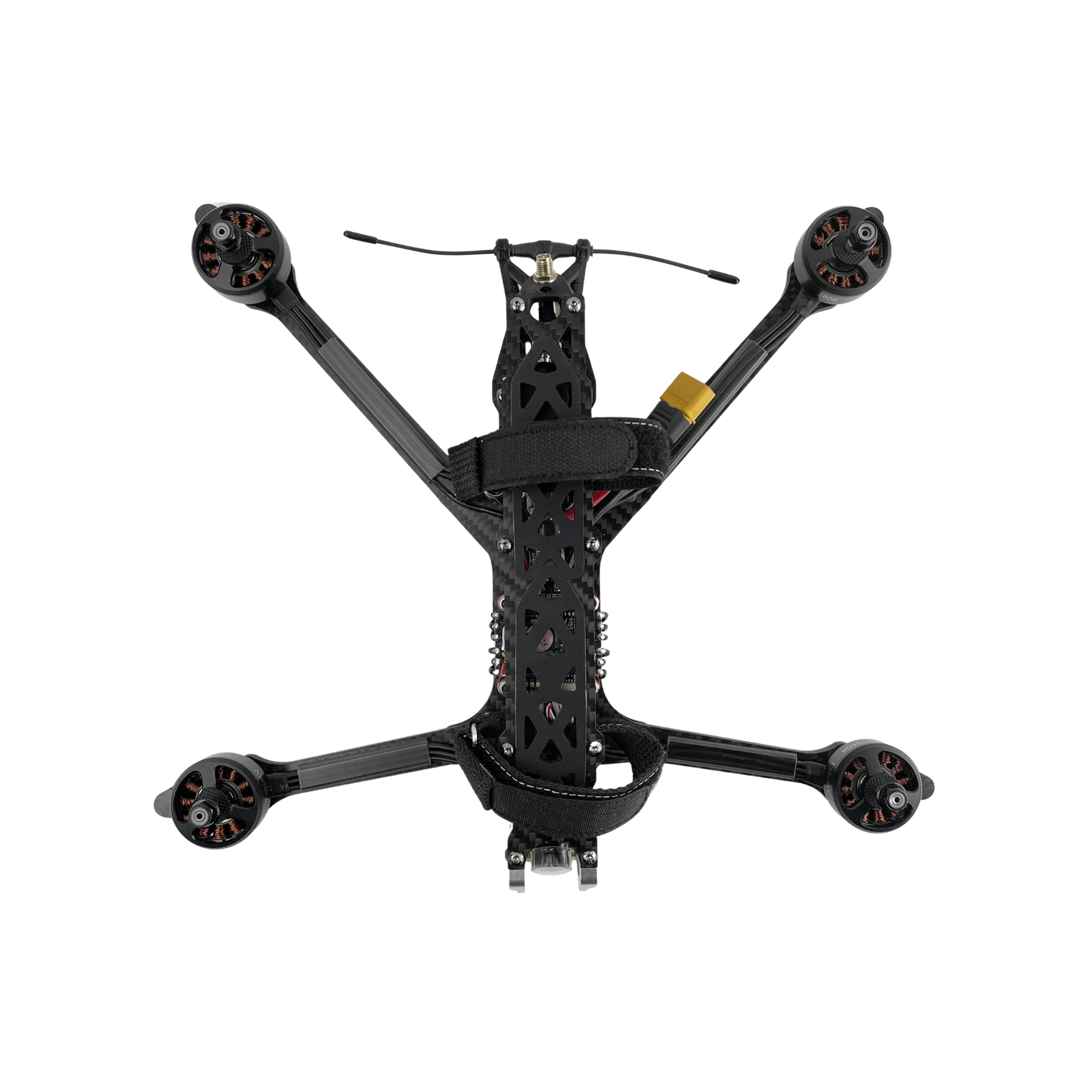

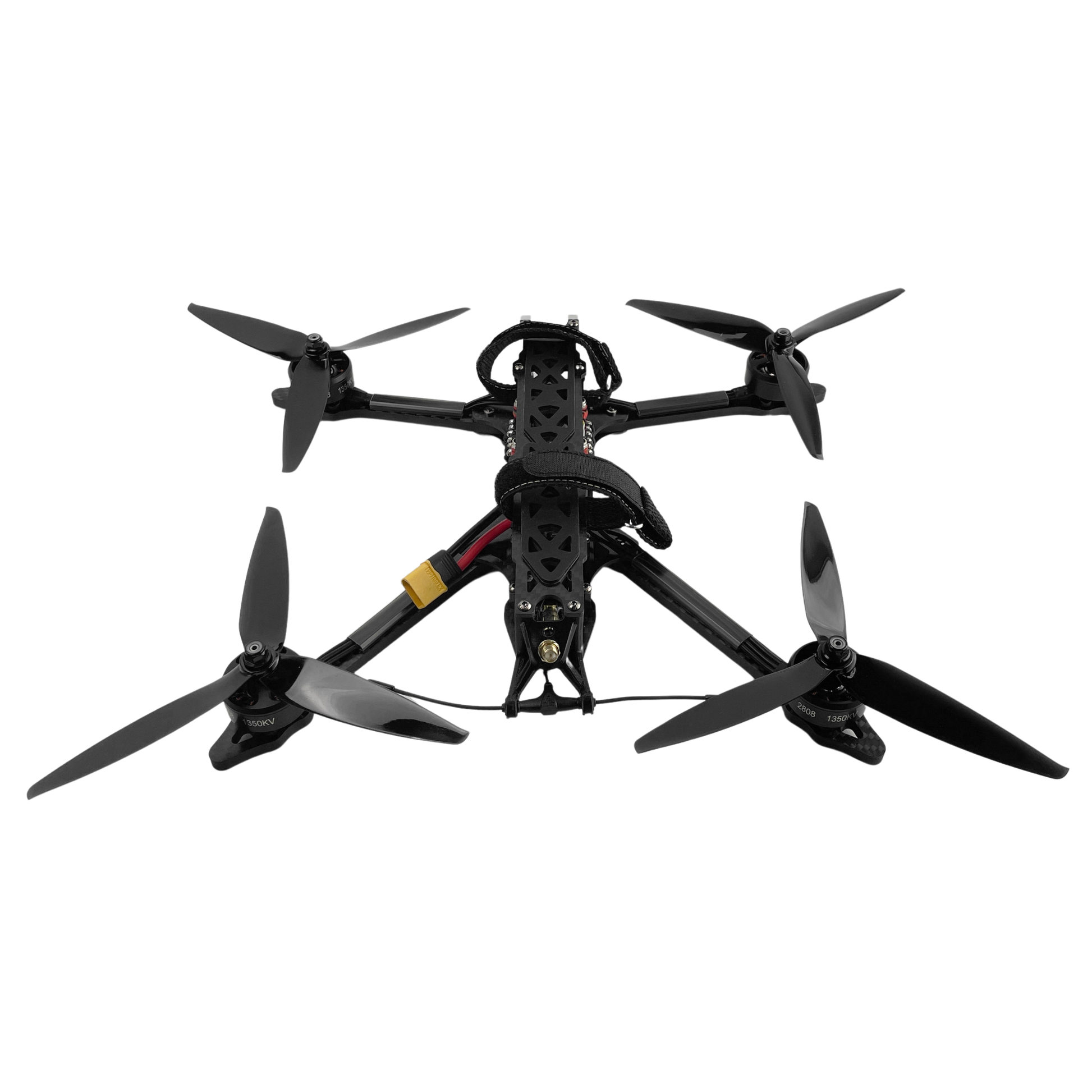

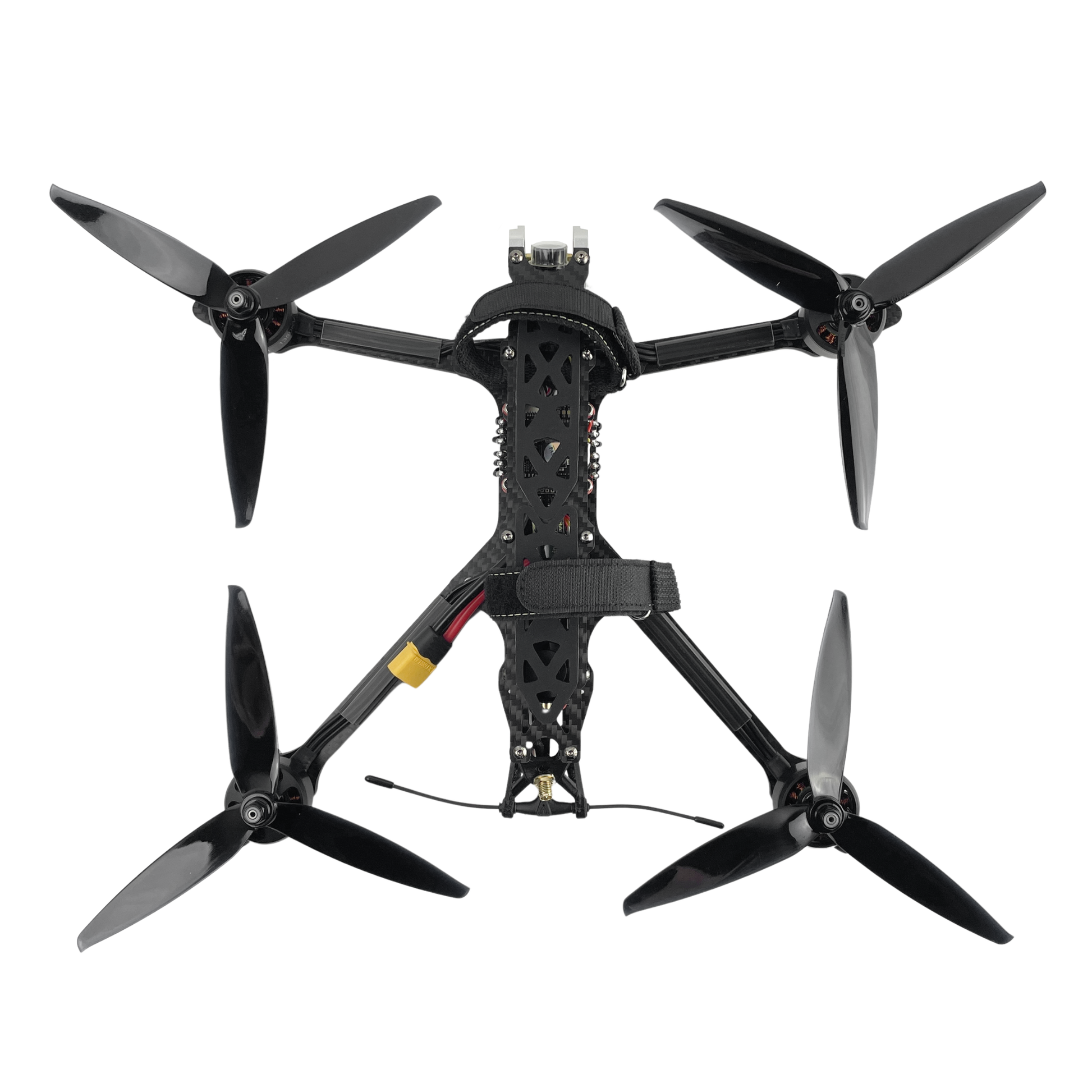

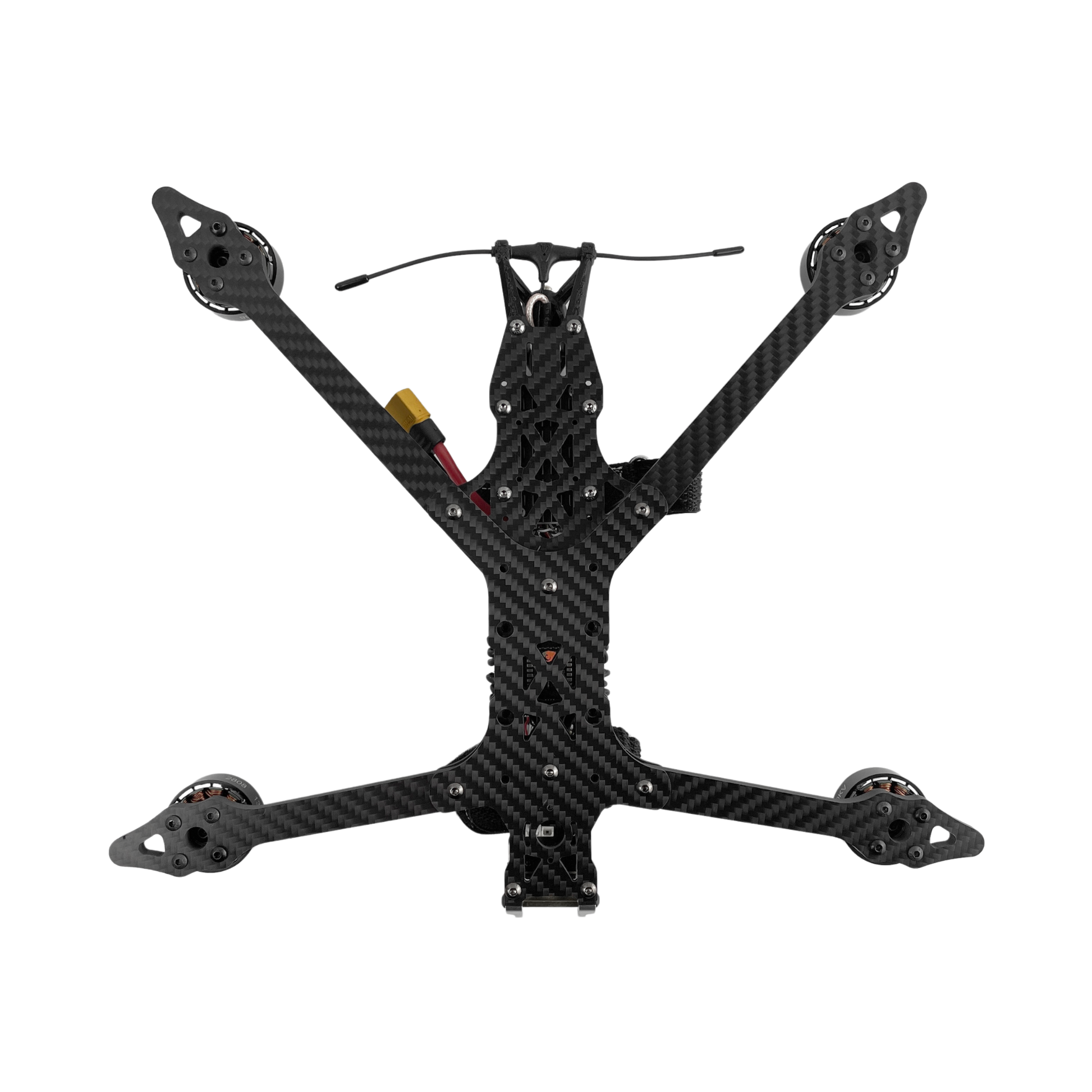

Partizan Rocky7 ELRS 5.8G 2.5W
Partizan Rocky 7 ELRS 5.8G 2.5W is a 7-inch FPV drone specially designed for long-distance flights. It has a 5.8G video transmitter with a power of 2.5W, which ensures robust signal transmission. This version includes a Caddx H1 analog camera that provides high quality video and clear images for FPV applications.
Specifications
Model: Rocky7 ELRS 5.8G 2.5W
Frame: 7” Partizan DC Folding Frame
Dimensions: 302x242x60mm
Weight: 450g
Wheelbase: 309mm
Arm Thickness: 6mm
Bottom/Top Plate Thickness: 2.5mm
Stack: F405 (F4 FC + 60A ESC 4in1)
Firmware: Betaflight 4.4.2
VTX: 5.8G 2.5W
VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
Motor: Partizan 2807 1300KV(6S)
Propeller: Gemfan 7040-3
Camera: Caddx H1
Gimbal system: None
RX: ELRS 868/915
GPS: None
Recommended battery: 6S 4000mAh Lipo
Flight time with 4000mAh battery:
- 30 minutes (without load)
- 15 minutes (with 1.2kg load)
- 8 minutes (with 2kg load)
Maximum speed: 150km/h
Stable working temperature range: -10° to 40° C (14° to 104° F)
Load: up to 1.5kg
Package contents:
1x Partizan Rocky7 ELRS 5.8G 2.5W
