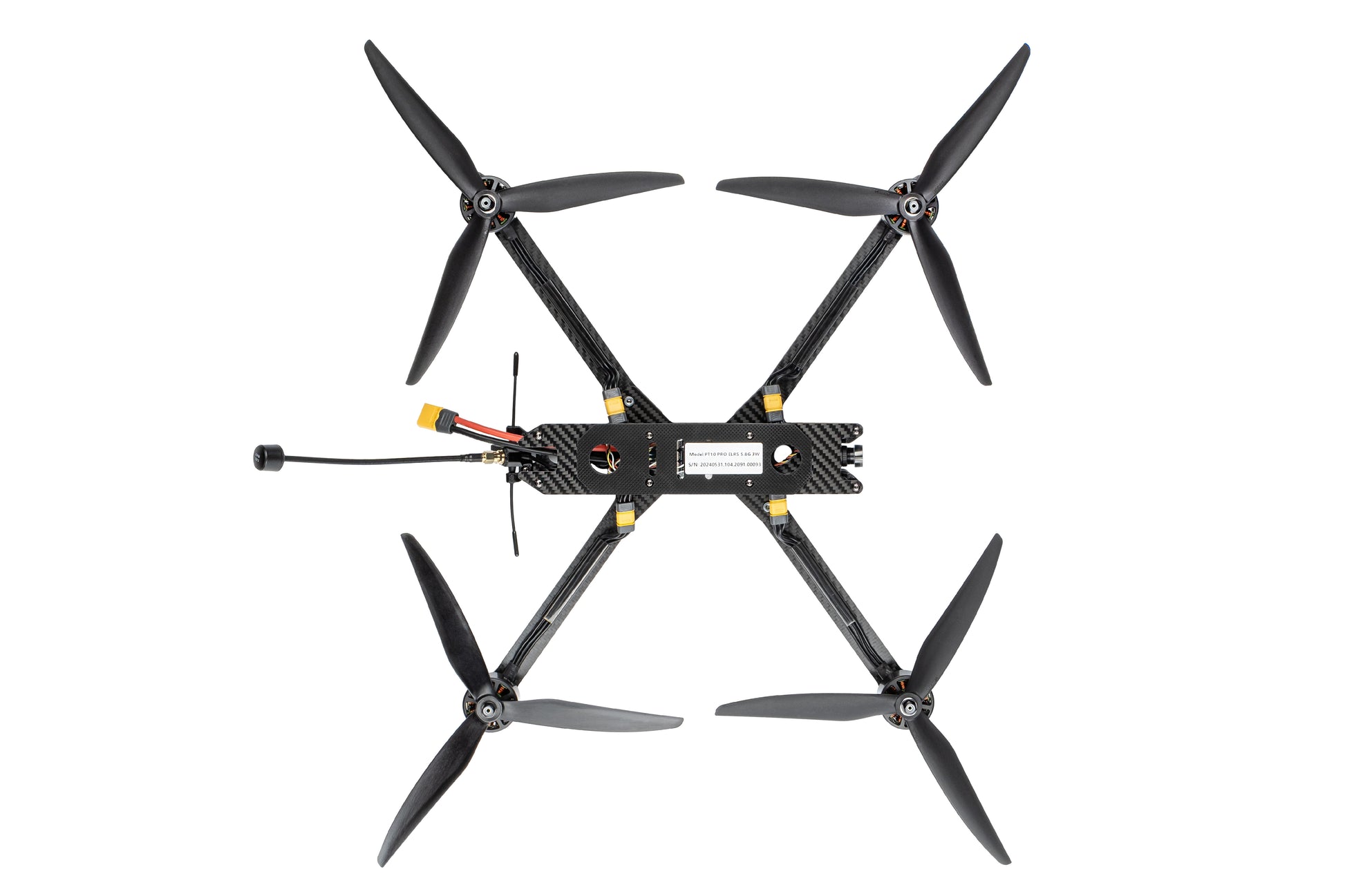

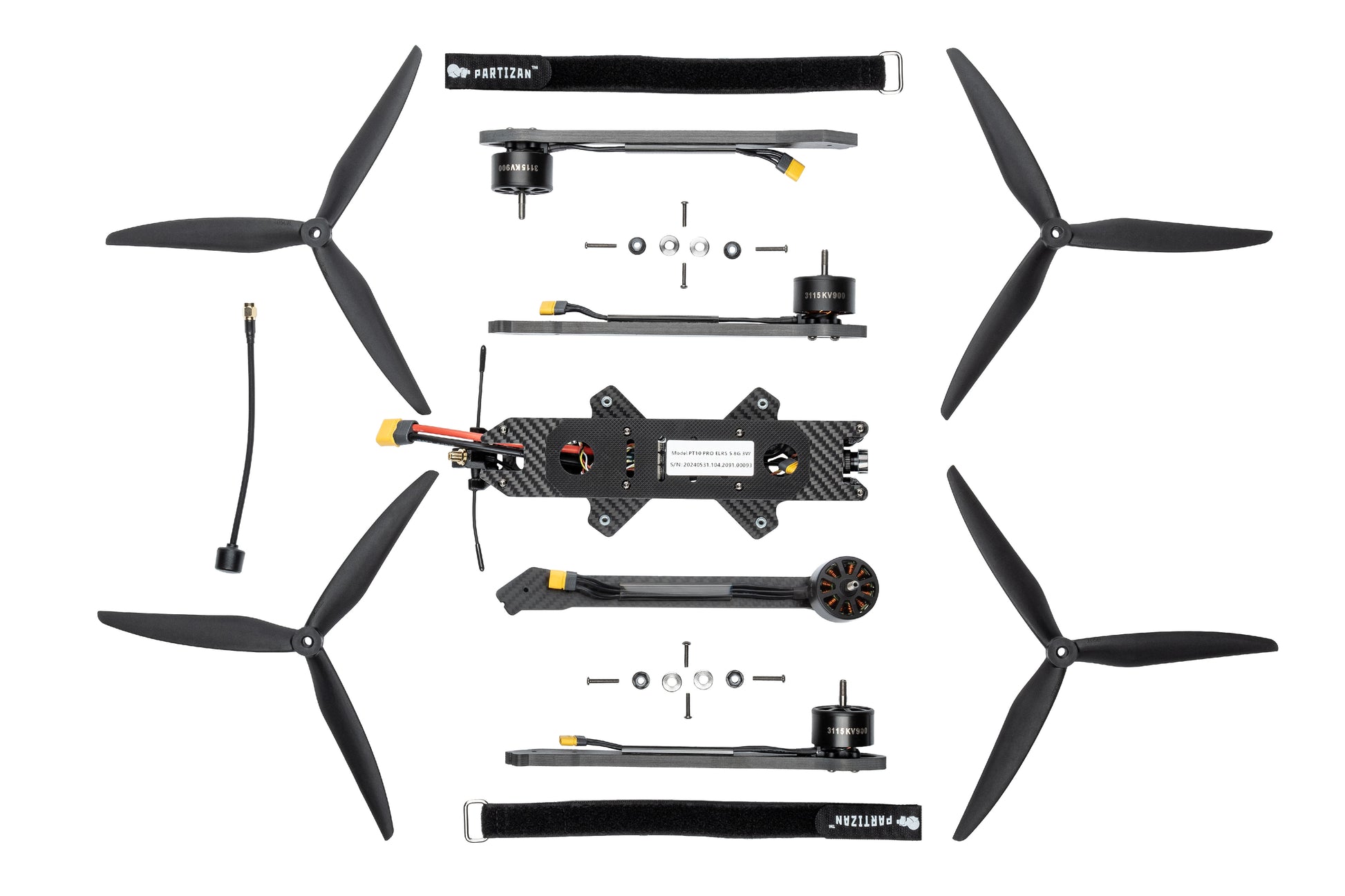

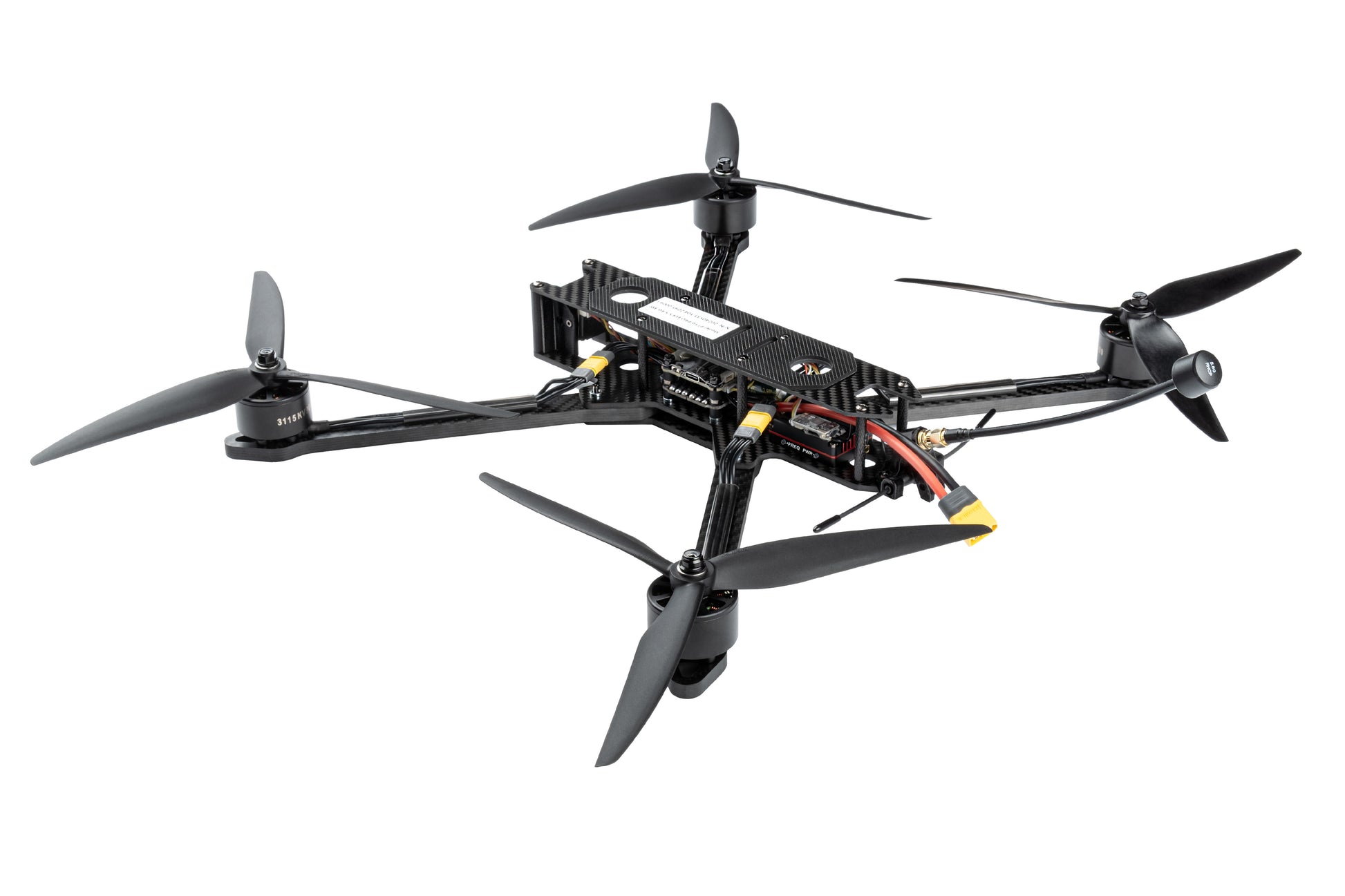

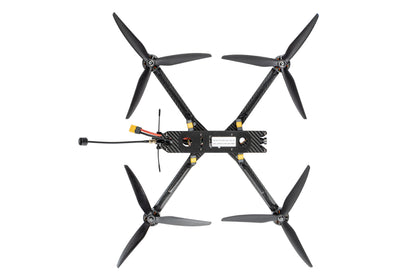

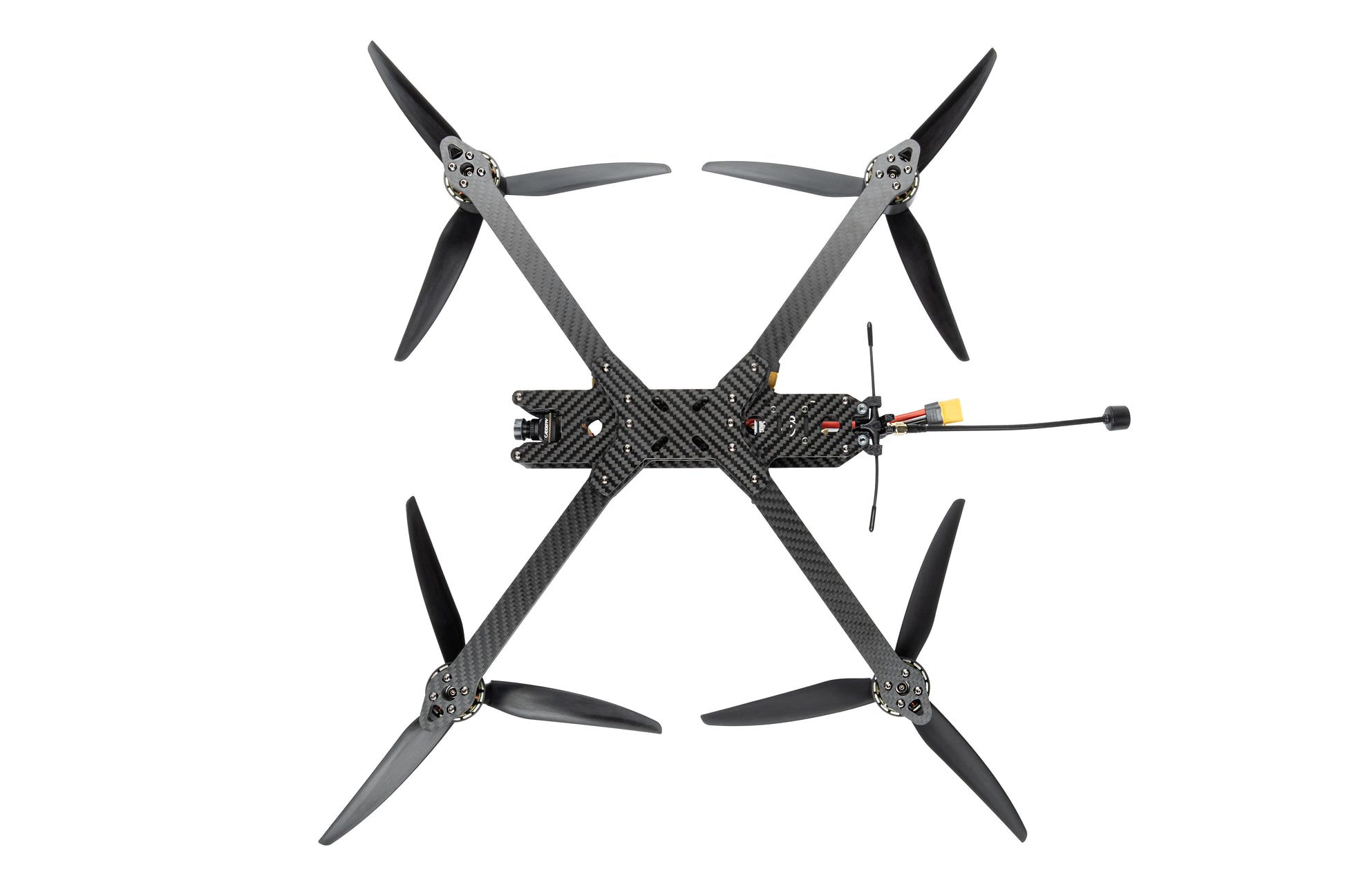

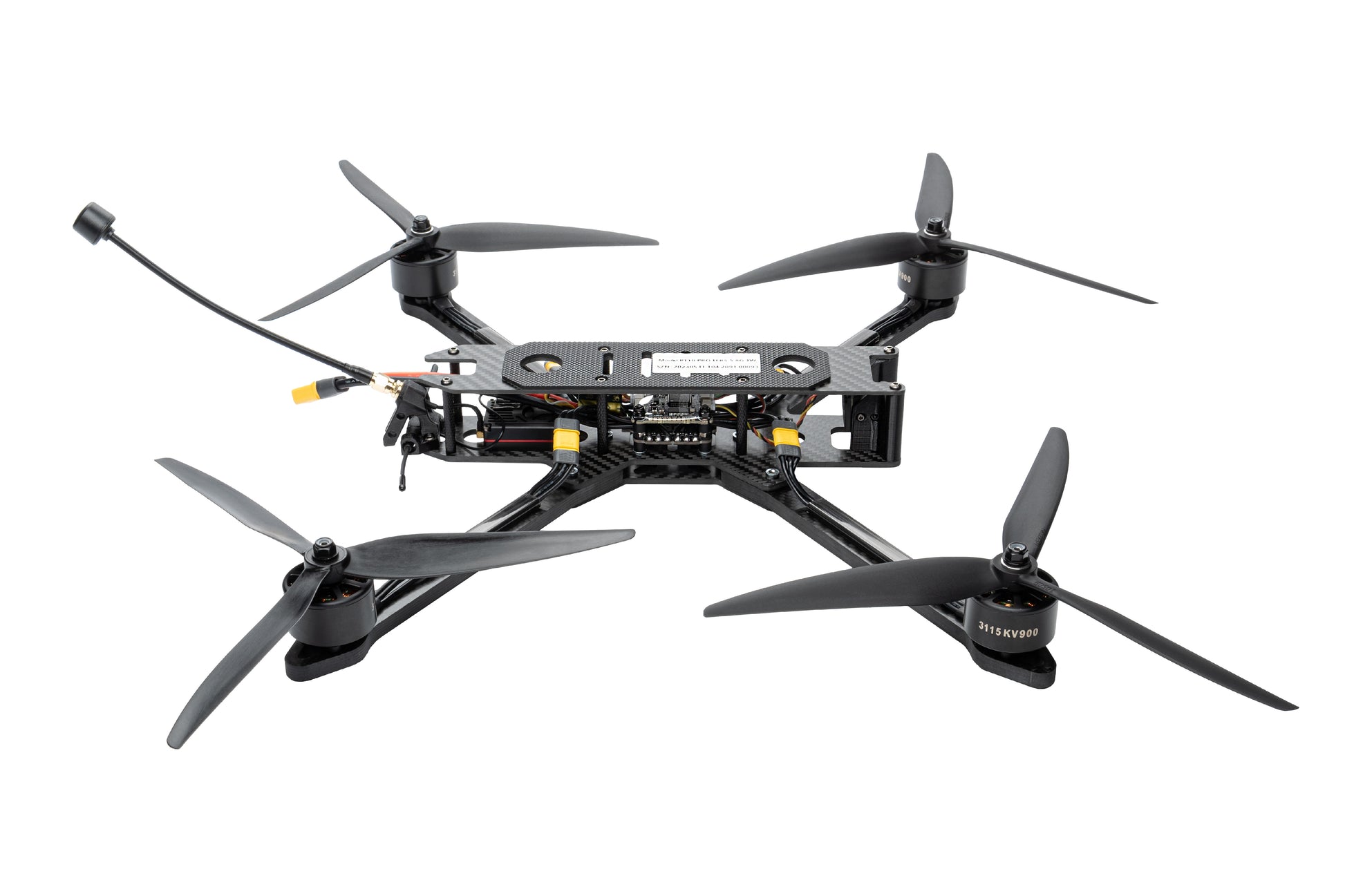

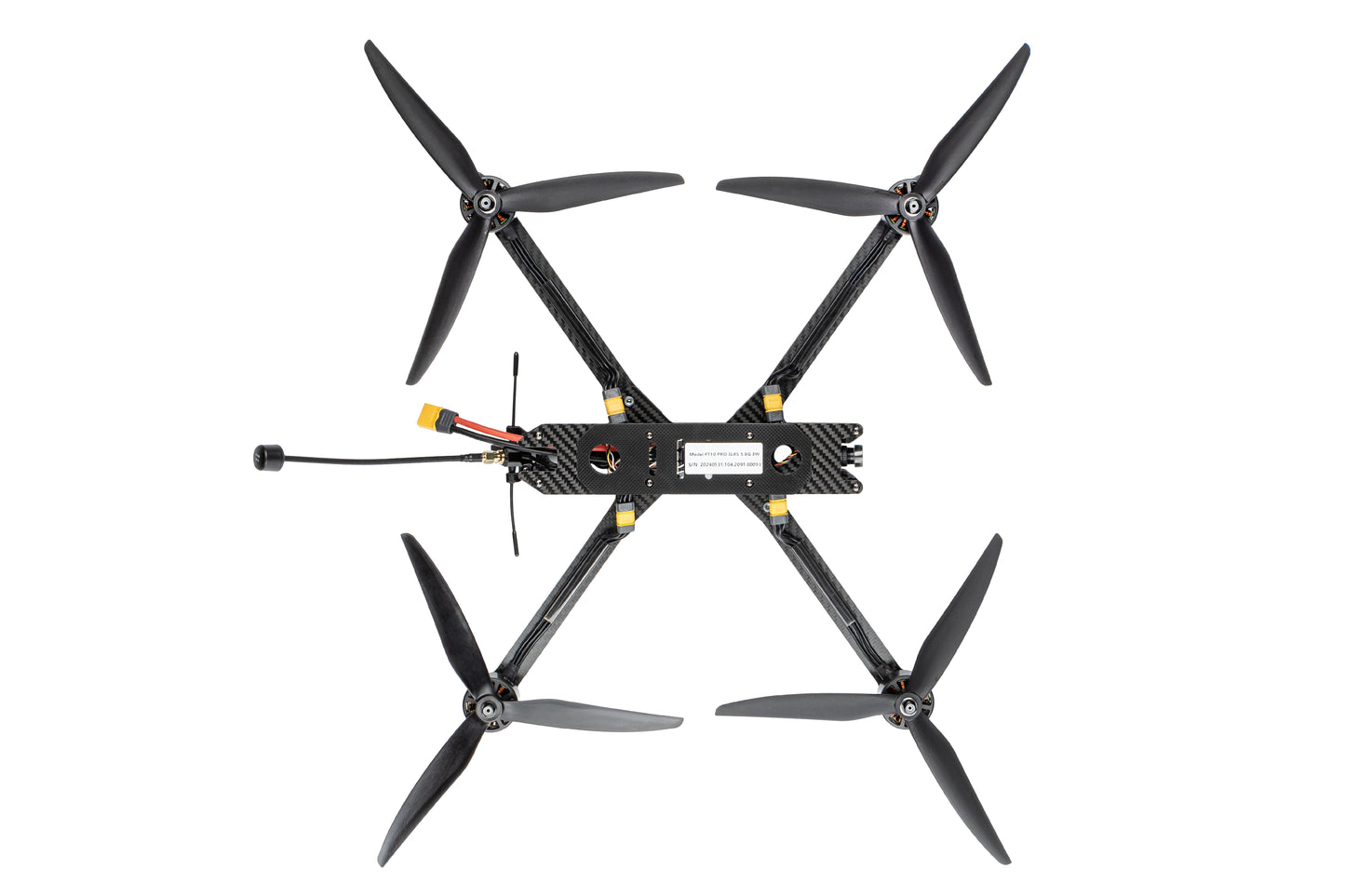

FPV drone Partizan PT10 PRO ELRS 5.8G 3W
PT10 PRO ELRS is a new version of the 10-inch drone designed by Partizan for long flights. Equipped with an ELRS 868/915 MHz receiver, it ensures a reliable and stable connection. The Pilotix 5.8G 3.0W VTX provides strong and clear video signals over a wide range, increasing the comfort of flight. This advanced FPV drone combines premium components and cutting-edge technology for superior performance and reliability, making it an ideal choice for both professional and hobby pilots.
Specifications:
- Model: PT10 PRO ELRS 5.8G 3W
- Frame: Partizan PT10 new version
- Dimensions: 374x309x50 mm
- Weight: 750 g
- Wheelbase: 428 mm
- Thickness of arms: 6 mm
- Bottom/top plate thickness: 2 mm
- FC: F405 V2 ICM42688P
- Firmware: Betaflight 4.4.3
- ESC: 60A (maximum 70A)
- VTX: 5.8G 3W
- VTX Antenna: Long 5.8G RHCP SMA
- Motor: 3115-900KV
- Propeller: GEMFAN 1050-3
- Camera: Caddx Ratel Pro
- Gimbal system: none
- Receiver: ELRS 915 MHz
- GPS: none
- Recommended battery: 6S 8000mAh Lipo
- Flight time with 8000mAh battery:
- 38 minutes (without load)
- 20 minutes (load 2.5 kg)
- 15 minutes (load 3.5 kg)
- Maximum speed: 145 km/h
- Maximum flight altitude (MSL): 6000 m
- Maximum climb speed: 15 m/s
- Stable working temperature range: -20℃ - 50℃
- Load: 3000-3500 g
The package contains:
- 1x Partizan PT10 PRO ELRS 5.8G 3W
