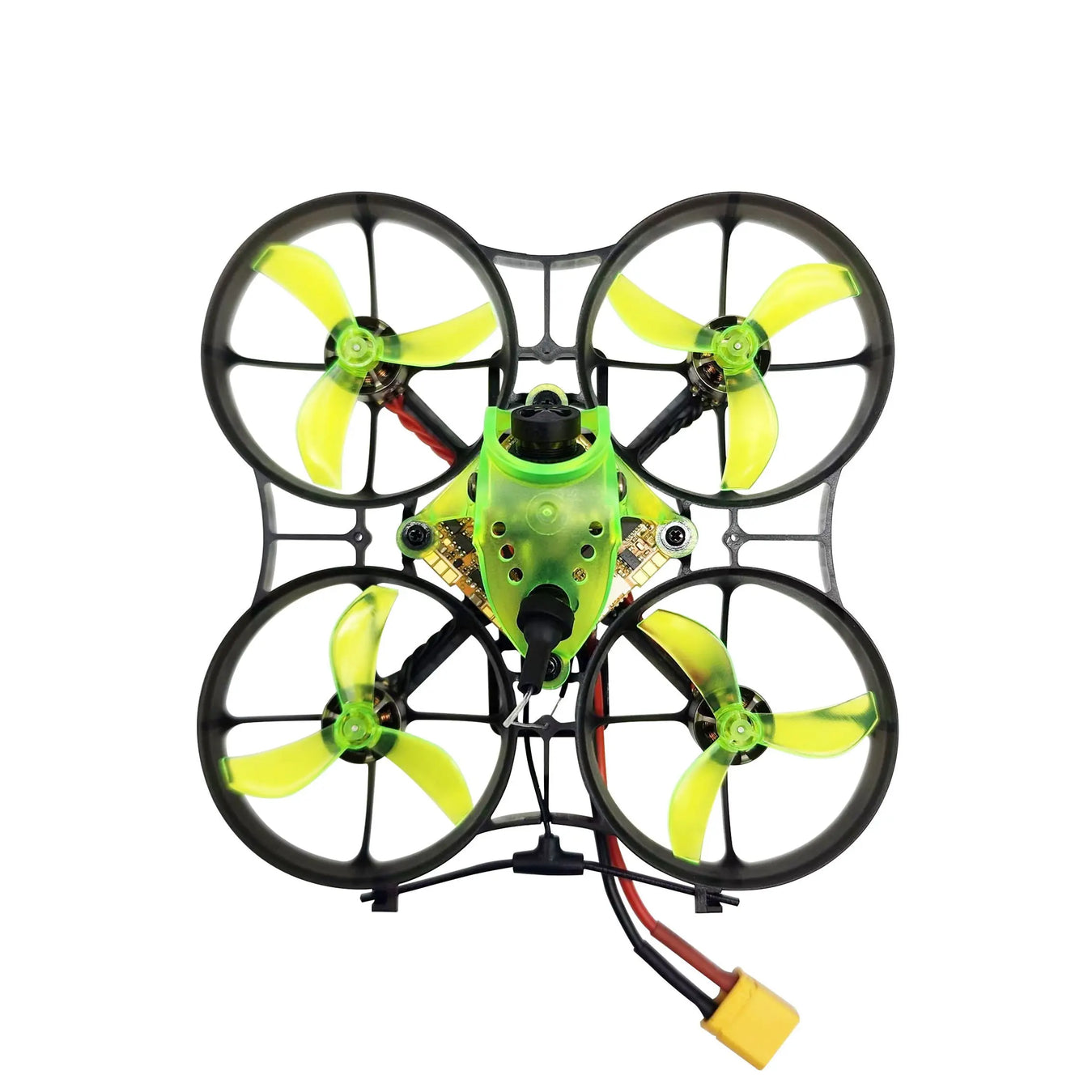

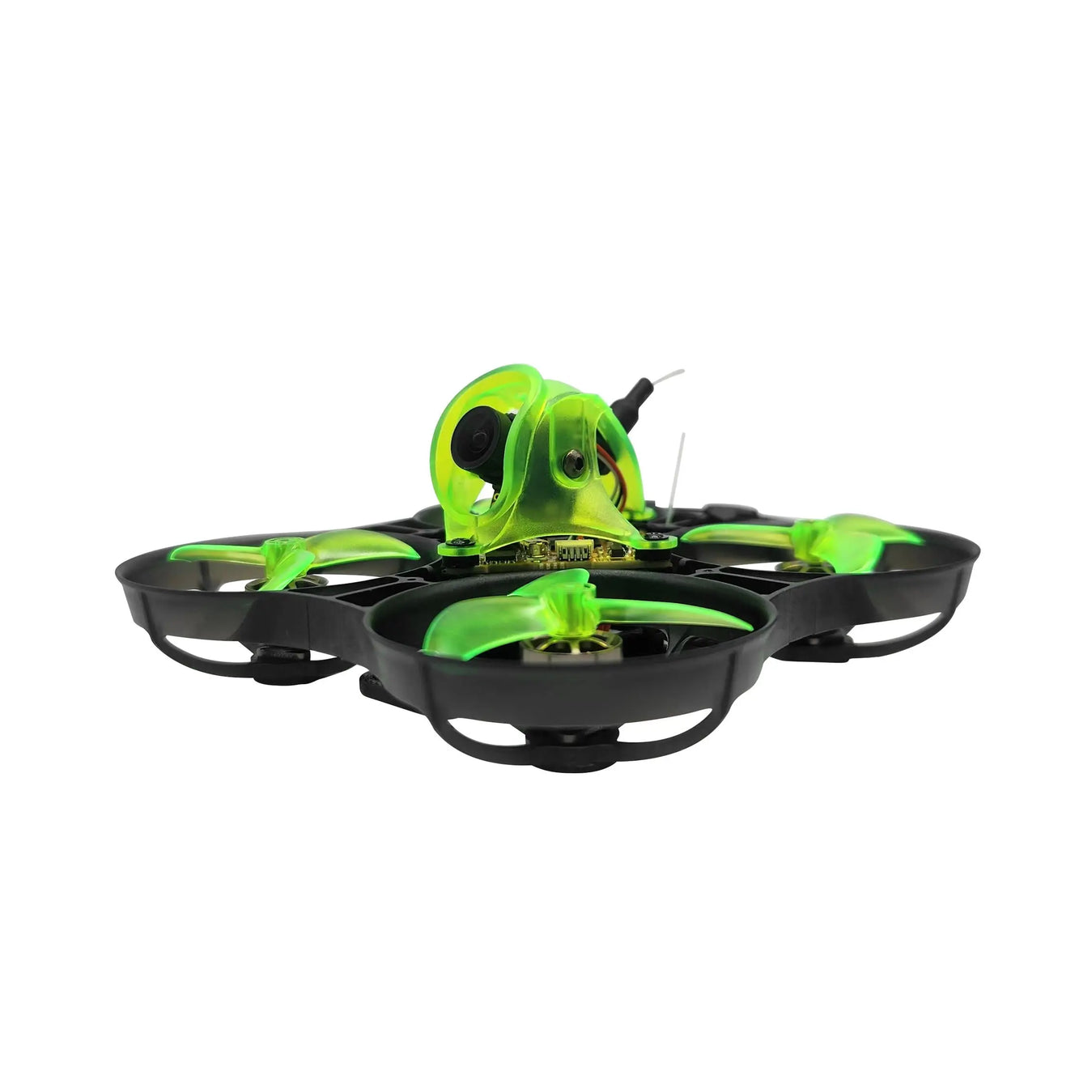

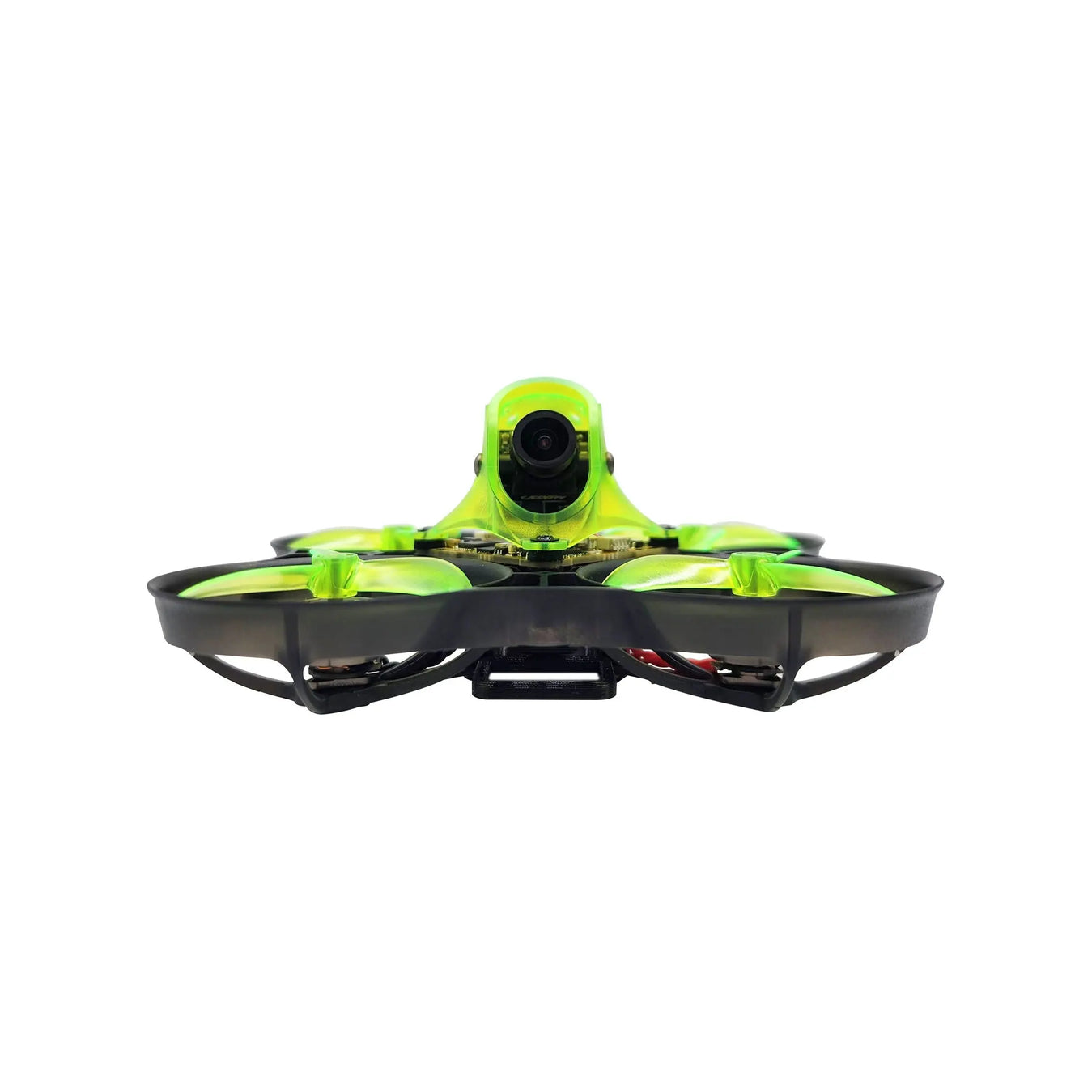

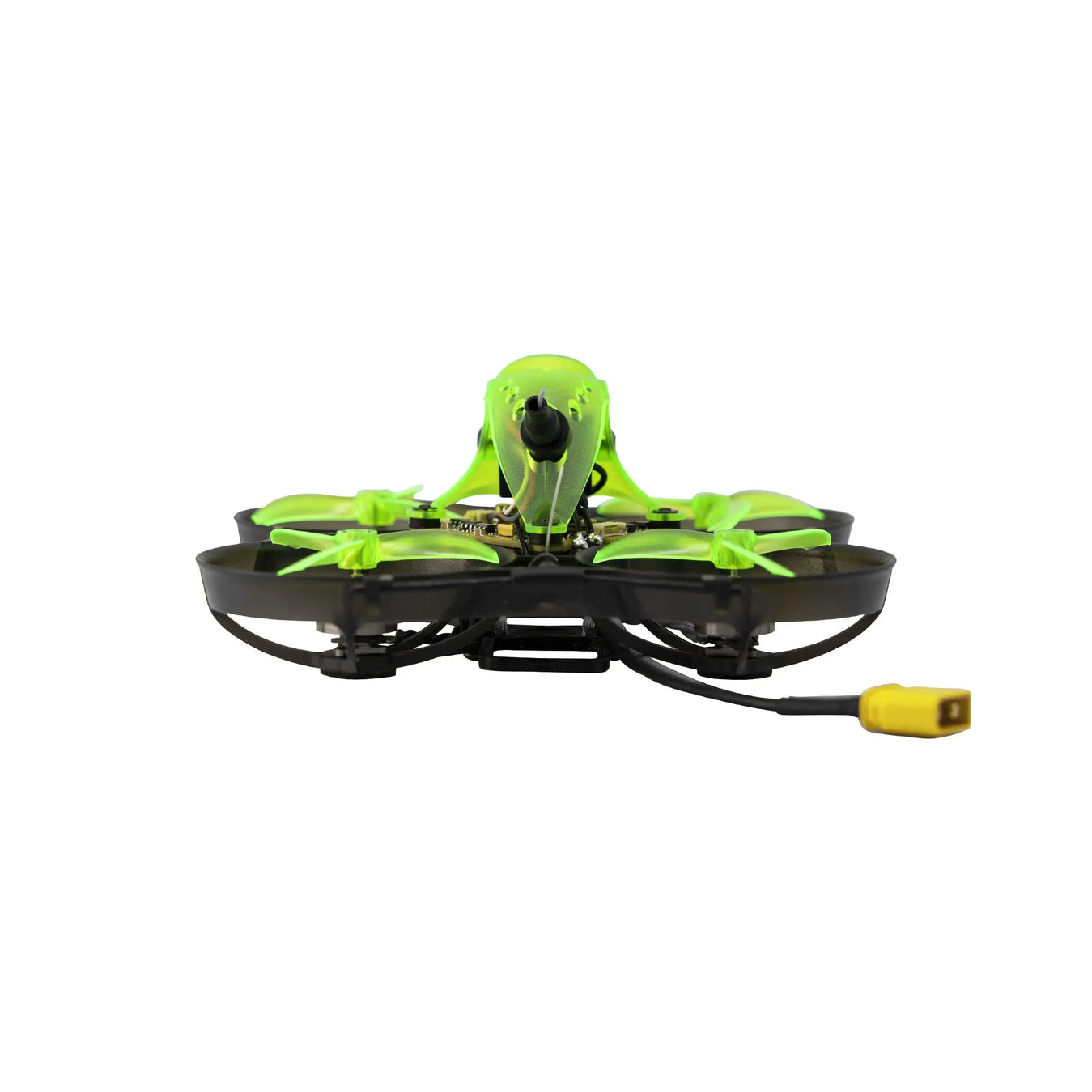

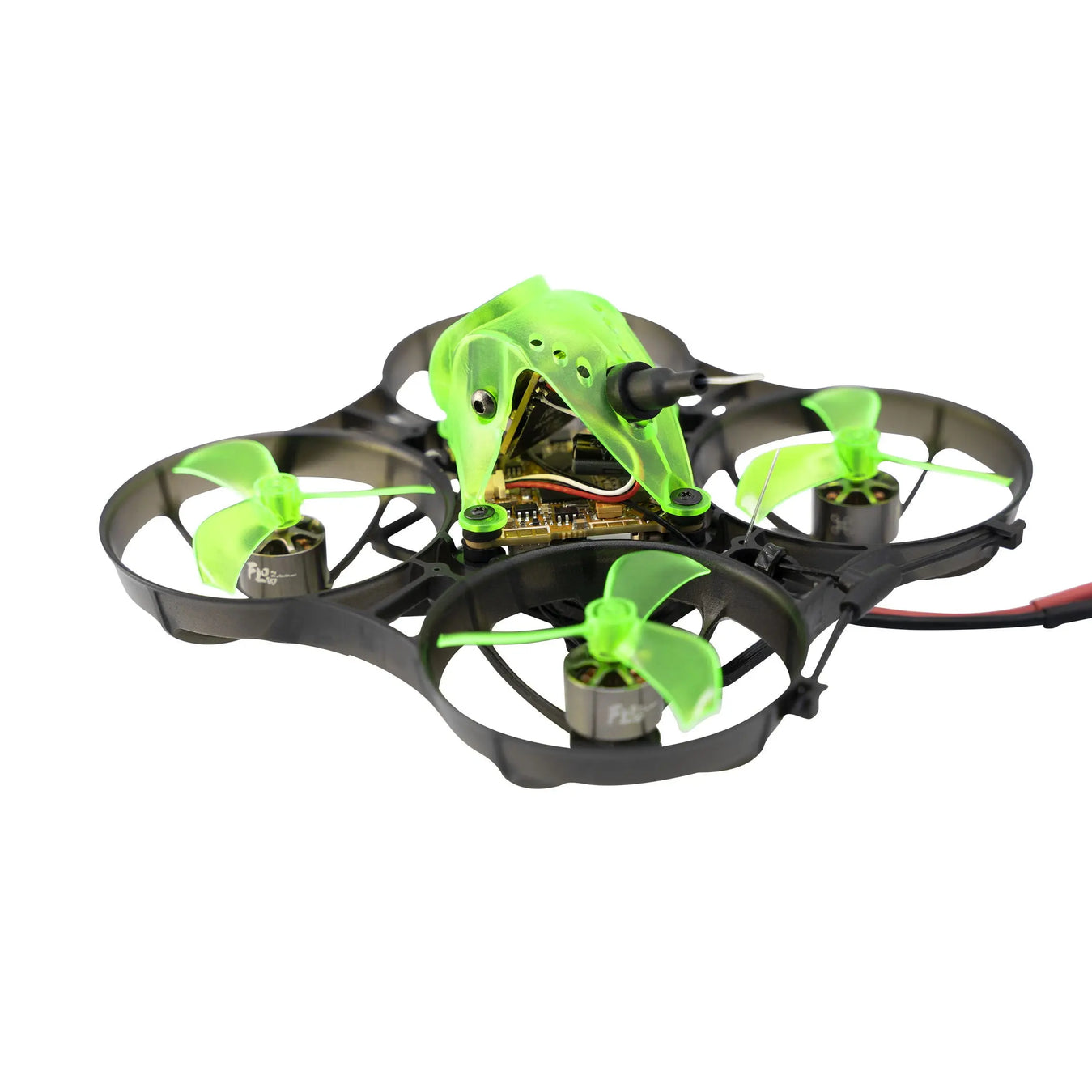

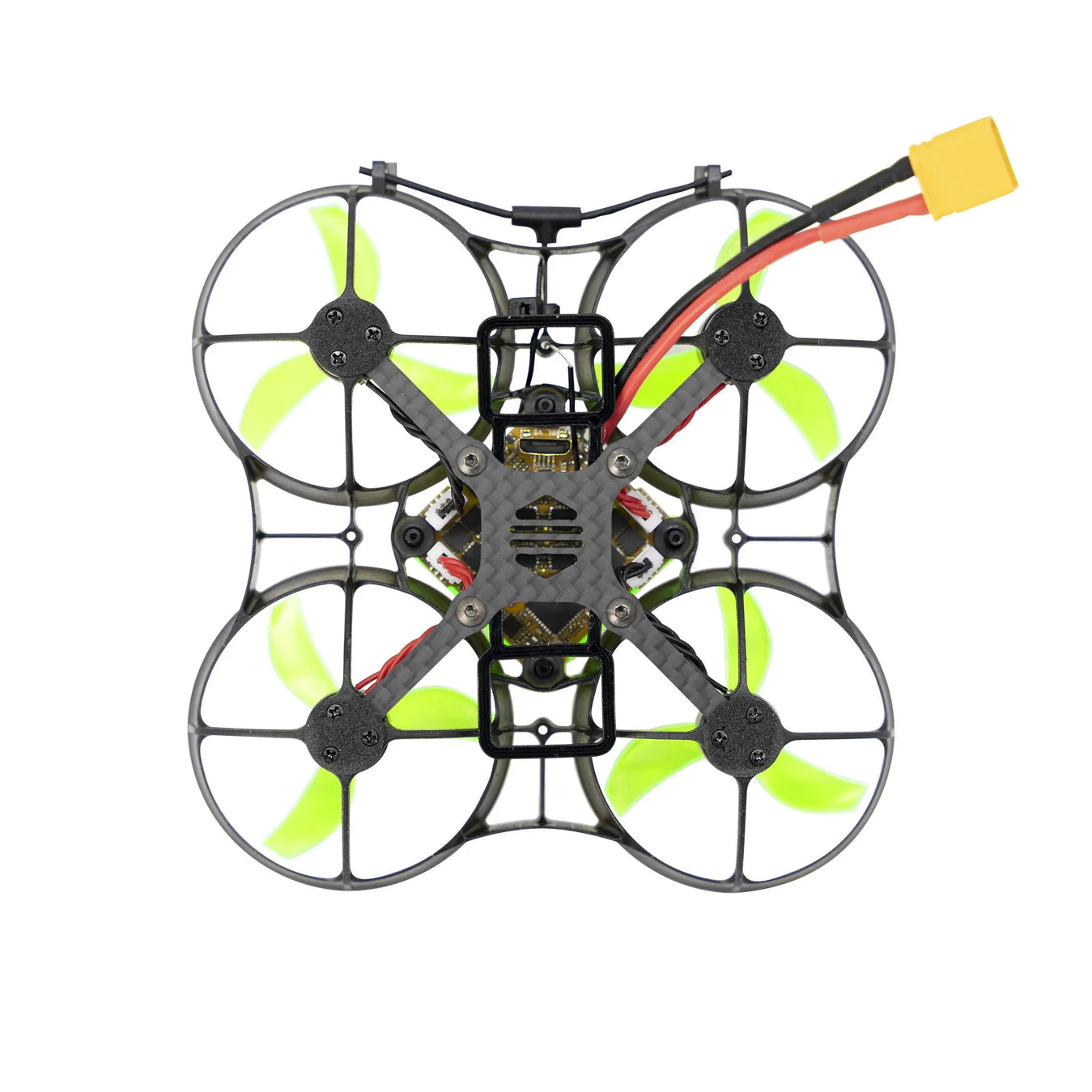

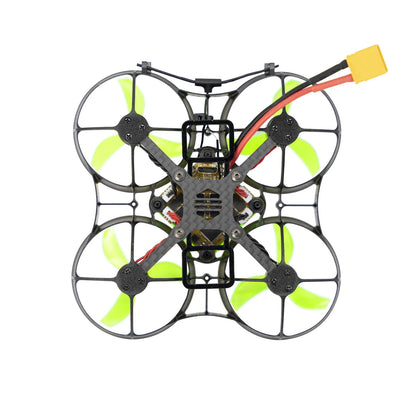

FPV Drone NewBeeDrone AcroBee75 BLV5 2.4G 2S BNF The NewBeeDrone AcroBee75 BLV5 BNF ELRS2.4G 2S is the latest in the BeeBrain series, which represents the 5th generation of flagship flight controllers. This powerful 75mm analog helicopter combines an advanced BeeBrain BLV5 flight controller with a robust hardware assembly, including 0804 14000KV motors on a 2S power configuration, delivering incredible performance and long flight times. Even with a compact 2S 450mAh battery, the NewBeeDrone AcroBee75 BLV5 BNF ELRS2.4G 2S achieves an impressive 4:30 minutes of free flight and up to 6:30 minutes of hovering. Featuring a TXCO UART-based ELRS diversity receiver for extended range and a 400mW VTX with intelligent power management, this helicopter is designed to provide stable connectivity and performance, making it the perfect companion for outdoor adventures. Specifications: Flight controller: BeeBrain BLV5 FC MCU: STM32G474 216MHz Gyro: MPU6000 VTX: 25mw/100mw/Smart-Max(400mw) Camera: Caddx Ant Nano 1200TVL ESC: Double N-MOS 1 Channel 18A Running Z-H-40 Bluejay 0.19.2 48KHz Motor plug: JST-1.0 3Pin Receiver: Built-in TCXO Crystal Oscillator ExpressLRS 2.4GHz Diversity Receiver(Uart Base) Flight control weight: 5.8g Flight control size: 29x29x7.6mm, 25.5x25.5mm Input battery: 1S-2S Recommended battery: 2S 550mAh, 650mAh, 850mAh Power connector: XT30 Frame: Frame: NewBeeDrone 75mm Propeller: NewBeeDrone Azi 40mm (Tri-Blade) Micro Propeller Motors: Flow 0804 14000KV AC motor Camera mount: Goober Canopy V2 Weight: 36.4g (without battery) The package contains: 1x FPV drone NewBeeDrone AcroBee75 BLV5 2.4G 2S BNF 1x Set of props (4 pcs)
