X413 Analog 5.8G 2.5W 8S (PNP)

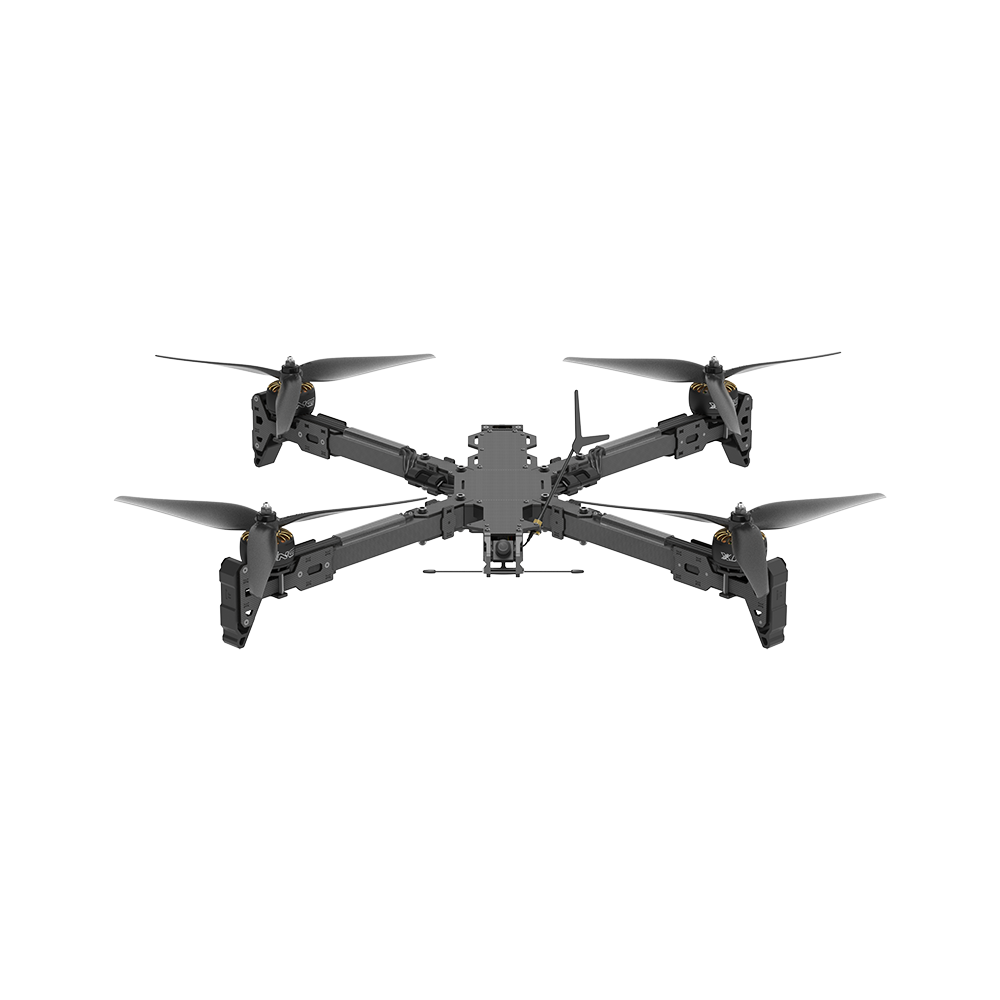

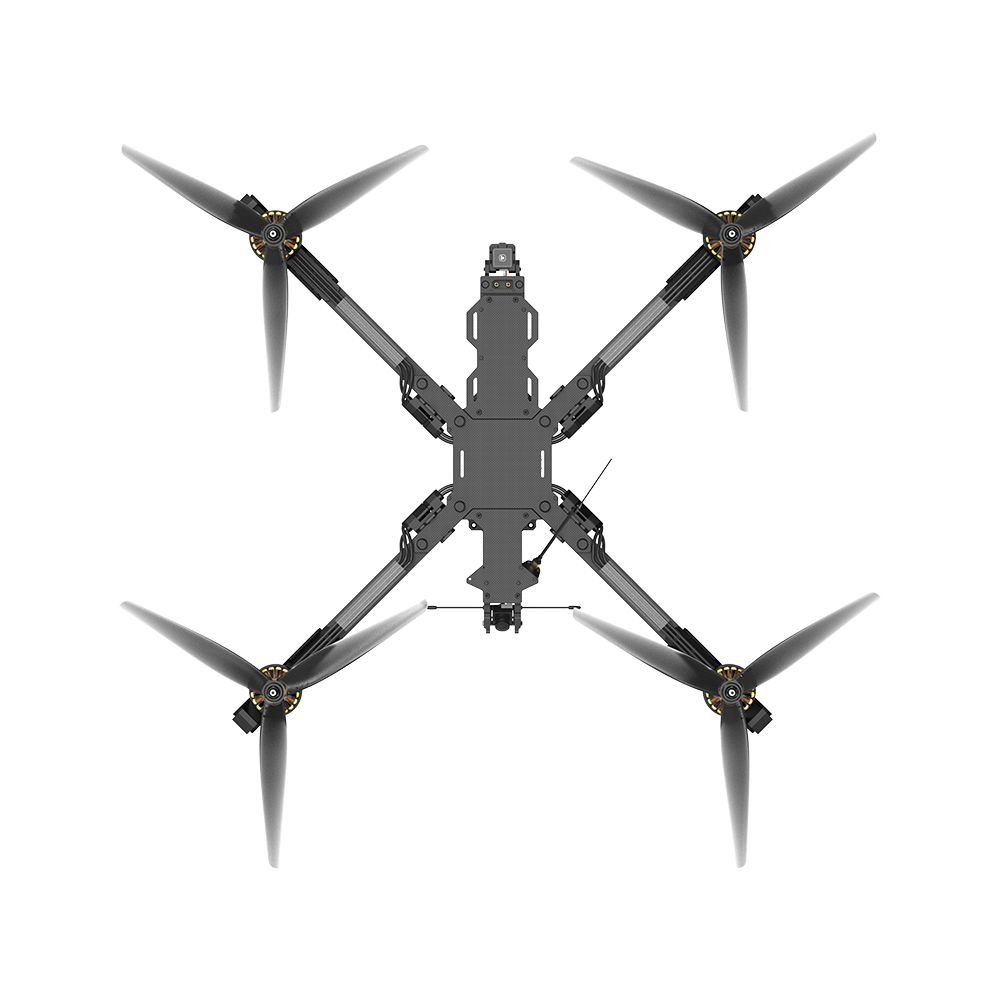

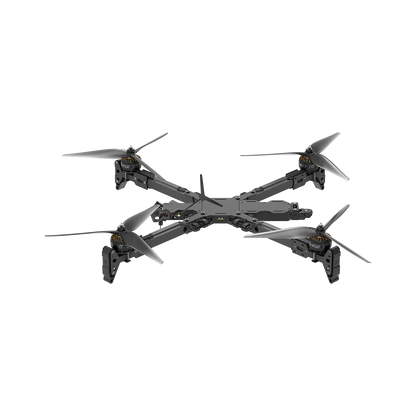

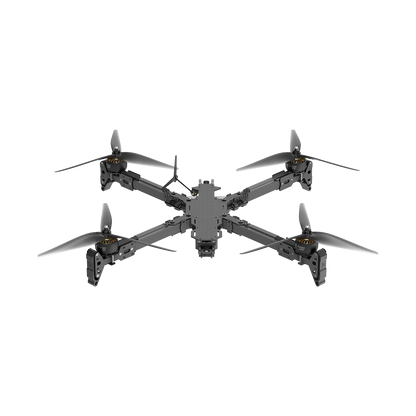

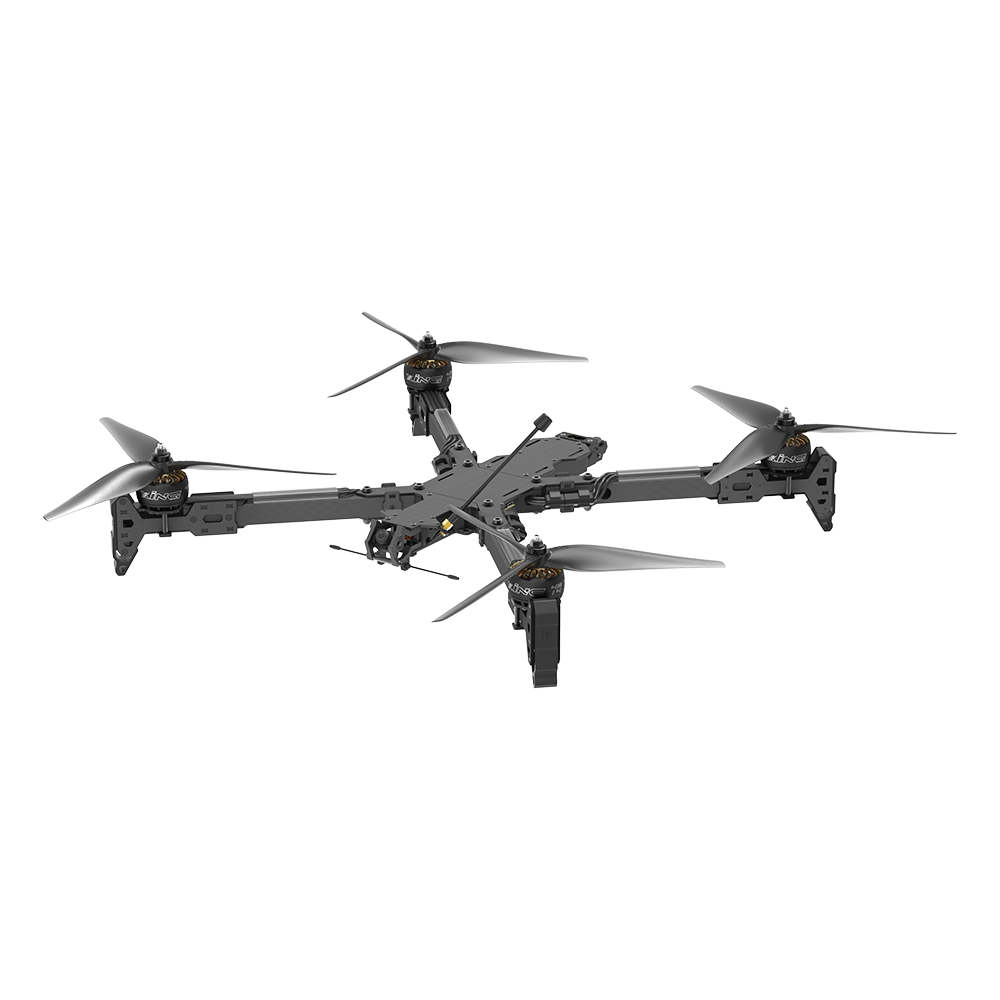

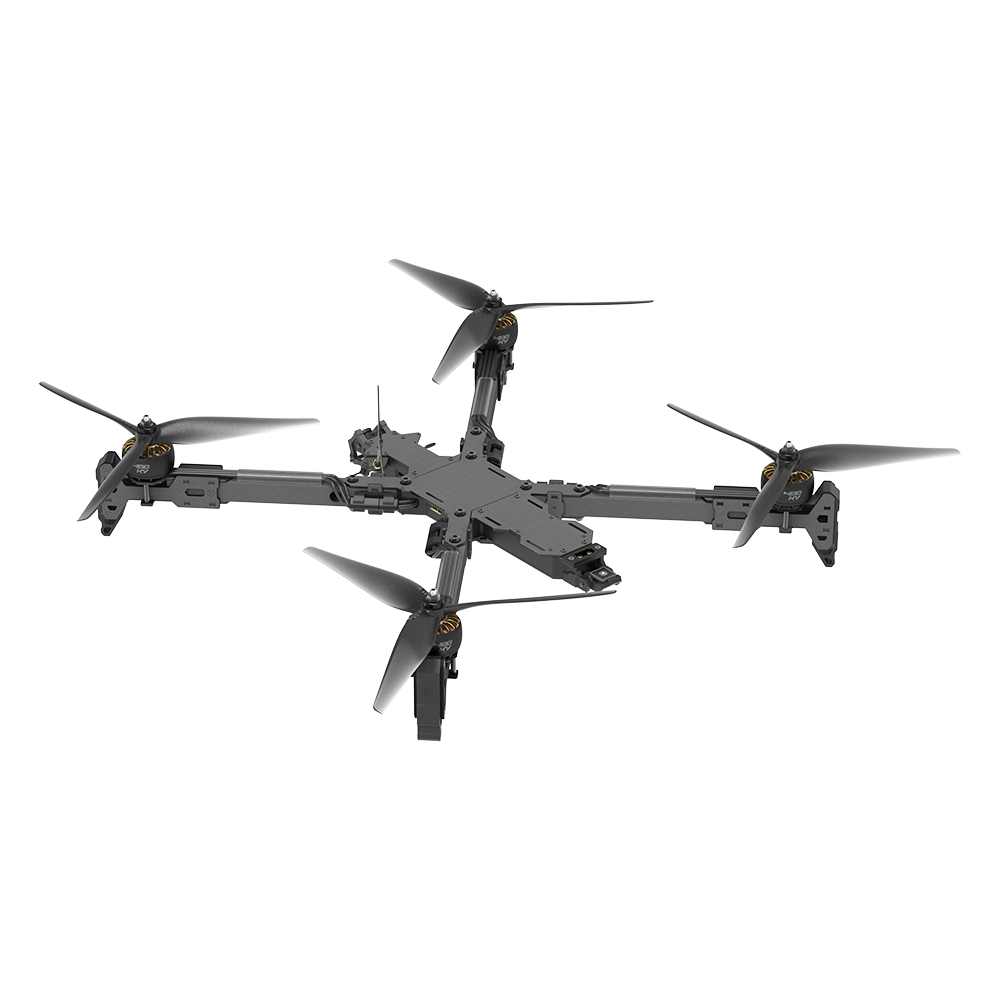

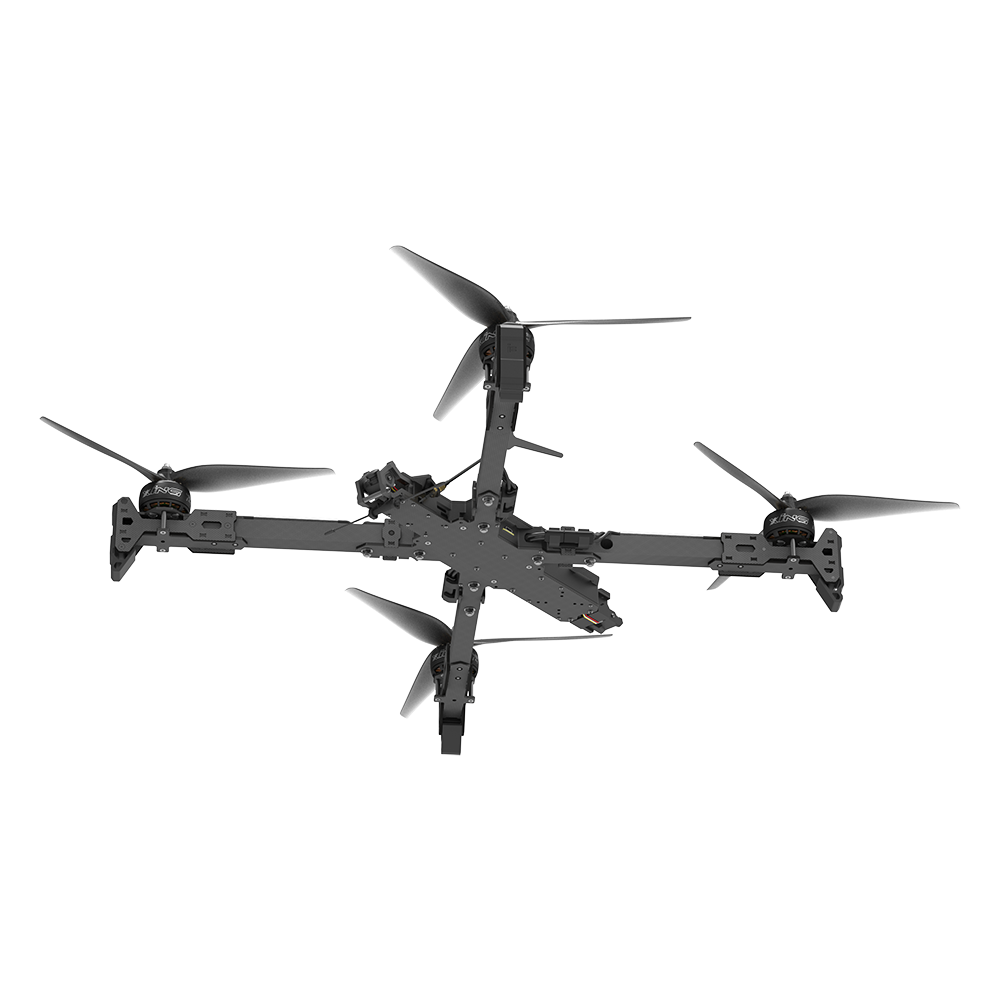

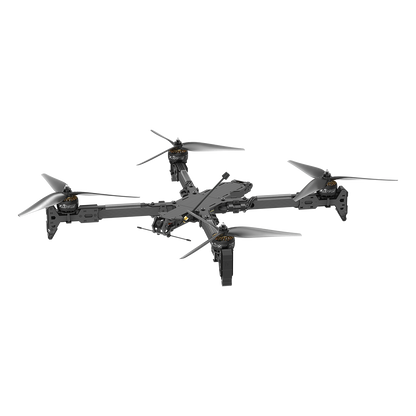

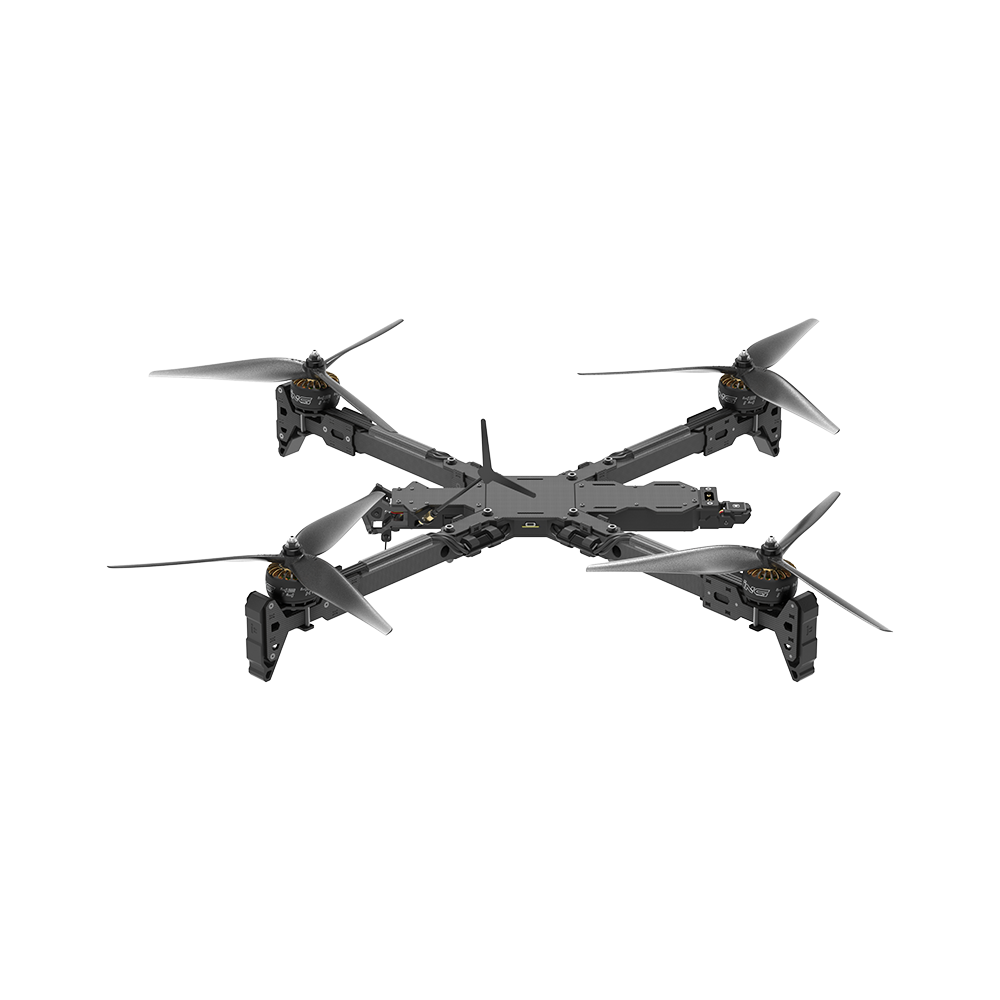

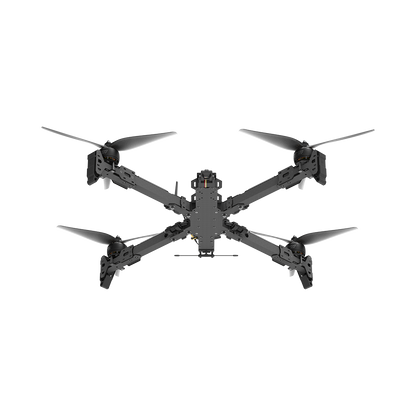

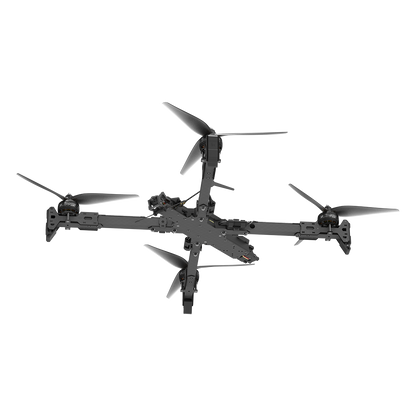

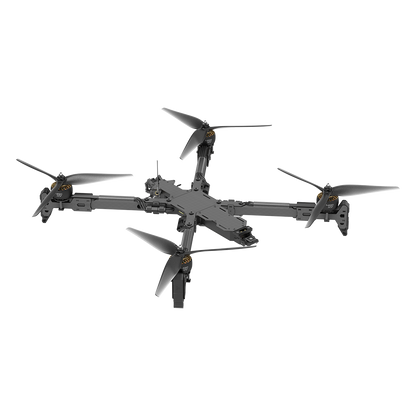

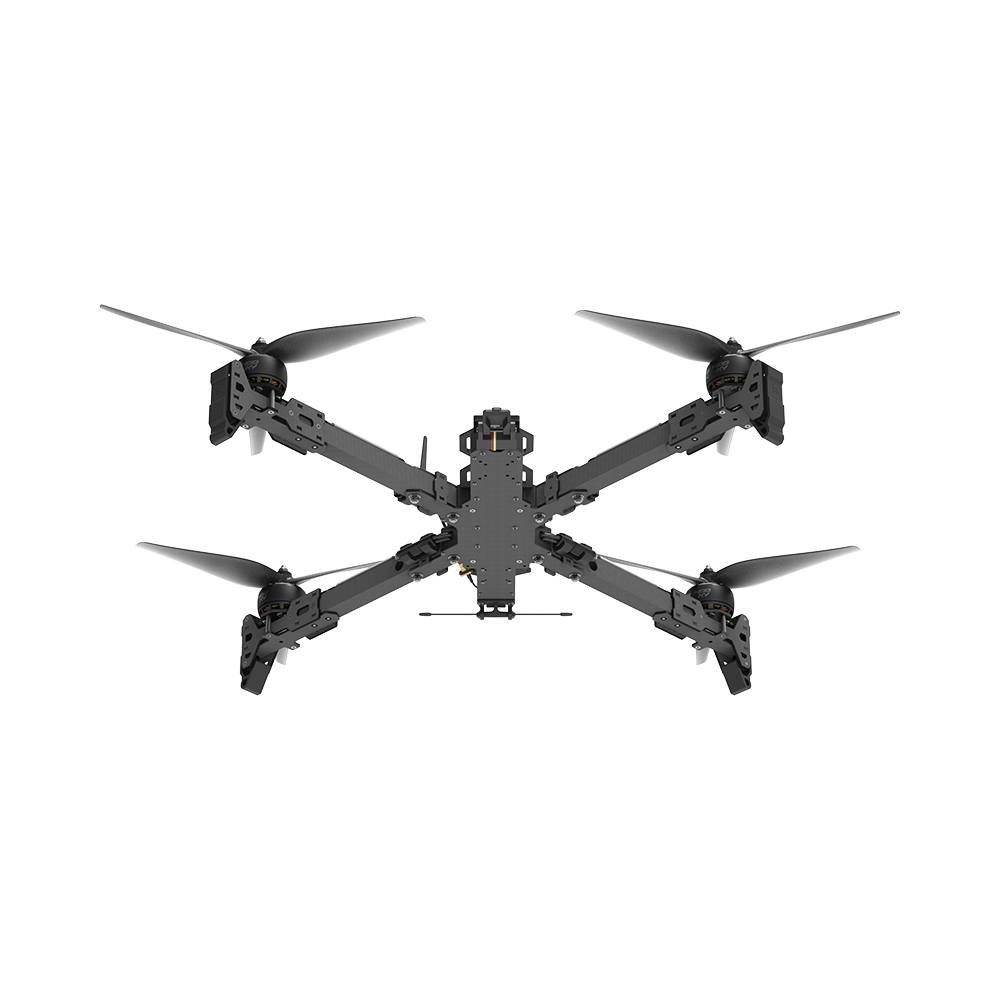

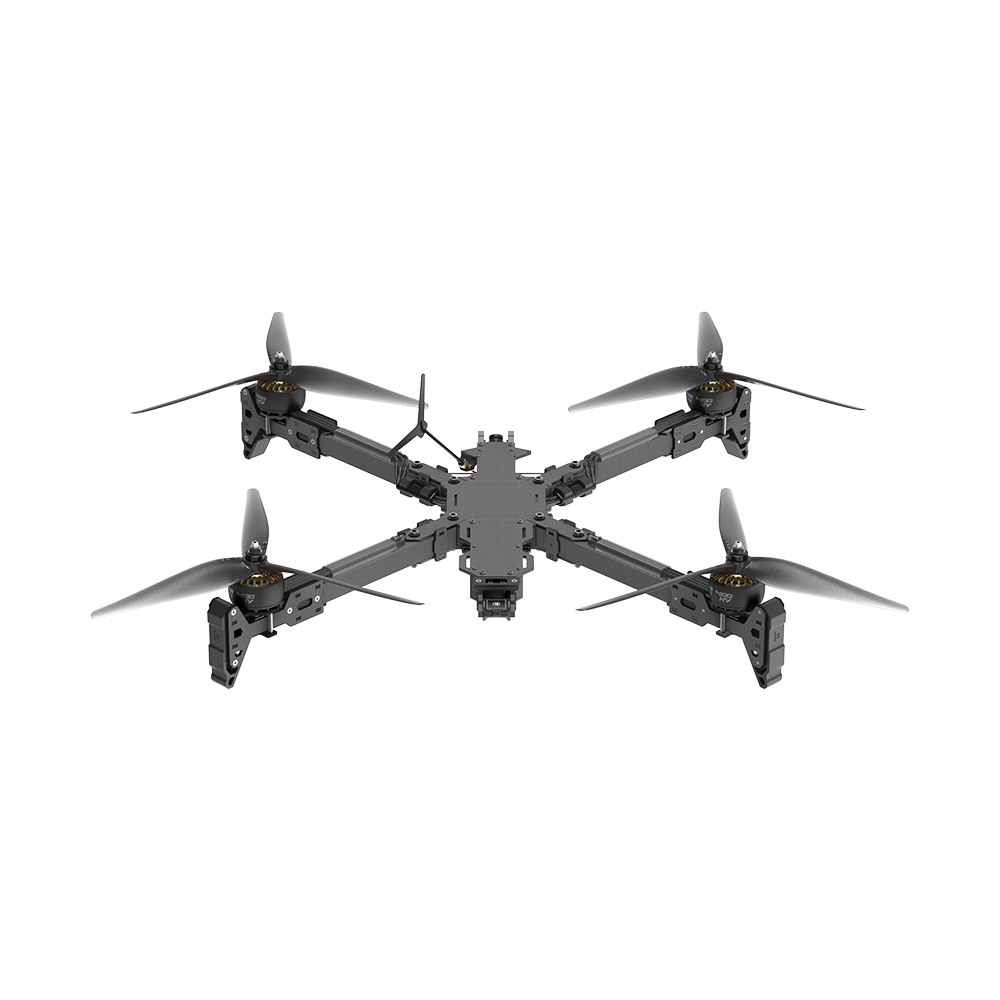

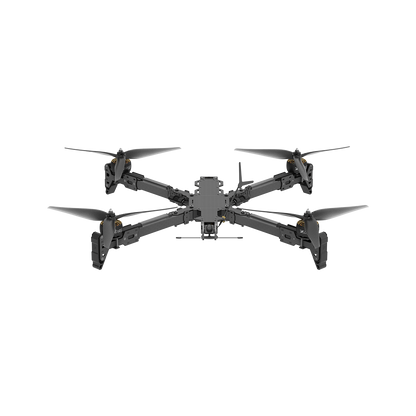

The X413 8S Analog is a 13" BNF quadcopter that comes with a BLITZ Whoop VTX video transmission system and 13" 3-blade HQ propellers. The X413 has been pre-tuned and set up with everything you need, all you have to do is strap and fly! Packed with plenty of power, it comes with XING 4214 motors, BLITZ F7 Pro flight controller, pre-installed GPS module and BLITZ E80 Pro 4-IN-1 ESC.
Specifications:
Product name: X413 Analog 13-inch
Receiver Option: Without RX (PNP)
Camera: RaceCam R1 Mini 1200TVL 2.5mm
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 4-IN-1 For ESC
Video transmission: 5.8G 2.5W VTX
Frame: wheelbase 599 mm
Engine: XING 4214 engines
Propeller: 13X9X3 propeller
Weight: 2070 g (without battery)
Dimensions (L×W×H): 425x425x26mm
Maximum speed: 140 km/h
Maximum take-off height: 6000 m
Maximum transition time:
- 18 minutes (with 8S 5600mAh without load)
- 7 minutes (with 8S 5600mAh 4KG load)
- 5 minutes (with 8S 5600mAh 6KG load)
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video transfer
Product Name: BLITZ Whoop 5.8G 2.5W VTX
Output power: 0-25-400-1000-2500mw
Input voltage: 7-34V
Working current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@0mA 7
Free gear: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 25*25/φ1.6mm
Weight: 32g
Dimensions: 50*30*16mm
The package includes:
1 x X413 8S analog BNF (PNP)
1 x battery pad
1x antenna
2 x propellers (pair)
3x battery straps
1 x bag of screws
