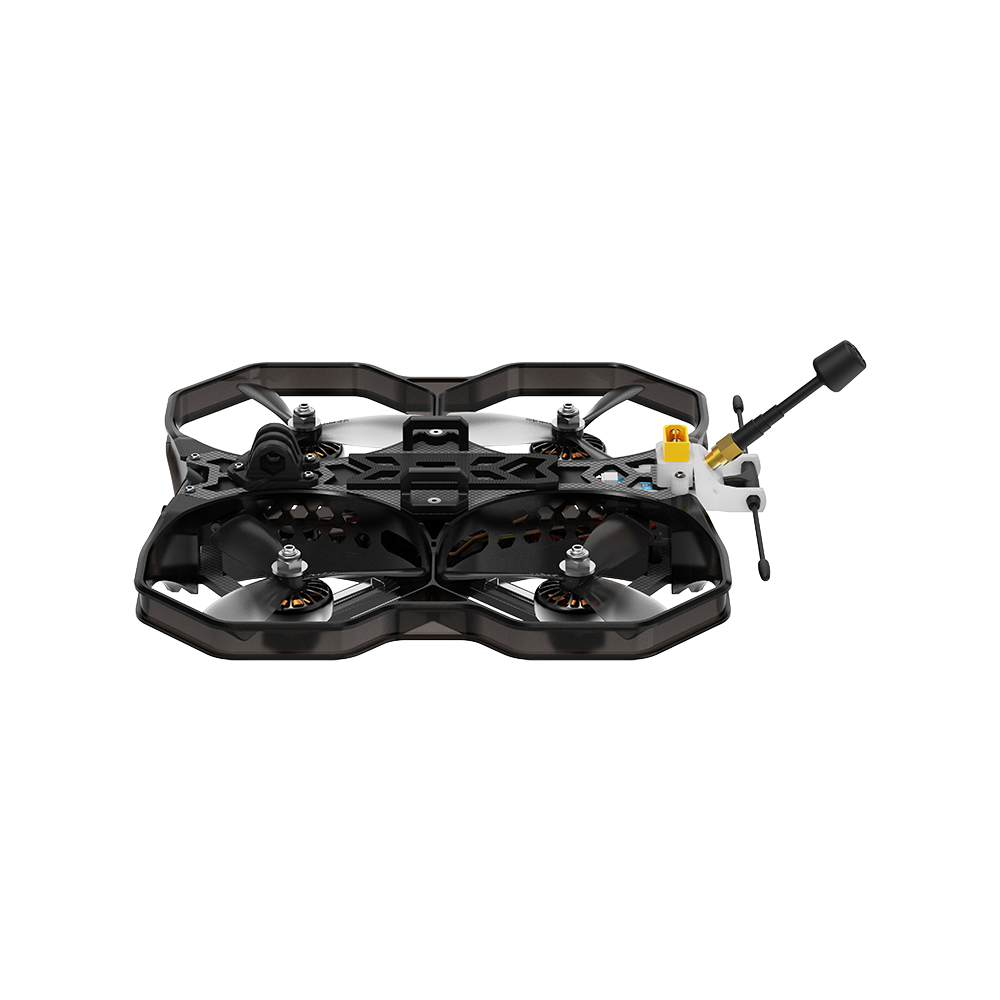

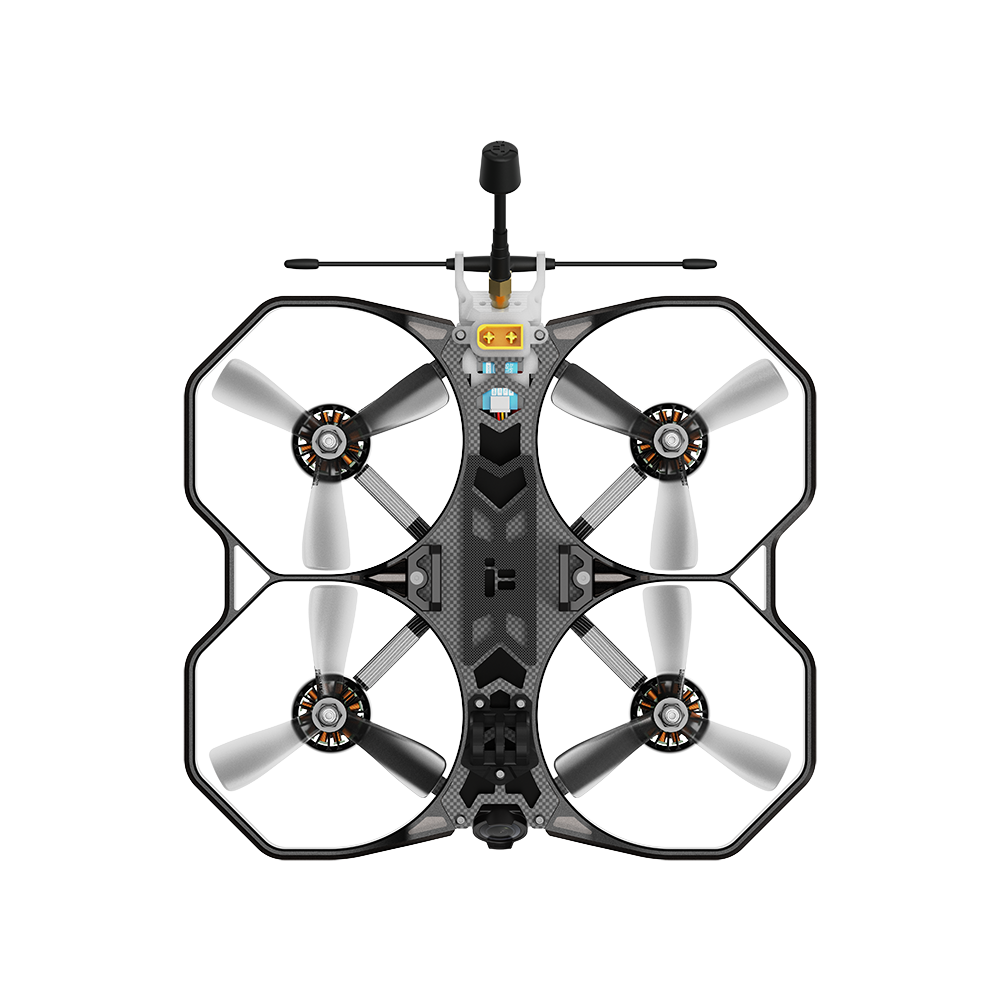

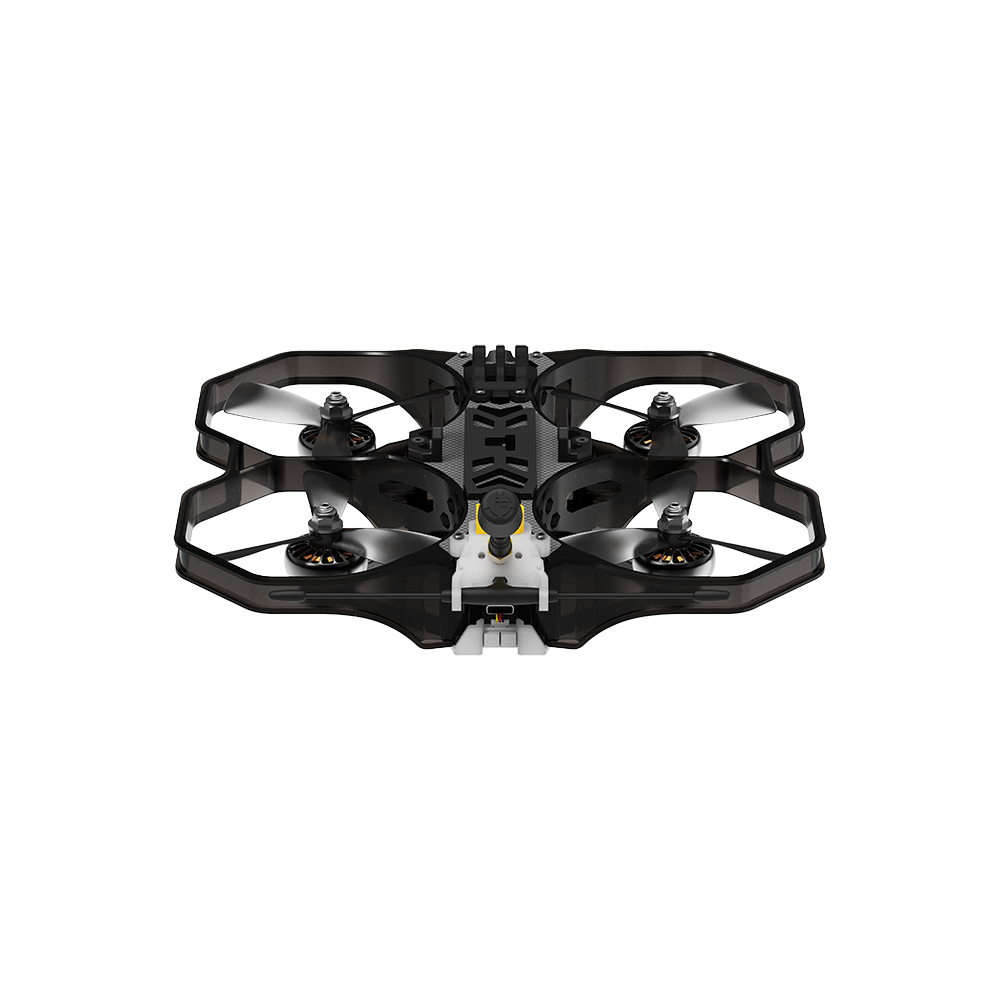

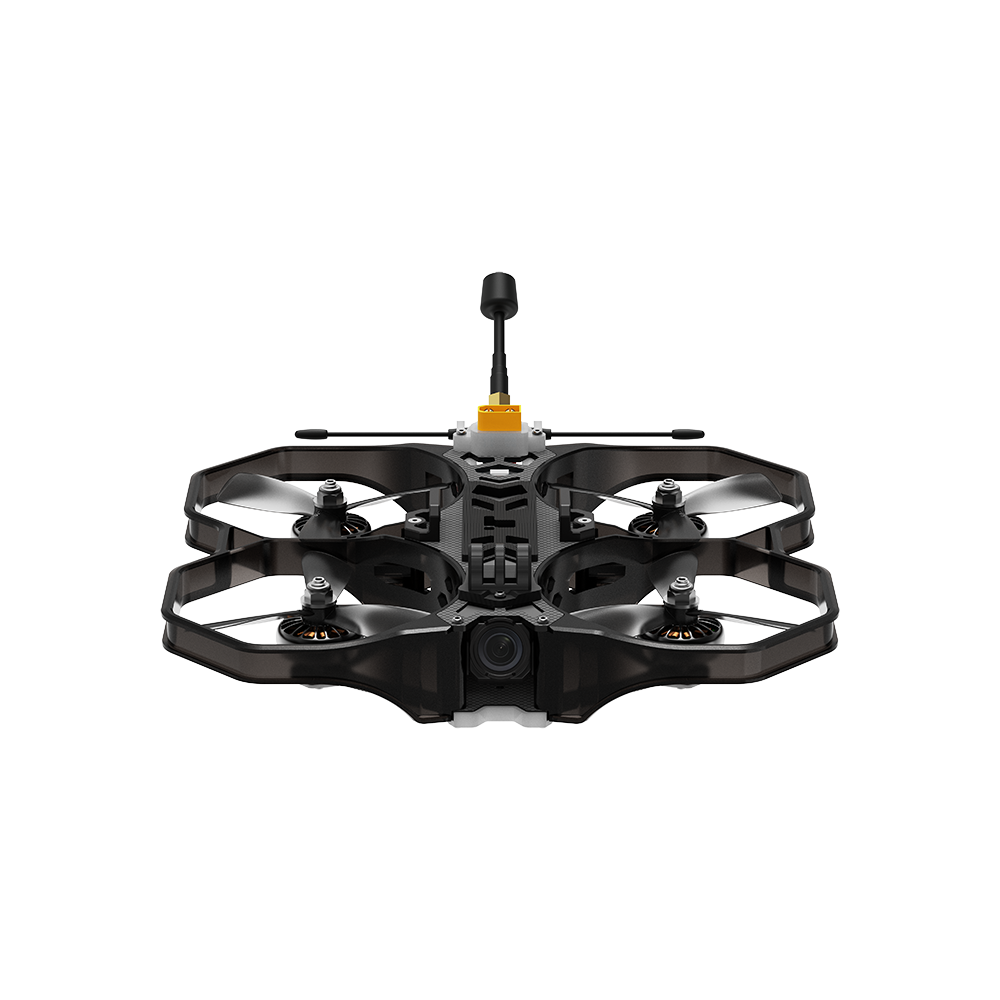

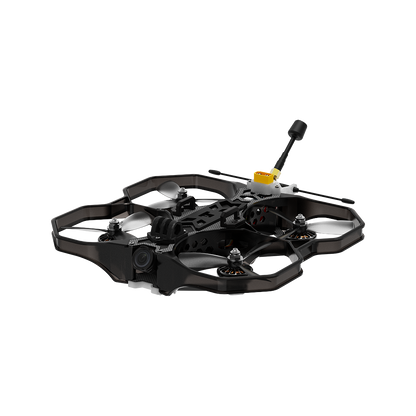

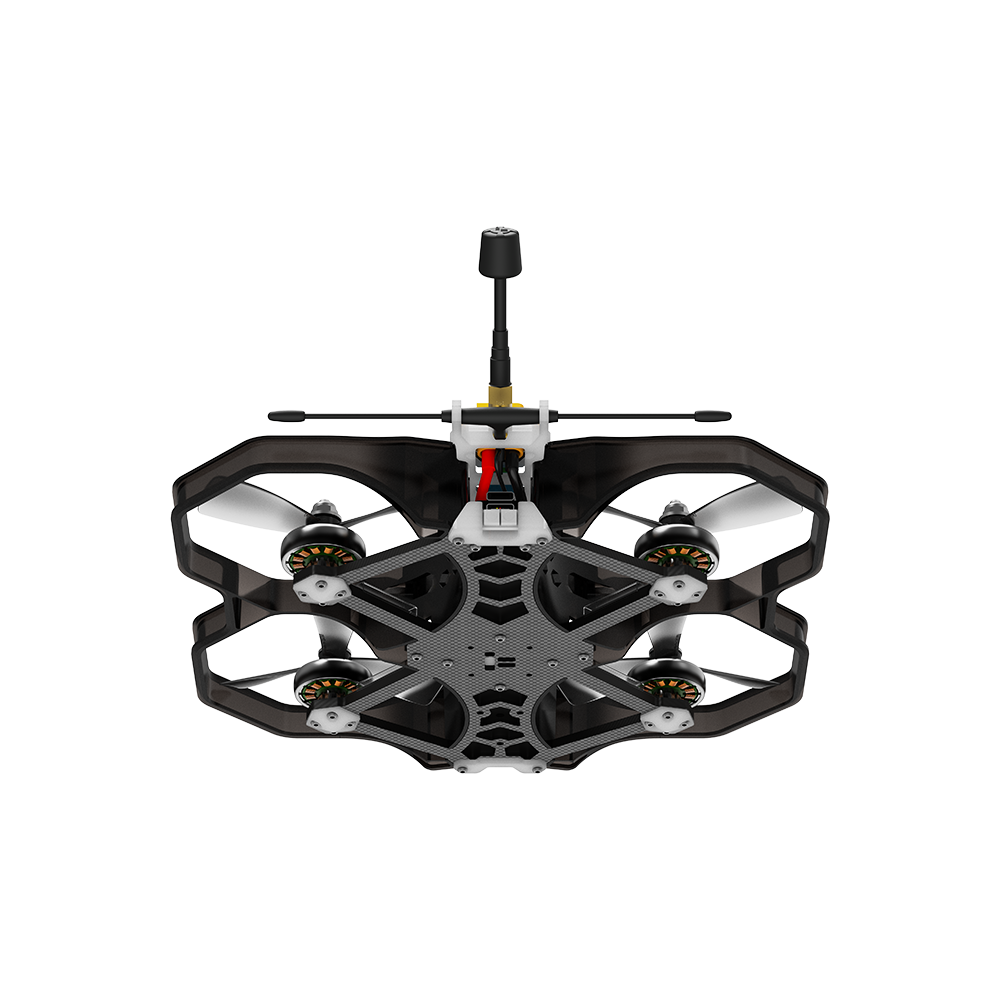

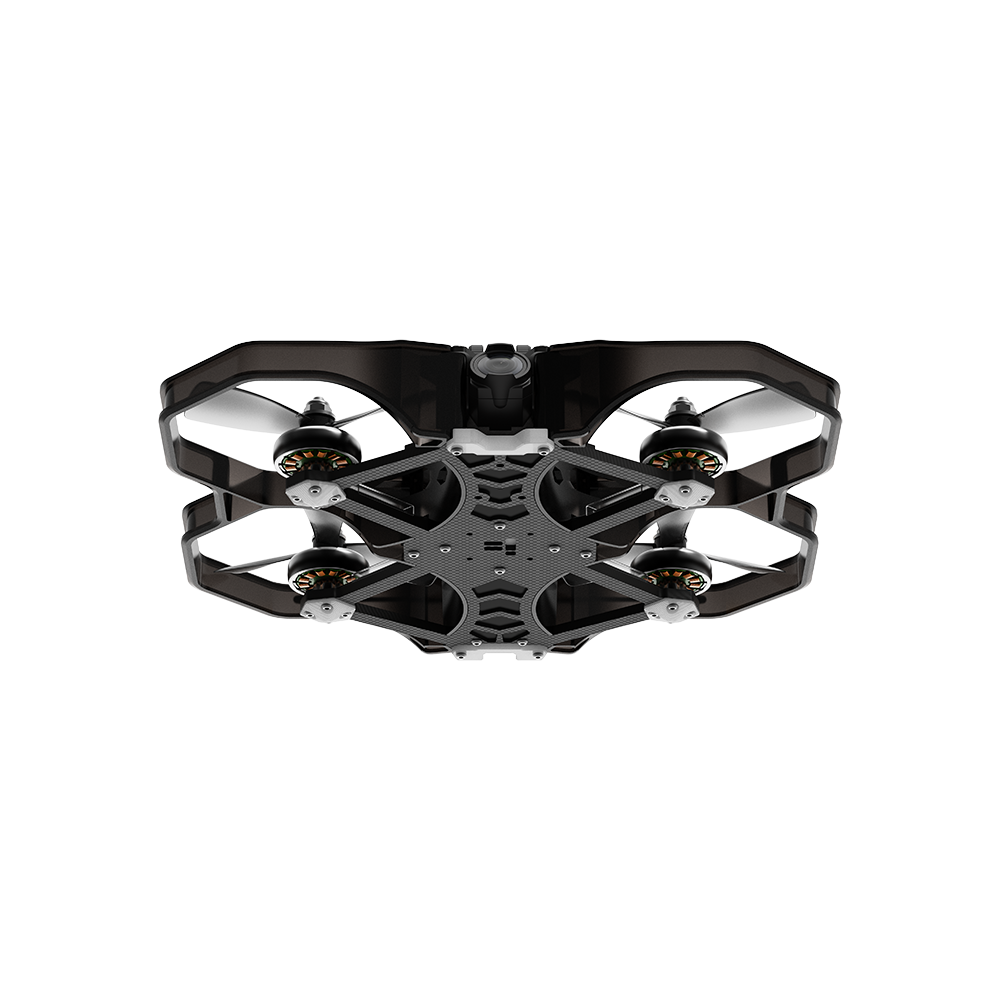

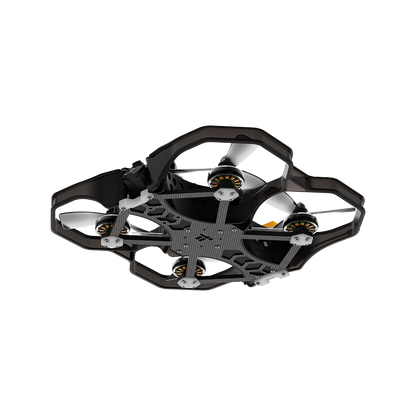

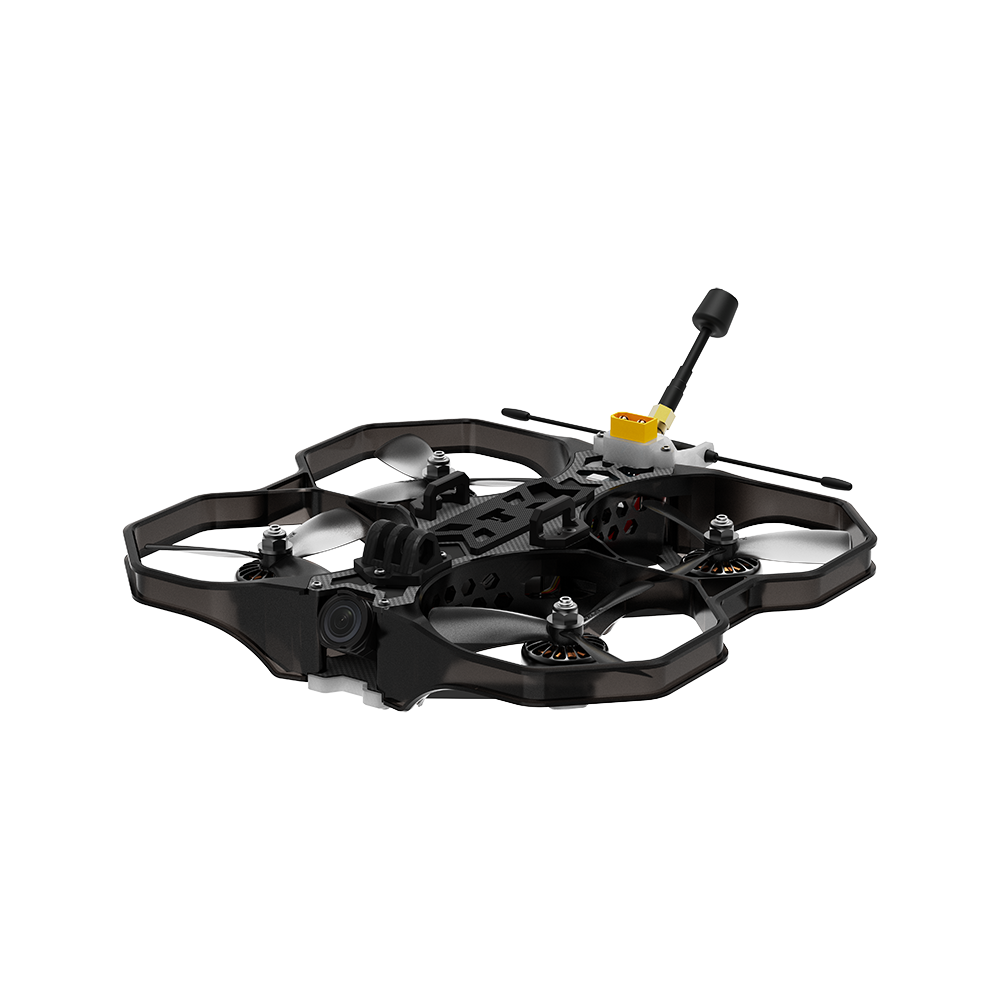

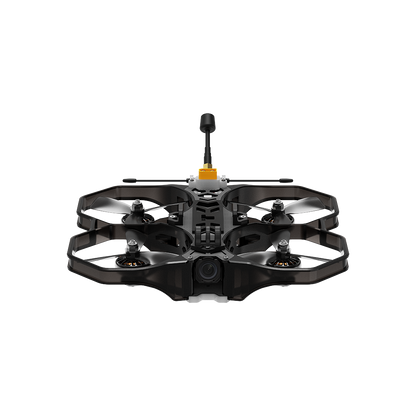

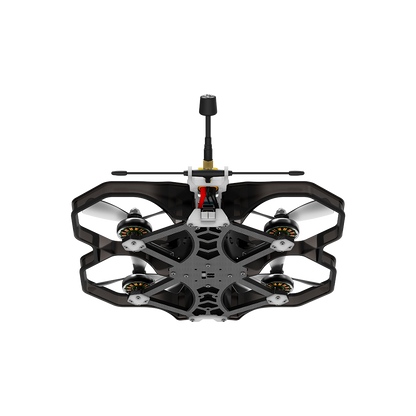

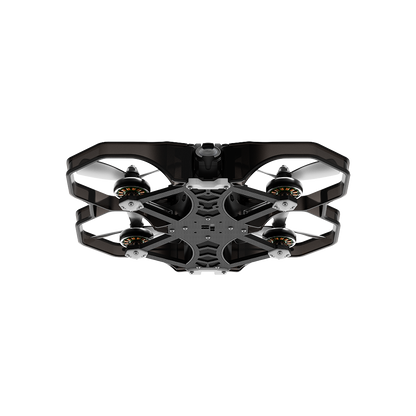

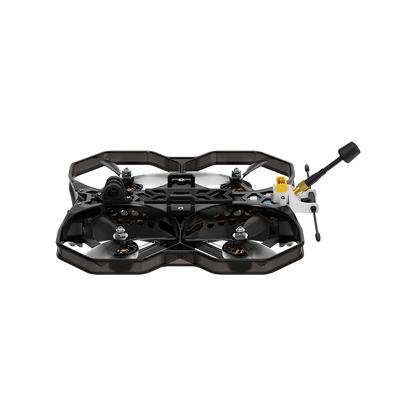

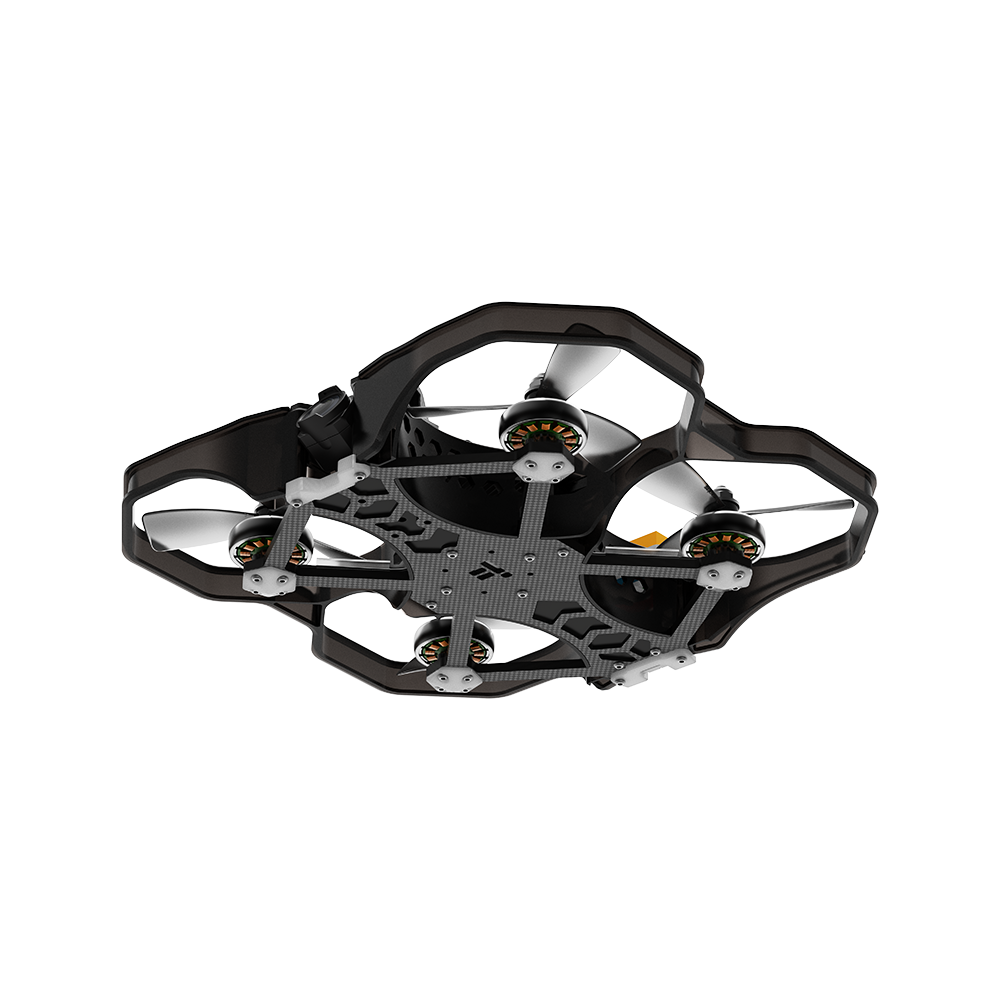

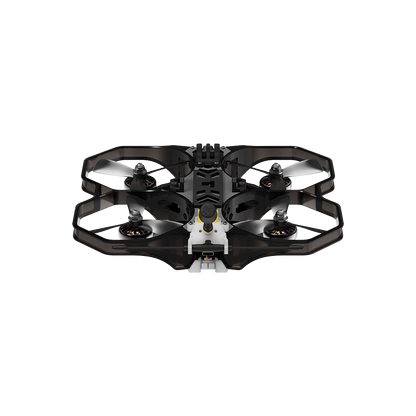

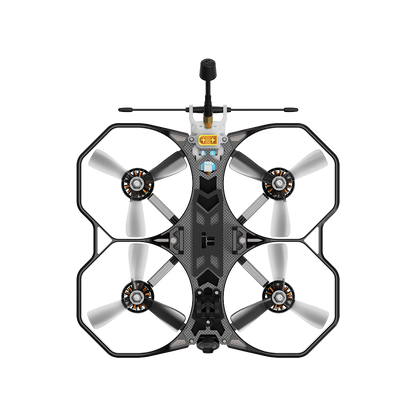

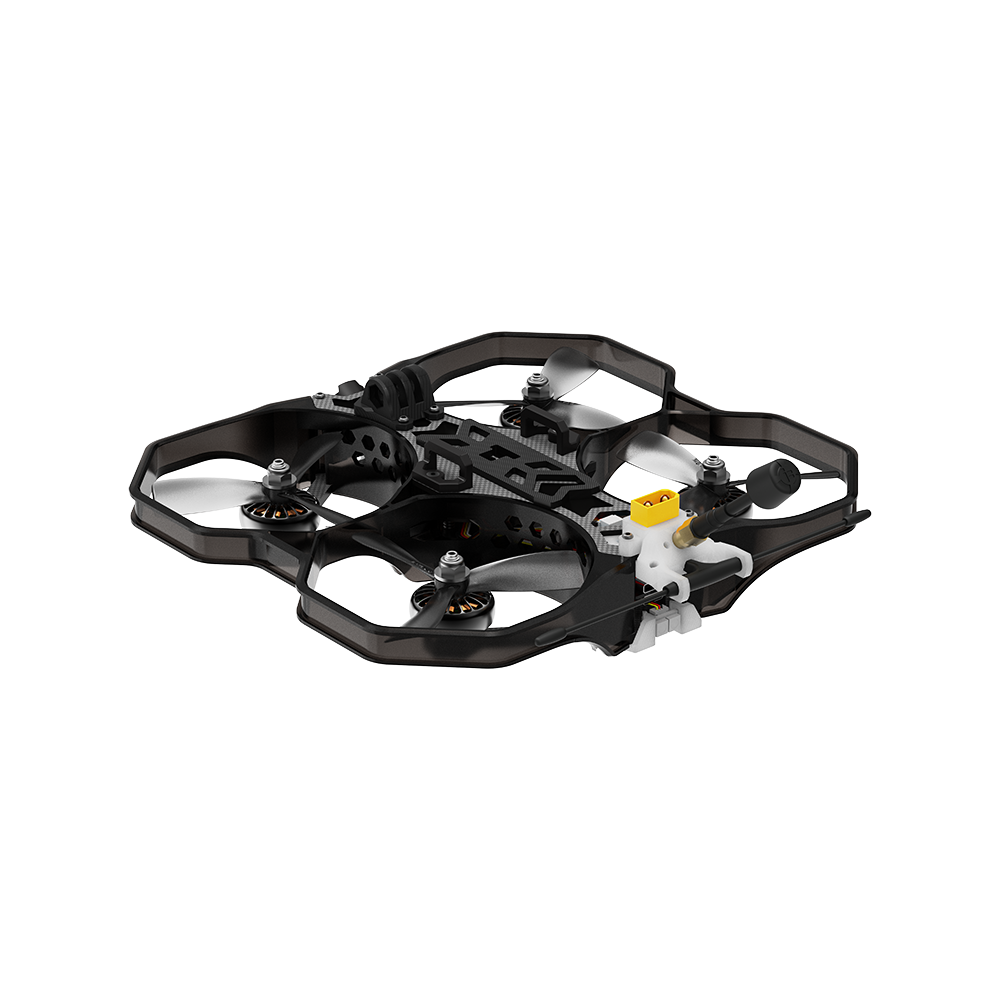

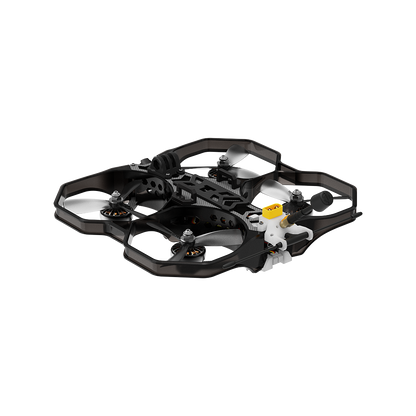

ProTek35 V1.4 HD 6S BNF (ELRS 868/915 MHz)
Protek35 V1.4 is a new version with improved frame. It is equipped with Butter Smooth 2205 2300KV motors. Also includes DJI O3 air unit, BLITZ whoop F7 AIO, 55A 2-6S ESC, Nazgul 3535 propeller and more.
Function:
- No props or frame in view.
- DJI O3 HD Air Unit digital transmission with low latency.
- Secure battery plug and CNC holder - Easy installation of battery straps.
- High performance True-AIO BLITZ F7 AIO 55A board to save weight and space.
- Quality T700 carbon - 40% higher tensile strength compared to regular 3K carbon.
- Lightweight one-piece frame construction - Less flexibility, stiffer, more durable.
- Low resonance frame design - Less Jello, more footage.
Specifications:
Product Name: ProTek35 V1.4 O3 6S HD
Receiver option: iFlight ELRS 868/915 MHz RX
AIO: BLITZ Whoop F7 AIO
Video transmission: DJI O3 Air Unit
Frame: wheelbase 151 mm
Motor: XING 2205 2300KV motors
Propellers: Nazgul 3535 propellers
Takeoff Weight: Approx. 363g (without battery)
Dimensions (L×W×H): 217×194×32.5 mm
Maximum speed: 140 km/h
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 6 minutes (with battery 1400 without load)
Maximum resistance to wind speed: Level 4
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: N/A
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x ProTek35 V1.4 O3 6S HD BNF (ELRS 868/915 MHz)
1 x 3.5 inch support (2 pairs)
2x Battery pad
1 x battery strap
