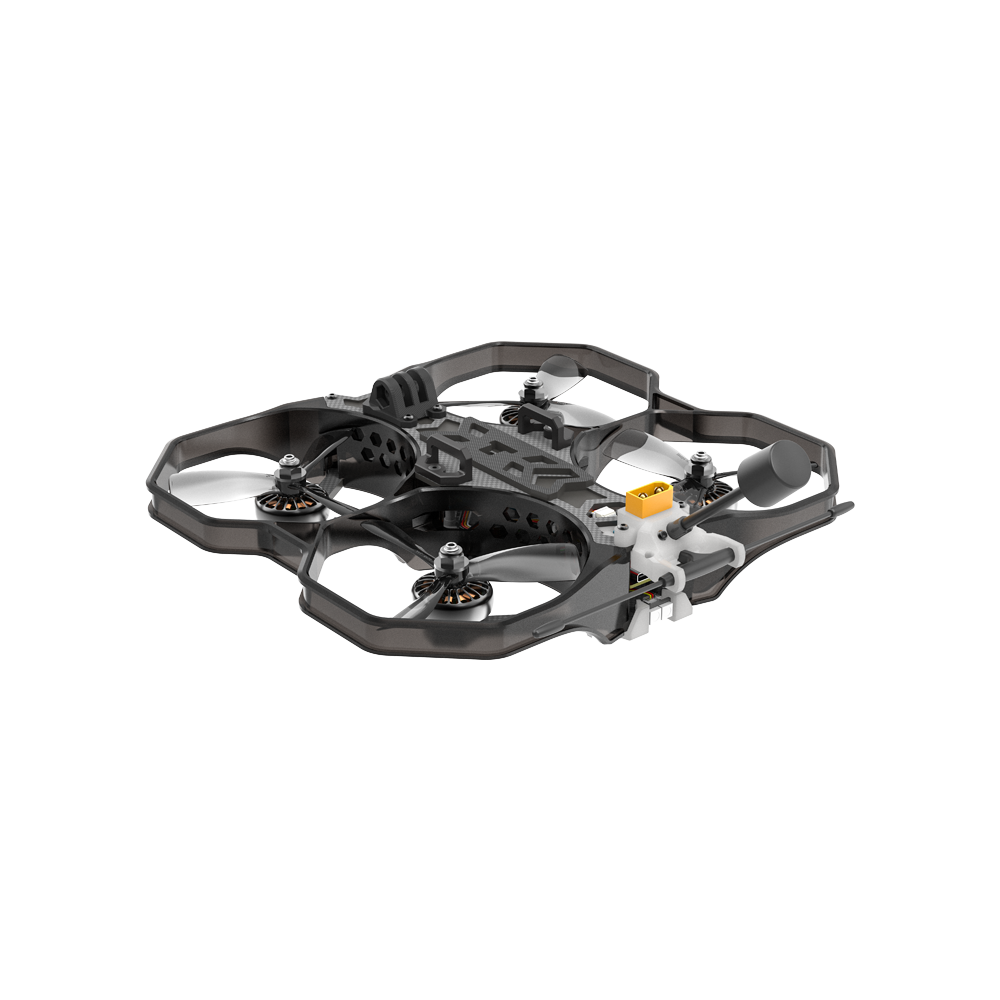

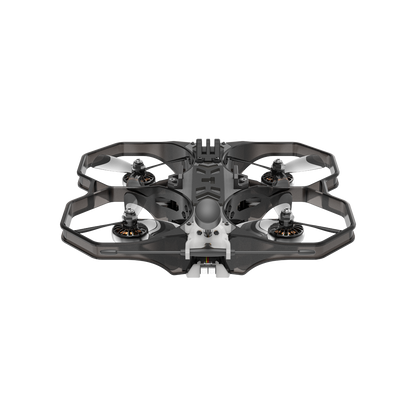

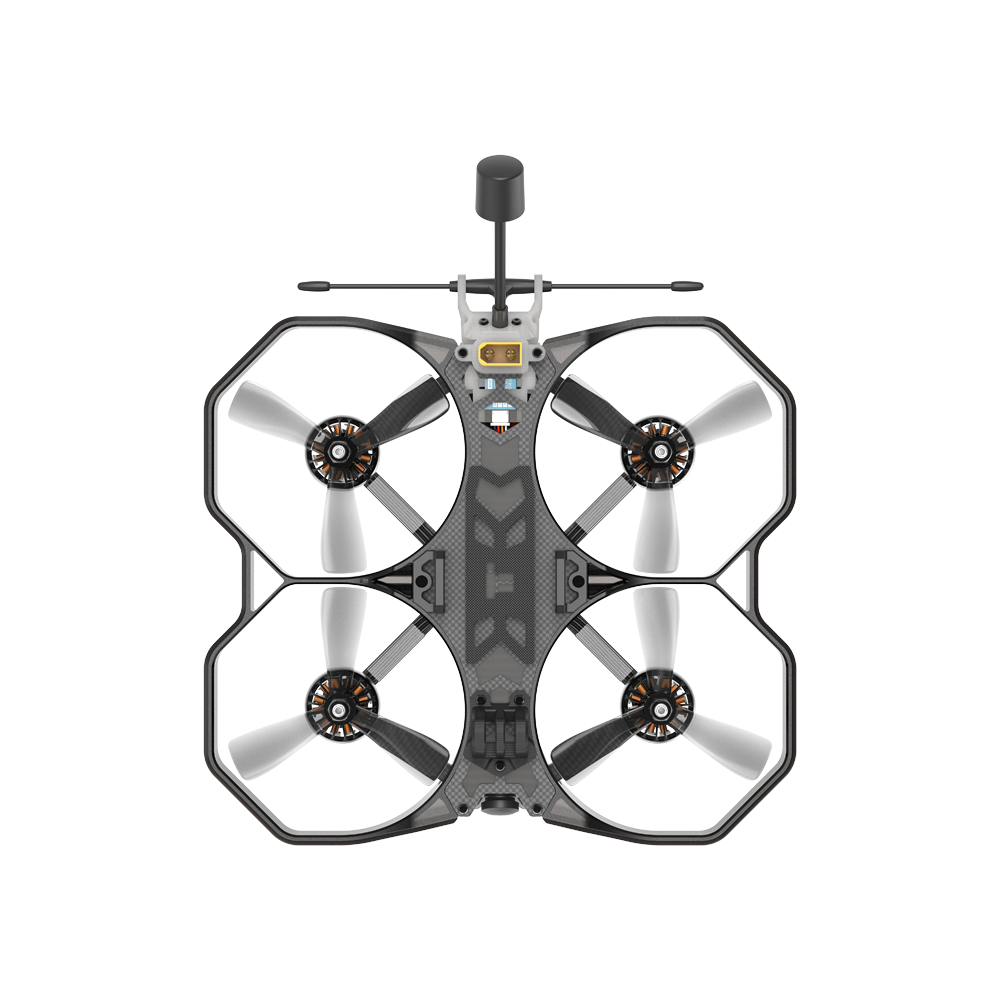

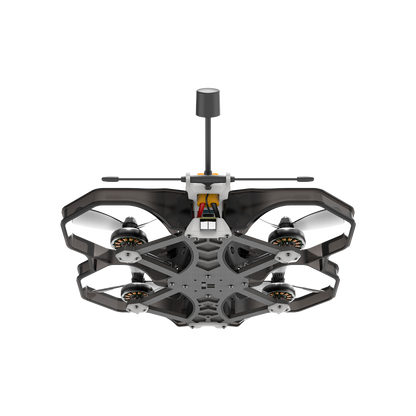

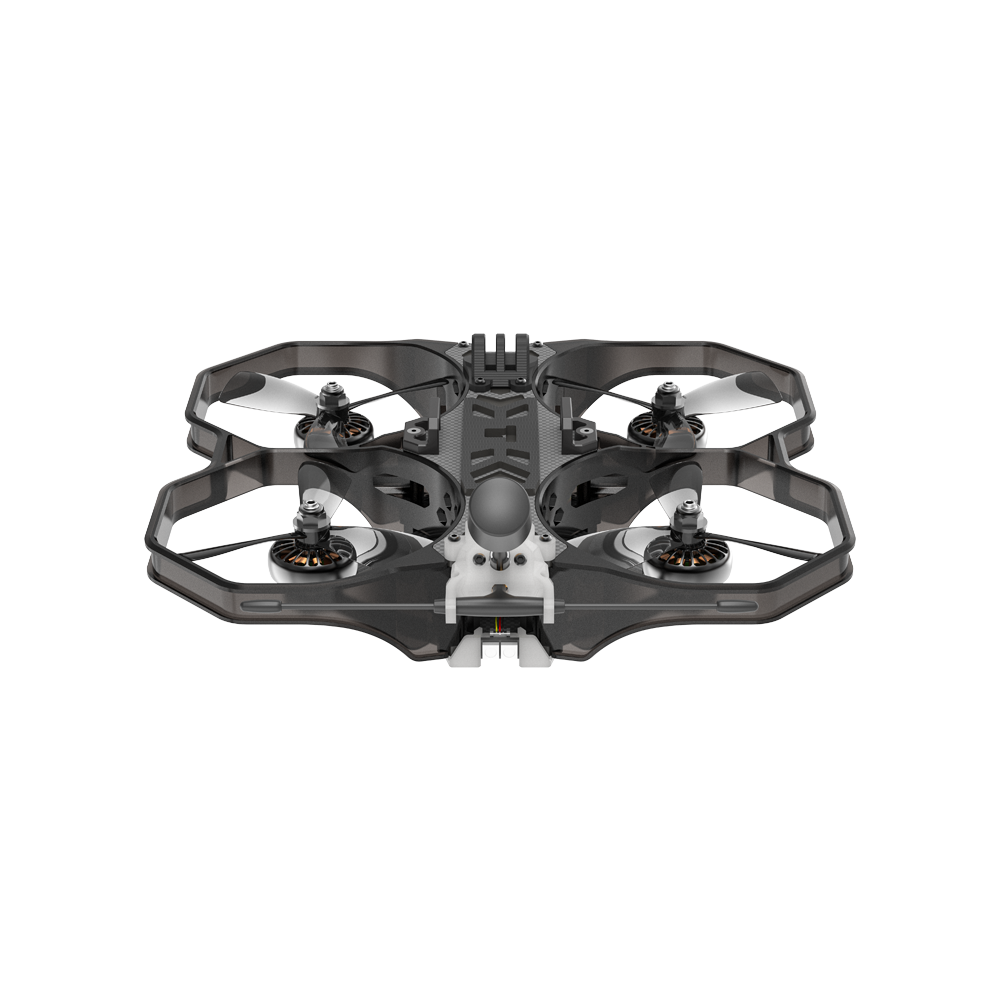

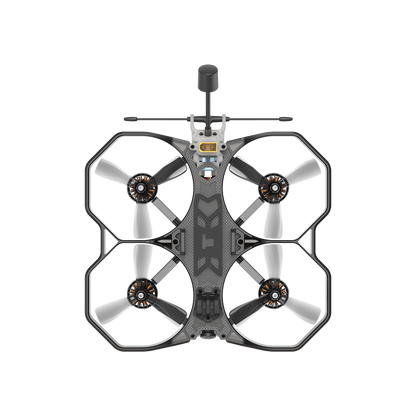

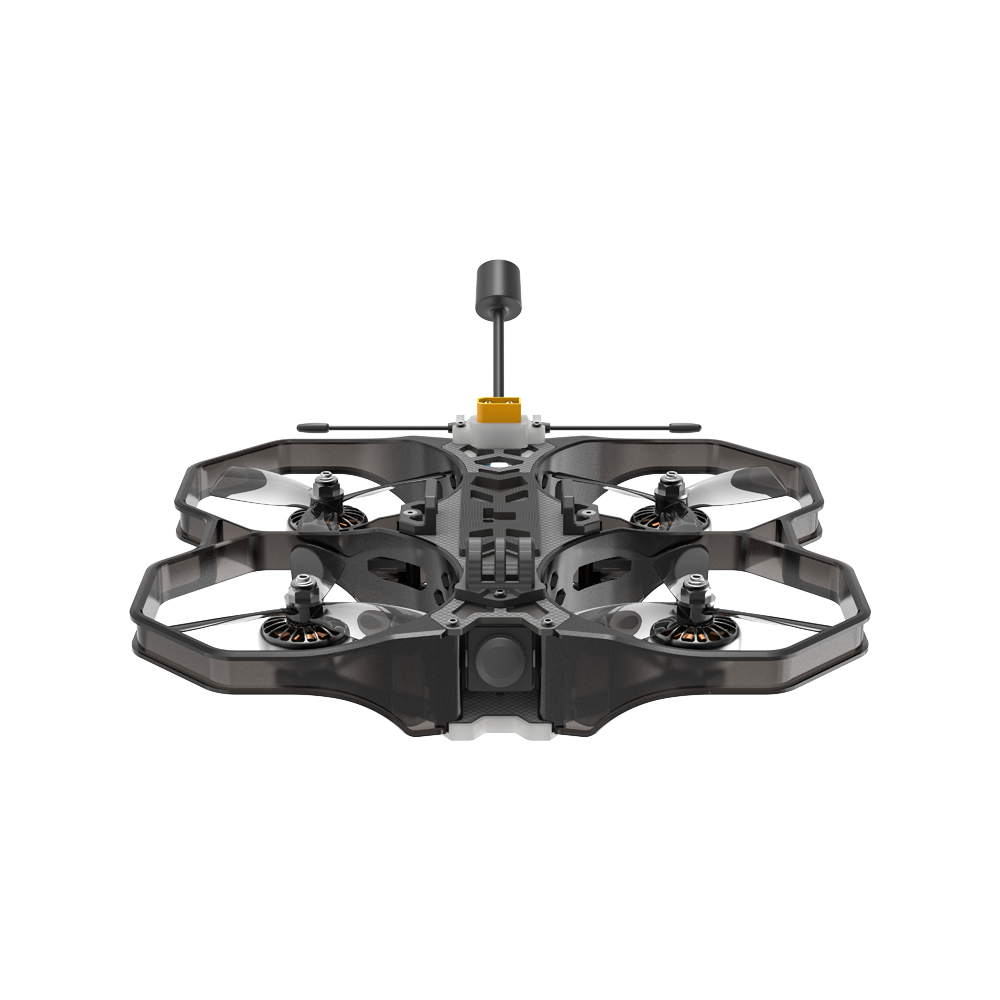

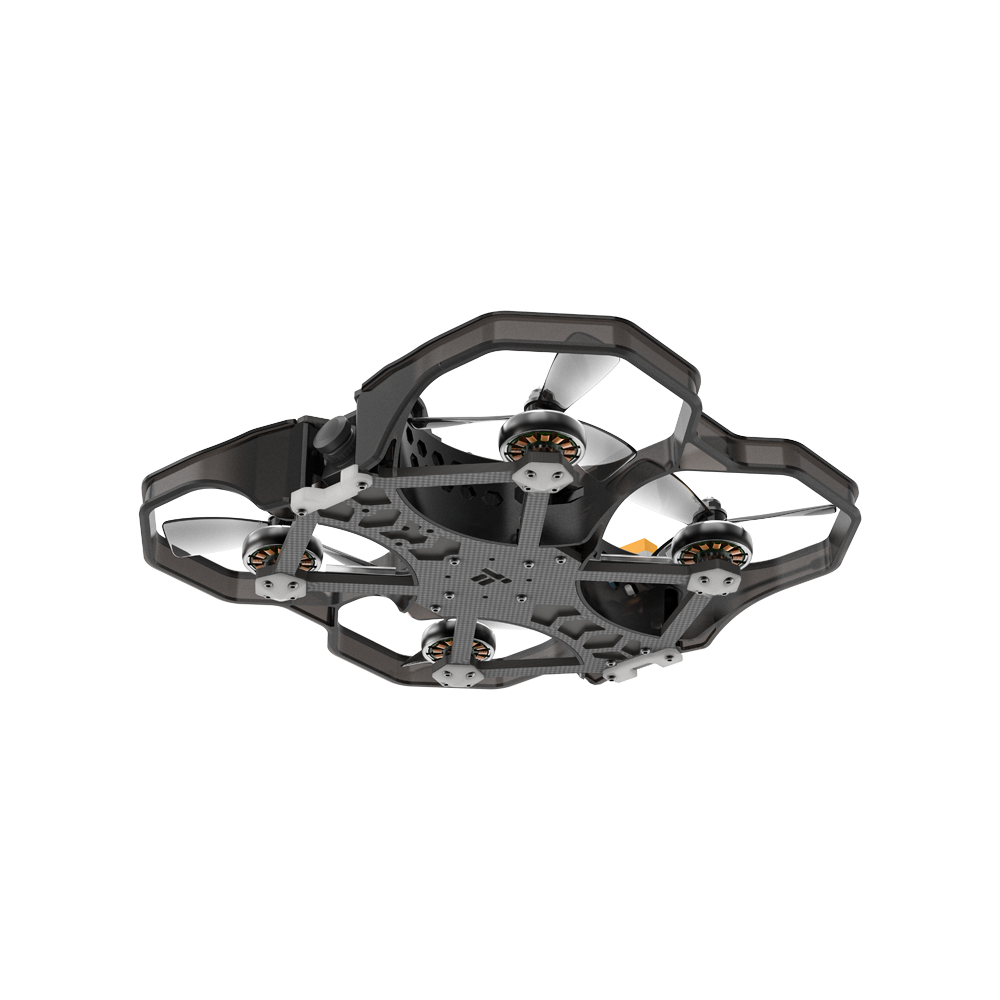

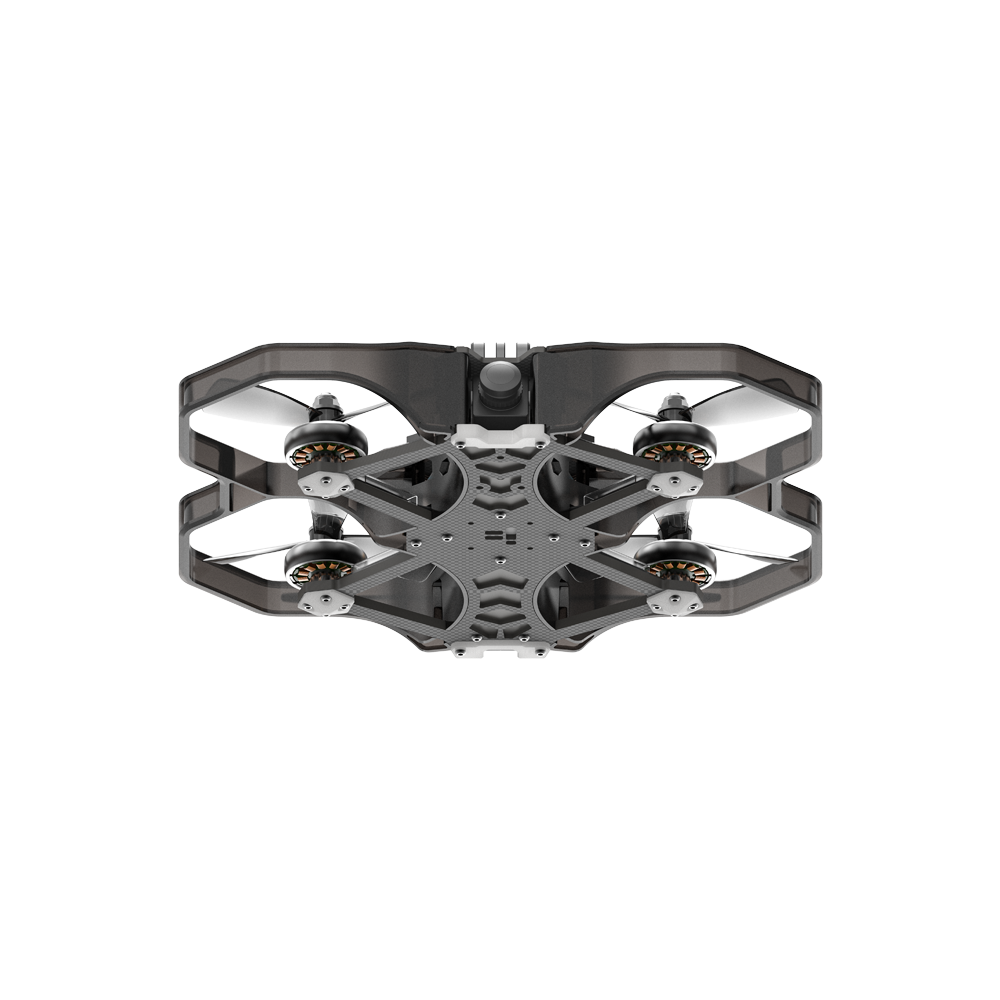

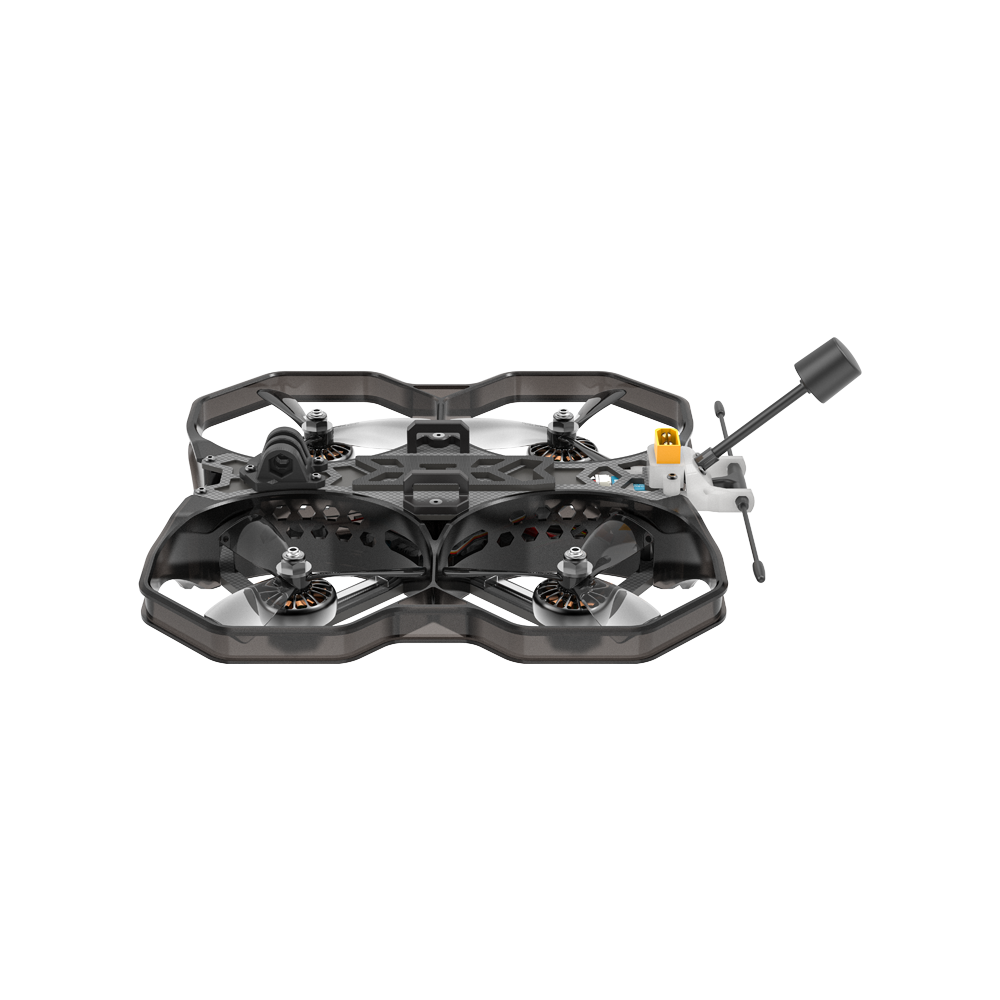

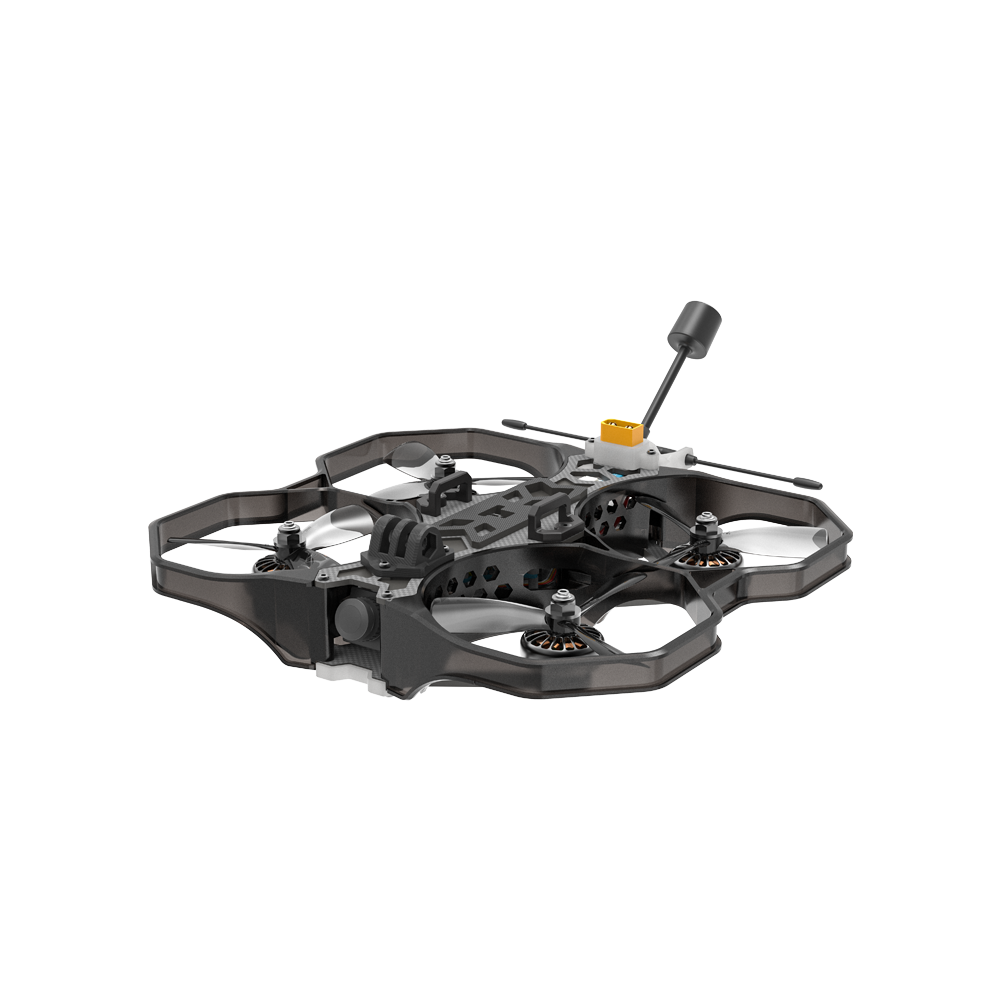

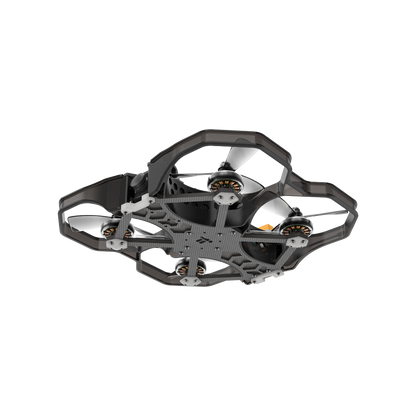

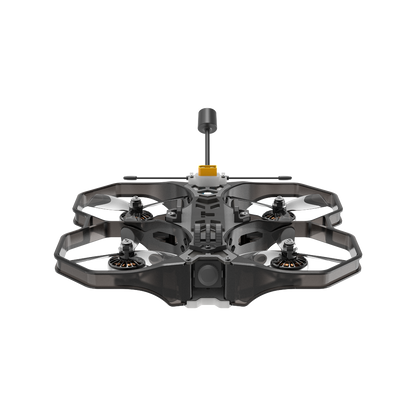

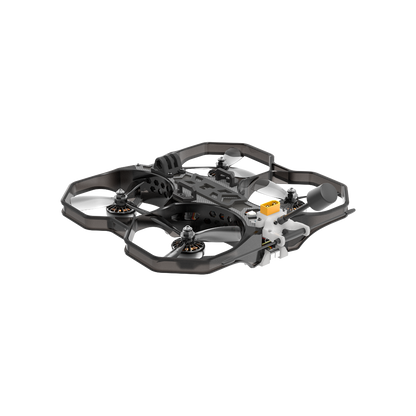

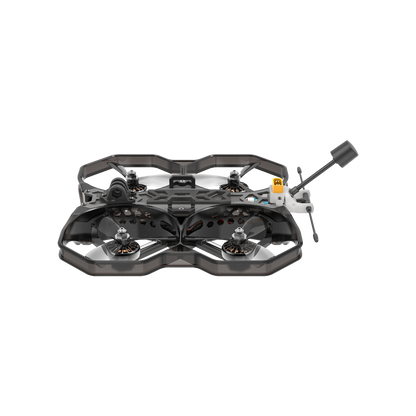

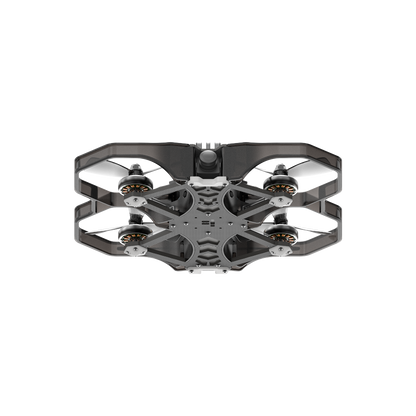

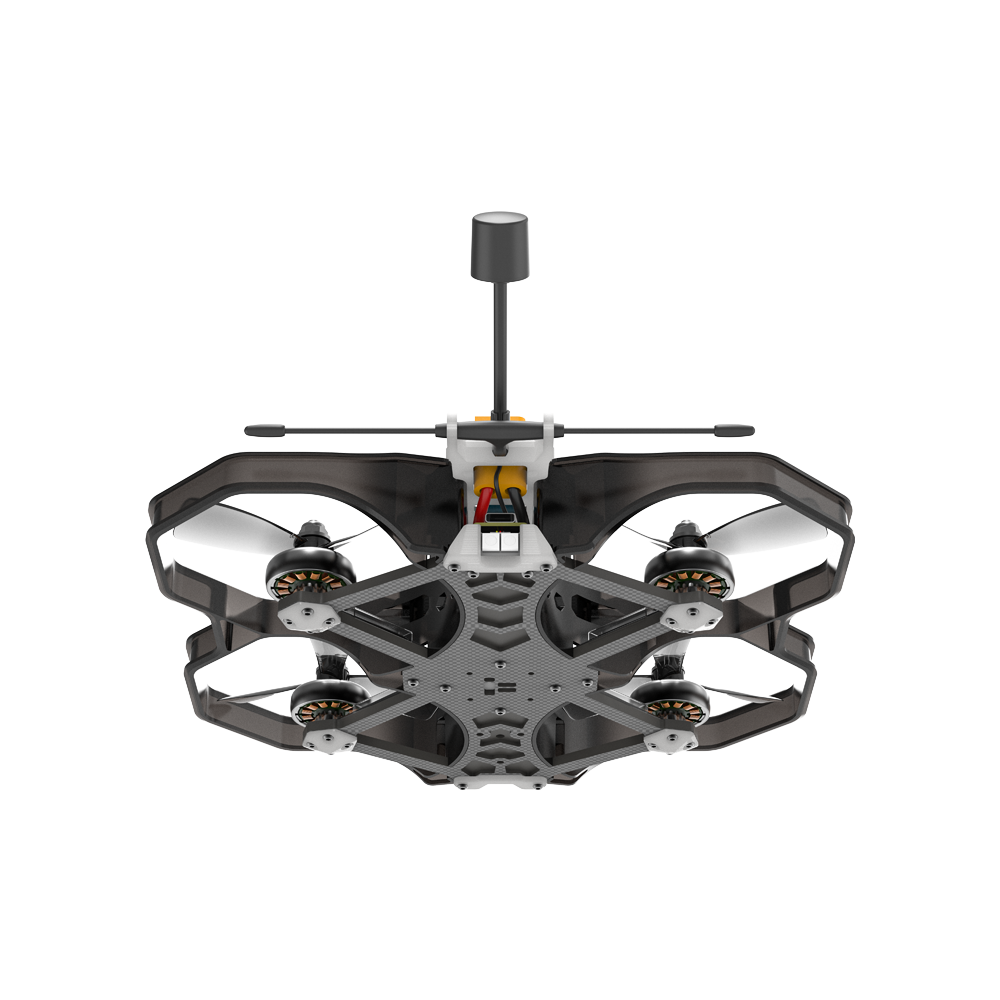

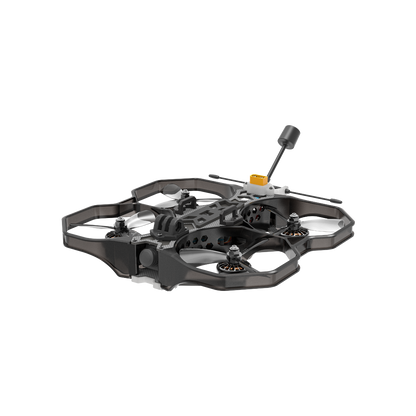

ProTek35 V1.4 Analog 6S BNF (TBS)
ProTek35 V1.4 6S Analog CineWhoop offers longer flight time and lower weight compared to previous models. The latest version, Protek35, features Secured Battery Plug and Butter Smooth 2205 2300KV Motors. Also includes RaceCam R1 Mini FPV Camera, BLITZ whoop F7 AIO, 55A 2-6S ESC, 5.8GHz BLITZ Mini 600mW VTX, Nazgul 3535 Propeller and more.
Function:
- No props or frame in view.
- Secure battery plug and CNC holder - Easy installation of battery straps.
- High performance True-AIO BLITZ F7 AIO 55A board to save weight and space.
- Quality T700 carbon - 40% higher tensile strength compared to regular 3K carbon.
- Lightweight one-piece frame construction - Less flexibility, stiffer, more durable.
- Low resonance frame design - Less Jello, more footage.
- RaceCam R1 Mini FPV camera 19*19.
- Pre-tuned with smooth freestyle settings.
Specifications:
Product name: ProTek35 V1.4 6S Analog
Receiver option: TBS Crossfire NANO RX
Camera: RaceCam R1 Micro 1200TVL
AIO: BLITZ Whoop F7 AIO
Video transmission: BLITZ Mini 600mW VTX
Frame: wheelbase 151 mm
Engine: XING 2205 engines
Propellers: Nazgul 3535 propellers
Takeoff Weight: Approx. 335 g (without battery)
Dimensions (L×W×H): 217×194×32.5 mm
Maximum speed: 140 km/h (manual mode)
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 6 minutes (with 6S 1400 battery without load)
Maximum resistance to wind speed: Level 4
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: N/A
Video transfer
Product Name: BLITZ Mini 600mW VTX
Output power: 0-25-200-400-600mW
Input voltage: 5V
Working current: ≤ pit @80mA, ≤25mw@280mA, ≤100mw@405mA, ≤400mw@485mA, ≤600mw@575mA
Transmission: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 20×20/Φ3mm/ 25×25/Φ2mm
Weight: 4 grams (without antenna)
Dimensions: 29mm x 29mm
The package includes:
1 x ProTek35 V1.4 6S analog BNF (TBS)
1 x 3.5 inch support (2 pairs)
2 x battery pad
2x battery strap
