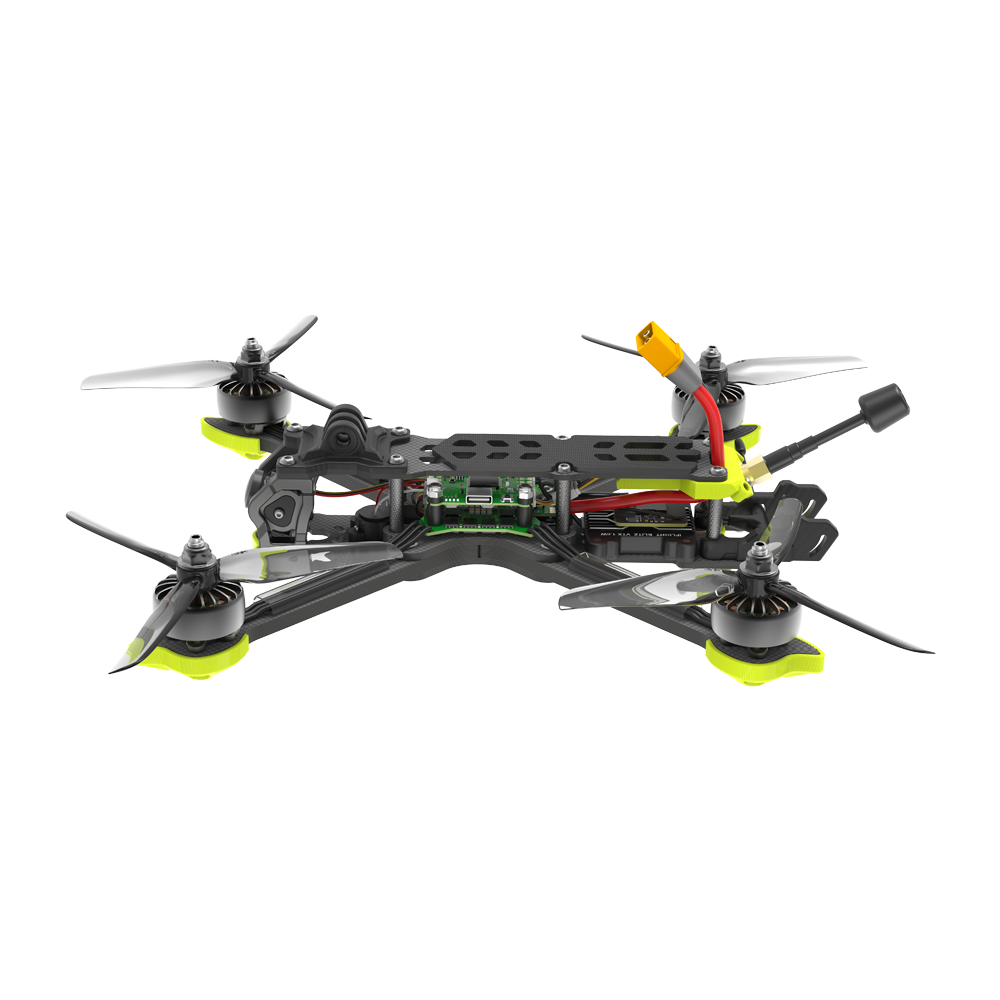

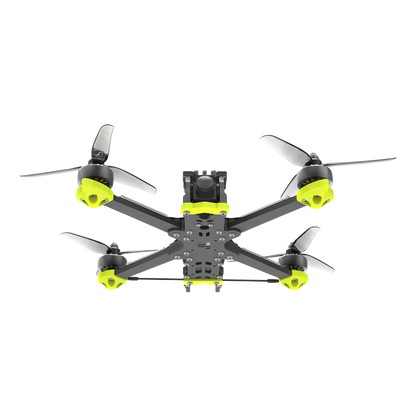

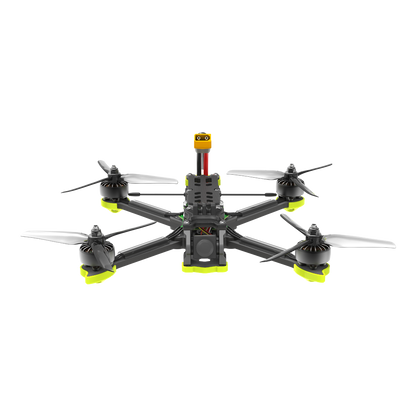

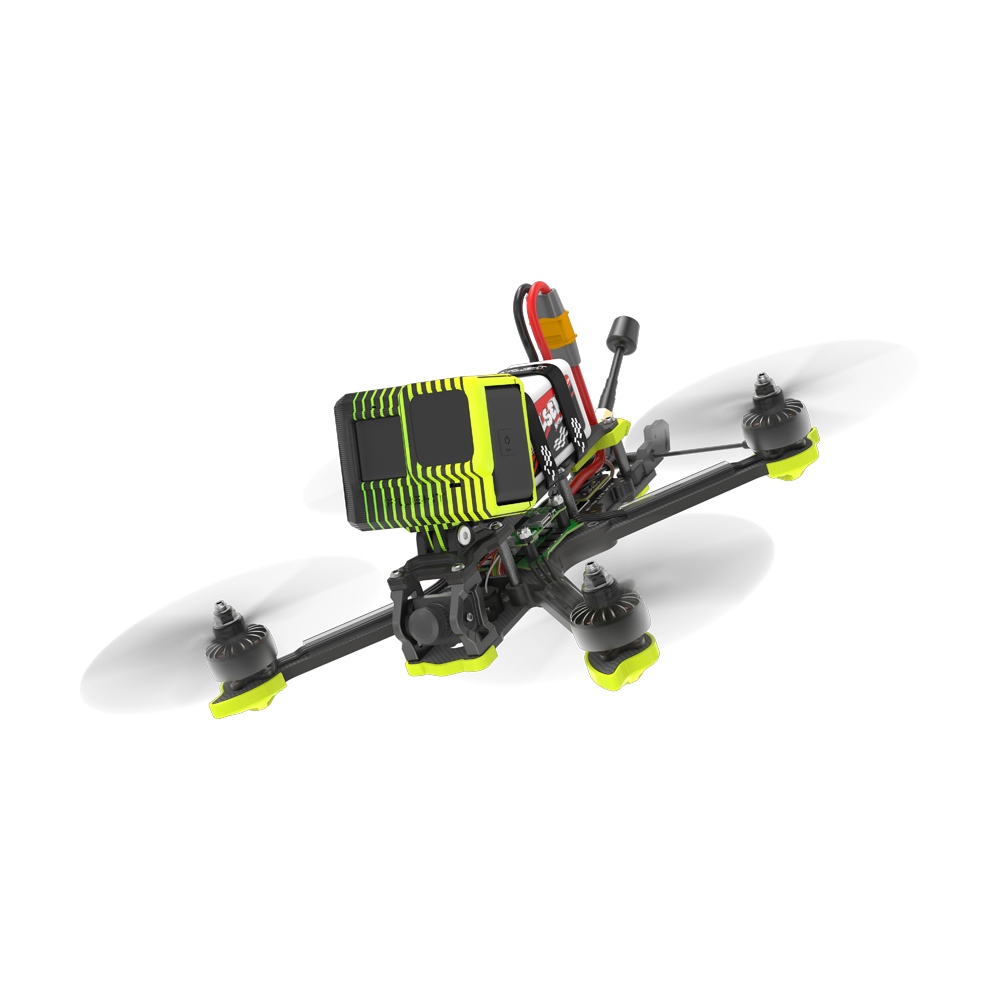

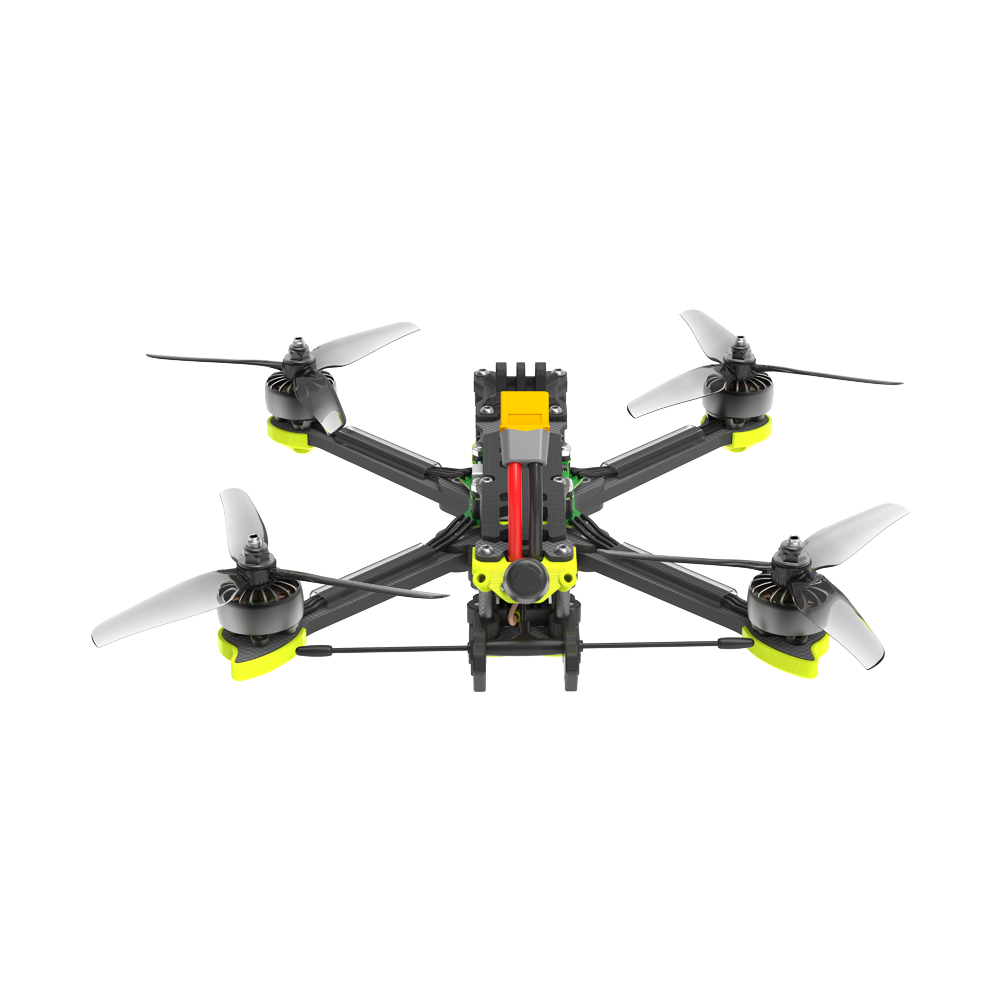

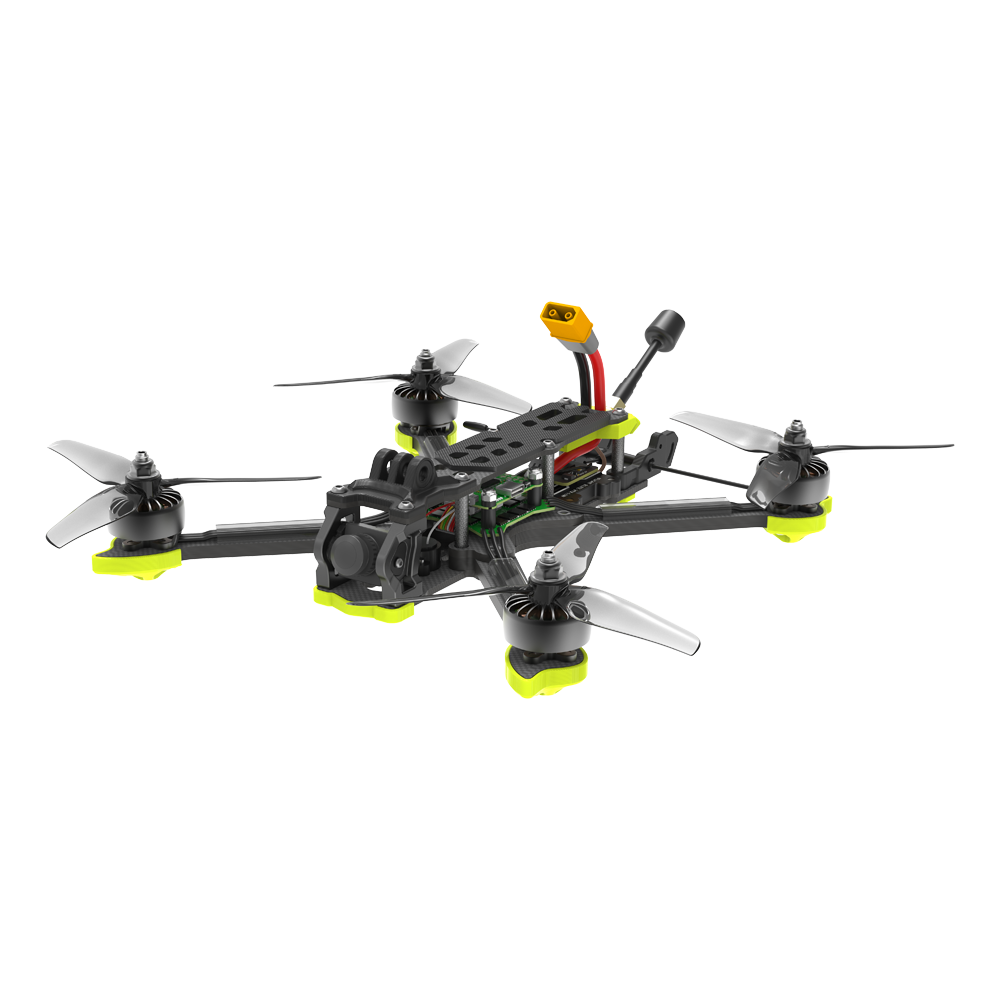

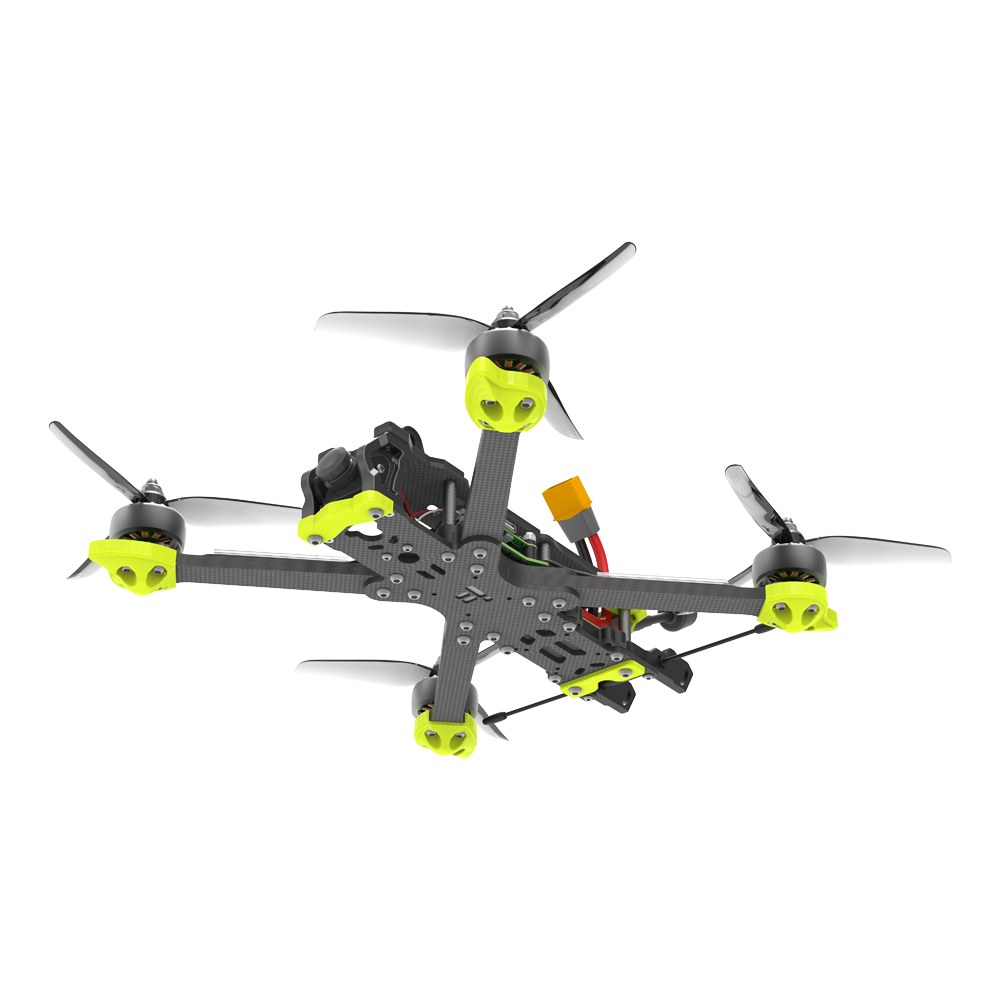

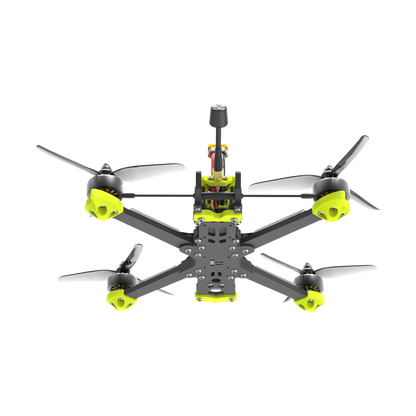

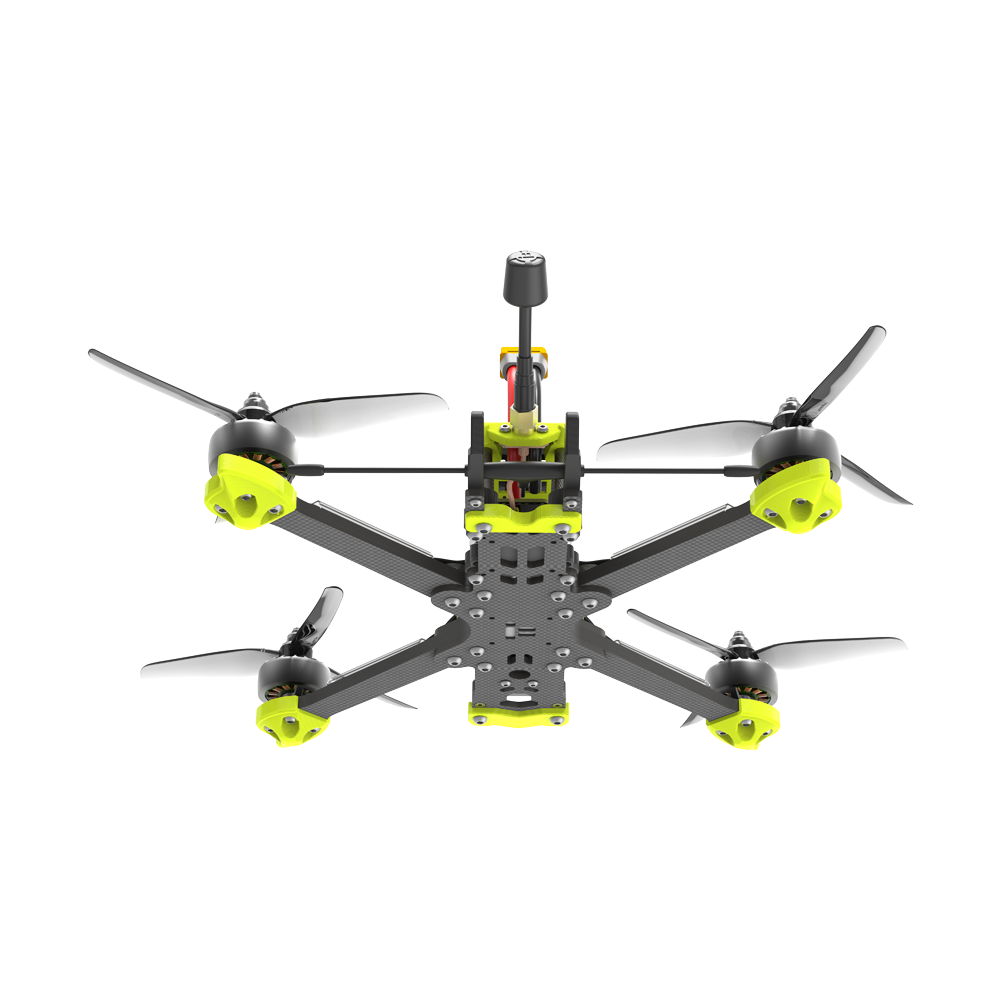

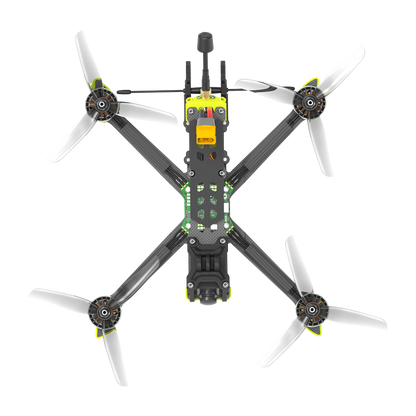

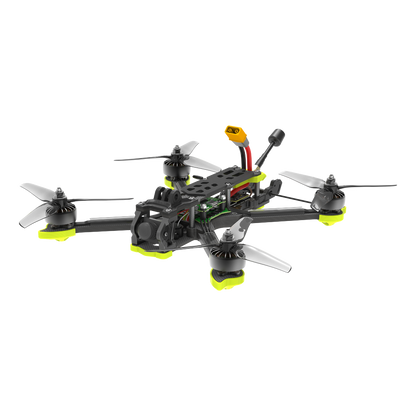

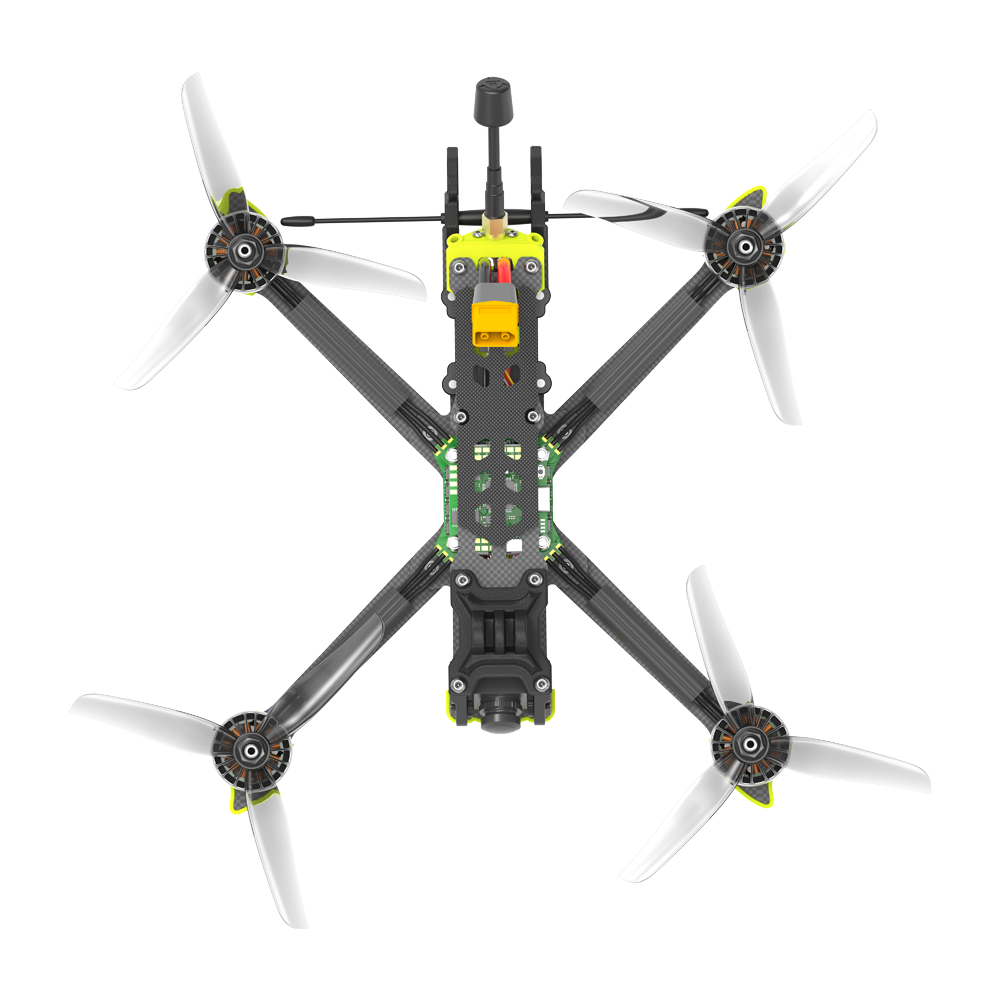

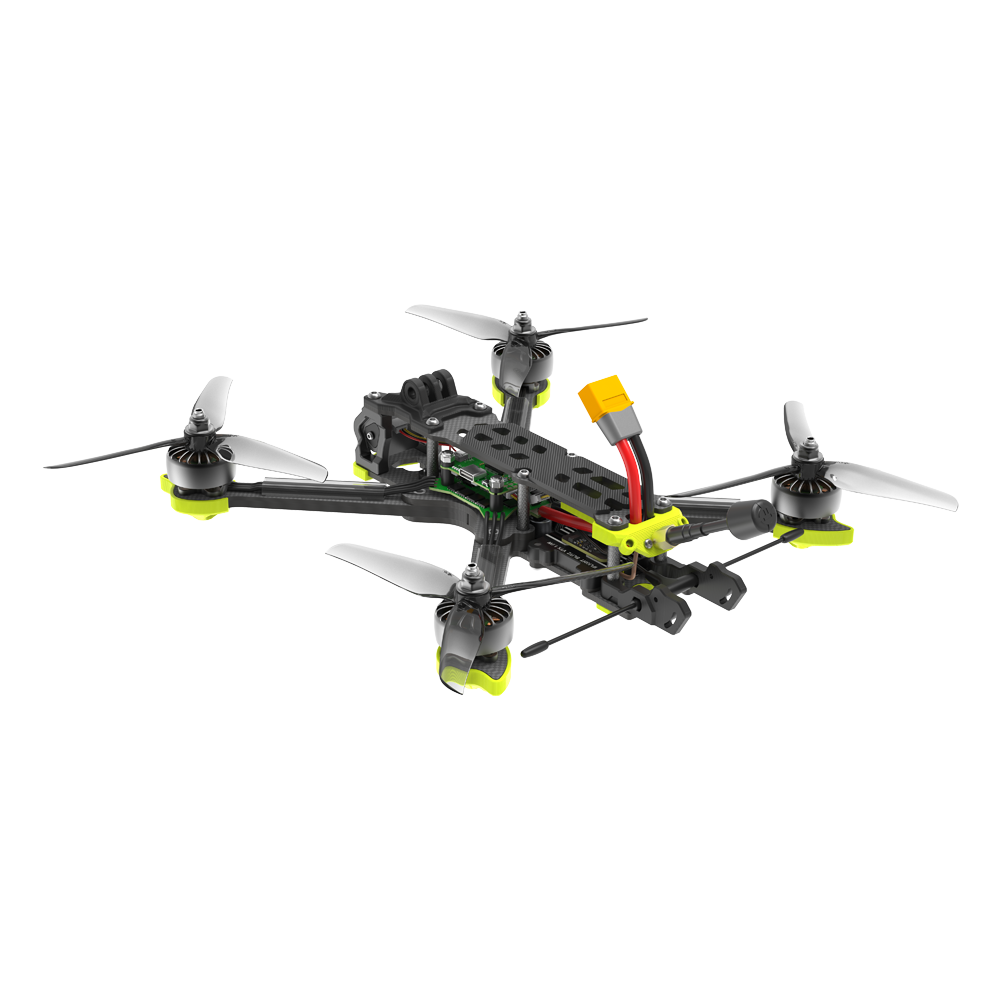

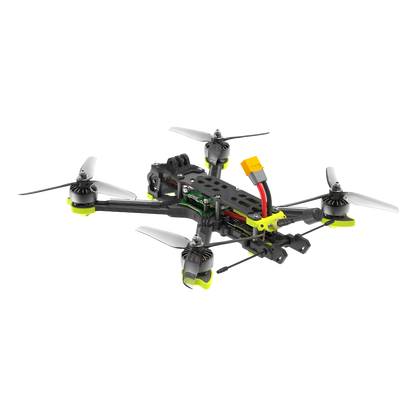

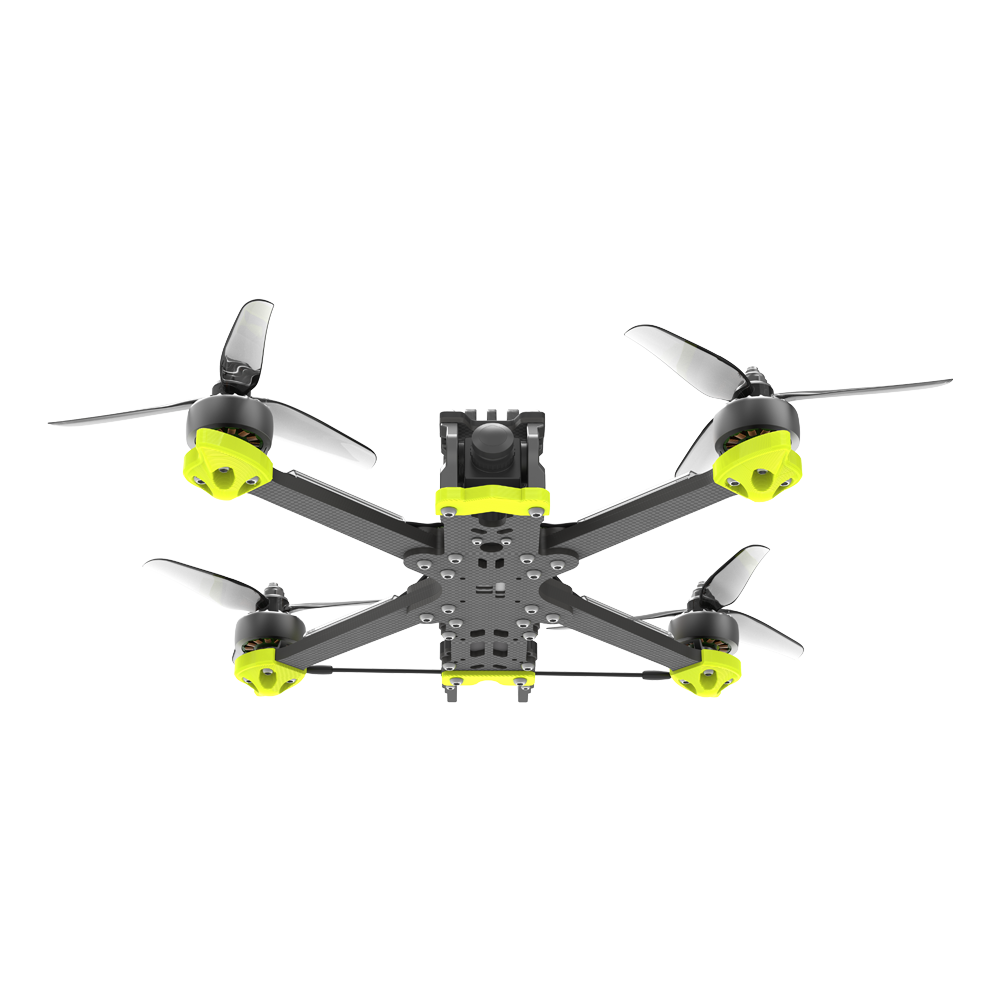

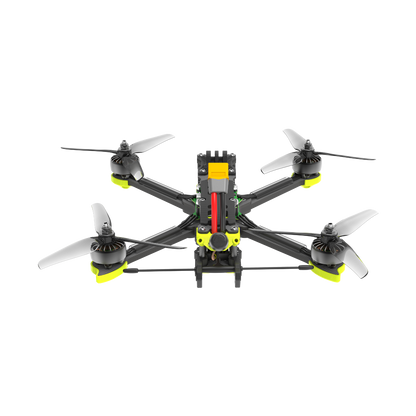

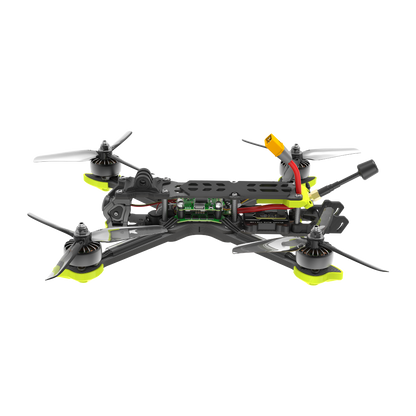

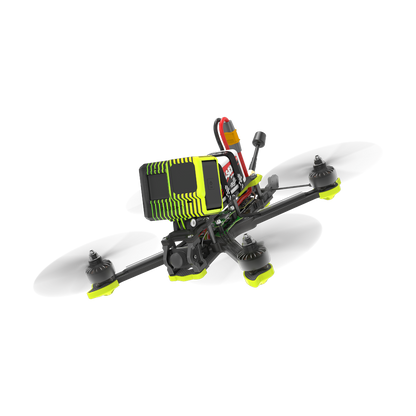

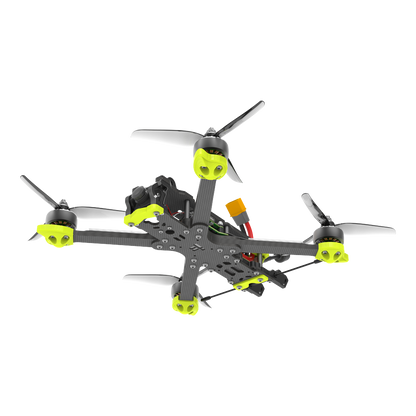

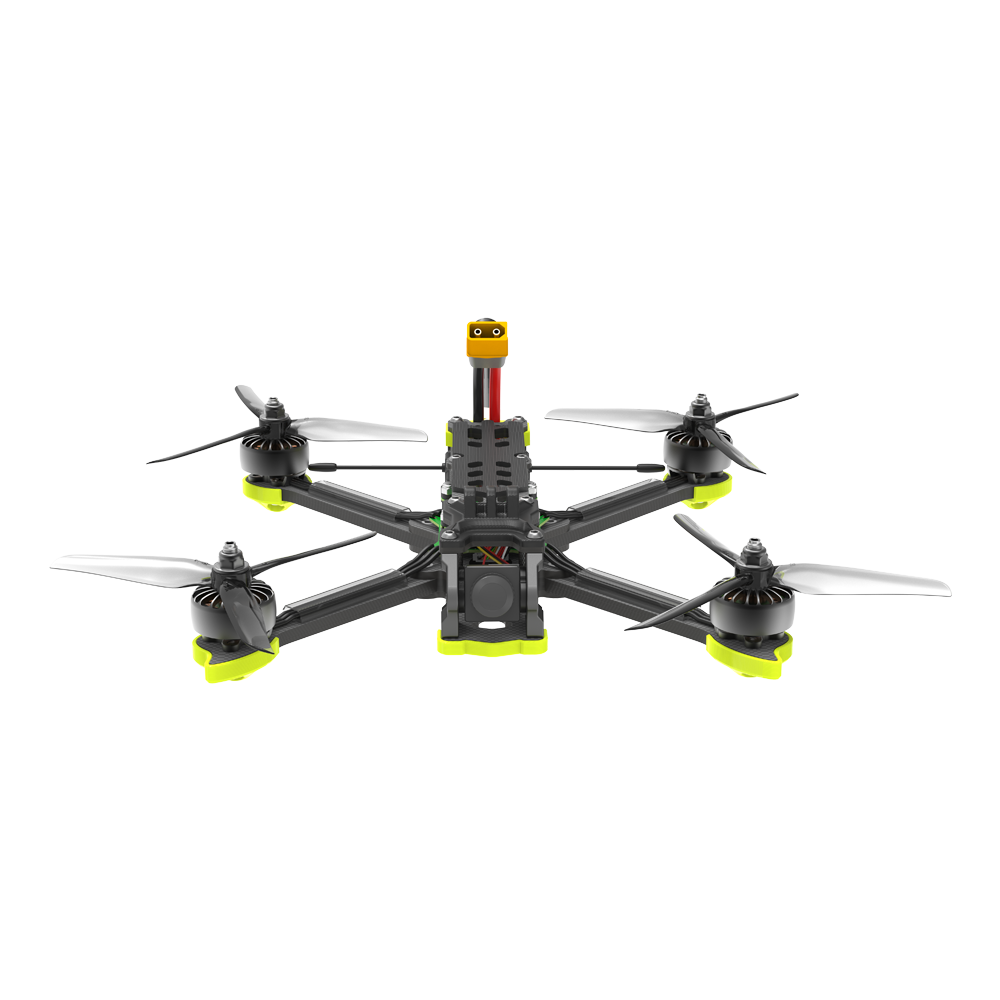

Nazgul5 V3 Analog 6S (PNP) Function: - XING-E Pro 2207 engines and NAZGUL F5 props - 5" version also fits 5.1" propellers. - Suitable for 30.5x30.5 and 20x20 magazines - 5mm arm design for greater durability - Popular True-X configuration - Logo with LED backlight - TPU bumpers - Easily replaceable arms Specifications Product Name: Nazgul5 V3 6S Analog FC: BLITZ F722 FC ESC: BLITZ E45S 45A 4-IN-1 ESC Video transmission: BLITZ 1.6W VTX Frame: wheelbase 245 ± 2 mm Engine: XING-E Pro 2207 engines Prop: 5 inch Nazgul propellers Takeoff Weight: Approx. 435g / 660±10g (with 6S 1400mAh battery) Dimensions (L×W×H): 173×173×34±2 mm Diagonal distance: 245 mm Maximum speed: 190 km/h (manual mode) Maximum take-off height: 3200 m Maximum Hover Time: Approx. 7.5 minutes (no load with 6S 1400mAh battery) Maximum flight distance: 5 km Max Wind Speed Resistance: Level 7 Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: One antenna Camera: RaceCam R1 Mini 1200TVL Receiver option: PNP Video transfer Product name: BLITZ Whoop 1.6W VTX Input voltage: 7V-34V Interface: MMCX Power levels: PIT/25mW/400mW/800mW/1600mW Channels: 40 (including Raceband) Mounting pattern: 30.5x30.5mm/Φ3 Light weight: 18.9 g (without antenna) VTX telemetry: IRC Tramp Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight! Table values RC Tramp VTX: 25mW/400mW/800mW/1600mW The package includes: 1 x Nazgul5 V3 6S Analog PNP 1x antenna 2x battery pads 2 x Nazgul F5 Prop (pairs)
