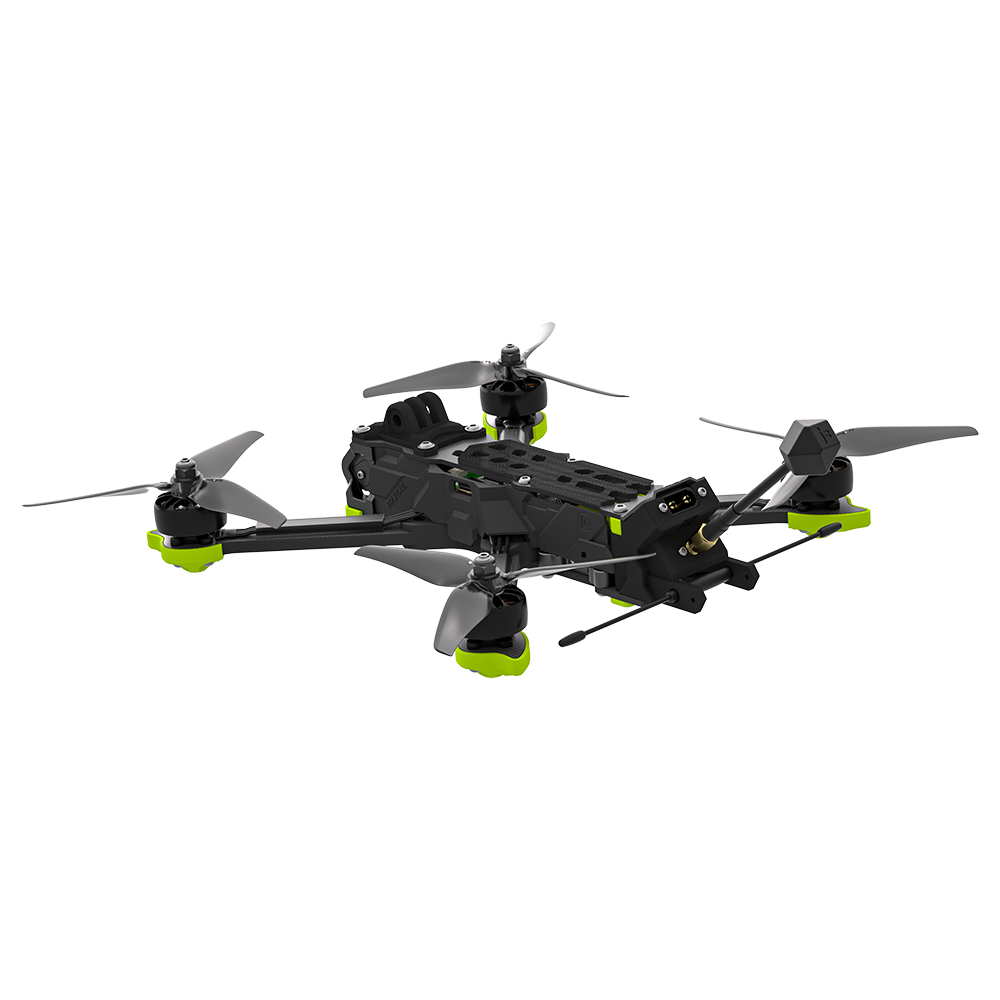

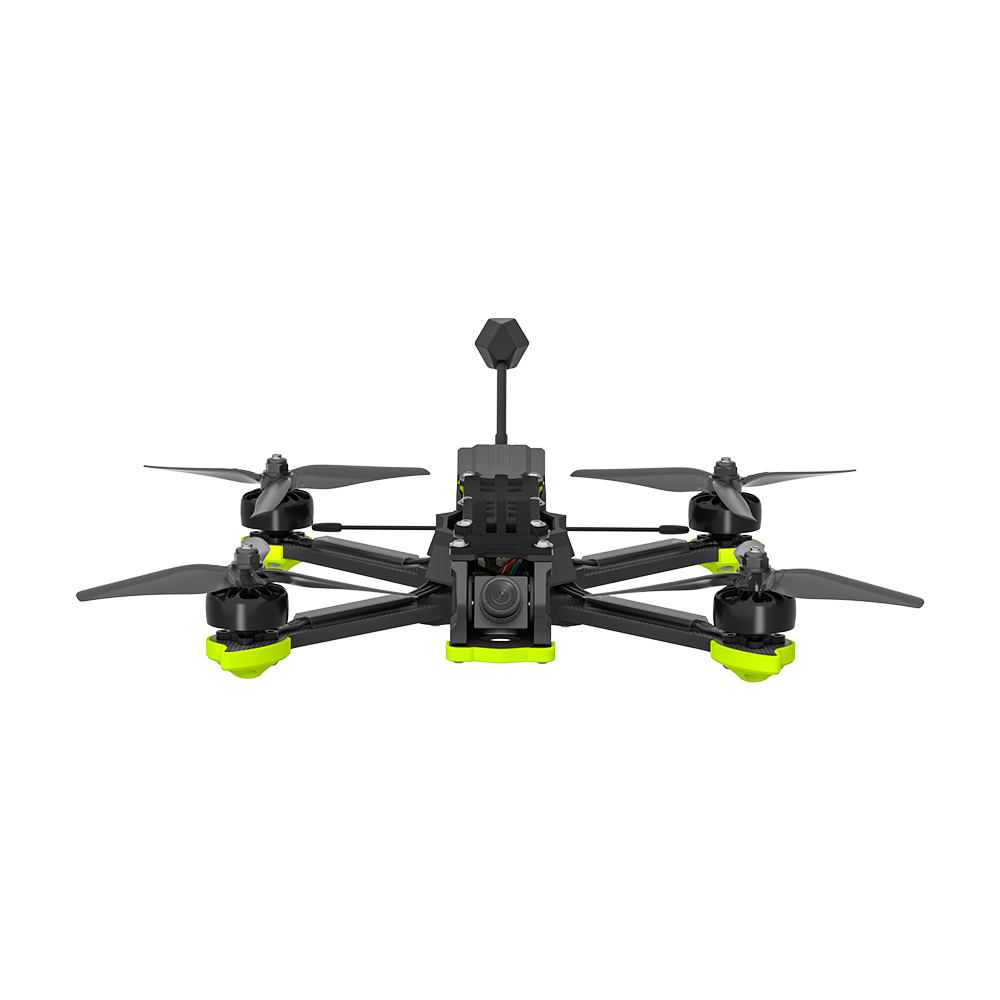

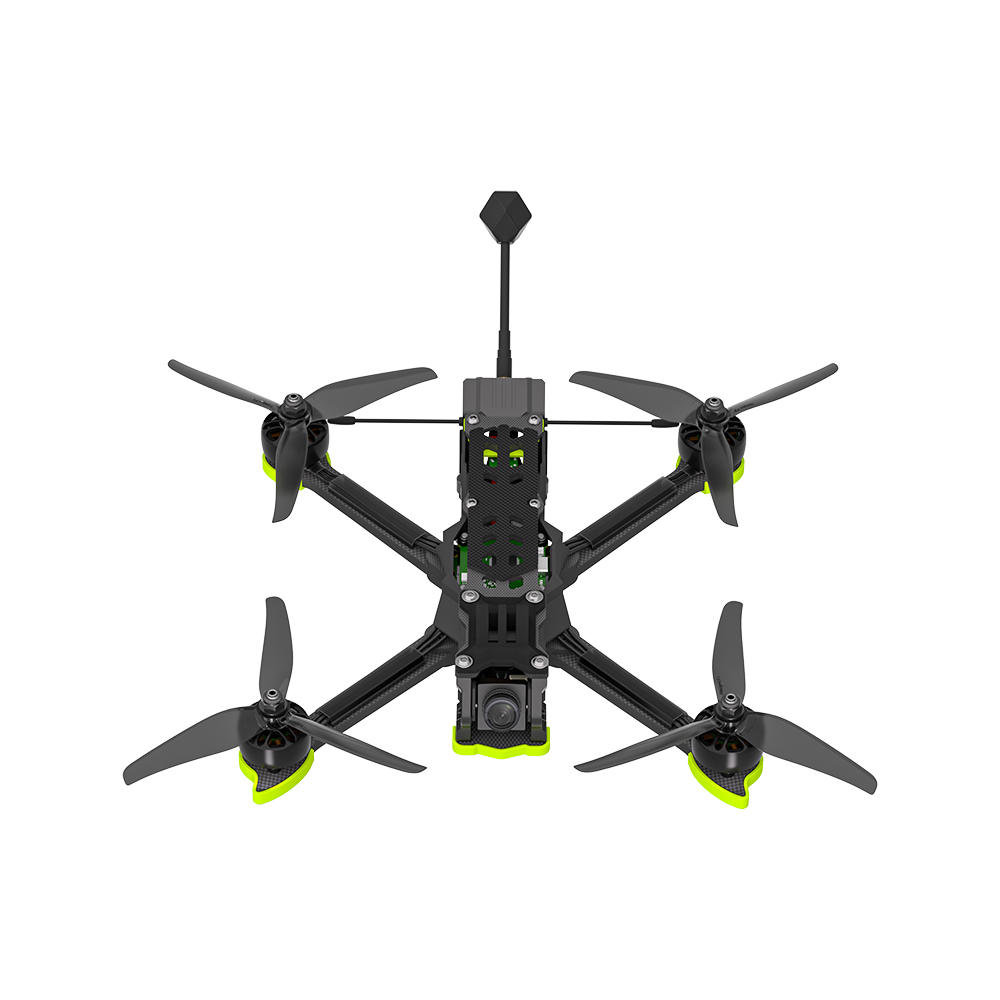

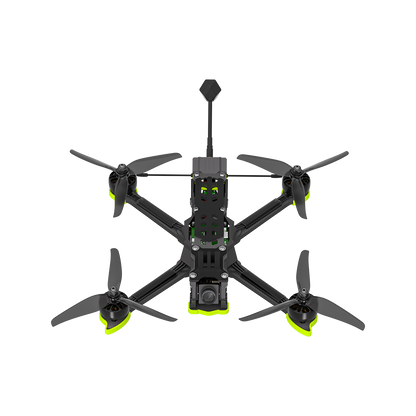

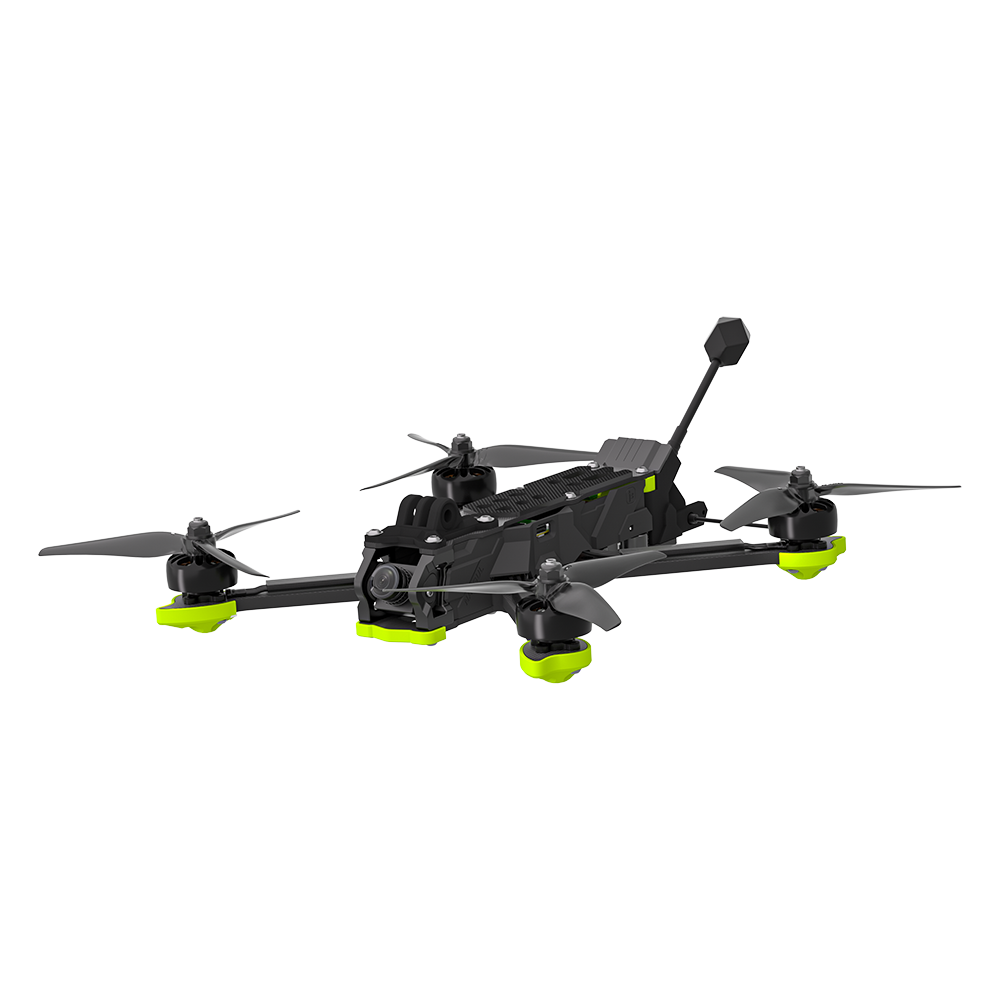

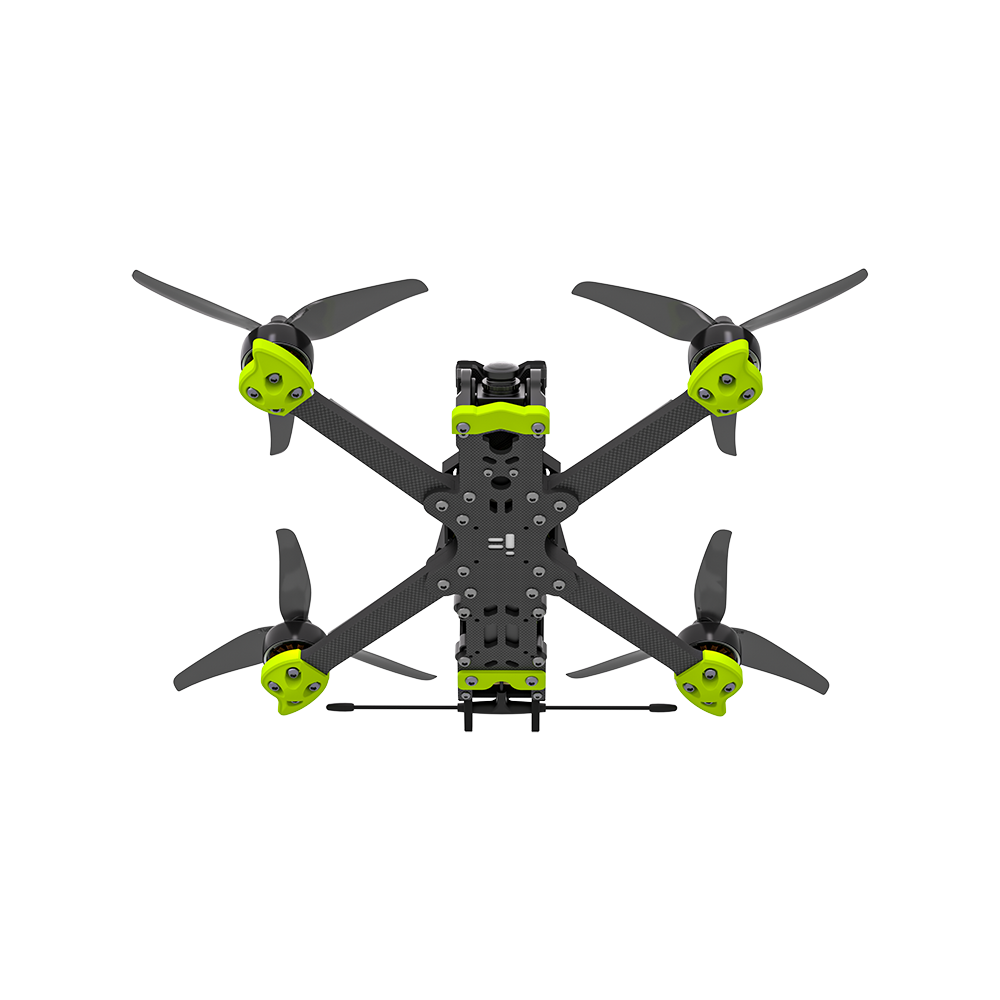

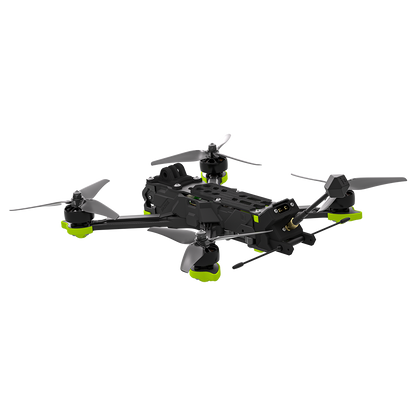

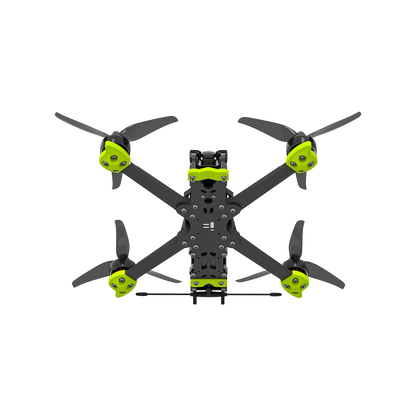

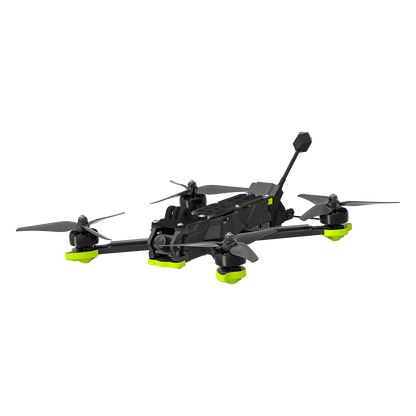

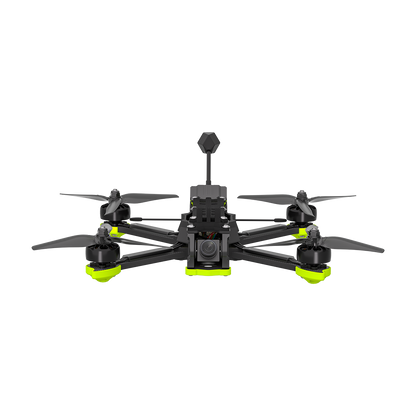

FPV Drone iFlight Nazgul XL5 V1.1 ECO Analog BNF TBS + GPS The iFlight Nazgul XL5 V1.1 ECO Analog BNF TBS drone is a standard 5" freestyle drone. Equipped with an ATF435 flight controller, VTX BLITZ 1.6W and ESC BLITZ E55S 2-6S 55A, it provides high performance and reliability. The carbon fiber and aluminum camera mount is lightweight and durable, and the included GoPro mount provides versatility to capture your epic freestyle flights. With model Nazgul XL5 ECO takes you to new heights. Specifications: - This model comes with TBS Crossfire Nano and GPS receiver pre-installed. - Geometry: True-X - FC: flight controller BLITZ ATF435 - ESC: BLITZ E55S 4-IN-1 ESC - Video transmission: BLITZ 1.6W VTX - Frame: 245mm wheelbase - Motor: XING-E Pro 2207 1800KV motors - Propeller: Nazgul F5 - Weight: 427 g - Take-off weight: About 652g (with 6S 1400mAh battery) - Dimensions (L×W×H): 173×173×34±2 mm - Maximum speed: 190 km/h (manual mode) - Maximum take-off height: 3200 m - Maximum hover time: About 7.5 minutes (no load with 6S 1400mAh battery) - Max. Wind Resistance: Level: 7 - Operating temperature range: -10° to 40° C (14° to 104° F) - Antennas: Simple antenna Video transfer: - Product name: Antenna: 1: BLITZ 5.8G 1.6W VTX - Output power: PIT/25mW/400mW/800mW/1600mW - Input voltage: 7-34V (2-8S) - Working current: 25.2V, ≤pit @20mA, ≤25mw@65mA, ≤400mw@130mA, ≤800mw@150mA, ≤1600mw@250mA - Transmission freedom: 40CH(A-B-E-F-R) - Antenna interface: MMCX - Mounting hole: 30.5×30.5/Φ3mm - Weight: 18.9 g (antenna not included) - Dimensions: 38.5 x 38.5 mm The package contains: - 1 x FPV drone iFlight Nazgul XL5 V1.1 ECO Analog BNF TBS + GPS - 1 x antenna - 2 x pads for batteries - 2 x Nazgul F5 propellers (in a pair)
