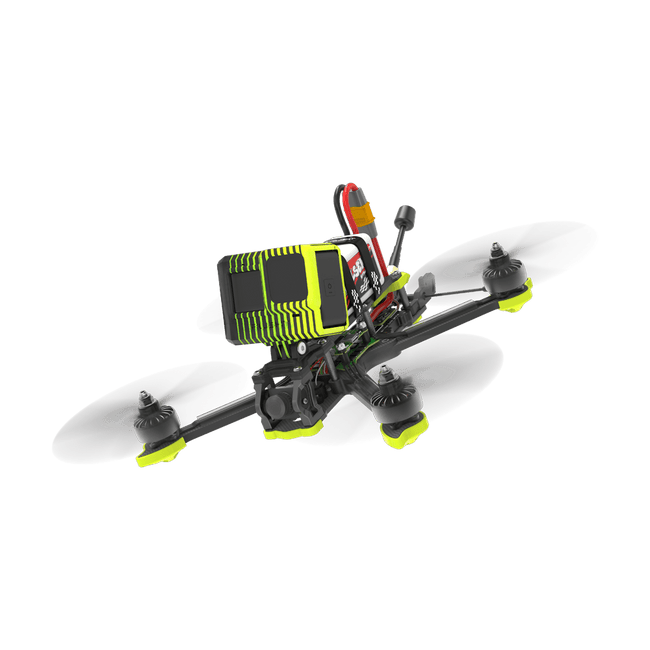

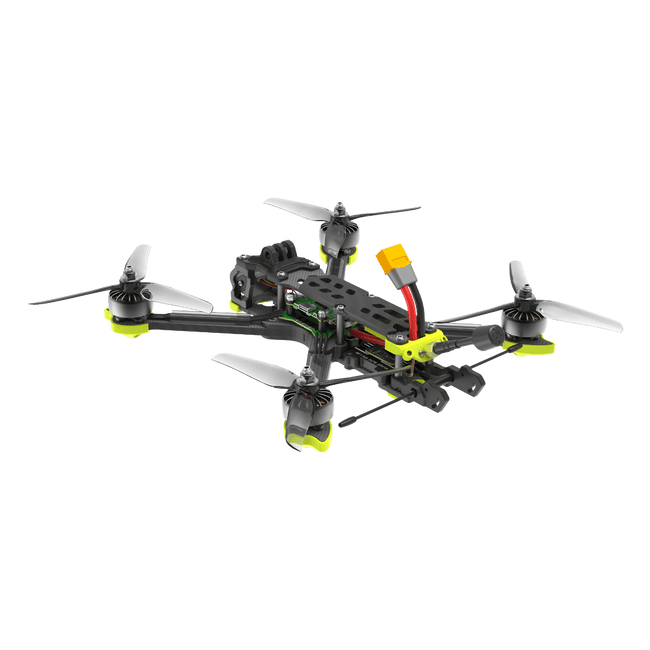

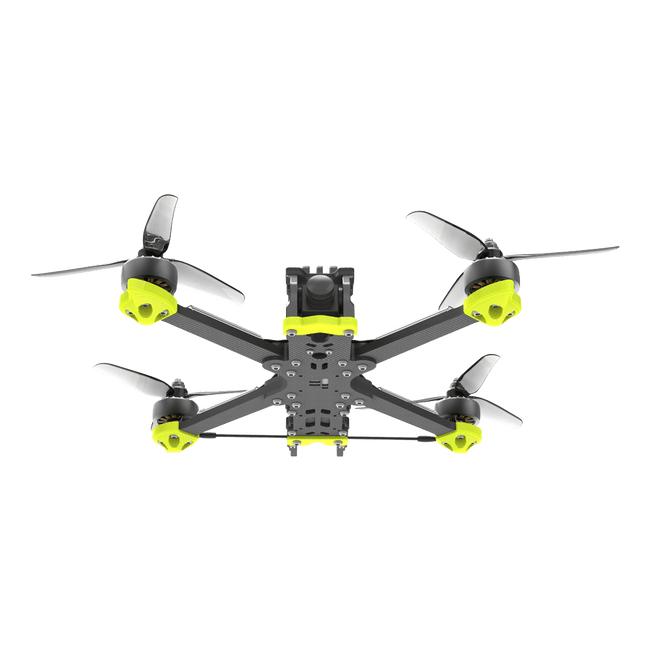

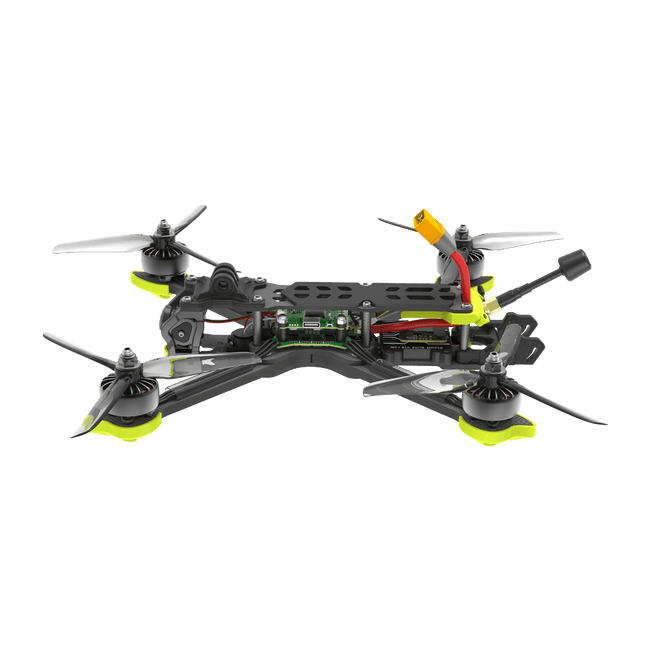

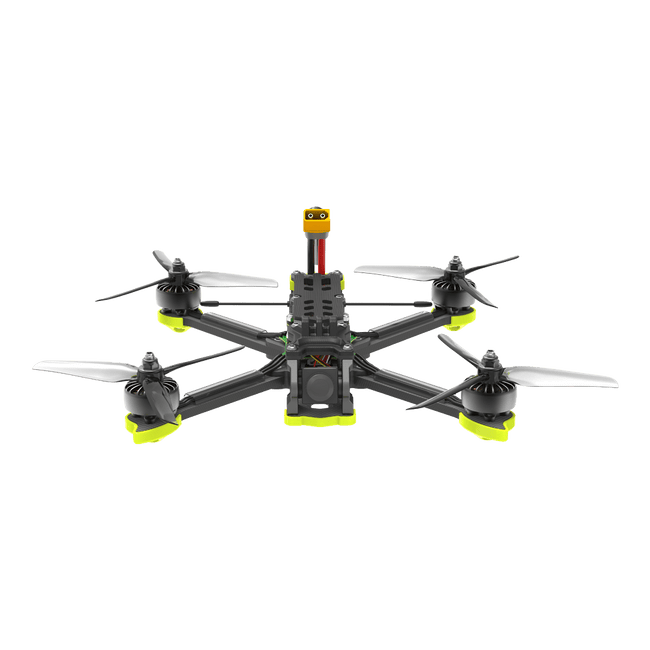

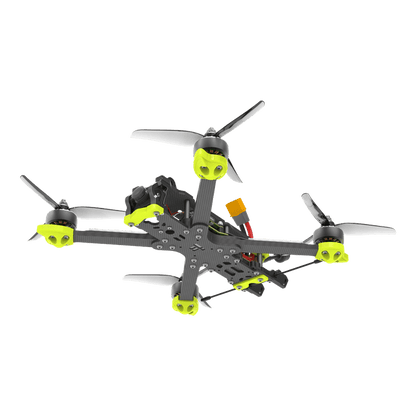

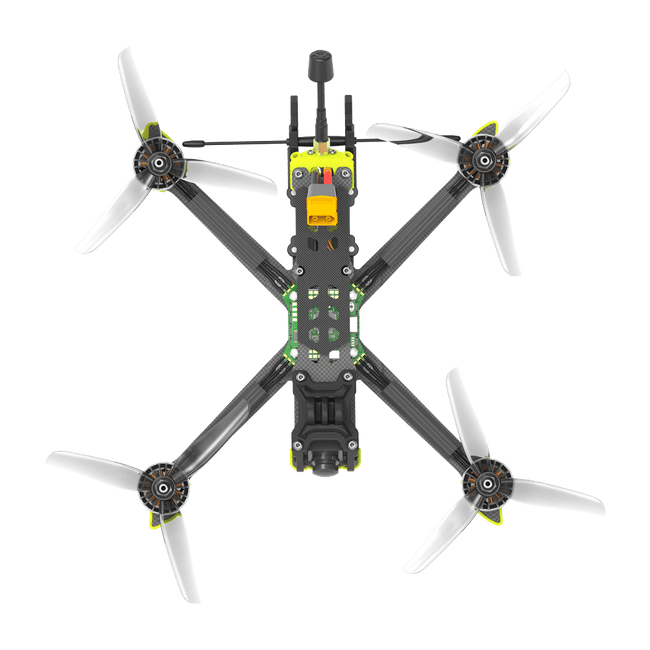

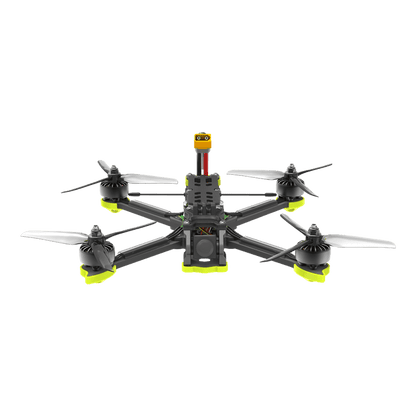

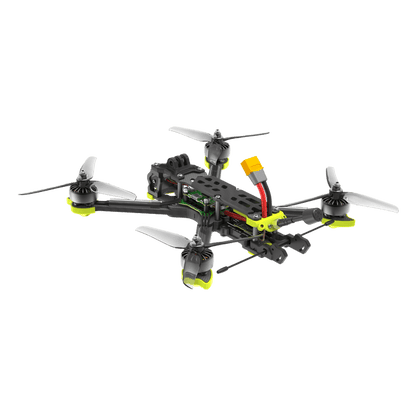

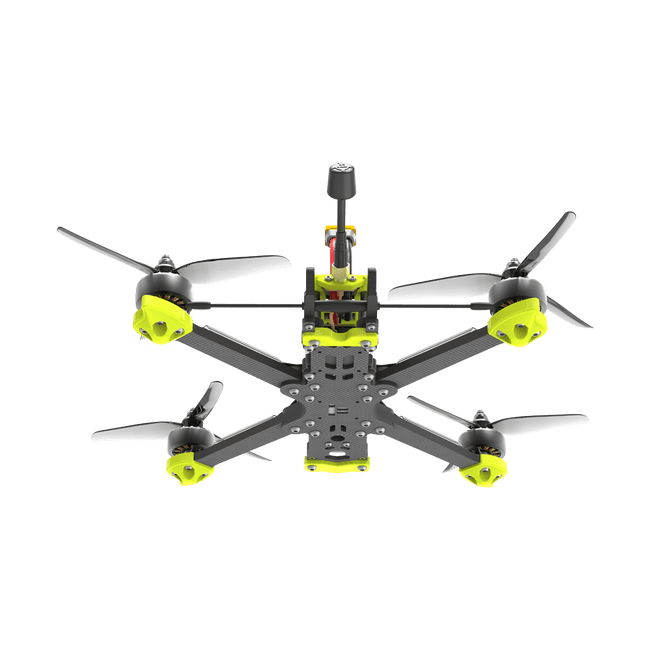

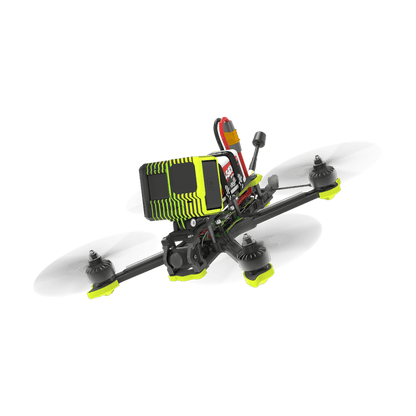

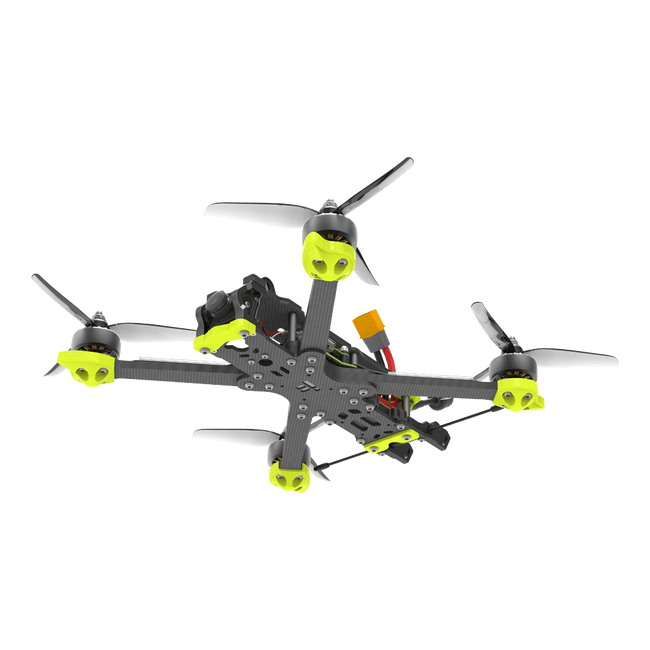

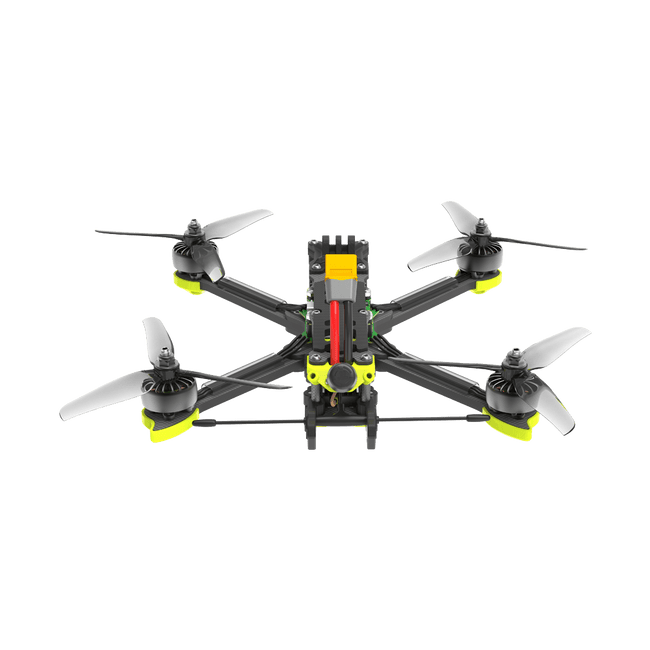

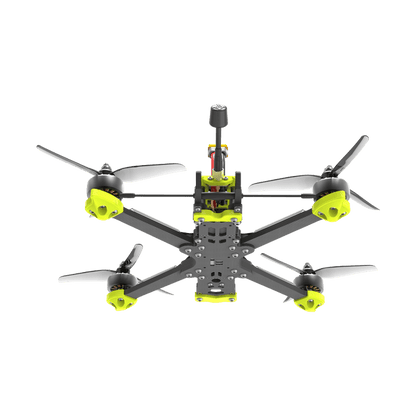

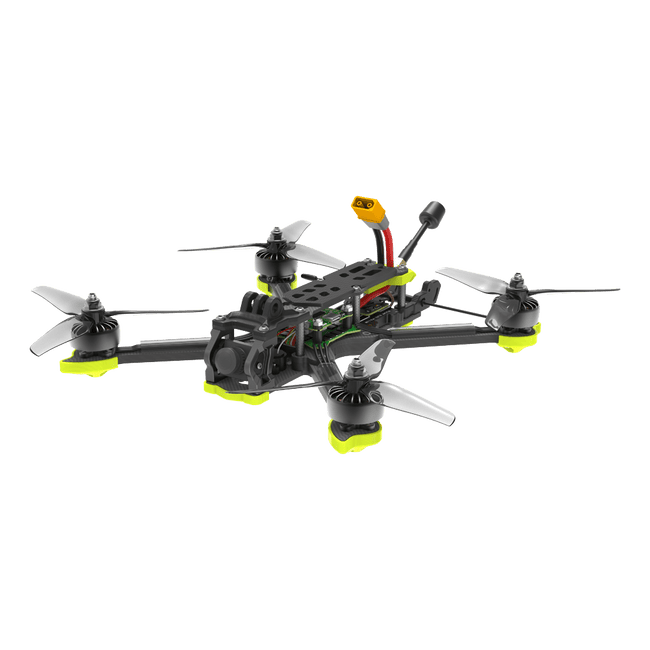

iFlight Nazgul XL5 ECO Analog BNF 6S ELRS 2.4GHz FPV Drone
Nazgul XL5 ECO - 5 inch standard freestyle drone that redefines performance and value. With ATF435 flight controller, BLITZ 1.6W VTX and BLITZ E55S 2-6S 55A ESC, Nazgul XL5 ECO provides unmatched performance and reliability. The carbon fiber with aluminum camera mount offers low durability, while the included GoPro mount provides versatility to capture your epic freestyle flights.
Function
- Lightweight and durable: Made of carbon fiber and aluminum, it provides a strong yet lightweight construction for camera equipment. Ensures clear video without propeller obstructions.
- Anti-Spark Filter: Contains a protection circuit that prevents sparks and extends the life of XT60 connectors, protects electronics from voltage or current peaks.
- Improved user experience and maintenance: Includes built-in buzzer and receiver holder for easy receiver maintenance and adjustment.
- Custom Space: Offers 20x20 and 30.5x30.5 mounting holes for compatibility with popular flight magazines and VTX systems, allowing for personalized setup and seamless integration.
Specifications:
Product Name: Nazgul XL5 ECO 6S Analog
Geometry: True-X
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-V-1 ESC
Video transmission: BLITZ 1.6W VTX
Receiver option: ELRS 2.4 GHz RX
Frame: wheelbase 245 mm
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propeller
Weight: 427g
Takeoff Weight: Approx. 652g (with 6S 1400mAh battery)
Dimensions (L×W×H): 173×173×34±2 mm
Diagonal distance: 245 mm
Maximum speed: 190 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 7.5 minutes (no load with 6S 1400mAh battery)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video transfer:
Product name: BLITZ 5.8G 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 7-34V (2-8S)
Working current: 25.2V, ≤pit @20mA, ≤25mw@65mA, ≤400mw@130mA, ≤800mw@150mA, ≤1600mw@250mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 30.5×30.5/Φ3mm
Weight: 18.9g (antenna not included)
Dimensions: 38.5×38.5 mm
The package includes:
1 x Nazgul XL5 ECO 6S Analog BNF
1x antenna
2 x battery pads
2 x Nazgul F5 Prop (pairs)
