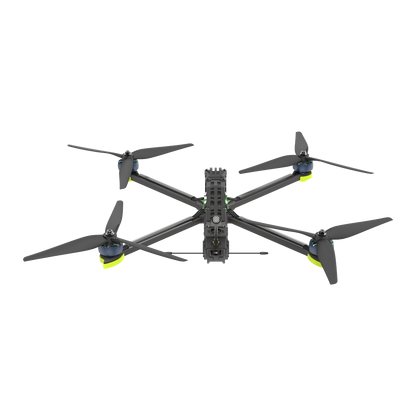

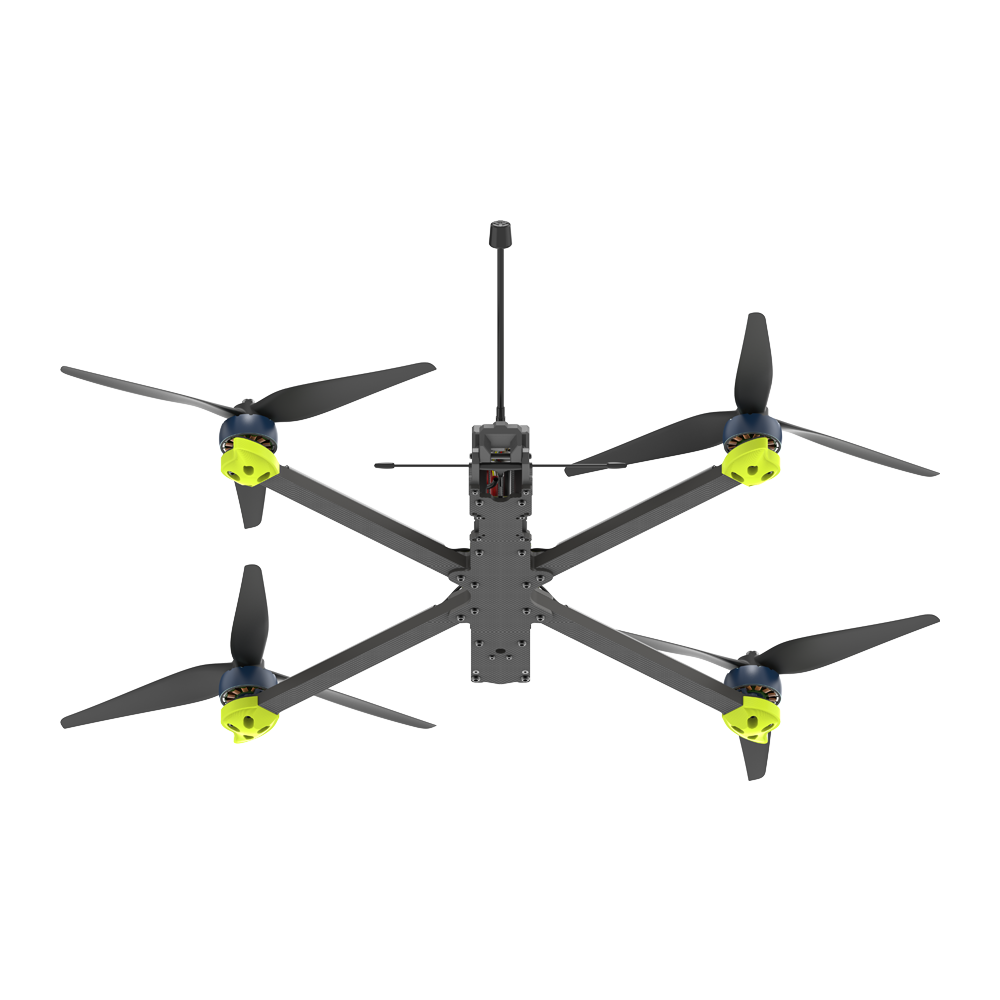

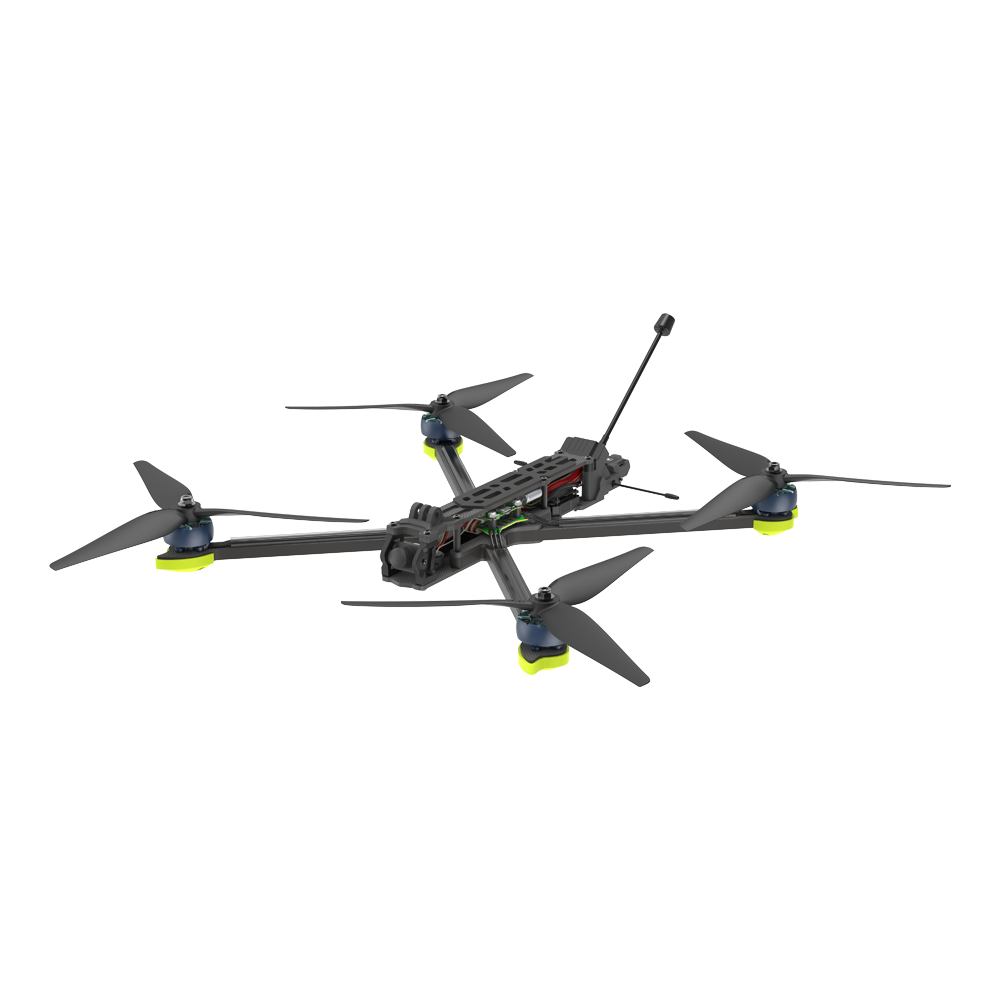

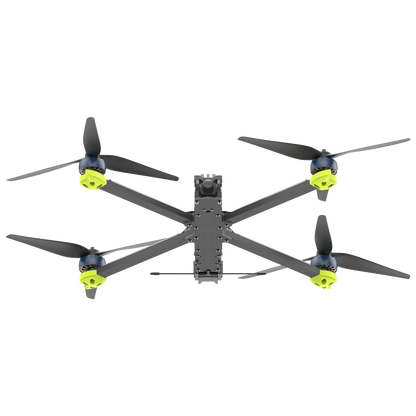

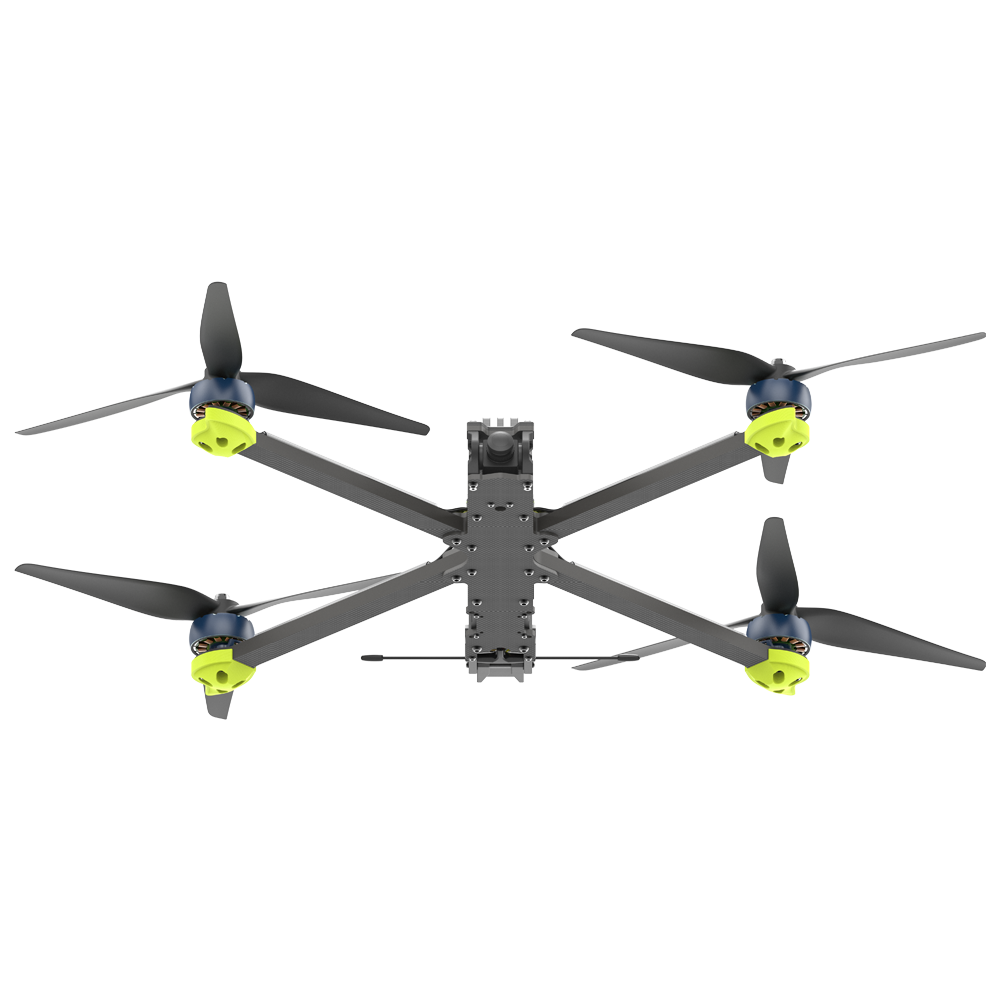

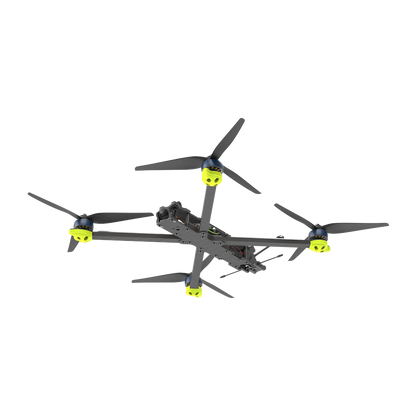

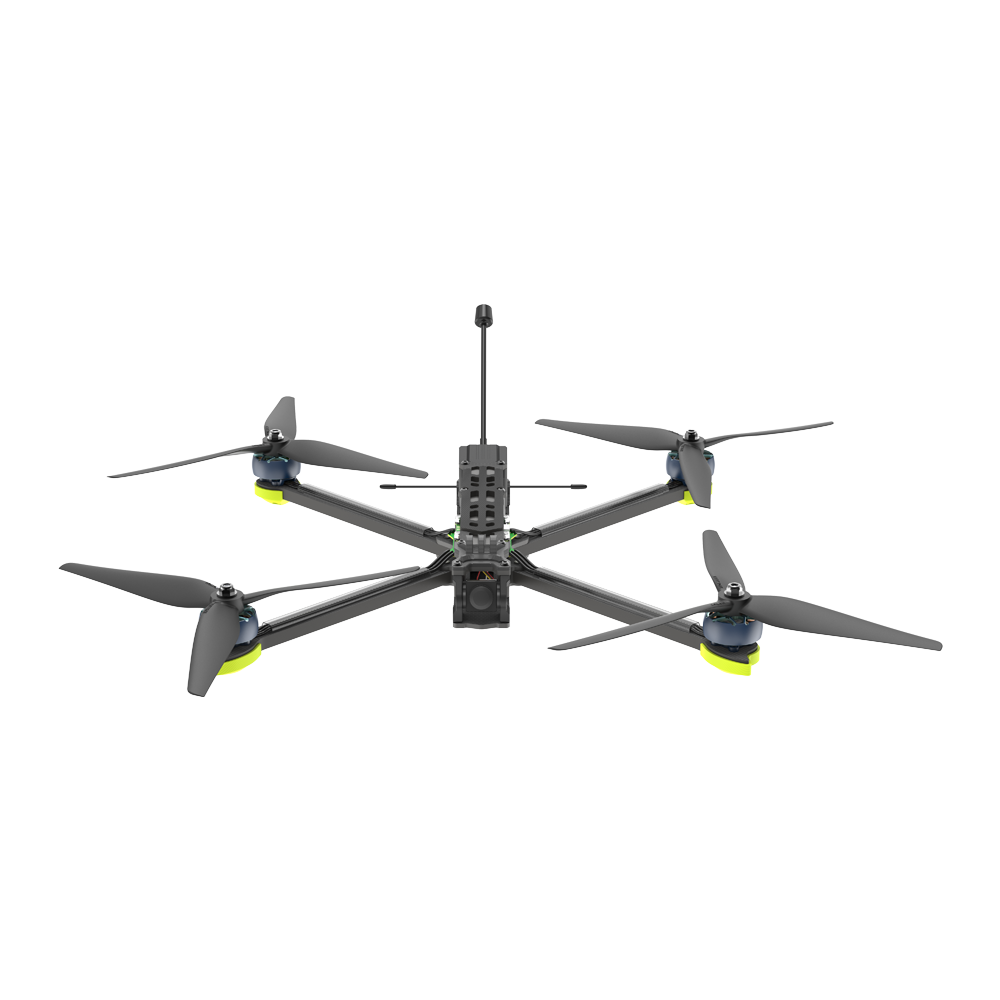

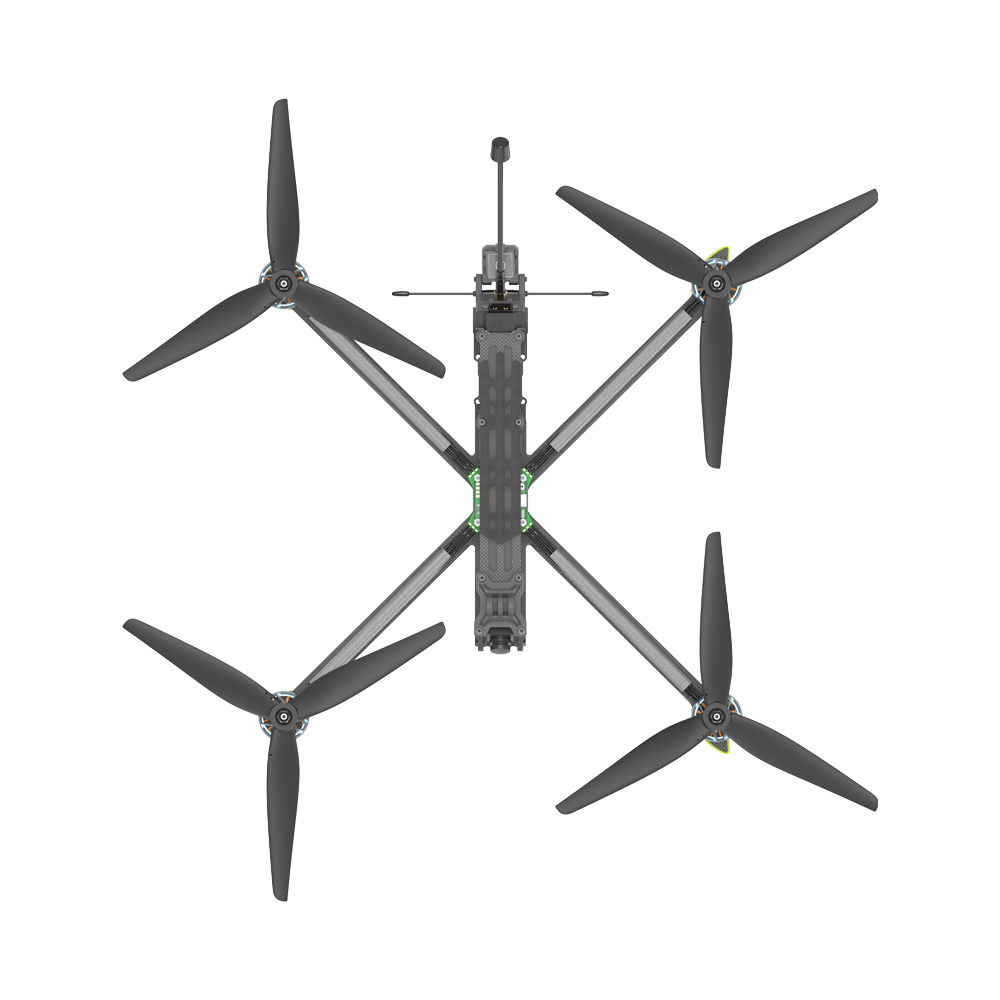

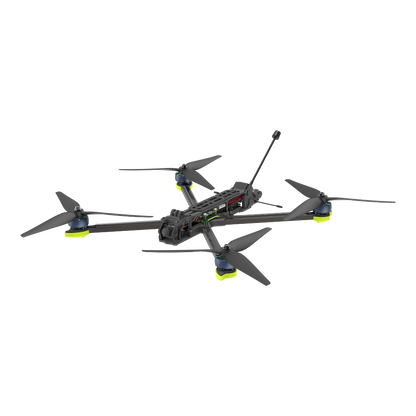

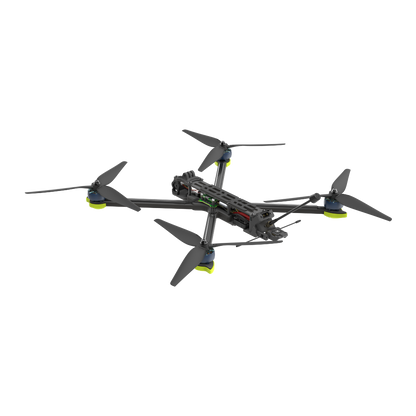

Nazgul XL10 V6 6S (TBS)

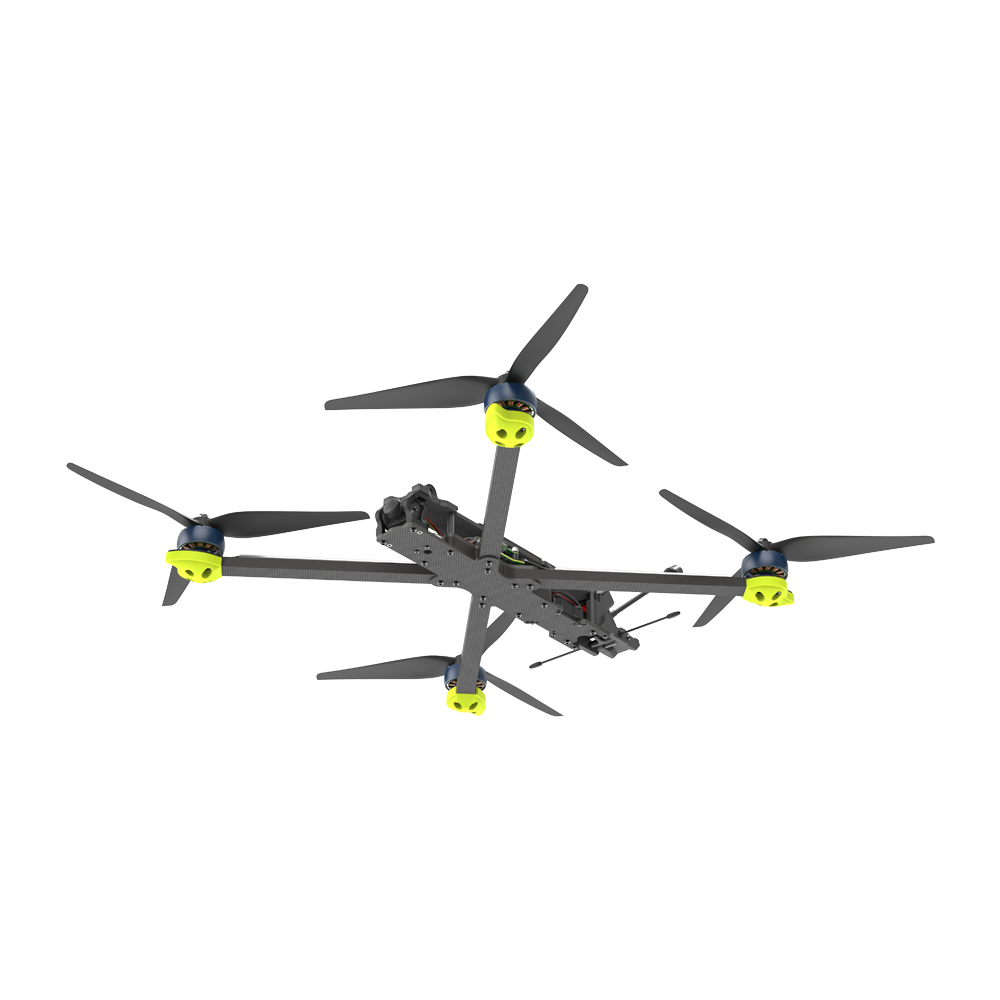

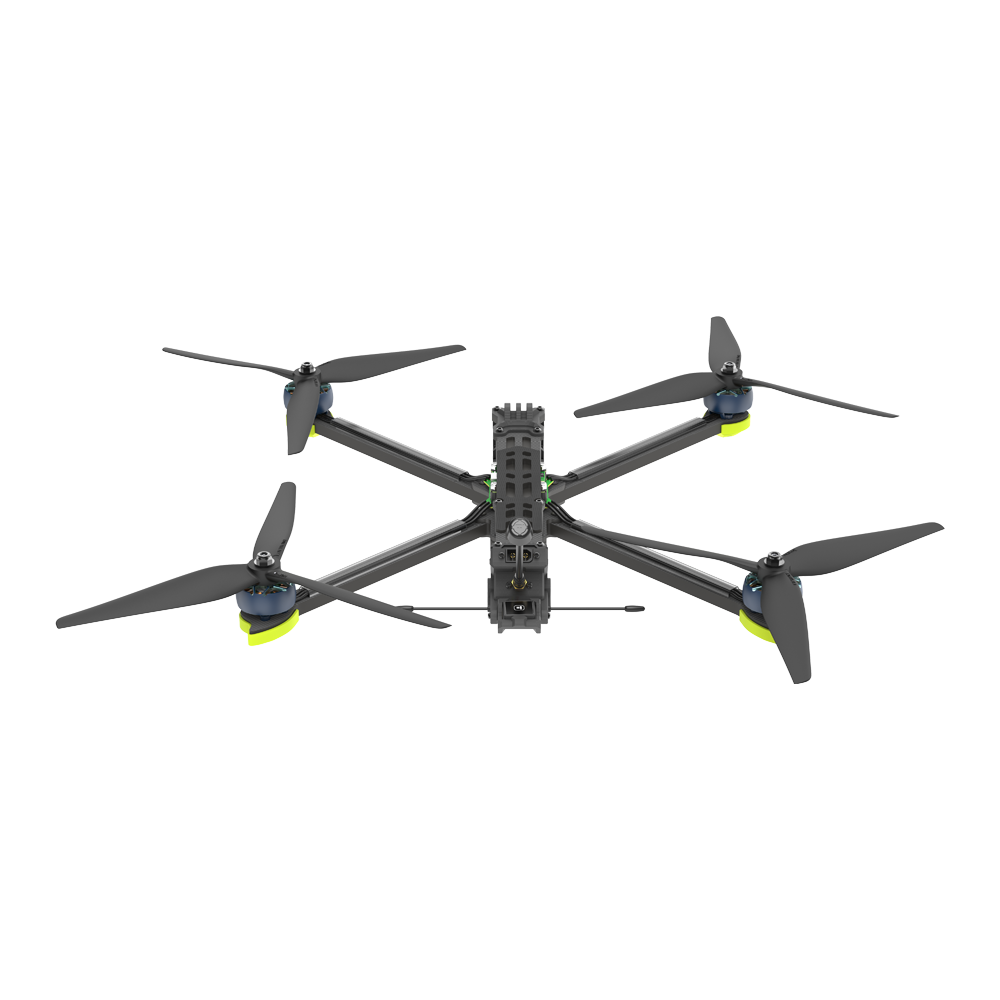

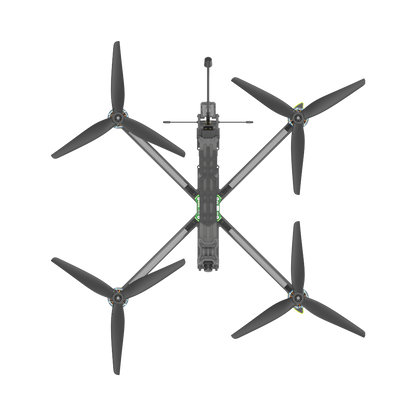

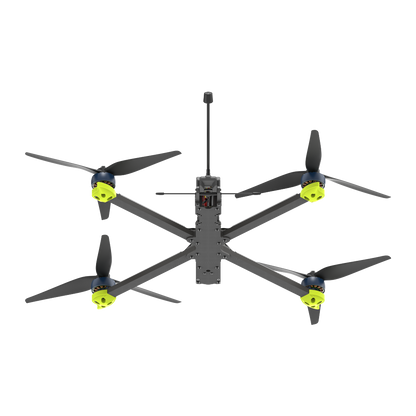

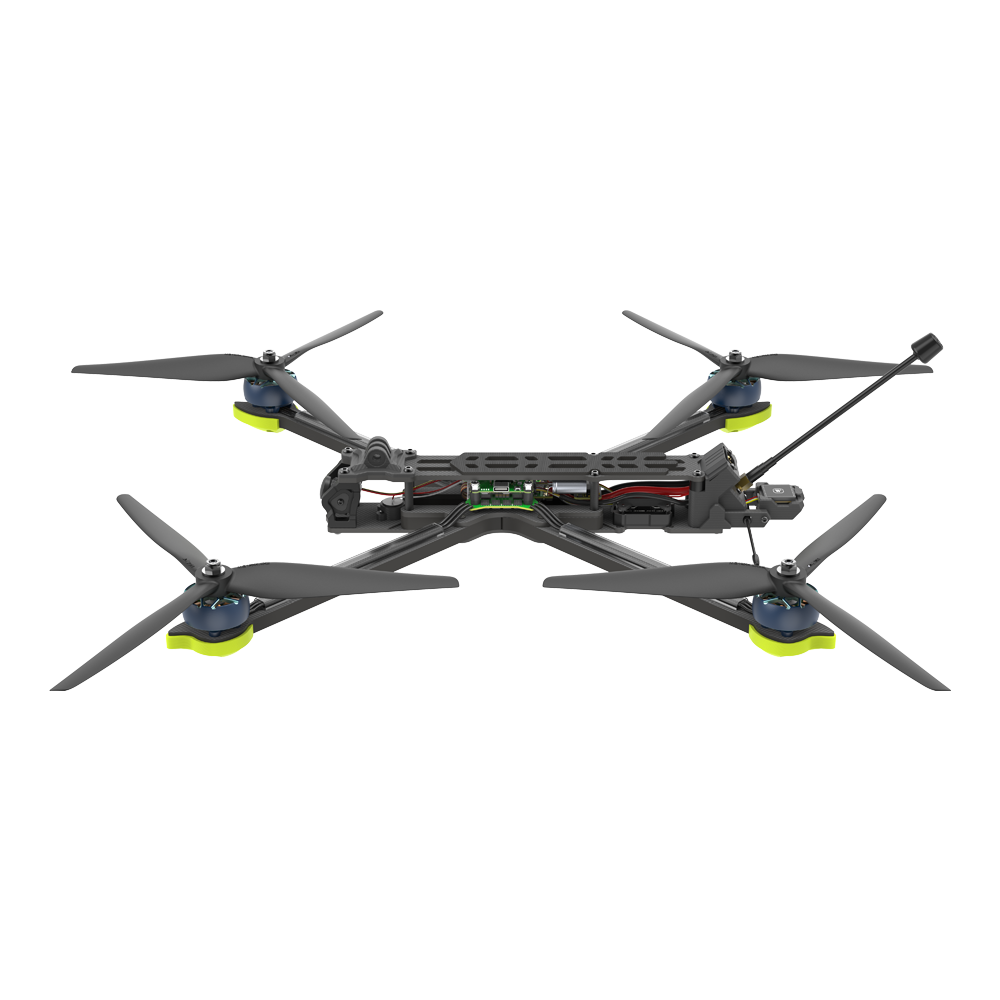

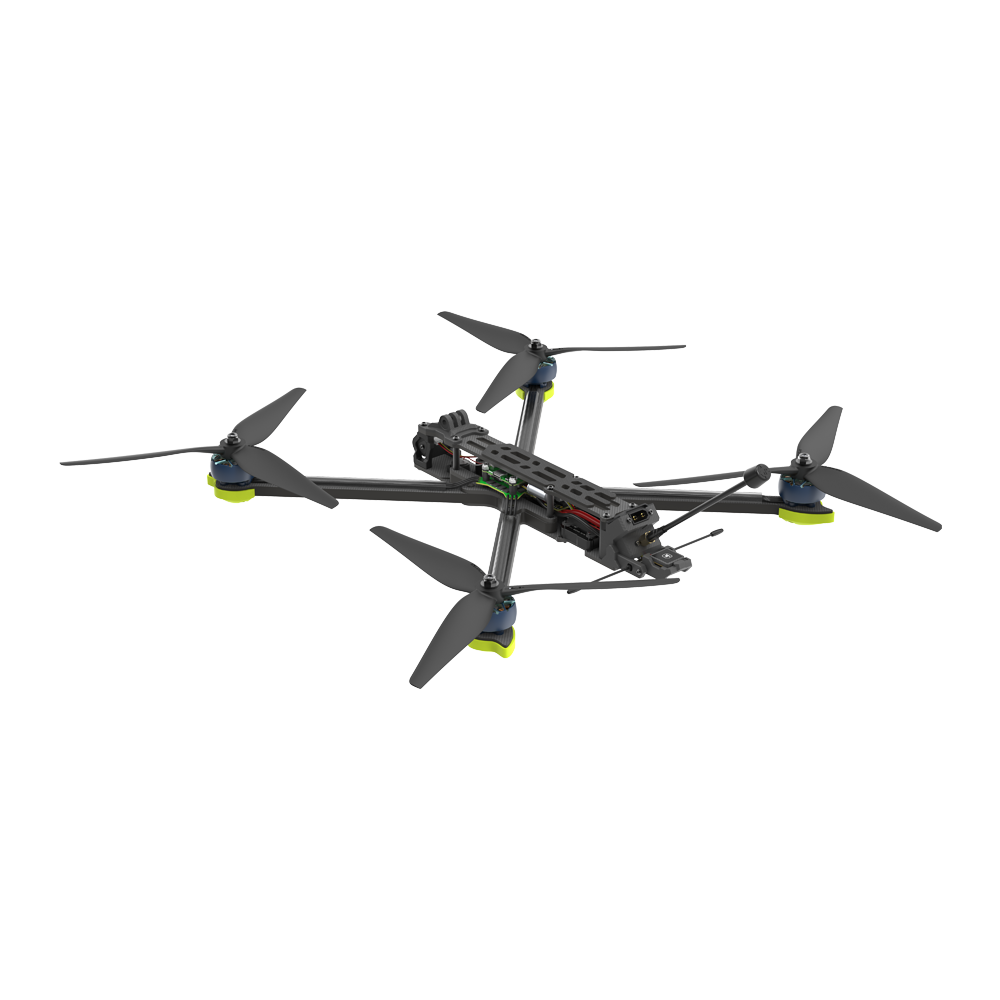

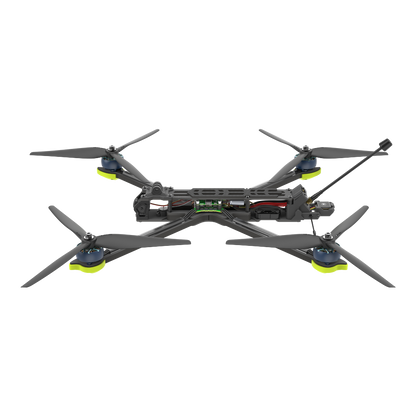

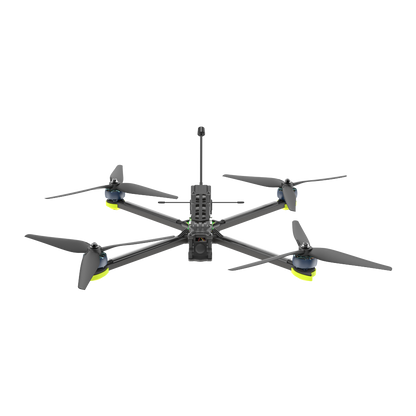

The XL10 V6 6S Analog is a 10" BNF quadcopter that comes with a BLITZ Whoop 1.6W VTX video transmission system and 10" 3-blade HQ propellers. The XL10 V6 has been pre-tuned and set up with everything you need, all you have to do is strap and fly. Packed with lots of energy; it comes with XING2 3314 motors, BLITZ F7 flight controller and BLITZ E55 4-IN-1 ESC.
Function:
- Full 3K carbon airframe
- Popular True-X configuration
- Large size XING2 3314 with extreme lift and flight performance
- Pre-installed GPS module (BF GPS Rescue or INAV GPS RTH function available)
Specifications:
Product name: XL10 V6 Analog 10 inch
Camera: RaceCam R1 Mini 1200TVL 2.5mm
Receiver option: TBS Crossfire Nano RX
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame: wheelbase 420 mm
Motor: XING2 3314 900KV motors
Propeller: 10X4.5X3 propeller
Weight: 860 g (without battery)
Dimensions (L×W×H): 297x297x35mm
Maximum speed: 140 km/h
Maximum take-off height: 6000 m
Maximum Hover Time: Approx. 40 minutes (with 6S2P 8000mAh without load)
Max Wind Speed Resistance: Level 7
Operating temperature range: -10° to 40° C
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Product name: BLITZ 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 12V
Operating current: ≤ pit @40 mA, ≤ 25 mw @ 150 mA, ≤ 400 mw @ 330 mA, ≤ 800 mw @ 460 mA, ≤ 1600 mw @ 660 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: IPEX
Mounting hole: 25*25/φ1.6mm
Weight: 16.5 grams (without antenna and cable)
Dimensions: L37mm*W31.5mm*H10mm
The package includes:
1 x XL10 V6 6S analog BNF (TBS)
1 x battery pad
1x antenna
1 x propellers (pair)
2x battery strap
1 x bag of screws
