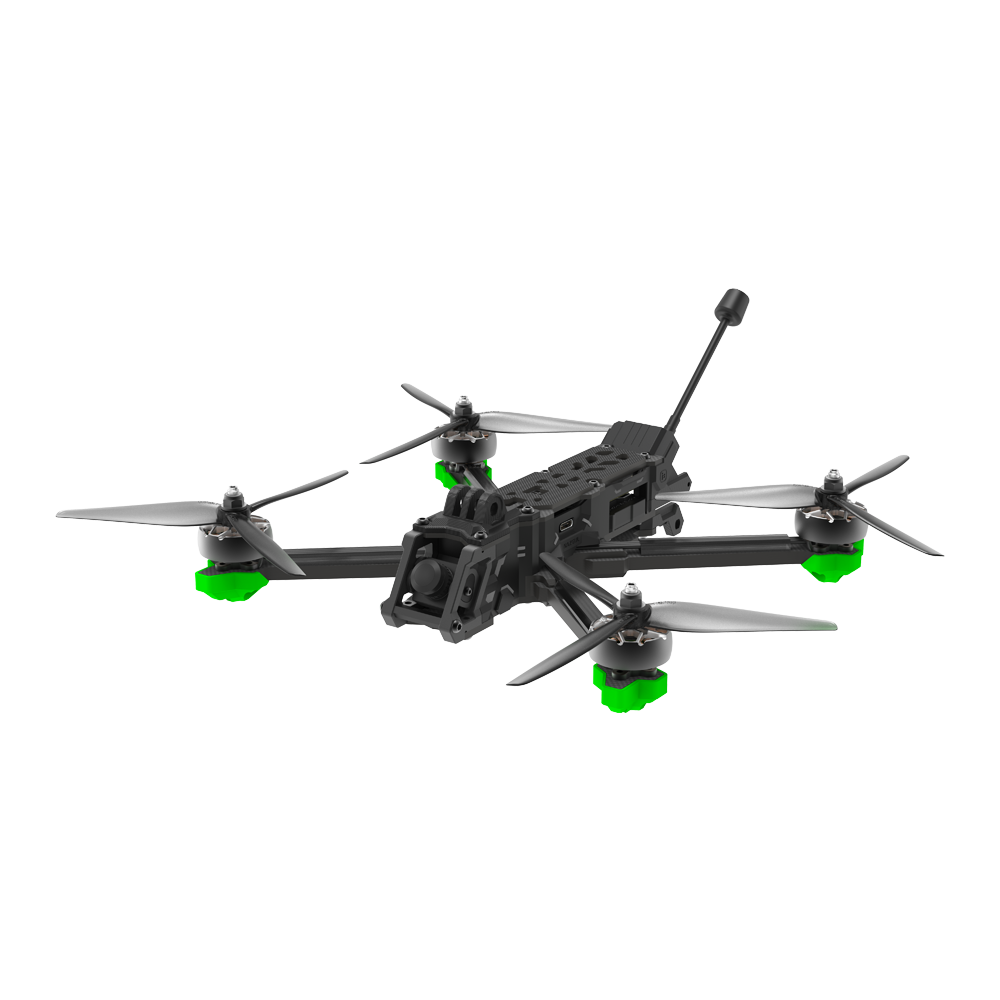

Nazgul Evoque F6X V2 Analog 6S BNF (PNP)
The Nazgul Evoque F6X V2 Analog 6S is a high-performance 6-inch freestyle drone built on a Squashed X frame that offers improved agility and speed. The Evoque F6X V2 Analog features a RaceCam R1 Mini 1200TVL 2.5mm camera and offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915 MHz, ELRS 2.4 GHz or no RX (PNP). It provides flexibility for different preferences. The 6-inch drone offers longer flight time with a larger battery and higher efficiency with lower KV motors. This version has a pre-installed GPS module.
Function:
- Smooth and powerful XING2 engines-
Durable unibell (one-piece bell) technology, solid titanium alloy shaft with reinforced bell joint, impact-resistant 7075 aluminum bell, long-life smooth Japanese NSK bearings, N52H curved-arc center-groove magnets, and XING O-ring bushing gap protection.
-Latest Nazgul frame for maximum protection-
The newest frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
-Secure battery plug with spark filter-
Added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
Specifications:
Product Name: Nazgul Evoque F6X V2 Analog 6S
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 255mm (Squashed X)
Motor: XING2 2506 1500KV motors
Propellers: 6 inch propellers
Weight: 480 g
Dimensions (L×W×H): 196×164×36±2 mm (squeezed X)
Maximum speed: 180 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 8.5 minutes (with 6S 1400 mAh)
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: PNP
Video transfer
Product name: BLITZ Whoop 1.6W VTX
Input voltage: 5V
Interface: IPEX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 25x25mm/Φ1.6
Light weight: 16.5 g (without antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
Table values RC Tramp VTX: 25mW/400mW/800mW/1600mW
The package includes:
1 x Evoque F6X 6S Analog BNF
1x antenna
2 x battery pad
2x propellers (pairs)
2x battery strap
