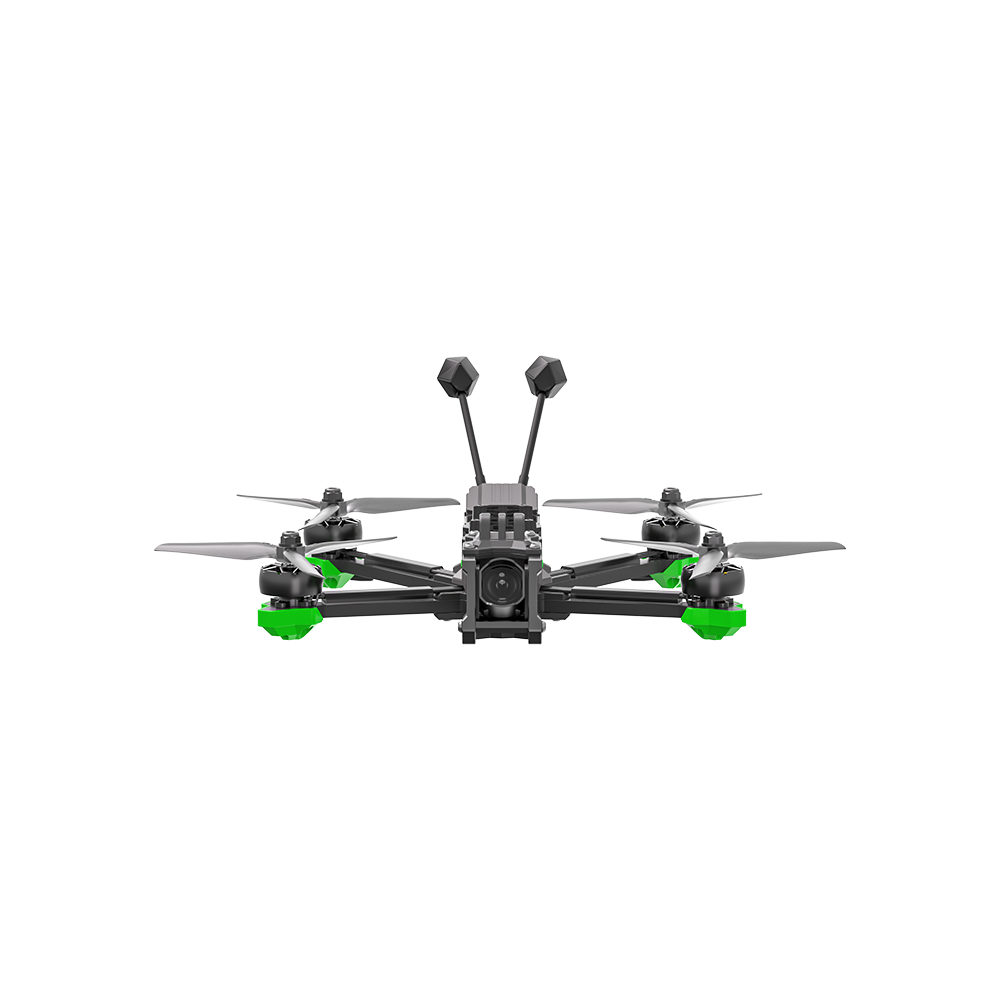

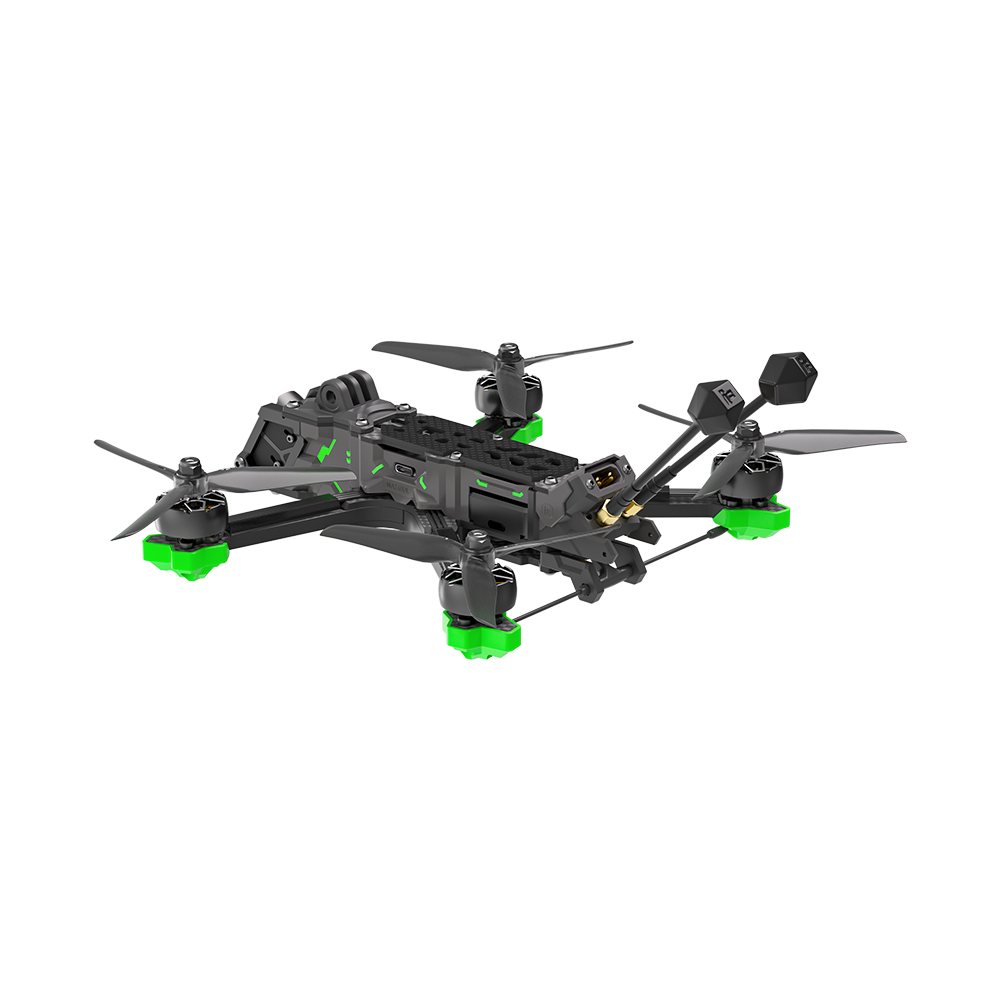

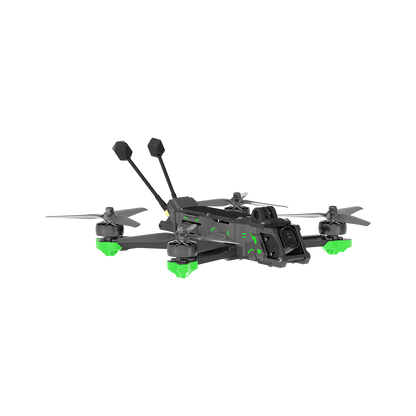

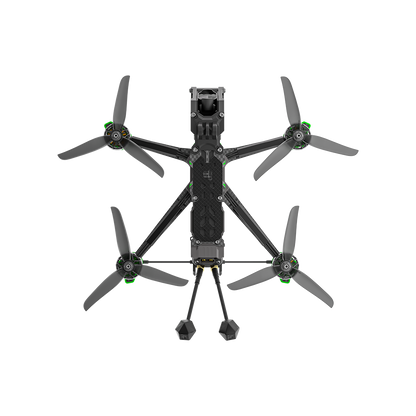

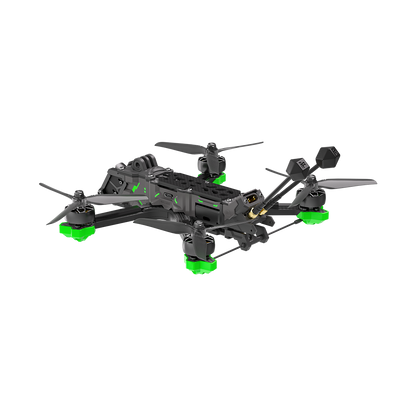

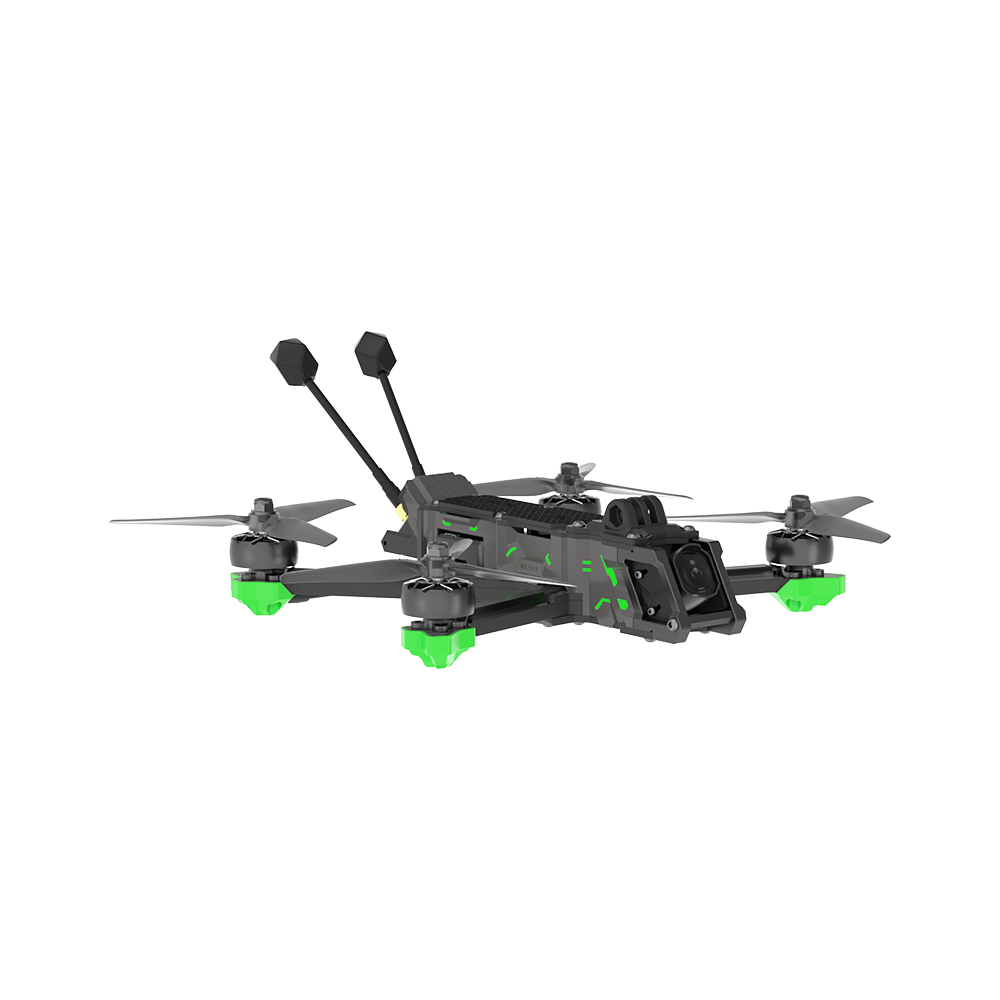

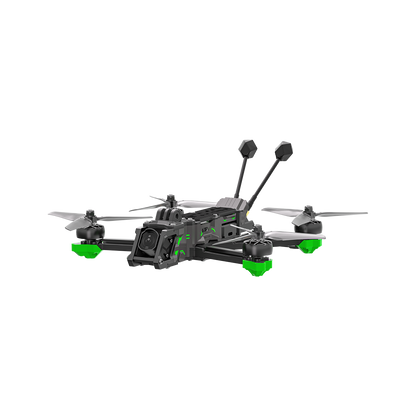

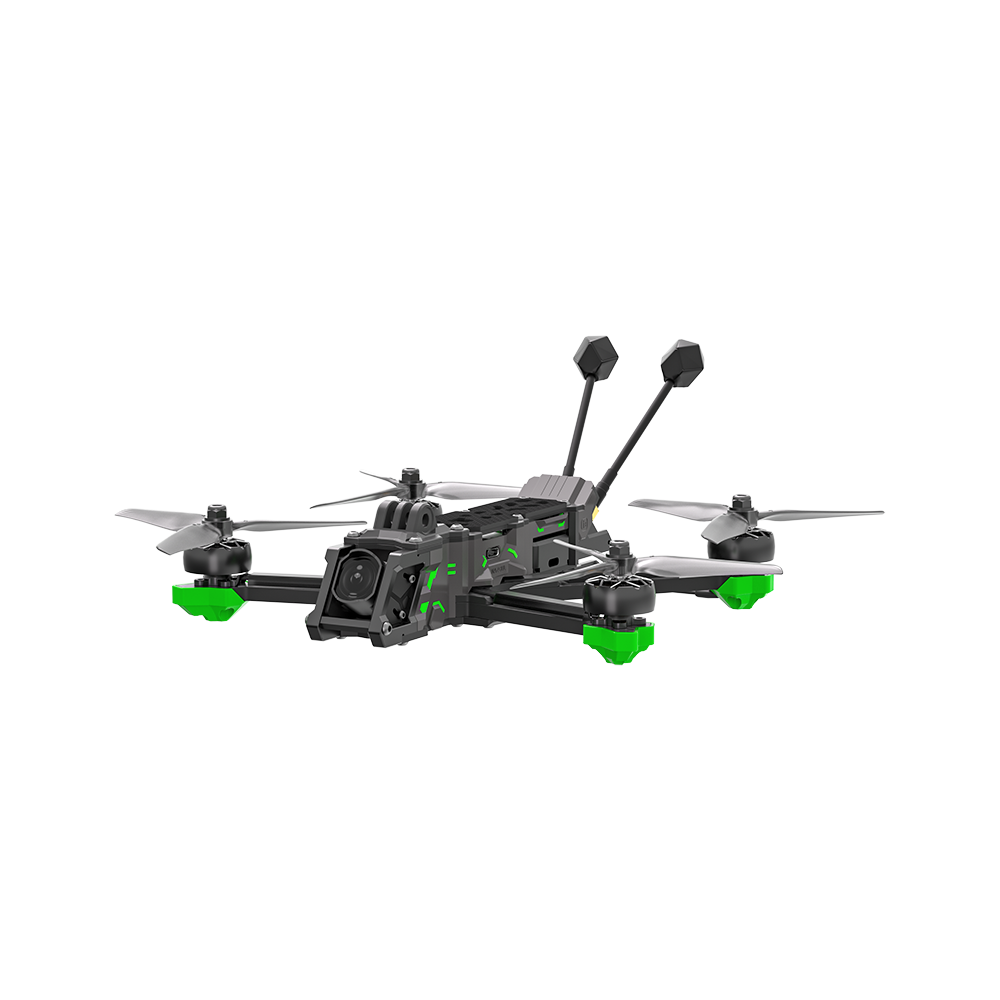

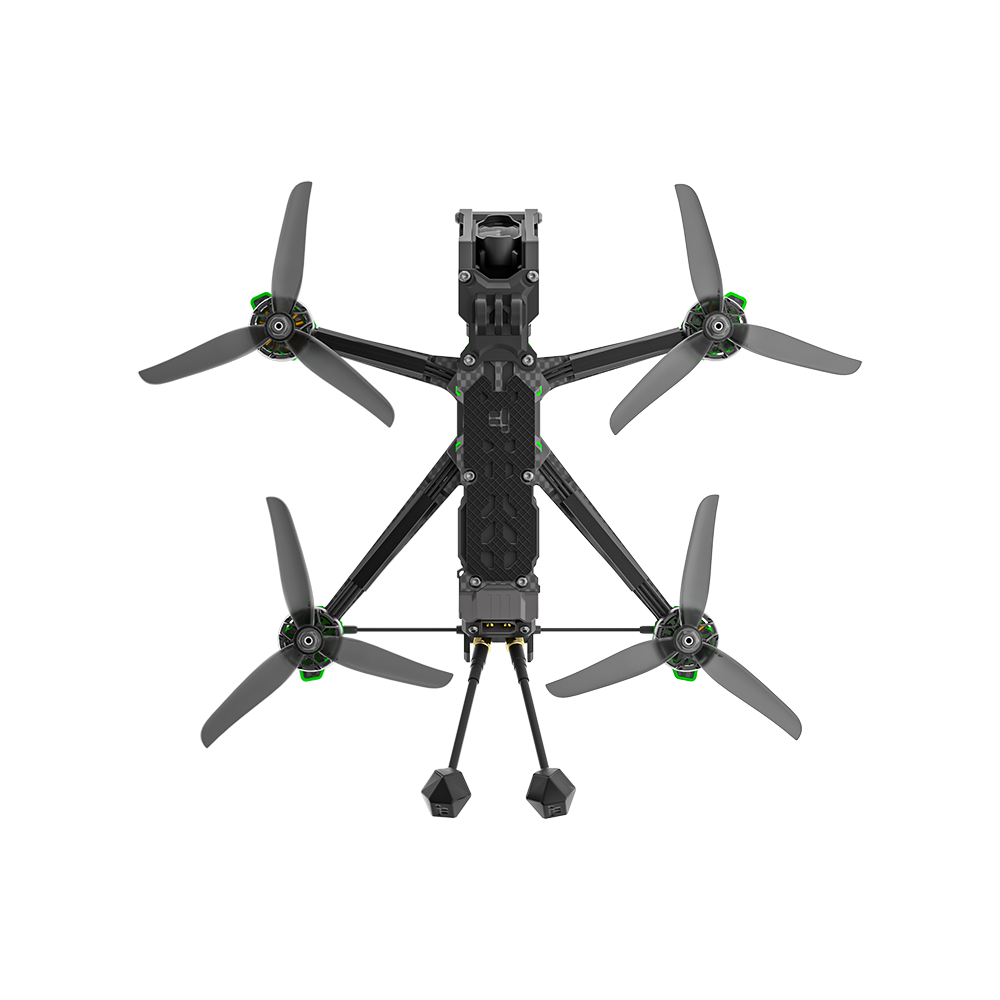

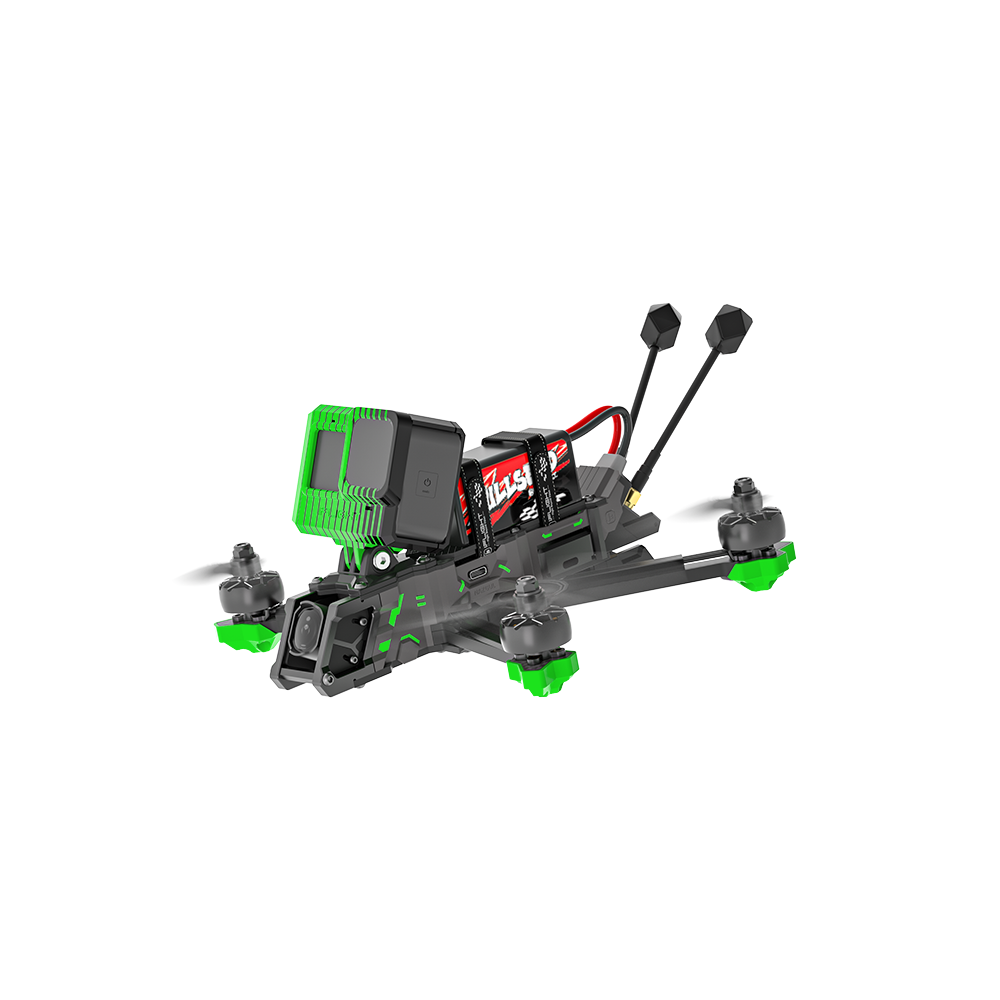

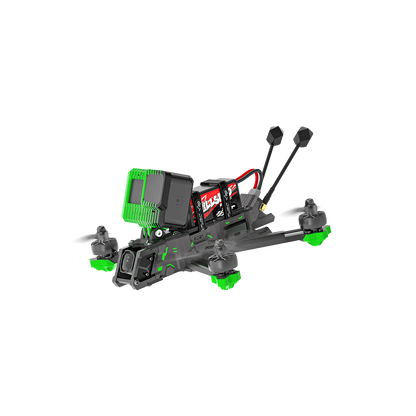

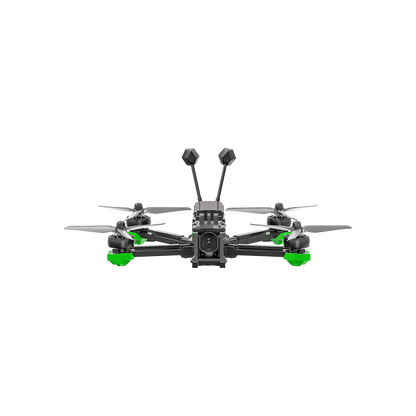

FPV Drone iFlight Nazgul Evoque F5D V2 O4 Pro BNF 6S ELRS 2.4GHz

FPV Drone iFlight Nazgul Evoque F5D V2 O4 Pro BNF 6S ELRS 2.4GHz

The Nazgul Evoque F5D V2 O4 Pro integrates the latest DJI O4 Pro flight unit, which features an advanced 1.1/1.3-inch image sensor to capture intricate details even in low-light conditions. Enjoy smooth real-time video streaming at up to 1080p/100fps for an immersive flying experience. The upgraded frame and electronics not only increase durability, but also provide enthusiasts with peak performance right out of the box. Welcome to the future of FPV flying with iFlight - where setup is simple, but the excitement and capabilities are unmatched.

Features:

- Smooth and powerful XING2 engines. The latest upgrade of our best-selling XING engines, without any compromises! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, impact resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, N52H curved arc center slot magnets and our XING bushing gap protection with O-ring.

- Latest Nazgul frame for maximum protection. Gone are the old days when every time you fall, your electronics get filled with dirt and wet grass. Our newest frame reduces the dirt that could build up on your flight controller or ESC, preventing malfunctions or short circuits. Strategic airflow keeps your components cool and clean without compromising on weight or performance. Illuminated side panels and 360-degree TPU protective parts.

- O4 video transmission, improved perception. The improved stability of the DJI O4 video transmission allows you to fully immerse yourself in each flight and provides greater safety. It boasts a maximum video transmission distance of up to 13 km, a transmission latency of just 24ms, a high definition image quality of 1080p/100fps and a maximum transmission speed of 60Mbps. (Source: DJI)

- Stabilized video in 4K resolution with an ultra-wide angle of 155°. Together with high-quality picture performance, it provides an exceptional picture that will keep your viewers in suspense. (Source DJI)

- Secured battery plug with spark filter. Connecting the battery can cause loud sparking at the connector, which is caused by the high current of the battery first rushing into the low ESR capacitor and also filling the ESC capacitance. We added a protection circuit that extends the life of the XT60 connectors and prevents rapid voltage or current spikes that can protect your electronics from damage.

Specifications:

- Receiver variant: ELRS 2.4GHz
- FC: flight controller BLITZ Mini F722
- ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
- Video Transmission: DJI O4 Air Unit
- Frame wheelbase: 223±2mm
- Motor: XING2 2207 1750KV
- Propeller: Nazgul F5
- Weight: 436±5g
- Take-off weight: Approximately 712±10g (with 1480mAh battery)
- Dimensions (L×W×H): 190*136*36±2mm
- Maximum speed: 190 km/h
- Maximum take-off height: 3200 m
- Maximum hover time: About 7.5 min (no load with 6S 1480mAh)
- Max. flight distance: 5 km
- Max. Wind Resistance: Level: 7
- Operating temperature range: -10° to 40° C (14° to 104° F)
- Antennas: Two antennas

Video transfer:

- Product name: DJI O4 Air Unit Pro
- Image sensor: DJI DJI O4: 1/1.3 inch
- Lens FOV: 155°
- ISO: 100-25600
- Video resolution: 1080p/100fps H.265
- Video format: MP4, max. video data rate: 130 Mb/s
- Color Mode: Normal Mode/D-Log M
- Stabilization: RockSteady 3.0+; (When RockSteady is on, the shooting angle only supports standard.)
- Live view quality: 1080P@100fps
- Operating frequency: 5.170-5.250 GHz and 5.725-5.850 GHz
- Transmitter power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
- Maximum video transmission range: With DJI Goggles 3/DJI Goggles N3: 15km (FCC), 8km (CE), 8km (SRRC).
- Communication bandwidth: max. 60 MHz
- Antenna: Two antennas
- Built-in memory: 4 GB
- Supported SD cards: microSD (up to 512 GB)
- Operating temperature: -10° to 40° C
- Weight: 40 to 40 °C Air unit (including camera module): Approx. 32 g
- Dimensions: Transmission module: 2.5 mm: 33.5 × 33.5 × 13 mm (L × W × H)

The package contains:

- 1 x Evoque F5 6S O4 HD BNF
- 2 x antennas
- 1 x pad under the battery
- 1 x propeller (pair)
- 1 x battery strap
