FPV Drone iFlight Nazgul DC5 ECO V1.1 O4 Pro BNF 6S ELRS 2.4GHz

FPV Drone iFlight Nazgul DC5 ECO V1.1 O4 Pro BNF 6S ELRS 2.4GHz

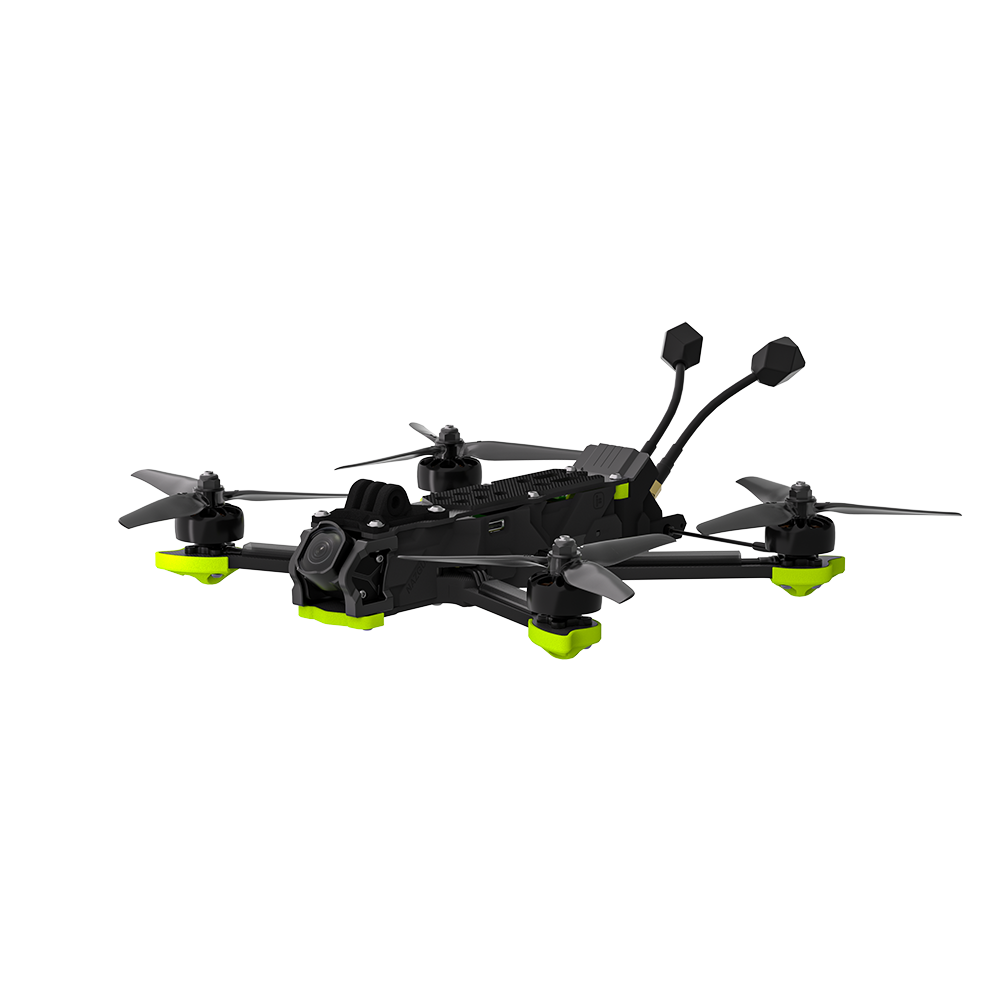

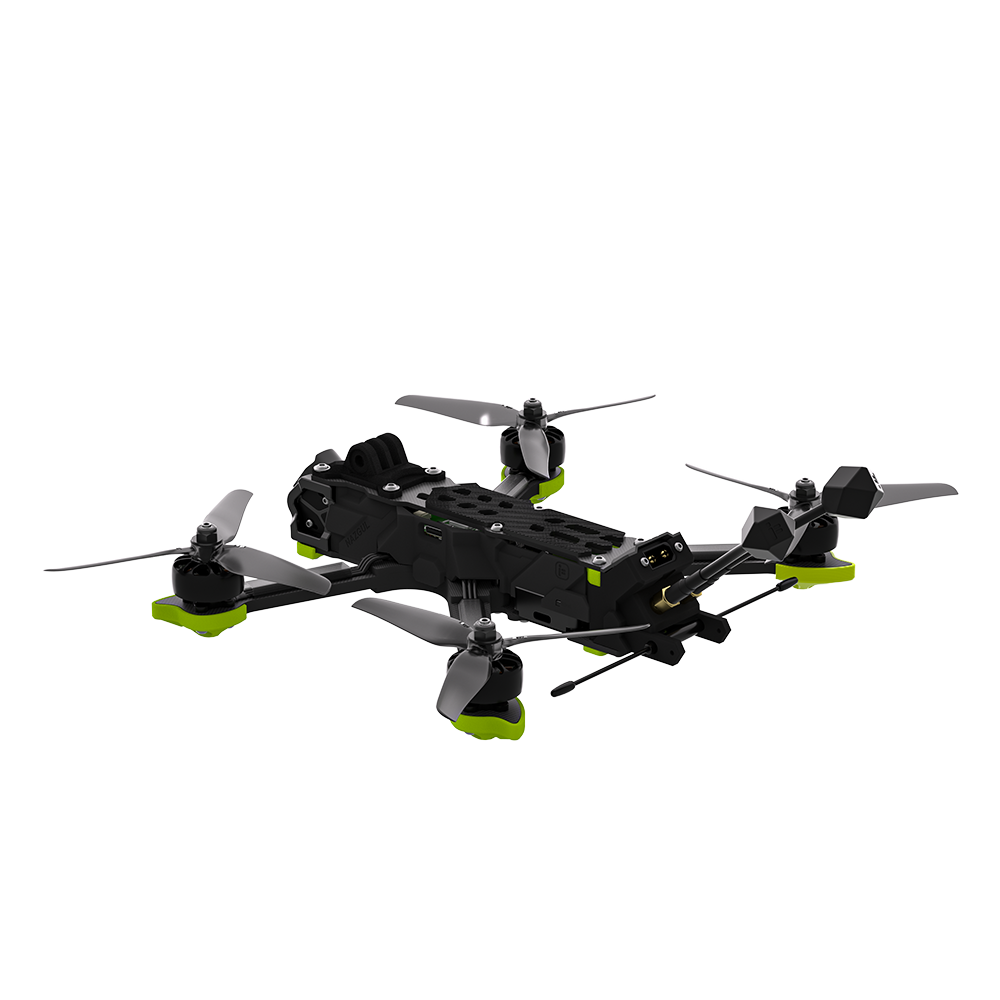

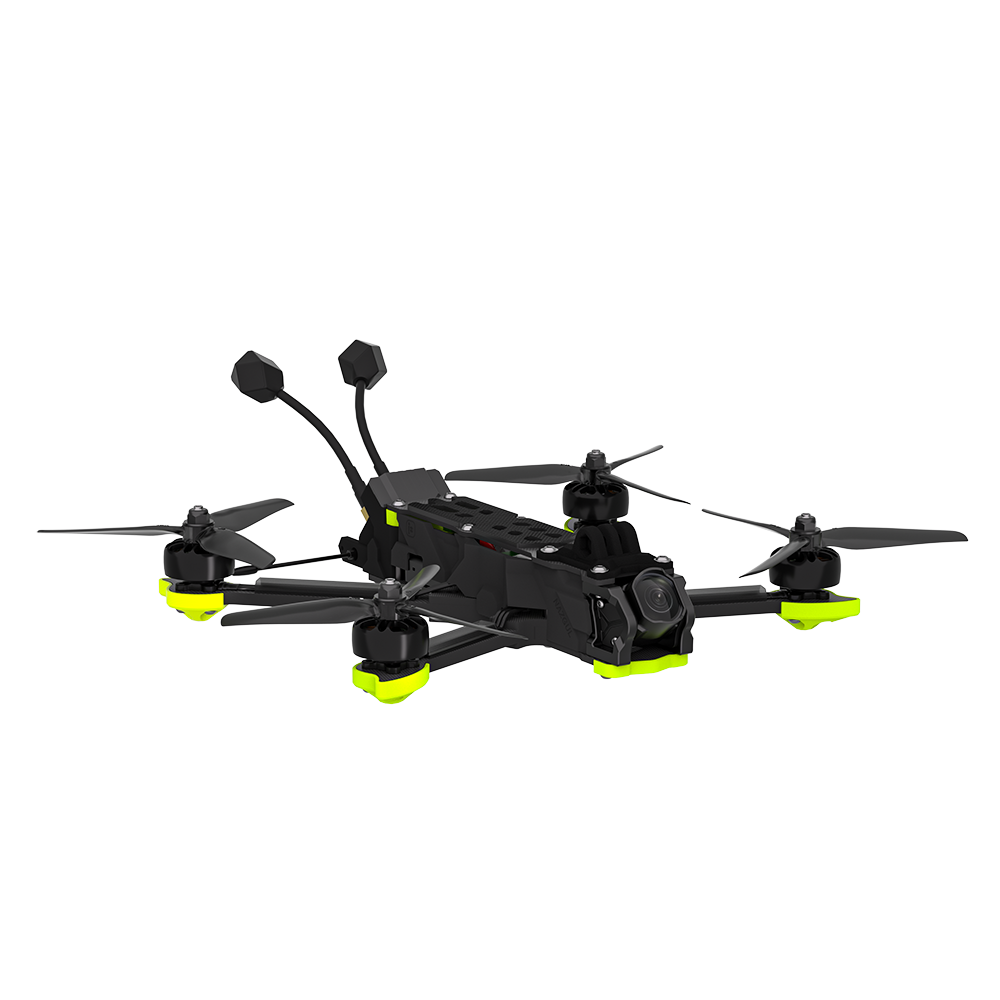

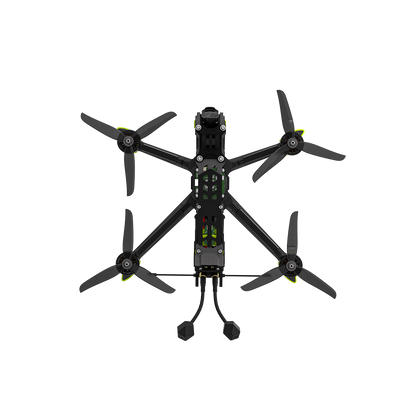

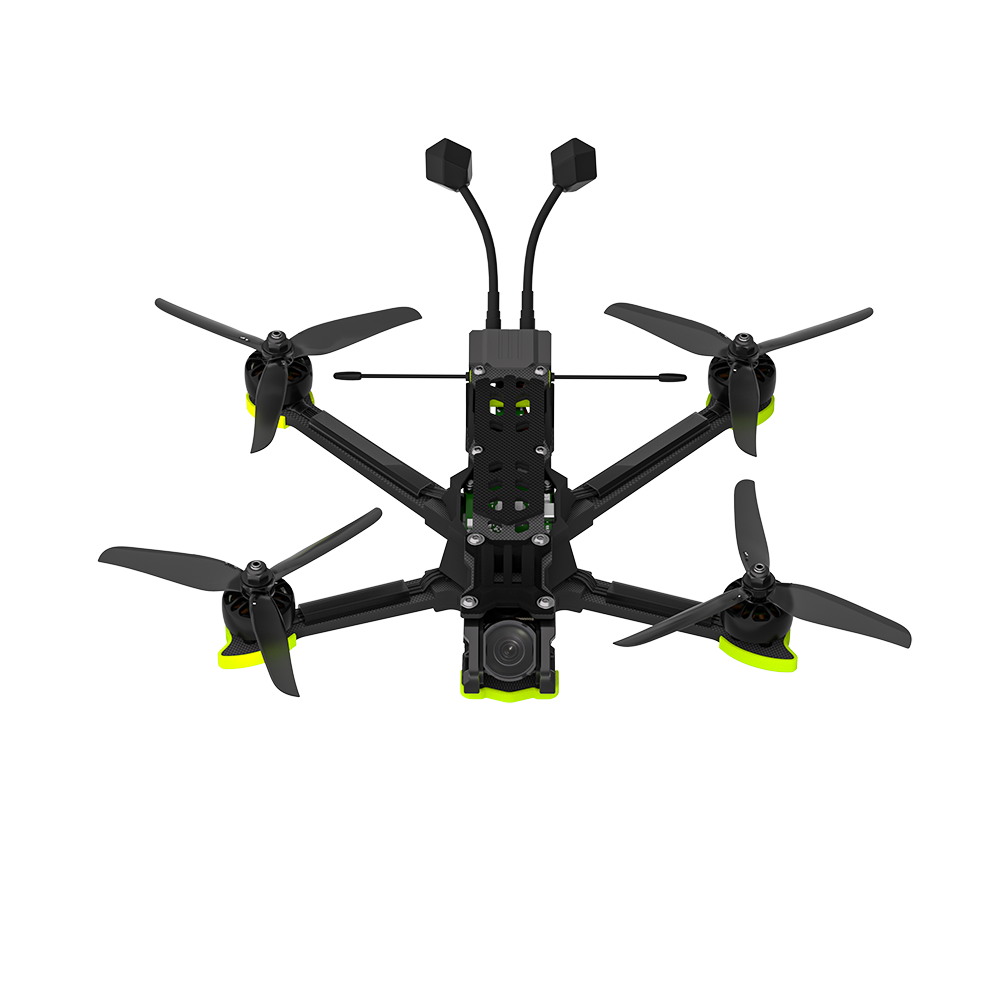

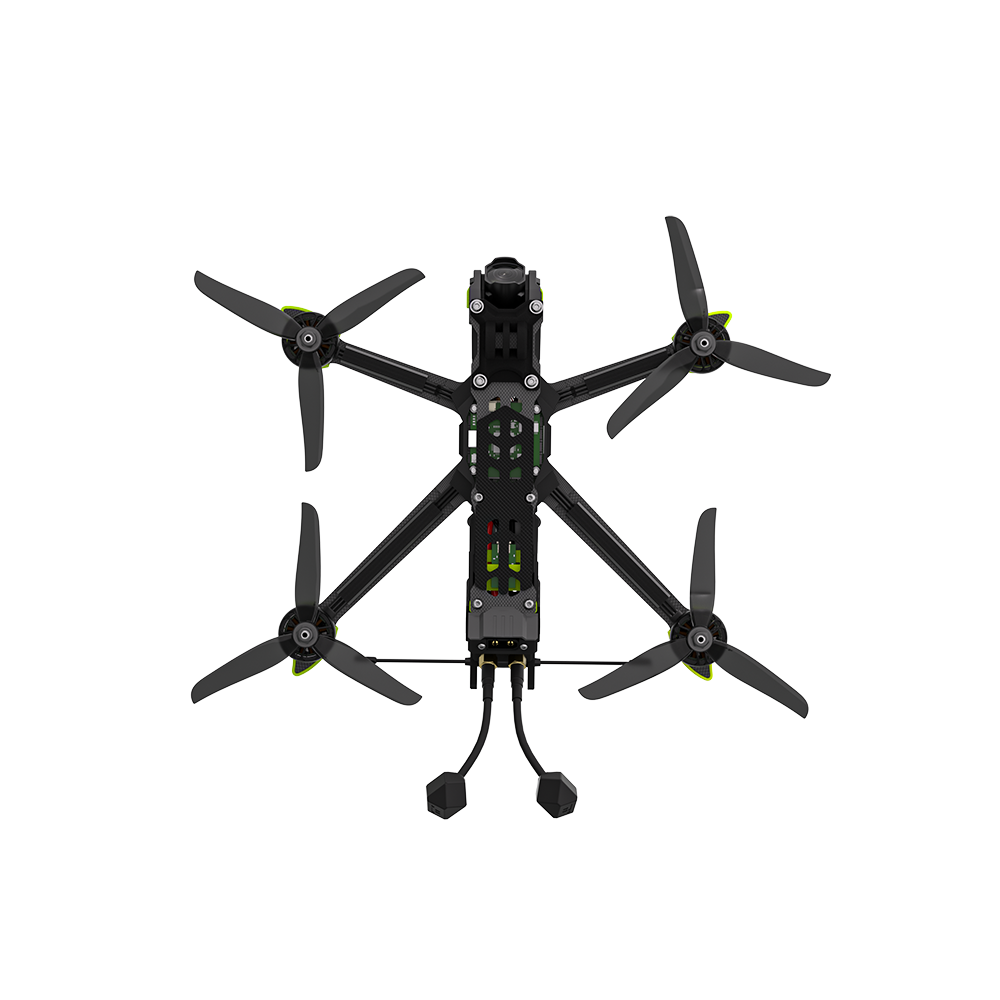

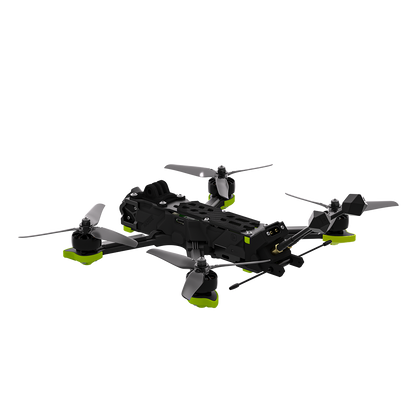

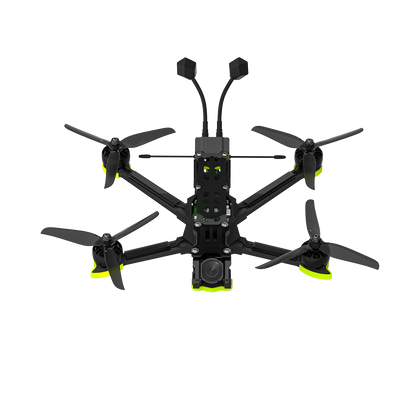

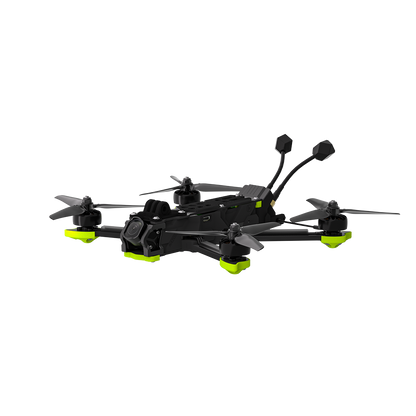

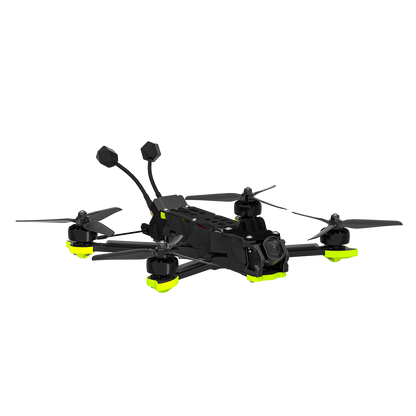

Nazgul DC5 ECO - A 5-inch freestyle drone that redefines performance and value. Equipped with the DJI O4 Digital HD system for clear images without propellers, it features a 1.1/1.3-inch sensor for stunning stabilized 4K video, even in low light. Its carbon fiber frame with aluminum camera mount ensures durability while keeping the weight low, and the included GoPro mount adds versatility. It is powered by ATF435 flight controller and BLITZ E55S ESC controller, so it provides reliable performance.

Features:

- Lightweight and durable. The combination of carbon fiber and aluminum ensures a lightweight yet robust construction for your camera gear. Designed for clear image output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.

- Spark filter. Connecting the battery can cause loud sparking at the connector, which is caused by the high current from the battery first rushing into the low ESR capacitor and also filling the ESC capacitance. We added a protection circuit that extends the life of the XT60 connectors and prevents rapid voltage or current spikes that can protect your electronics from damage.

- DJI O4 HD air unit, improved perception. The improved stability of the DJI O4 video transmission allows you to fully immerse yourself in each flight and provides greater safety. It boasts a maximum video transmission distance of up to 13 km, a transmission latency of just 24ms, a high definition image quality of 1080p/100fps and a maximum transmission data rate of 60Mbps. (Source DJI).

- Stabilized video in 4K resolution with an ultra-wide angle of 155°. Together with high-quality picture performance, it provides an exceptional picture that will keep your viewers in suspense. (Source DJI).

- Improve user experience and streamline maintenance. Equipped with a built-in buzzer and receiver holder, this feature allows for convenient receiver maintenance and adjustments.

Specifications:

- Receiver variant: ELRS 2.4GHz
- Geometry: (DeadCat)
- FC: BLITZ ATF435 Flight controller
- ESC: BLITZ E55S 4-IN-1 ESC
- Video transmission: DJI O4 Air Unit Pro
- Frame: 240mm wheelbase
- Motor: XING-E Pro 2207 1800KV
- Prop: Nazgul F5 propeller
- Weight: 450g±5g
- Take-off weight: Approx 675g±5g (with 6S 1480mAh battery)
- Dimensions (L×W×H): 193×144×34 mm
- Maximum speed: 190 km/h
- Maximum take-off height: 7000 m
- Maximum Hover Time: About 7.5 min (no load with 6S 1480mAh battery)
- Max. Wind Resistance: Level 7
- Operating temperature range: -10° to 40° C (14° to 104° F)
- Antennas: Two antennas


Video Transmission:

- Product name: DJI O4 Air Unit Pro
- Image Sensor: 1/1.3 inch
- Lens: FOV: 155°
- ISO: 100-25600
- Video resolution: 1080p/100fps H.265
- Video format: MP4, max. video data stream: Max. speed: 130 Mb/s
- Color Mode: Normal Mode/D-Log M
- Stabilization: RockSteady 3.0+; (When RockSteady is on, the shooting angle only supports standard.)
- Live view quality: 1080P@100fps
- Operating frequency: 5.170-5.250 GHz and 5.725-5.850 GHz
- Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
- Maximum video transmission range: With DJI Goggles 3/DJI Goggles N3: 15km (FCC), 8km (CE), 8km (SRRC).
- Communication bandwidth: max. 60 MHz
- Antenna: Two antennas
- Built-in memory: 4 GB
- Supported SD cards: microSD (up to 512 GB)
- Operating temperature: -10° to 40° C
- Weight: 40 to 40 °C Air unit (including camera module): Approx. 32 g
- Dimensions: Transmission module: 2.5 mm: 33.5 × 33.5 × 13 mm (L × W × H)

The package contains:

- 1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF
- 2 x antennas
- 1 x pads under the battery
- 2 x propellers (in a pair)
