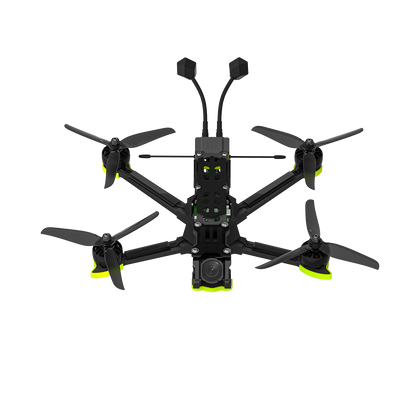

FPV Drone iFlight Nazgul DC5 ECO V1.1 O4 Pro BNF 6S (DJI)

FPV drone iFlight Nazgul DC5 ECO V1.1 O4 Pro BNF 6S (DJI)

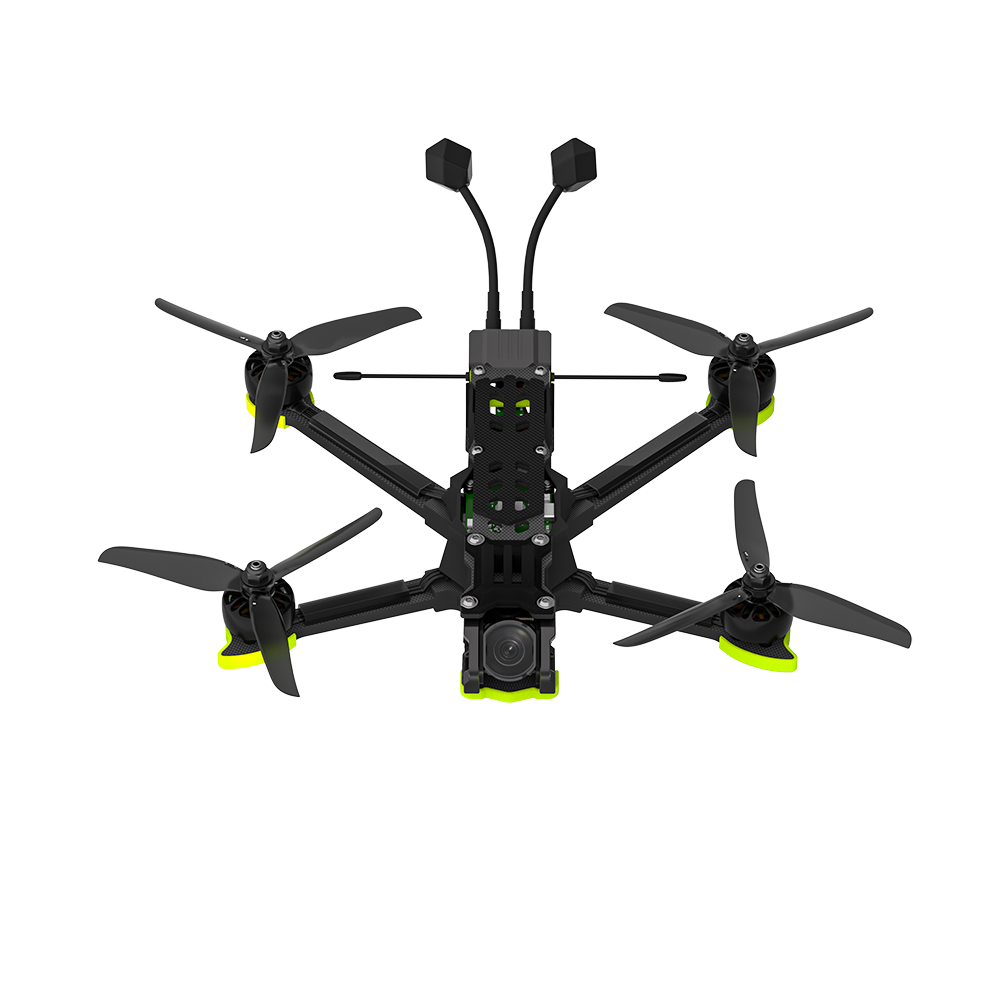

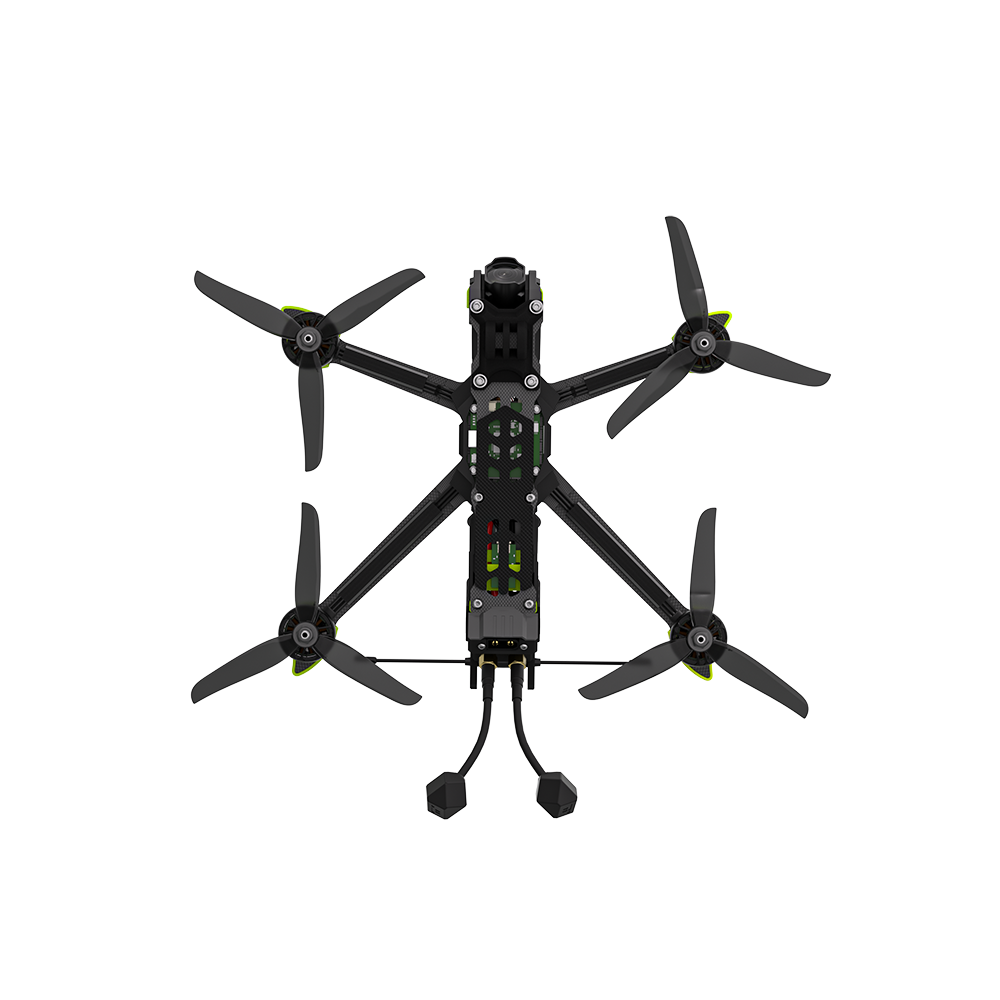

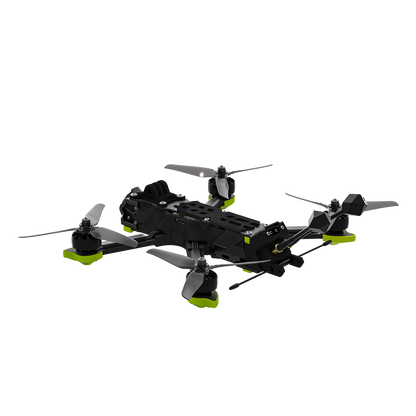

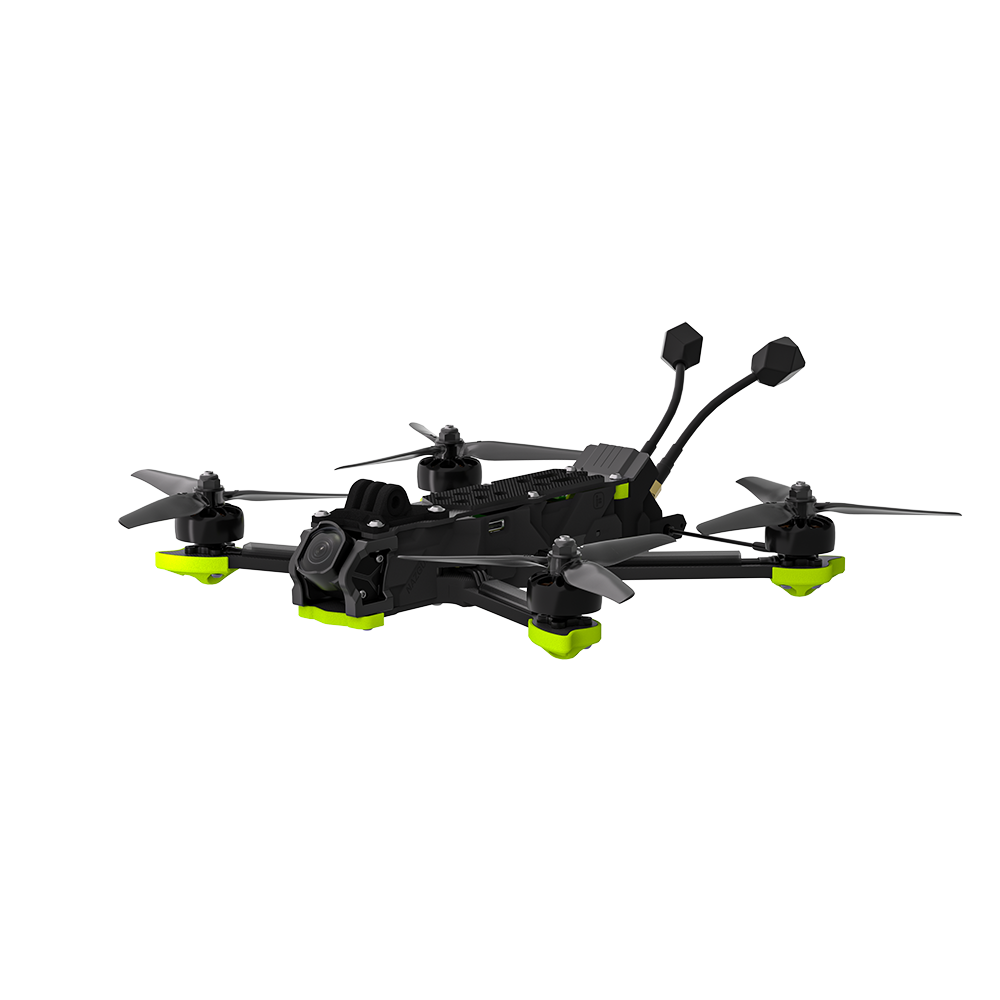

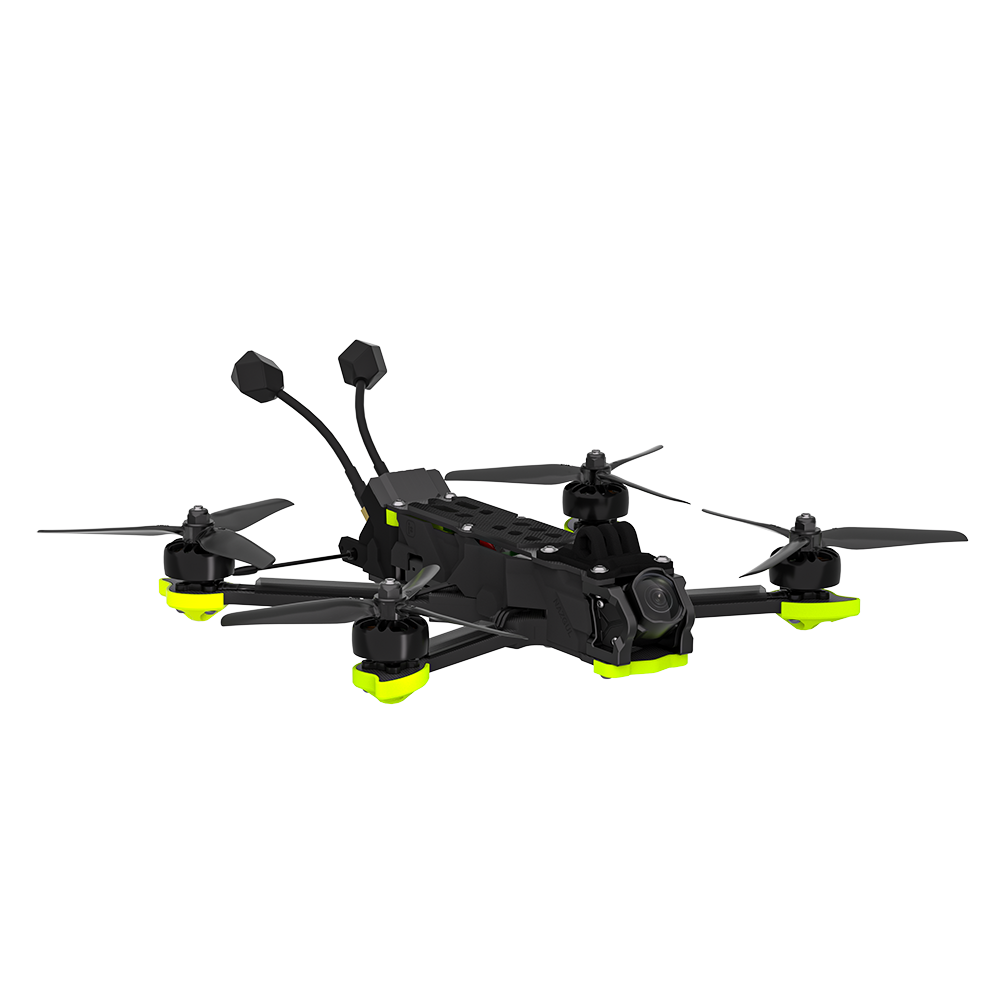

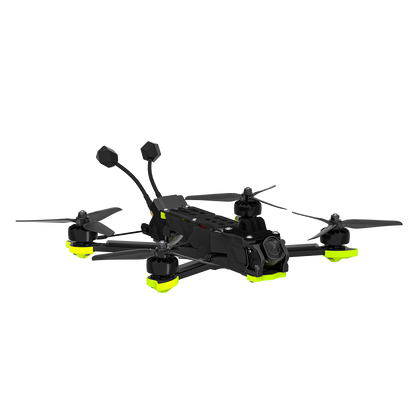

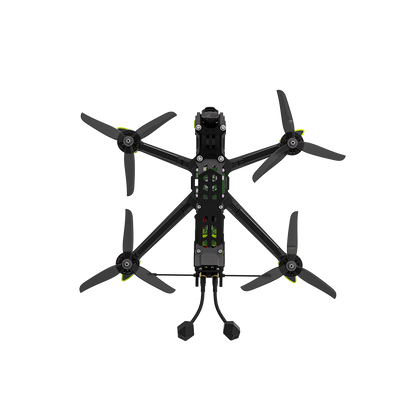

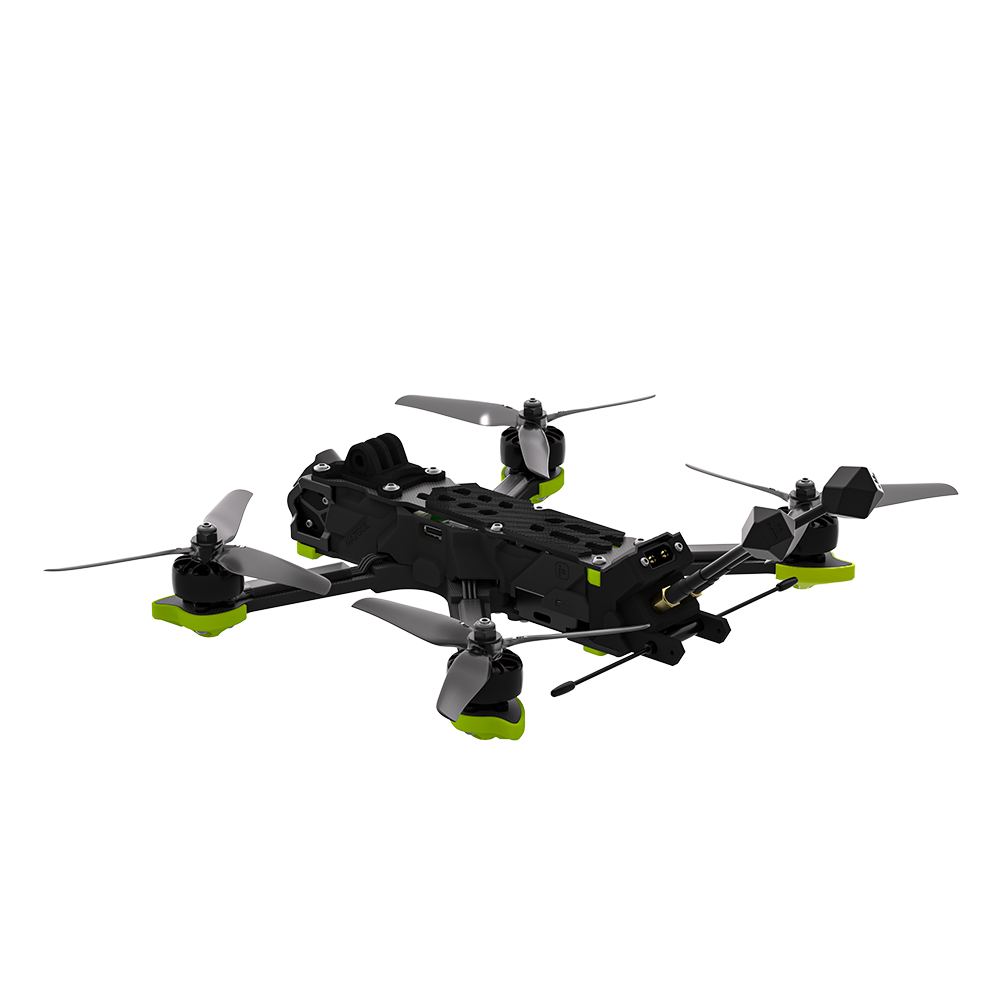

Nazgul DC5 ECO – A 5-inch freestyle drone that redefines performance and value. It features the DJI O4 digital HD system for clear images without propellers in the frame and a 1/1.3-inch sensor for stunning 4K stabilized video even in low light. Its carbon frame with aluminum camera mount ensures durability and light weight, while the included GoPro mount adds to its versatility. ATF435 flight controller and BLITZ E55S ESC ensure reliable performance.

Features:

- Lightweight and durable. The combination of carbon fiber and aluminum ensures a lightweight yet strong construction for your camera. Designed to provide a clear image without obstructing propellers, enhancing the aesthetics of aerial shots.

- Spark filter. Connecting the battery can cause loud sparking at the connector due to the high current that flows into the low-ESR capacitor and ESC. We added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current surges that could damage the electronics.

- DJI O4 HD Air Unit, improved stability. DJI O4 image transmission provides stable video up to 13 km, latency up to 24 ms, 1080p/100fps quality and a maximum transmission speed of 60 Mbps. (Source: DJI).

- 4K stabilized video with an ultra-wide angle of 155°. Along with high image quality, it brings exceptional visual experiences. (Source: DJI).

- Better user experience and easier maintenance. A built-in buzzer and receiver holder make it easy to maintain and adjust the receiver.

Specifications:

- Receiver option: Without receiver, for DJI FPV Remote Controller 2 users.
- Geometry: DC (DeadCat)
- Flight controller: BLITZ ATF435
- ESC: BLITZ E55S 4in1
- Video transmission: DJI O4 Air Unit Pro
- Frame: 240mm wheelbase
- Engines: XING-E Pro 2207 1800KV
- Propeller: Nazgul F5
- Weight: 450g ±5g
- Take-off weight: Approx 675g ±5g (with 6S 1480mAh battery)
- Dimensions (L×W×H): 193×144×34 mm
- Maximum speed: 190 km/h
- Maximum take-off altitude: 7000 m
- Maximum hovering time: About 7.5 min (no load, with 6S 1480mAh battery)
- Wind Resistance: Level 7
- Operating temperature: -10° to 40° C
- Antennas: Two antennas

Video transfer:

- Product name: DJI O4 Air Unit Pro
- Sensor: 1/1.3 inch
- Lens: Field of view 155°
- ISO: 100-25600
- Video resolution: 1080p/100fps H.265
- Video format: MP4, max. bitrate: 130Mbps
- Color modes: Normal/D-Log M
- Stabilization: RockSteady 3.0+ (when stabilization is turned on, the shooting angle is limited to standard)
- Live streaming quality: 1080p@100fps
- Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Output power: 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC)
- Maximum video transmission range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
- Bandwidth: Max 60 MHz
- Antennas: Two antennas
- Built-in storage: 4GB
- Supported SD cards: microSD (up to 512GB)
- Operating temperature: -10° to 40° C
- Weight: Approx. 32g (including camera module)
- Dimensions: Transfer module: 33.5×33.5×13 mm

The package contains:

- 1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF
- 2 x Antennas
- 1 x Battery pads
- 2 x Propellers (pairs)
