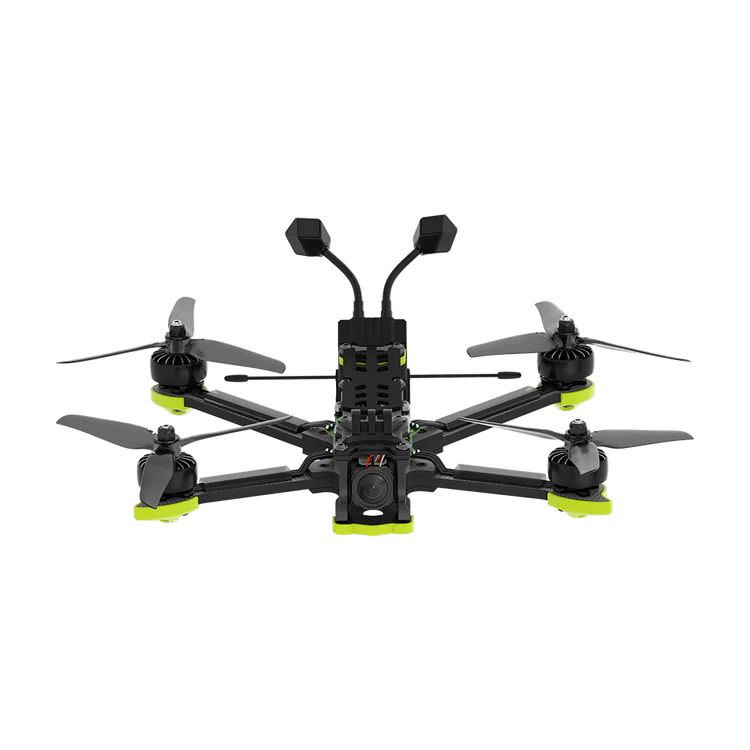

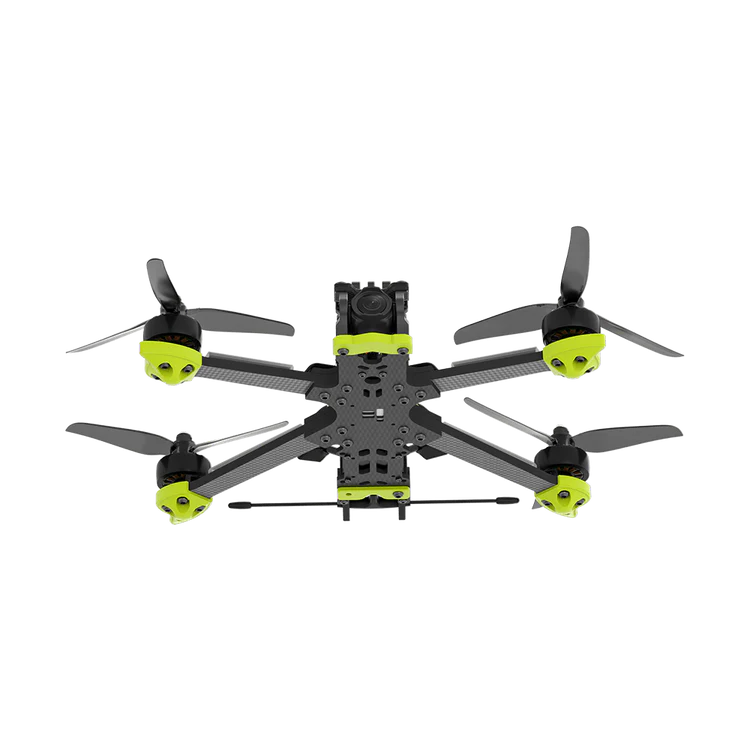

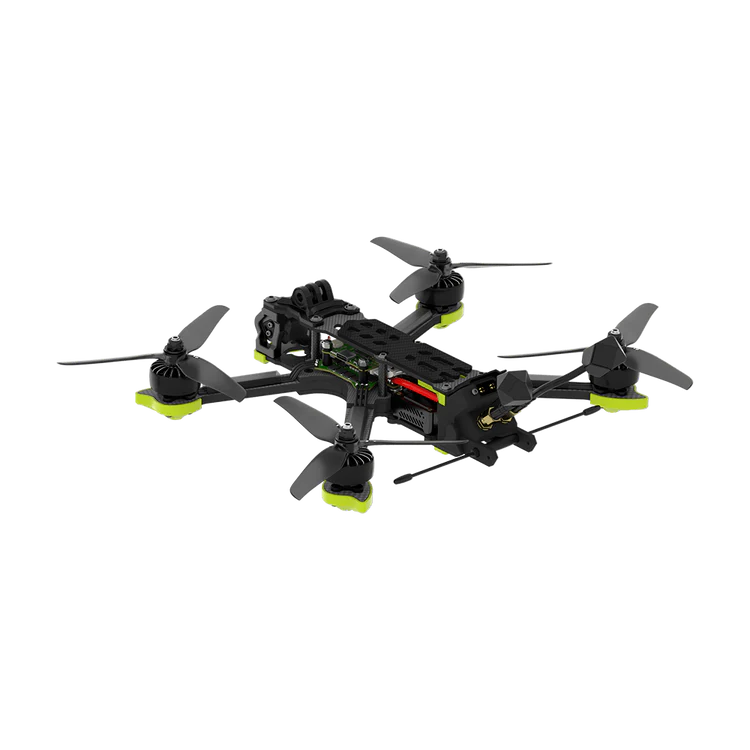

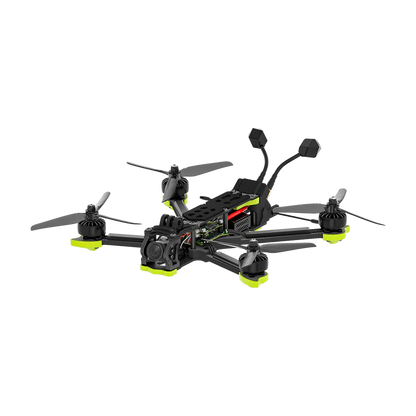

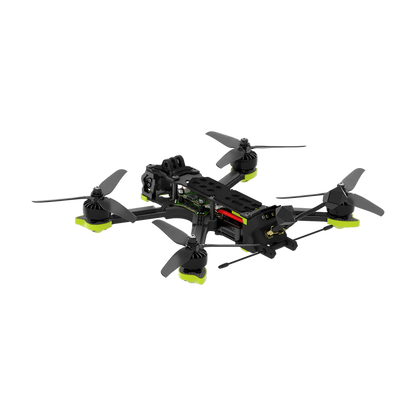

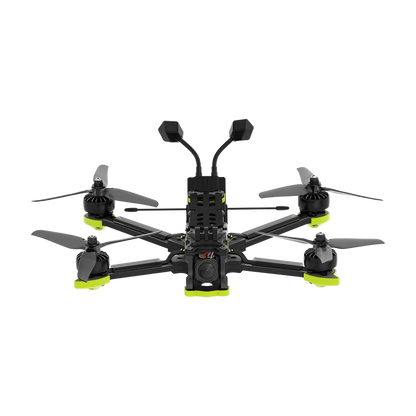

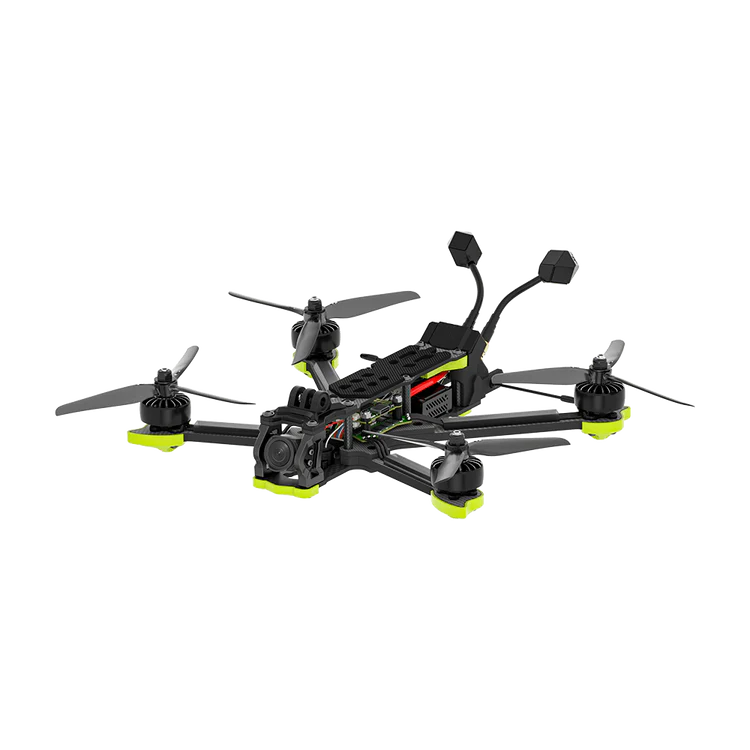

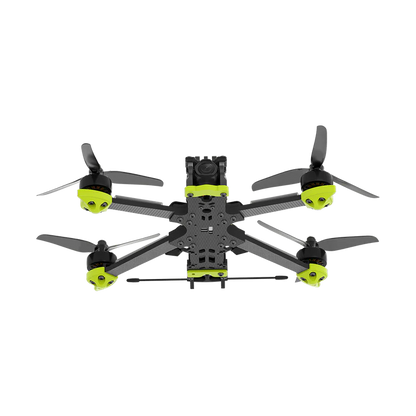

FPV Drone iFlight Nazgul DC5 ECO V1.1 HD 6S BNF (ELRS 2.4GHz)

Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
https://www.hobbydrone.cz/en/fpv-drone-iflight-nazgul-dc5-eco-v1-1-o4-pro-bnf-6s-elrs-2-4ghz/

FPV Drone iFlight Nazgul DC5 ECO V1.1 HD 6S BNF (ELRS 2.4GHz)

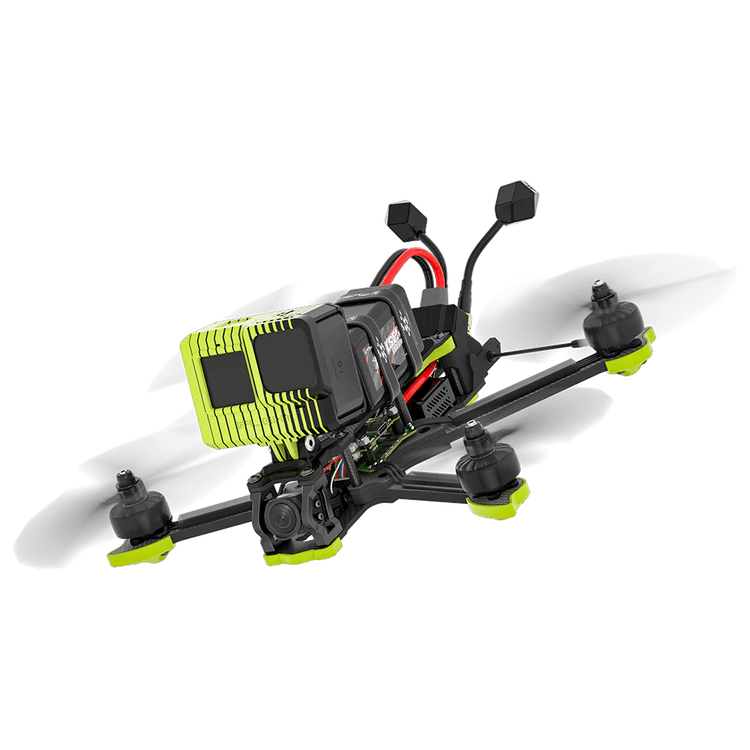

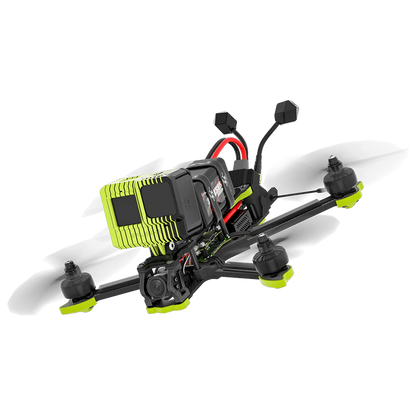

Introducing the Nazgul DC5 ECO - Redefining performance and value in a 5-inch standard freestyle drone. Equipped with the latest DJI O3 digital HD system, its unique design ensures that the propellers are not visible in the shot, allowing video to be used directly from the O3 air unit. With ATF435 flight controller and BLITZ E55S 2-6S 55A ESC controller, it provides unmatched performance and reliability. The carbon fiber frame with aluminum camera mount is lightweight yet durable, while the included GoPro mount offers versatility in recording your epic freestyle flights. Take your flight experience to new heights with the Nazgul DC5 ECO.

Specifications:

• Product Name: Nazgul DC5 ECO 6S O3 HD
• Geometry: DC (DeadCat)
• FC: BLITZ ATF435 flight controller
• ESC: BLITZ E55S 55A 4-IN-1 ESC
• Video transmission: DJI O3 Air Unit
• Frame: wheelbase 240 mm
• Motor: XING-E Pro 2207 1800KV Motors
• Propeller: Nazgul F5 Propeller
• Weight: 437g (without battery)
• Dimensions (L×W×H): 193×144×34 mm
• Max speed: 190 km/h (Manual mode)
• Maximum take-off altitude: 7000 m
• Maximum hovering time: About 7.5 min (No load with 6S 1400mAh battery)
• Max Wind Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual antenna

Video transmission:

• Product Name: DJI O3 Air Unit
• Communication bandwidth: Max 40 MHz
• Field of vision (one screen): 155°
• Communication frequency: 2.400-2.4835 GHz (Receive only) / 5.725-5.850 GHz (Receive and transmit)
• End-end latency

With DJI FPV Goggles V2:

• 810p/120fps Video transmission quality: Latency is lower than 28ms.
• 810p/60fps Video transmission quality: Latency is lower than 40ms.

With DJI Goggles 2:

• 1080p/100fps Video transmission quality: Latency is up to 30ms.

• 1080p/60fps Video transmission quality: Latency is up to 40 ms.

• Max video transfer rate: 50 Mbps

• Max video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)

• Operating Temperature Range: -10º to 40º C (14° to 104° F)

• Power supply: 7.4-26.4 V

• Audio transmission: N/A

Changes: July 19, 2024: Battery mounting bracket updated to fixed form. Drone updated to V1.1.

Package contents:

• 1 x Nazgul DC5 ECO 6S O3 HD BNF ELRS 2.4GHz
• 2 x Antennas
• 2 x Pad Battery
• 2 x Propellers (Pairs)
