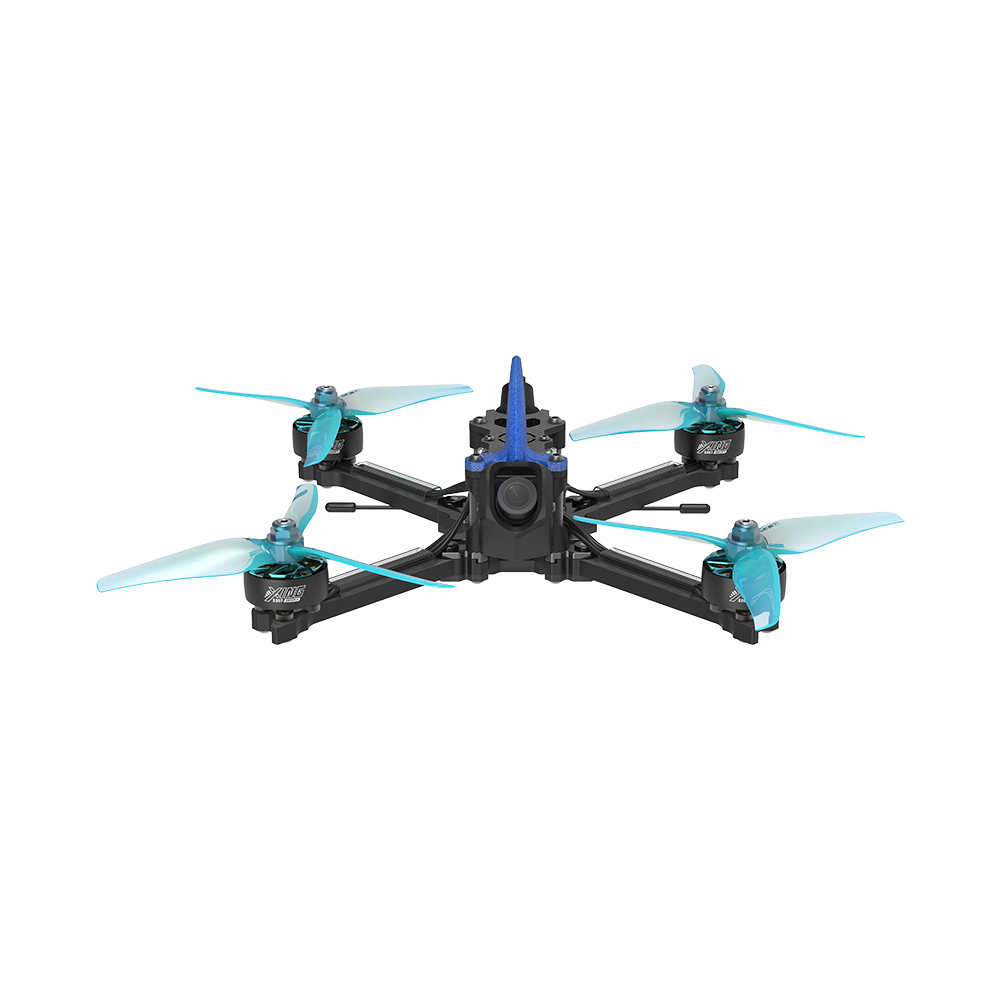

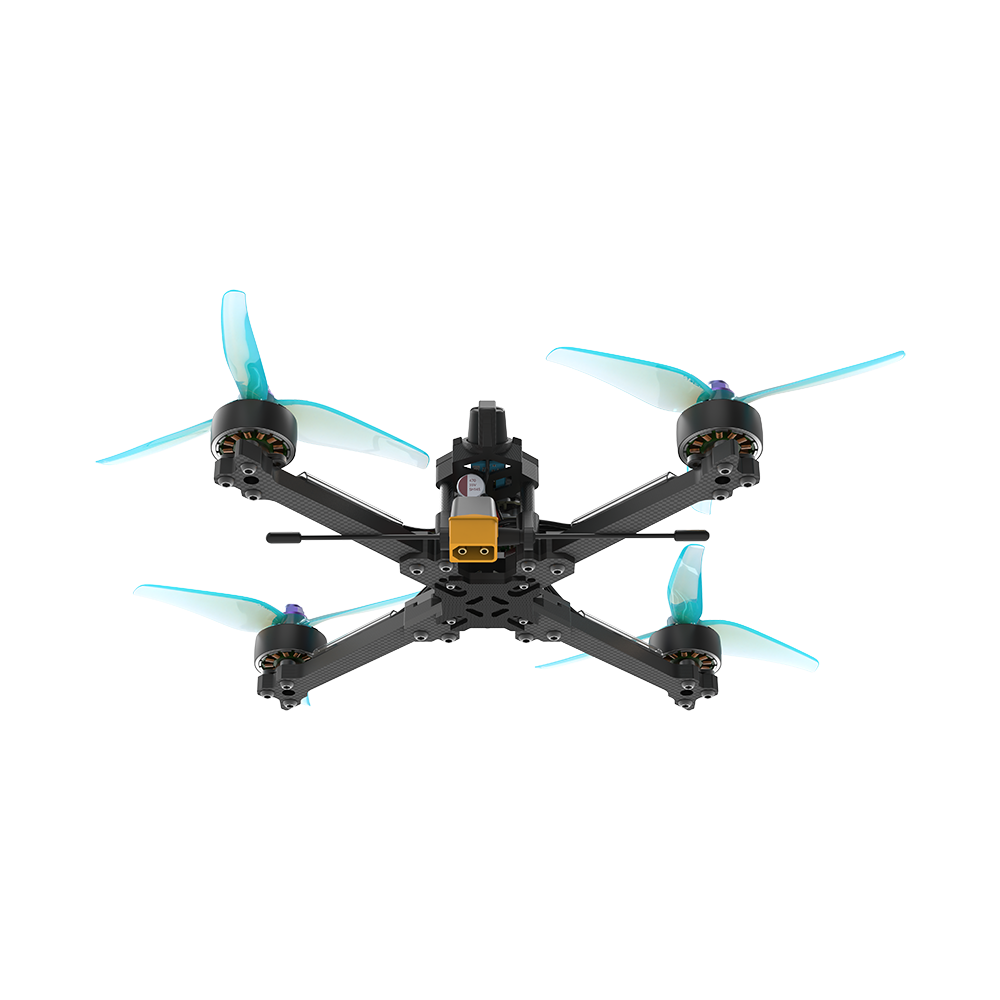

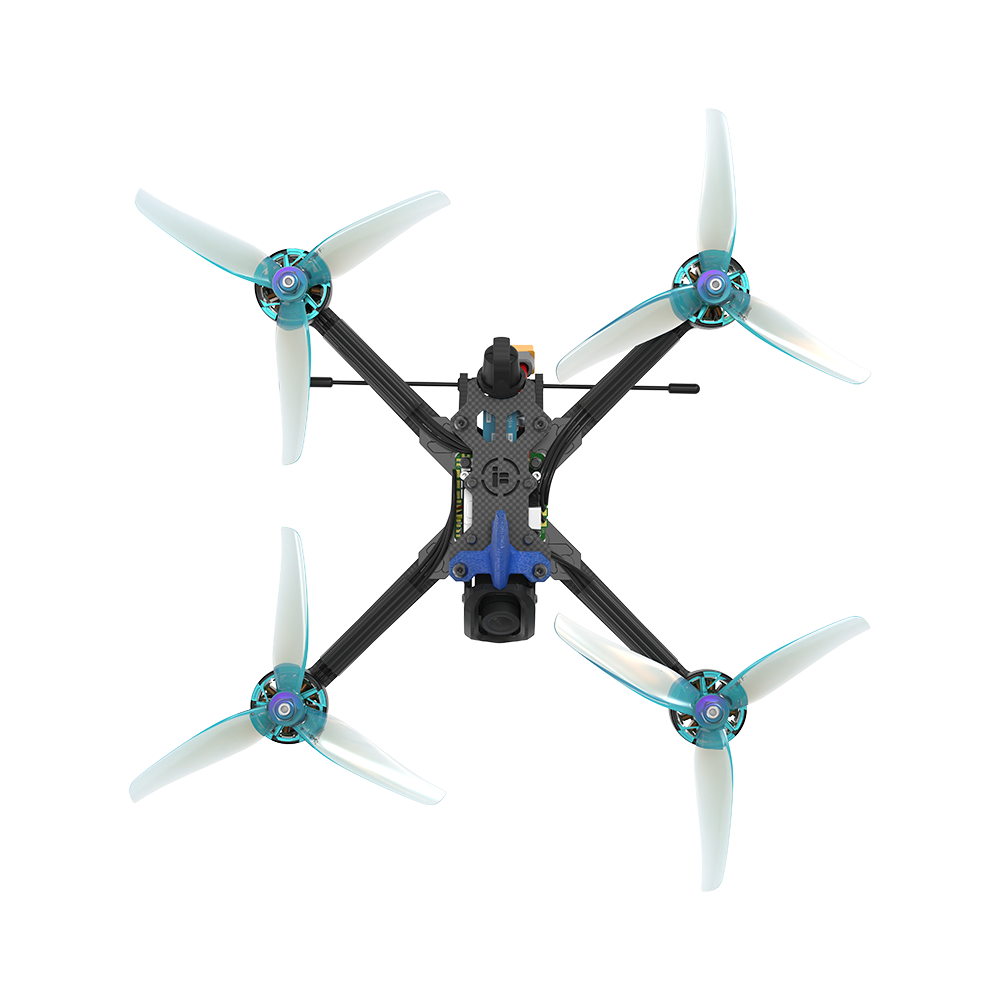

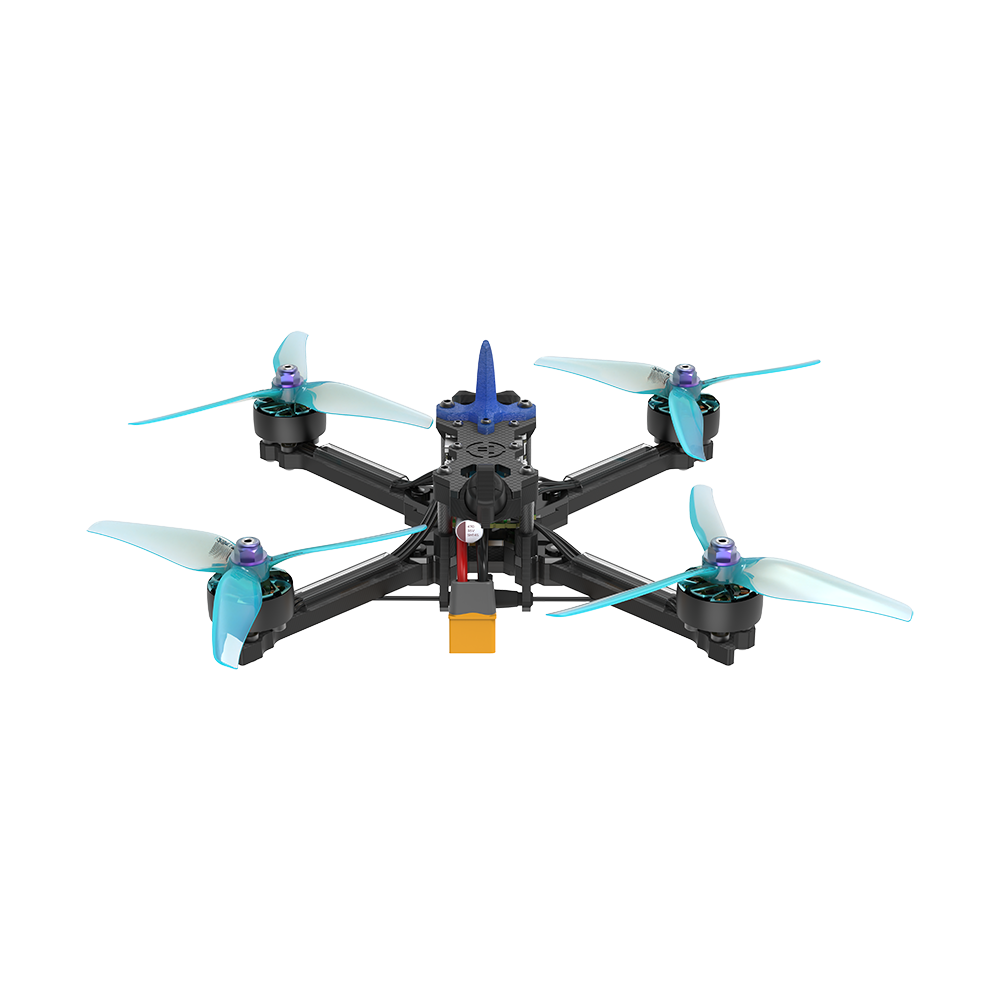

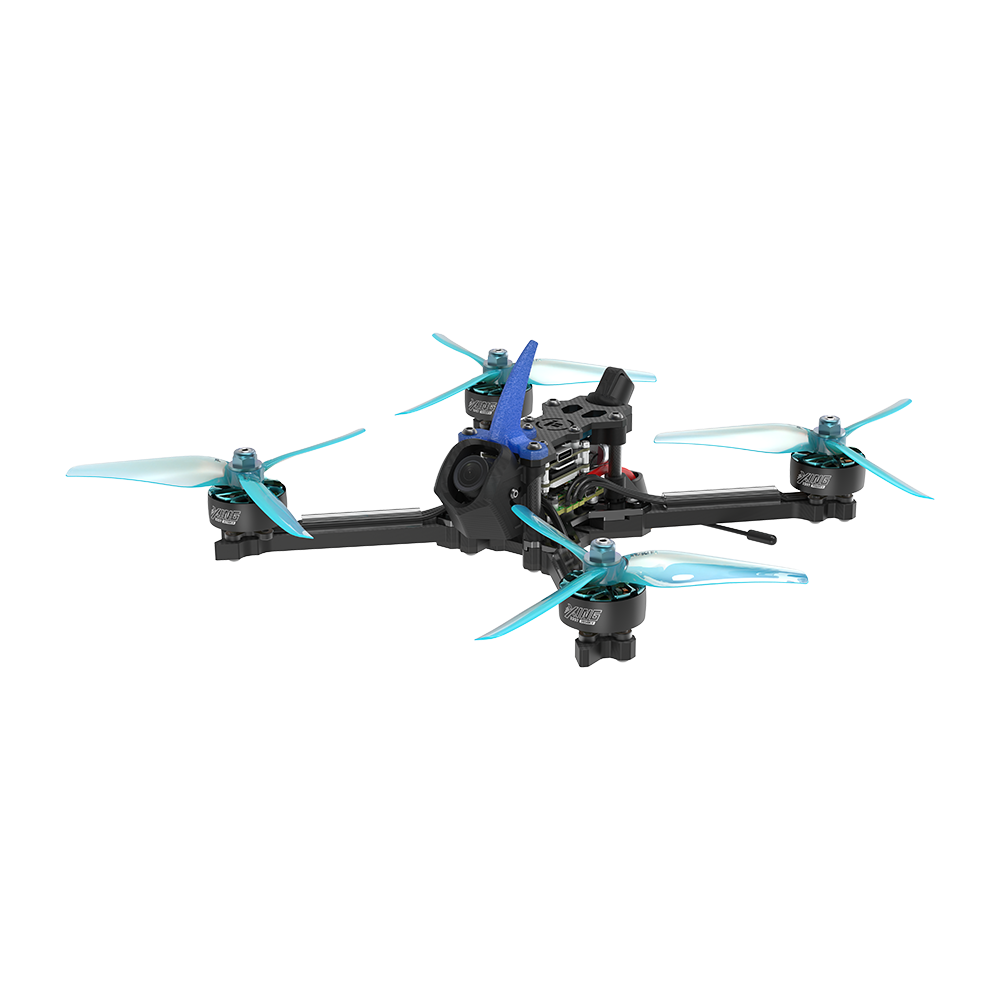

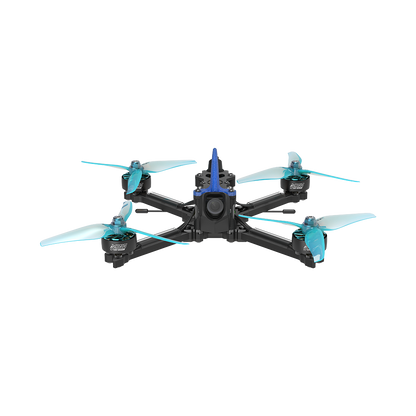

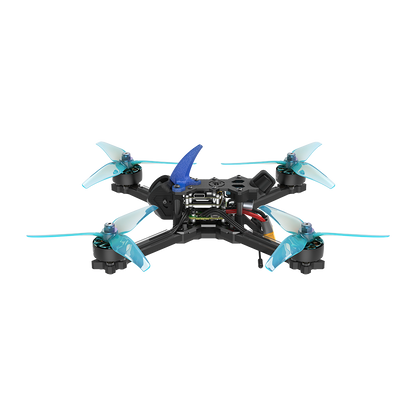

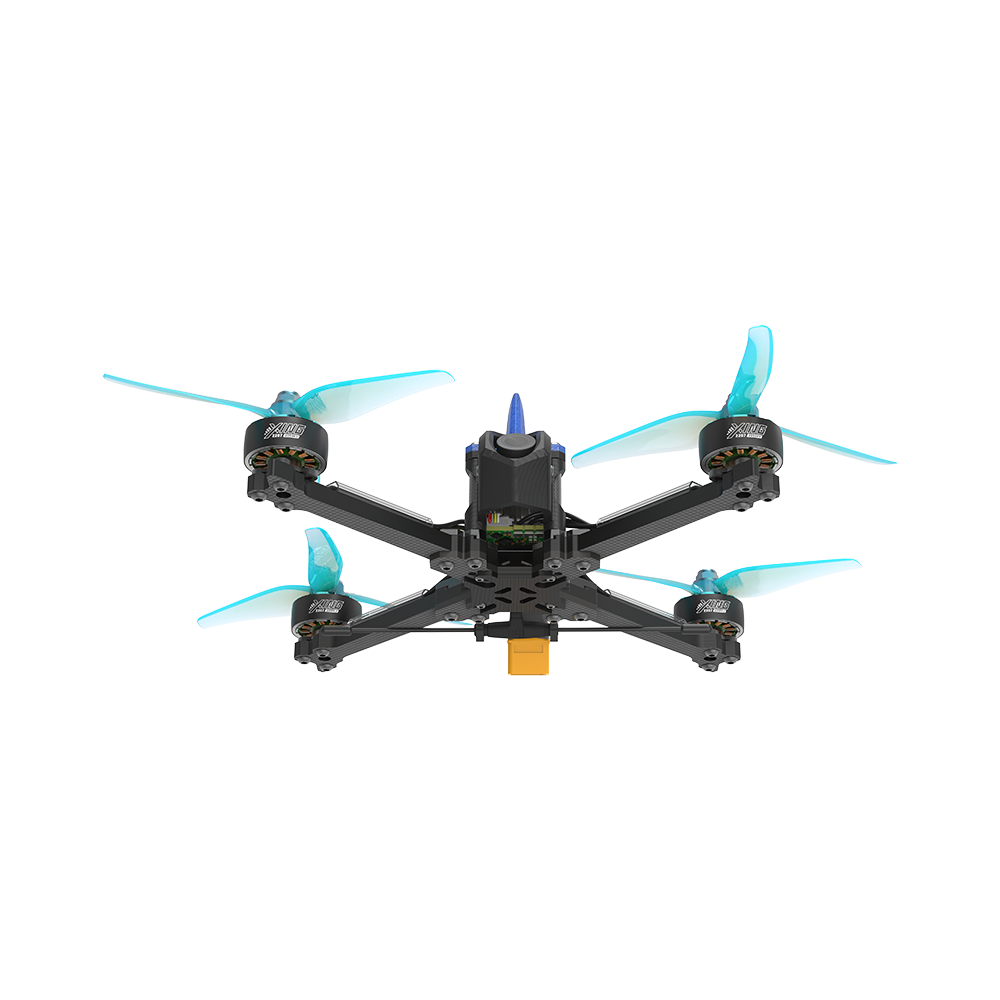

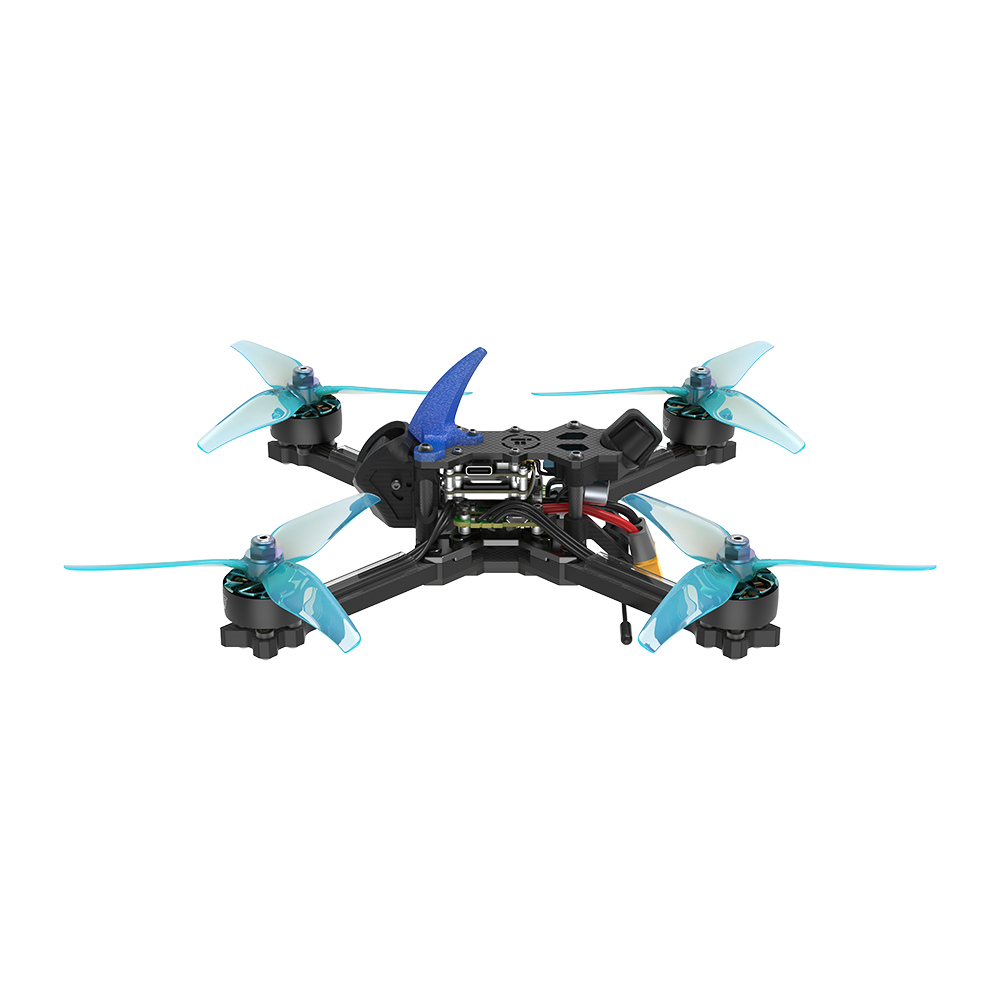

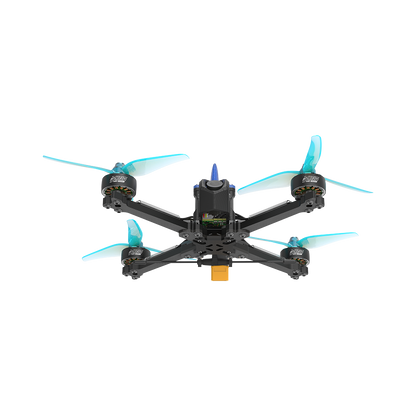

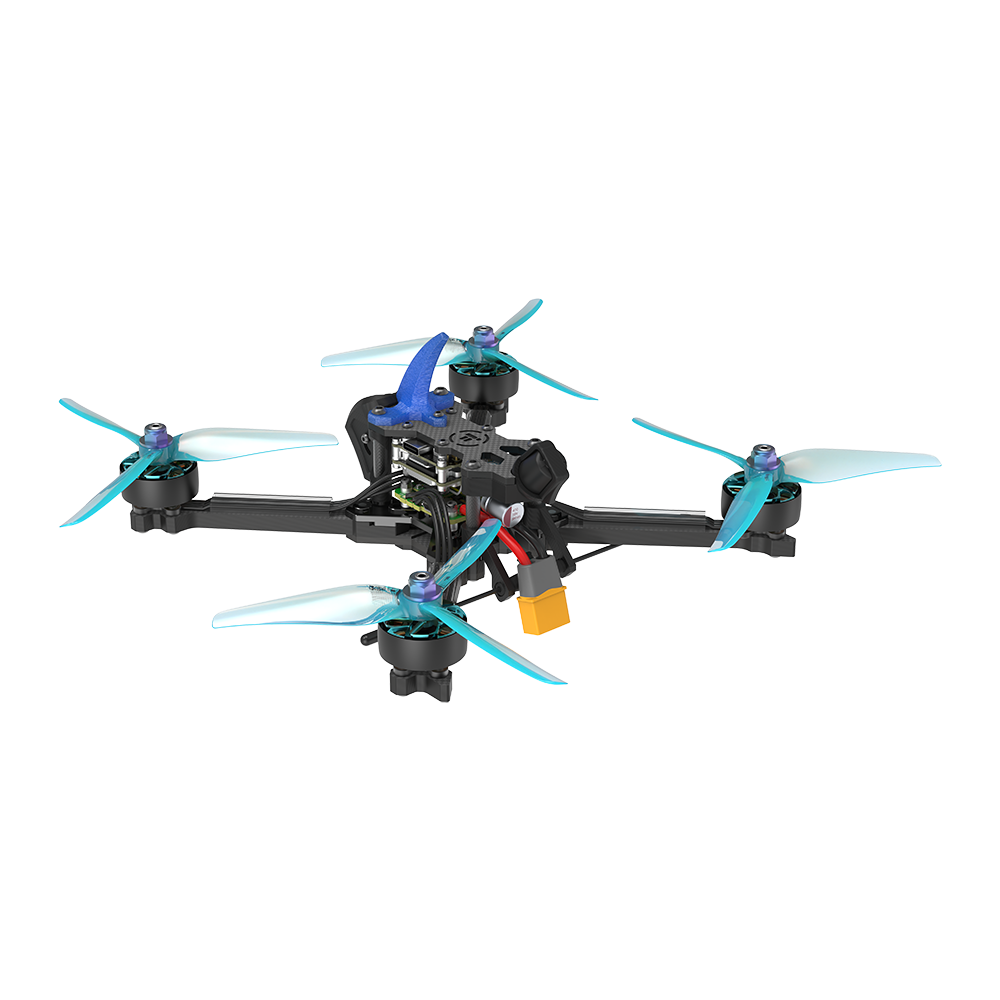

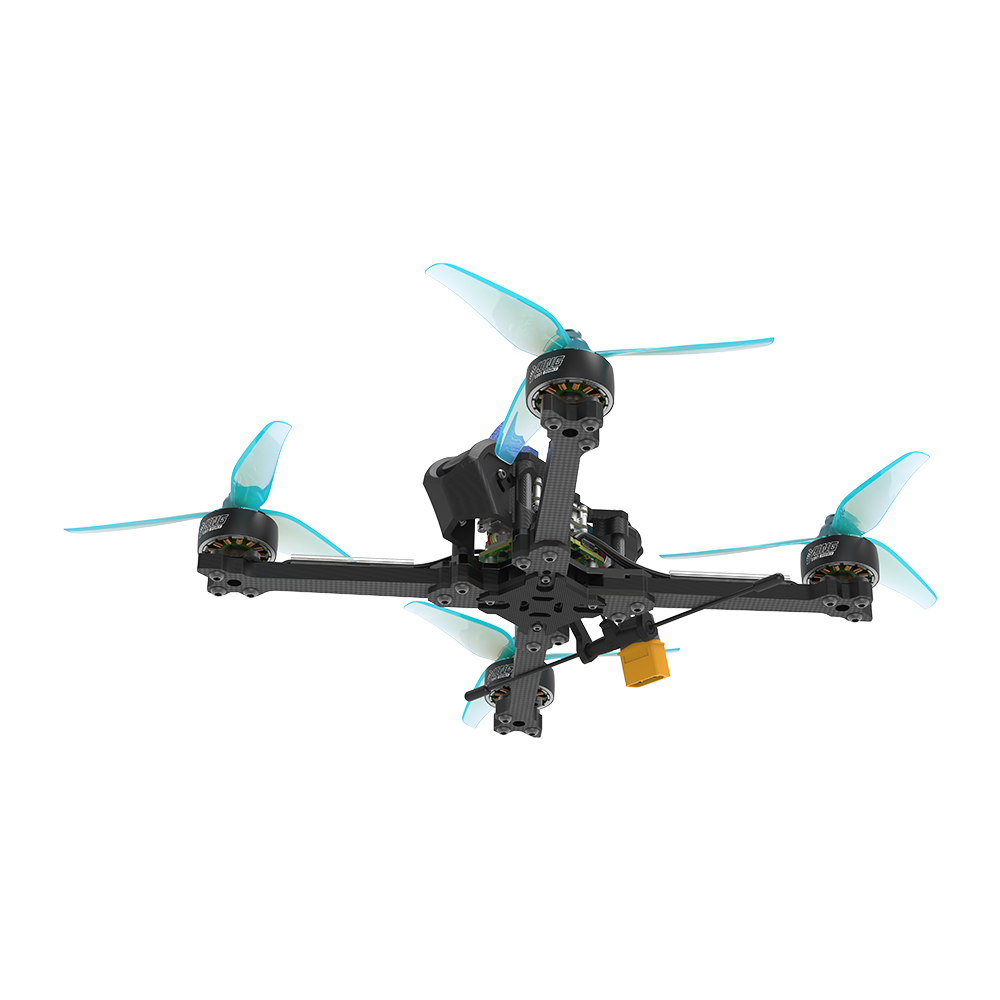

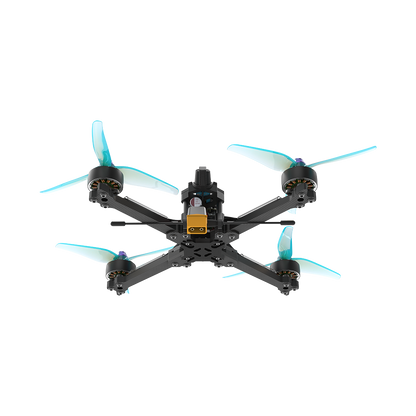

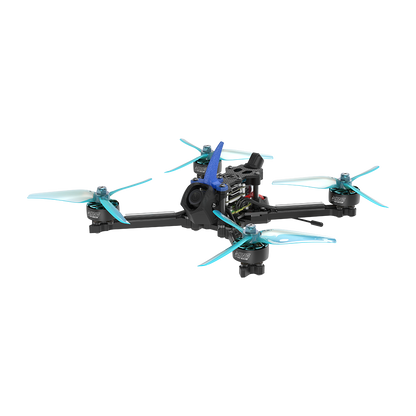

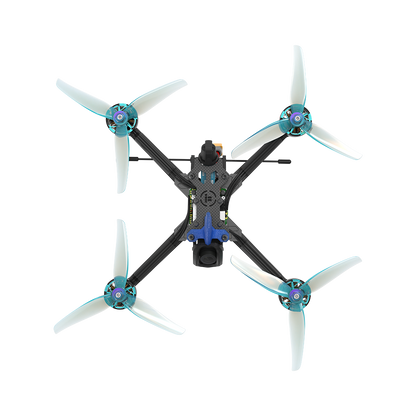

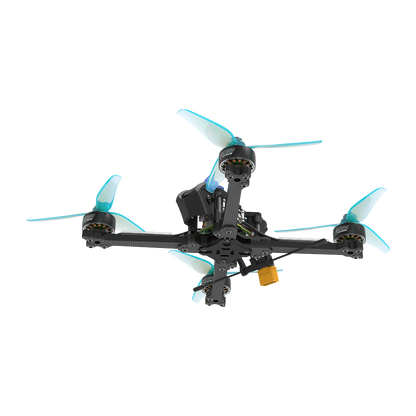

Mach R5 HD 6S racing drone (without receiver)
The iFlight Mach R5 HD is a 5-inch racing drone equipped with a Runcam Link Wasp Digital HD system and R5 2207 motors. The iFlight Mach R5 uses the latest BLITZ F7 55A AIO, the most powerful of our currently available iFlight AIOs. Quick-change arm assembly for easy on-the-fly or race day repair. Improved canopy design with low wind resistance for maximum speed and efficiency.
Function:
- Super light but super powerful with our latest R5 2207 motors
- Super durable design, 6mm arms and 7075 CNC center plate
- The latest BLITZ F7 55A powerful AIO performance on a small footprint
- Runcam Link Wasp digital HD system
- R5 2207 2050KV motors
Specifications:
Product name: Mach R5 6S HD
AIO: BLITZ F7 55A AIO
Video transmission: Polar Vista Kit
Frame: wheelbase 225 mm
Engine: R5 2207 engines
Prop: 5 inch Nazgul propellers
Weight: 235 grams
Takeoff Weight: Approx. 430 g
Dimensions (L×W): 152×152 mm
Diagonal Distance: 120 mm
Maximum speed: 27 m/s (manual mode)
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 8 minutes
Maximum flight distance: 5 km
Maximum resistance to wind speed: 100 km/h (level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 1 antenna
GNSS: N/A
Receiver option: No additional receiver (for DJI FPV 2 remote controller)
Video transfer
Product name: Polar Vista Kit
FPV Cam: Polar Cam
Dimensions:
Runcam Link: L19mm*W19mm*H19mm
FPV Cam: L29mm * W29mm * H13mm
Communication frequency: 5.725-5.85 GHz
Transmission Power (EIRP): FCC/SRRC/MIC: <20dBm; CE: <14dBm
Input voltage: 14-26.4V
Weight: 23.5 g
Image Sensor: 1/3.2”
Resolution: 720P@120fps
LENS: FOV L:155° H:125° H:96°
Coaxial cable: 120 mm
Audio transmission: Yes
The package includes:
1 x Mach R5 6S HD BNF
1 x battery strap
2 x R5 Prop (pairs)
1 x battery pad
