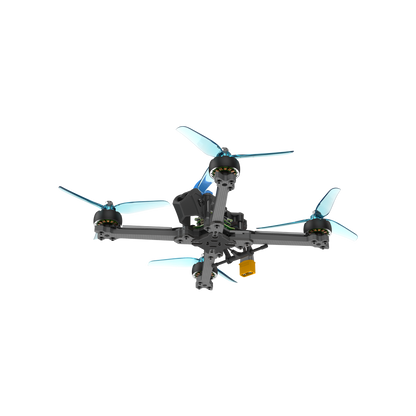

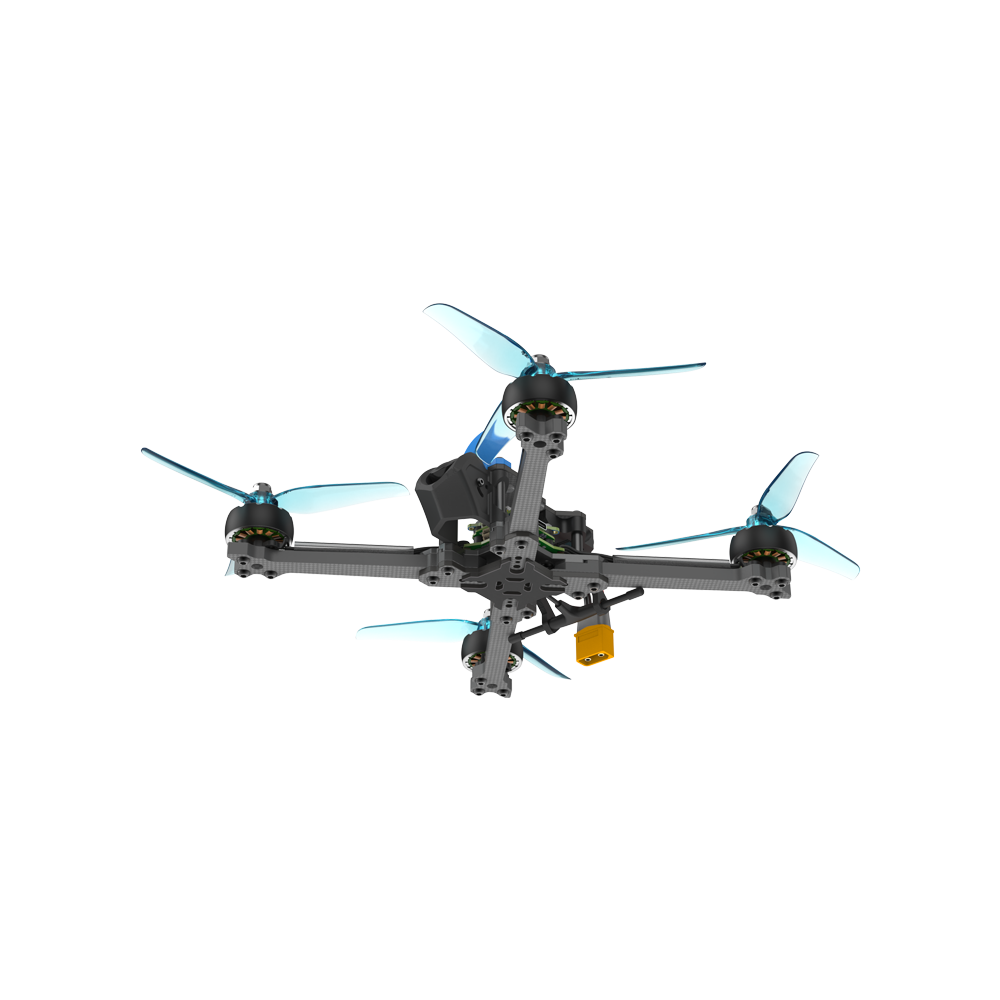

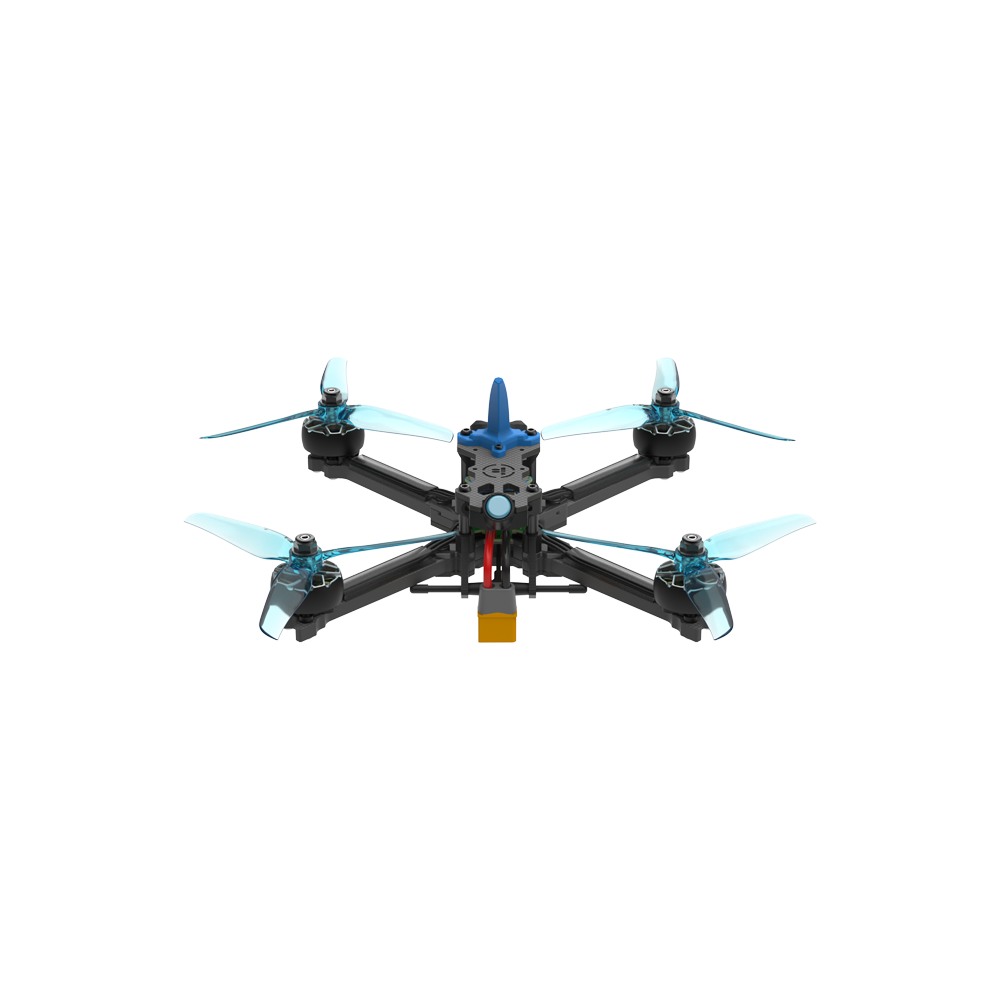

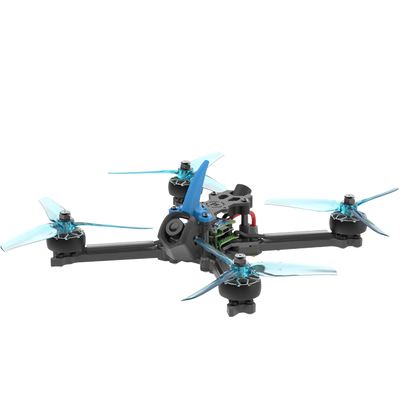

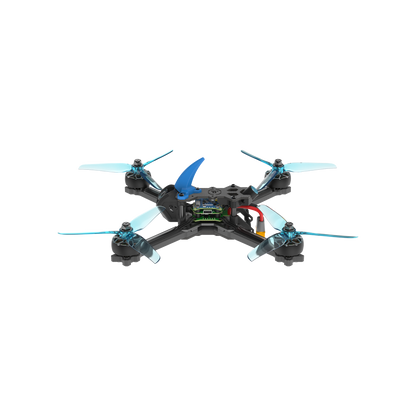

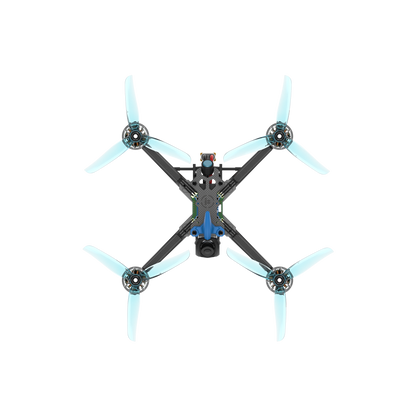

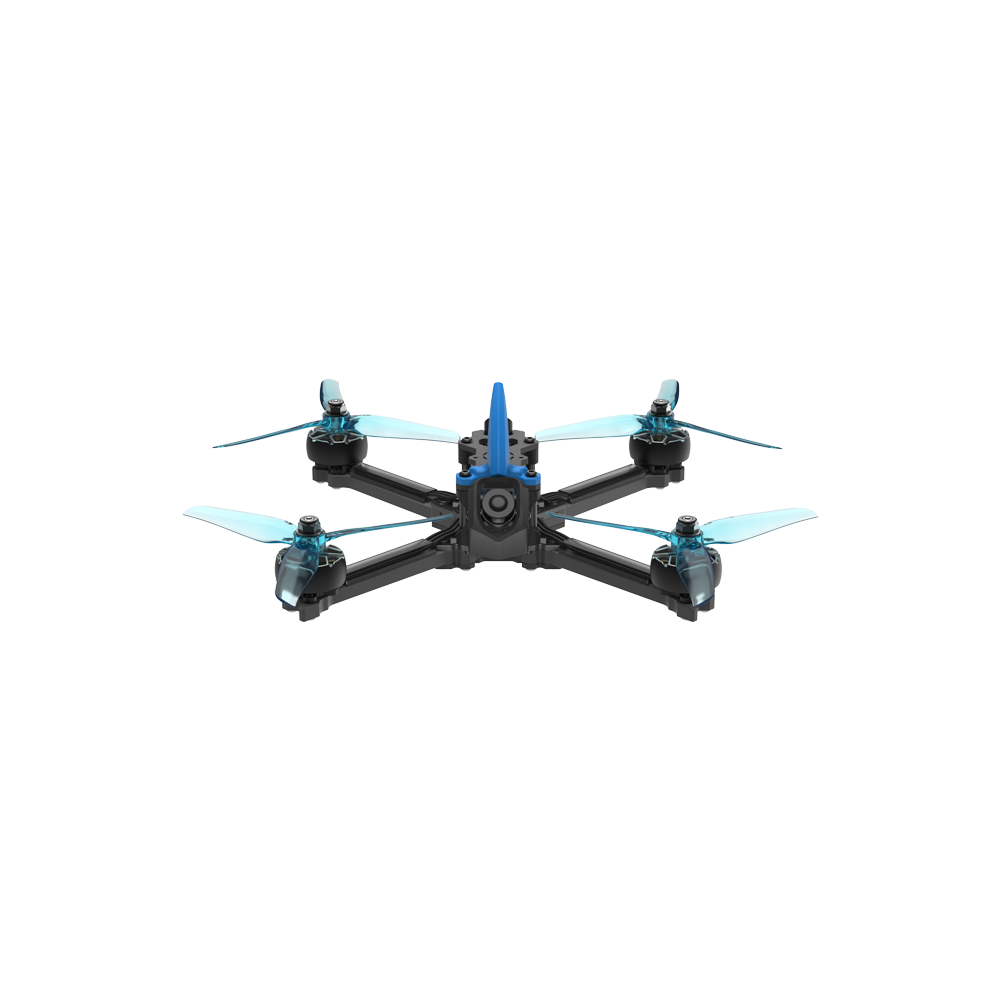

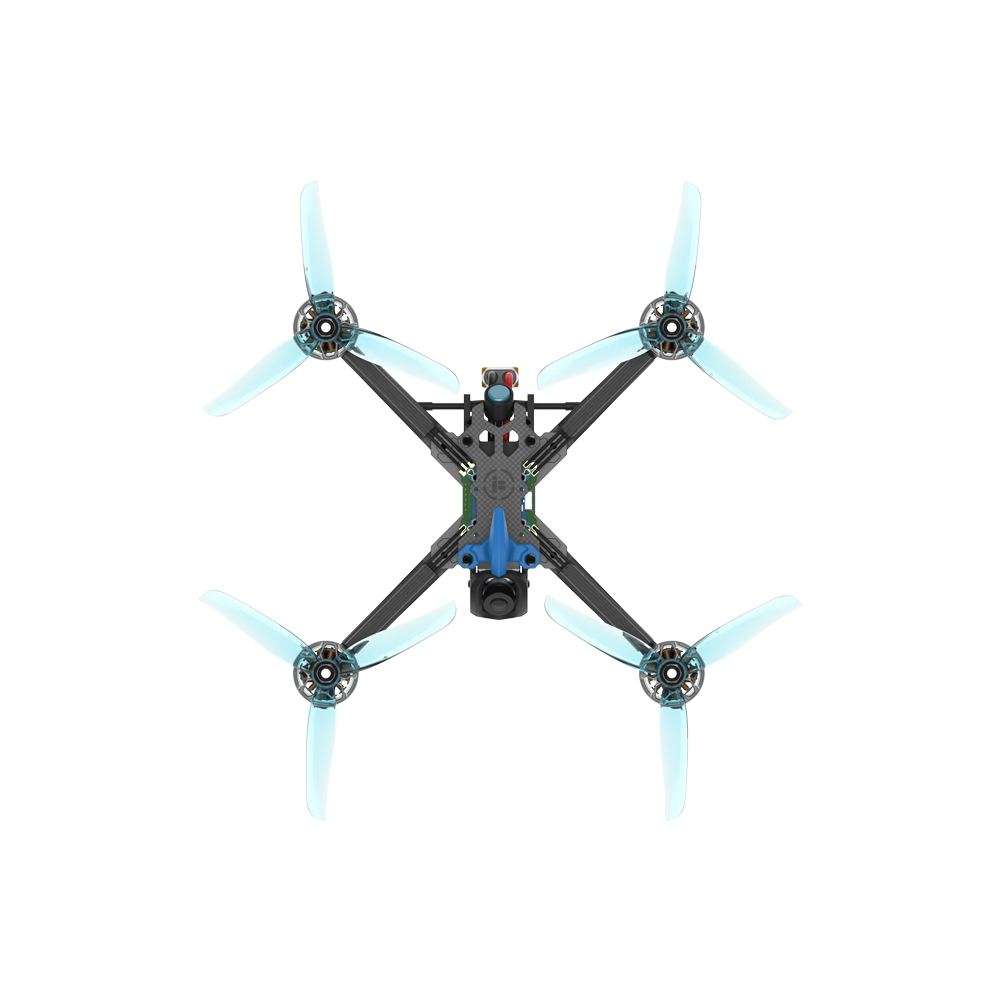

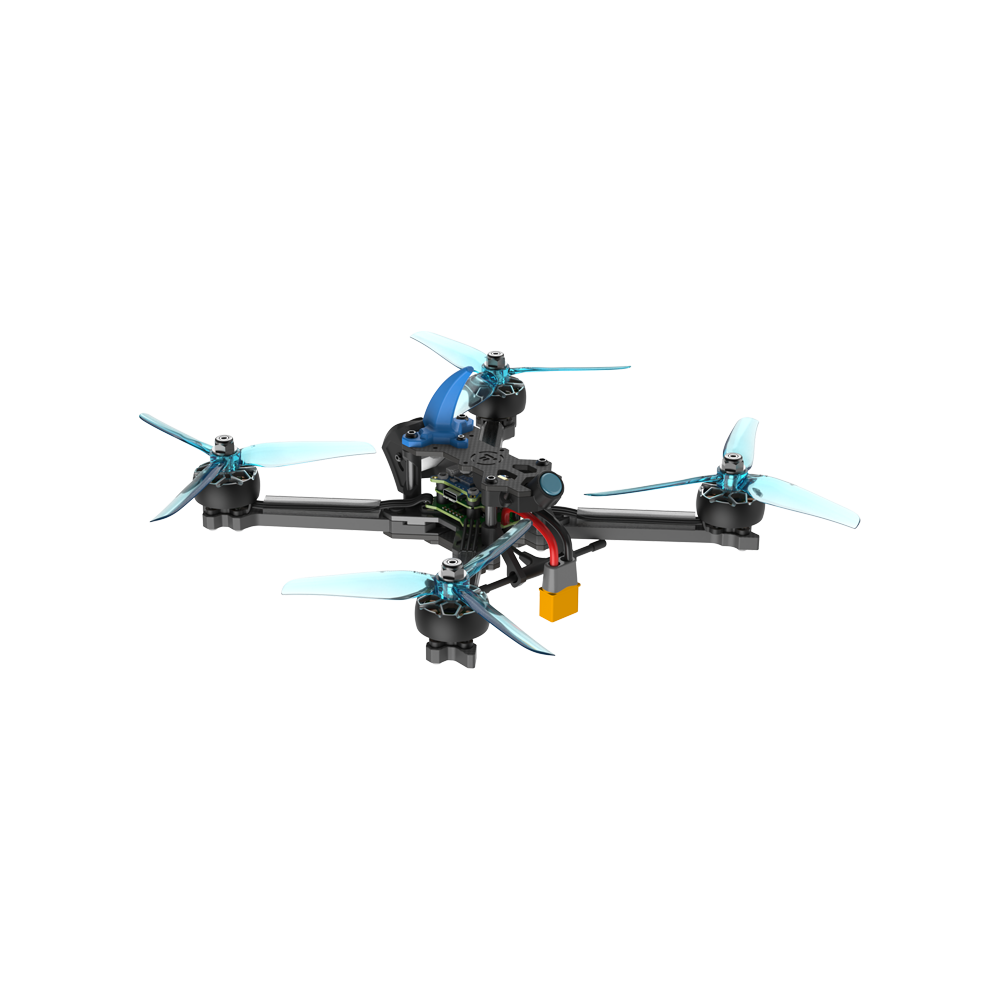

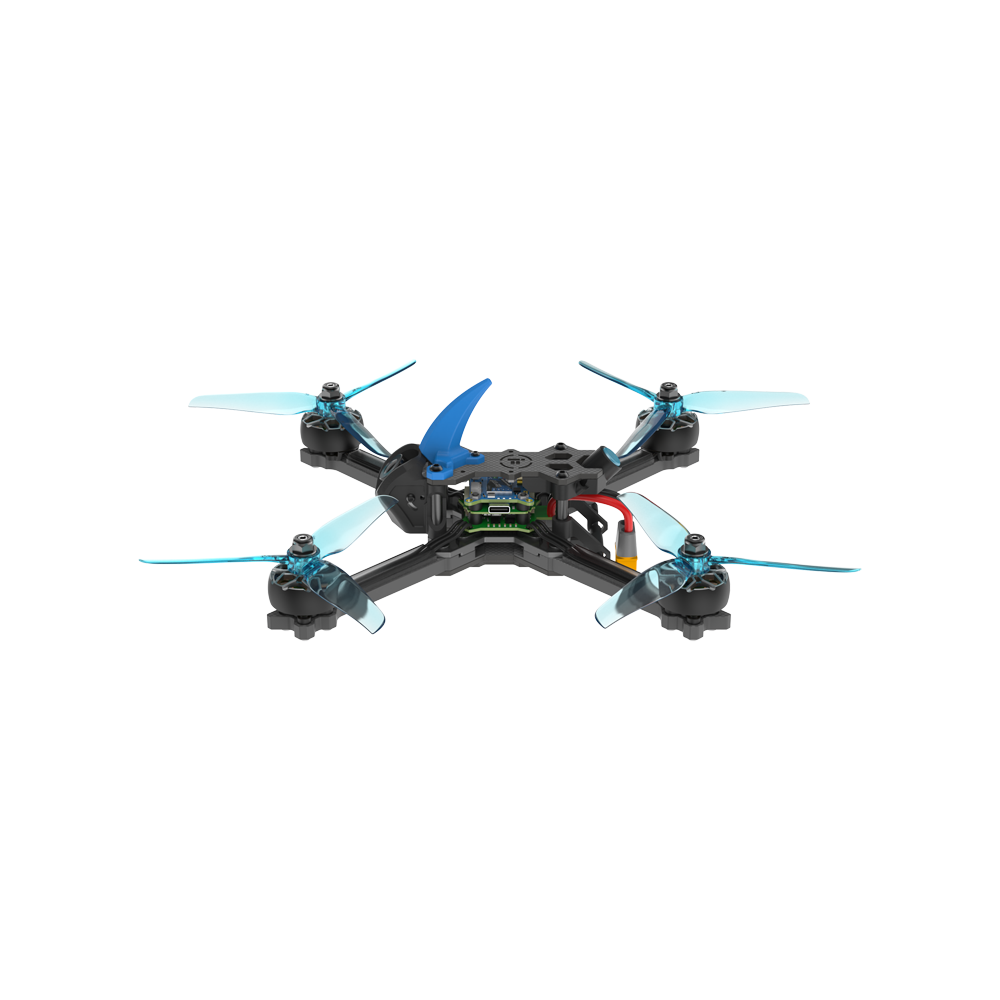

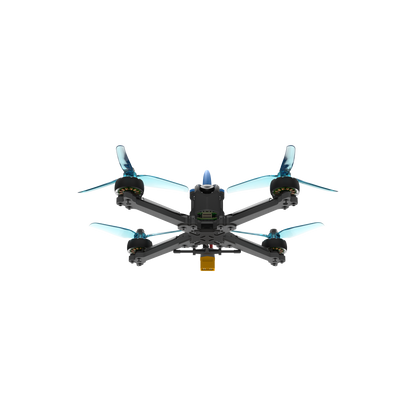

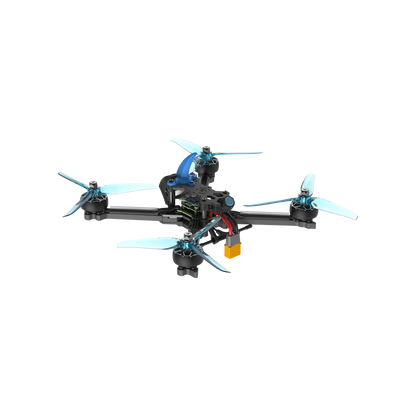

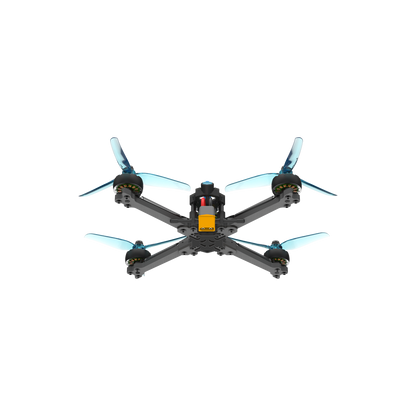

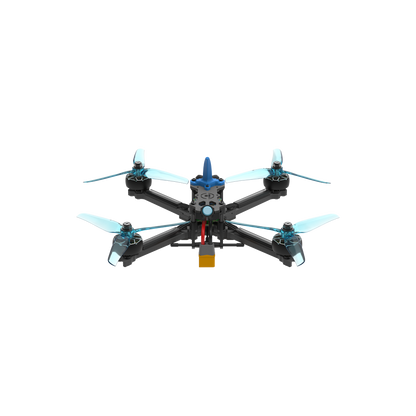

Mach R5 Analog 6S Racing Drone (ELRS 2.4GHz)
The iFlight Mach R5 Analog is a 5-inch racing drone equipped with R5 2207 motors for increased torque and efficiency, as well as high speed and consistent lap times. The iFlight Mach R5 uses the latest BLITZ F7 55A AIO, the most powerful of our currently available iFlight AIOs. Quick-change arm assembly for easy on-the-fly or race day repair. Improved canopy design with low wind resistance for maximum speed and efficiency.
Function:
- Super light but super powerful with the latest R5 2207 motors
- Super durable design, 6mm arms and 7075 CNC center plate
- SucceX Mini VTX 600mW
- R5 2207 2050KV motors
- Latest BLITZ Mini F7 Stack (F7+55A)
- RaceCam R1 camera
Specifications:
Product name: Mach R5 6S Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video transmission: SucceX Mini VTX 600mW
Frame: wheelbase 225 mm
Engine: R5 2207 engines
Prop: 5 inch Nazgul propellers
Weight: 235 grams
Takeoff Weight: Approx. 430 g
Dimensions (L×W): 152×152 mm
Diagonal Distance: 120 mm
Maximum speed: 27 m/s (manual mode)
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 8 minutes
Maximum flight distance: 5 km
Maximum resistance to wind speed: 100 km/h (level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 1 antenna
GNSS: N/A
Receiver option: ELRS 2.4 GHz RX
Video transfer
Product name: SucceX Mini VTX 600mW
Output power: 0-25-200-400-600 mw
Input voltage: 6-36V
Working current: ≤450mA@12V,800mW; ≤850mA@12V, 2500mw
Transmission: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 30.5*30.5mm--20*20mm
Weight: 11 g (W/O antenna)
Dimensions: L38mm*W36.5mm*H7.2mm
The package includes:
1 x Mach R5 6S Analog BNF
1 x battery strap
2 x R5 Prop (pairs)
1 x battery pad
