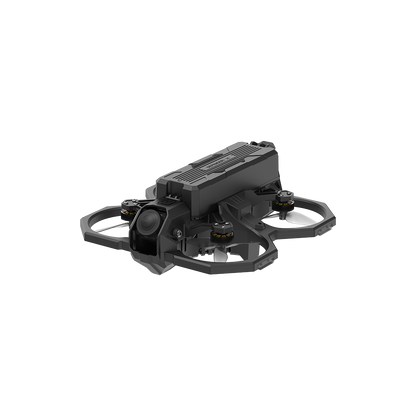

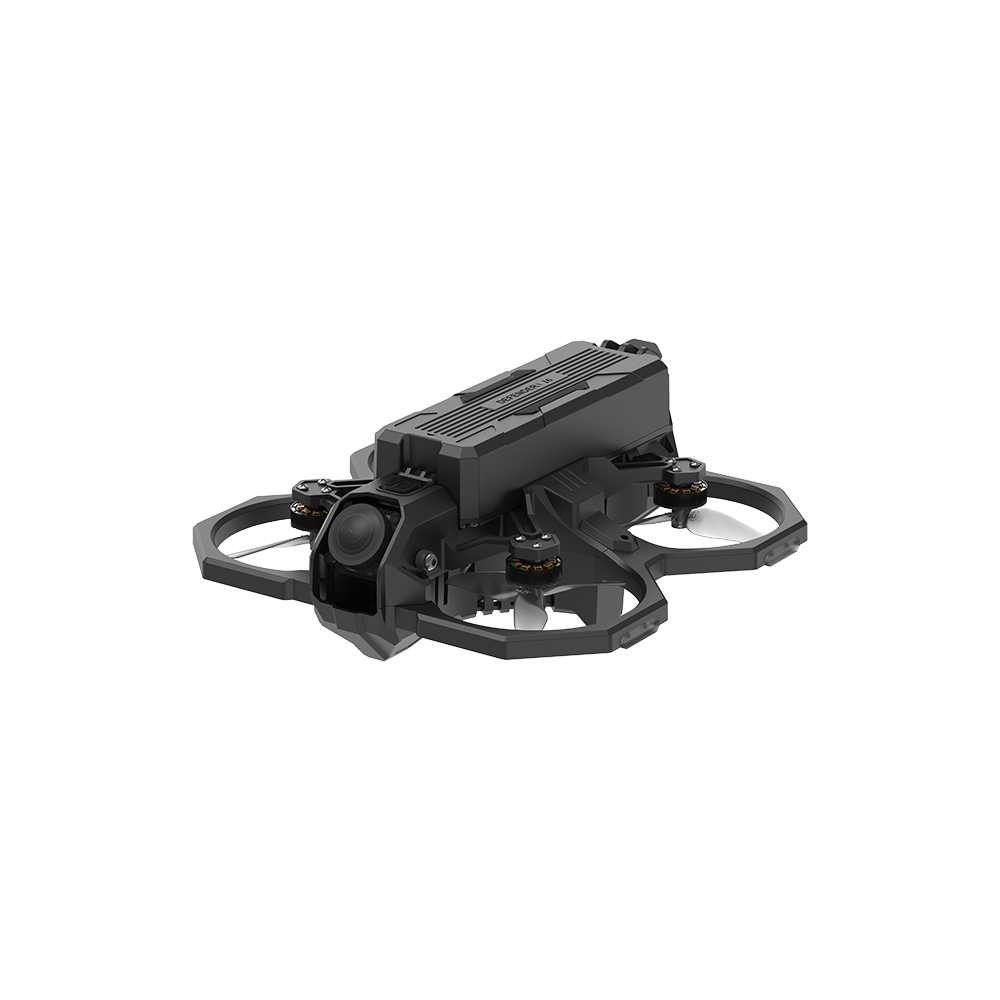

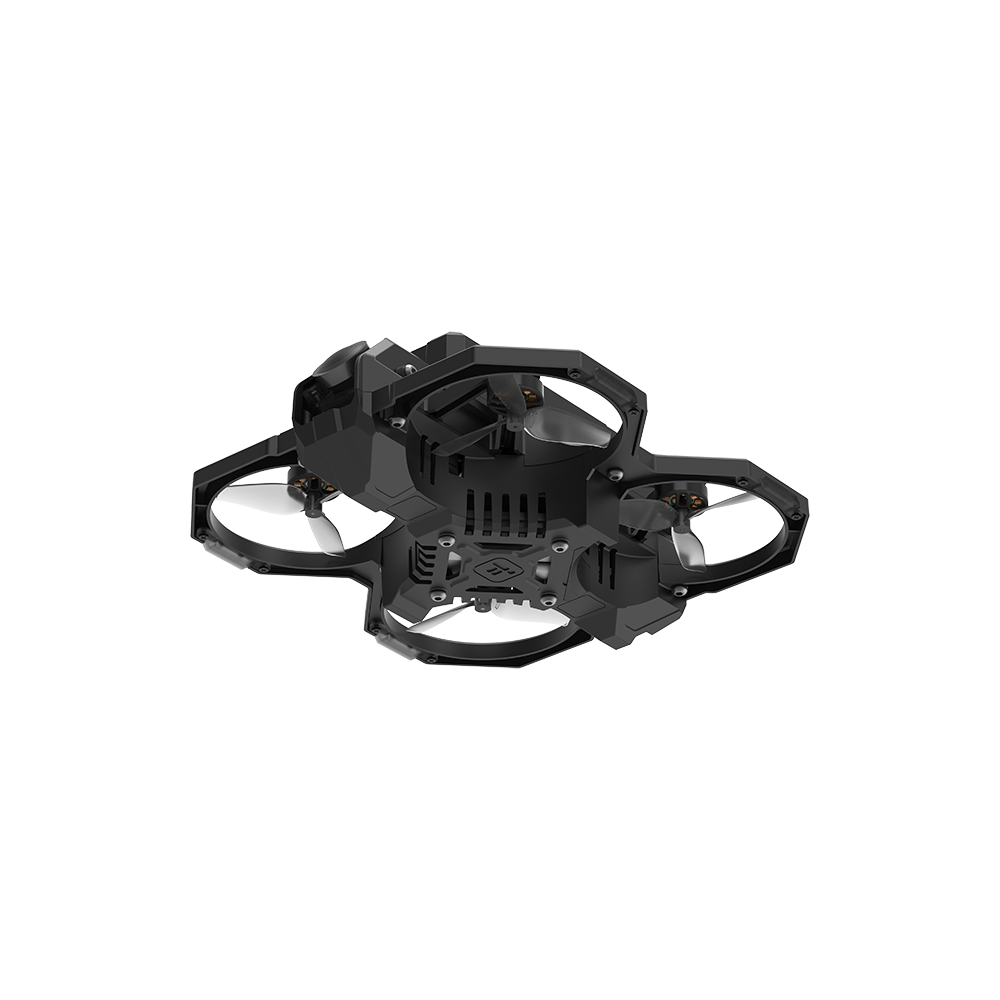

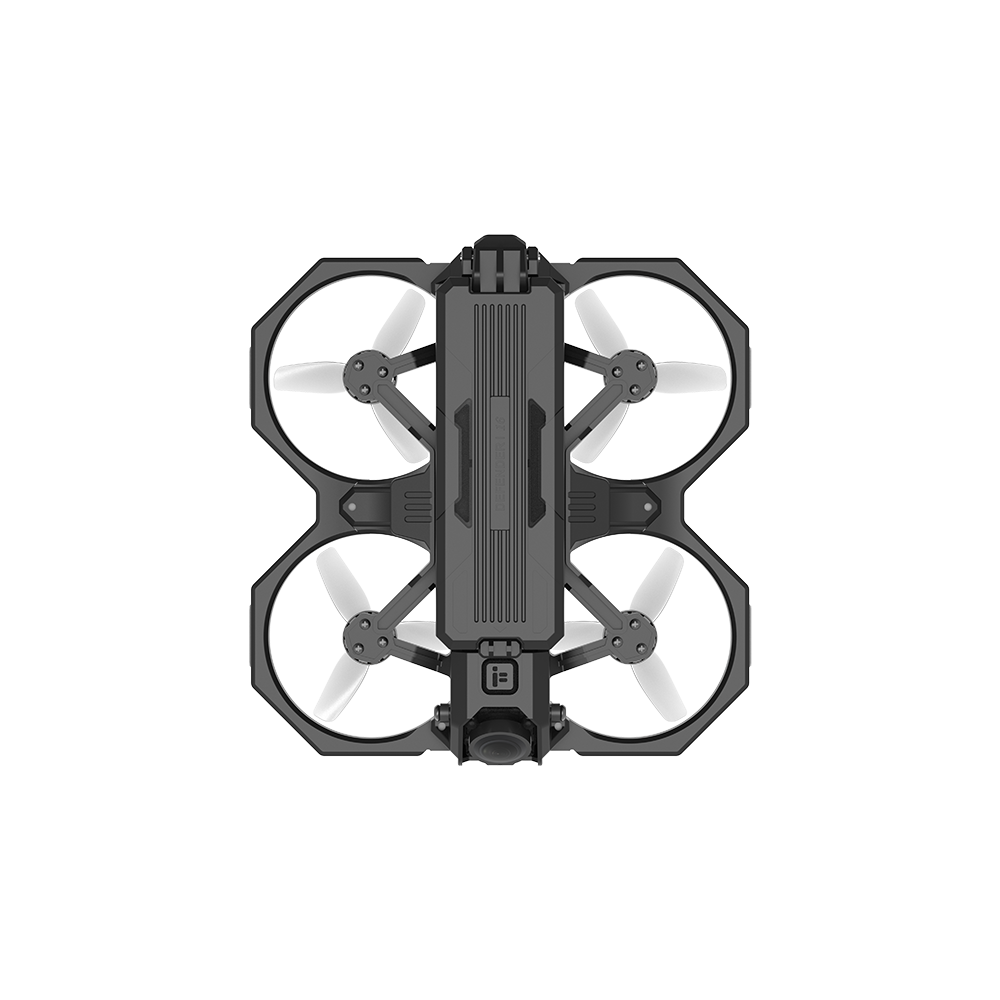

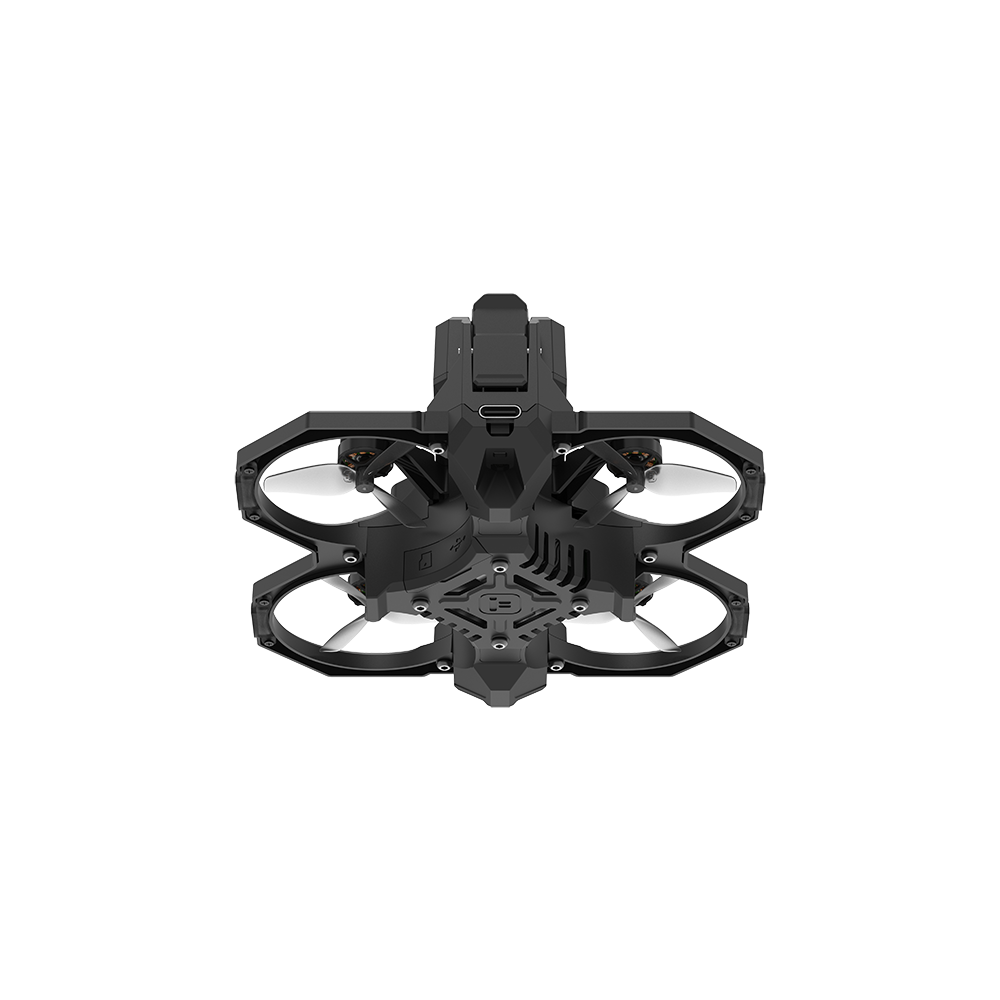

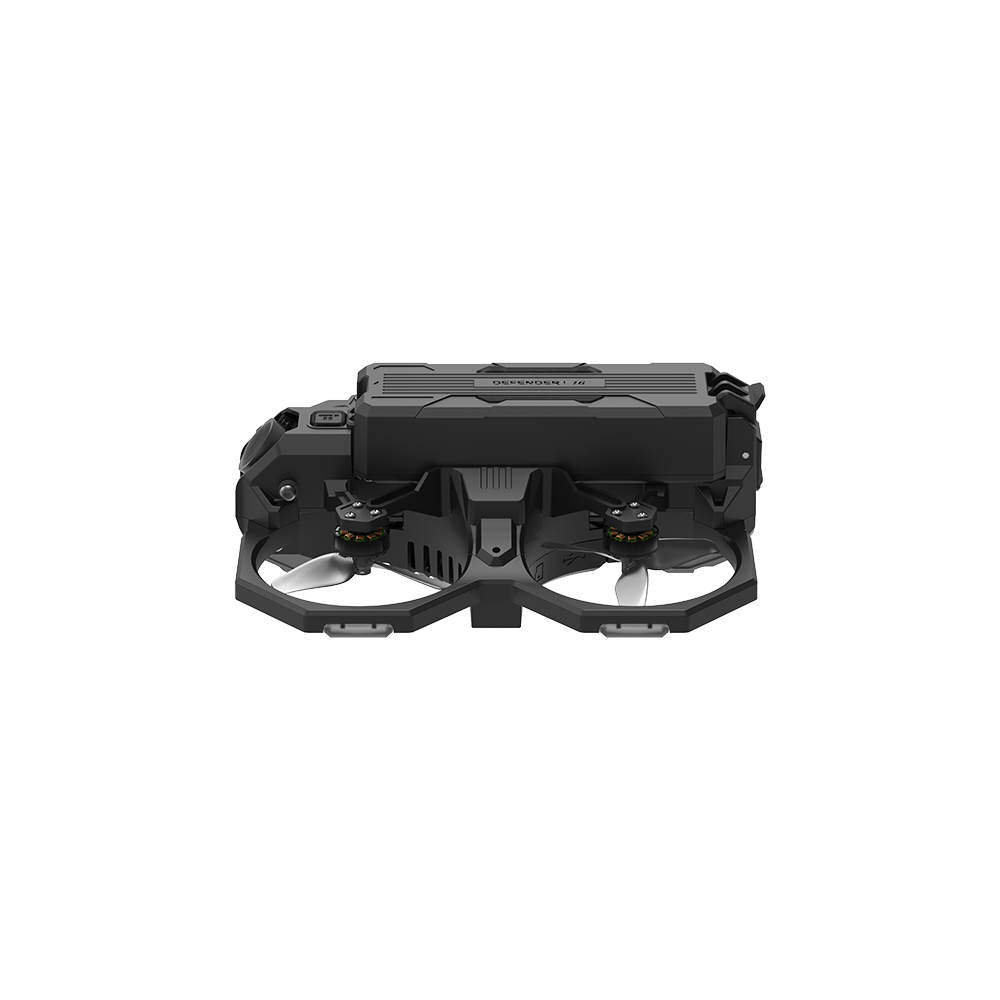

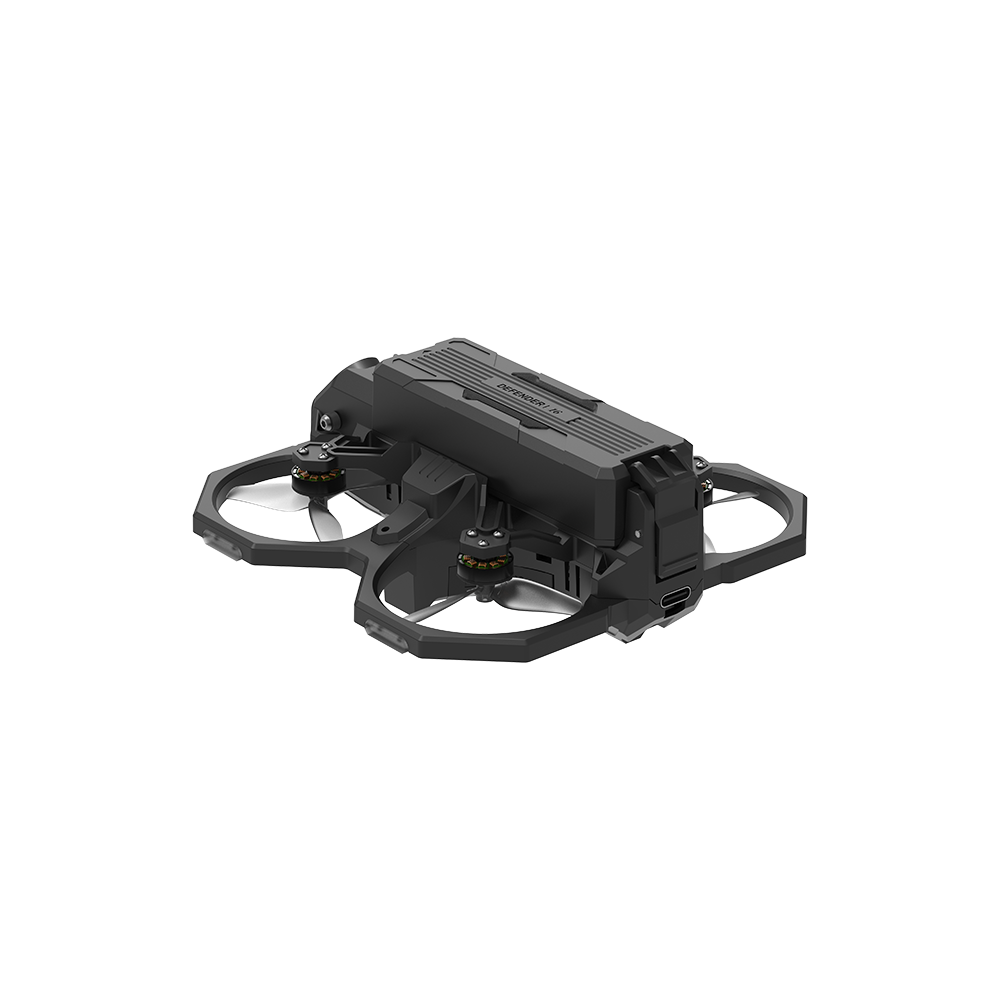

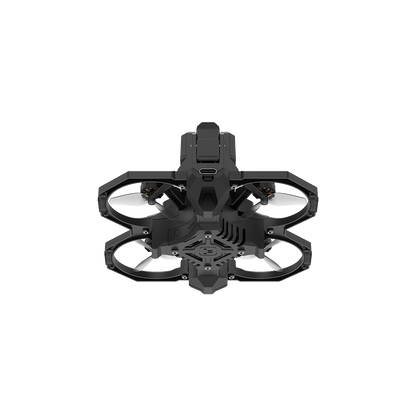

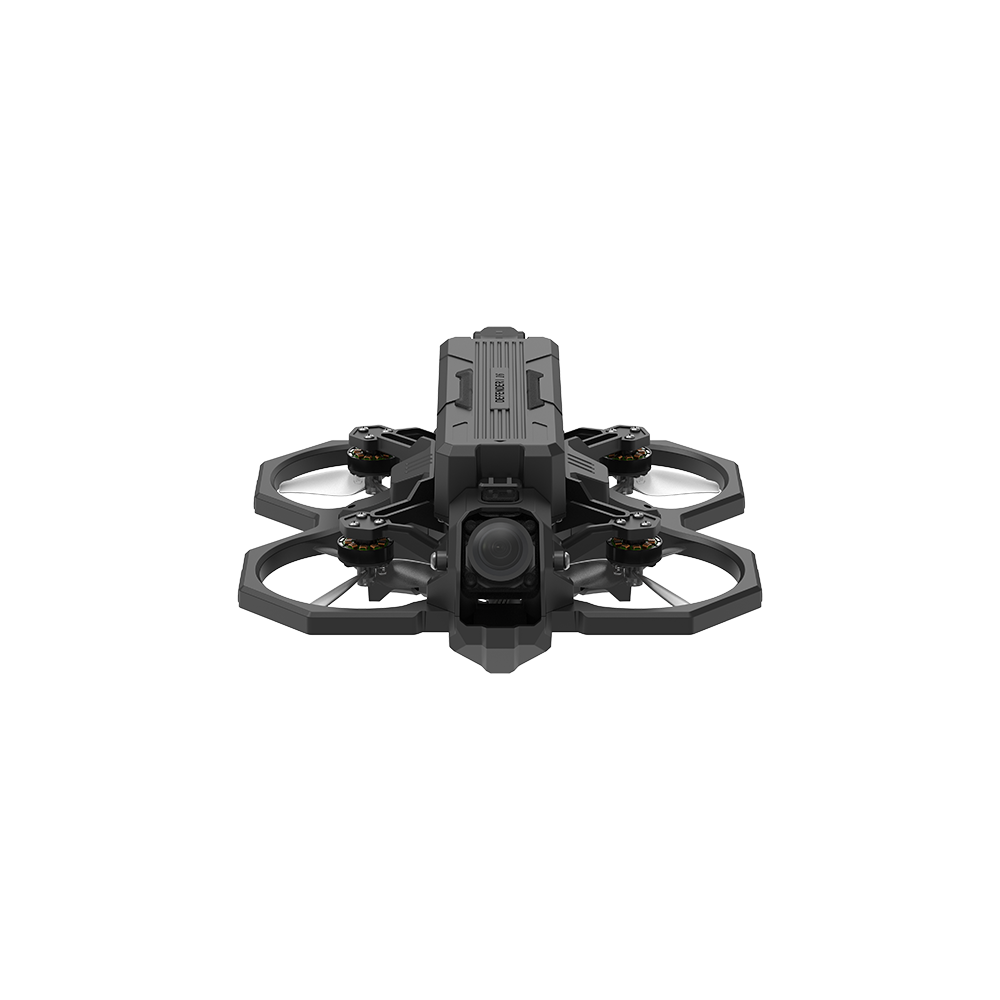

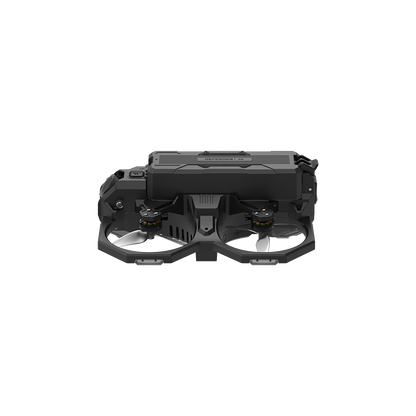

Defender 16 HD 2S BNF (ELRS 868/915 MHz)
Function:
- Palm size micro FPV drone. The compact Defender 16 is as portable as it gets. Full frame injection molded for durability and lightweight, the Defender 16 is iFlight's smallest and lightest 4K drone with a takeoff weight of 128g.
- Custom made O3 Lite air unit. Equipped with the DJI O3 Air Unit HD transmission system, Defender 16 supports 4K/120fps video and shoots up to 155° super wide FOV for stunning visual effects.
- One button function switch. Better control with one physical button, not only power on and off, but also built-in programmable RGB colors and light modes to visually display battery status. Added a protection circuit to extend the life of the battery connector and prevent rapid voltage or current spikes that can protect your electronics from damage.
- Innovative fast-charging battery with Type-C fast charger. Defender 16 comes with a 2S 900mAh battery that provides up to 6 minutes of flight time. Impact-resistant battery cover and innovative quick-release structure for easy replacement. Improved plug-and-play Type-C charger for user-friendly fast charging, charge to 80% in just 18 minutes. The battery has a built-in auto-discharge module, it will self-discharge when not in use, so it's safe and worry-free.
- Easy to use for both beginners and professionals. Use dustproof port plugs to isolate the interface from the outside to ensure proper operation. Extend the life of the interface.
- Easy fix. The drone can be disassembled with only 6 screws, making it much more convenient for maintenance and repair. All ports and buttons are easily accessible from the outside.
Countless easy-to-use features get you started right away.
1) No soldering is required for the whole drone, motors and propellers using the plug-in mounting method.
2) Dedicated VTX mounting bracket with central grid hole, together with the air duct design in the drone, can dissipate heat when flying.
3) USER1 preset as a video transmitter power switch, used to manually shut down the VTX when idle to save power and prevent overheating.
4) Customized O3 camera mount with vibration dampening to make your raw footage as smooth as possible, and also ensure good gyro data for built-in or built-in camera stabilization, no jello.
Specifications:
Product name: Defender 16 O3 2S HD
Receiver option: iFlight ELRS 868/915 MHz
Flight Electronics: Defender 16/20 F411 AIO
Video transmission: DJI O3 Air Unit (naked version)
Frame wheelbase: 81 mm
Engine: Defender16 1103 14000KV engines
Propellers: Defender 16 1809-3 propellers
Take-off weight incl. 900 mAh battery: 128 g
Dimensions (LxWxH): 121x117x47mm
Maximum speed: 55 km/h (manual mode)
Maximum take-off height: 2000 m
Maximum Hover Time: Approx. 6 minutes (with 2S 900mAh battery)
Maximum resistance to wind speed: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: N/A
Video transfer
Product Name: DJI O3 Bare Air Unit
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only); 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
Recommended charger:
- The charger is not part of the combo and is sold separately.
- To ensure fast charging speed, it is recommended to use Flight PD 100W Charger or PD 30W Charger or other USB chargers that support USB PD and QC fast charging protocols.

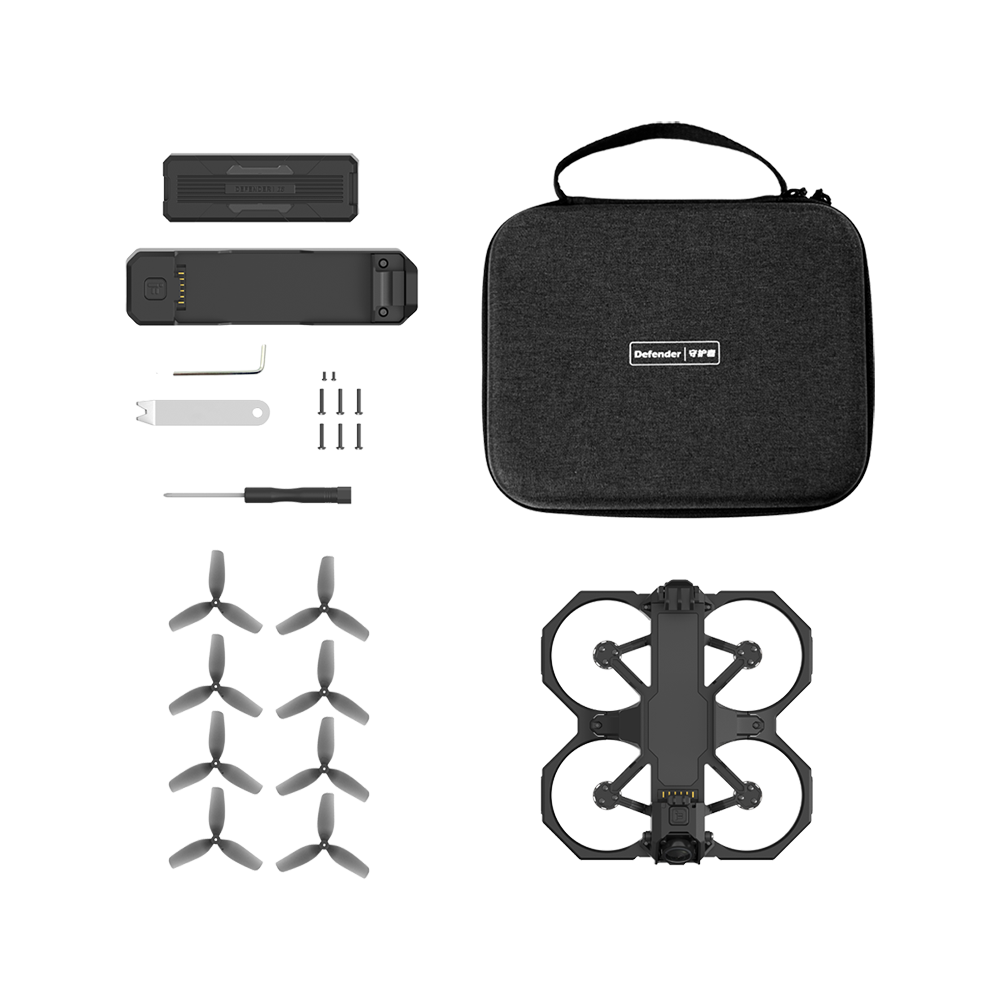

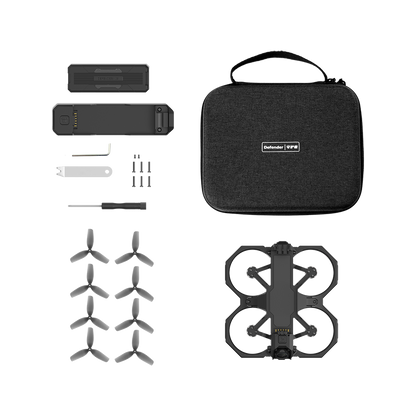

The package includes:
1 x Defender 16 O3 HD BNF ELRS 868/915
1 x Defender 16 900mAh 25C 2S battery
1 x Defender 16 Type-C charging adapter
4 x GEMFAN 45mm supports (pairs)
4 x Defender 16 Props (pairs)
1 x Propeller Removal Tool
1 x Defender 16 carrying case
