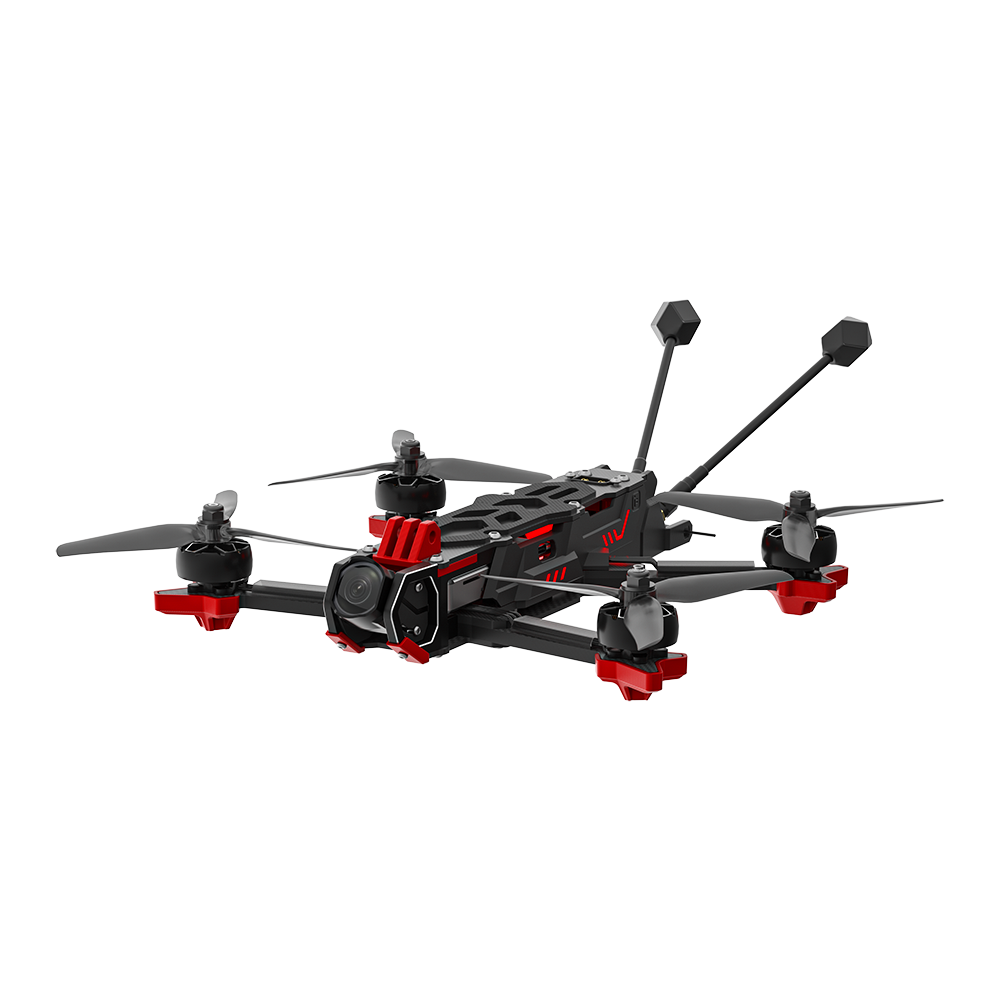

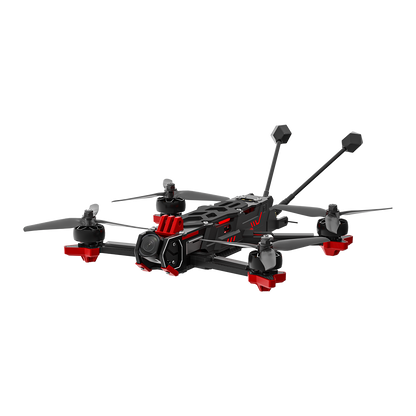

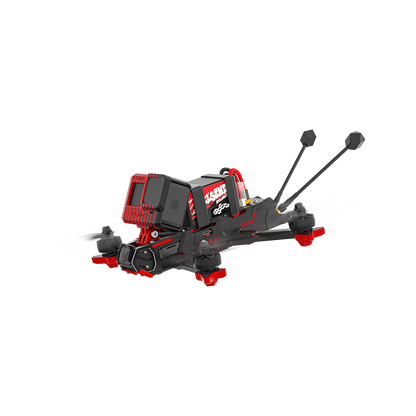

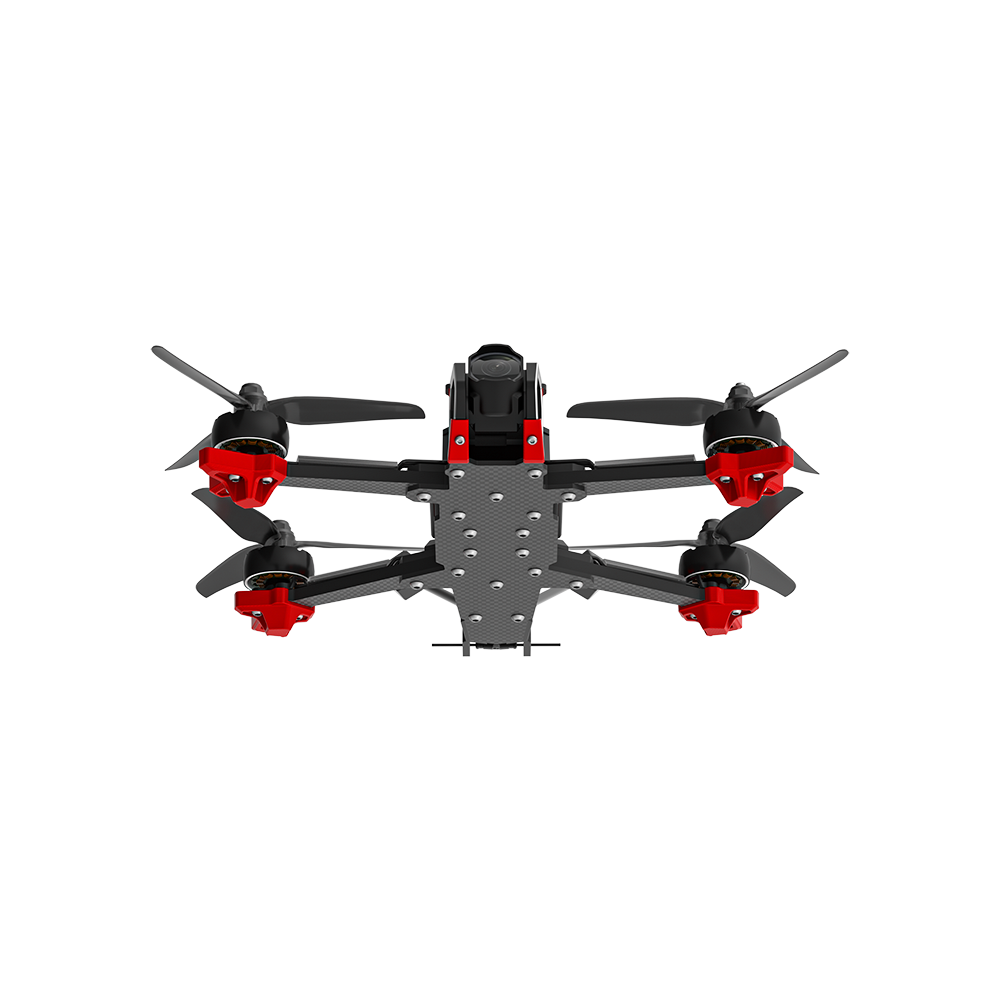

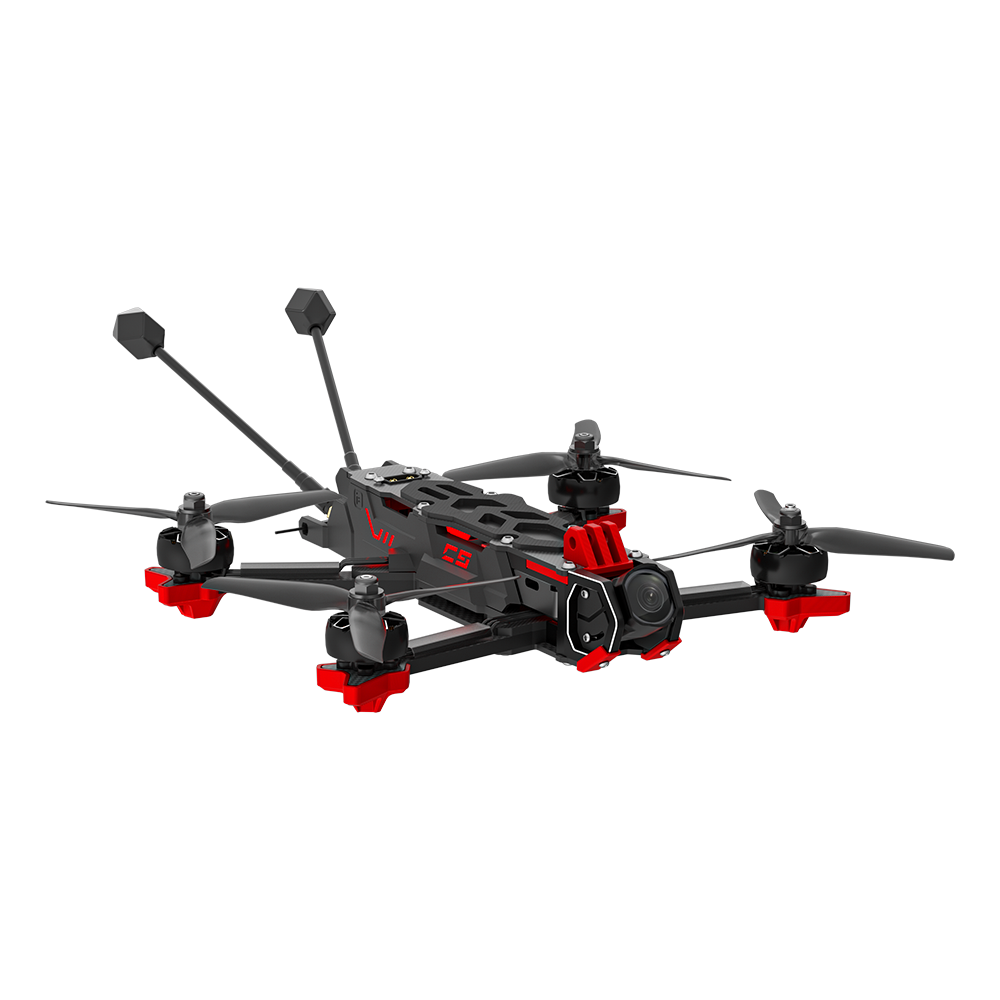

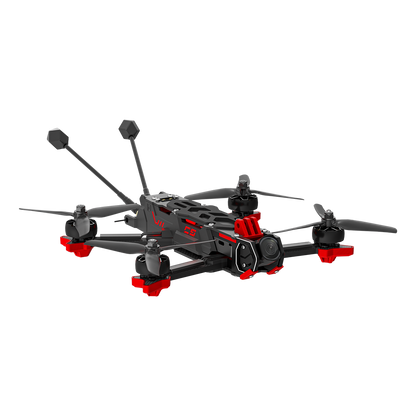

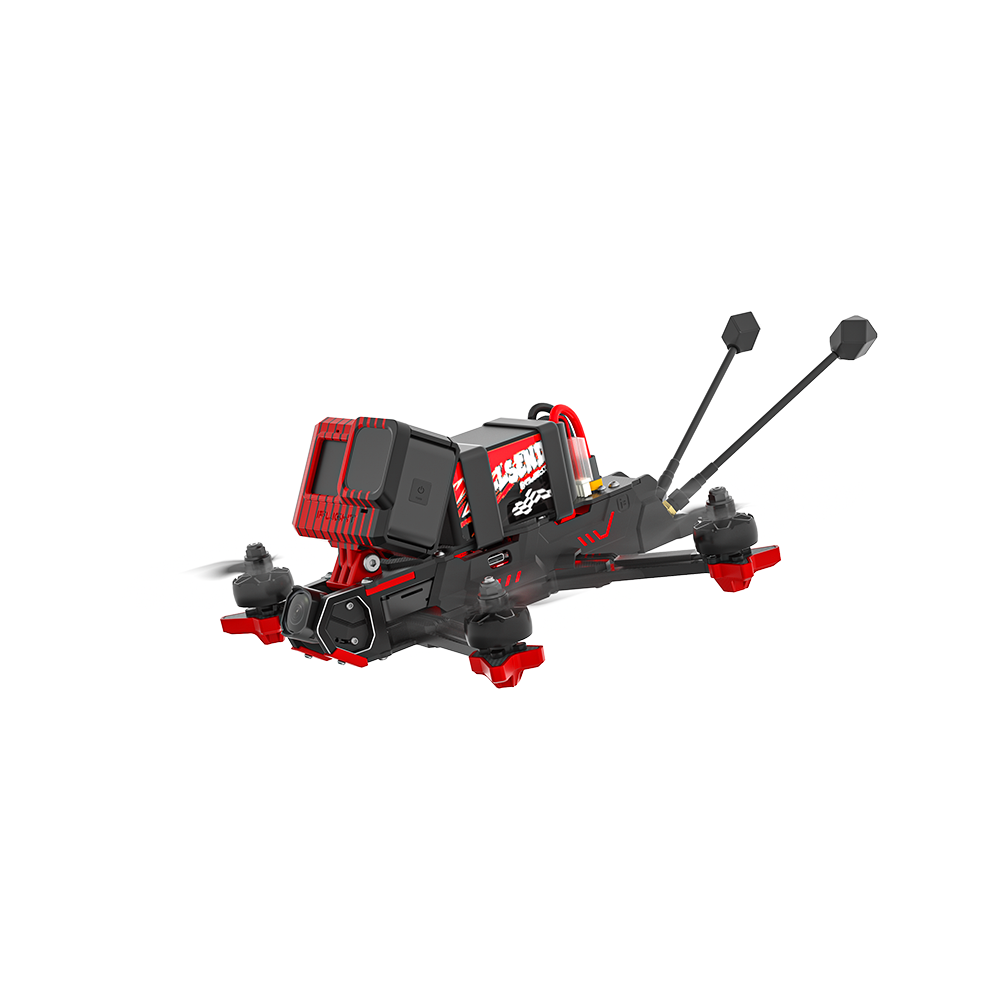

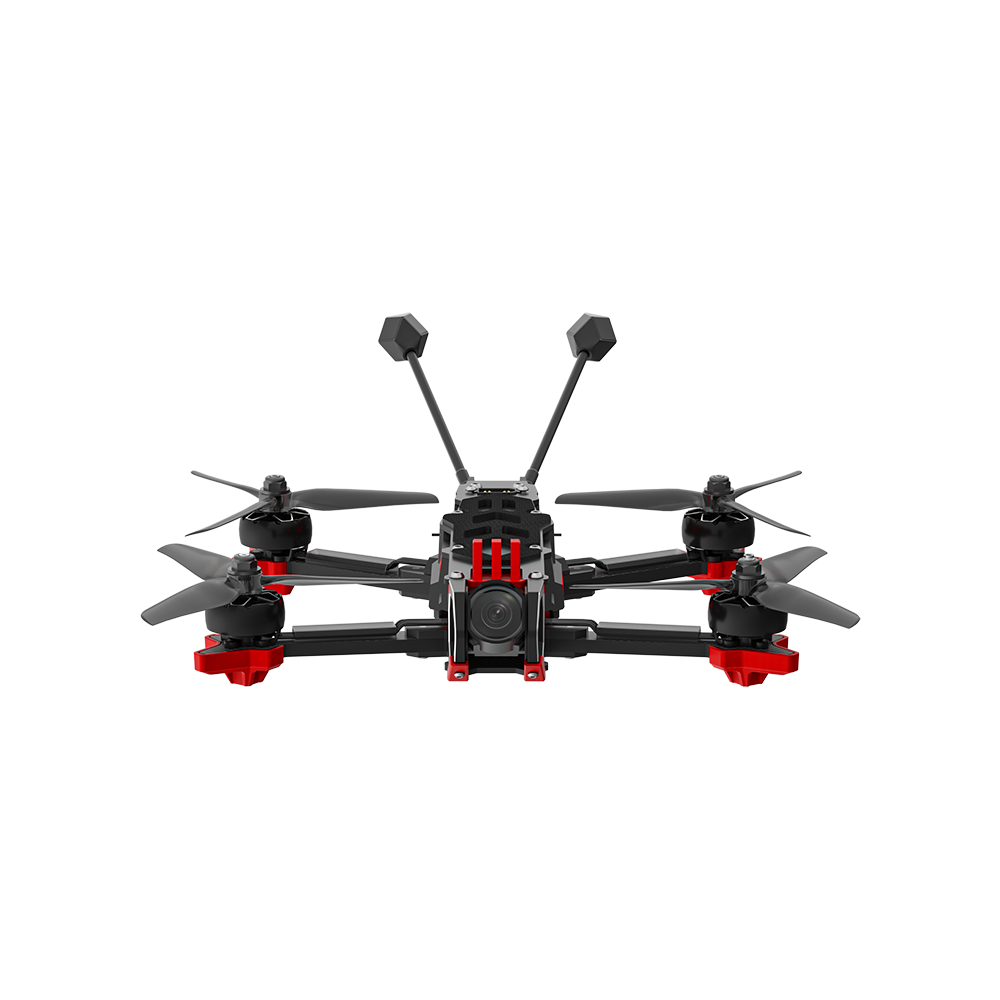

FPV Drone iFlight CineFlow 5 O4 Pro BNF 6S (DJI)

FPV drone iFlight CineFlow 5 O4 Pro BNF 6S (DJI)

iFlight comes with a new generation of FPV drones - the 5-inch CineFlow 5 freestyle film drone, which combines elegant design, easy maintenance and powerful electronics. This drone is designed for immersive FPV experiences as well as professional video recording. CineFlow 5 provides excellent flight performance and cinematic quality footage. Whether you're into freestyle stunts, high-speed pursuits or long-range filming, the CineFlow 5 is fine-tuned for a wide range of flight requirements with maximum accuracy and reliability.

Function:

- Innovative frame design, no propellers involved. The SH Series uses an innovative frame design that eliminates propellers from engagement while allowing flexibility for freestyle tricks. Balanced engine power ensures improved overall flight performance.

- Quick release side panels. Quick-release side panels protect against dirt and allow for easy maintenance, while ensuring a cleaner layout without tangled cables.

- O4 Video transmission, improved perception. The SH Series model is equipped with the latest DJI O4 Pro Air Unit with an improved 1.1/1.3-inch image sensor that captures fine details even in low light. Thanks to the ultra-wide angle of 155°, it provides breathtaking visual records. Enjoy real-time video transmission at up to 1080p/100fps for an immersive flight experience.

- Floating power up to 17% throttle. CineFlow 5 can achieve a minimum take-off thrust of 17% thanks to its powerful flight capabilities, which increases maneuverability during extremely fast flights or aerobatic maneuvers.

- High performance electronics. The drone is equipped with a BLITZ Mini F7 FC racing controller and a 4-in-1 BLITZ E55R ESC controller for intense flight maneuvers. It offers a maximum current peak output of 65 A, which improves stability and more efficient heat dissipation.

- Built-in high-precision GPS module. The integrated high-precision GPS module with TPU cover prevents signal loss and reduces the risk of losing the drone, increasing flight safety.

Specifications:

- Receiver option: Without receiver, intended for DJI FPV Remote Controller 2 users.
- Geometry: H-shape
- Control unit: BLITZ Mini F7 Flight Controller
- ESC: BLITZ Mini E55R 4in1 ESC
- Video transmission: DJI O4 Air Unit Pro
- Frame wheelbase: 222 mm
- Motor: XING2 2207 2050KV
- Propeller: Nazgul F5
- Dimensions (L×W×H): 182×133×42 mm
- Weight: 488±5 g
- Starting weight: About 733±5g (with 6S 1400mAh battery)
- Maximum speed: 190 km/h
- Maximum take-off altitude: 7000 m
- Maximum hover time: Approximately 12 min
- Maximum flight distance: 5 km
- Wind Resistance: Level 7
- Operating temperature range: -20° to 40° C
- Antennas: Dual antennas

Video transfer:

- Product name: DJI O4 Air Unit Pro
- Image sensor: 1/1.3 inch
- Lens: Field of view (FOV): 155°
- ISO: 100-25600
- Video resolution: 1080p/100fps H.265
- Video format: MP4, maximum data rate: 130 Mbps
- Color Mode: Normal Mode/D-Log M
- Stabilization: RockSteady 3.0+; Stabilization off (Only standard recording angle is supported when RockSteady is enabled.)
- Live view quality: 1080P@100fps
- Operating frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Transmitter Output Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
- Maximum video transmission range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
- Communication bandwidth: Maximum 60 MHz
- Antenna: Dual antennas
- Built-in storage: 4 GB
- Supported SD cards: microSD (up to 512 GB)
- Operating temperature: -10° to 40° C
- Weight: Transmitter unit (including camera module): Approximately 32g
- Dimensions: Transfer module: 33.5×33.5×13 mm (L×W×H)

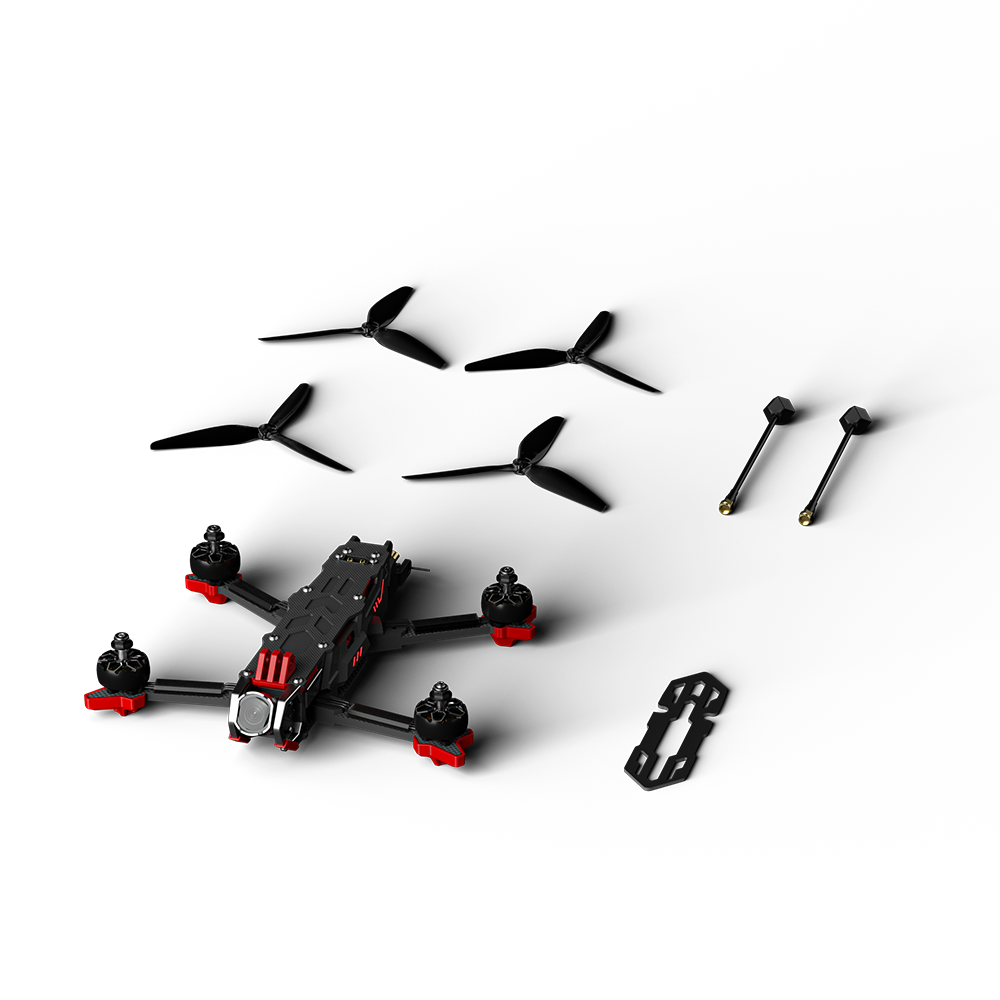

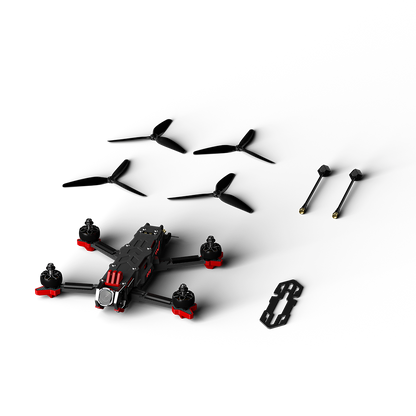

Package Contents:

- 1x SH CineFlow 5 O4 6S HD BNF
- 2x Antennas
- 1x Battery pad
- 2x Pair of propellers
- 1x Battery strap
