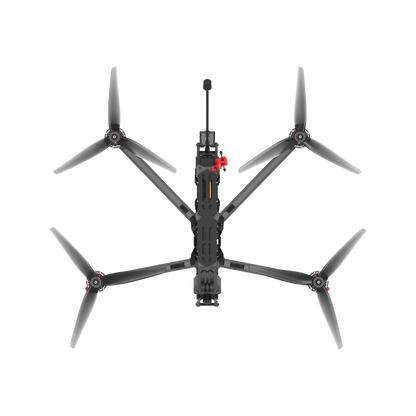

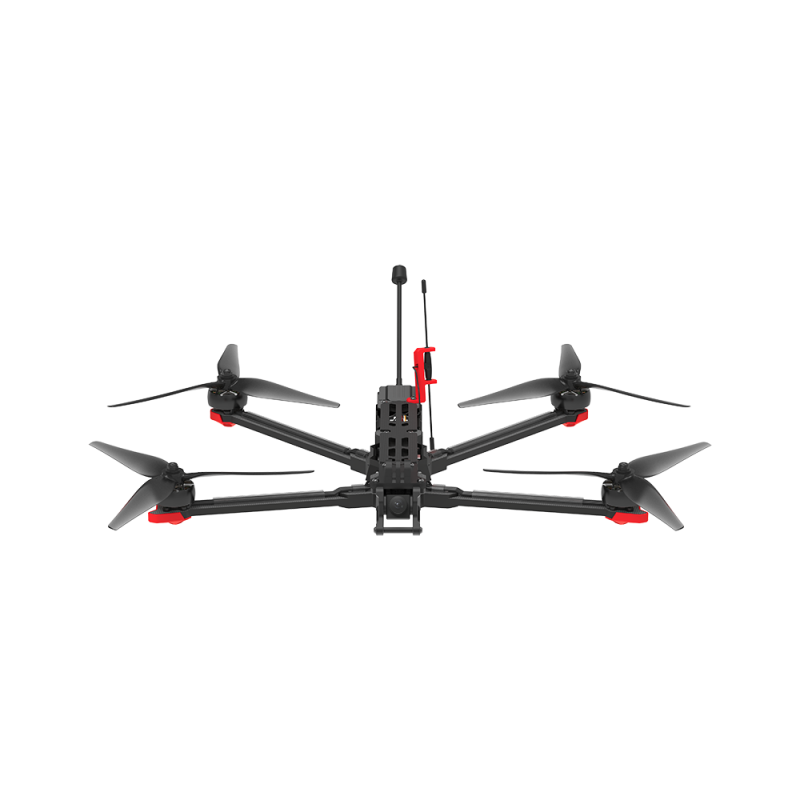

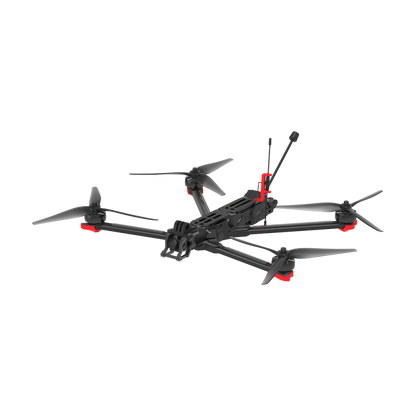

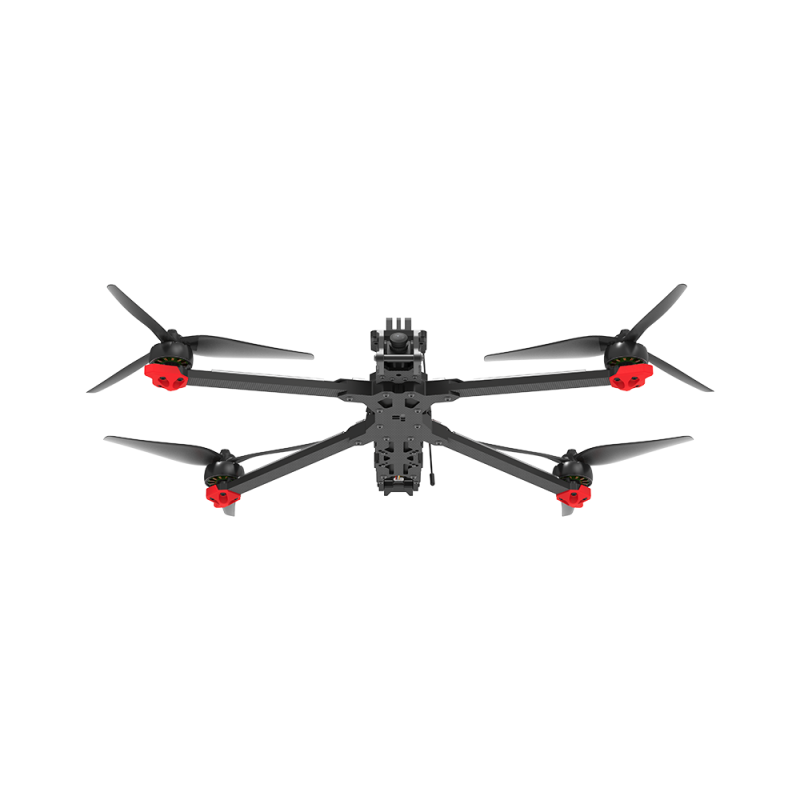

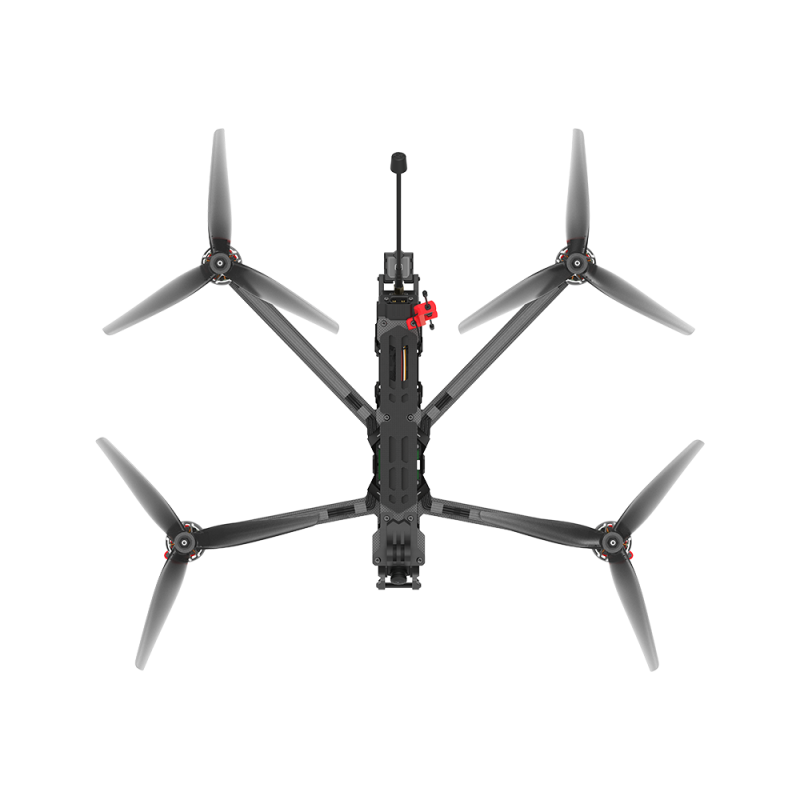

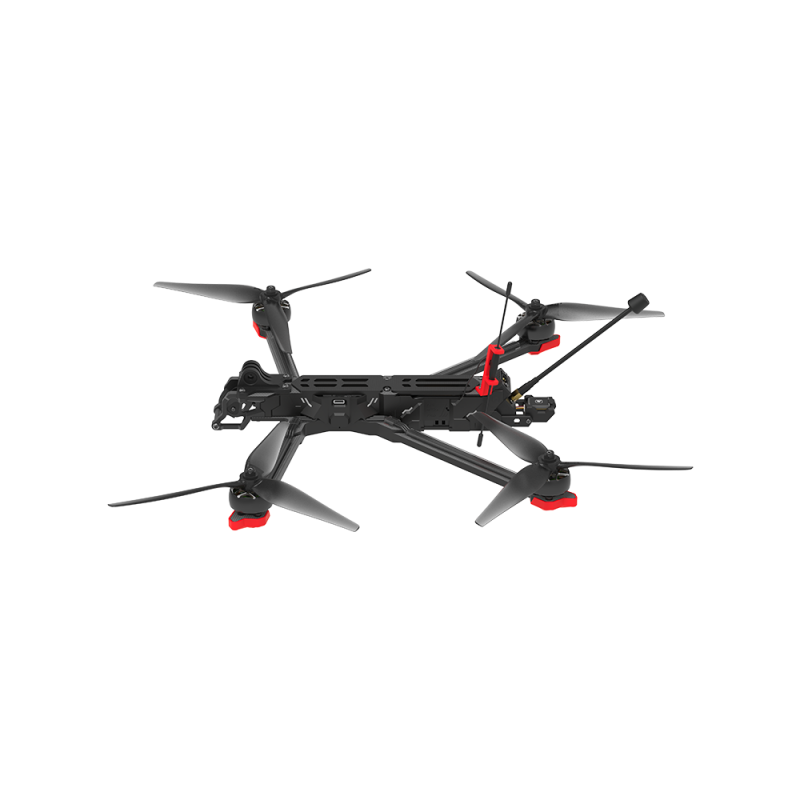

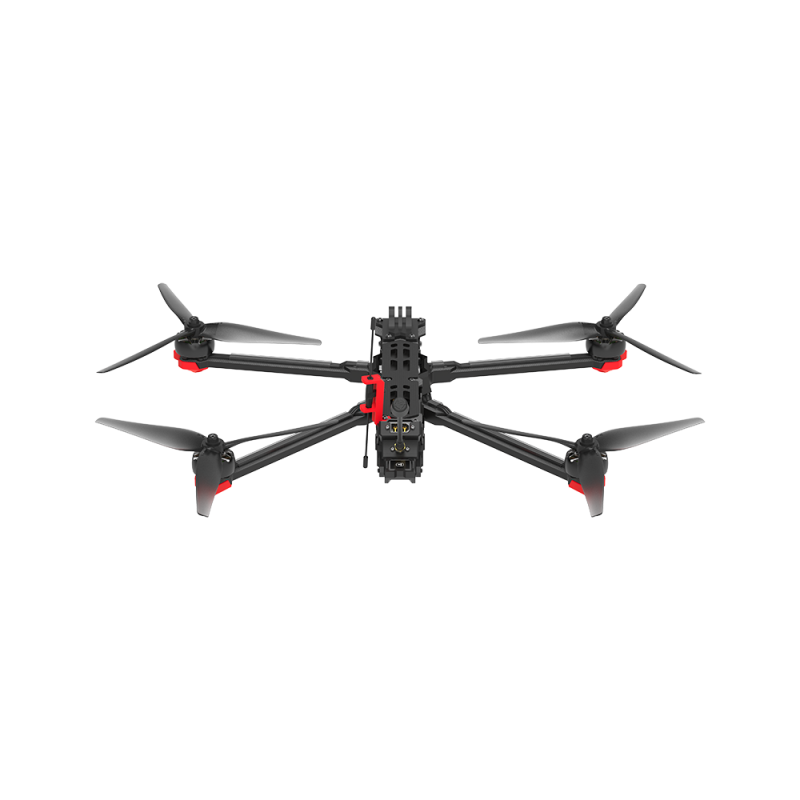

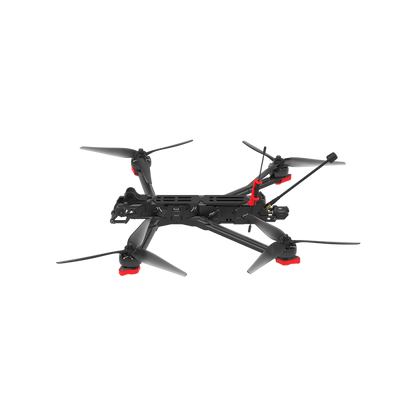

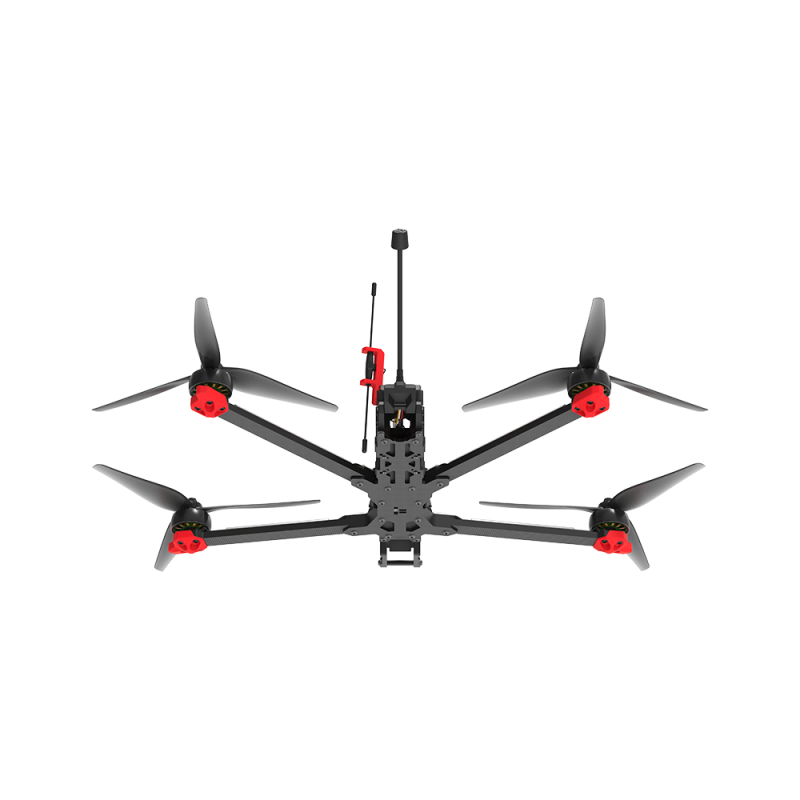

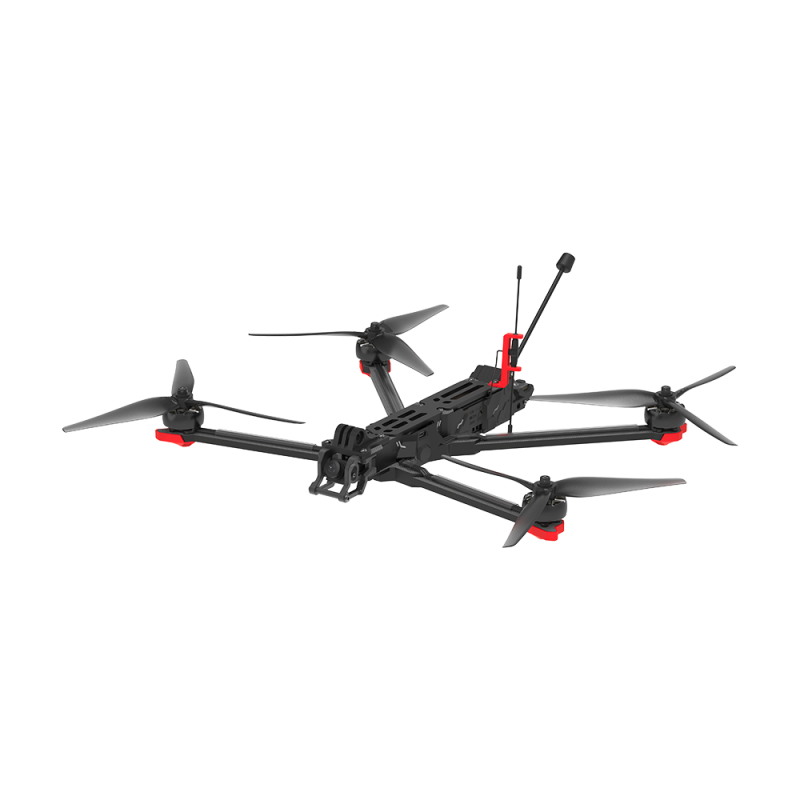

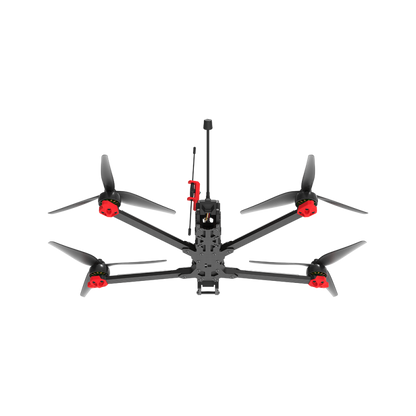

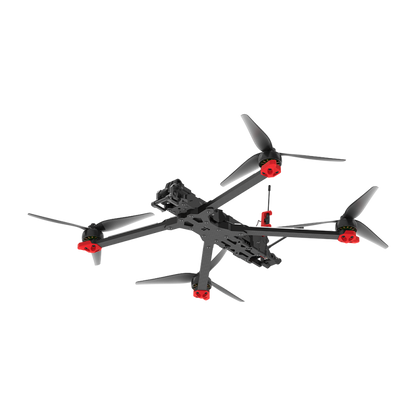

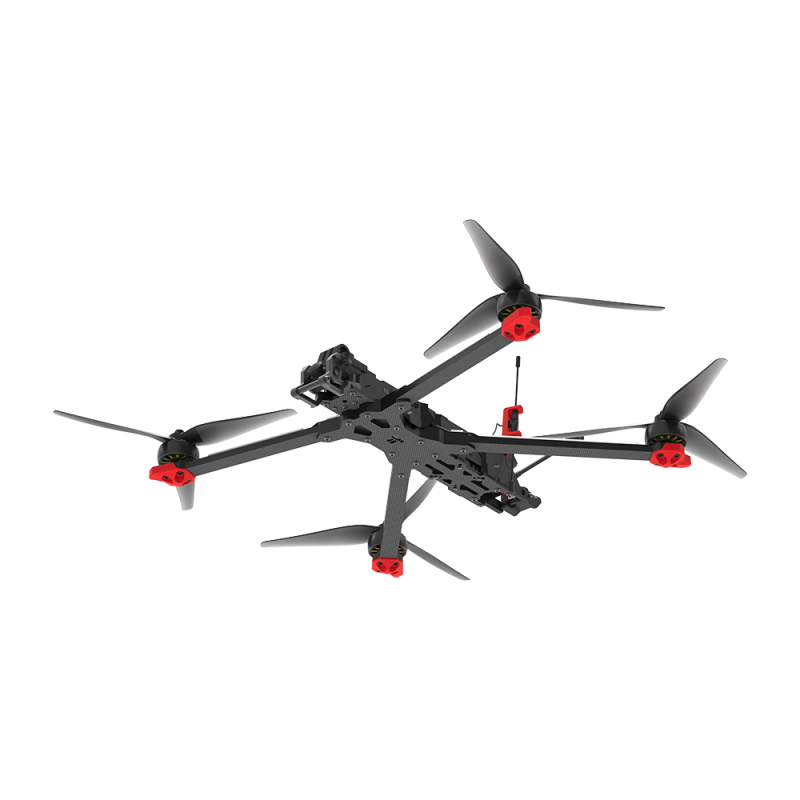

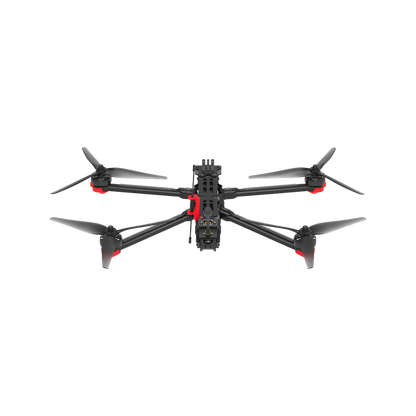

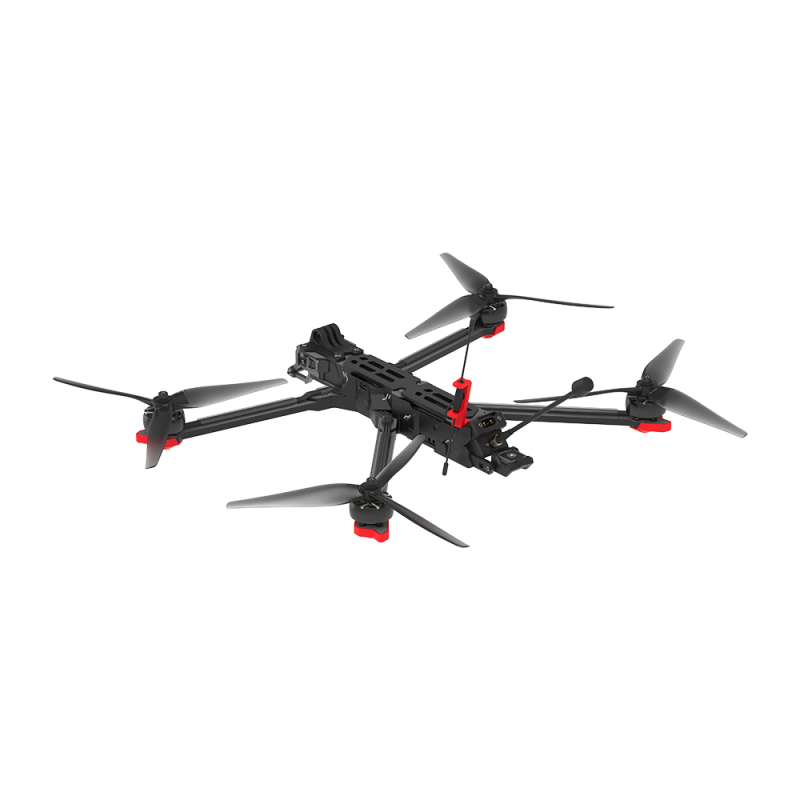

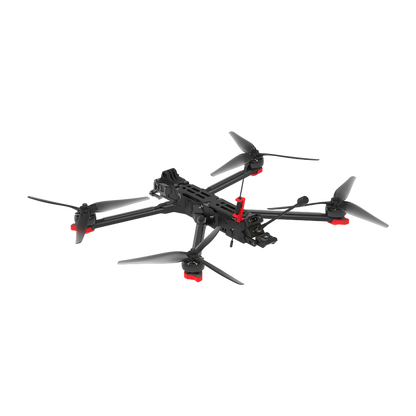

Analog Chimera9 (PNP)
Function:
- Smooth and powerful XING2 engines -
Durable unibell (one-piece bell) technology, solid titanium alloy shaft with reinforced bell joint, impact-resistant 7075 aluminum bell, long-life smooth Japanese NSK bearings, N52H curved-arc center-groove magnets, and XING O-ring bushing gap protection.
- The latest Chimera9 frame for maximum protection -
The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
- Secure battery plug with spark filter -
Connecting the battery can cause a loud spark at the connector, which is caused by the high current of the battery first rushing into the low ESR capacitor, as well as filling the ESC capacitance. The Chimera9 has a protection circuit that extends the life of the XT60 connectors and prevents rapid voltage or current spikes that can protect your electronics from damage.
- Pre-installed GPS for greater safety at a distance -
GPS retracement function and Betaflight GPS rescue mode ready to set (default OFF to prevent unexpected behavior; set-up instructions included). Own iFlight 100mm LR antenna for the best signal coverage even at long distances.
Specifications:
Product name: Chimera9 6S Analog
Model: Chimera 9 inches
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Camera: RaceCam R1 Mini 1000TVL 2.5mm
Geometry: DeadCat (DC)
Frame: wheelbase 405 mm
Engine: XING2 2809 engines
Propeller: 9X4X3 propeller
Weight: 776 g (without battery)
Dimensions (L×W×H): 360x235x34mm
Maximum speed: 140 km/h
Maximum take-off height: 6000 m
Maximum Hover Time: Approx. 33 min
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Individual antennas
GNSS: GPS + Galileo
Payload: 1.5-2.2 kg
Receiver option: PNP
Video transfer:
Product name: BLITZ Whoop 1.6W VTX
Input voltage: 7V - 34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Light weight: 18.9 g (without antenna)
VTX telemetry: IRC Tramp
Table values RC Tramp VTX: 25mW/400mW/800mW/1600mW
The package includes:
1 x Chimera9 6S Analog BNF
1 x battery pad
1x antenna
1x propellers (pairs)
2x battery strap
