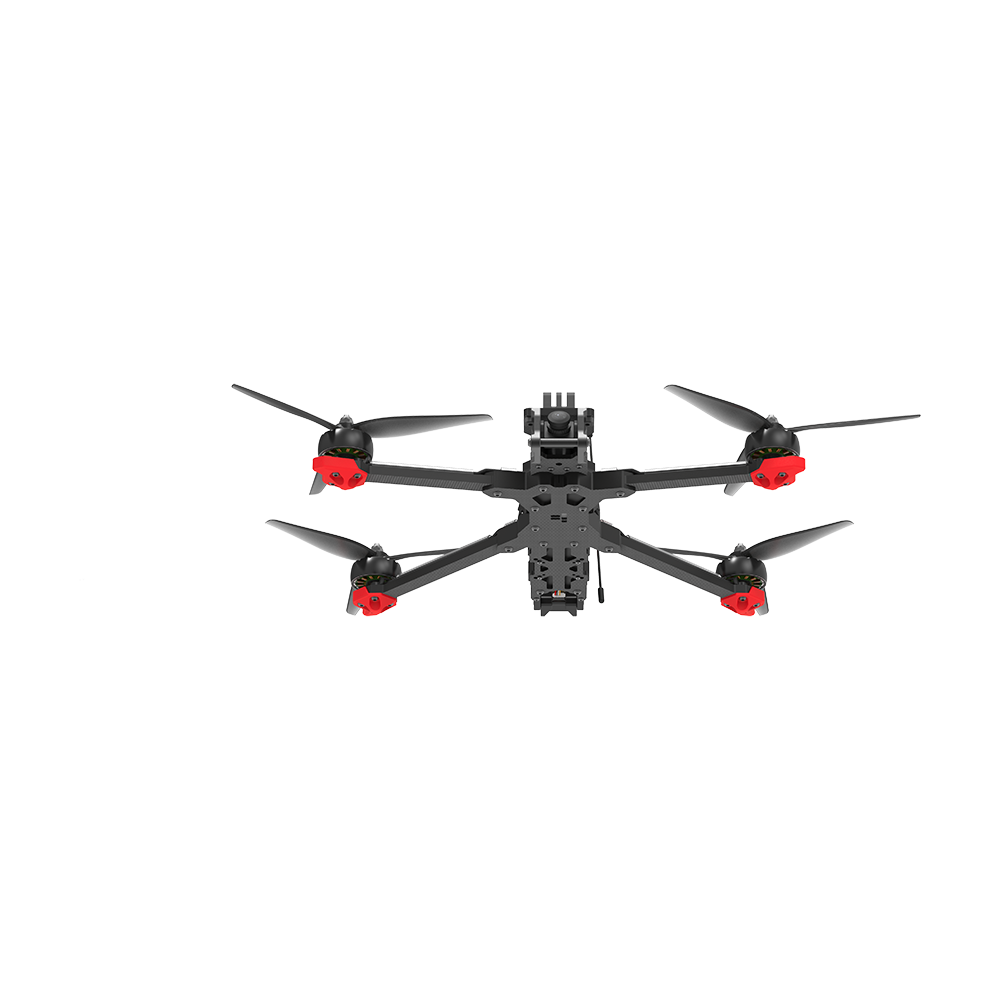

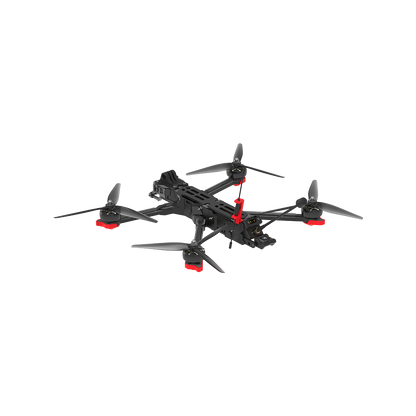

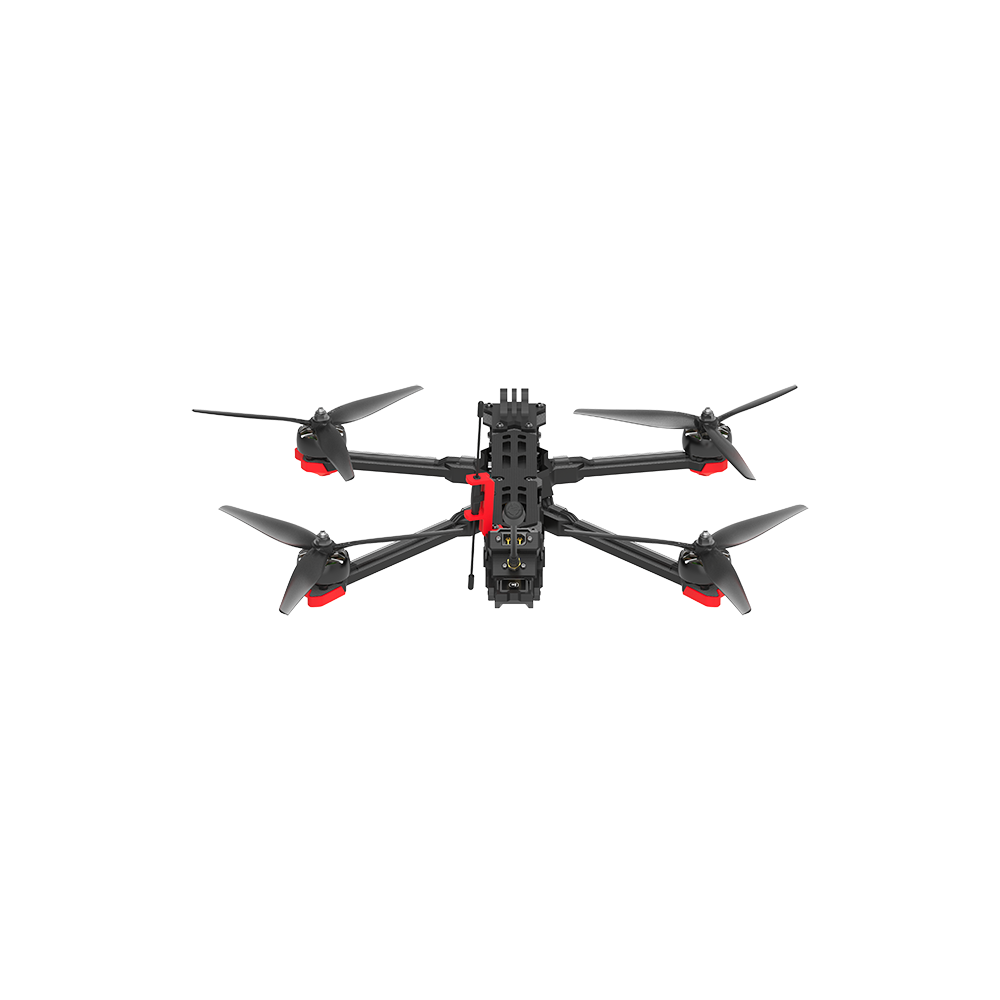

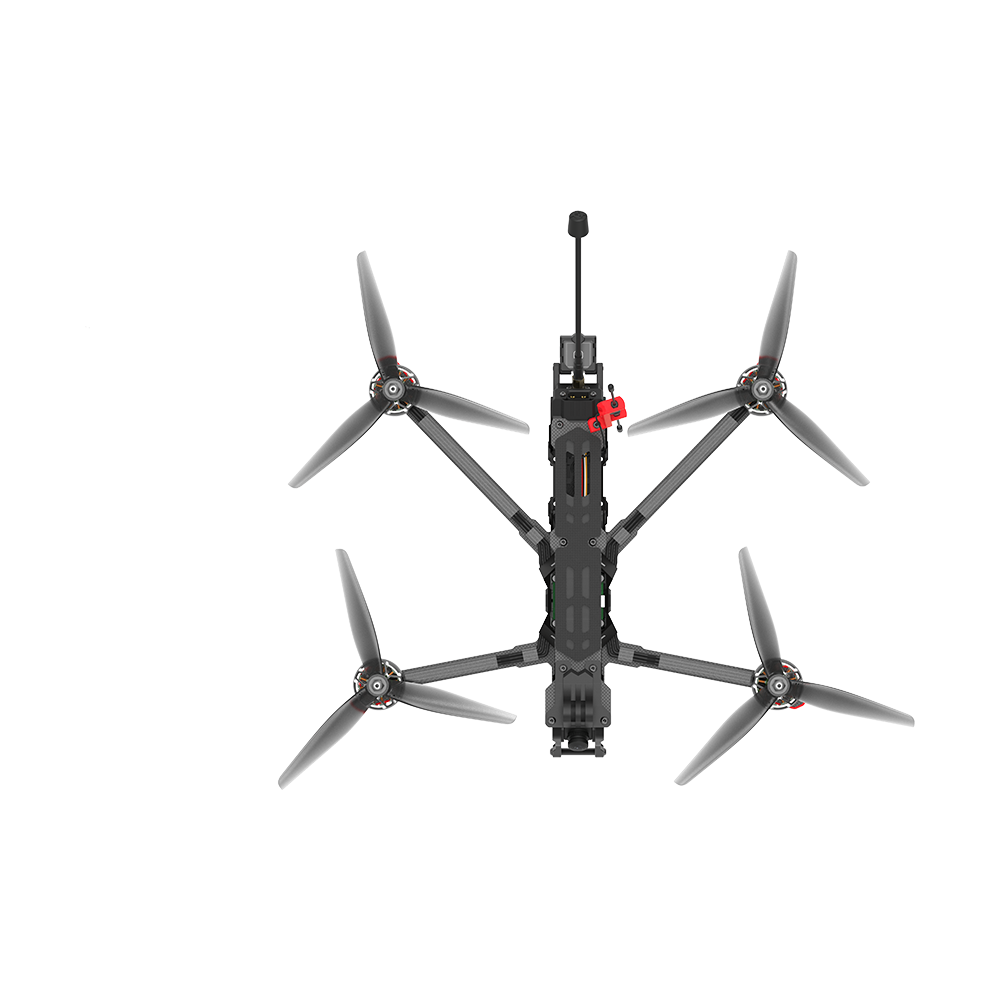

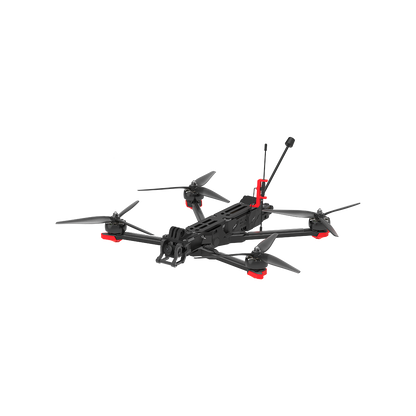

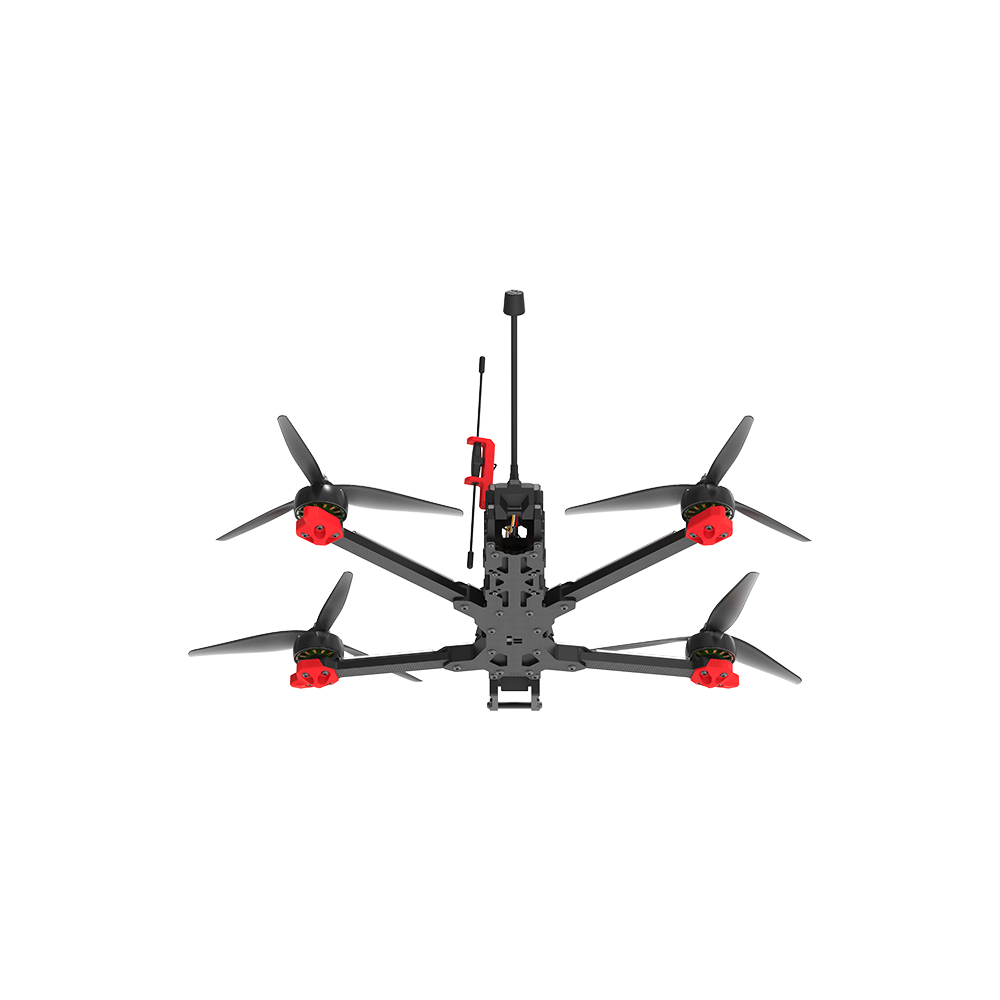

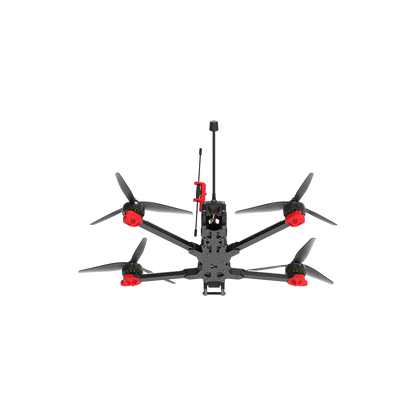

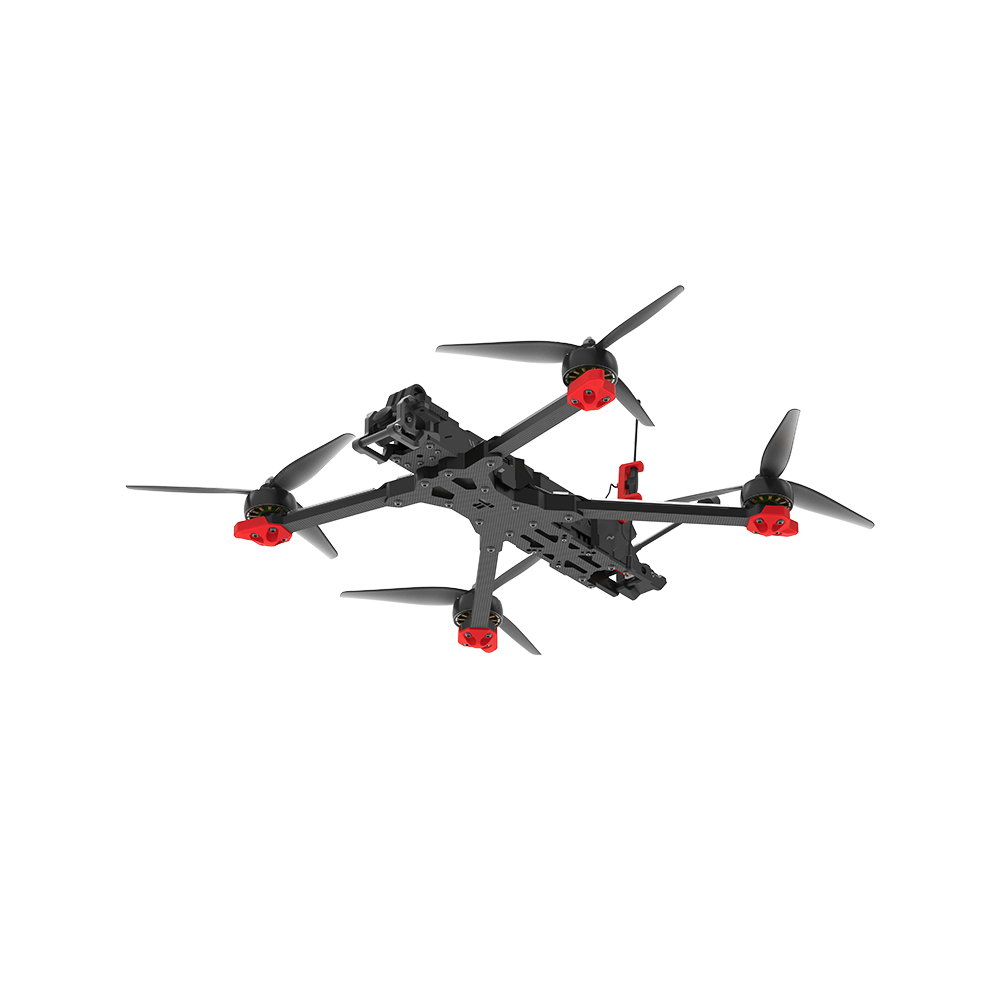

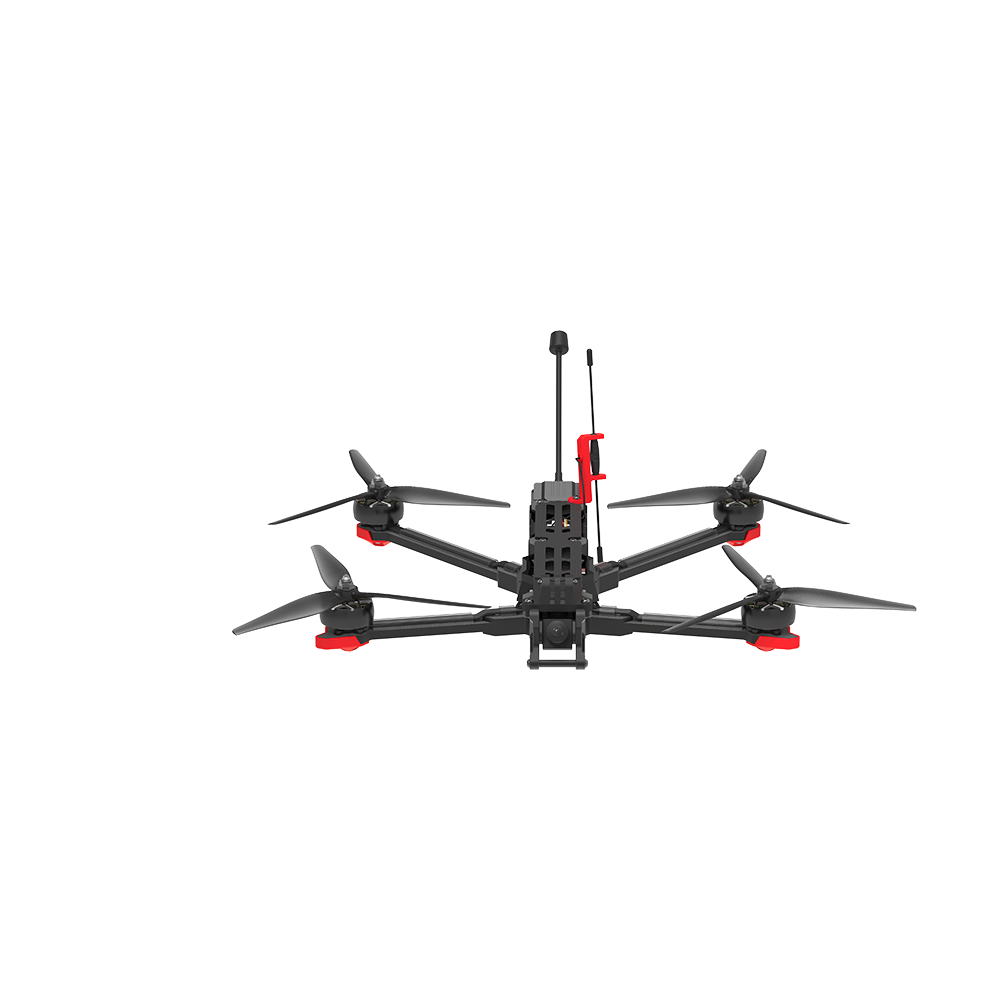

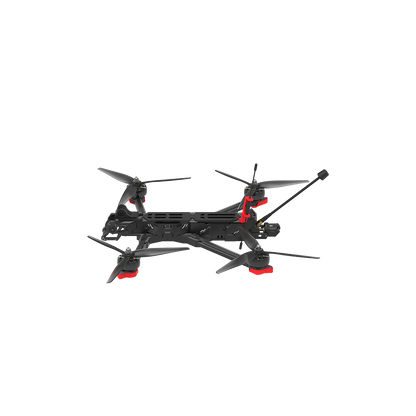

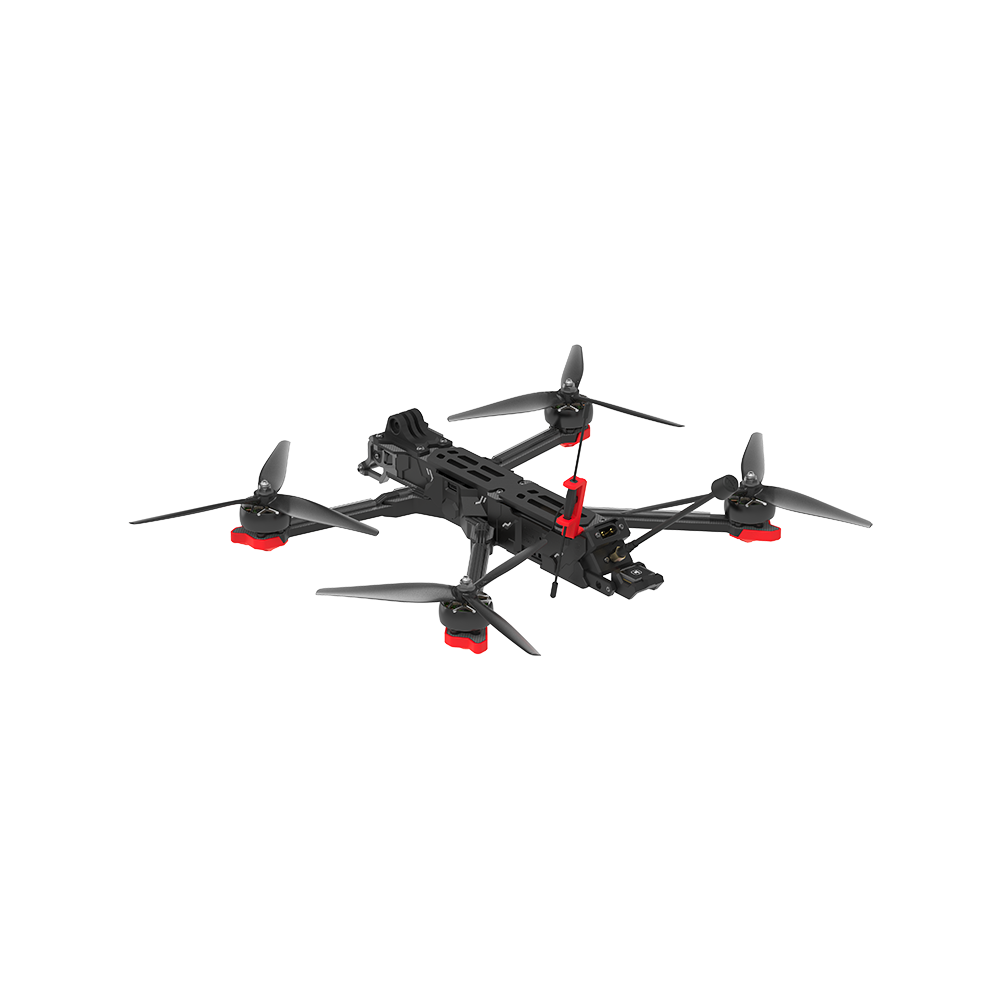

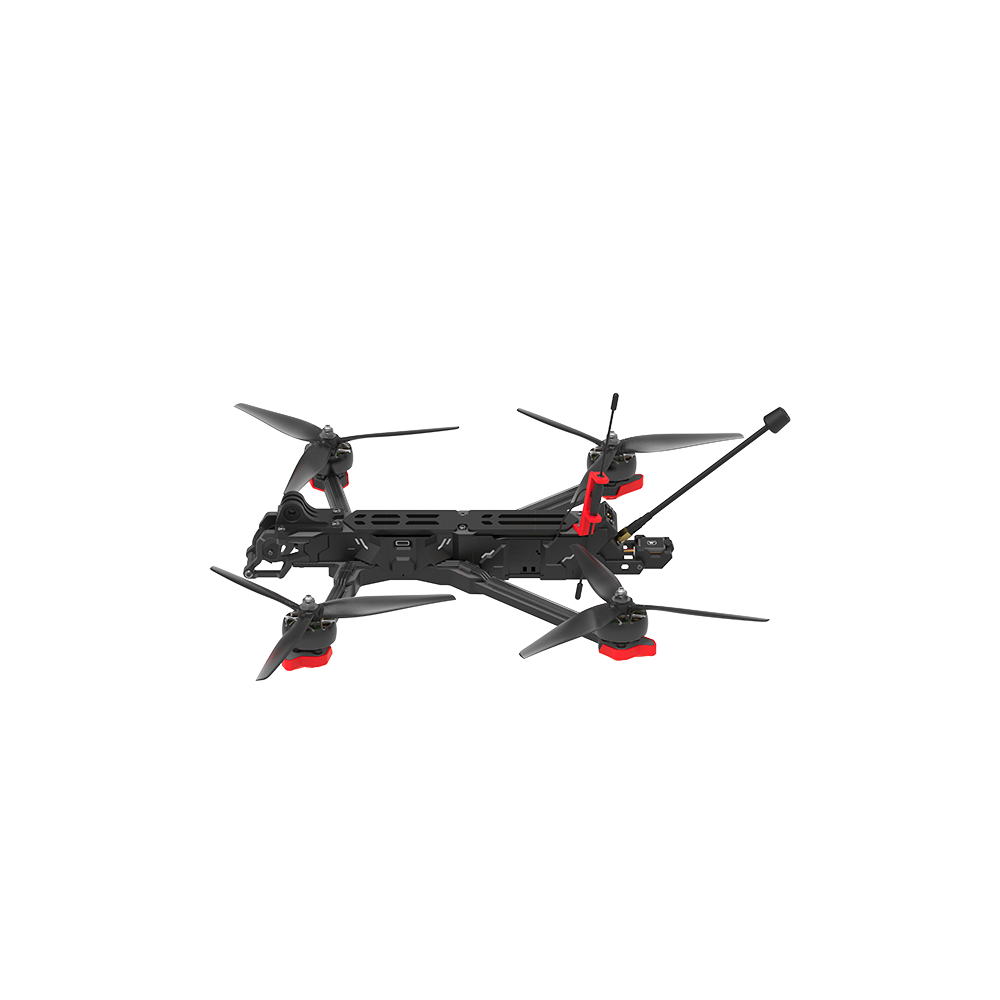

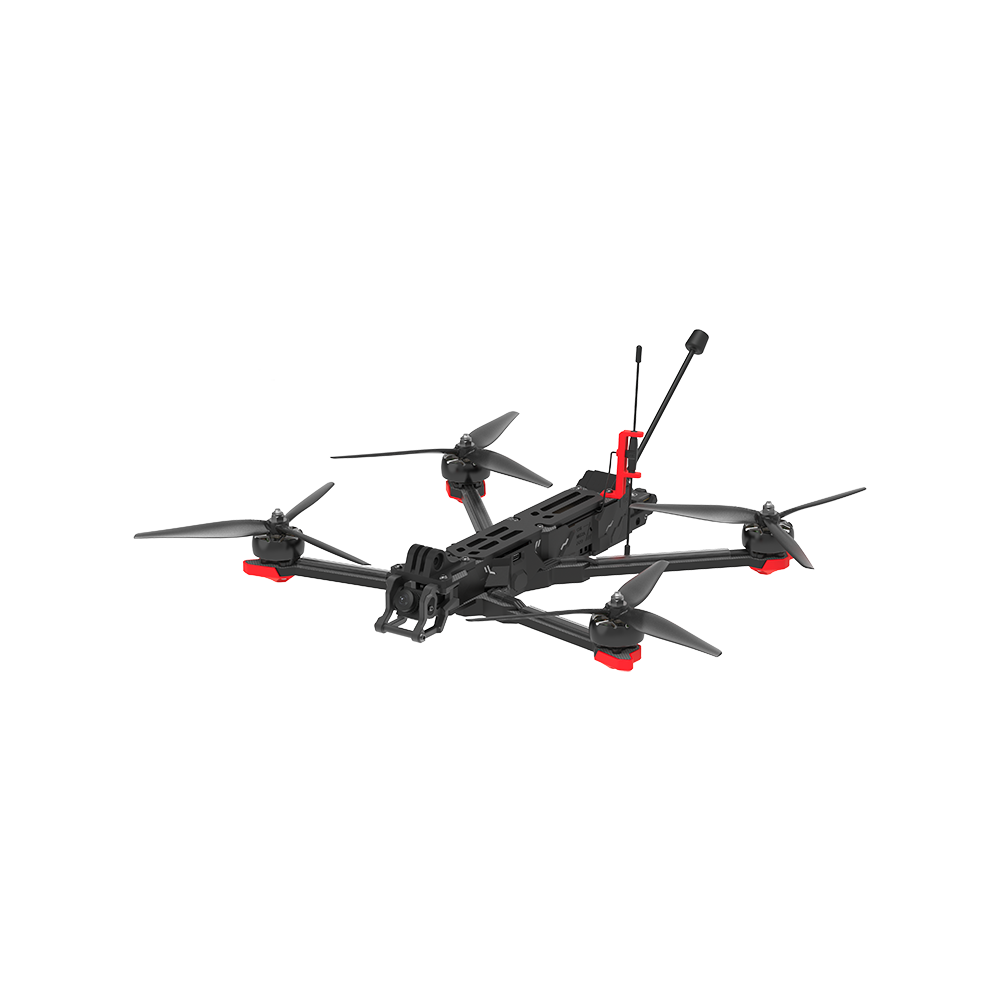

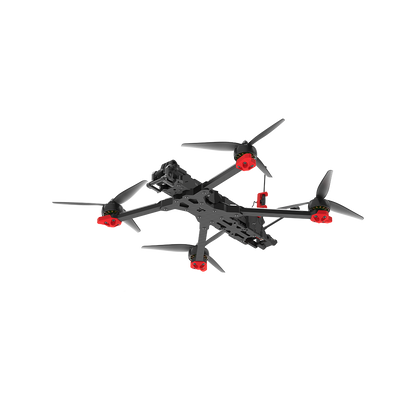

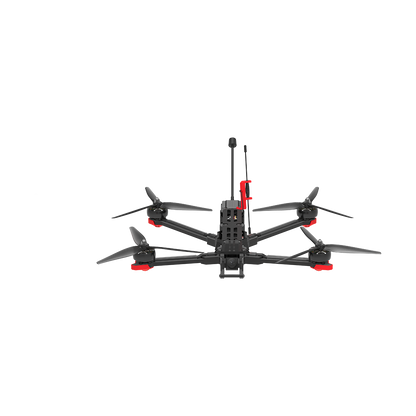

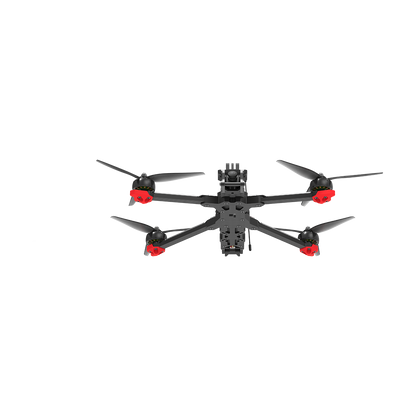

Chimera7 Pro V2 Analog BNF 6S (TBS) 1250KV
The Chimera7 Pro V2 6S (analog version) is a high-performance 7.5-inch long-range drone from iFlight. It has a super stiff frame for minimal resonance and XING2 2809 motors for maximum control of the 7.5 inch propeller. Recommended 5S 3000mAh above (slow driving) or 6S 3300mAh battery.
Function:
- Smooth and powerful XING2 engines
- Latest Chimera7 Pro frame for maximum protection
- Secure battery plug with spark filter
- Pre-installed GPS for greater safety at a distance
Specifications:
Product Name: Chimera7 Pro V2 6S Analog
Receiver option: TBS Crossfire Nano RX
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame: wheelbase 327 mm
Motor: XING2 2809 1250KV motors
Propeller: HQ 7.5X3.7X3 propeller
Weight: 705 g (without battery)
Dimensions (L×W×H): 270x199x34mm
Maximum speed: 140 km/h
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 30 minutes (with 6S 8000mAh battery)
Maximum flight distance: 18 km
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmit Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Camera: RaceCam R1 Mini 1000TVL
Video transfer
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 12V
Operating current: ≤ pit @40 mA, ≤ 25 mw @ 150 mA, ≤ 400 mw @ 330 mA, ≤ 800 mw @ 460 mA, ≤ 1600 mw @ 660 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: IPEX
Mounting hole: 25*25/φ1.6mm
Weight: 16.5g (antenna not included)
Dimensions: 37mm*31.5mm*10mm
The package includes:
1 x Chimera7 Pro V2 6S Analog BNF (TBS)
1 x battery pad
1x Antenna
1 x propellers (pairs)
2x battery strap
