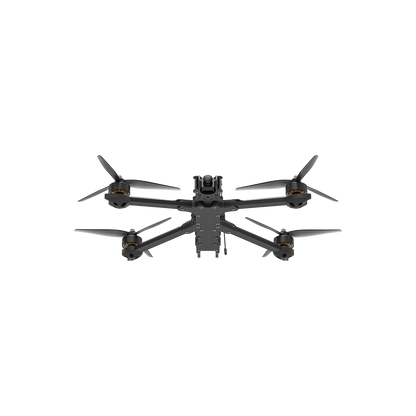

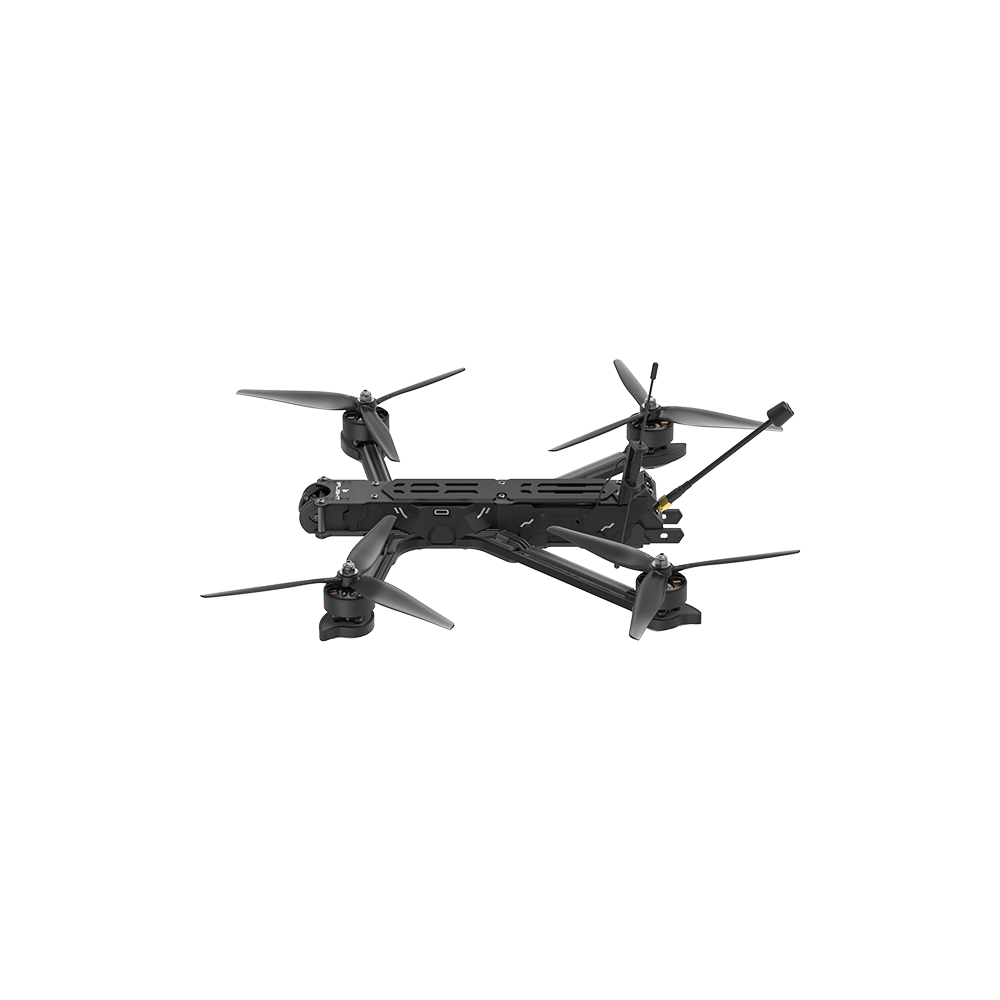

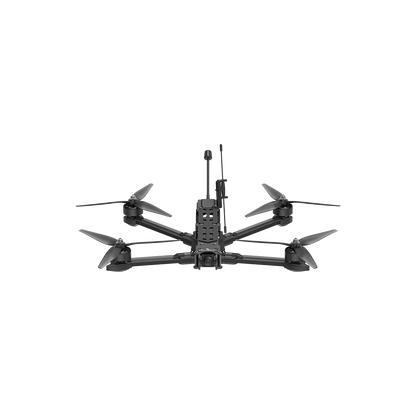

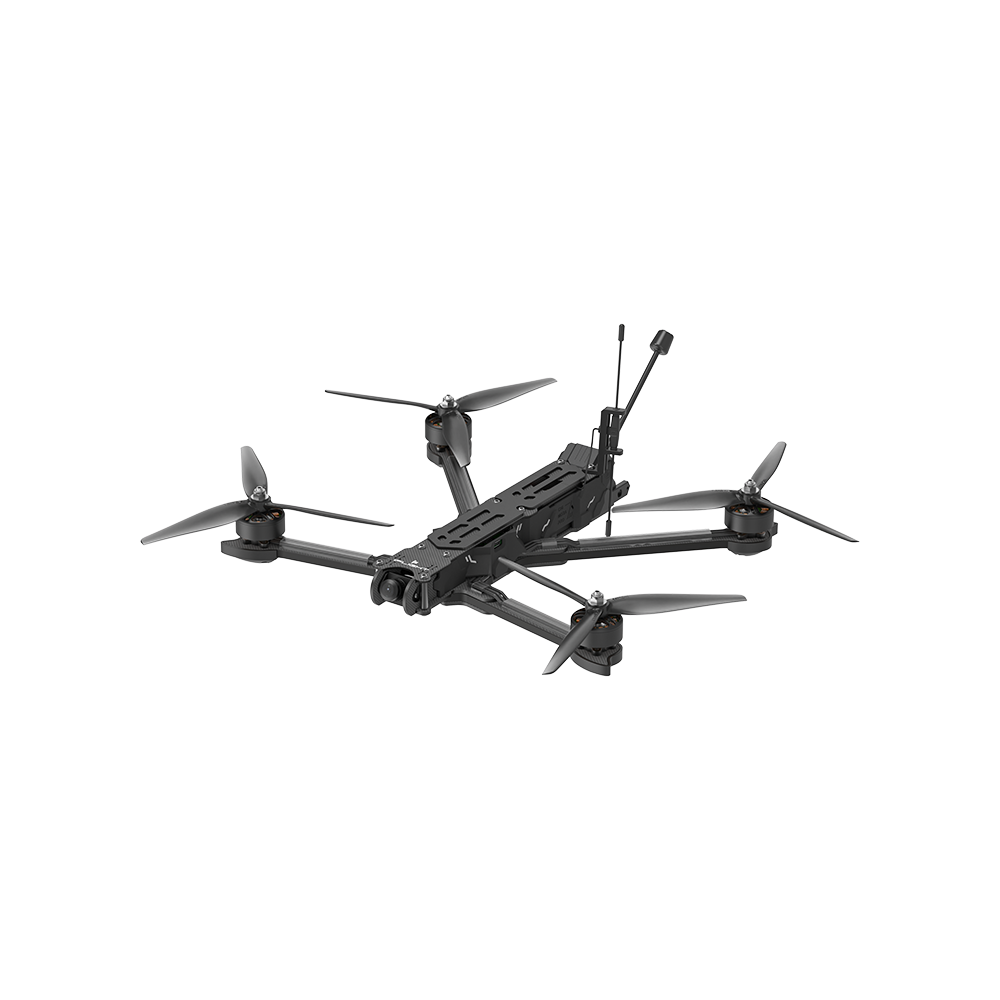

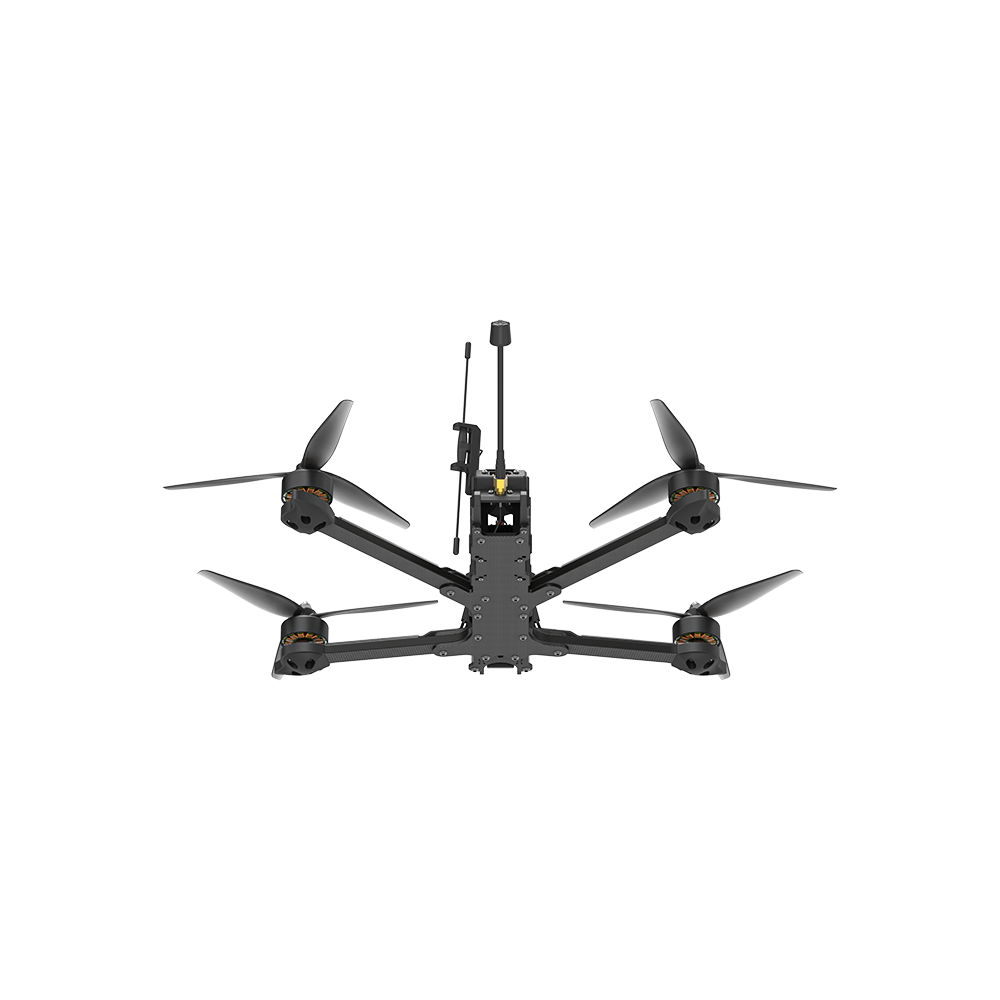

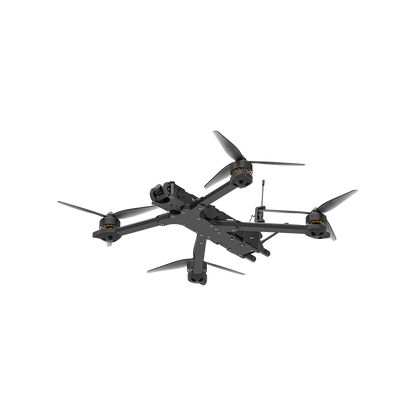

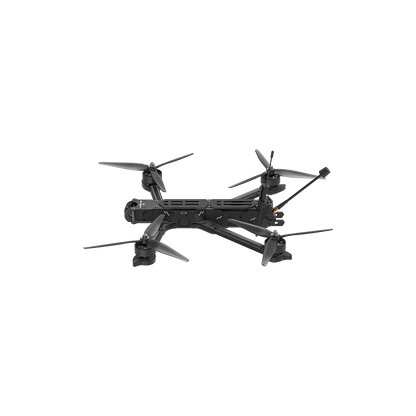

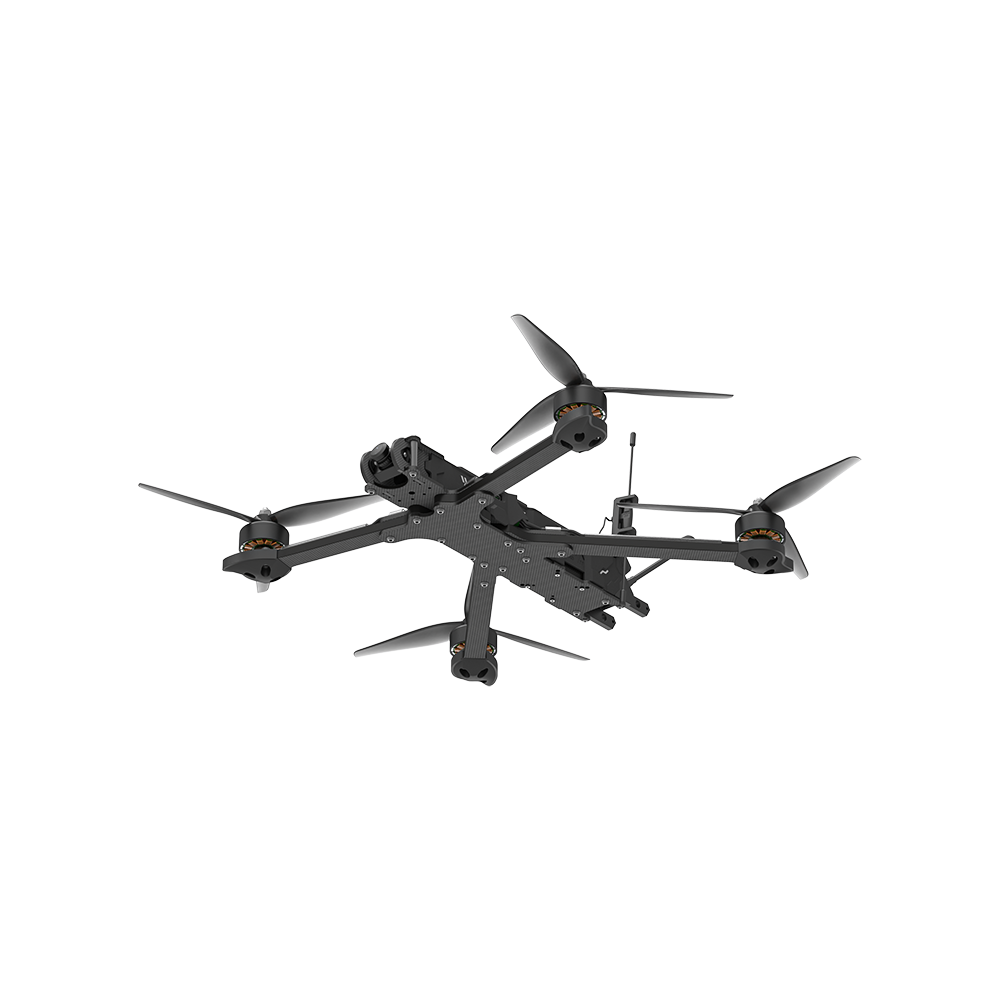

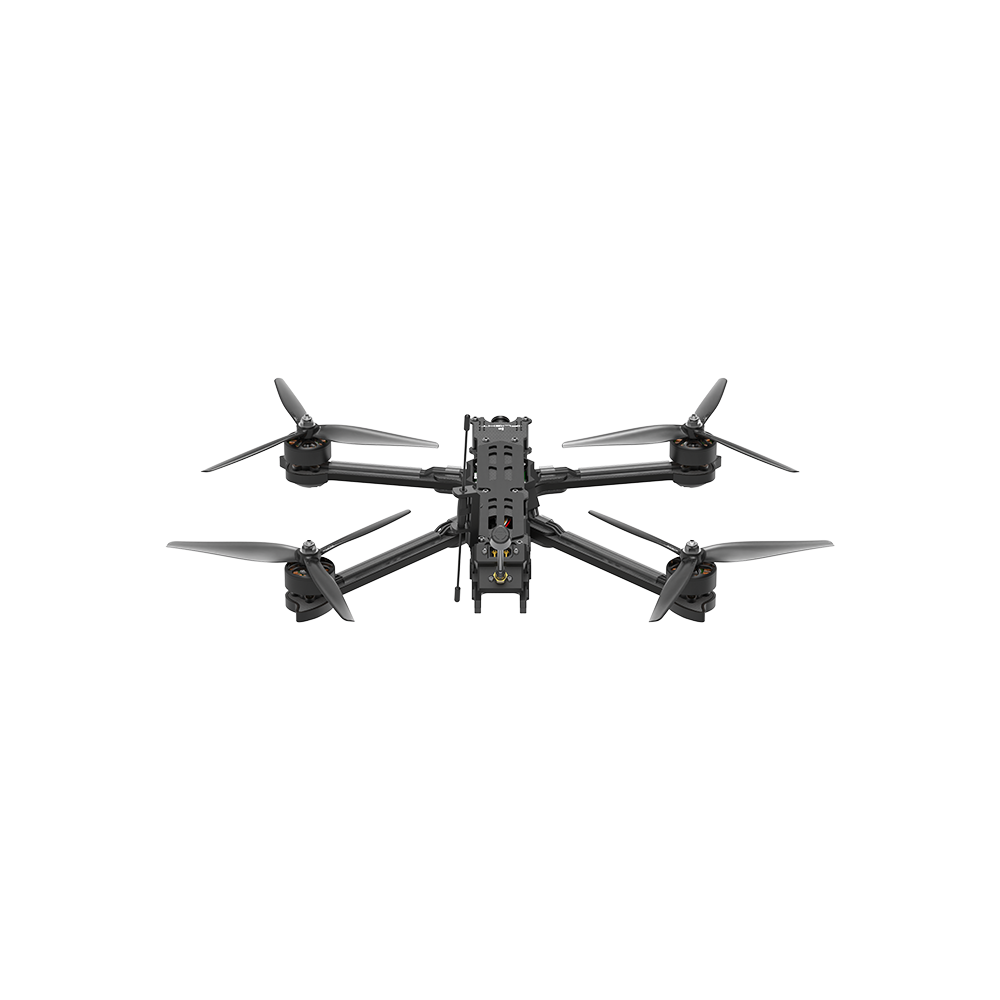

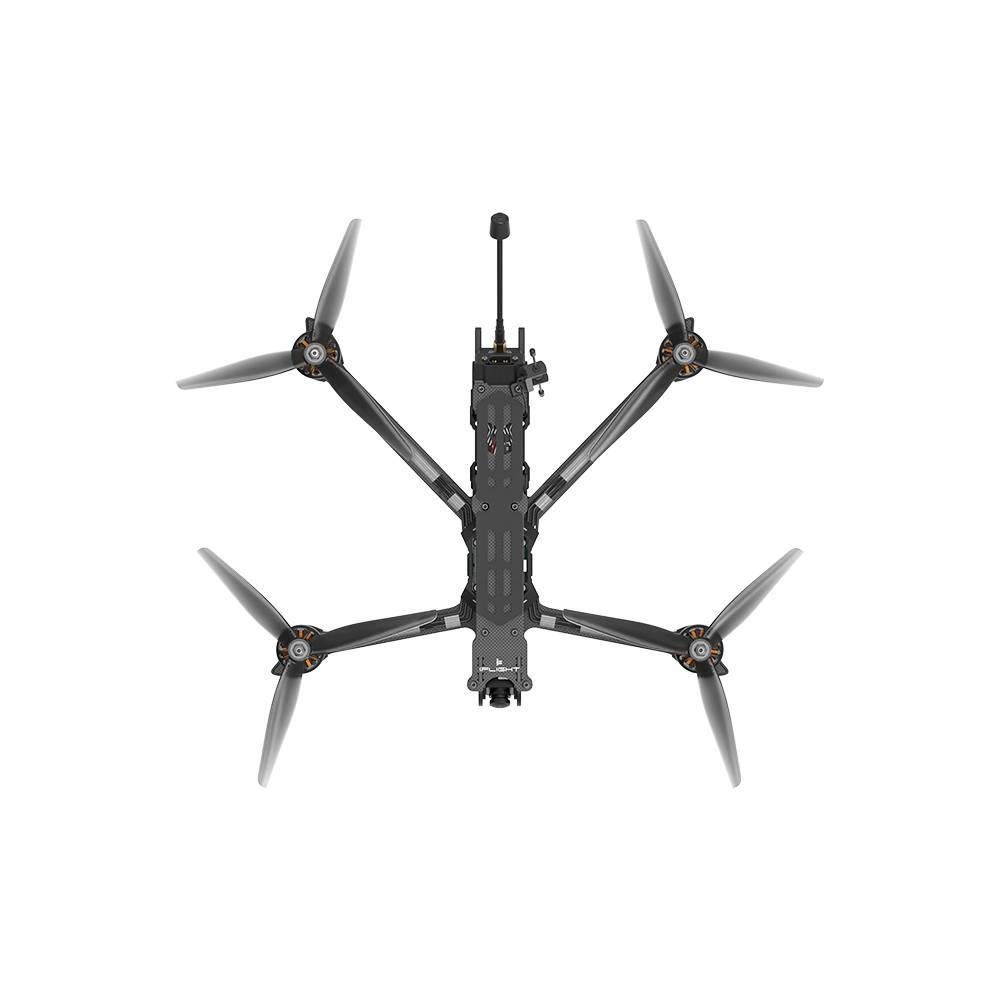

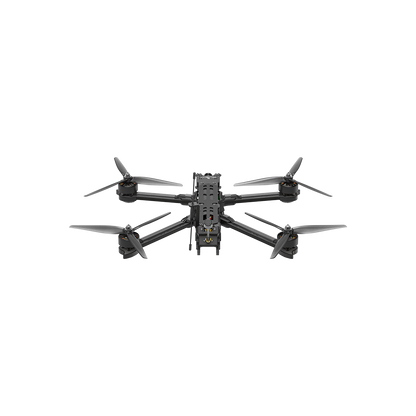

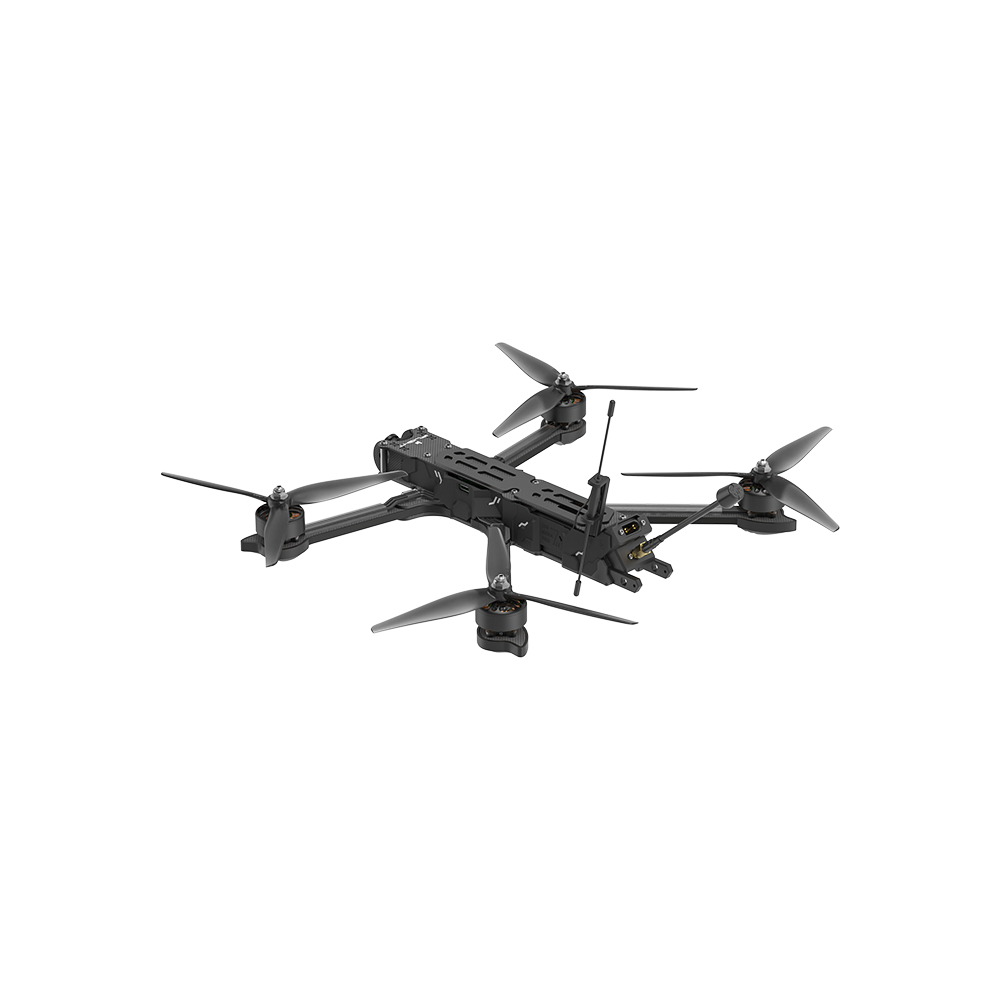

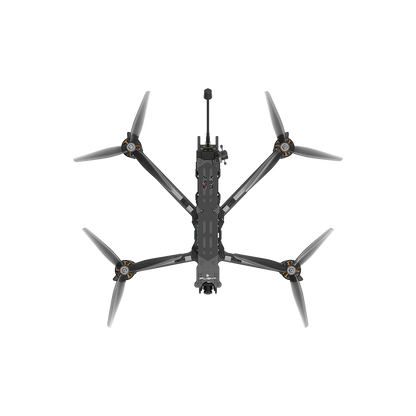

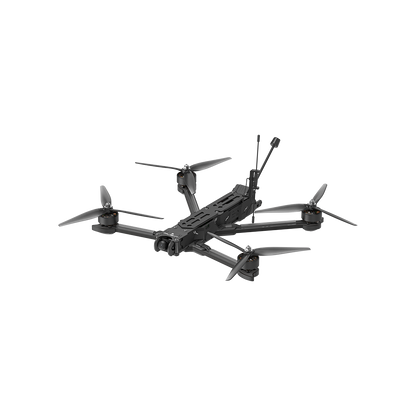

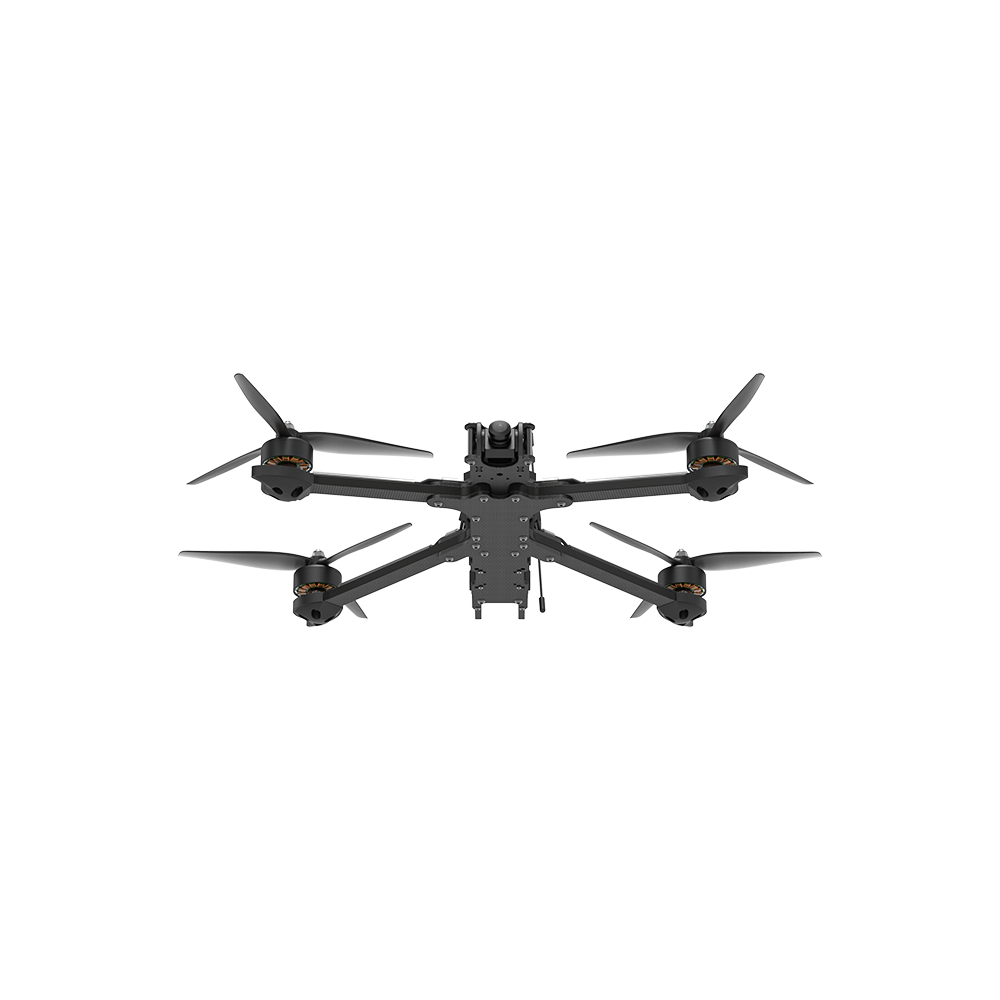

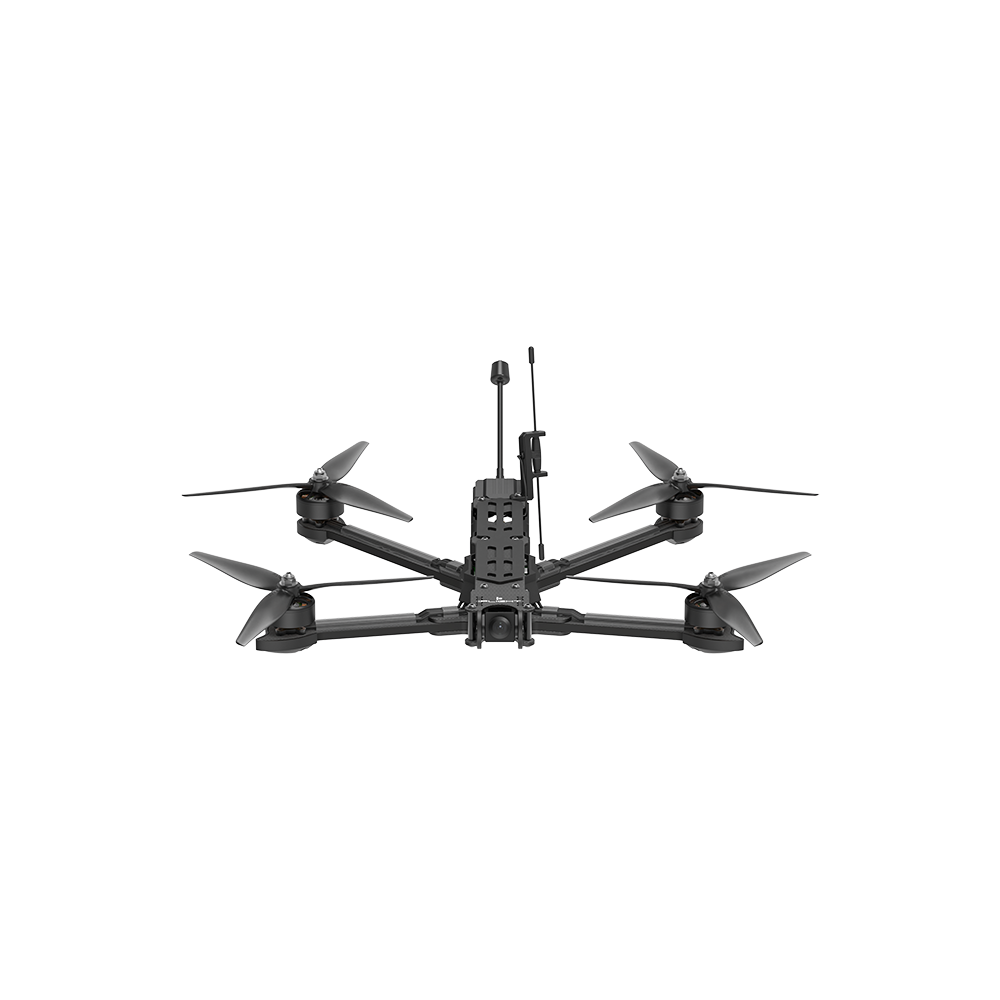

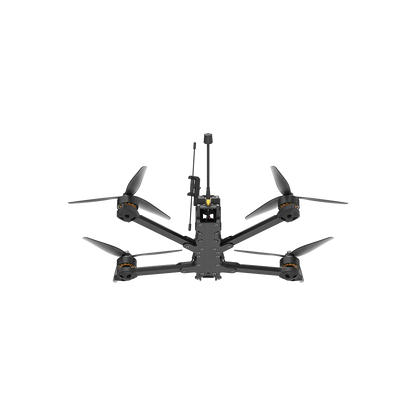

Chimera7 ECO 6S Analog BNF (ELRS 868/915 MHz)
The Chimera7 ECO 6S is a lightweight version of iFlight's highly efficient 7.5-inch long-range drone. It has a super stiff frame for minimal resonance and XING2 2809 motors for maximum control of the 7.5 inch propeller. Recommended 5S 3000mAh above (slow driving) or 6S 3300mAh battery.
Function:
- Latest Chimera7 ECO frame for maximum protection
- Economical and efficient electrical system
Not part of the drone:
- Specially designed cooler for DJI O3 air unit
- Dual 5.8G VTX antenna holder TPU
- Anti-spark filter
- TPU Kit (GPS Mount / Buzzer Mount / GoPro Mount etc.)
- LED board with LED strips
Specifications:
Product name: Chimera7 ECO 6S Analog
Receiver option: iFlight ELRS 868/915 MHz RX
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame: wheelbase 327 mm
Motor: XING-E 2809 1250KV motors
Propeller: 7.5X3.7X3 propeller
Weight: 660 g (without battery)
Dimensions (L×W×H): 270x199x34mm
Maximum speed: 140 km/h
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 30 minutes (with 6S2P 8000mAh battery)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmit Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas: Individual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video transfer
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 12V
Operating current: ≤ pit @40 mA, ≤ 25 mw @ 150 mA, ≤ 400 mw @ 330 mA, ≤ 800 mw @ 460 mA, ≤ 1600 mw @ 660 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: IPEX
Mounting hole: 25*25/φ1.6mm
Weight: 16.5g (antenna not included)
Dimensions: 37*31.5*10mm
The package includes:
1 x Chimera7 ECO 6S analog (ELRS 868/915 MHz)
1 x battery pad
1x Antenna
2 x propellers (pairs)
2x battery strap
