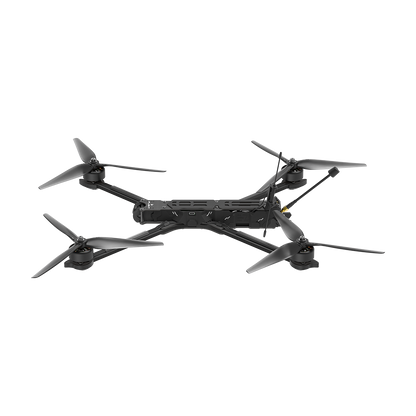

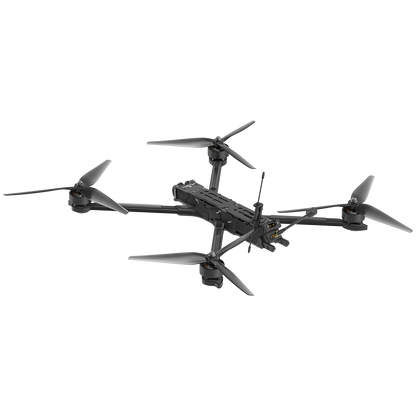

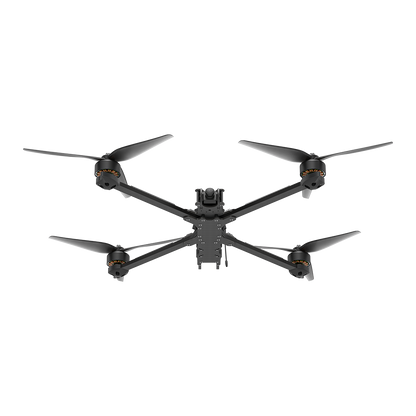

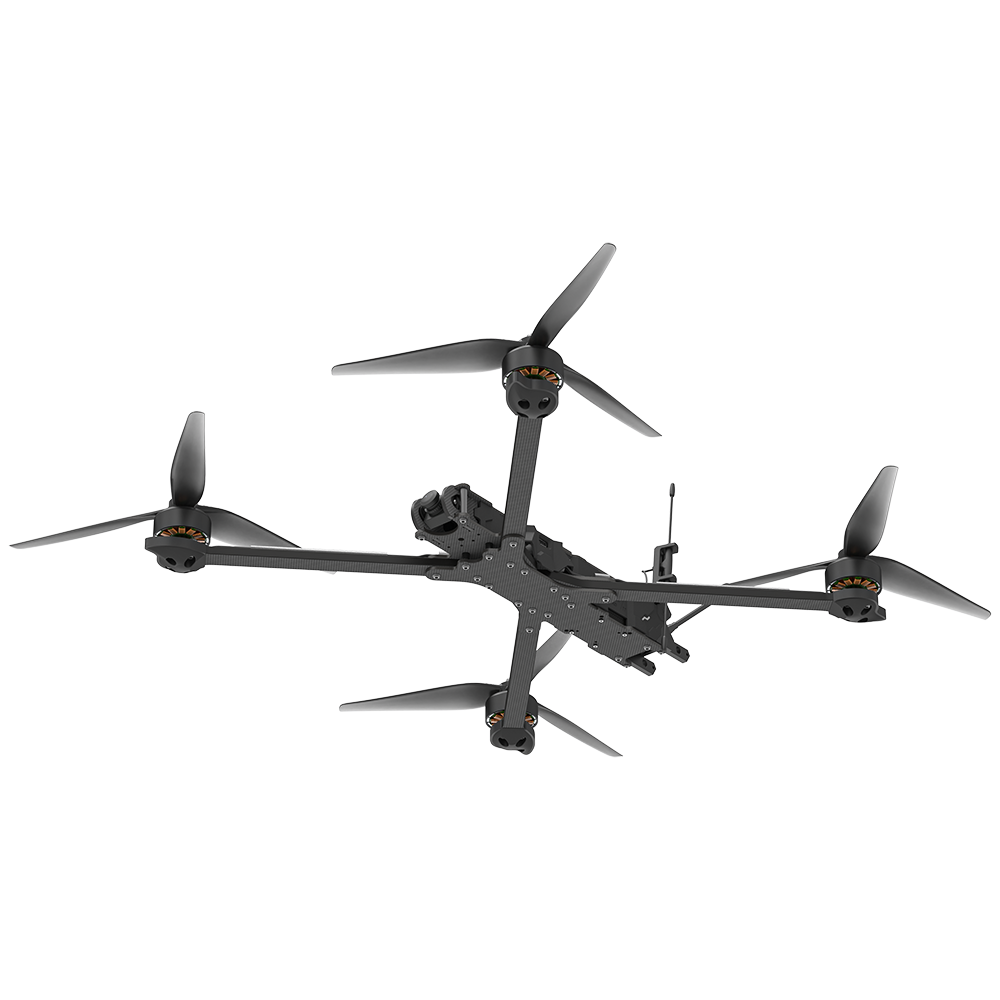

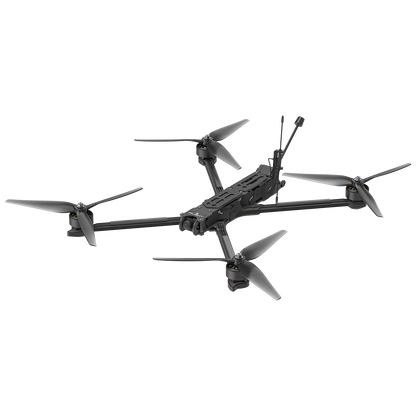

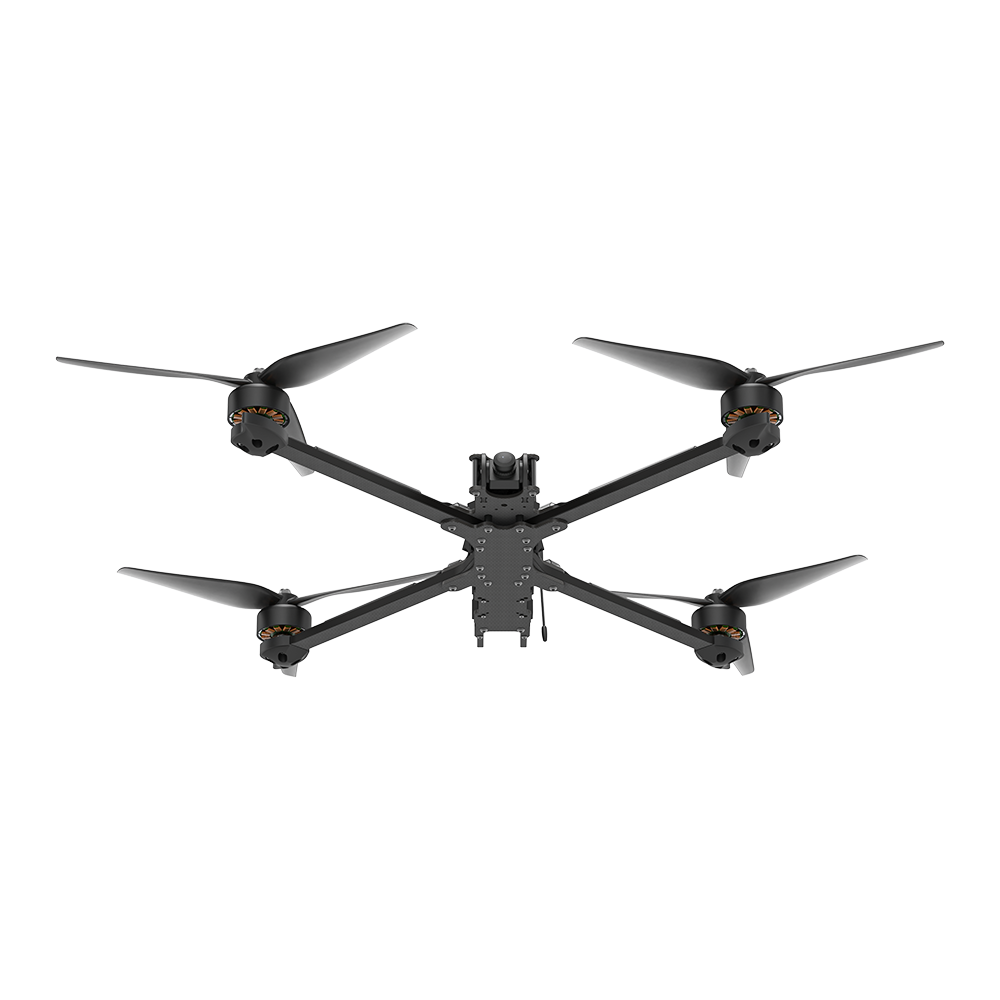

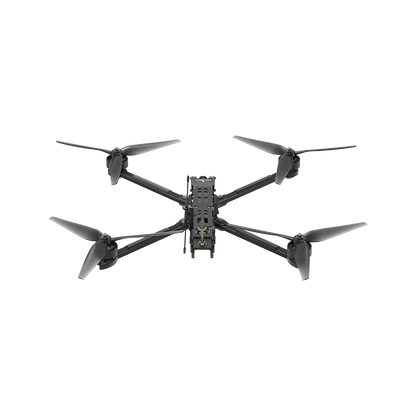

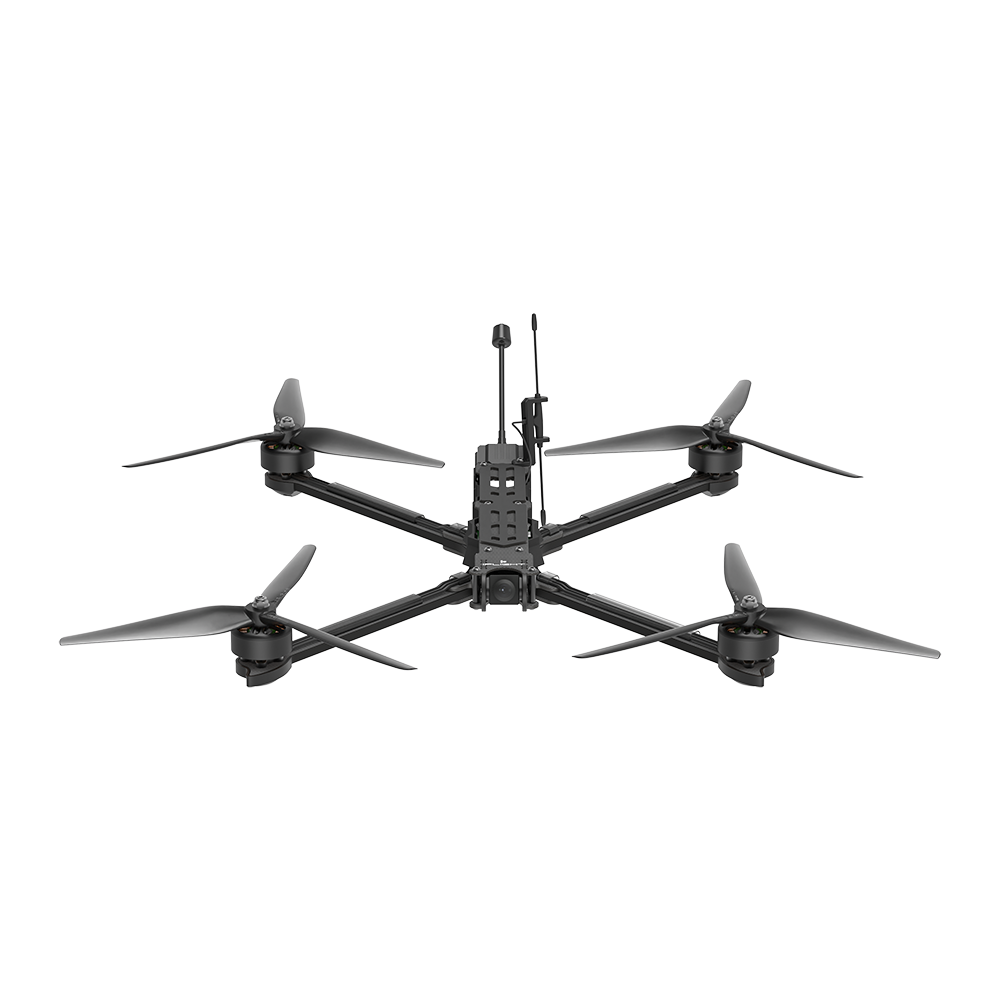

Chimera CX10 ECO Analog 6S BNF (TBS)

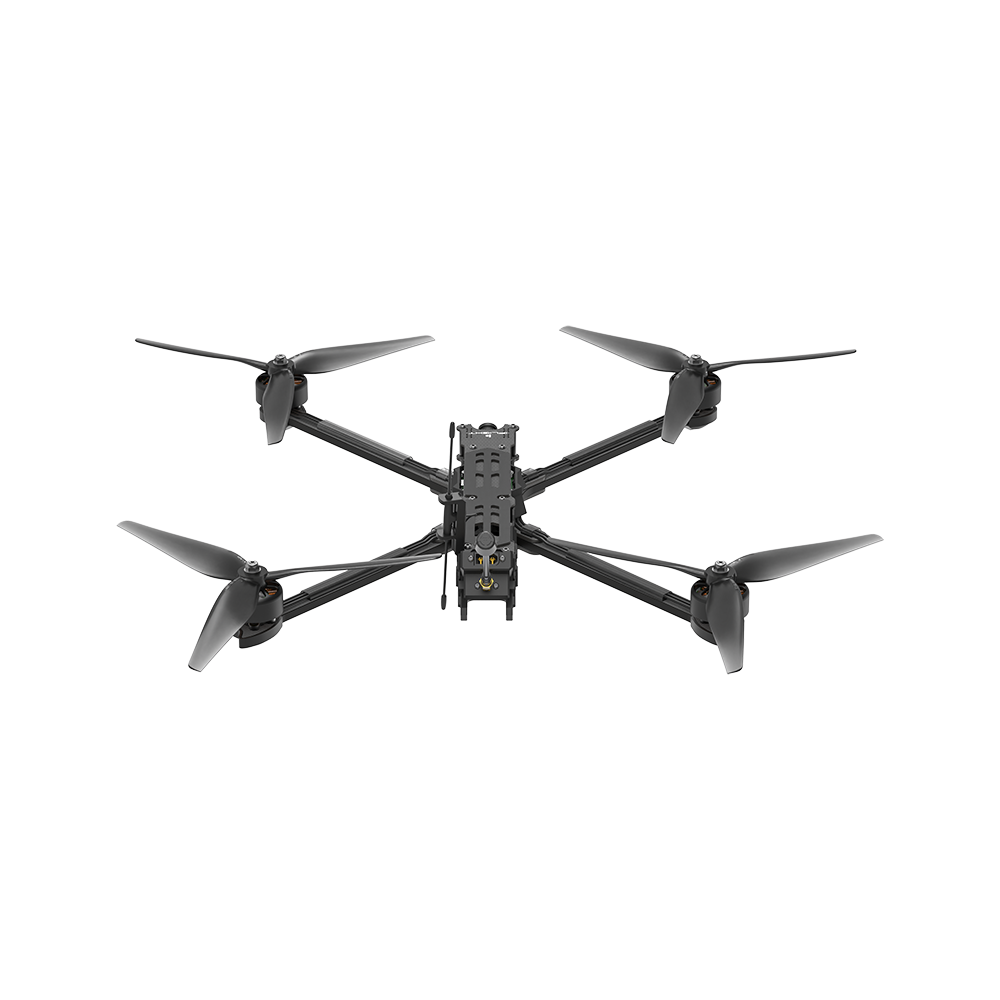

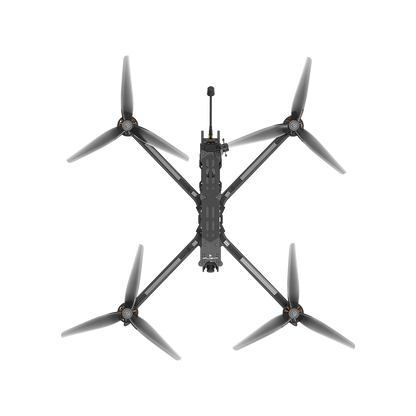

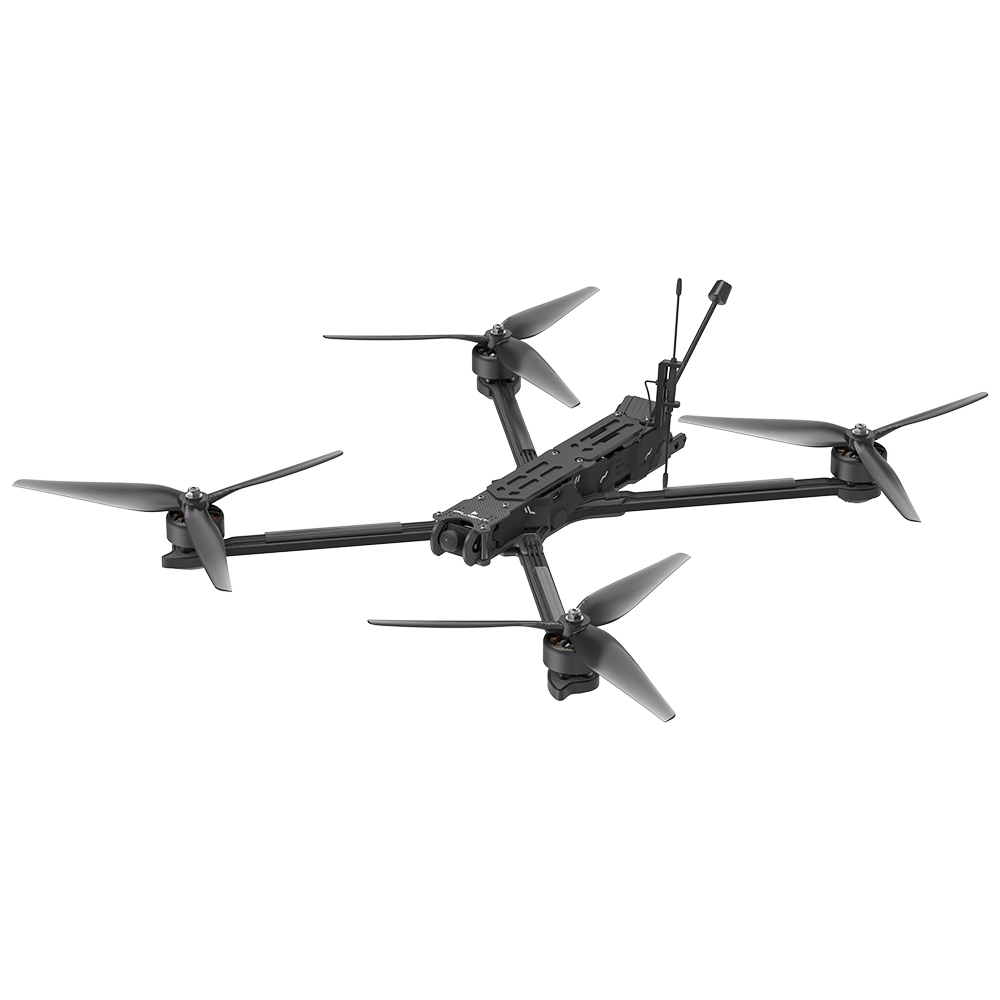

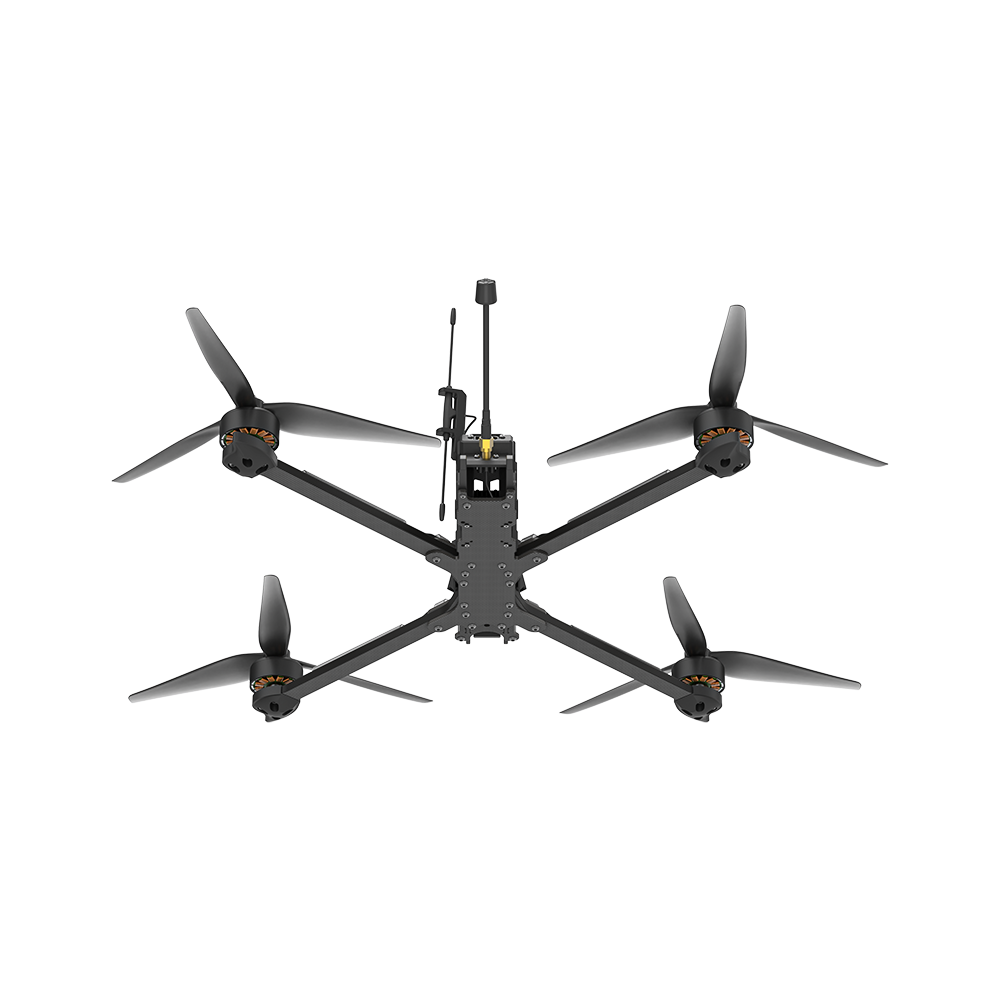

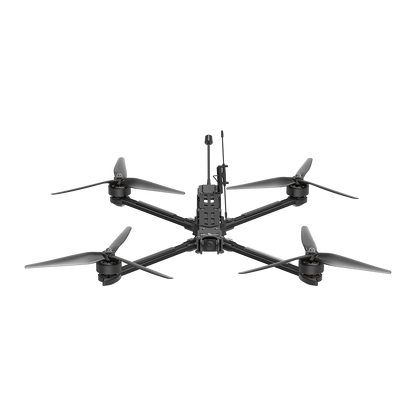

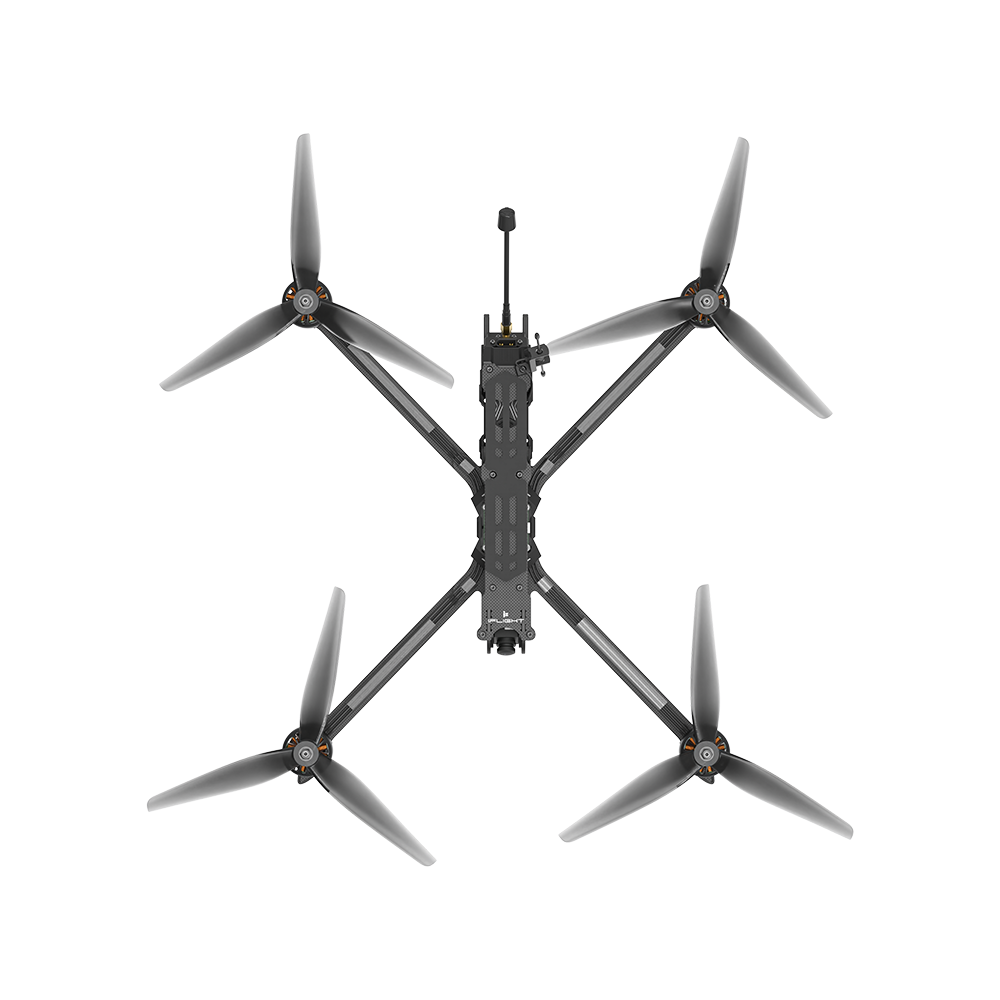

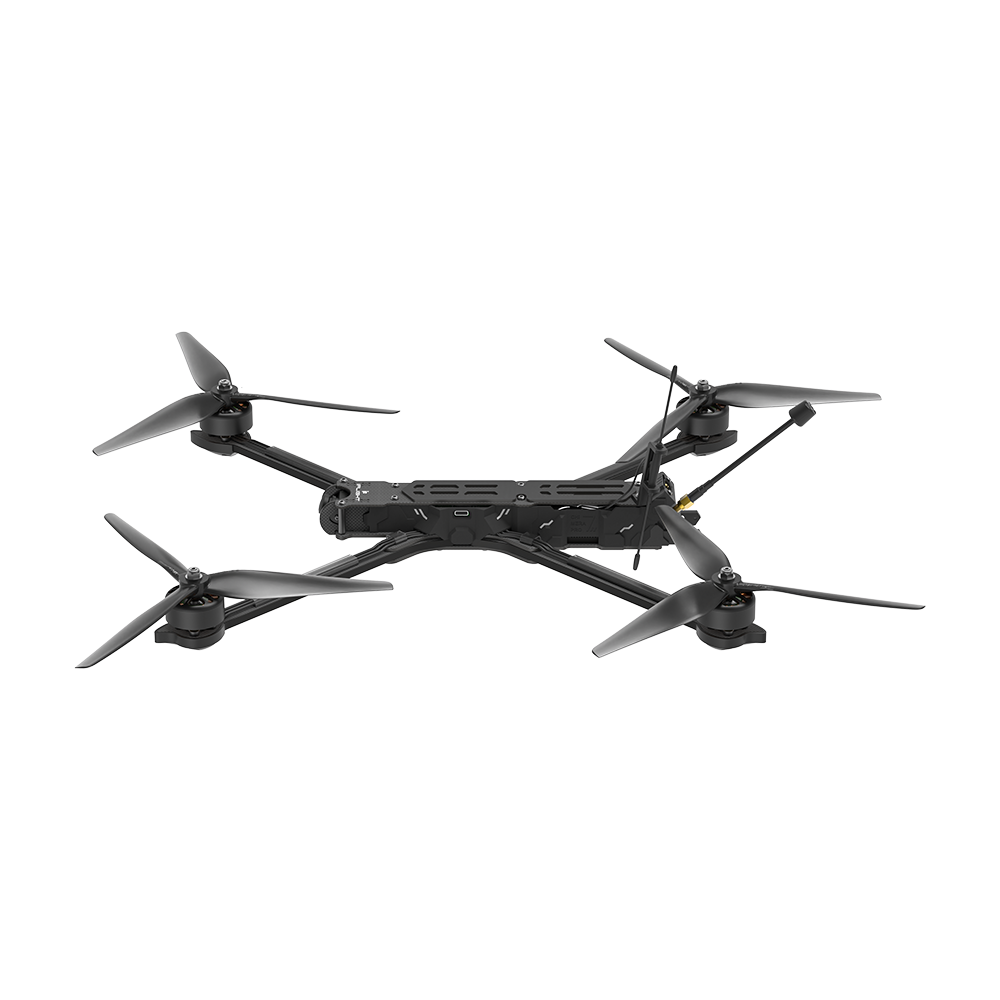

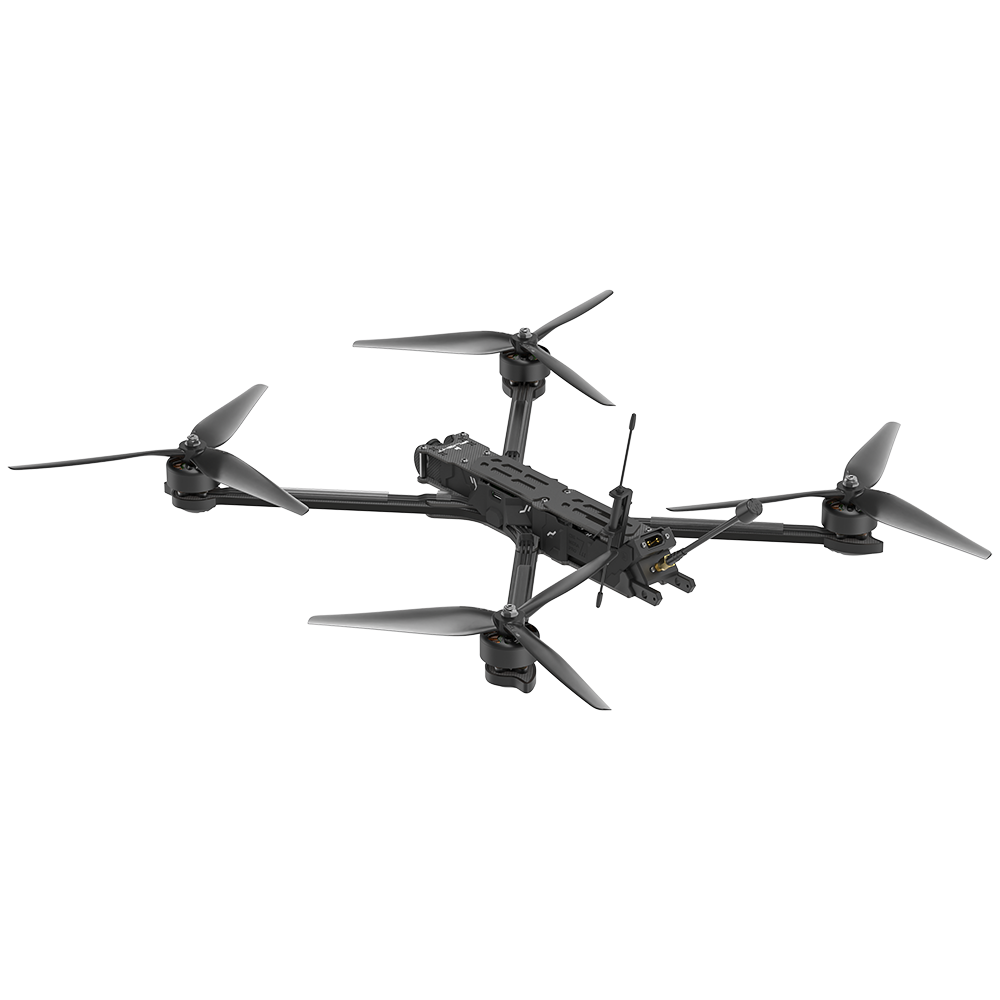

The Chimera CX10 ECO analog BNF is a 10" quadcopter that comes with a BLITZ Whoop 1.6W VTX video transmission system and HQ 10" 3-blade propellers. The CX10 has been pre-tuned and set up with everything you need, just strap and fly! Packed with plenty of power, it comes with XING-E 3110 motors, BLITZ ATF435 Flight Controller and BLITZ E55S 4-IN-1 ESC.
Function:
- Full 3K carbon airframe
- Large size XING-E 3110 with extreme lift and flight performance
- Latest lightweight side panels for maximum protection
Not included in the BNF Lite version:
- Cooler for DJI O3 air unit
- Dual 5.8G VTX antenna holder TPU
- Anti-spark filter
- TPU Kit (GPS Mount / Buzzer Mount / GoPro Mount etc.)
- LED board with LED strips
Specifications:
Product name: Chimera CX10 ECO Analog
Camera: RaceCam R1 Mini 1200TVL 2.5mm
Receiver option: TBS Crossfire Nano RX
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame: wheelbase 452 mm
Motor: XING-E 3314 900KV motors
Propeller: 10X4.5X3 propeller
Weight: 826 g (without battery)
Dimensions (LxWxH): 338 x 299 x 34 mm
Maximum speed: 140 km/h
Maximum take-off height: 6000 m
Maximum Hover Time: Approx. 40 minutes (with 6S2P 8000mAh without load)
Payload: 1.5-2.5 kg
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video transfer
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 12V
Operating current: ≤ pit @40 mA, ≤ 25 mw @ 150 mA, ≤ 400 mw @ 330 mA, ≤ 800 mw @ 460 mA, ≤ 1600 mw @ 660 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: IPEX
Mounting hole: 25*25/φ1.6mm
Weight: 16.5g (antenna not included)
Dimensions: 37*31.5*10mm
The package includes:
1 x Chimera CX10 ECO 6S Analog BNF (TBS)
1 x battery pad
1x Antenna
2 x propellers (pair)
2x battery strap
