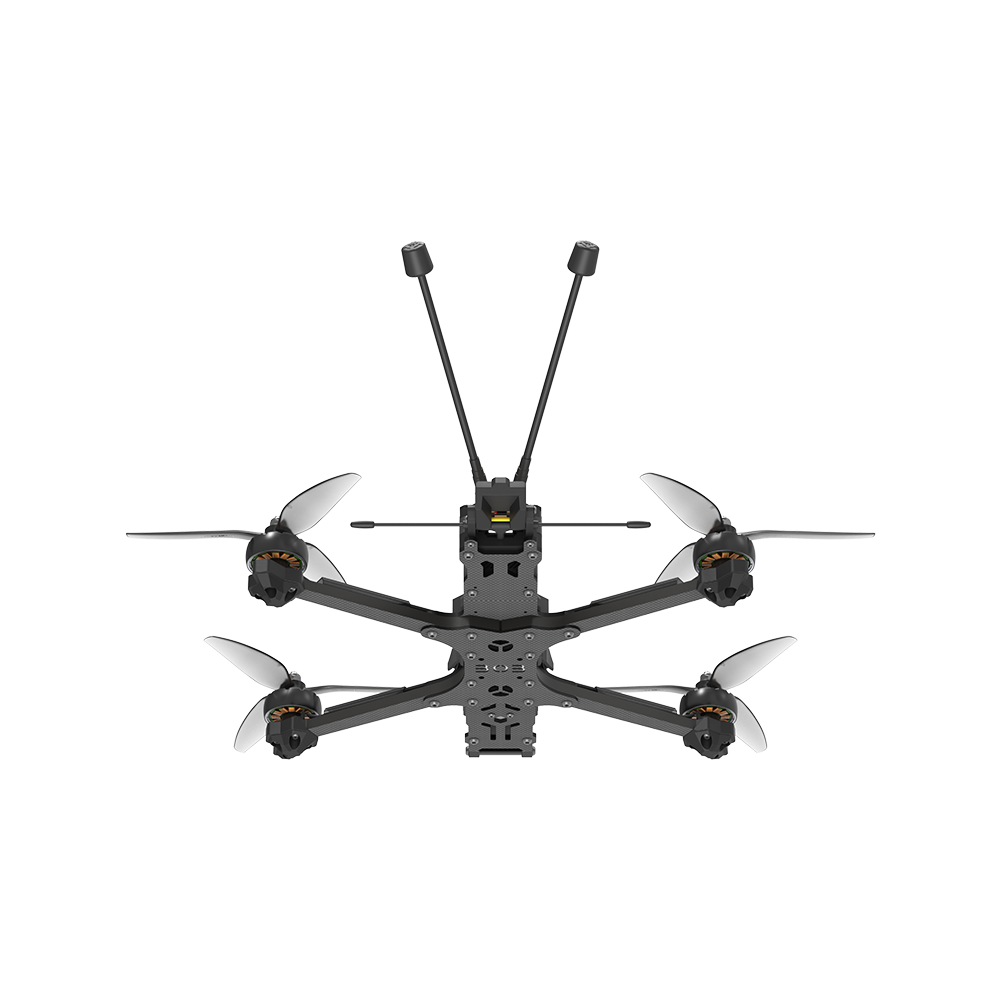

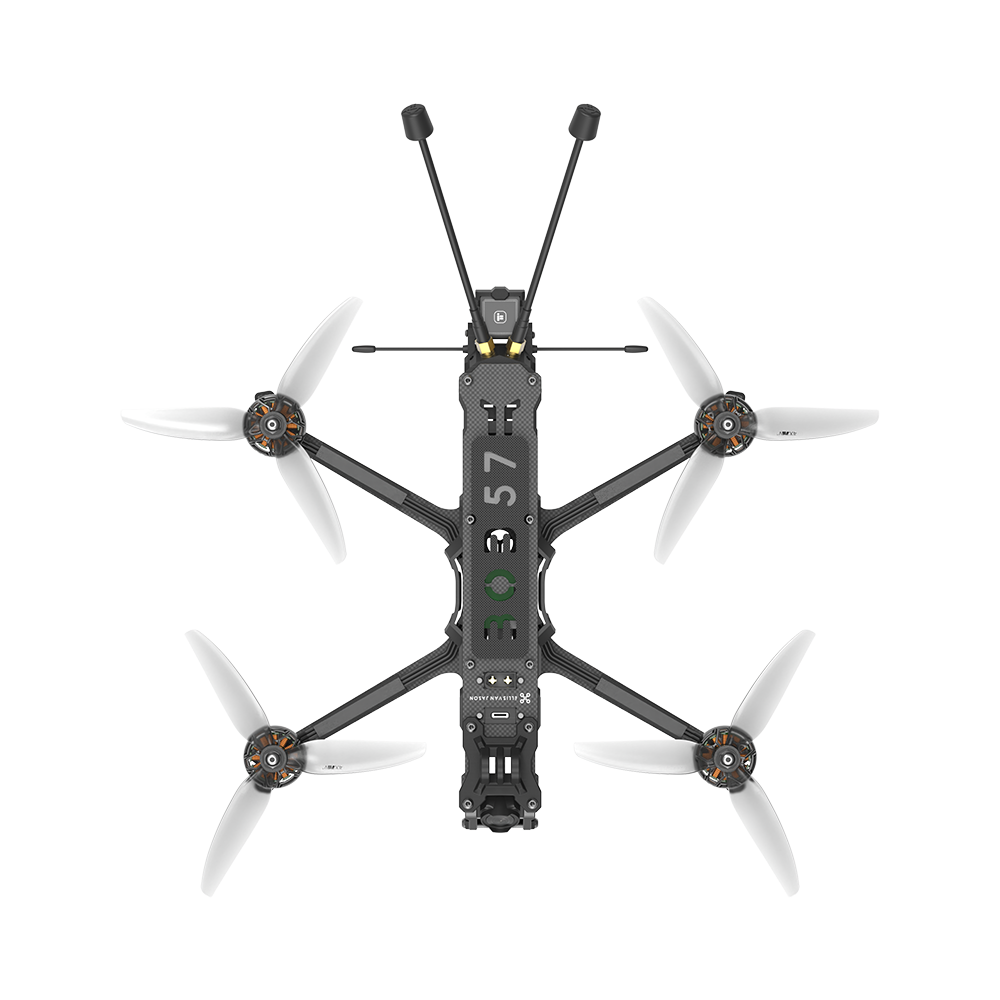

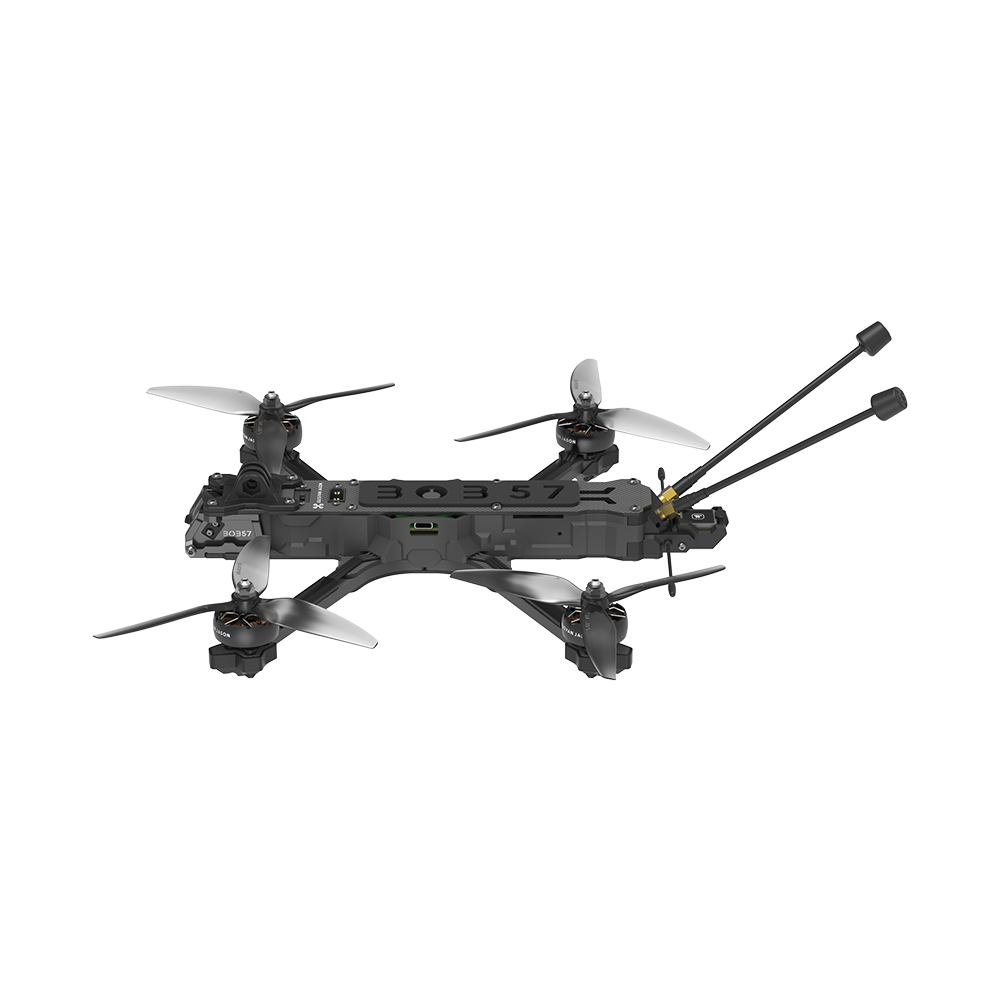

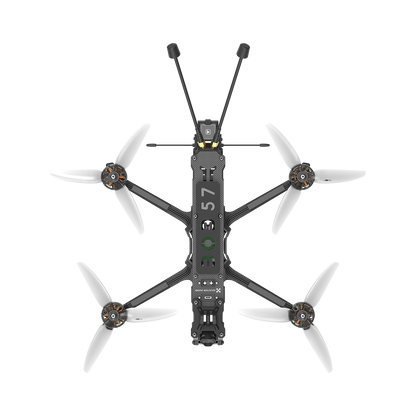

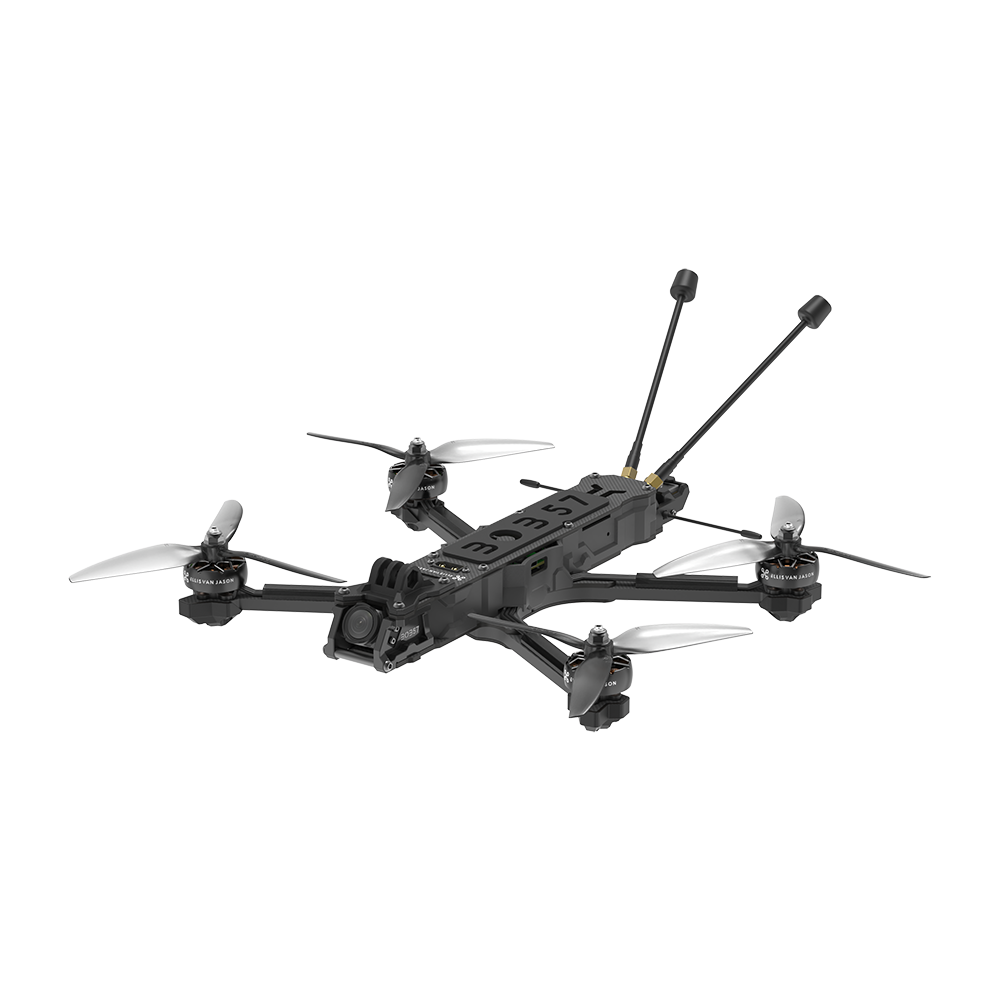

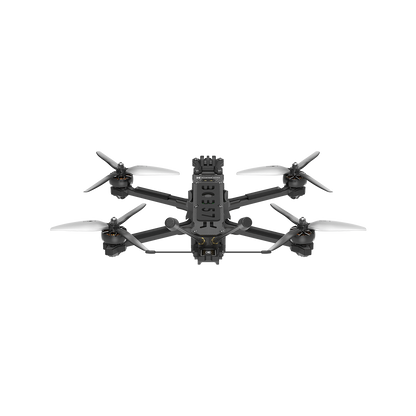

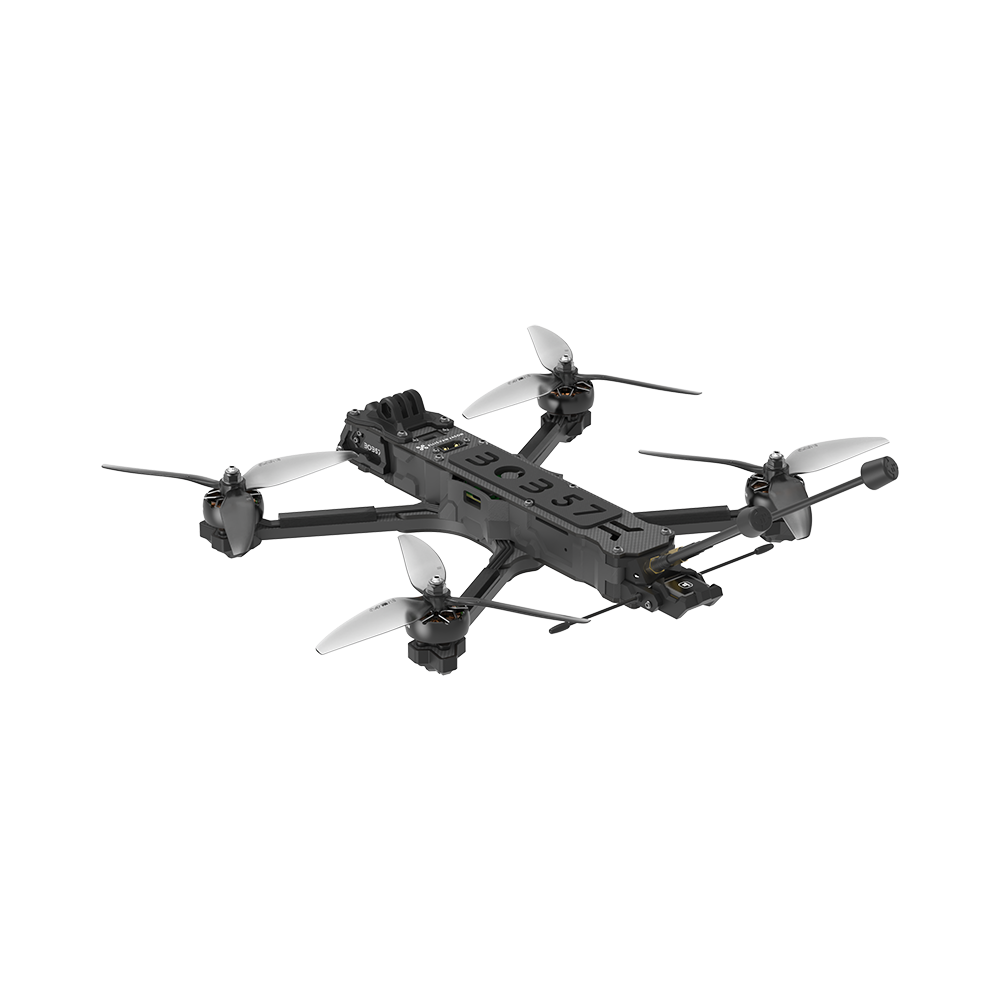

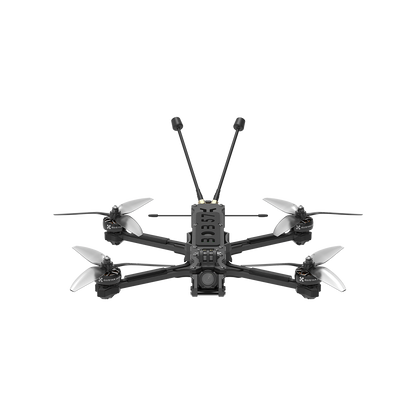

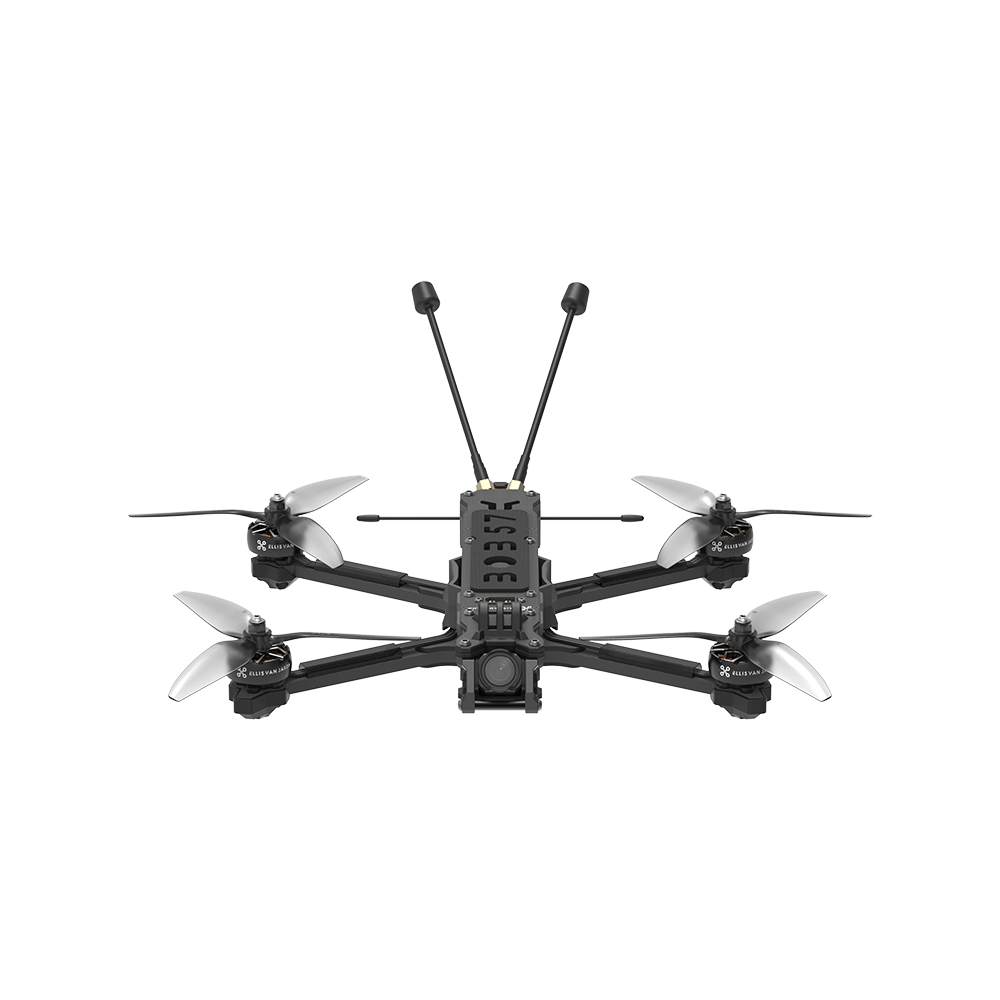

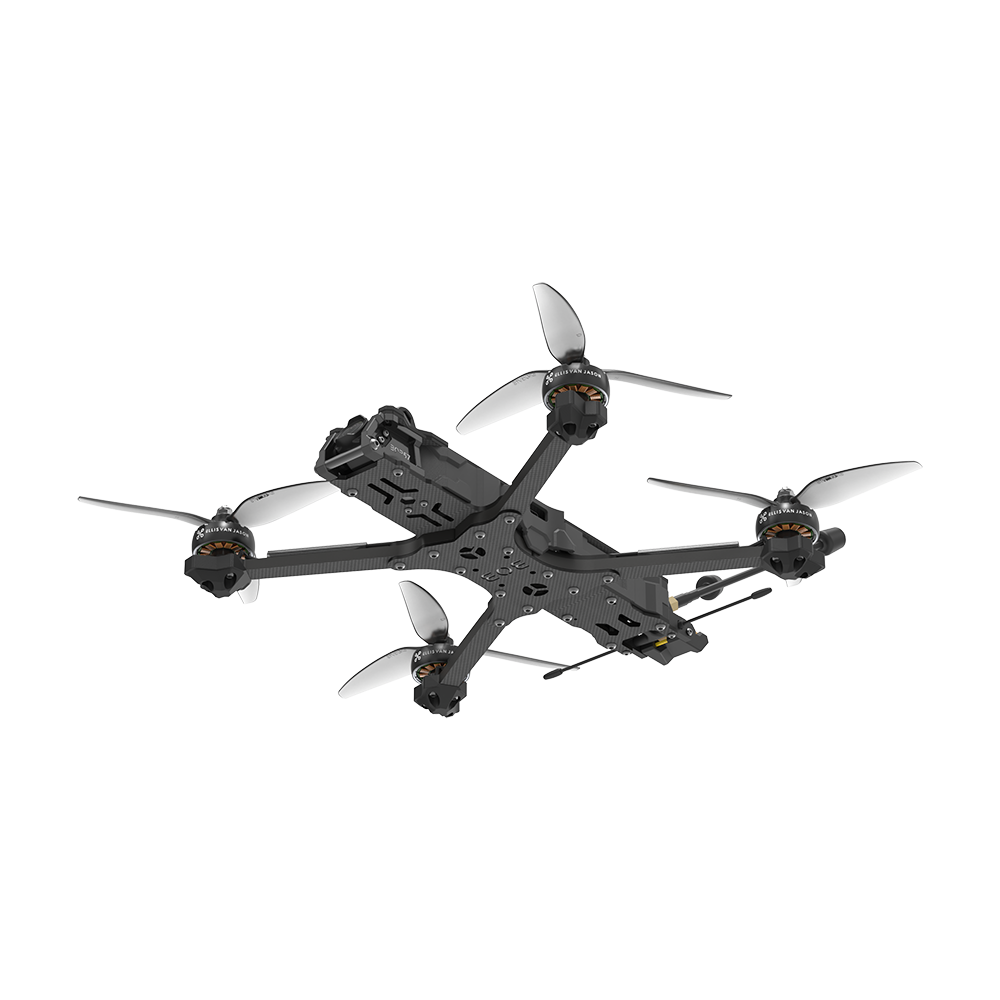

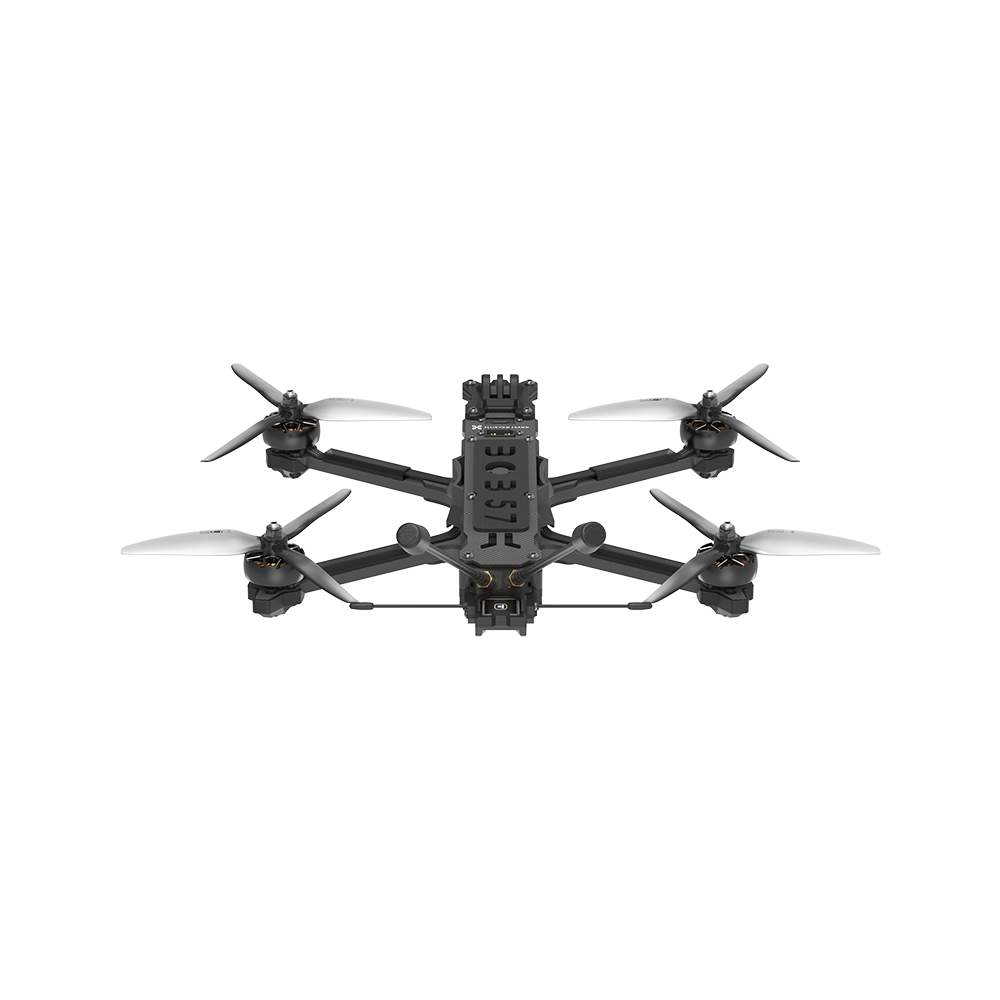

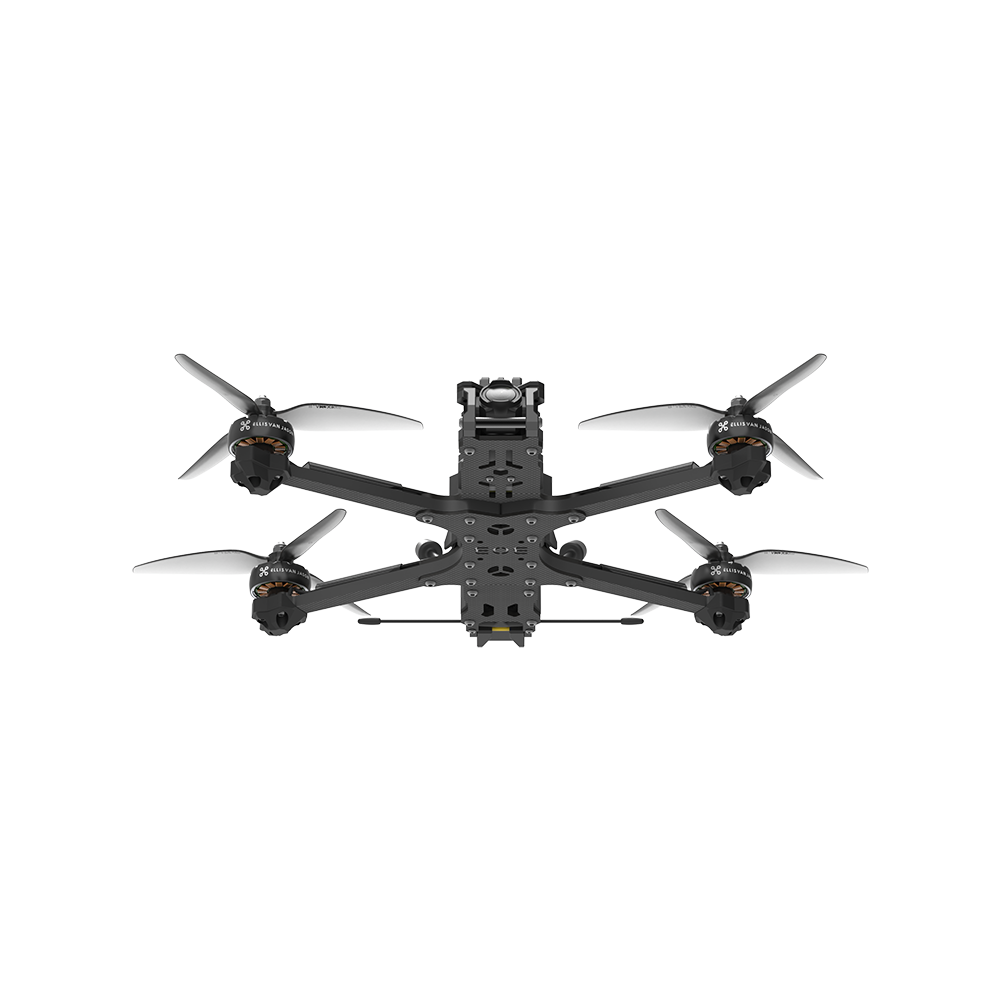

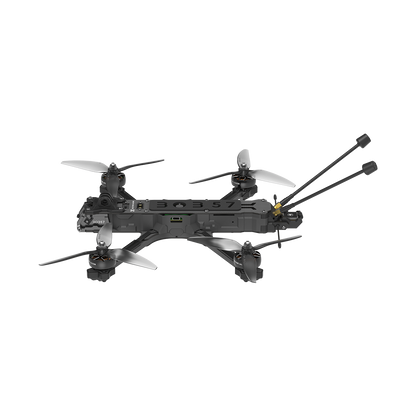

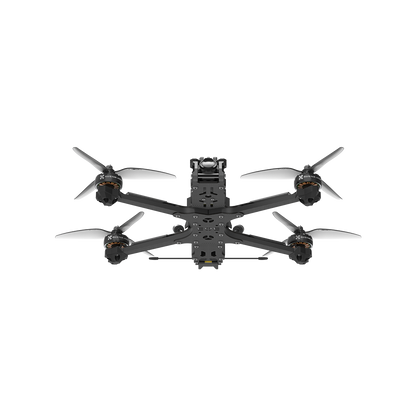

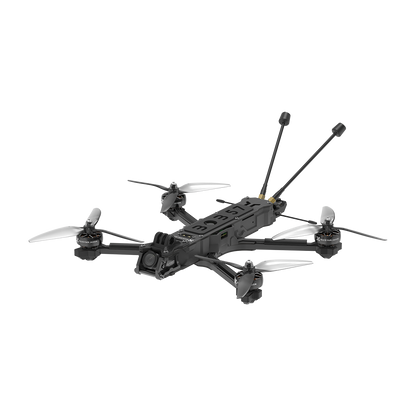

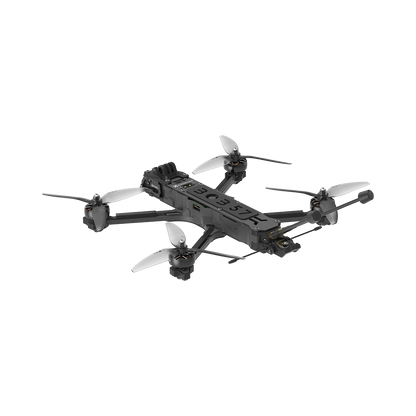

BOB57 HD 6S BNF (TBS)
The iFlight BOB57 is a long-range HD drone designed in collaboration with pilot and cameraman Ellis van Jason. The team created this 6-inch cinematic drone that delivers agility and flight time while combining the benefits of 5-inch and 7-inch drones for both cinematic and free-flight.
Function:
- Hybrid engine design optimized for use with both two-blade and three-blade 6" propellers
- Long spine with enough space to store 3000mAh 6S batteries
- Fixed antenna holder for less vibration when using long antennas
- Shell Gladiator protects against dust and water drops
- ESC with built-in spike damper for greater reliability
- Built-in BEC for direct GoPro camera power
- 9 minutes flight time with 3000mAh 6S Lipo
- XT-60 front mount
- DJI O3 air unit
- Pre-installation of the GPS module
Specifications:
Product name: BOB57 O3 6S HD BNF
FC: BLITZ F722
ESC: BLITZ E55 55A 4-IN-1 ESC
Video transmission: DJI O3 Air Unit
Frame: wheelbase 280 mm
Engine: XING2 2506 engines
Propeller: GEMFAN 6032-3 propeller
Takeoff Weight: Approx. 580 g
Dimensions (L×W×H): 226×166×34 mm
Maximum speed: 180 km/h (manual mode)
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 8 minutes (with 6S 1400 without load.)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 2 antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: TBS Crossfire NANO RX
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x BOB57 6S HD BNF
2x antenna
2x battery pads
2 x Prop (pairs)
