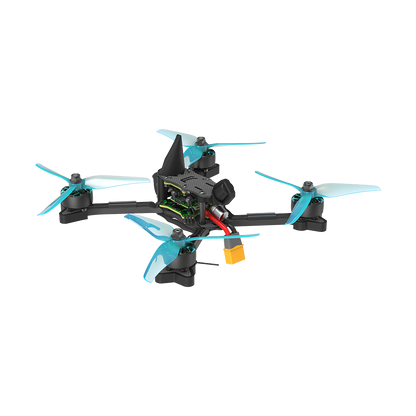

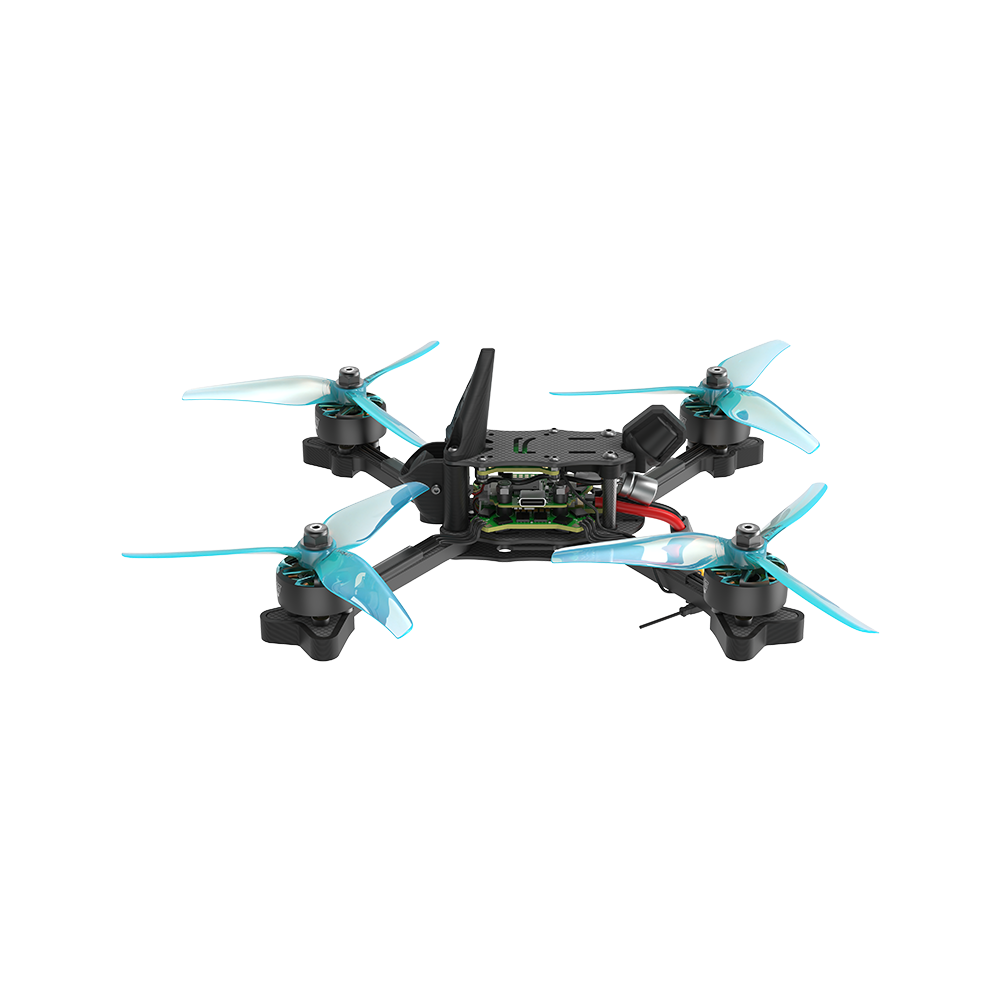

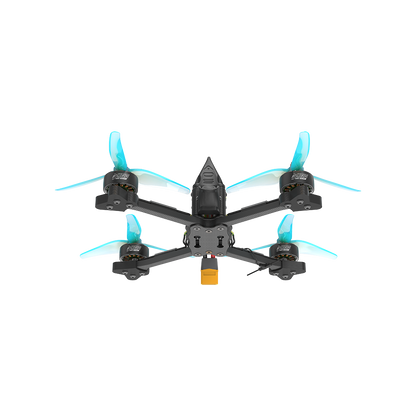

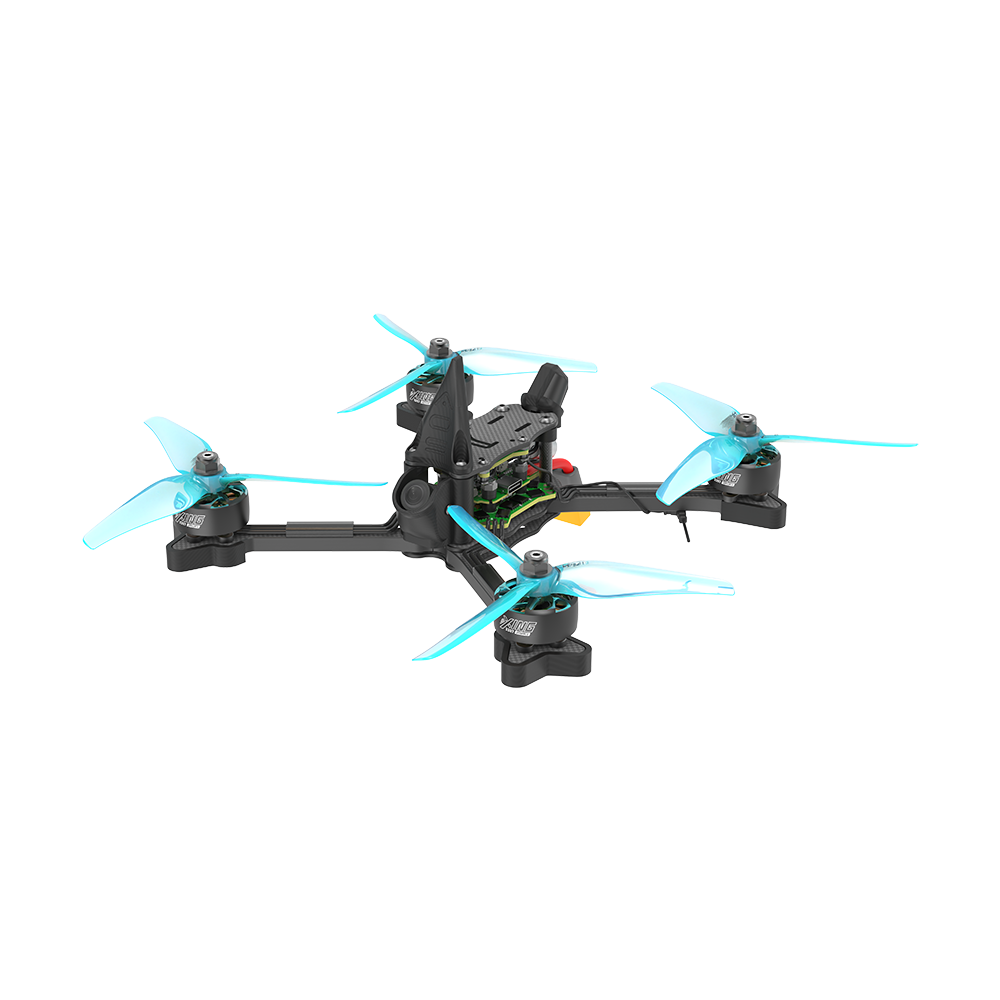

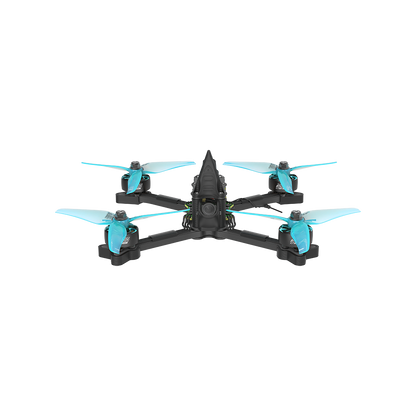

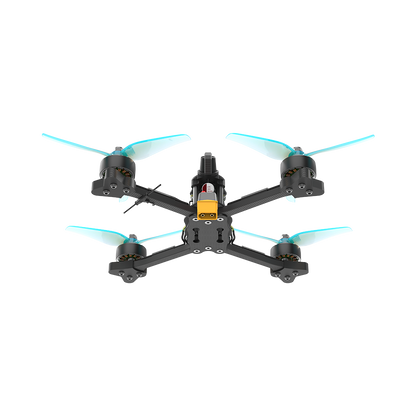

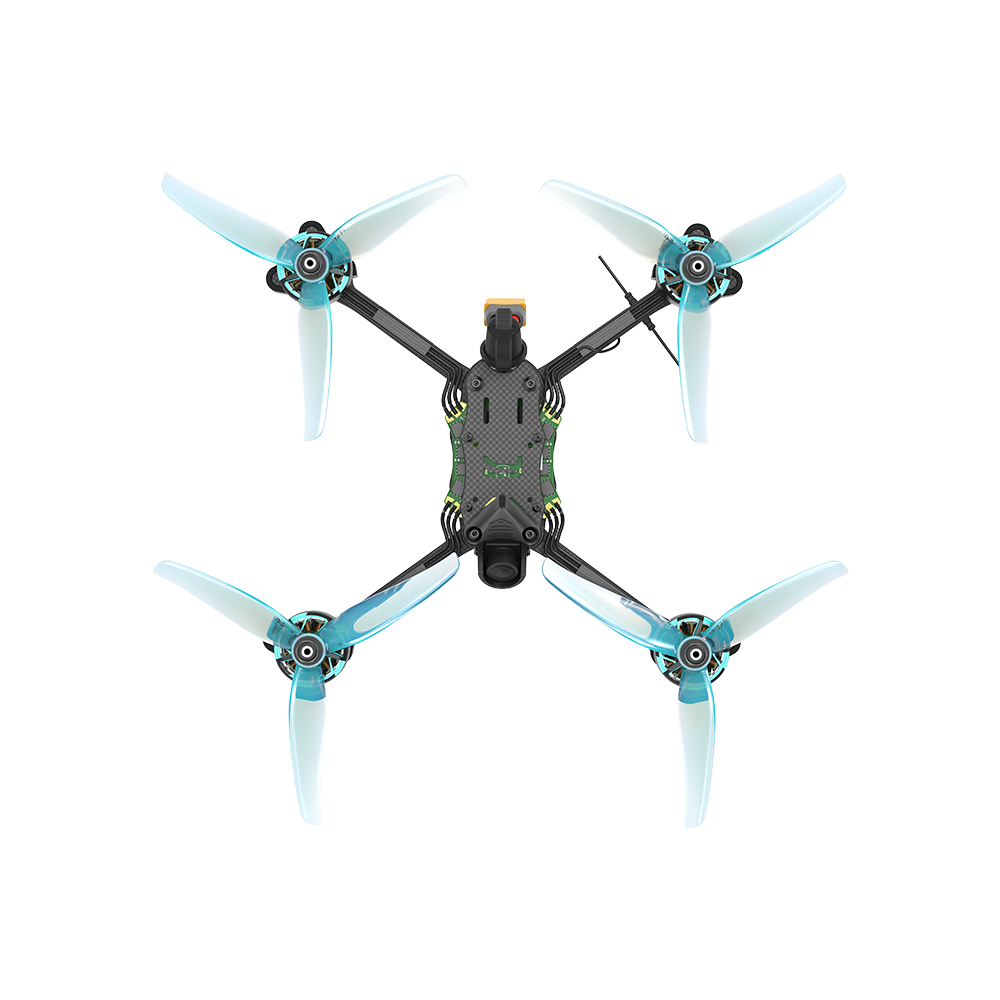

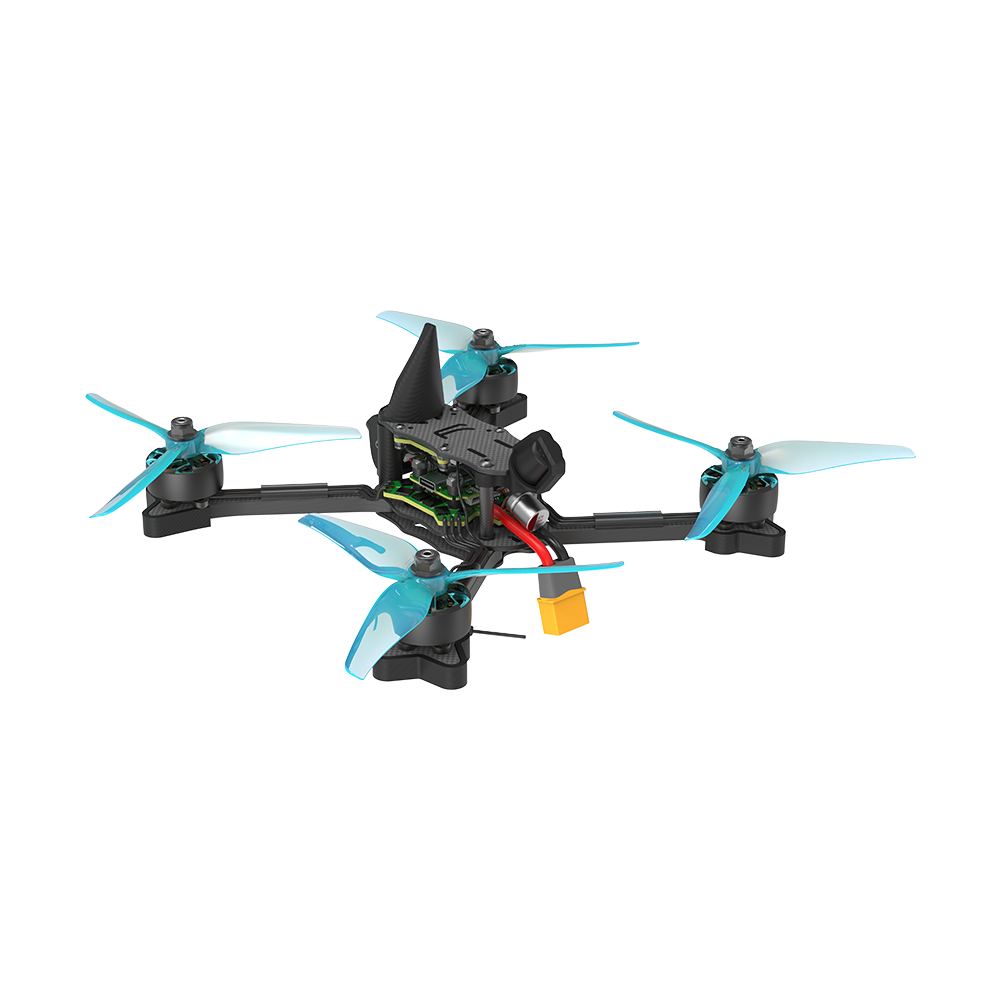

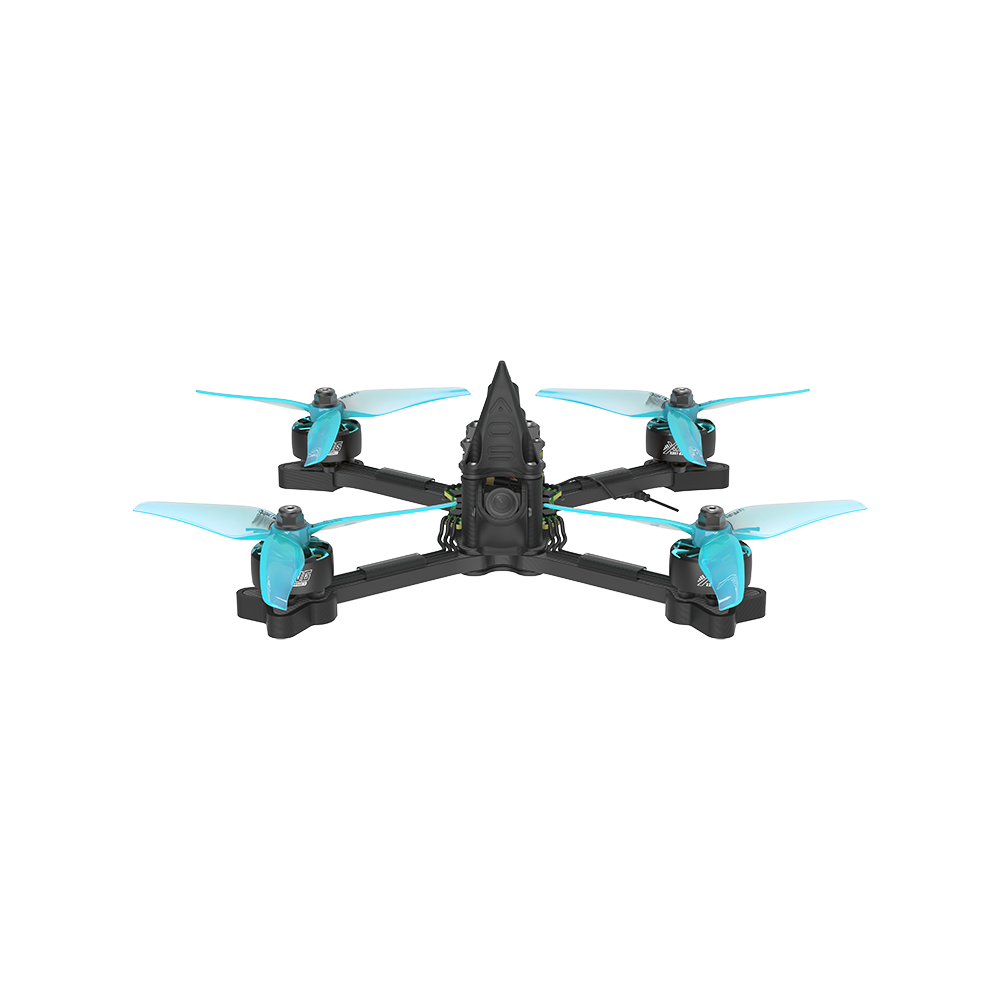

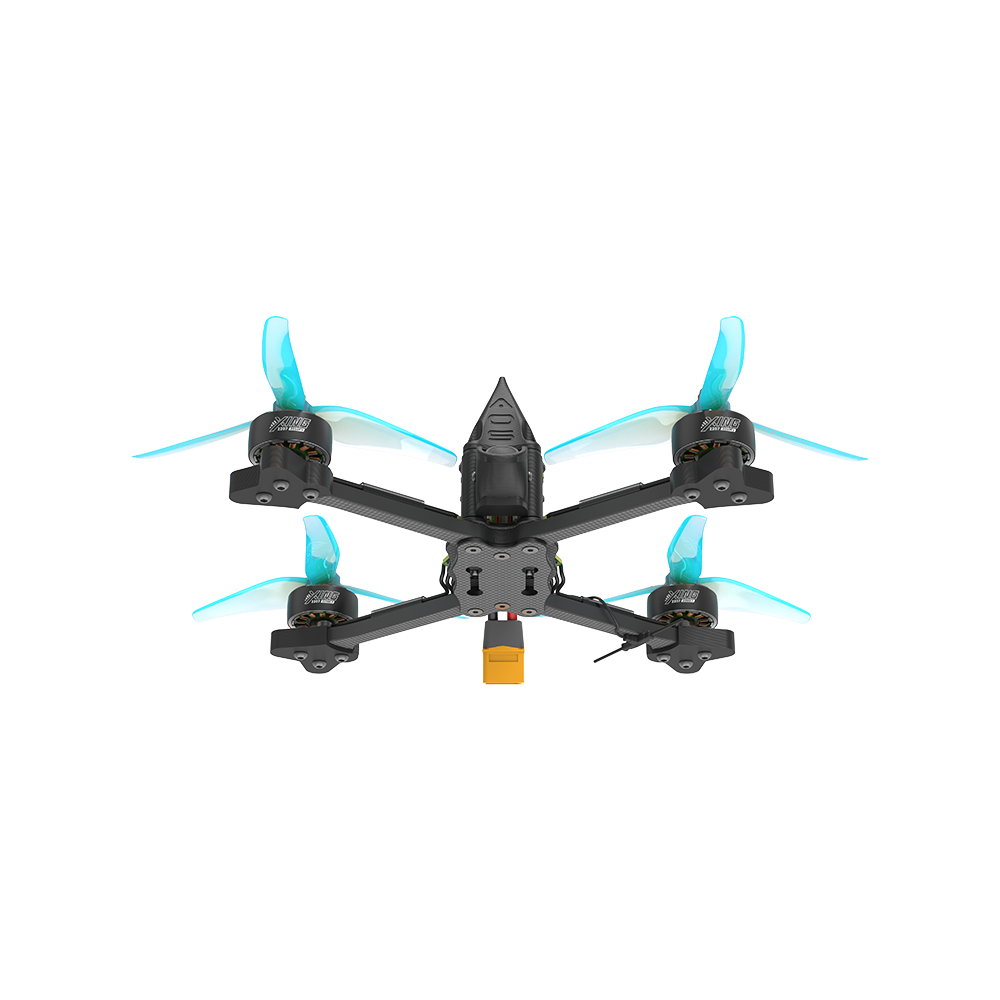

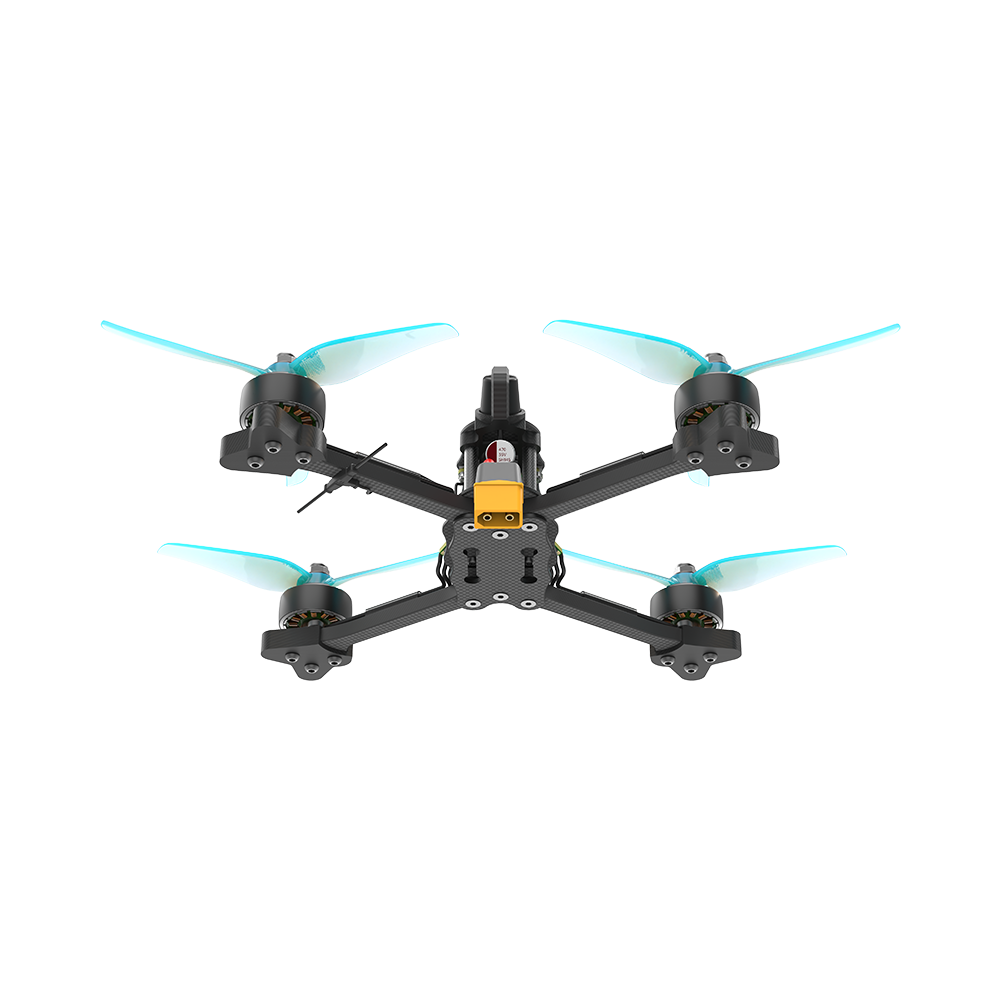

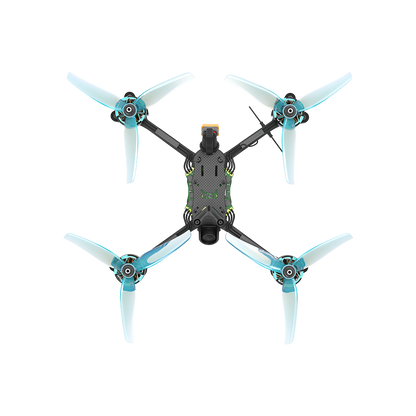

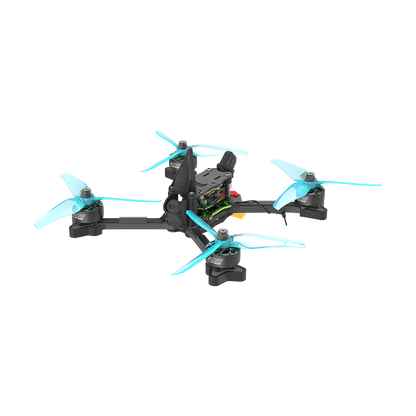

FPV Drone iFlight AOS 5R Analog 5.8G 600mW 6S BNF (TBS)
Redefining cutting edge technology in FPV drone racing. AOS 5R V5 is designed with the latest patented technology to give you a competitive edge.
Innovation meets adrenaline in the AOS 5R V5 – more advanced, versatile and user-friendly than any racing frame before it.
Specifications:
- Geometry: True-X
- Flight Controller: BLITZ Mini F7 FC
- ESC: BLITZ E55R 4-in-1 ESC
- Video Transmission: BLITZ Mini Force 5.8g 600mW
- Frame: Wheelbase 201 mm
- Motor: R5 2207 2050KV motors
- Propellers: Nazgul R5 V2 Propellers
- Weight: 300g
- Takeoff Weight: About 525g (with 6S 1400mAh battery)
- Dimensions (L×W×H): 142×142×38 mm
- Maximum Speed: 205 km/h (Manual Mode)
- Maximum Take-off Altitude: 6000 m
- Maximum Hover Time: About 13 minutes with 1400mAh without load
- Maximum Reached Distance: 5 km
- Wind Resistance: Level 6
- Operating Temperature Range: -10° to 40° C
- Antennas: One Antenna
Video Transmission:
- Product Name: BLITZ Mini Force 5.8G 600mW VTX
- Output Power: PIT/25mW/200mW/400mW/600mW
- Input Voltage: 5V
-
Work Stream:
- ≤PIT @80mA
- ≤25mW @280mA
- ≤100mW @405mA
- ≤400mW @485mA
- ≤600mW @575mA
- Transmission Frequency: 40CH (A-B-E-F-R)
- Interface Antenna: MMCX
- Mounting Holes: 25x25 Φ2mm / 20x20 Φ3mm
- Weight: 4 grams (without antenna)
- Dimensions: 29mm x 29mm
Package Contents:
- 1 x AOS 5R 6S BNF (TBS)
- 1 x Battery Pad
- 2 x Pairs of Propellers
