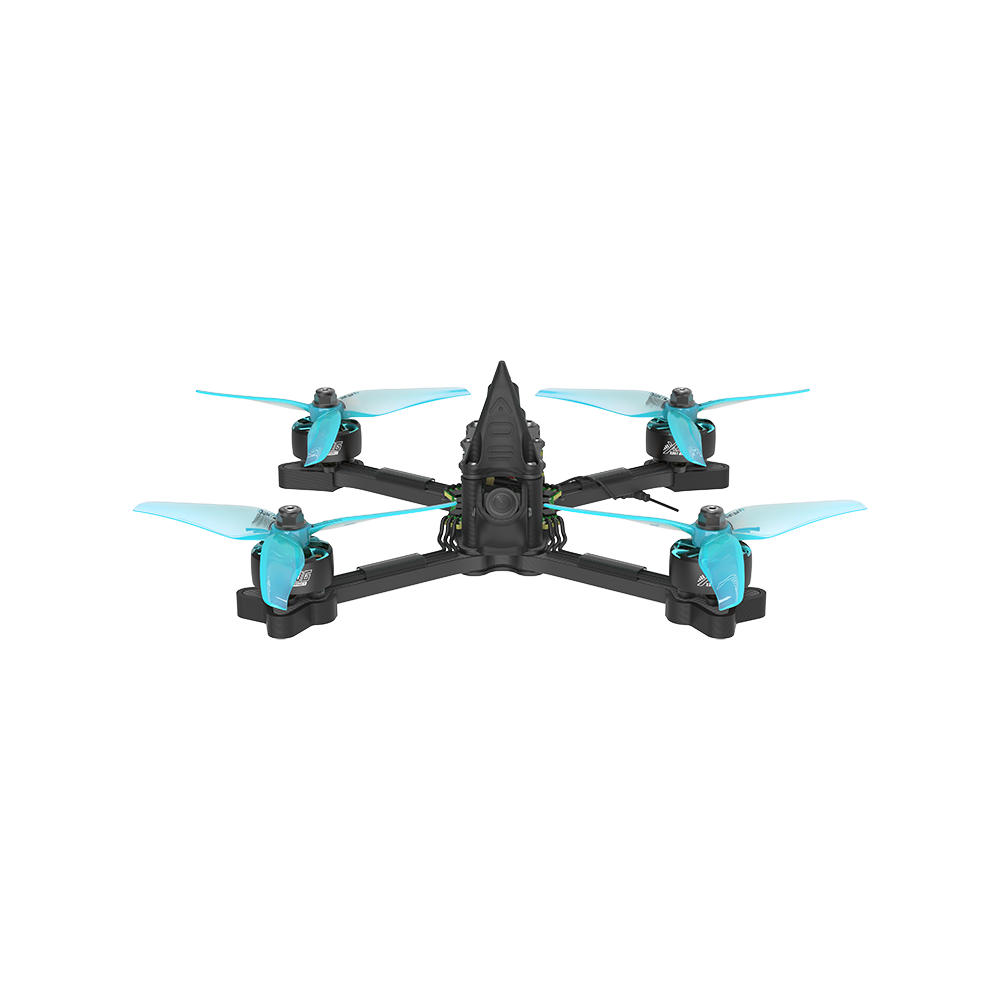

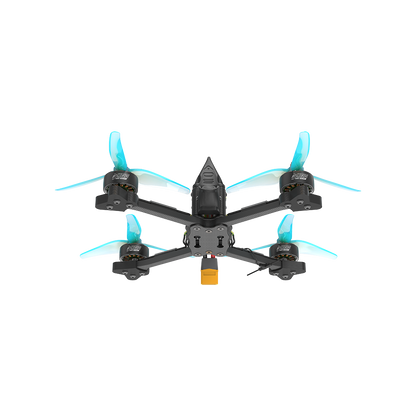

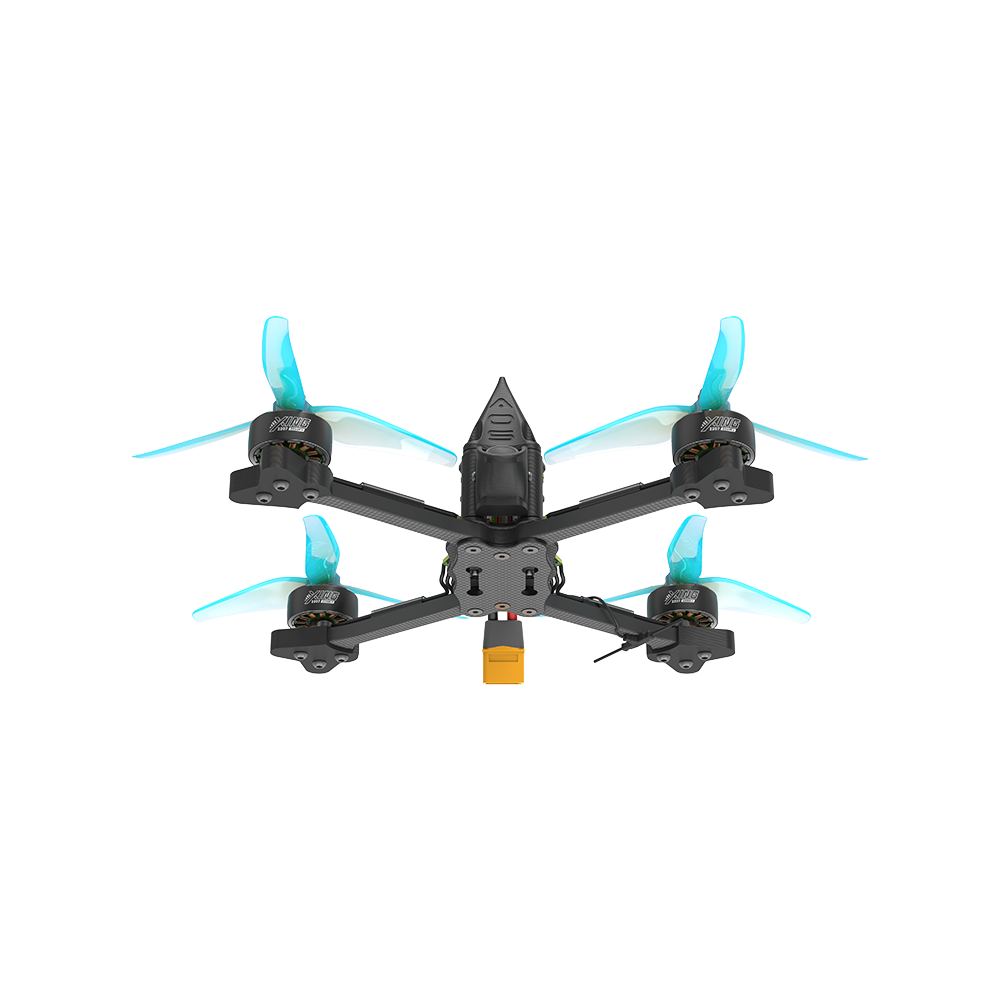

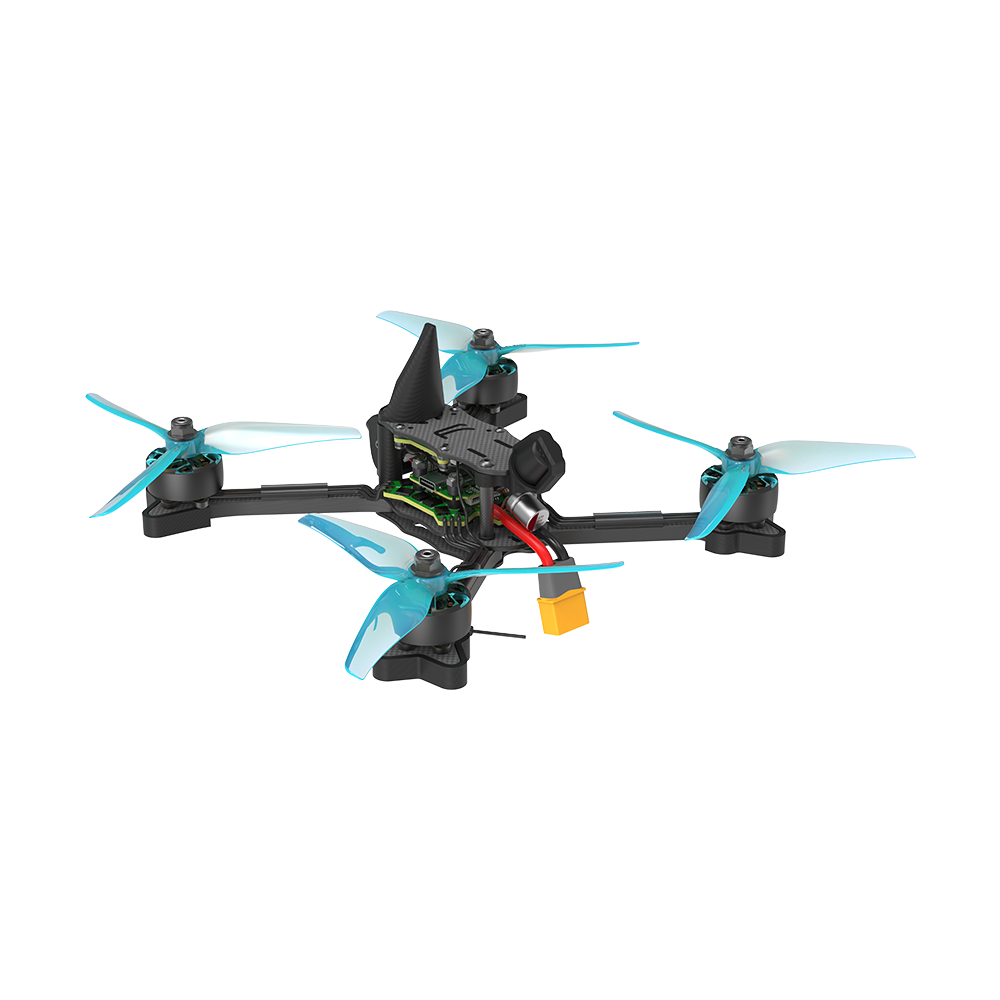

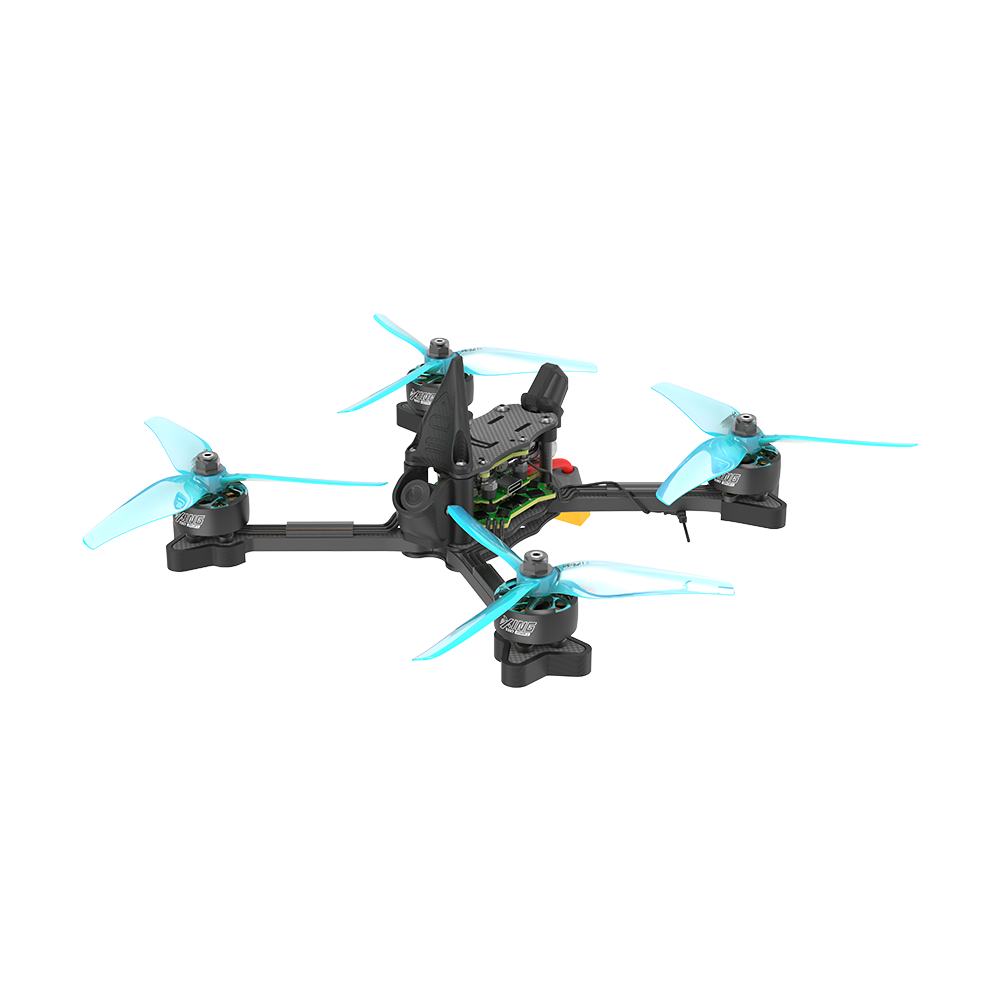

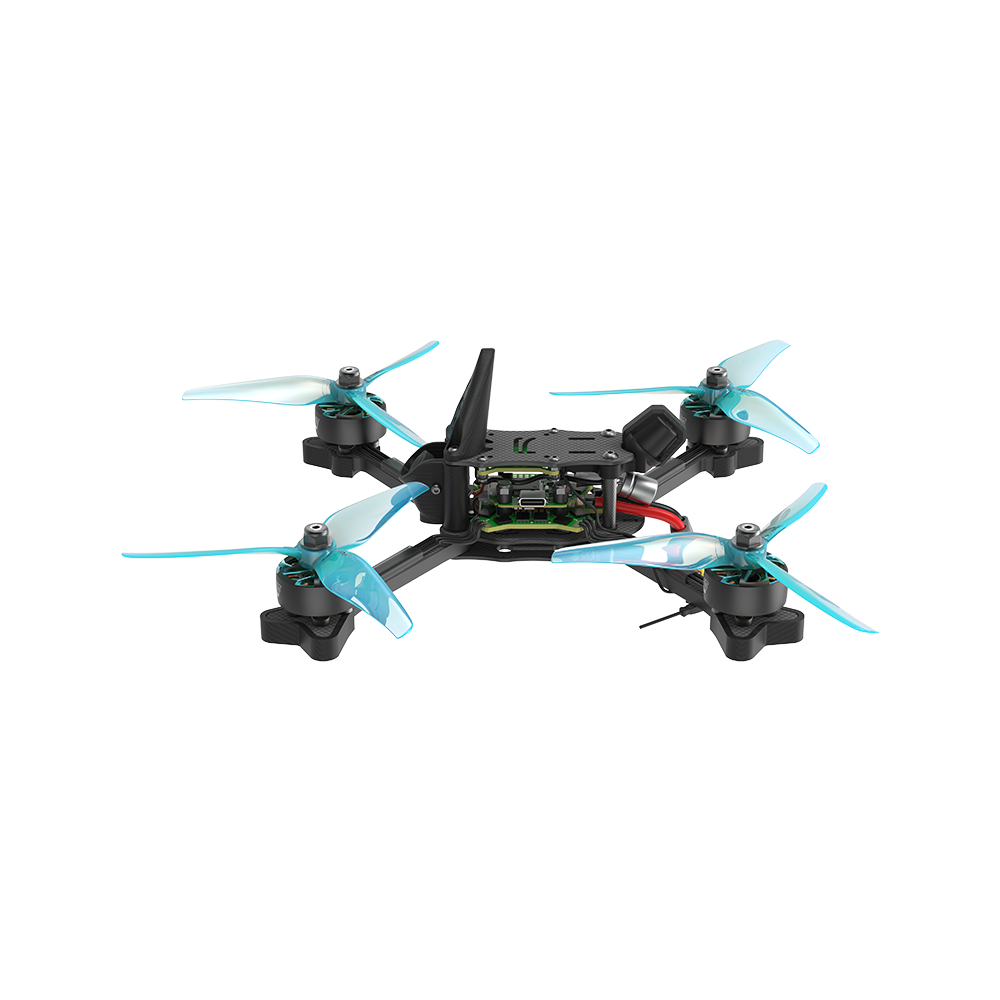

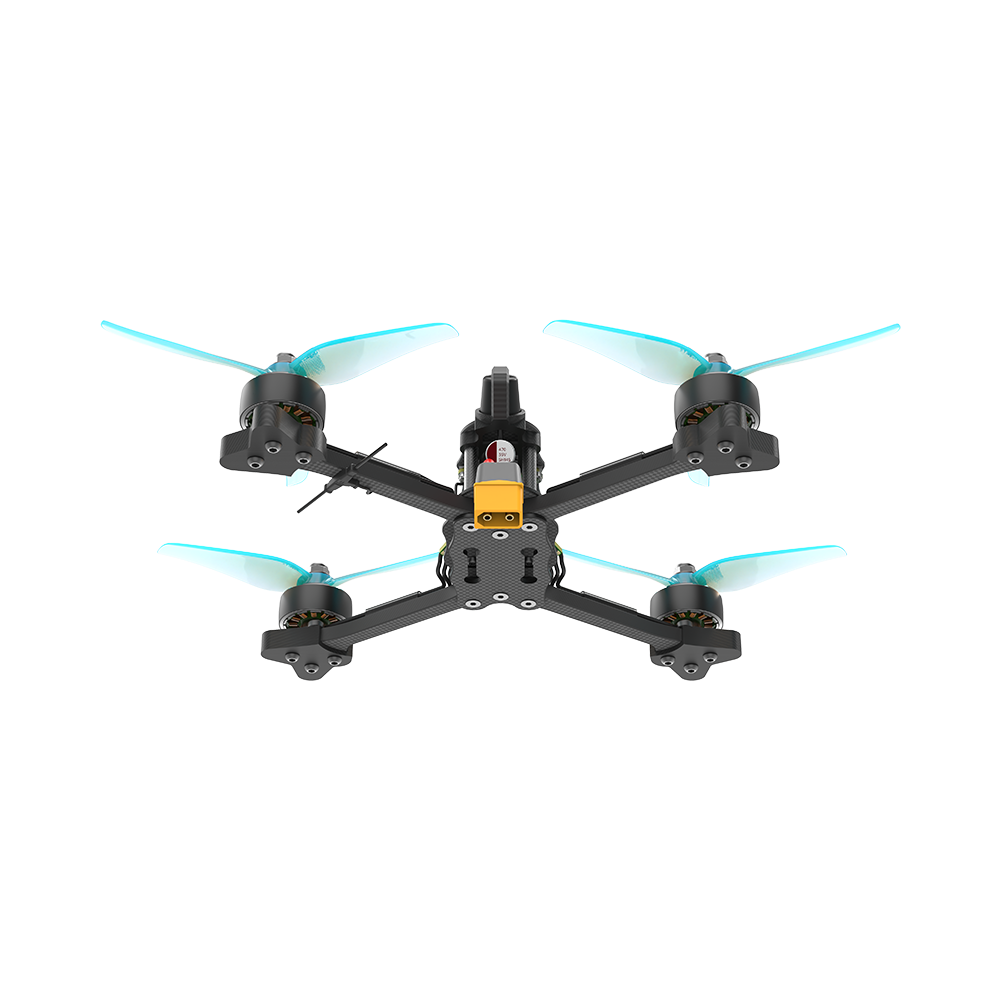

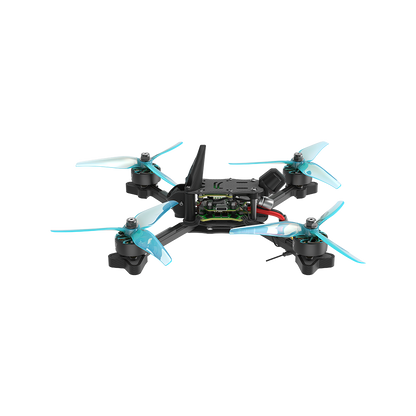

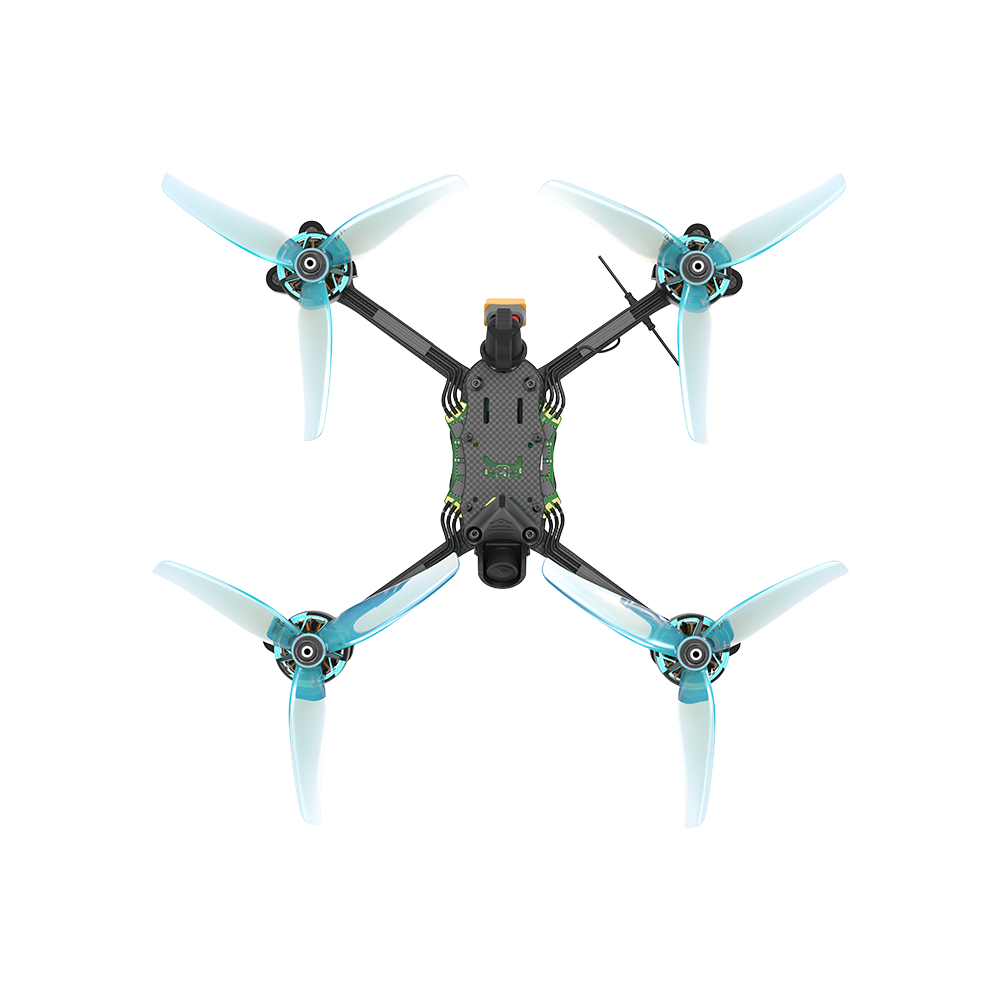

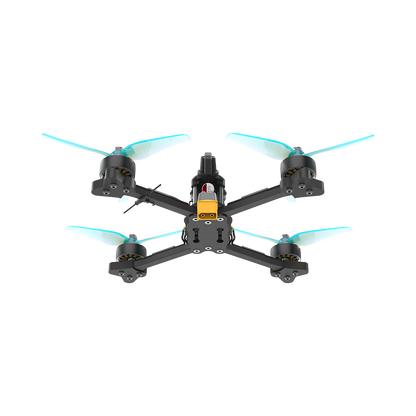

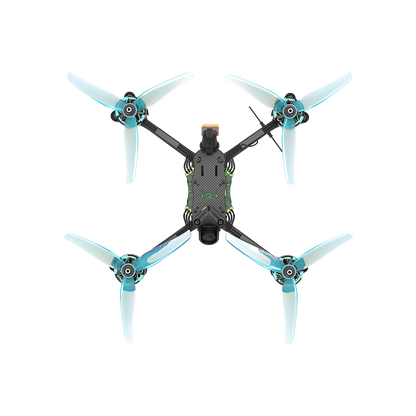

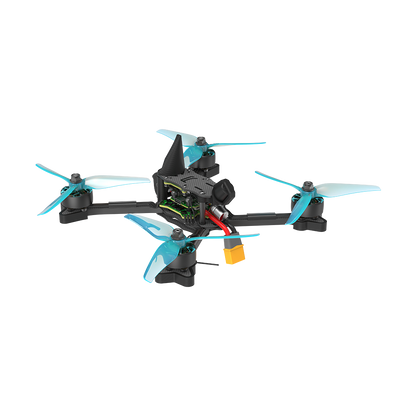

FPV Drone iFlight AOS 5R Analog 5.8G 600mW 6S BNF (ELRS 868/915MHz Nano)
Redefining cutting edge technology in FPV drone racing. AOS 5R V5 is designed with the latest patented technology to give you a competitive edge.
Innovation meets adrenaline in the AOS 5R V5 – more advanced, versatile and user-friendly than any racing frame before it.
Specifications:
- Geometry: True-X
- Flight Controller: BLITZ Mini F7 FC
- ESC: BLITZ E55R 4-in-1 ESC
- Video Transmission: BLITZ Mini Force 5.8g 600mW
- Frame: Wheelbase 201 mm
- Motor: R5 2207 2050KV motors
- Propellers: Nazgul R5 V2 Propellers
- Weight: 300g
- Takeoff Weight: About 525g (with 6S 1400mAh battery)
- Dimensions (L×W×H): 142×142×38 mm
- Maximum Speed: 205 km/h (Manual Mode)
- Maximum Take-off Altitude: 6000 m
- Maximum Hover Time: About 13 minutes with 1400mAh without load
- Maximum Reached Distance: 5 km
- Wind Resistance: Level 6
- Operating Temperature Range: -10° to 40° C
- Antennas: One Antenna
Video Transmission:
- Product Name: BLITZ Mini Force 5.8G 600mW VTX
- Output Power: PIT/25mW/200mW/400mW/600mW
- Input Voltage: 5V
-
Work Stream:
- ≤PIT @80mA
- ≤25mW @280mA
- ≤100mW @405mA
- ≤400mW @485mA
- ≤600mW @575mA
- Transmission Frequency: 40CH (A-B-E-F-R)
- Interface Antenna: MMCX
- Mounting Holes: 25x25 Φ2mm / 20x20 Φ3mm
- Weight: 4 grams (without antenna)
- Dimensions: 29mm x 29mm
Package Contents:
- 1 x AOS 5R 6S BNF (ELRS 868/915MHz Nano)
- 1 x Battery Pad
- 2 x Pairs of Propellers
