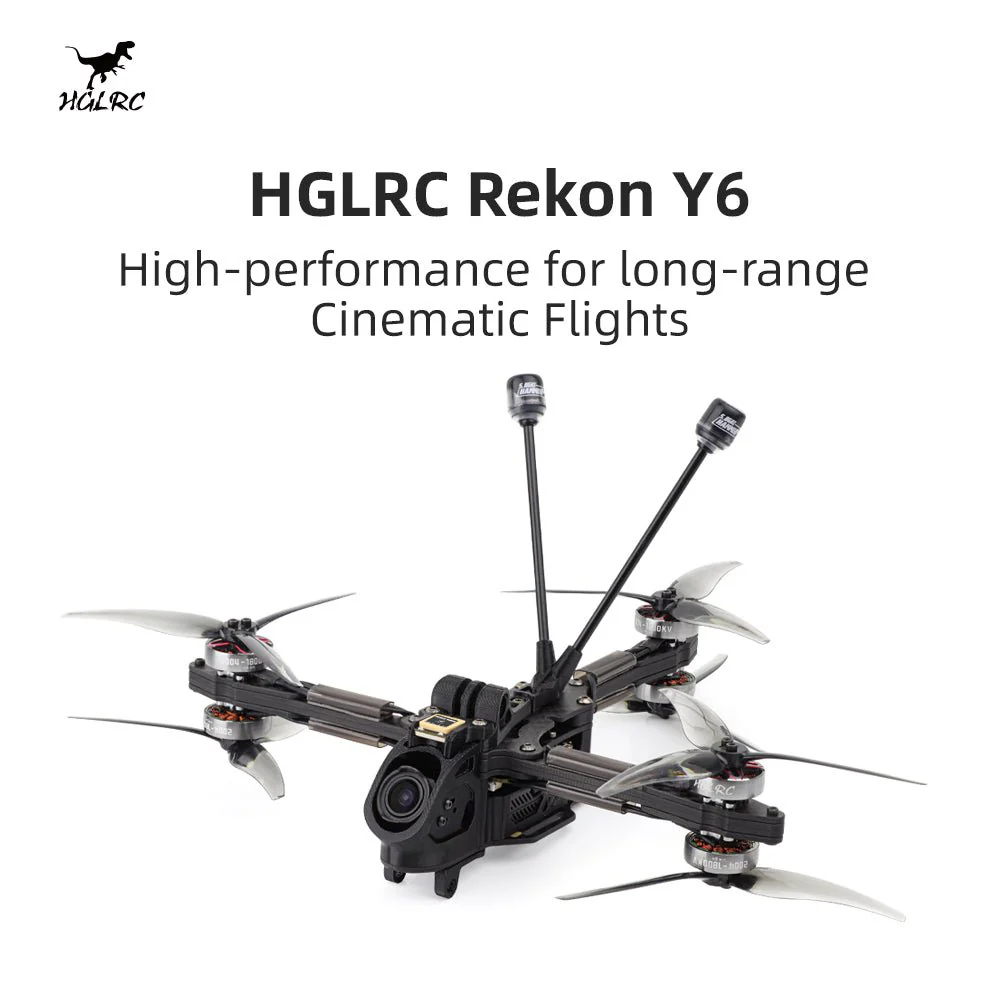

Offers a 50% increase in propeller area compared to a standard 5” quadcopter, allowing the transport of a full-sized action camera while maintaining a compact design.
- Fixed power connector: Prevents instability caused by connector shock during flight, increasing flight stability.
- Possibility of fixing the side antenna: The user can choose the position of the antenna himself or install a receiver with a double antenna, which effectively solves signal dead zones.
- Extremely long battery life: With 18650 6S 3000MAH battery, the flight time reaches up to 20 minutes without load and up to 10 minutes with GoPro8 camera.
- Unobstructed Camera View: Propellers are designed to not interfere with the action camera's field of view, allowing for clear and unobstructed video recordings.
- Optimized for speed and stability: Increased cruising speed and better stability in direct flight provide a "locked-in" feel, ideal for cinematic long shots and dynamic vehicle chases.
- Equipped with mini GPS M100: Compact and precise, ensuring stable flight.
-
Multiple versions:

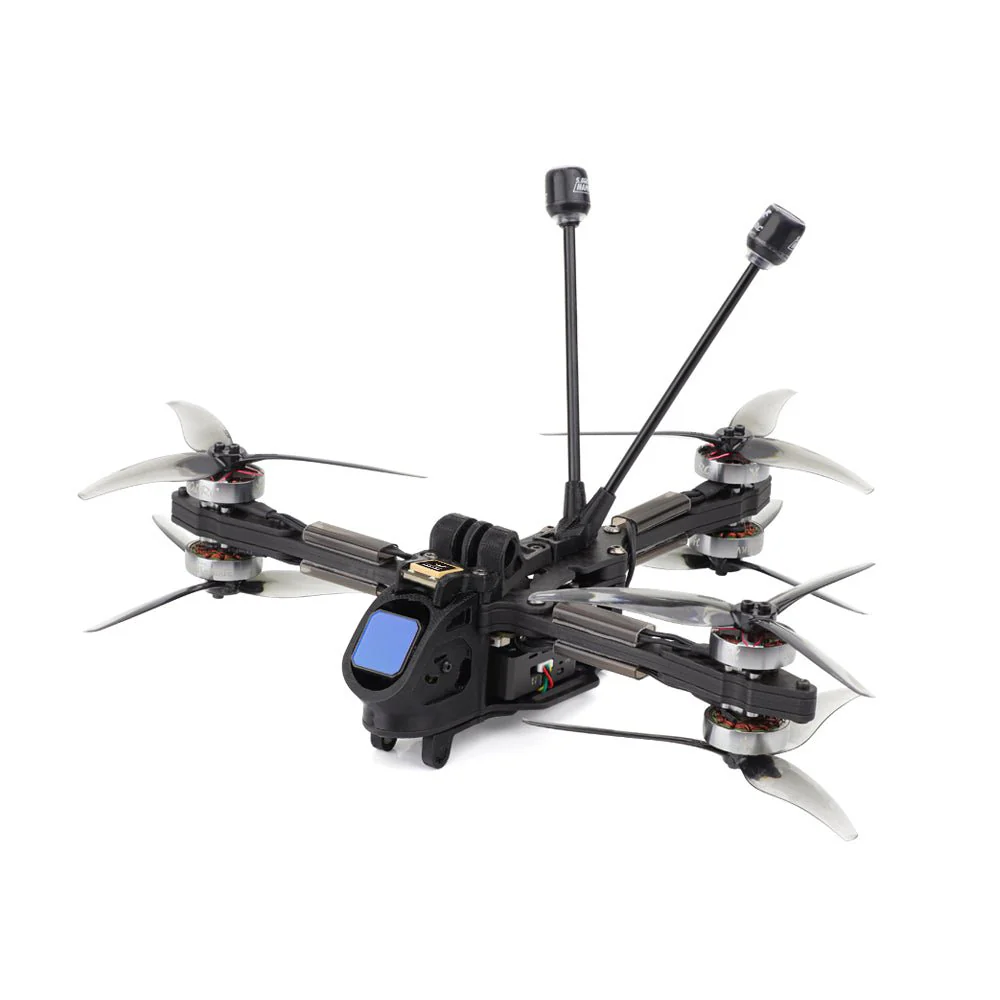

- Moonlight HD version: Unique dual stabilized digital VTX. The image is more stable and clear. Supports 4K/60FPS direct output, 160° super wide angle. Equipped with ND8 filter.

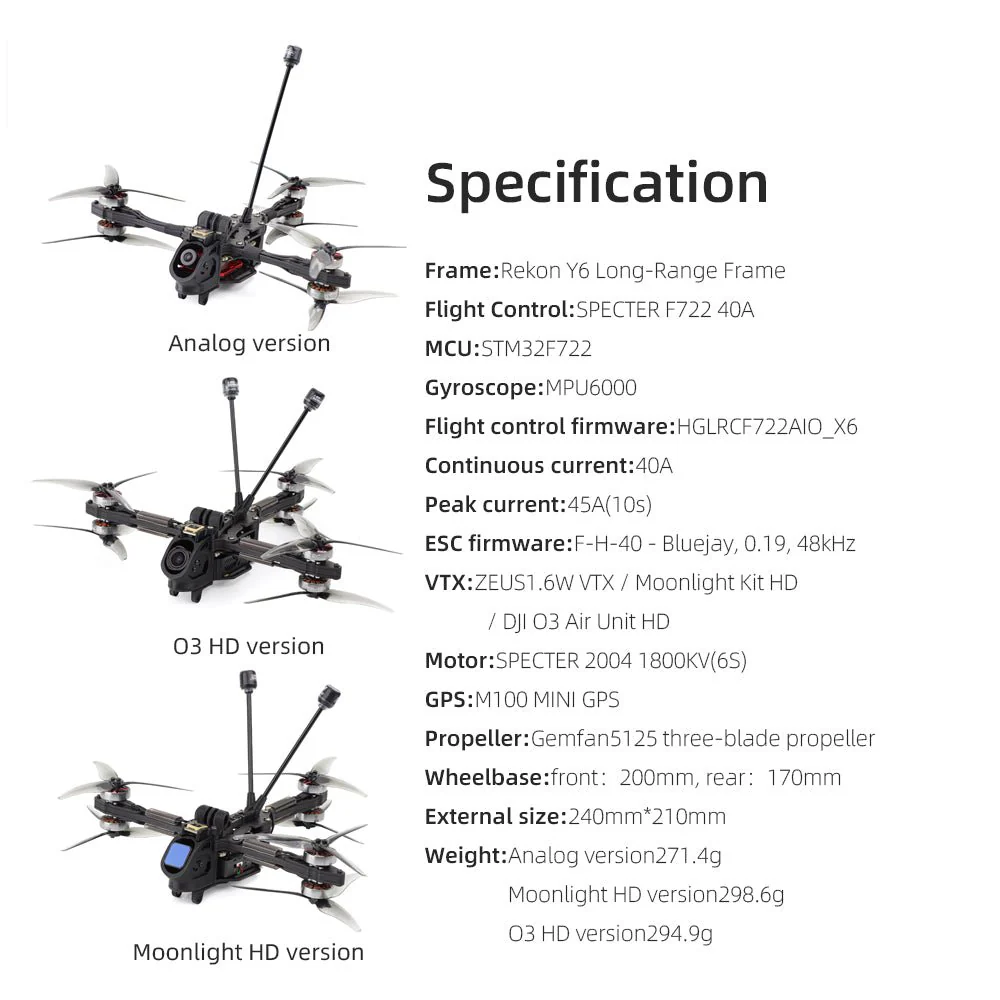

Specifications:
- Frame: Rekon Y6 Long Range Frame
- FC: SPECTER F722 40A 4S-6S 6-Way AIO
- MCU: STM32F722
- GYRO: MPU6000
- Firmware FC: HGLR-HGLRCF722AIO_X6
- Continuous current: 40A
- Peak current: 45A (10 seconds)
- Firmware ESC: F-H-40 - Bluejay, 0.19, 48kHz
- VTX: Moonlight Kit HD
- Engine: SPECTER 2004 1800KV (6S)
- GPS: M100 MINI GPS
- Buzzer: Soter FPV Drone Buzzer
- Propeller: Gemfan5125 3-blade propeller
- Wheel distance: front 200 mm, rear 170 mm

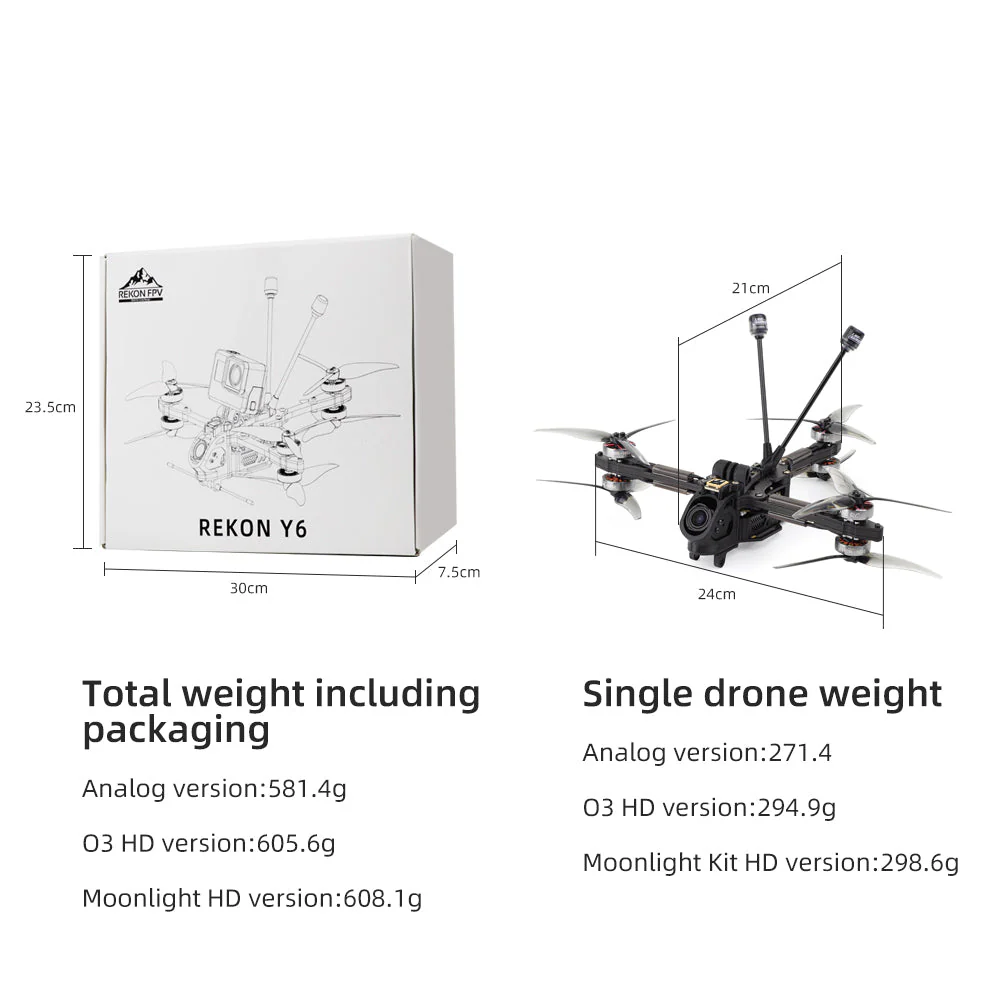

- Dimensions: 200mm x 209mm
- Weight: Moonlight Kit Version: 298.6g

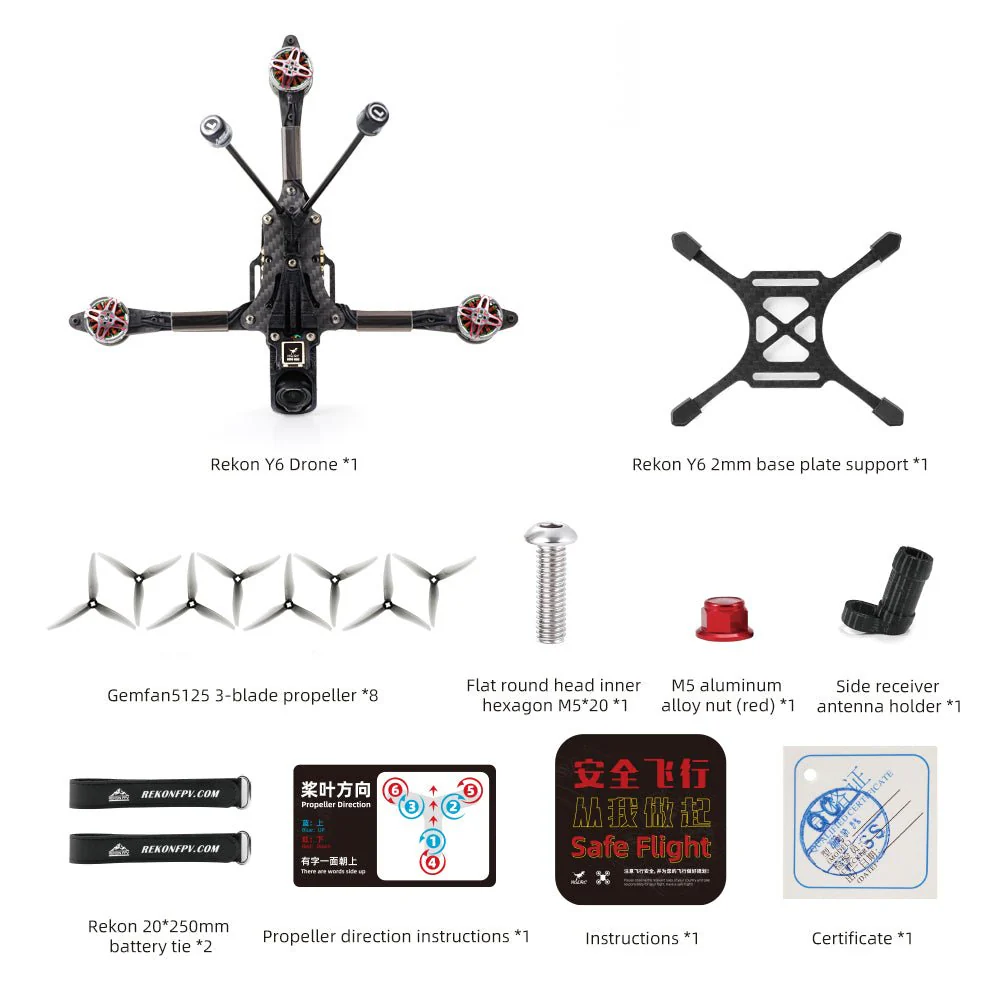

The package contains:
- 1× Rekon Y6 drone
- 8× Gemfan5125 3-blade propeller
- 1× M5*20 stainless steel screw
- 1× M5 aluminum alloy self-locking nut
- 2× 20×250 mm Rekon battery strap
- 1× receiver antenna side holder
- 1× bottom support plate
- 1× receiver (optional).
