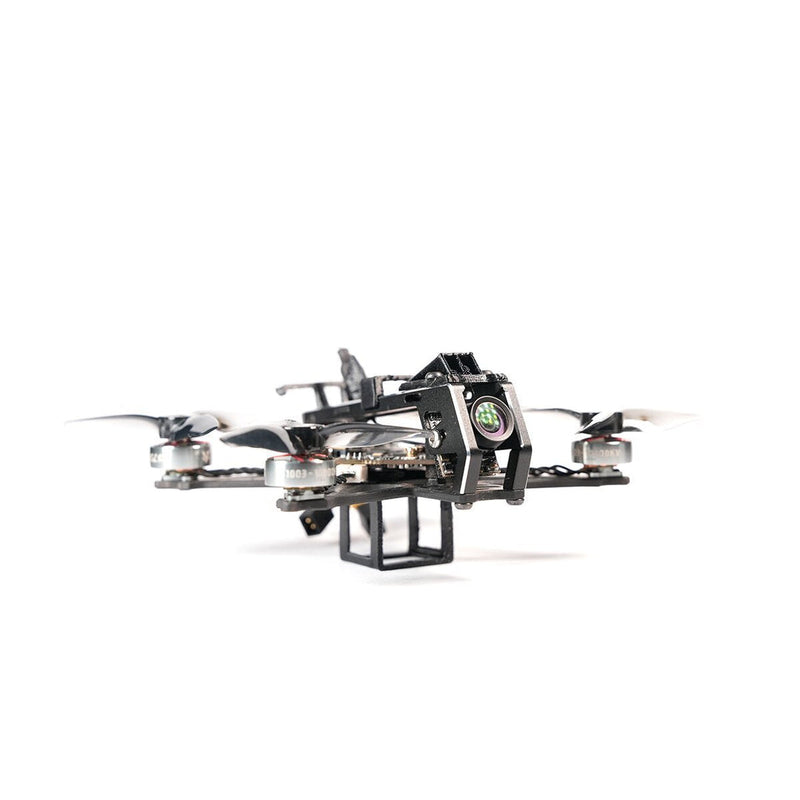

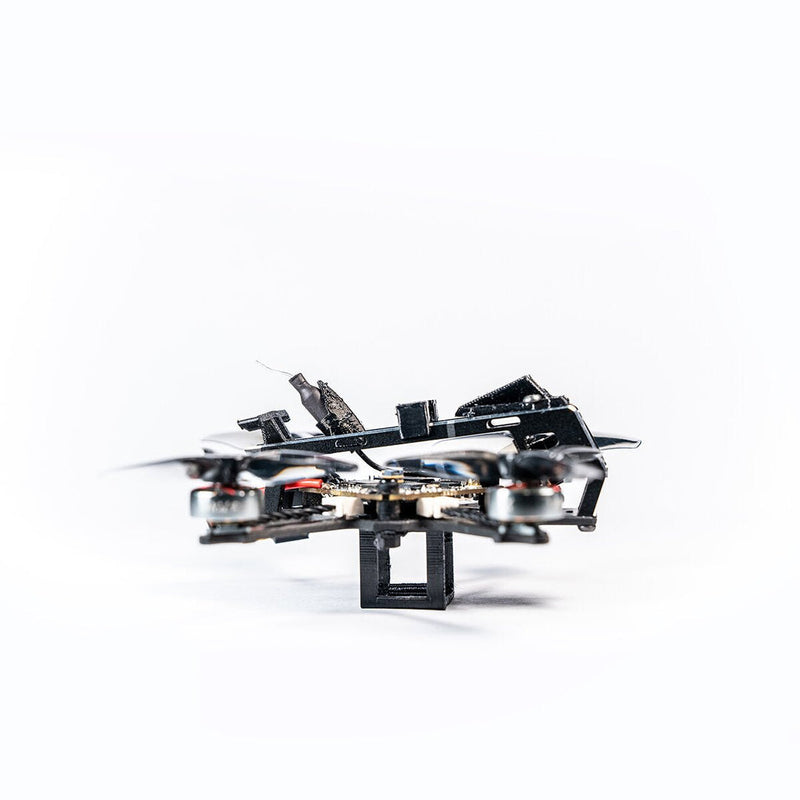

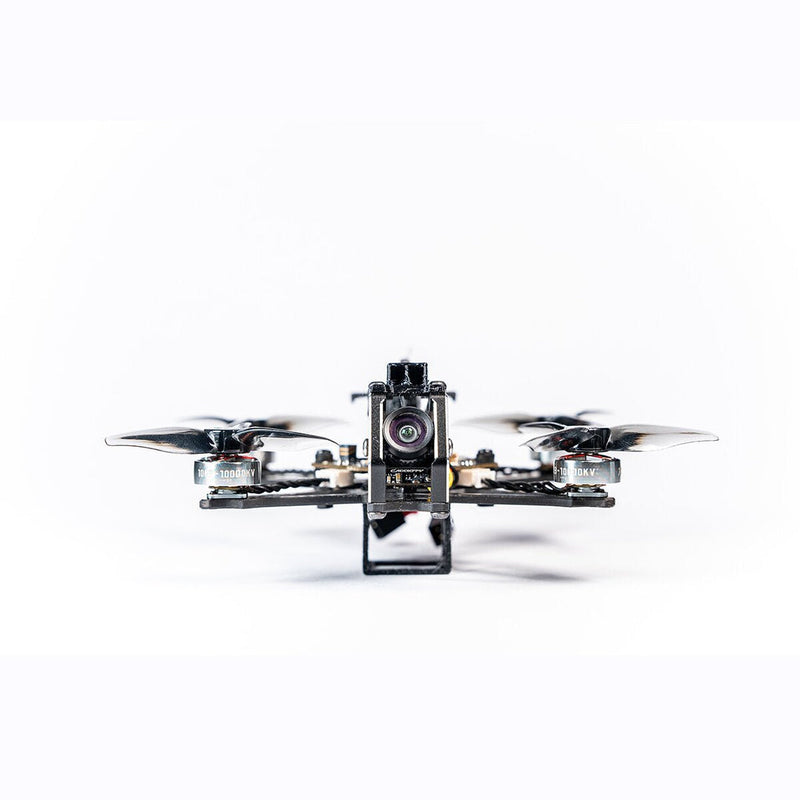

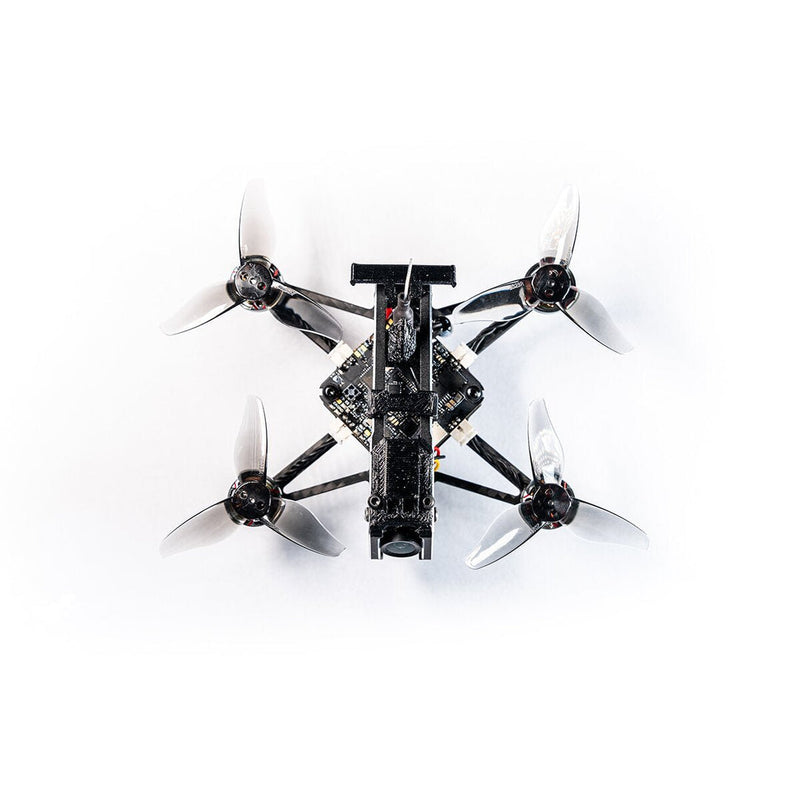

FPV Drone HGLRC Draknight 2-inch toothpick
TheHGLRC Draknight is a compact and versatile 2-inch toothpick drone, ideal for indoor and light outdoor flying. Here is a quick overview of its features and specifications:
Draknight Frame
- Type: 52 inch frame
- Axle length: 91.8 mm
- Maximum propeller size: 2 inches
- Frame dimensions: 104 x 104 mm

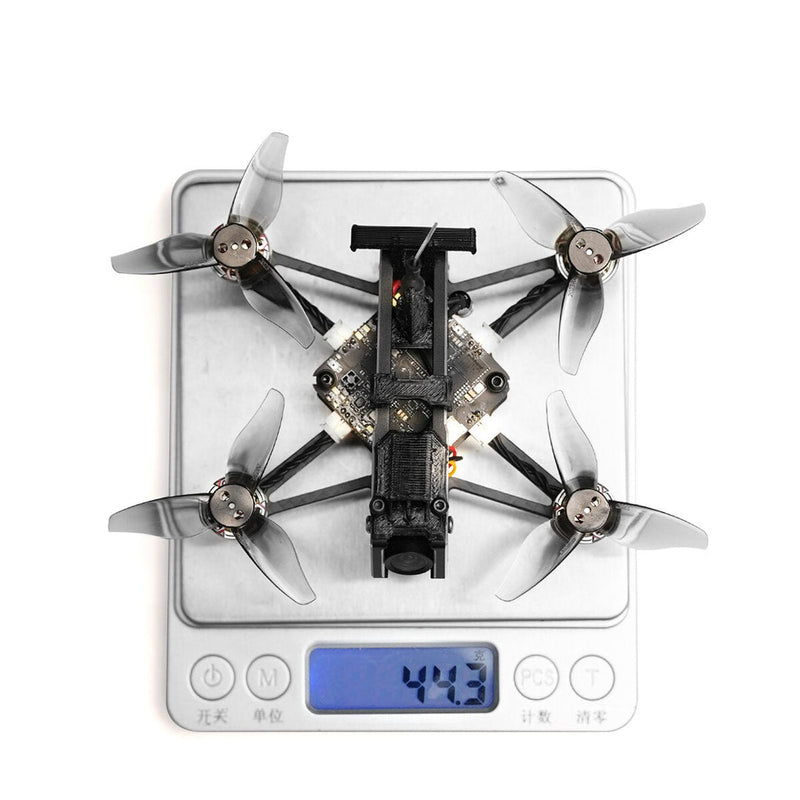

- Weight: 44.3g (without receiver)
Control unit and ESC
- Model: SPECTER12 ES2-4S AIO
- Main controller: STM32F411
- Firmware: BF HGLR-HGLRCF411SX1280_15A
- Input Voltage: 2-4S Lipo
- BEC output: 5V/1.5A
- Continuous current: 12A
- Maximum current: 15A (5s)
- ESC protocol: Dshot150/300/600
- Flight Control Firmware: HGLRCF411SX1280_15A
- ESC firmware: Z-H-30 (Blheli_S)
- Built-in receiver: UART ExpressLRS 2.4G
- Built-in video transmission: Adjustable 0-25-100-400mW
FPV Camera
- Model: Caddx Ant Ant FPV Webcam
Engines
- Model: Specter 1003
- KV Rating: 10000KV (for 2S)
- Recommended propeller: Gemfan2023
Recommended batteries
- 2S: 550mAh - 720mAh
Package contents
- 1x Draknight Drone
- 2x Printing on battery
- 1x Built-in ELRS receiver
