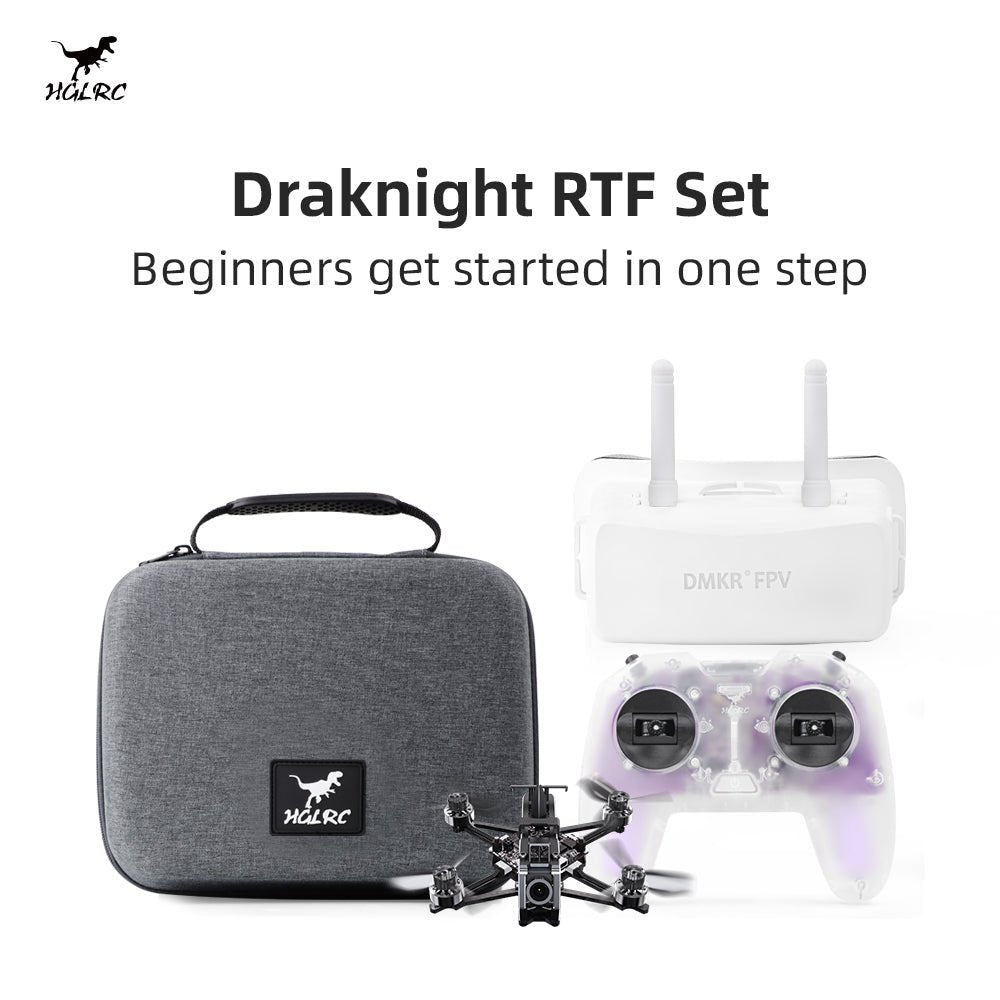

HGLRC Draknight 2-Inch Base Kit RTF
The 2-inch RTF HGLRC Draknight Basic Kit is ideal for beginners diving into FPV drone flying. The kit includes a compact and durable 2-inch quadcopter with a high-definition FPV camera and transmitter, a ready-to-use radio transmitter and comfortable FPV goggles to get beginners flying right away. The kit supports multiple simulators such as FPV Logic, DCL, Liftoff, DRL, TRYP etc. With stable flight and intuitive controls, it offers an exciting entry point to the world of FPV drone racing and free flying.

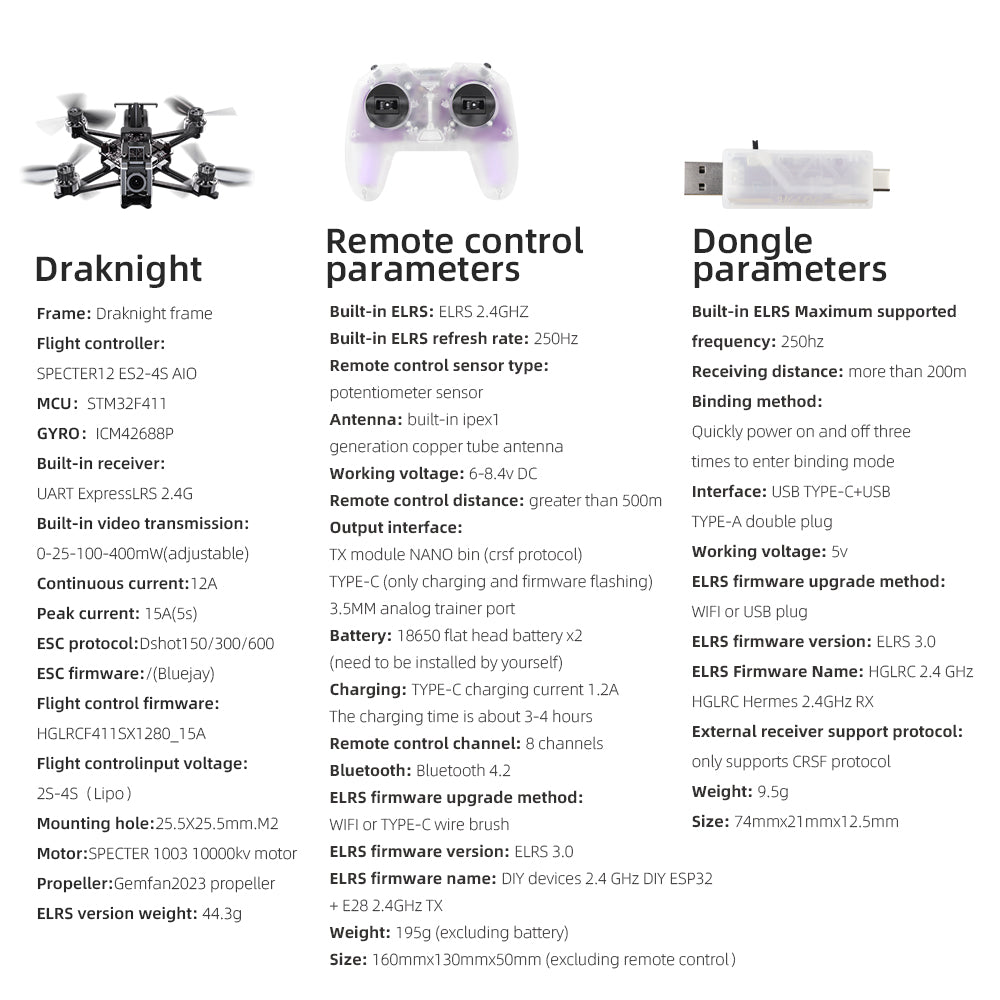

Specifications:

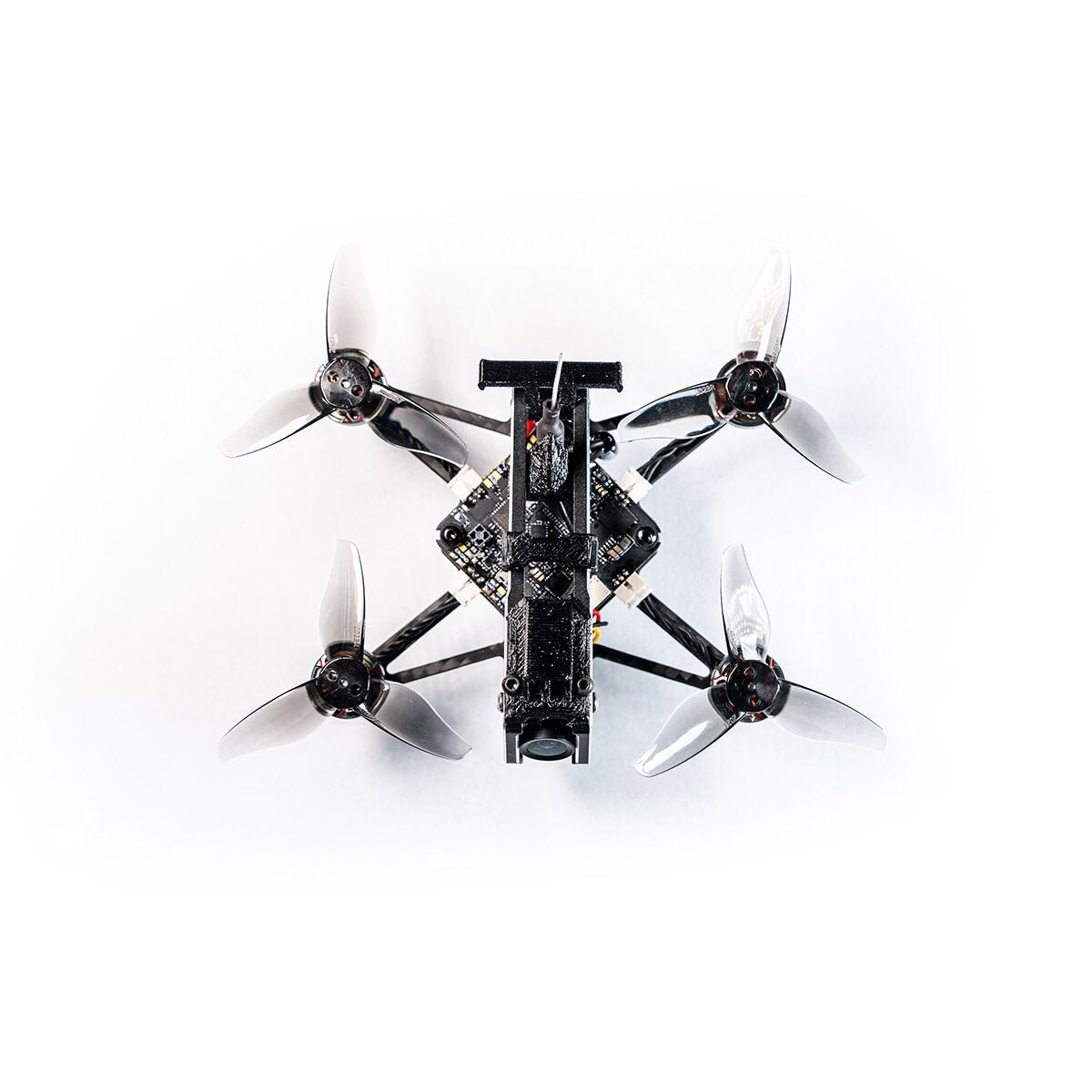

Draknight drone parameters
Frame: Draknight frame
Flight controller: SPECTER12 ES2-4S AIO
MCU: STM32F411
GYRO: ICM42688P
Built-in receiver: UART ExpressLRS 2.4G
Built-in video transmission: 0-25-100-400 mW (adjustable)
Continuous current: 12A
Peak current: 15A (5s)
ESC protocol: Dshot150/300/600
ESC Firmware:/(Bluejay)
Flight Control Firmware: HGLRCF411SX1280_15A
Flight control input voltage: 2S-4S (Lipo)
Mounting hole: 25.5X25.5mm.M2
Engine: SPECTER 1003 10000kv engine
Propeller: Gemfan2023 propeller
Weight: 44.3g

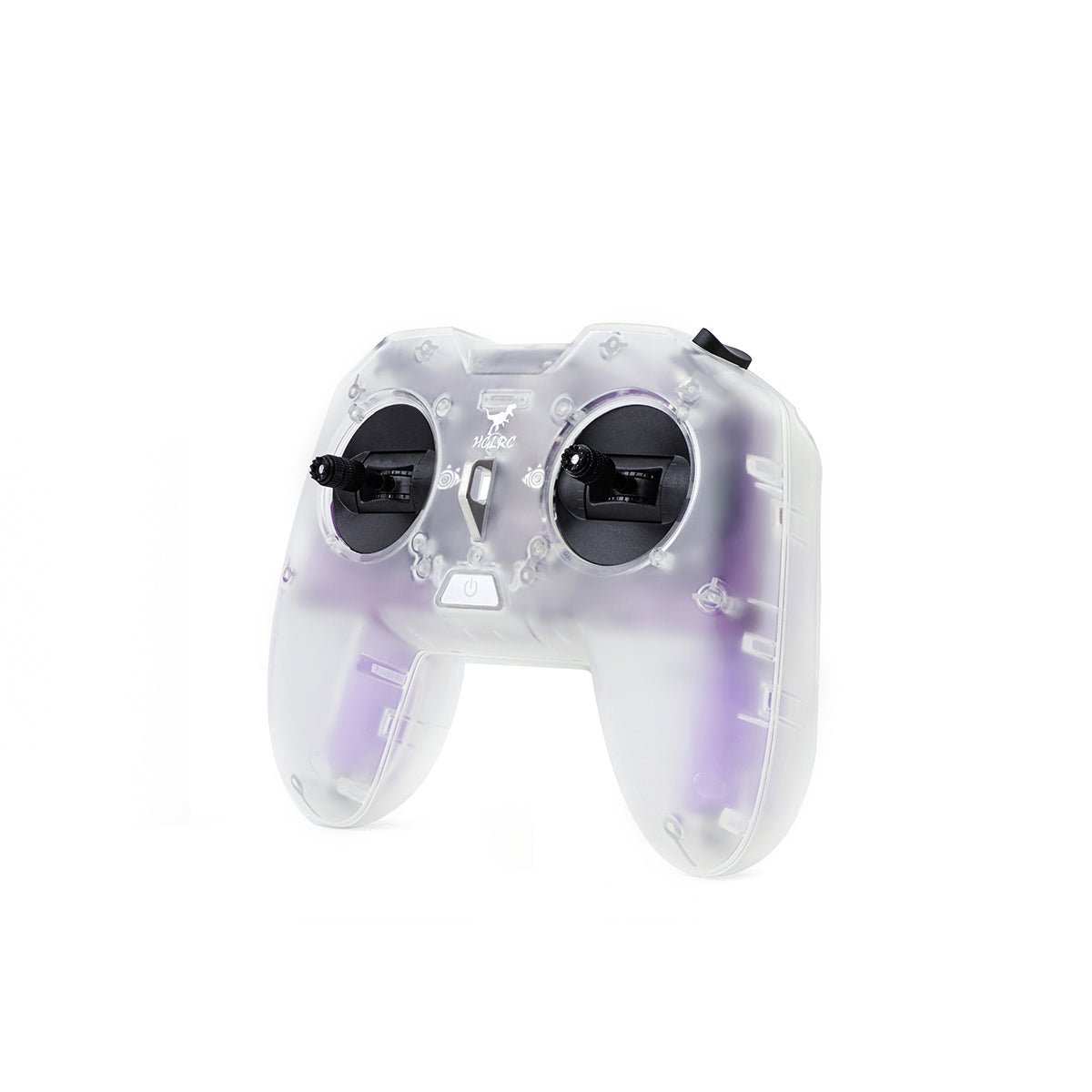

Remote control parameters:
Built-in ELRS: 2.4GHz ELRS
Built-in ELRS refresh rate: 250 Hz
Remote control sensor type: potentiometer sensor
Antenna: built-in copper tube antenna ipex1 generation
Working voltage: 6-8.4V DC
Remote control distance: greater than 500m
Output interface: TX module NANO bin (crsf protocol), TYPE-C (only charging and flashing firmware), 3.5MM analog trainer port
Battery: 18650 flat battery x2 (need to install by yourself)
Charging: TYPE-C charging current 1.2A Charging time is about 3-4 hours Remote control channel: 8 channels
Bluetooth: Bluetooth 4.2
ELRS firmware update method: WIFI or TYPE-C wire brush
ELRS firmware version: ELRS 3.0
ELRS Firmware Name: DIY Device 2.4GHZ DIY ESP32 + E28 2.4GHz TX
Weight: 195 g (without battery)
Dongle parameters:
Built-in ELRS Maximum supported frequency: 250 Hz
Receiving distance: more than 200m
Binding method: Quickly turn on and off three times to enter binding mode
Interface: USB TYPE-C+USB TYPE-A double plug
Working voltage: 5V
ELRS firmware update method: WIFI or USB connector
ELRS Firmware Version: ELRS 3.0 ELRS
Firmware Name: HGLRC 2.4GHZ HGLRC Hermes 2.4GHZ RX
External receiver support protocol: only supports CRSF protocol Weight: 9.5g
Size: 74mm x 21mm x 12.5mm

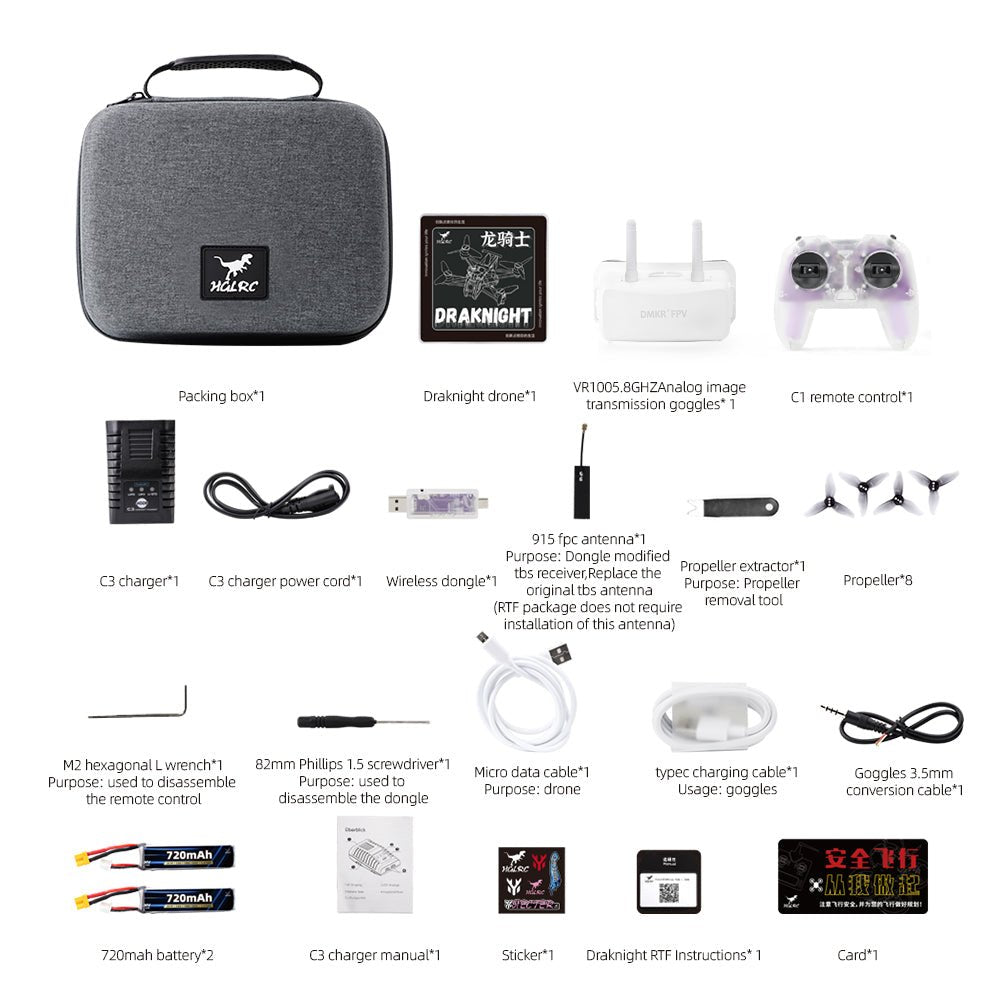

The package includes:
1x HGLRC Draknight 2-inch Basic RTF Kit
