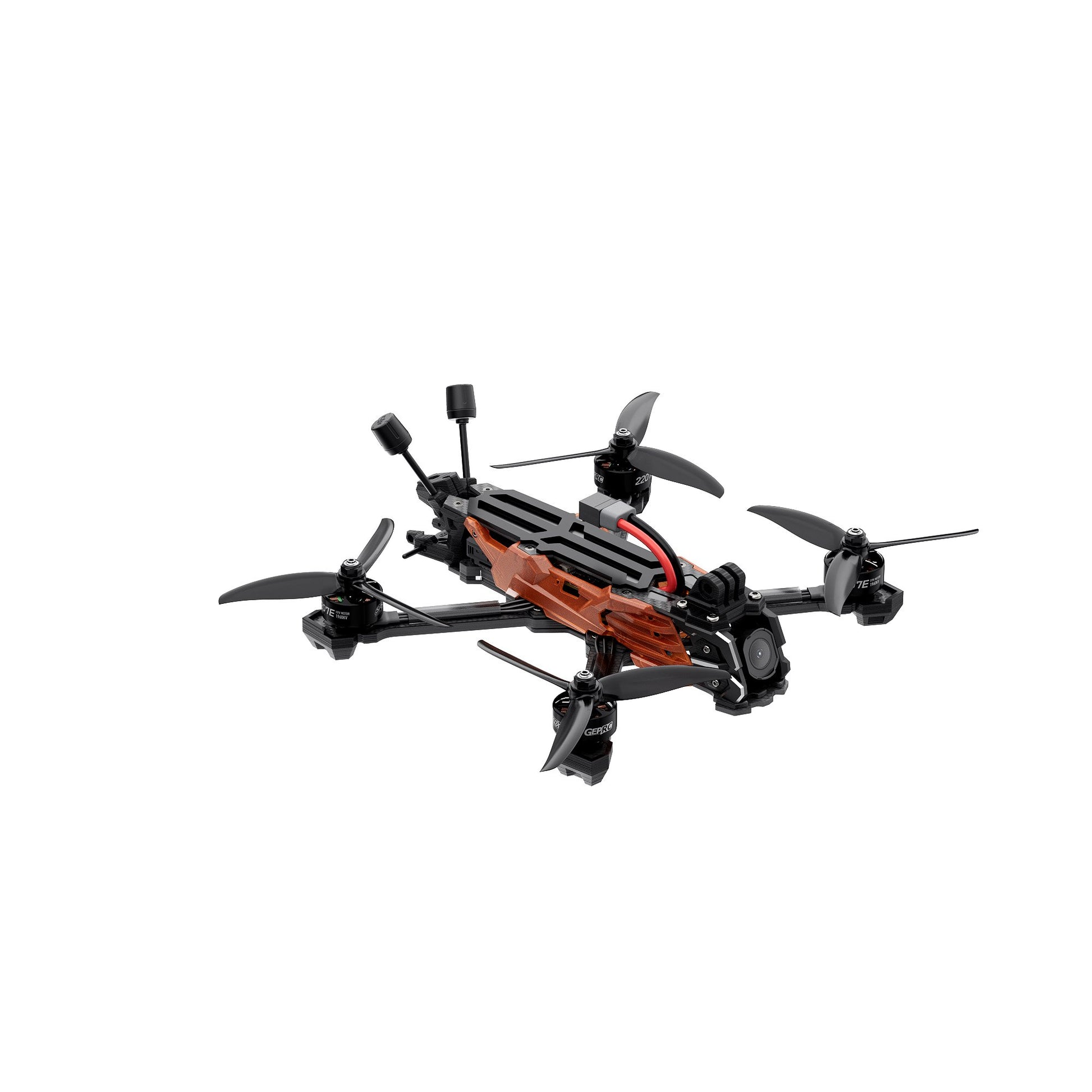

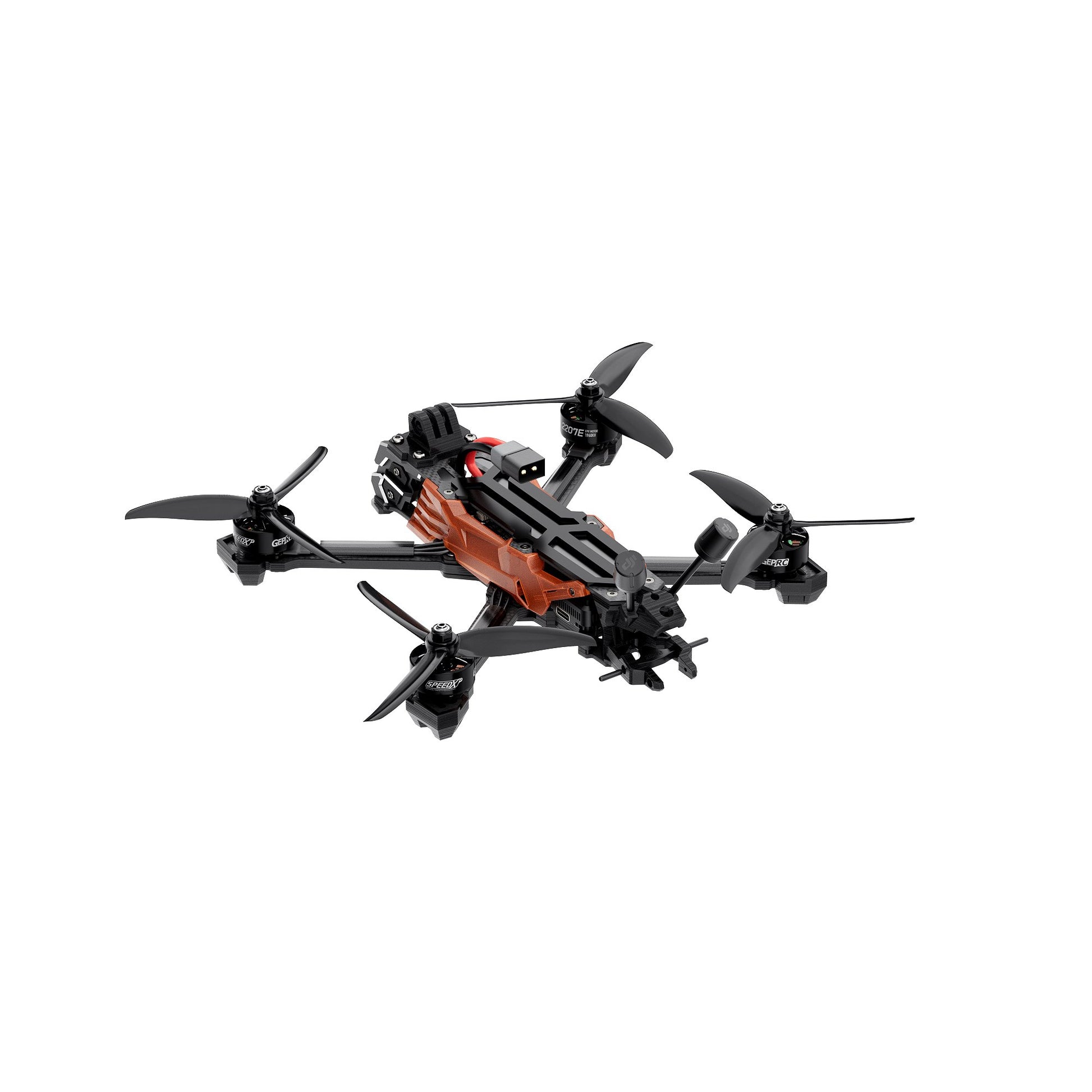

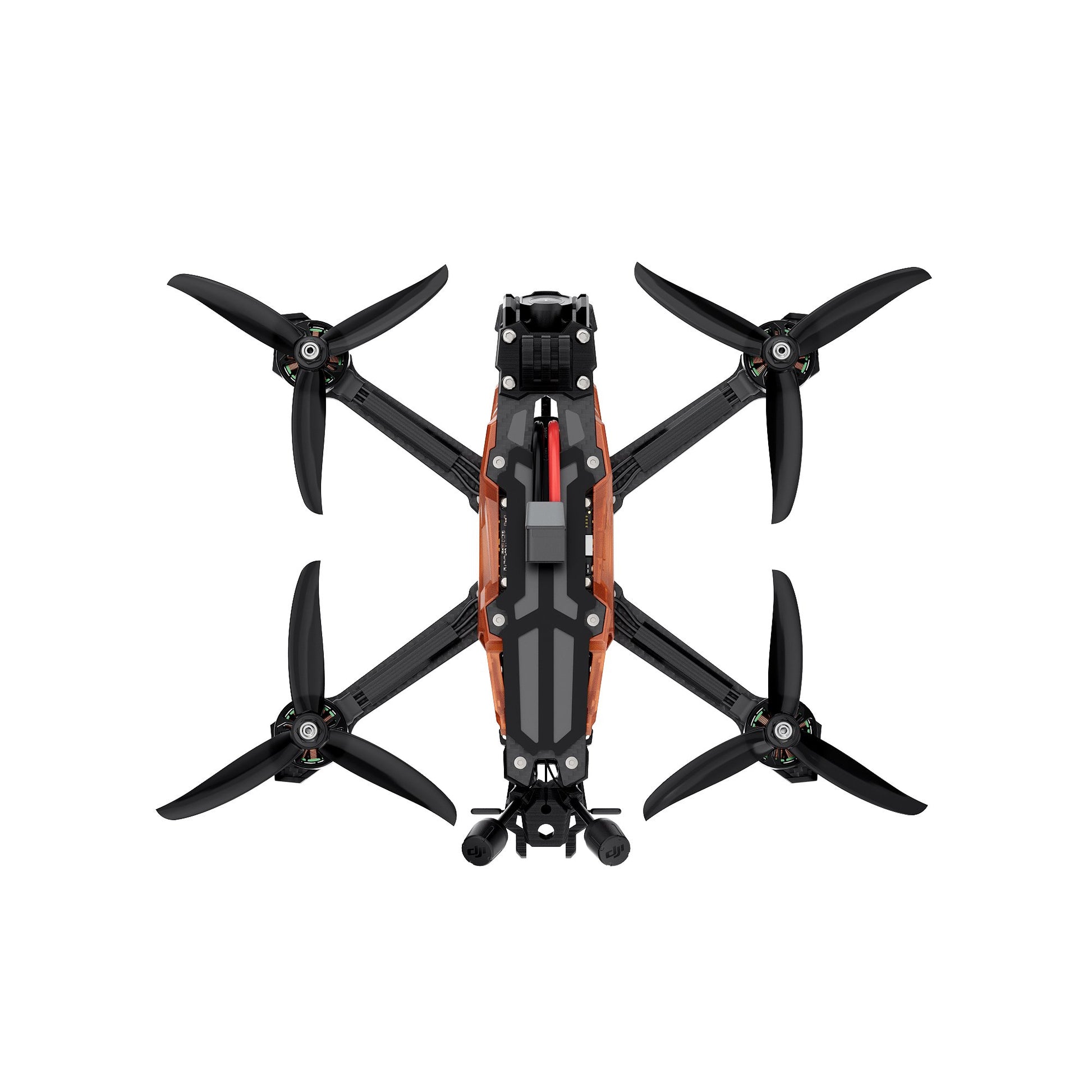

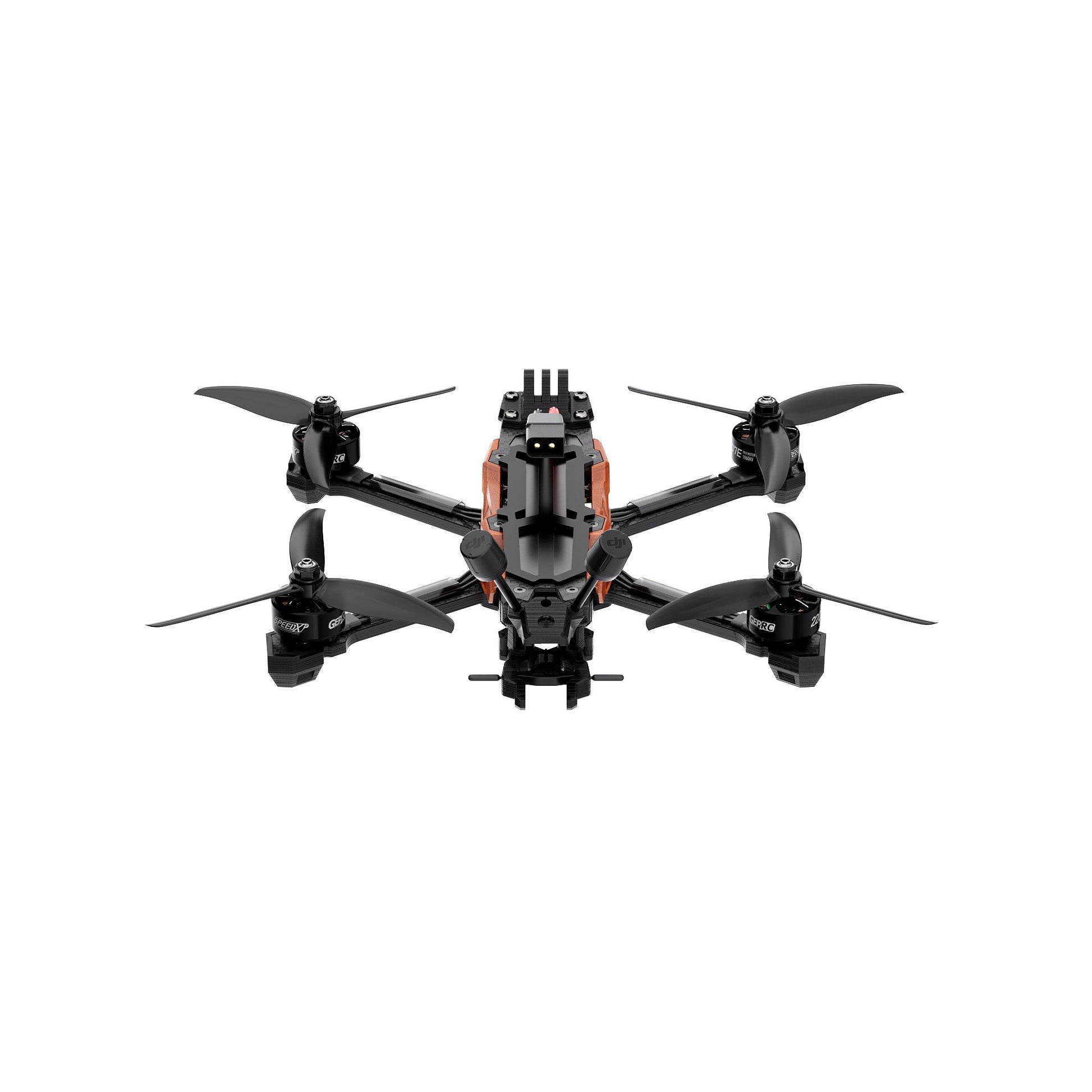

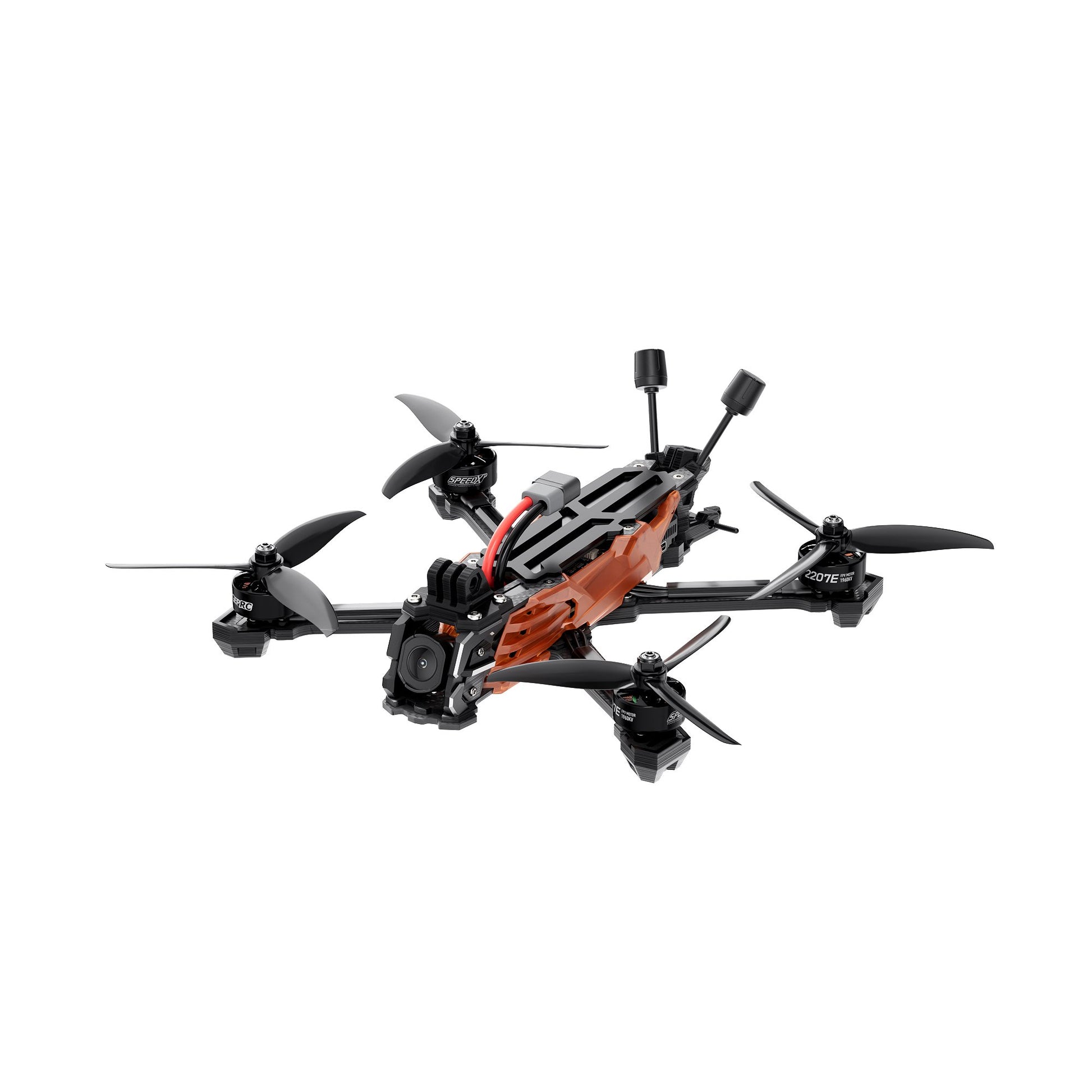

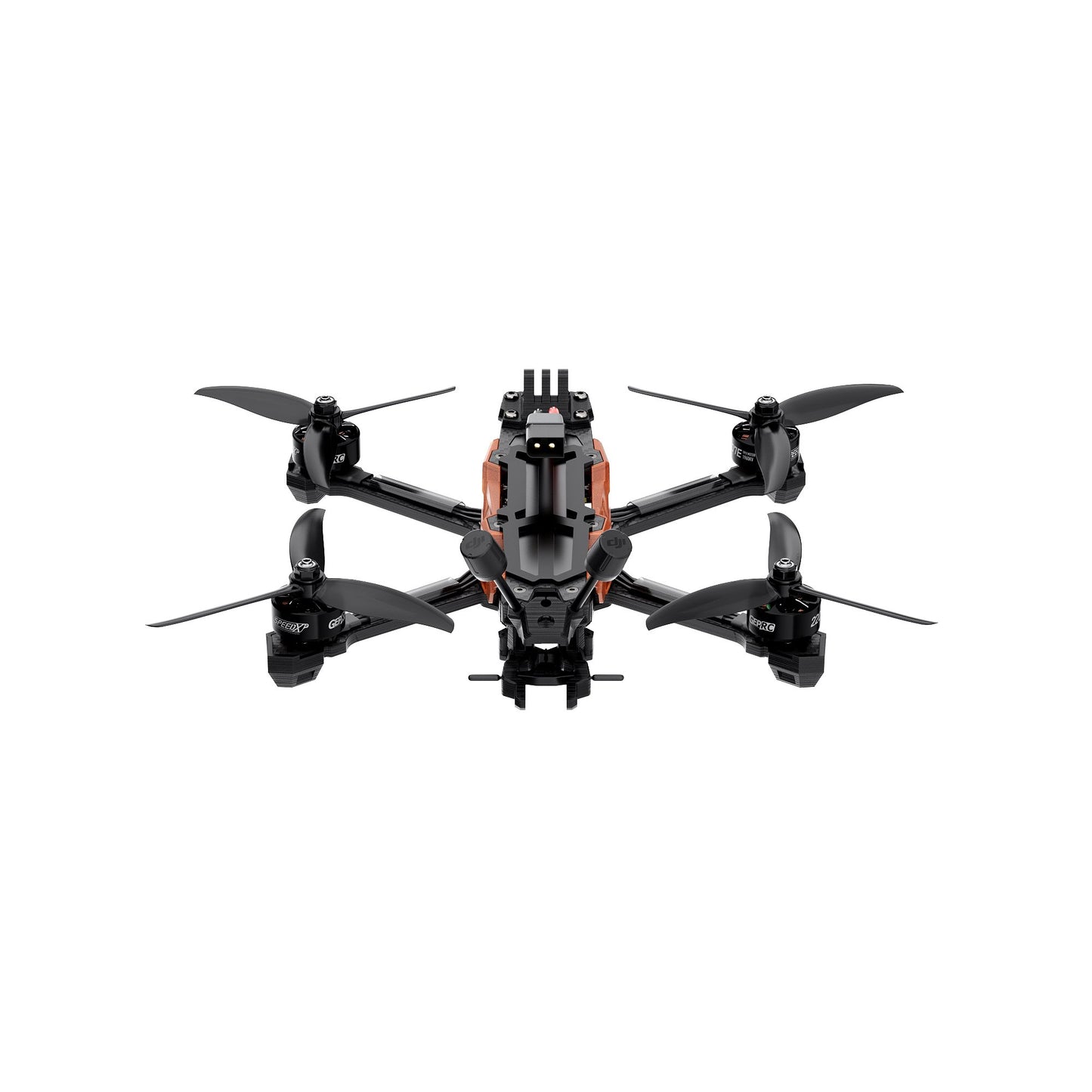

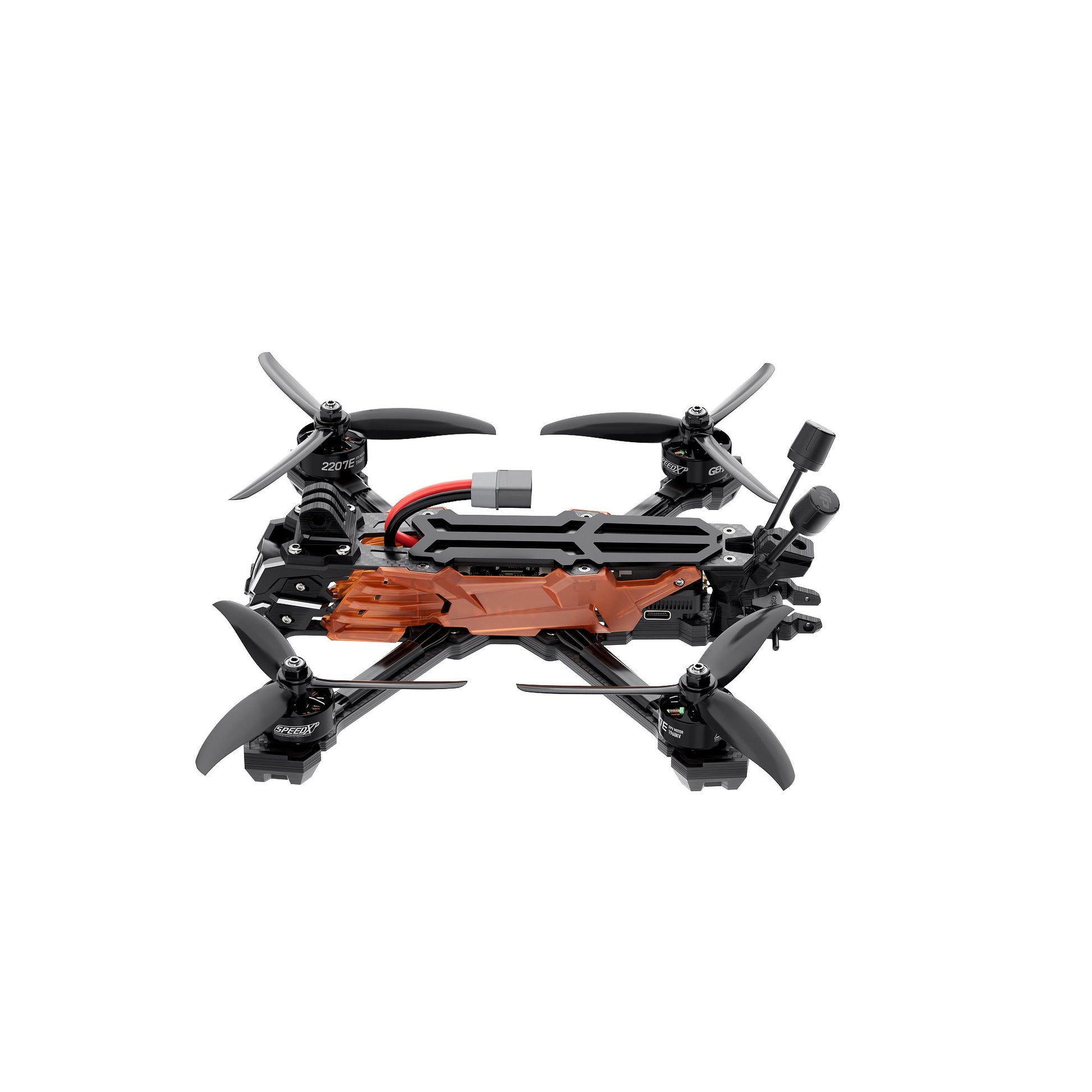

FPV drone GEPRC Vapor-X5 O4 Pro PNP
The GEPRC team has redesigned the Vapor series to be optimally compatible with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and silicone shock absorbers reduce vibration, while new sharp side panels give the drone a bold, mechanically inspired look. The DJI O4 Air Unit Pro's larger CMOS sensor improves image detail and sensitivity, while GEPRC-tuned PID settings ensure a smooth and immersive flight experience.
Features
- DJI O4 Air Unit Pro features a larger CMOS sensor for better image clarity and increased light sensitivity.
- CNC aluminum lens housing for a durable and bold design.
- GEPRC SPEEDX2 E-Series motors for smooth and powerful operation.
- Front edge design provides additional lens protection for confident flight.
- Wider 5mm carbon fiber arms for increased durability and sleek construction.
Specifications:
Model: Vapor-X5 O4 Pro
Frame: GEP-Vapor-X5 O4 Pro
Wheelbase: 230mm
Top plate: 2.0mm
Middle plate: 2.0mm
Bottom plate: 2.5mm
Arm thickness: 5.0mm
FC: GEP-F722-HD v2
MCU: STM32F722. />Optional GPS: GEP-M10 GPS
5 inch motor: GEPRC SPEEDX2 2207E 1960 KV
5 inch propeller: GEMFAN 5136
Vapor-X5 O4 PNP version Weight: 409g ± 5g
Receiver: PNP
Recommended battery: 6S LiPo1300mAh – 1800mAh
Flight time: 14-19 min
Package includes:
1 x Vapor-X5 O4 Pro
2 x GEMFAN 5136
2 x Anti-Slip Battery Pads
1 x Set of Spare Screws
1 x Vapor Side Panel
2 x M20*250mm Battery Straps
1 x 1.5mm L-Shaped Screwdriver
1 x 2.0mm L-Shaped Screwdriver
1 x GoPro mount
Replacement screws include:
6 x Round head screws M3*10mm
6 x Round head screws M3*8mm
2 x Flat head screws M3*6mm
1 x Thin head screw M5*28mm
1 x Flange nut M5
4 x Rivet nut M3
