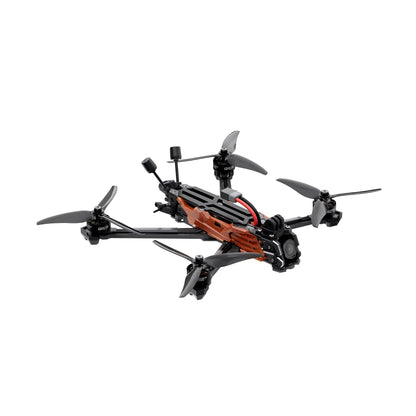

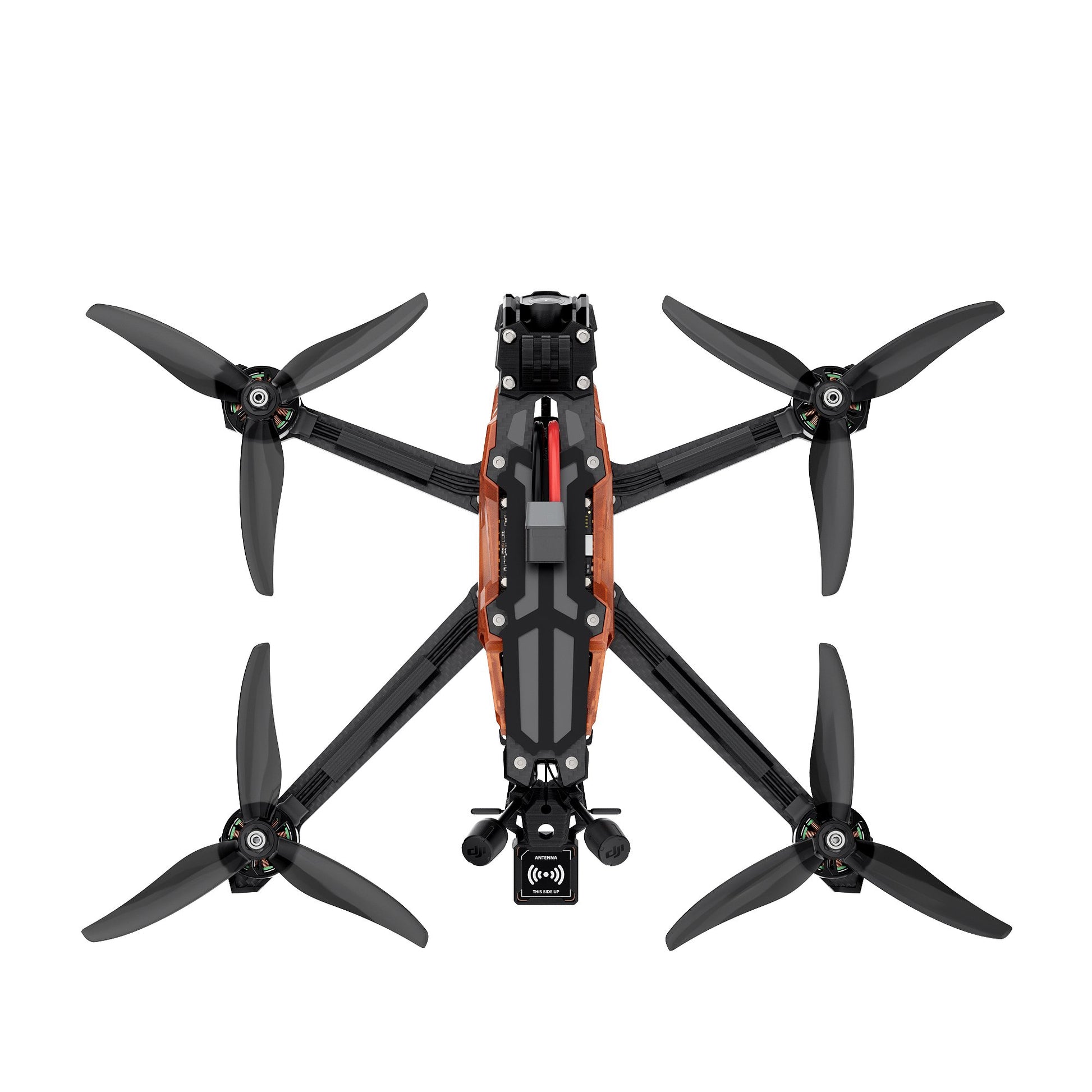

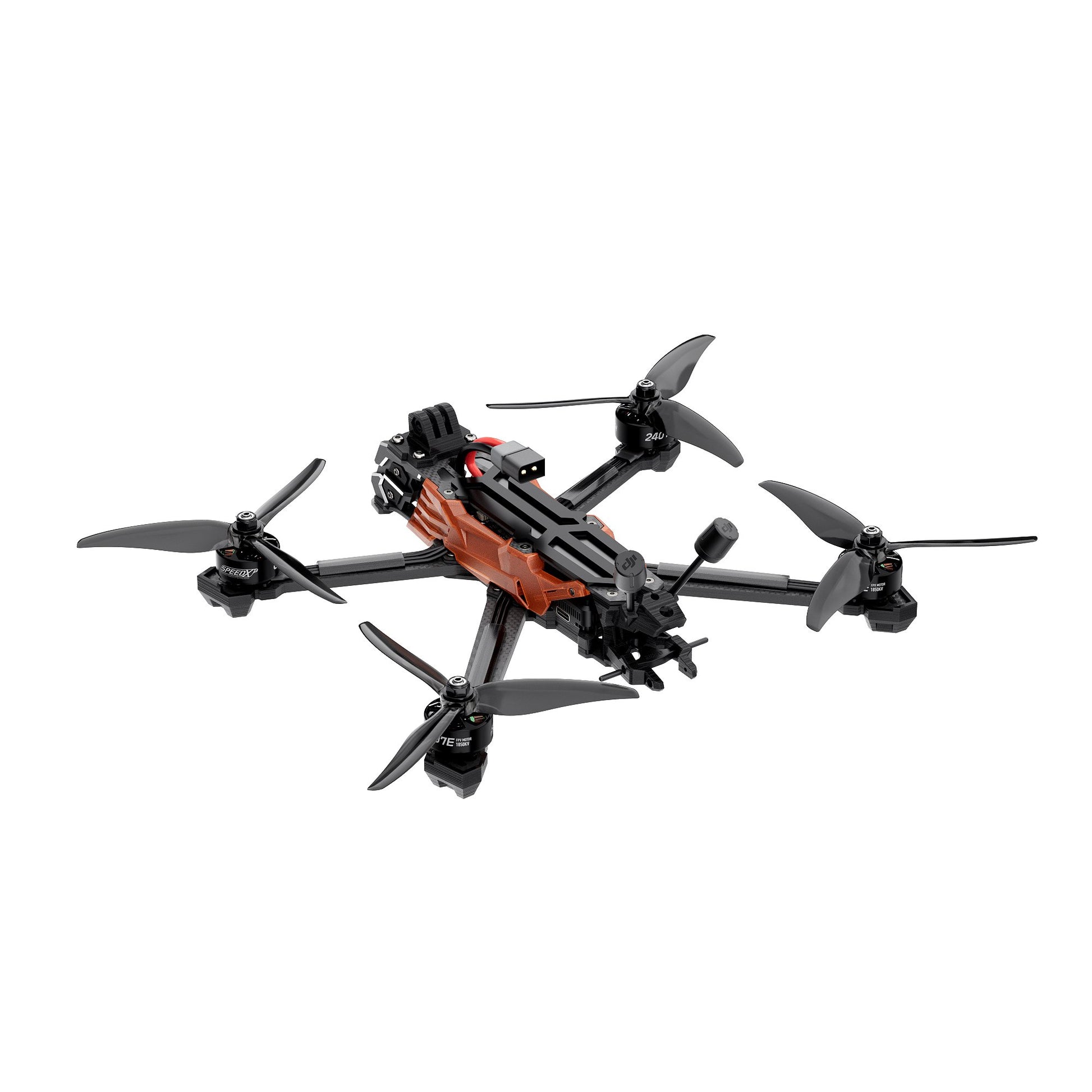

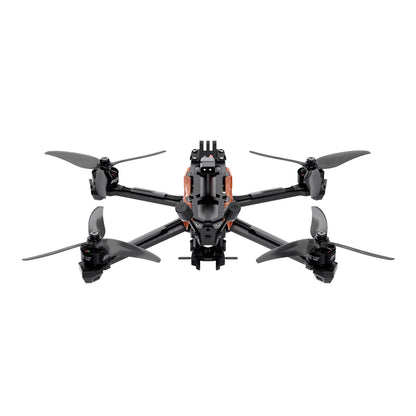

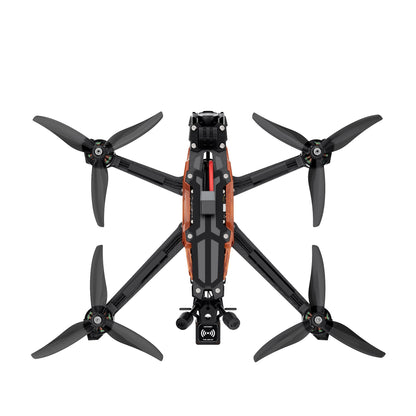

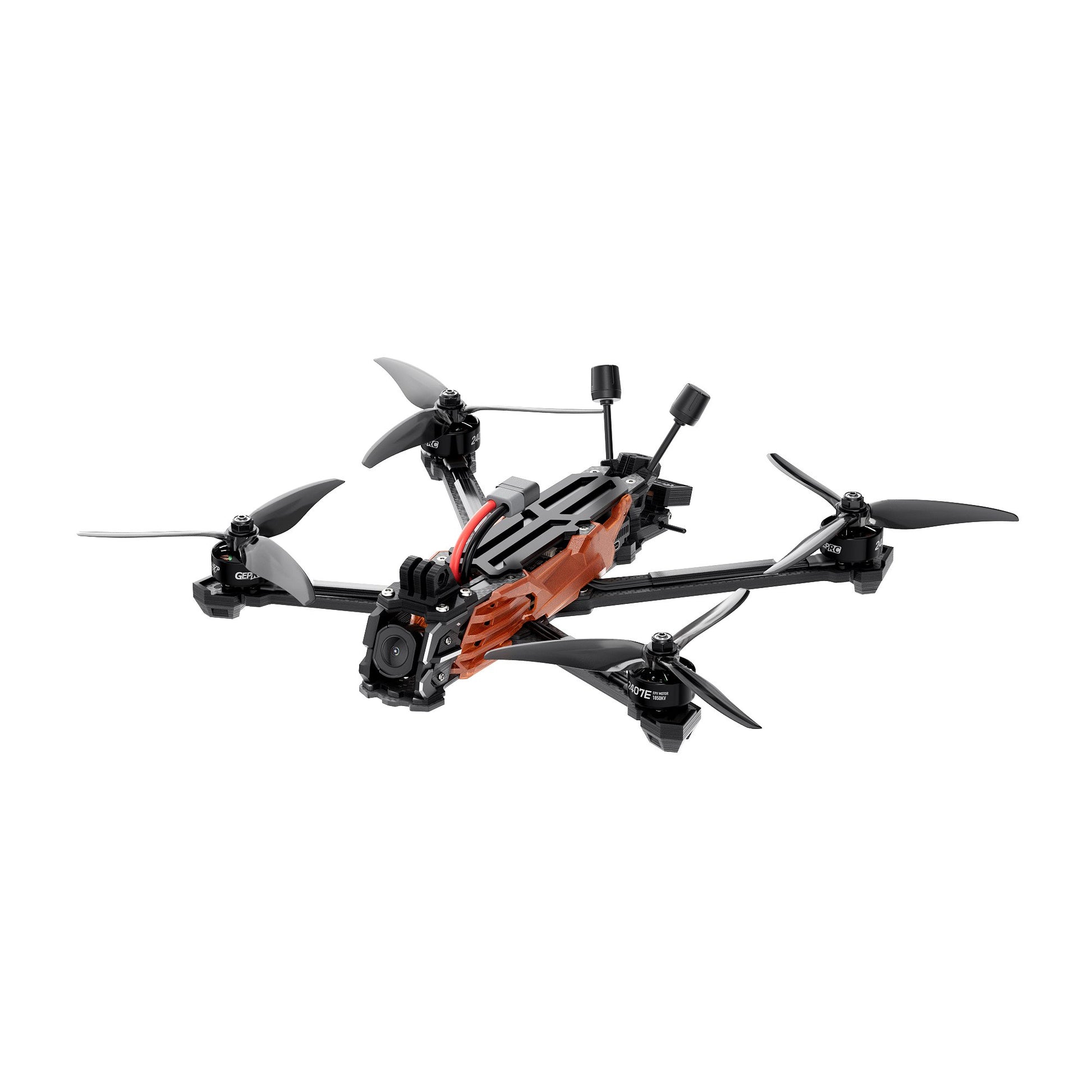

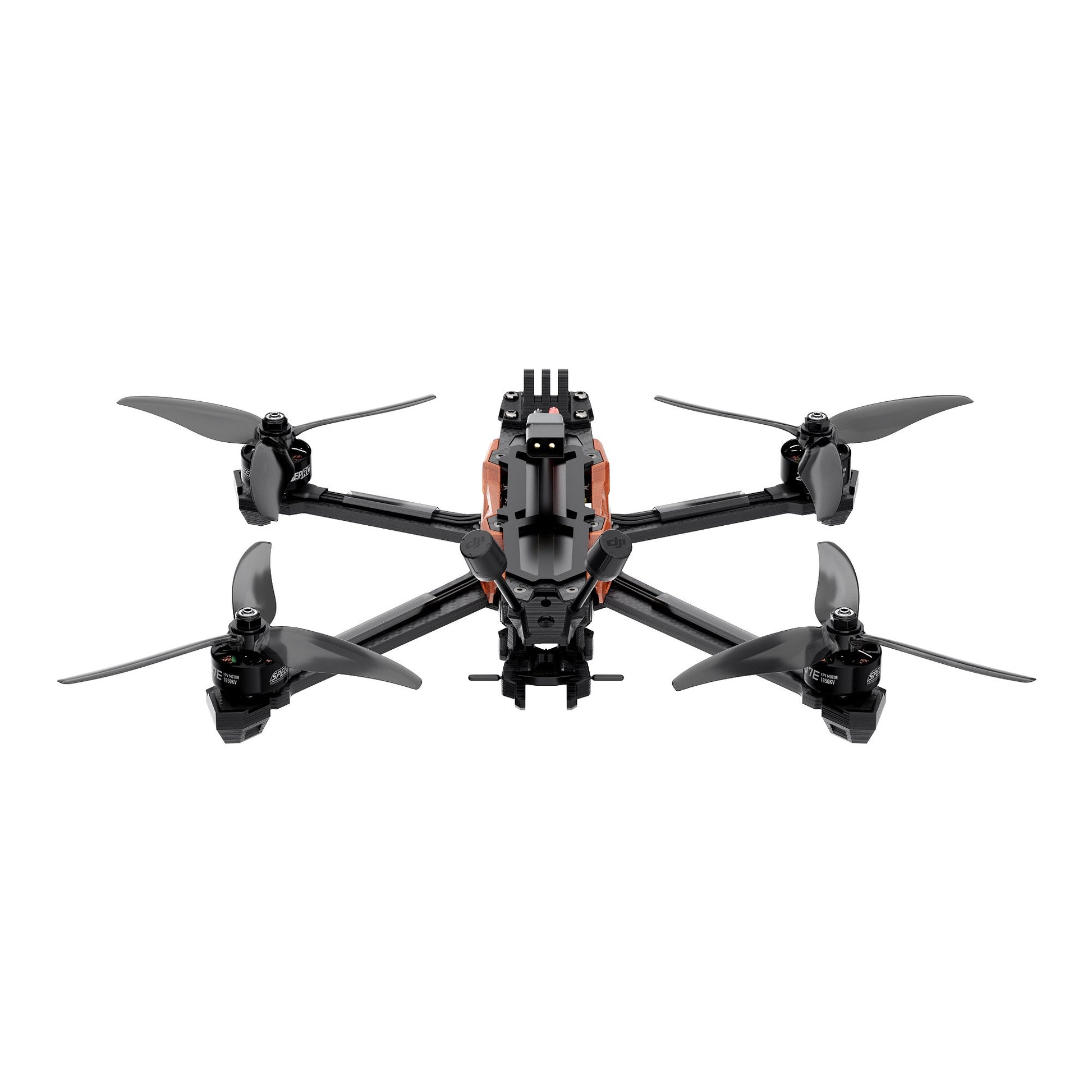

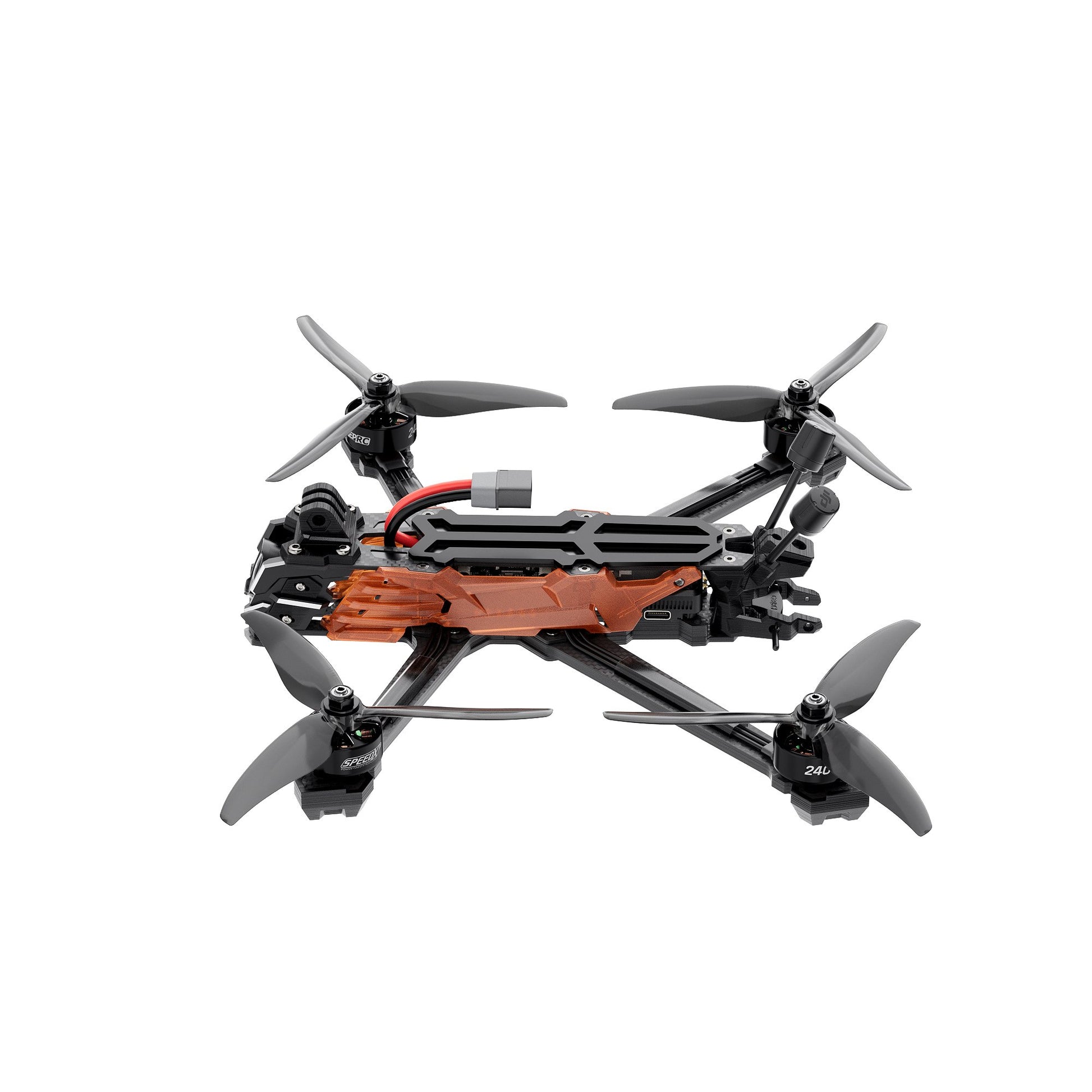

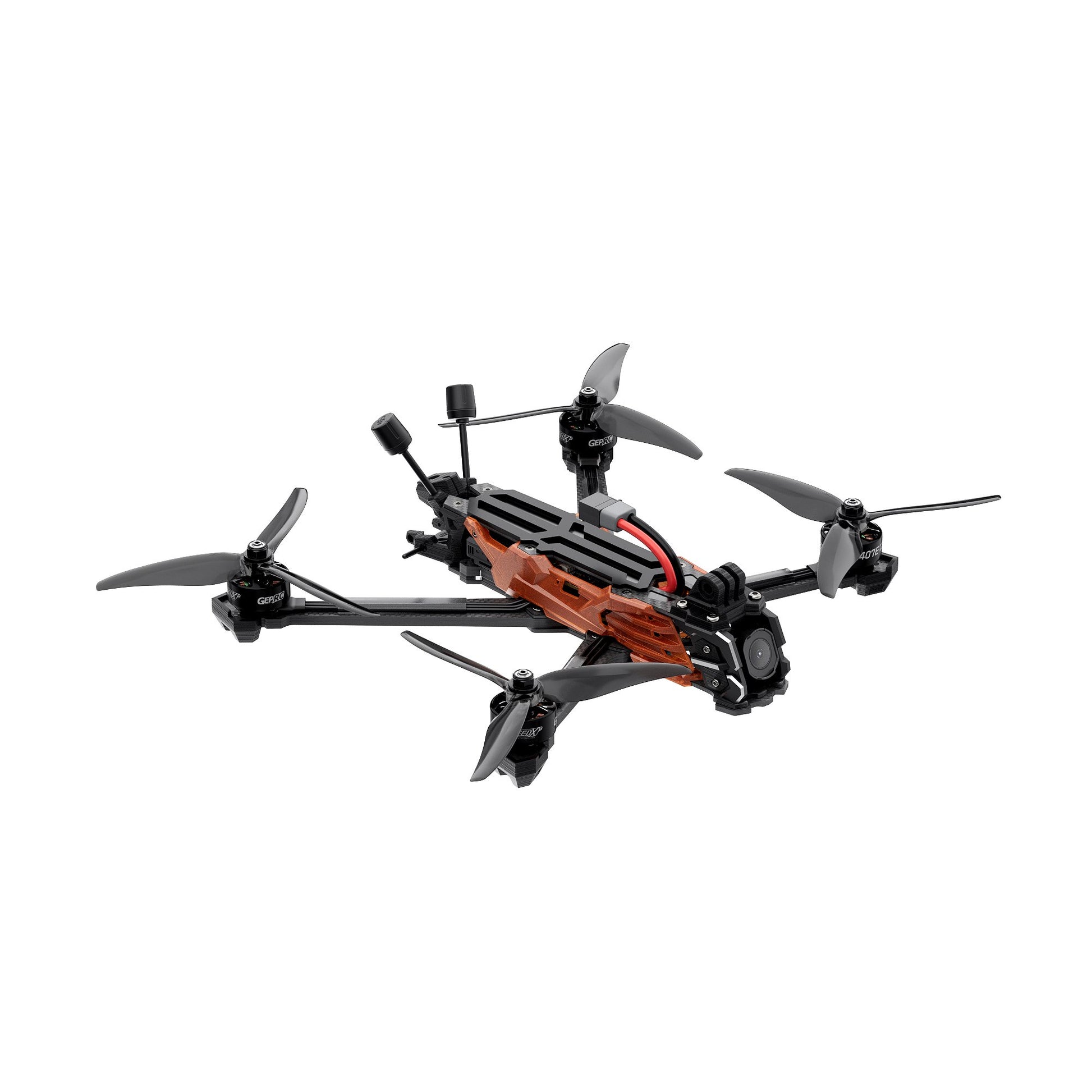

FPV drone GEPRC Vapor-D6 O4 Pro TBS Nano RX GPS The GEPRC Vapor-D6 O4 Pro is a powerful FPV drone designed specifically for seamless integration with the DJI O4 Air Unit Pro. Designed for both strength and precision, the Vapor series now features a CNC-machined aluminum lens housing and shock-absorbing silicone elements that significantly reduce vibration for ultra-smooth video. Thanks to the DJI O4 Air Unit Pro, the drone benefits from a powerful CMOS sensor that provides improved image clarity and excellent low-light performance. Bold mecha-inspired side panels add both durability and style, while the front edge provides additional lens protection for aggressive flights. Specifications: Model: Vapor-D6 O4 Pro Frame: GEP-Vapor-D6 O4 Pro frame Wheelbase: 274.60 mm Top plate: 2.0mm Middle plate: 2.0mm Bottom plate: 2.5 mm Arm thickness: 5.0 mm Flight Controller (FC): GEP-F722-HD v2 MCU: STM32F722 Gyroscope: ICM42688-P (SPI) Barometer: YES OSD: Betaflight OSD with AT7456E ESC: TAKER H60_BLS 60A 4IN1 ESC VTX: DJI O4 Air Unit Pro Transfer Module Camera: DJI O4 Air Unit Pro transfer module Antenna: DJI O4 Air Unit Pro antenna Connector: XT60 GPS: GEP-M10 6 inch motor: GEPRC SPEEDX2 2407E 1750KV 6 inch propeller: HQprop 6X3.5X3 Weight: 465g ±5g Receiver: TBS Nano RX Recommended battery: 6S LiPo 1500mAh – 2000mAh Flight time: 14-19 minutes The package contains: 1 x Vapor-D6 O4 Pro 2 x HQprop 6X3.5X3 2 × Anti-slip mats under the battery 1 × Spare set of screws 1 × Vapor side panel 2 × Battery straps M20*250 mm 1 x L-wrench 1.5mm 1 x L-wrench 2.0mm 1 x GoPro Mount
