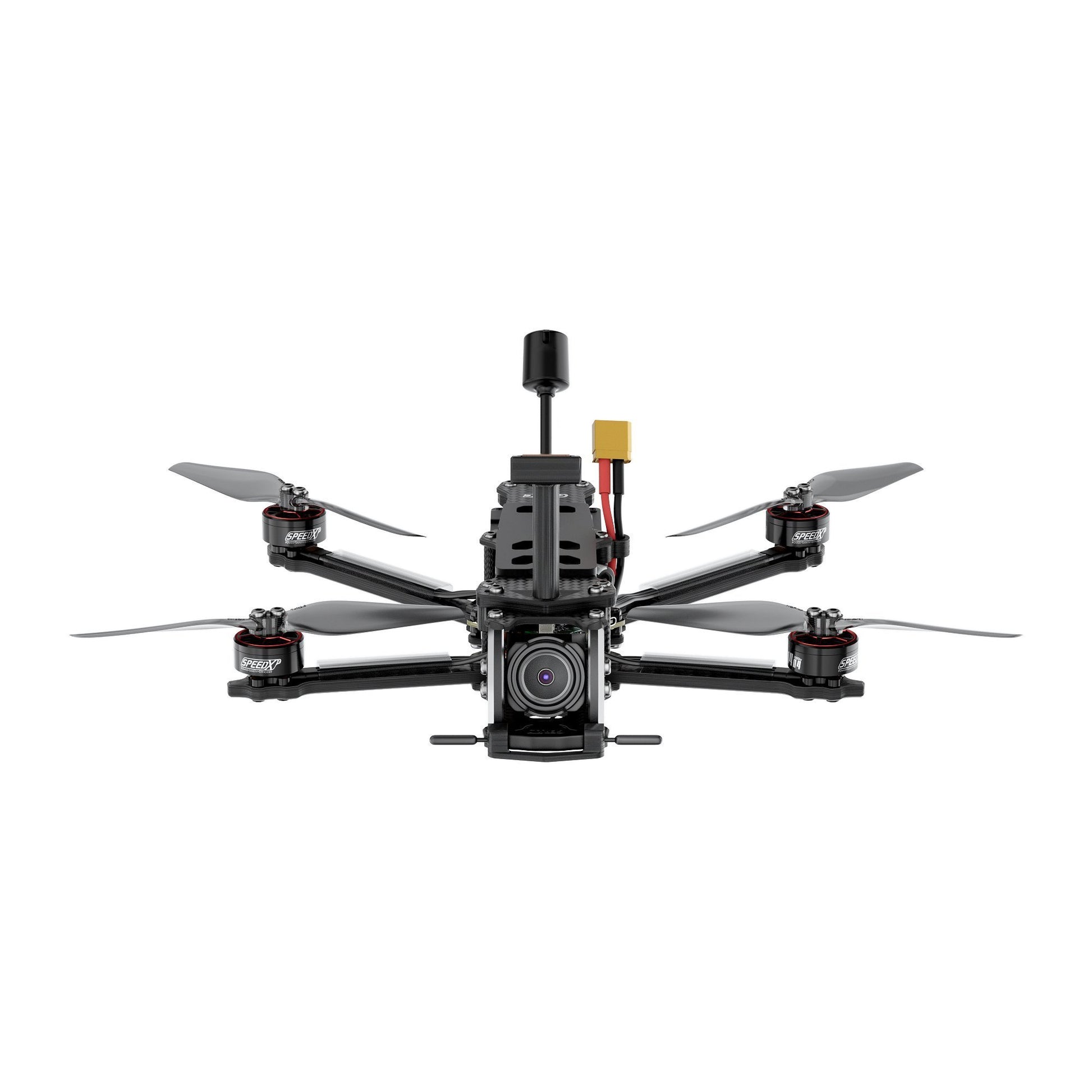

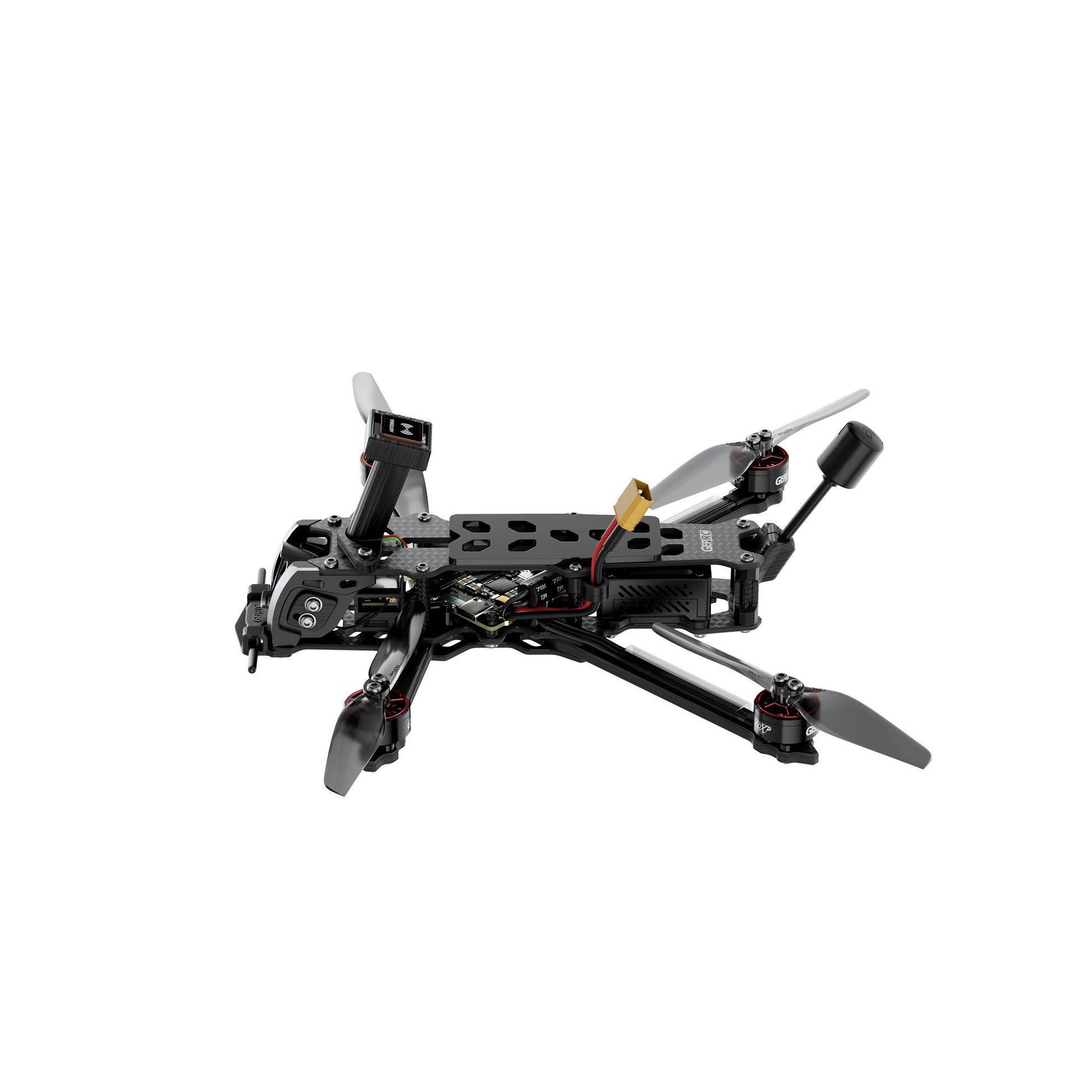

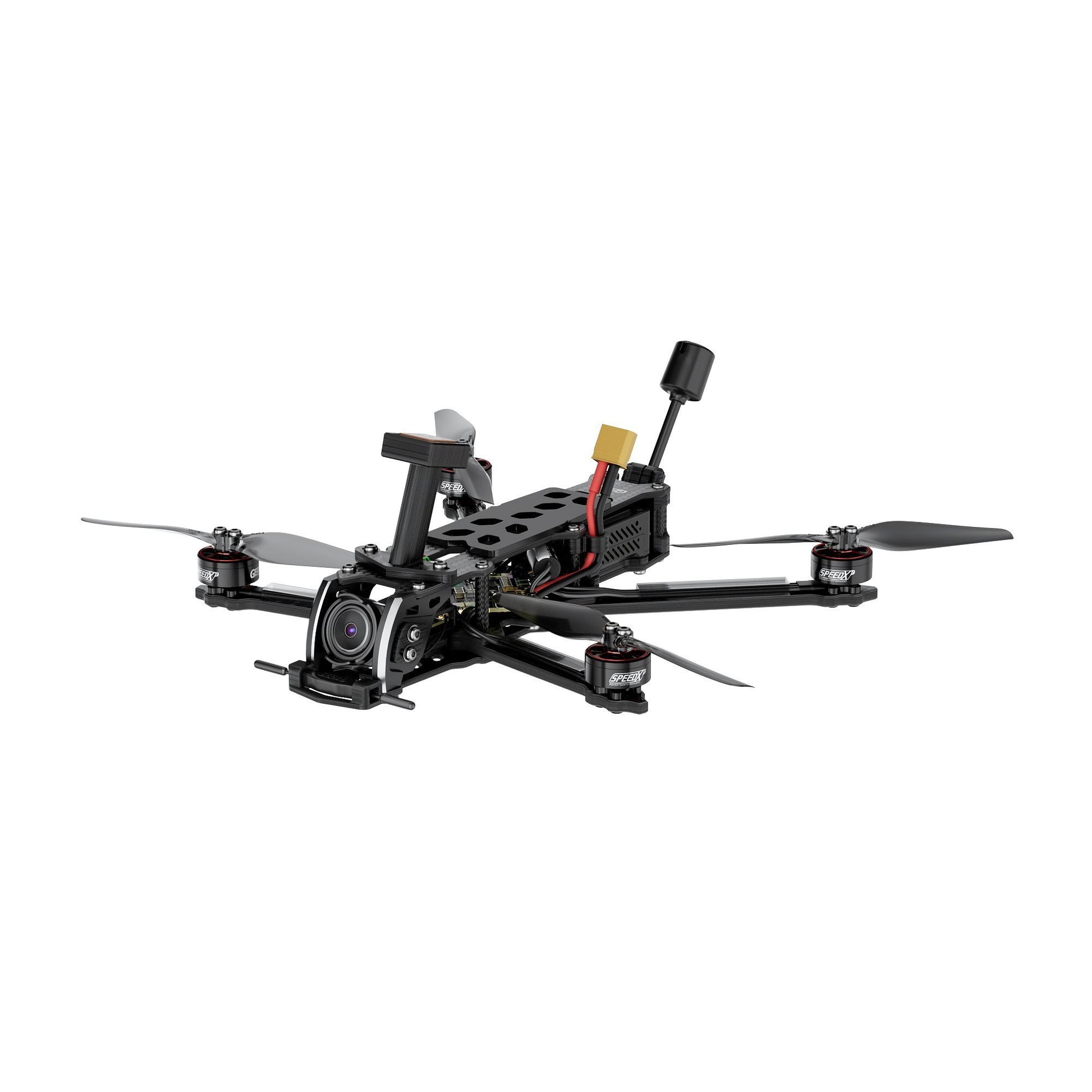

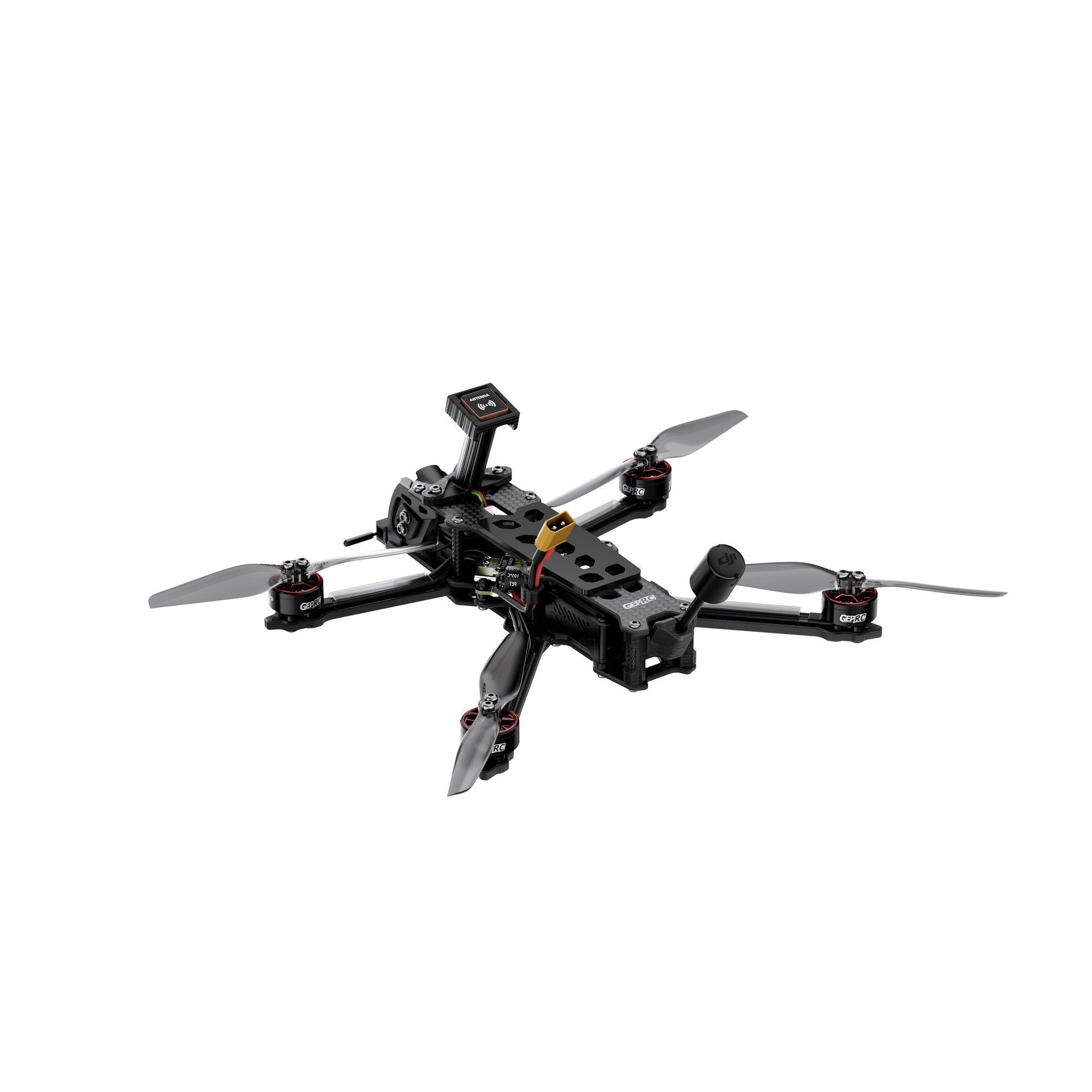

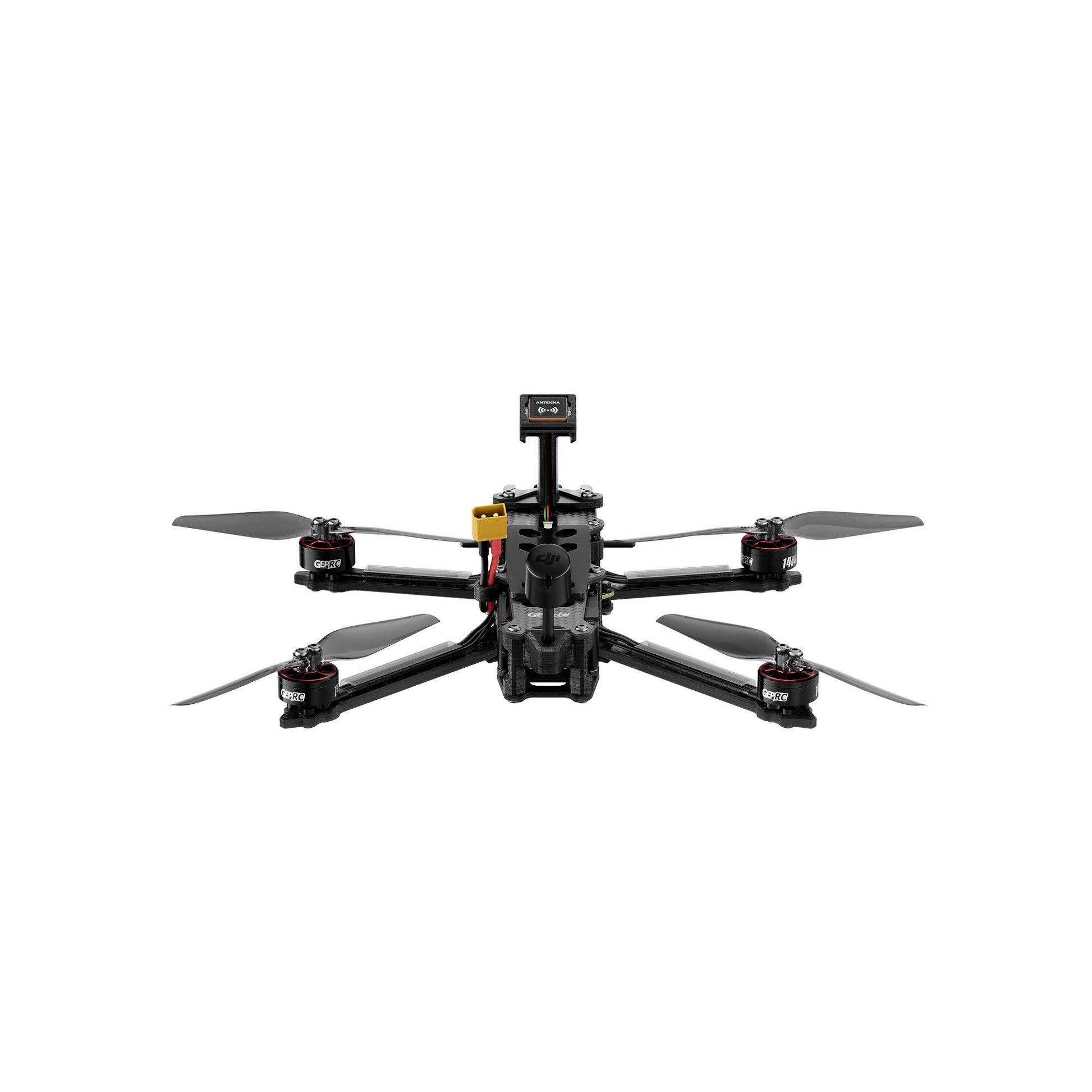

GEPRC Tern-LR40 HD O3 ELRS2.4 FPV Drone
Tern-LR40 is a new 4 inch FPV drone from GEPRC with excellent performance and reliability. It adopts a DC type structure. Its meticulous lightweight construction uses 7075 aircraft grade aluminum parts.
It is equipped with the Taker G4 45A AIO flight controller, which has higher redundancy of processing power. By using a top-mounted fixed GPS, the impact of its own electromagnetic interference on the flight can be avoided, and the rescue function is more stable. The camera's shock-absorbing silicone pad prevents high-frequency jello from the O3 camera.
Function:
- New lightweight design, weight under 249 g.
- Expand GPS fix jamming method and stay away from jamming sources.
- The DC structure does not see the propeller in flight, which is more suitable for direct aerial photography.
- Install the BB ring to set the low battery voltage alarm.
- Using GPS GEP-M10nano, the satellite search speed is higher and the rescue mode is more stable.
- Compatible GoPro mount installation, expandable shooting creation.
Specifications:
Model: Tern-LR40
Frame: Tern-LR40 frame
Wheelbase: 180 mm
Top plate: 1.5 mm
Middle plate: 2.0mm
Bottom plate: 1.5 mm
Arm thickness: 3.5 mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E
ESC: 32bit 45A
VTX: Air Unit O3
Camera: O3 camera
Antenna: 5.8G and 2.4G
Motors: GEP-SPEEDX2 1404 3000KV
Connector: XT30
Propeller: HQProp T4X2.5Grey (2CW+2CCW)
Weight of the Tern-LR40 O3 PNP version: 180g±5g
Receiver: GEPRC ELRS24
Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25 min
The package includes:
1 x Tern-LR40
2 x HQProp T4X2.5 Gray (2CW+2CCW)
2 x Battery non-slip mat
1 x pack of screws
4 x battery strap M15*170mm
1 x 1.5mm L-shaped screwdriver
1 x GoPro camera mount
1 x T-type antenna holder
1 x RC print
