FPV drone GEPRC Tern-LR40 Analog PNP
Please note that this version does not include GPS M-10.

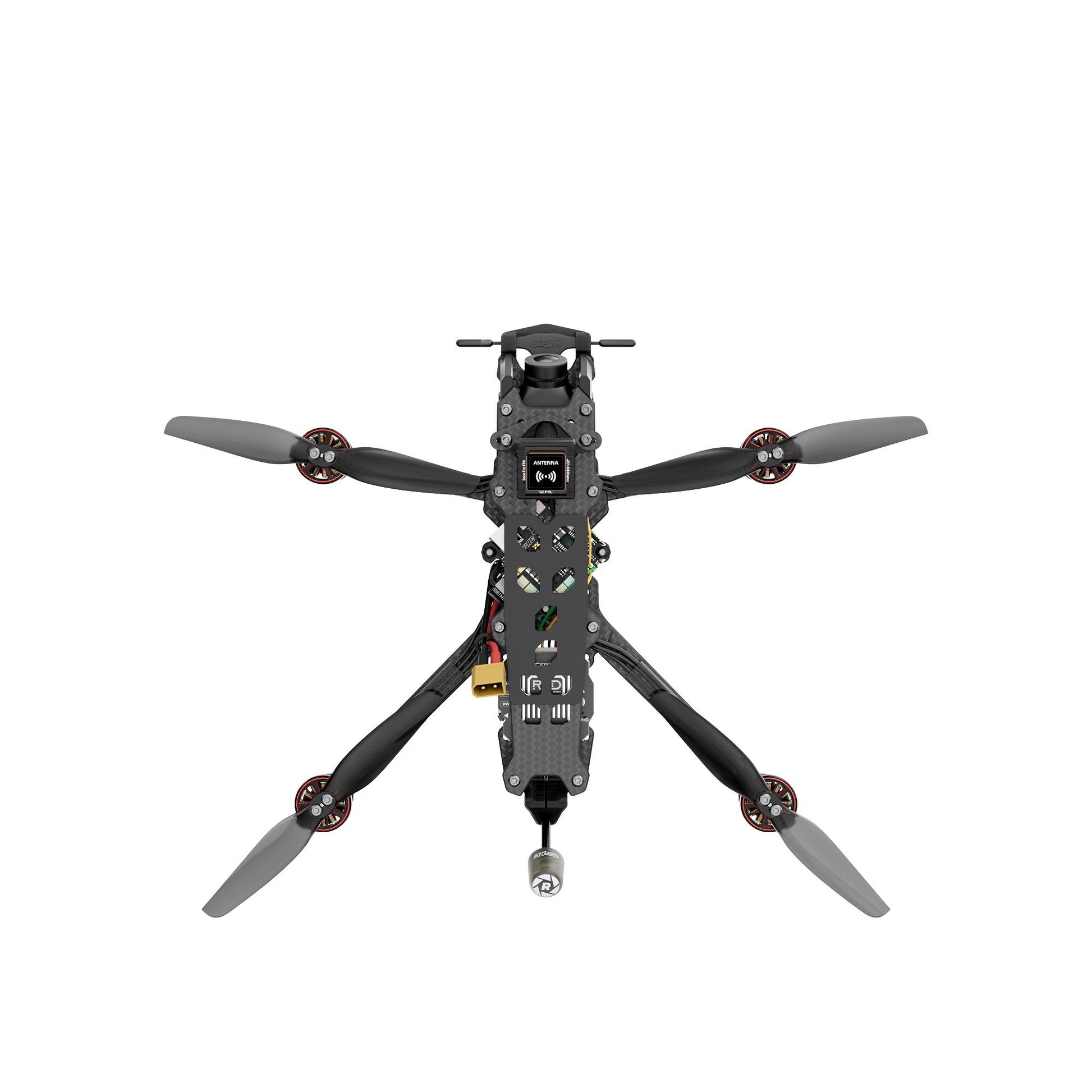

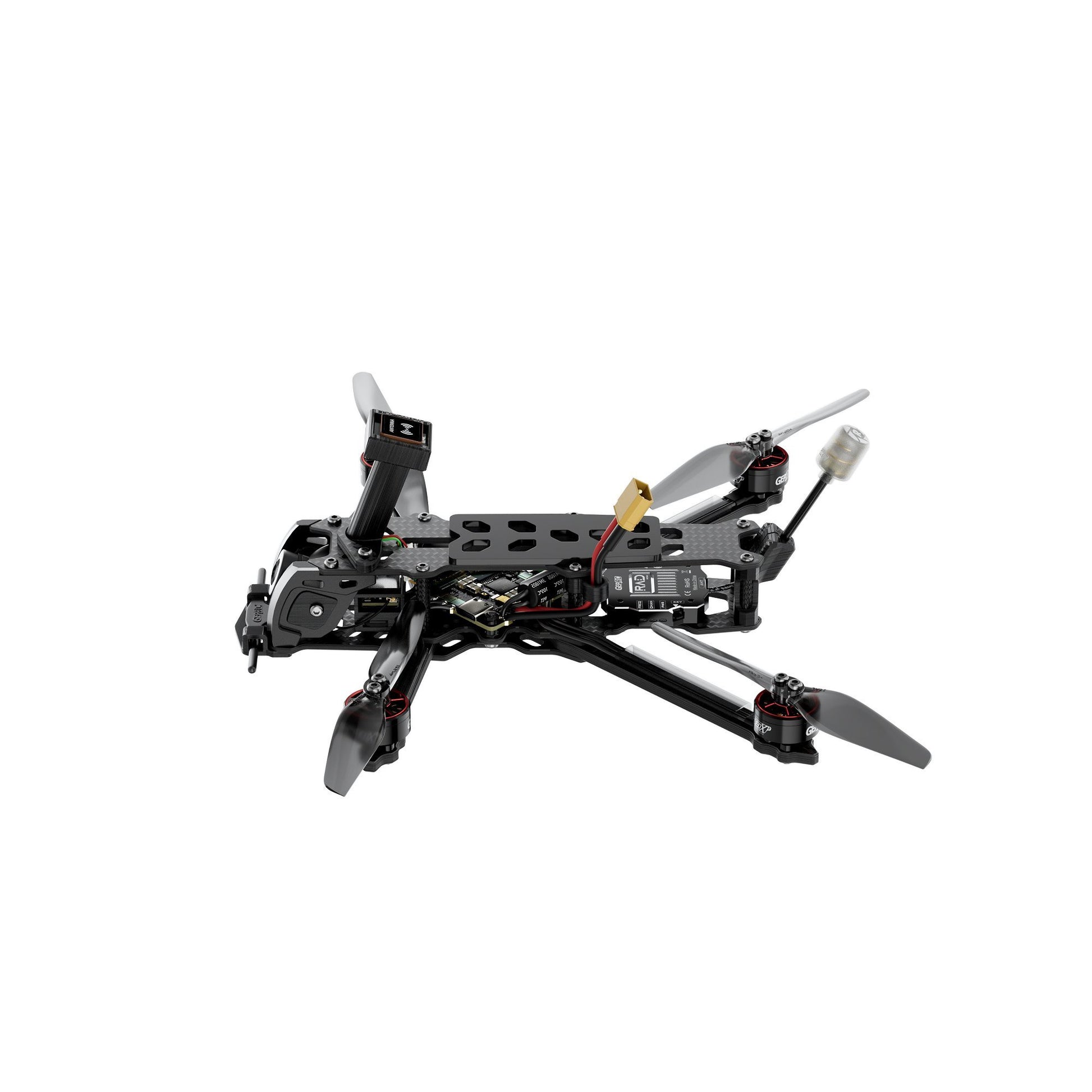

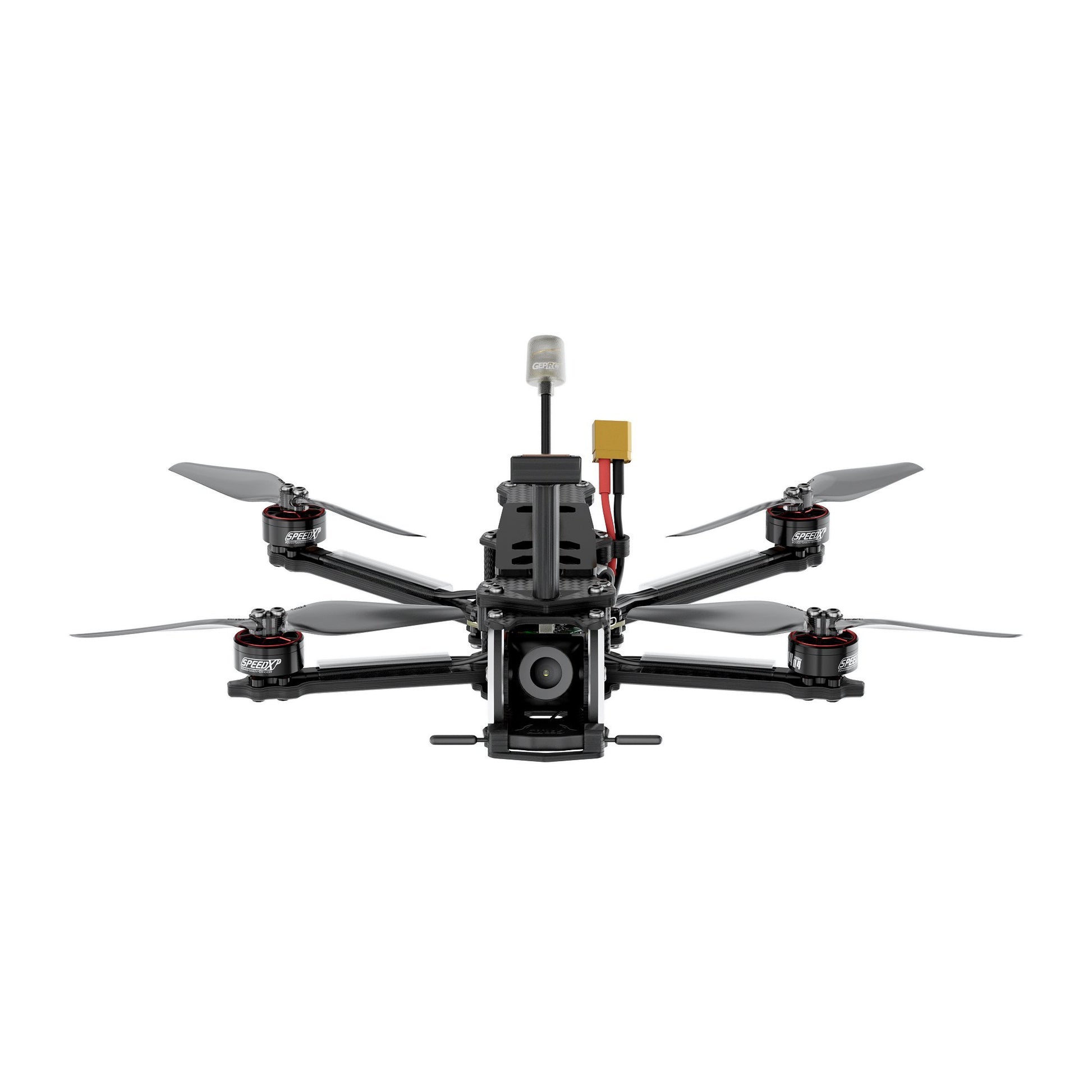

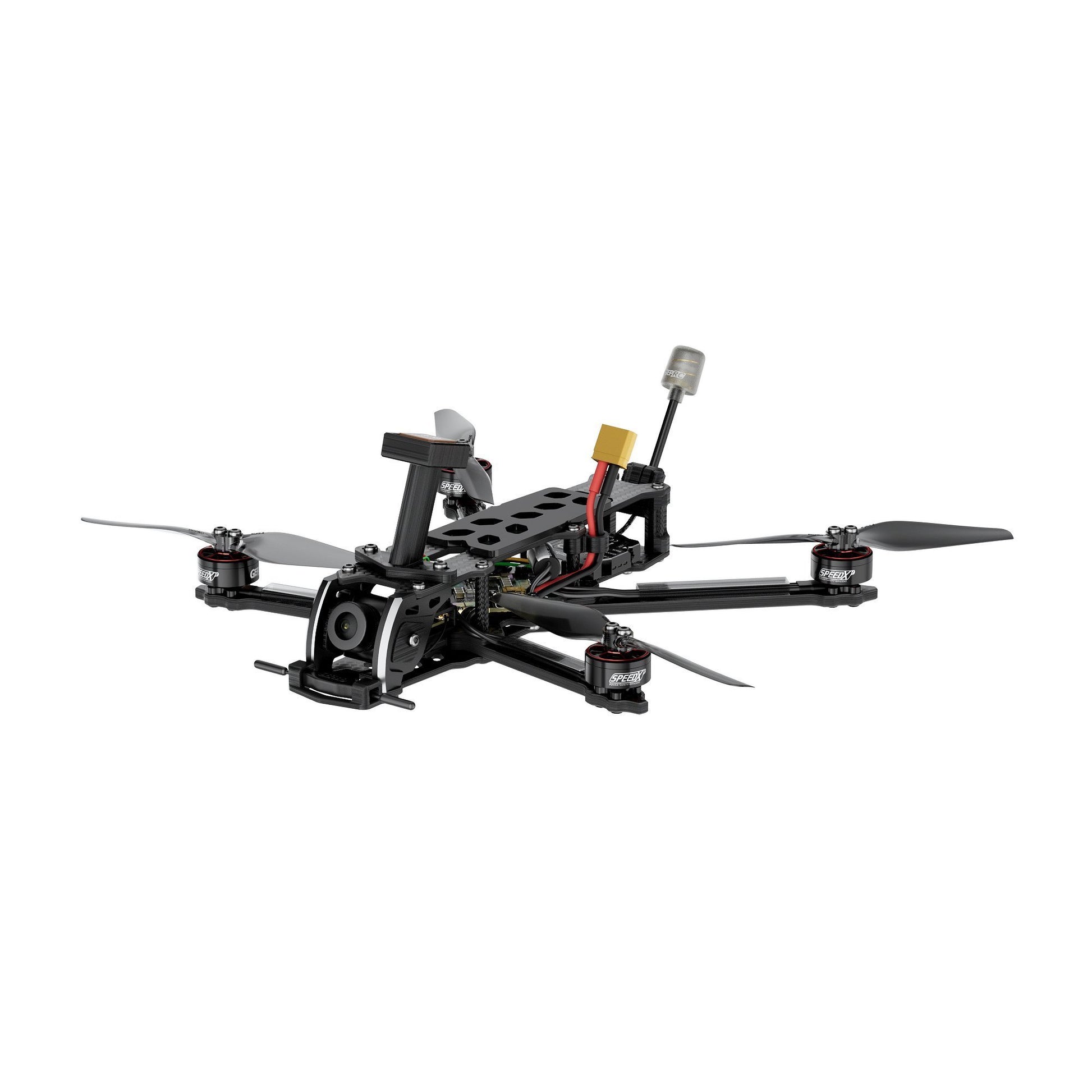

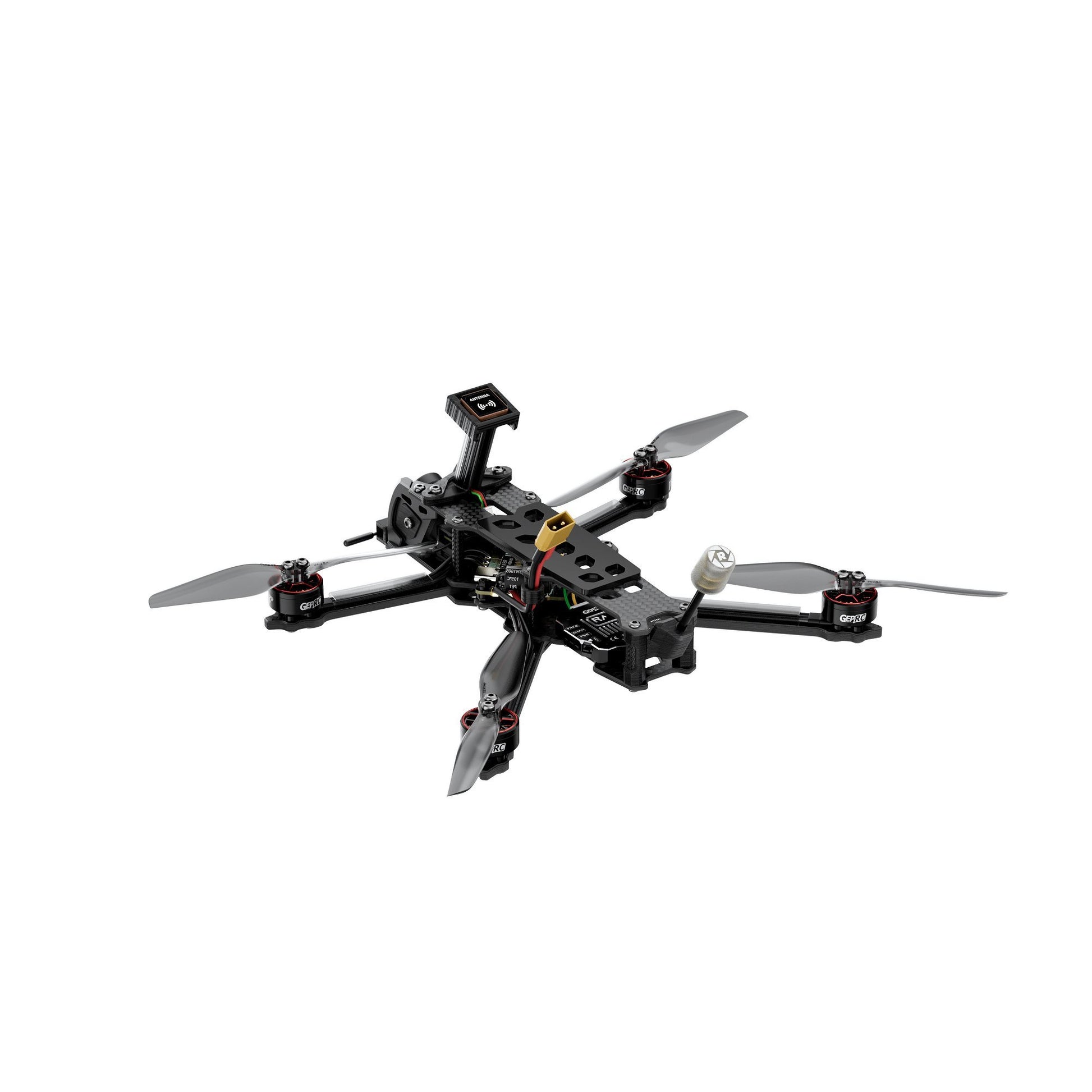

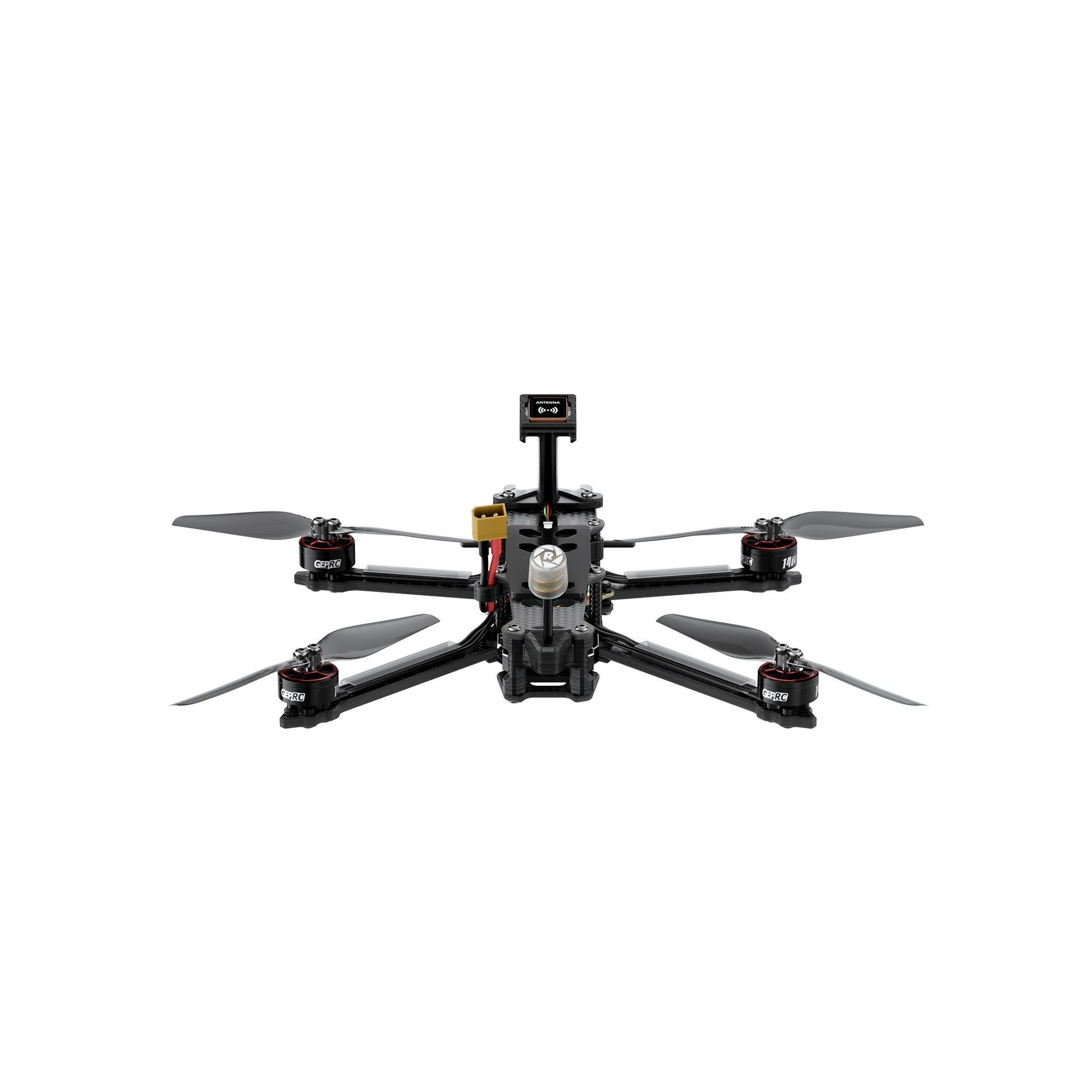

FPV drone Tern-LR40 Analog PNP
Features: New lightweight construction, weight under 249 g. An advanced method of GPS fixation and removal of interfering sources Due to the DC design, the propellers are not visible during flight, which is more suitable for straight-line aerial photography. Install the BB ring to set the low battery alarm Thanks to GPS GEP-M10nano, the satellite search speed is higher and the rescue mode is more stable. Compatible with GoPro mount installation, extended shooting possibilities. Specifications: Model: Tern-LR40 Frame: Tern-LR40 frame Top plate: 1.5 mm Middle plate: 2.0mm Bottom plate: 1.5 mm Arm thickness: 3.5 mm FC: Taker G4 45A AIO MCU: STM32G473CEU6 Gyroscope: ICM 42688-P OSD: Betaflight OSD with AT7456E ESC: 32bit 45A VTX: RAD mini 1W Camera: Caddx Ratel2 Antenna: GEPRC Peano 5.8G RHCP UFL Connector: XT30 Motors: GEP-SPEEDX2 1404 3000KV Propeller: HQProp T4X2.5Grey (2CW+2CCW) Tern -LR40 Analog version PNP weight: 159 g ± 5 g Receiver: PNP Recommended battery: LiPo 4S 660mAh-850mAh/18650 3000mAh Flight time: 10-25 min Contains: 1 x Tern-LR40 2 x HQProp T4X2.5Grey (2CW+2CCW) 2 x non-slip mat for batteries 1 x pack of screws 4 x battery tape M15*170 mm 1 x L-shaped screwdriver 1.5 mm 1 x GoPro camera mount 1 x T-type antenna holder 1 x RC printed
