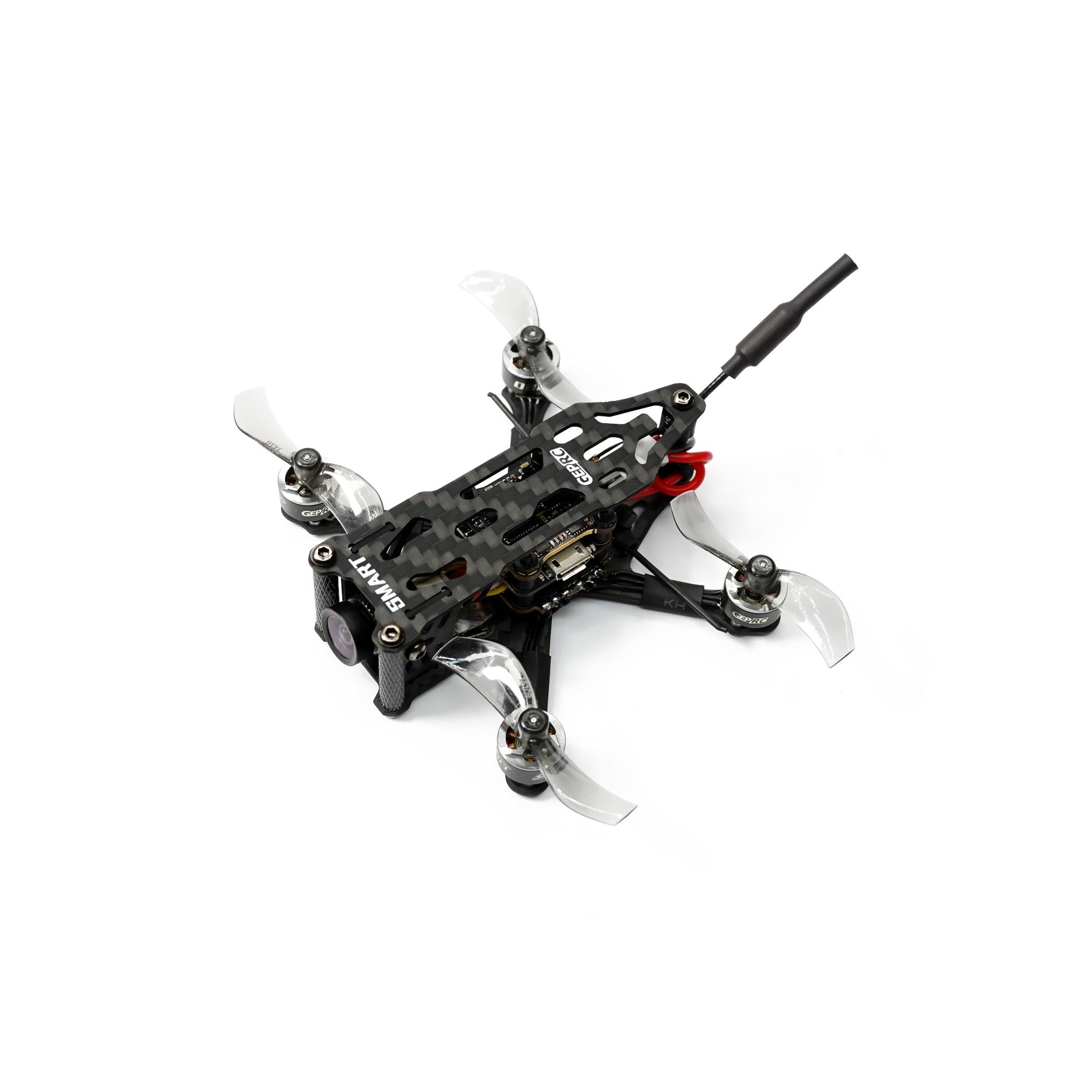

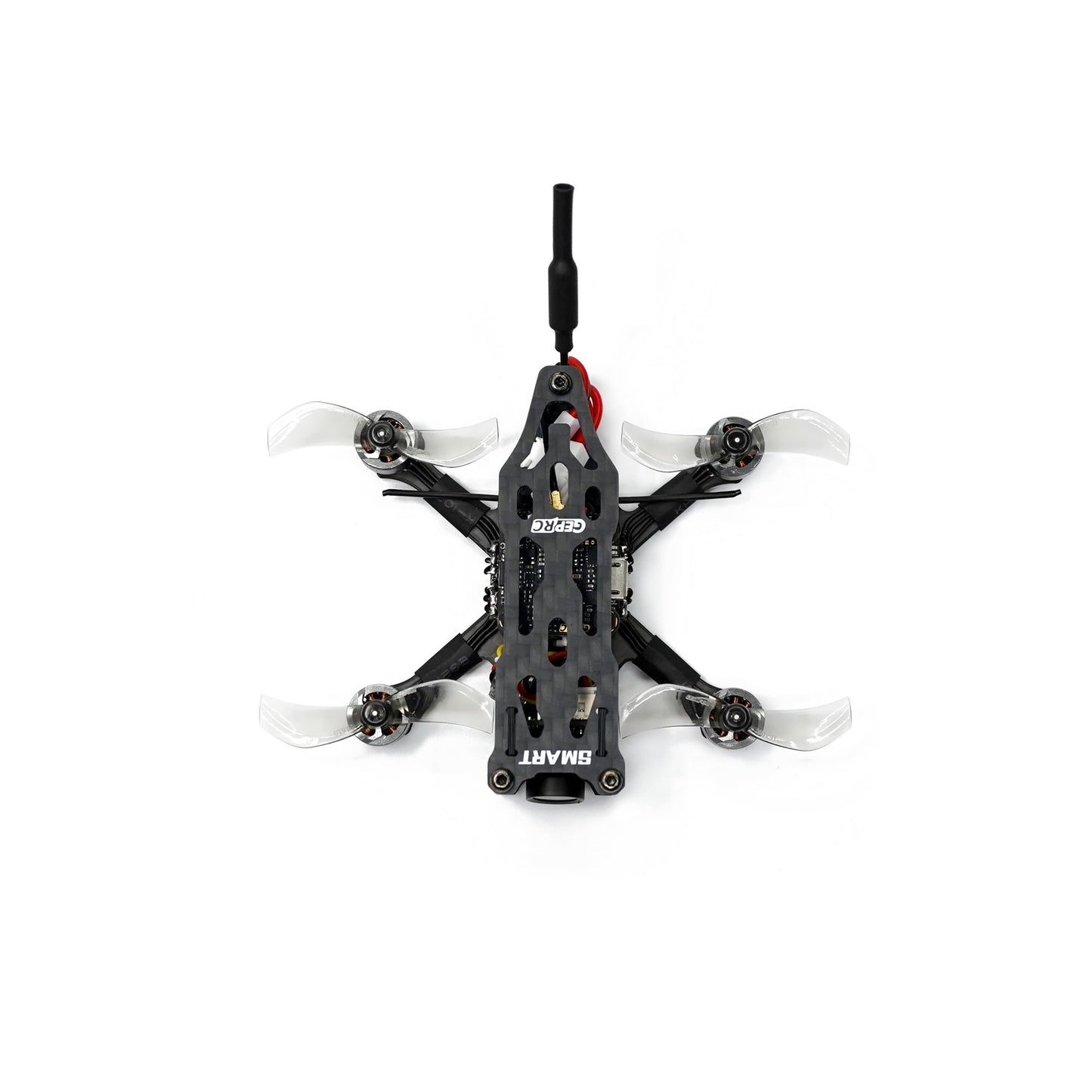

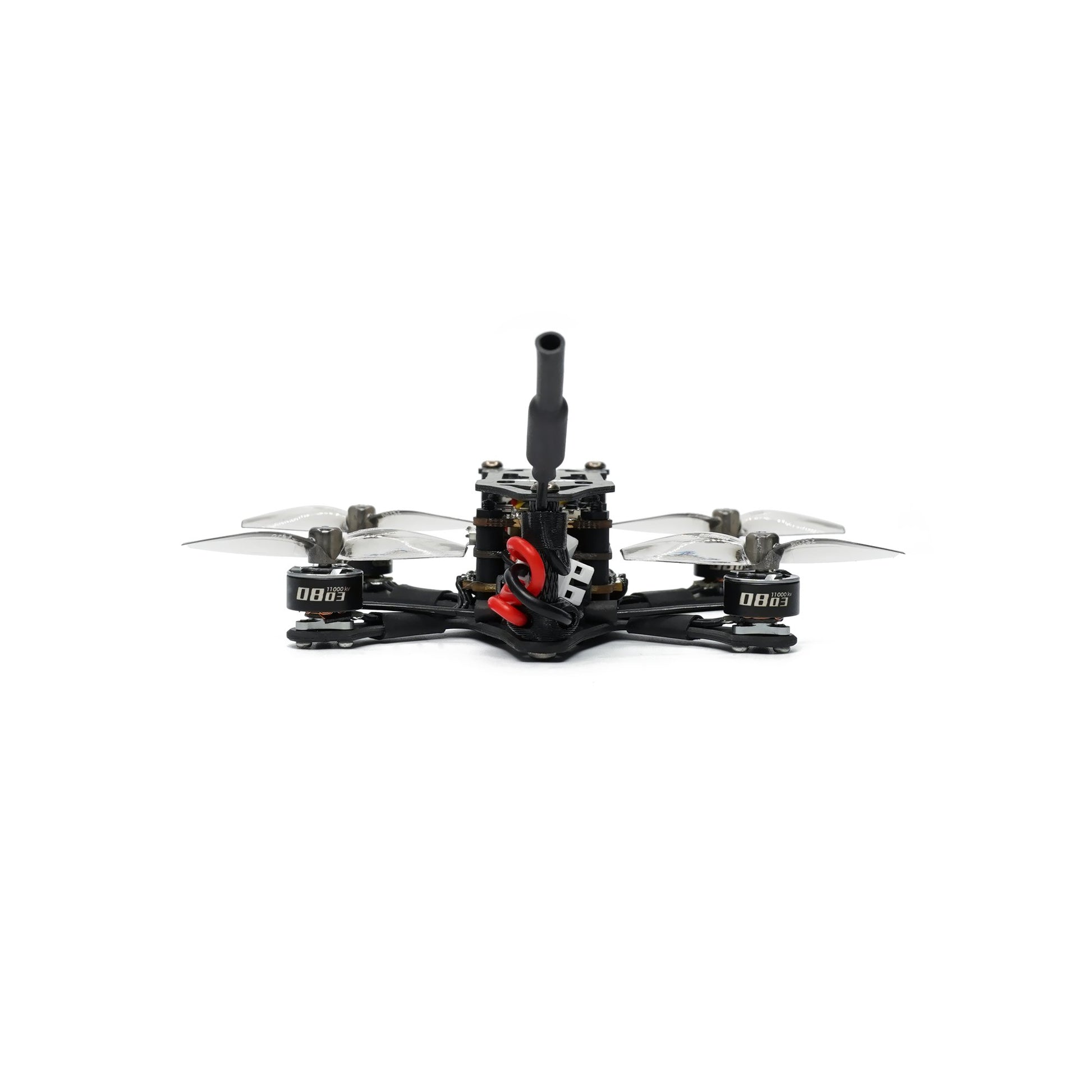

GEPRC SMART16 Elrs24
The SMART 16 continues the consistent lightweight design concept of the Phantom series. A 1.5mm carbon fiber arm with a 1mm top plate allows it to be lightweight yet durable. High potential 11000Kv 0803 brushless motors paired with 1610 props for easy freestyle at your favorite playground or band. The quadcopter comes with a 3D printed battery holder and will be powered by a 2S 380mAh battery that consists of two 1S batteries in series, making it weigh only 53.0g and give you 4 minutes of flight time.
NEW GEPRC SMART16 1.6 inch mini quadcopter, currently available in 5 versions: PNP, AC900 and TBS Nano, ELRS 915, ELRS 2.4G
Specifications
Model: SMART16
Frame: GEP-ST16
Wheelbase: 78 mm
Thickness of the top plate: 1.0 mm
Bottom plate thickness: 1.5 mm
Arm thickness: 1.5 mm
FC: STABLE F411 FC (16*16mm)
MCU: STM32F411
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: STABLE F411 BLheli_S 4IN1 12A ESC (16*16mm)
VTX: STABLE F411 VTX 5.8G 200mW (16*16mm)
Camera: Caddx Ant
Propeller: GemFan 1610-2
Antenna: UFL 5.8G stick VTX antenna
Motors: GR0803-11000KV
Weight: 36.0 g (without batteries)
Receiver version: ELRS 2.4G
