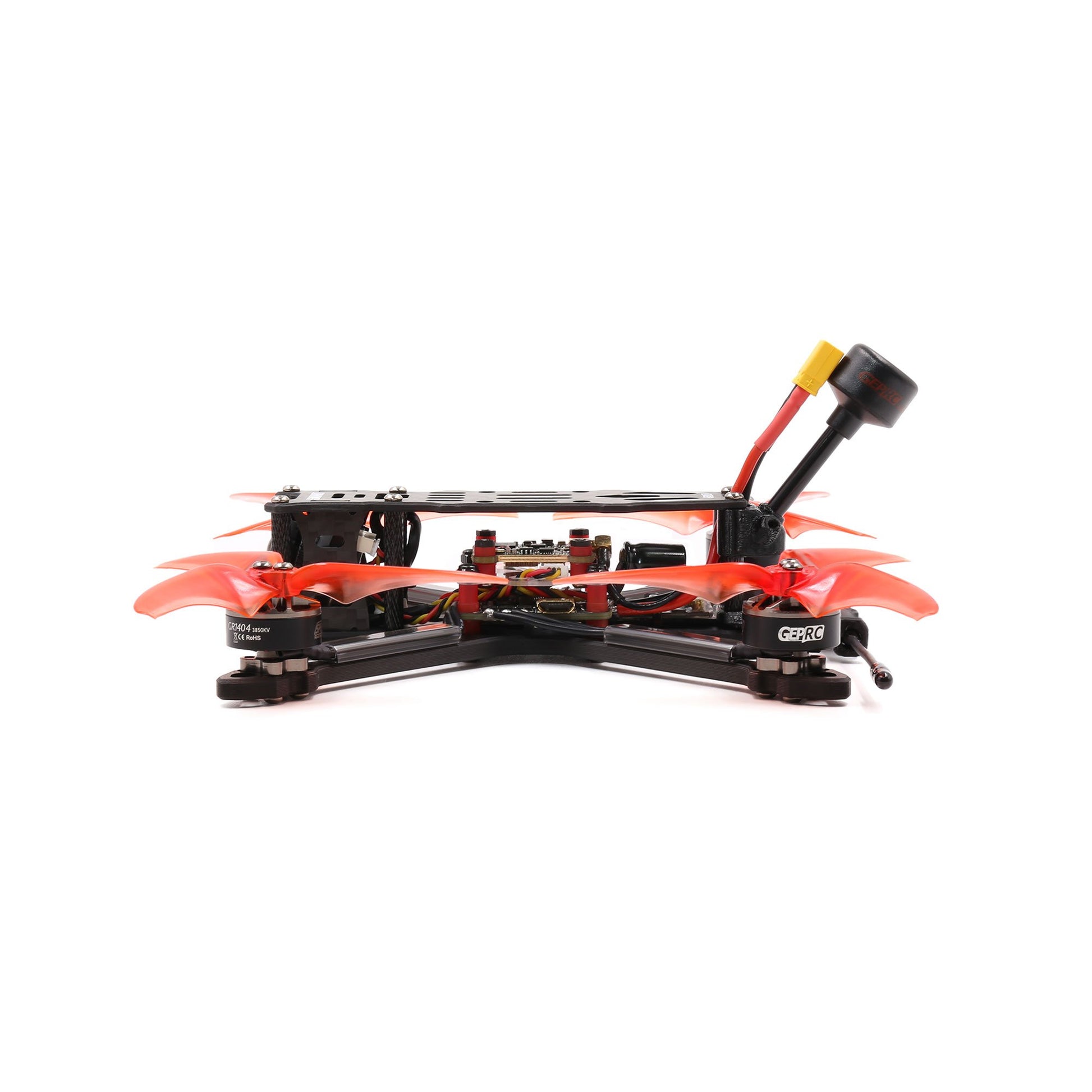

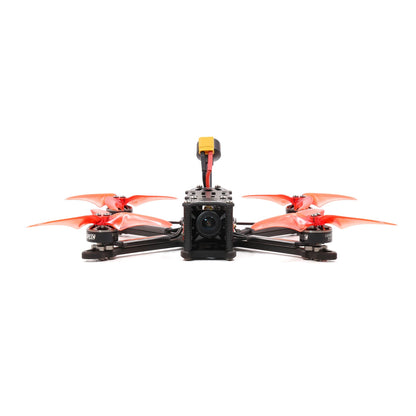

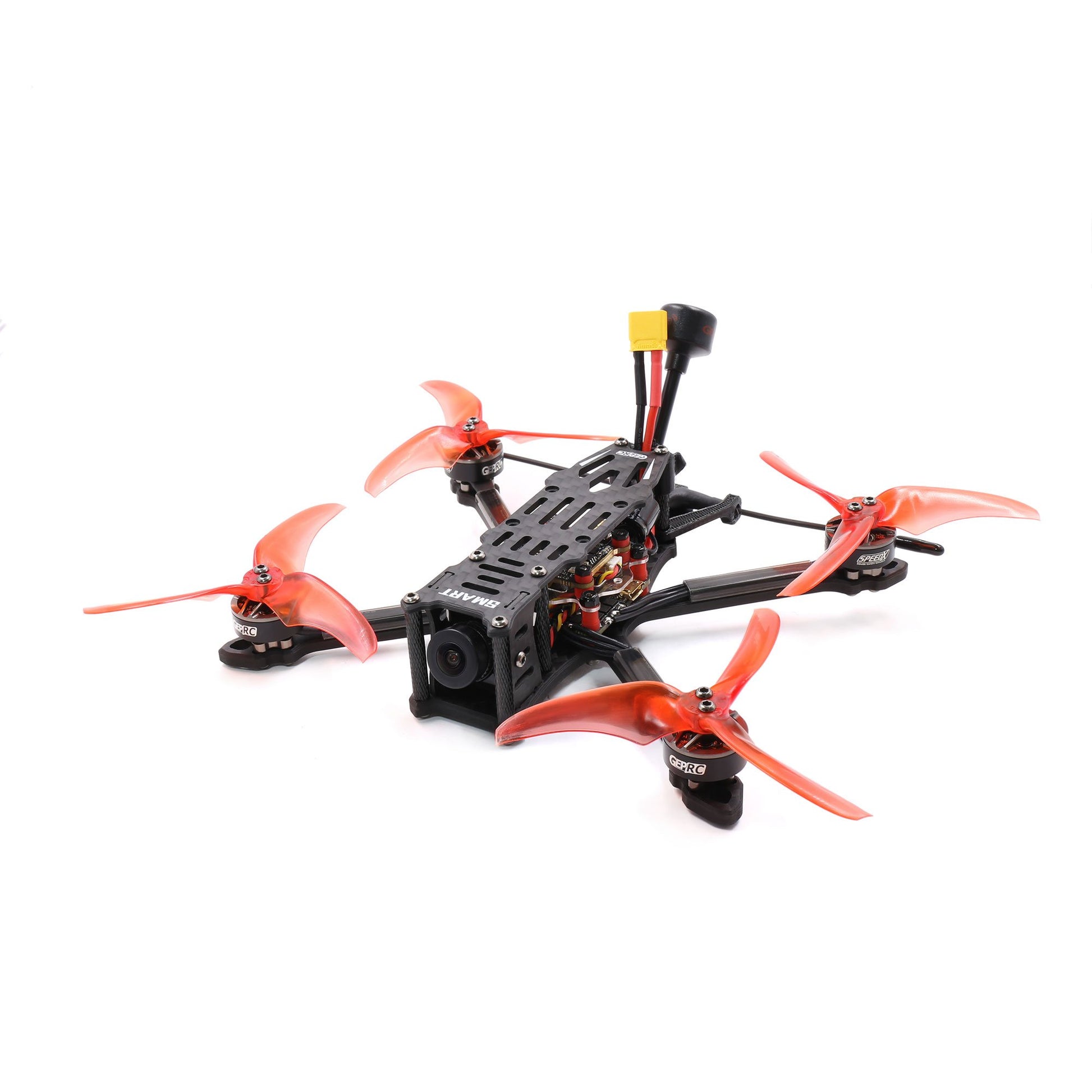

SMART 35 Analog PNP
GEPRC Phantom HD Analog Freestyle (SMART 35 HD Freestyle), Brand new 3.5 inch freestyle quadcopter of GEPRC Phantom series. There are two versions of SMART 35 HD Freestyle: Vista Nebula nano and Analog 5.8G 600mW. High efficiency power system, GEPRC 1404-3850KV motors and 3.5*2.8*3 propellers combined with the latest excellent GEP-F4-35A AIO flight control system and VISTA HD video transmission system. With a 1100mAh battery, the flight time is 13 minutes, and even with a GoPro Lite camera, it can fly for 12 minutes.
The SMART 35 Freestyle was independently designed as a GP camera mount with GP8 naked camera, 4k 60 fps recording. Spectacular shooting during racing and freestyle conditions.
It is light, flexible and has excellent flight characteristics. The GEPRC Phantom 35 HD Freestyle is an impressive product that delivers high quality video and delivers unrivaled Whoop Freestyle.
Specifications:
Brand: GEPRC
Model: SMART 35 Analog
Frame: GEP-ST35
Wheelbase: 155 mm
Top plate thickness: 2.0 mm
Bottom plate thickness: 4.0 mm
Arm plate thickness: 4.0 mm
Flight control system: GEP-F411-35A AIO
MCU: STM32F411
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
Target firmware: GEPRCF411-35A AIO
Power: 4S LiPo
VTX: STABLE 5.8G 600mW
Camera: Caddx Ratel V2
Antenna: Momoda 5.8g MMCX RHCP
Motors: GR1404-3850KV
Props: 3.5*2.8*3
Weight: 127.4g
Receiver: PNP
Recommended motors and batteries:
Motors: GR1404-3850KV
Battery: Lipo 4S1P 550mAh – 1300mAh
