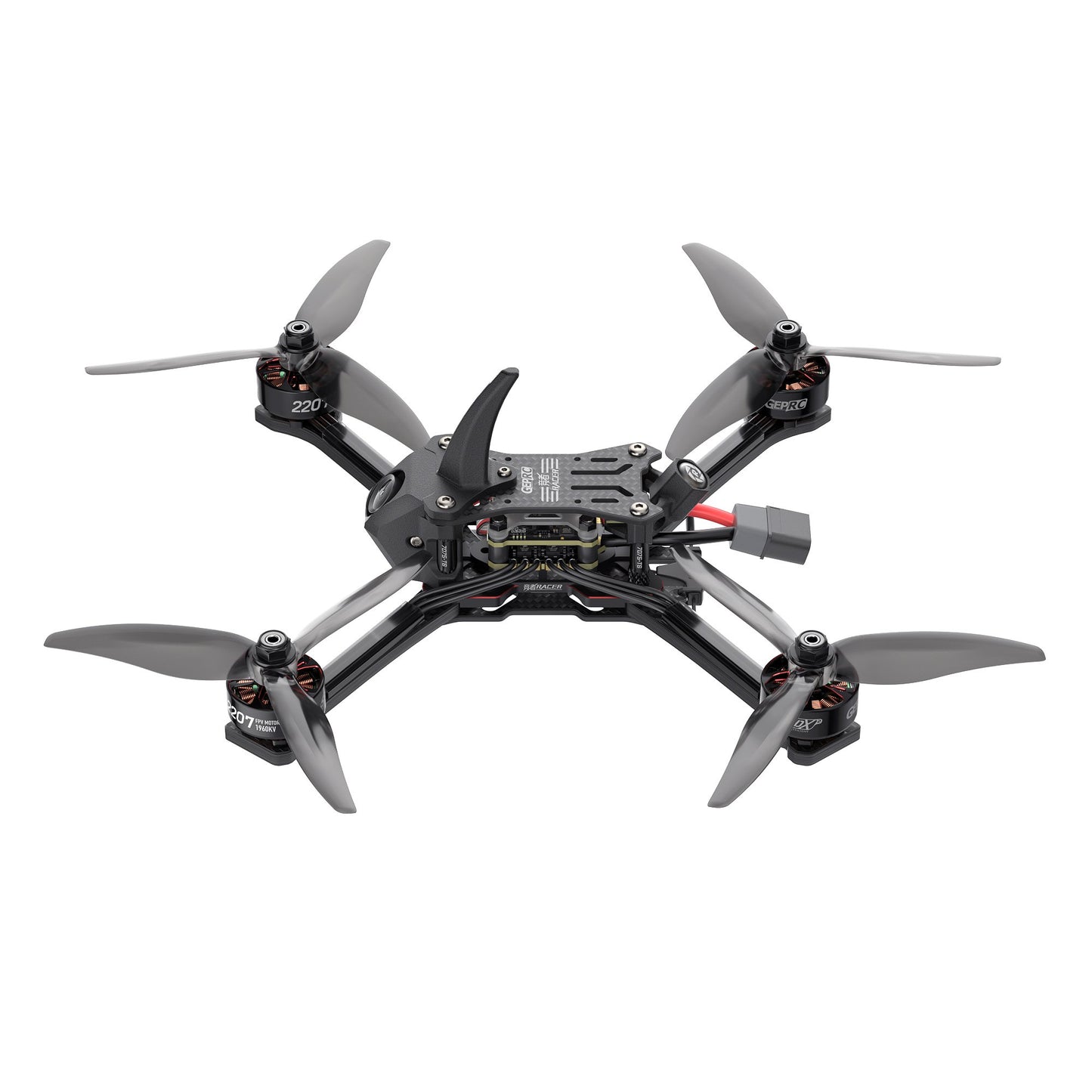

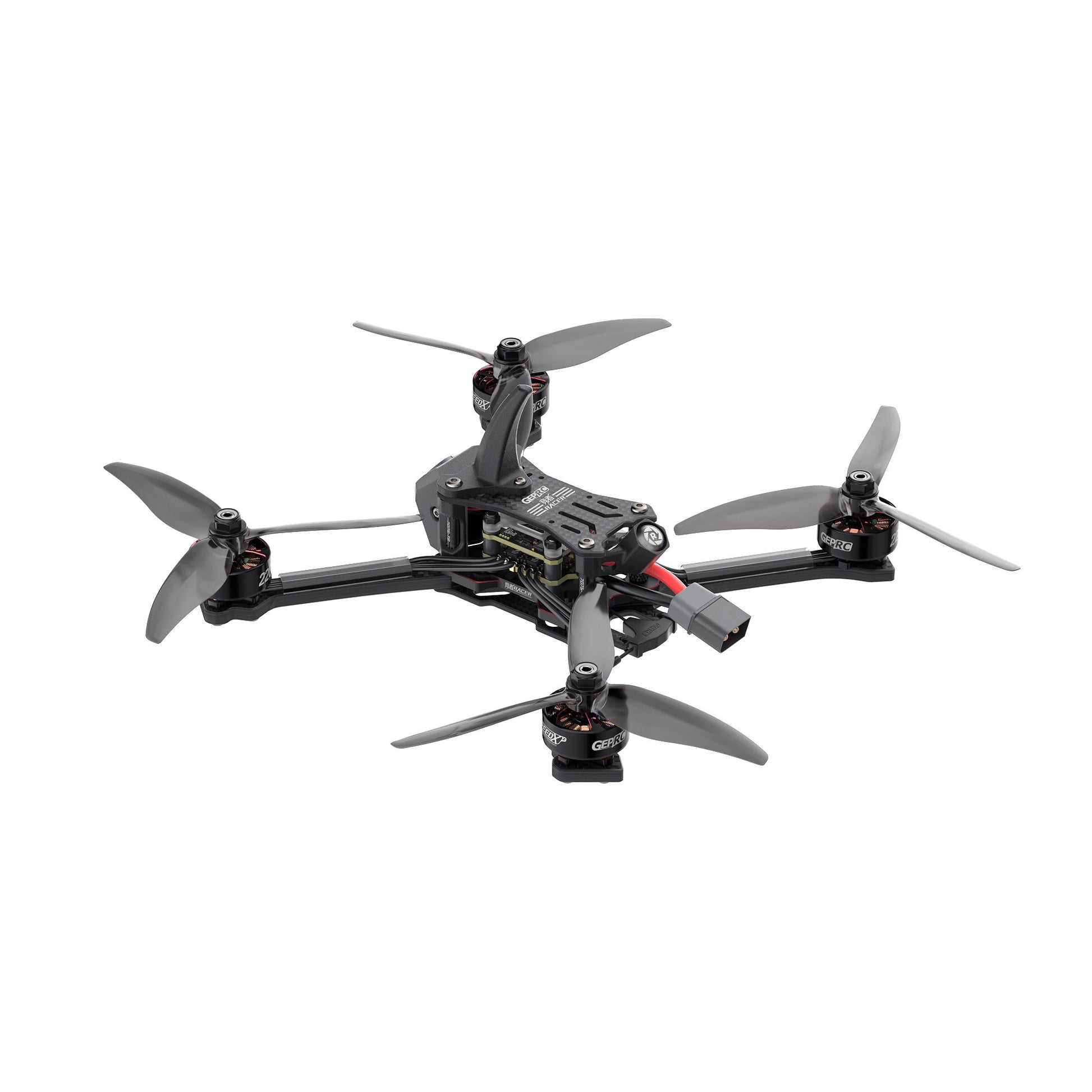

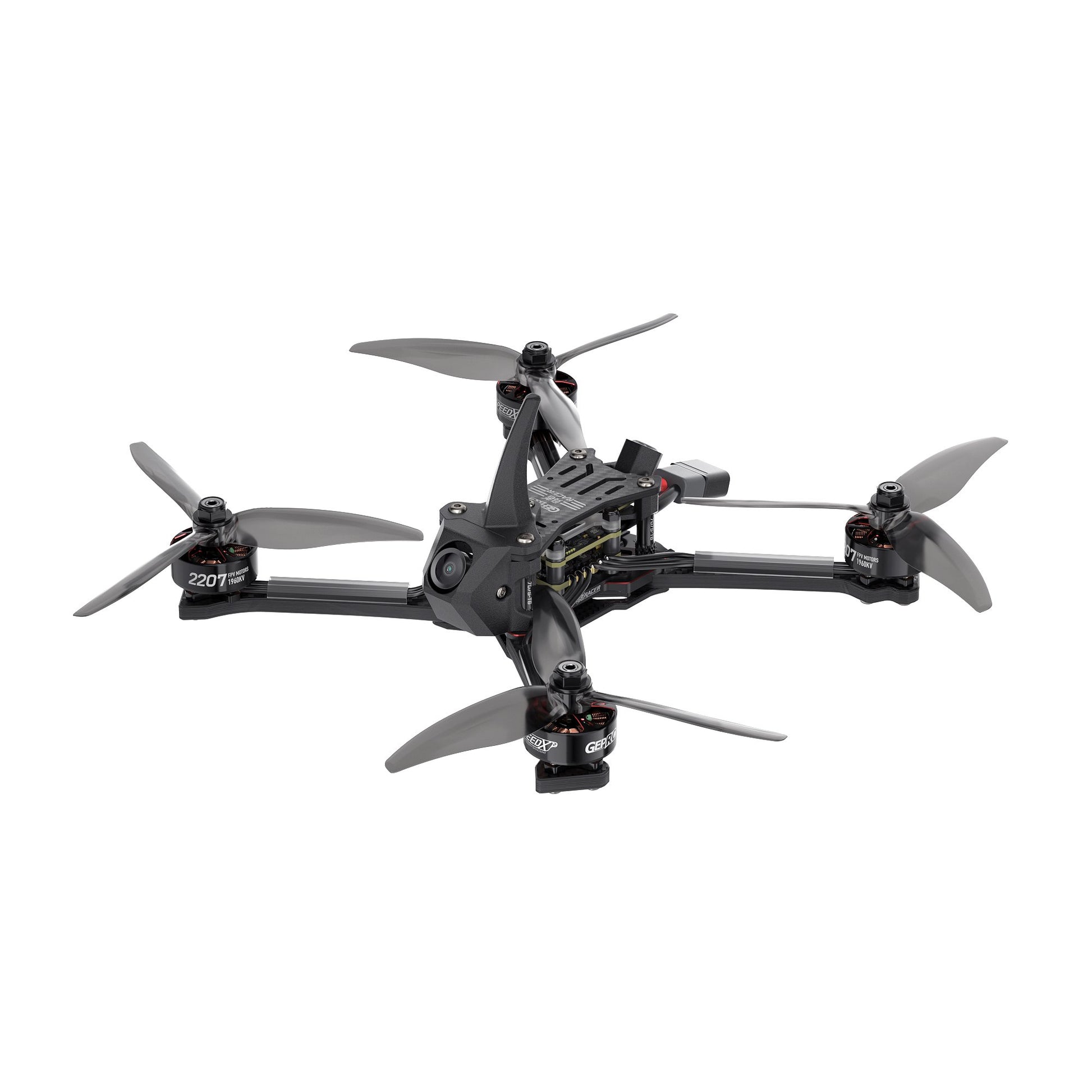

GEPRC Racer TBSNanoRX
The Racer's main structure is made of 7075-T6 aircraft aluminum alloy plate combined with high-quality T700 carbon plate, the overall structure is light and stable. The flight system uses the new GEPRC TAKER F722 E55A kit with two engine versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing engine. The overall performance has strong explosive power.
Specifications:
GEPRC SPEEDX2 2207 engine version
Model: Racer FPV
Frame: GEP-Racer Frame
Wheelbase: 208 mm
Top plate: 2 mm
Bottom plate: 2 mm
Shoulder plate: 5 mm
Aluminum plate color: black with red
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4V1
MCU: STM32F722RET6
Gyro: MPU 6000
OSD: AT7456E
VTX: GEPRC RAD Tiny 5.8G 400mW
Camera: Runcam Nano4
Antenna: Peano 5.8G RHCP UFL
Motor: SPEEDX2 2207 2050KV
Propellers: Gemfan 51466 x3
Weight: 279g ± 5g
Receiver: TBS NanoRX
Recommended battery: Lipo 6S 1300-1500mah
