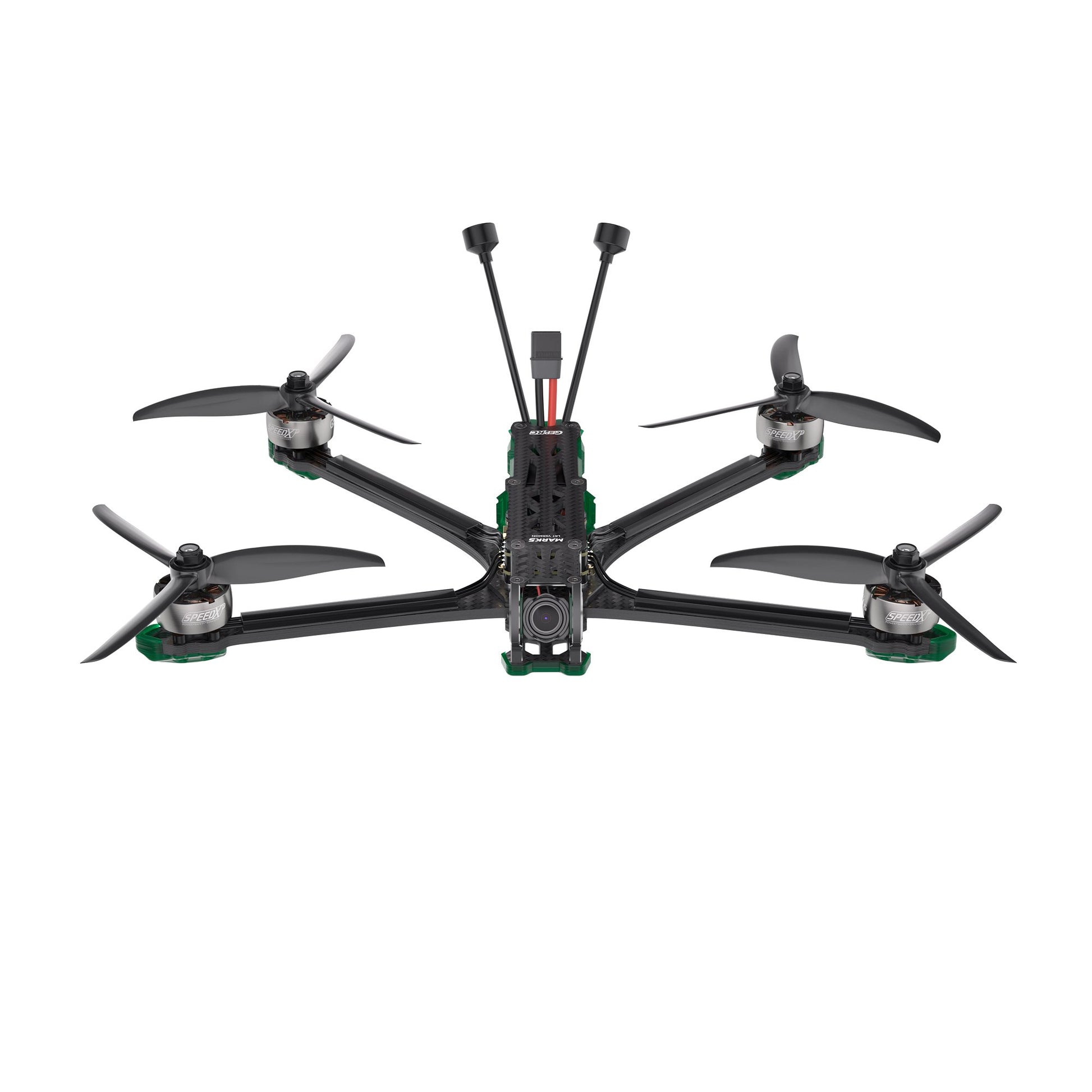

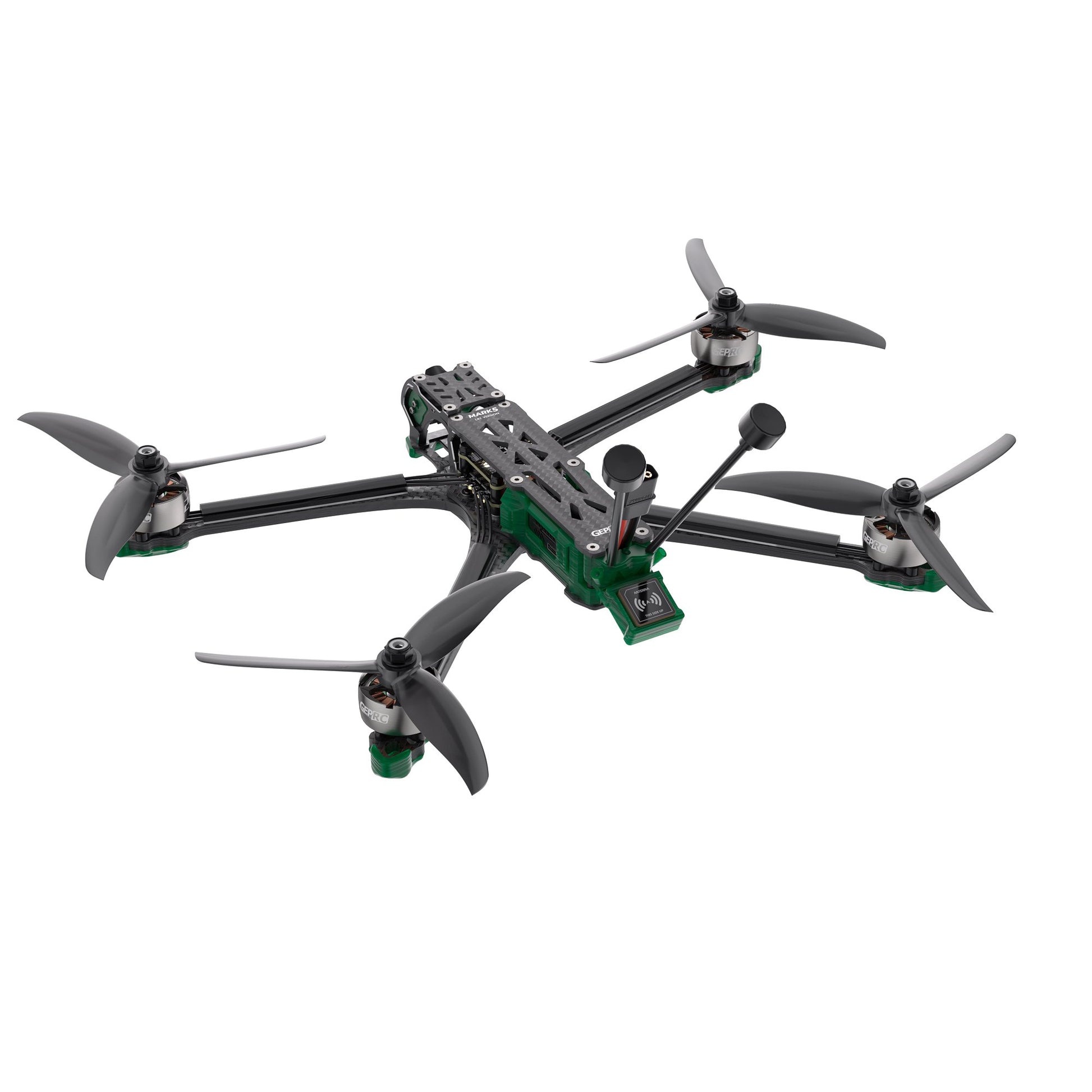

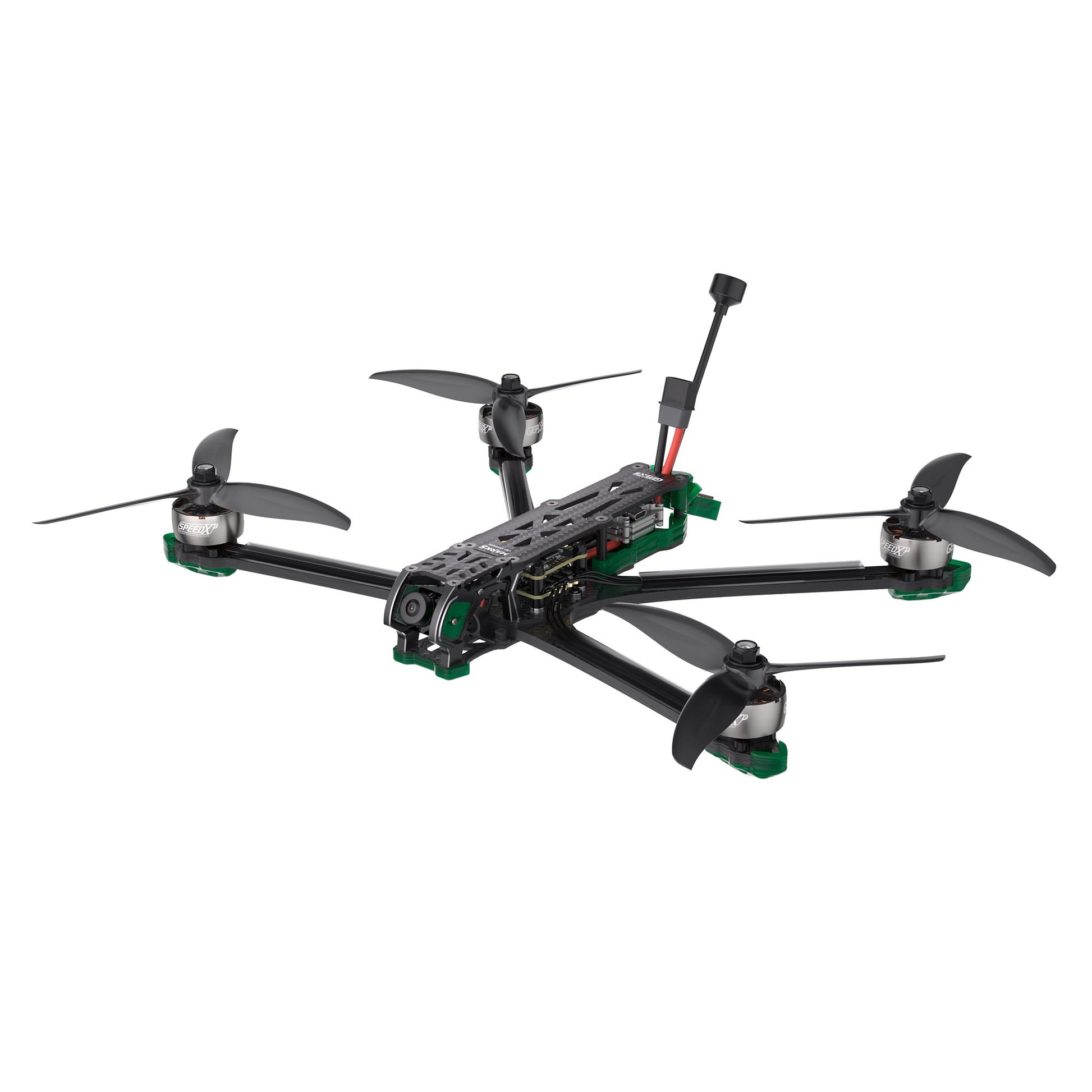

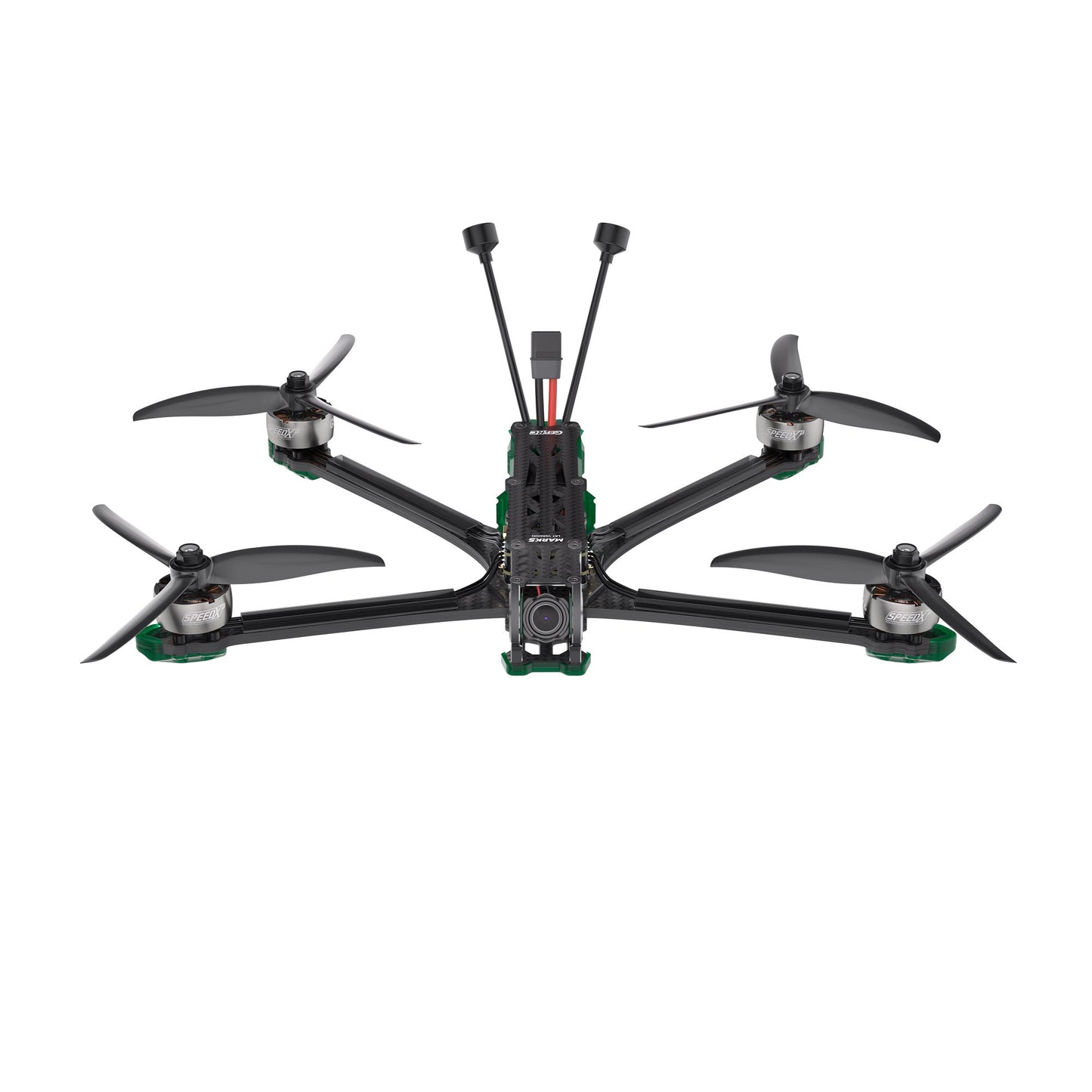

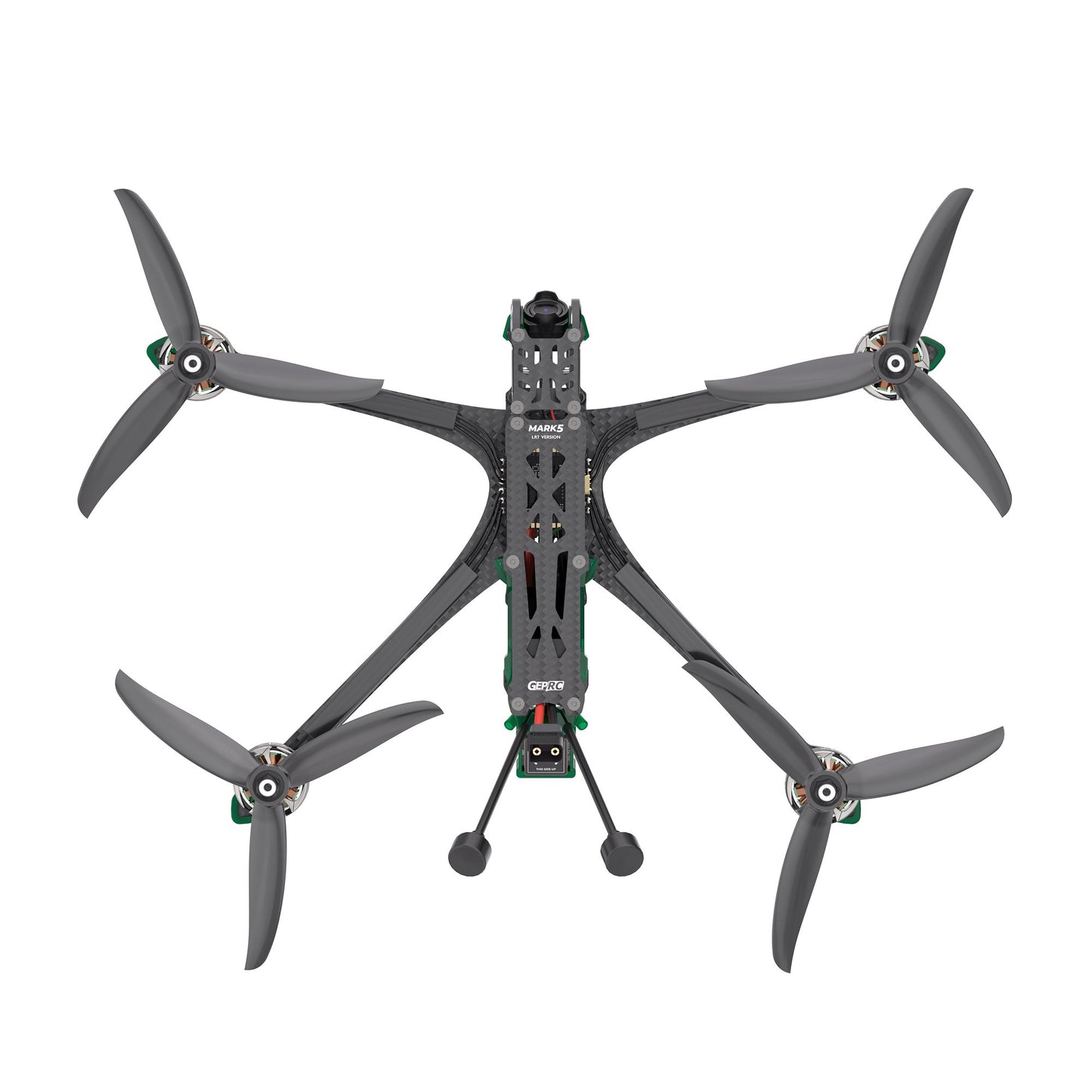

MK5D-LR7 HD Wasp GPS_ELRS915
The MK5D-LR7 is a 7-inch model upgraded from the MARK5 model:
1. Upgraded aluminum alloy lens side plate, durable and visual impact.
2. Built-in Bluetooth, supports mobile phone wireless connection for tuning parameters.
3. The strength of the arm is improved without losing the original style and at the same time the strength is higher.
4. The HD version uses DJI's new O3 VTX, clear image, stable signal, low latency, remote and supports up to 4K/120fps recording.
5. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
6. Independent space for capacitor and buzzer, the operating environment of the whole machine is extremely stable, without shock.
7. Design two kinds of mounting bases that can be installed with a wide range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
8. With GEP-VTC6-6000mAh battery, the flight time is 30 minutes, and with GoPro 10, the flight time is 20 minutes.
Specifications:
Model: MK5D-LR7
Brand: GEPRC
Frame: GEP-MK5D-LR7
Dimensions: 230mm x 350mm
Wheelbase: 335 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 6.0 mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
ICM：42688-P (SPI)
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
Propeller: HQ Prop 7X4X3 three blade propeller
Motor: SPEEDX2 2806.5 1350KV (6S version)
GPS: GEP-M10
Antenna: Momoda UFL LHCP Antenna
Weight: 560.5g (MK5D-LR7 Wasp version includes 3D printing parts)
Receiver version: ELRS 915
Recommended battery: LiPo 6S 6000mAh (6S version)
