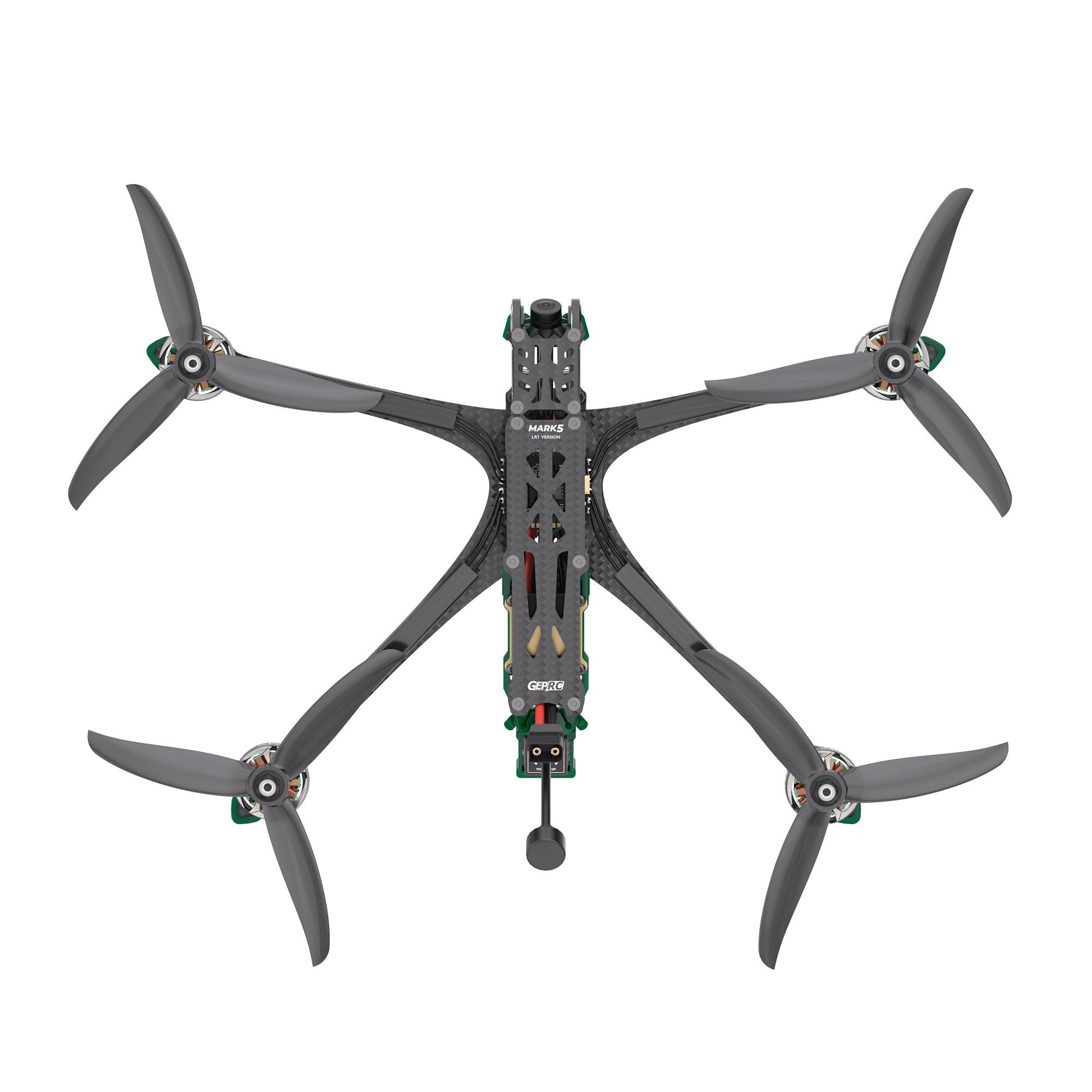

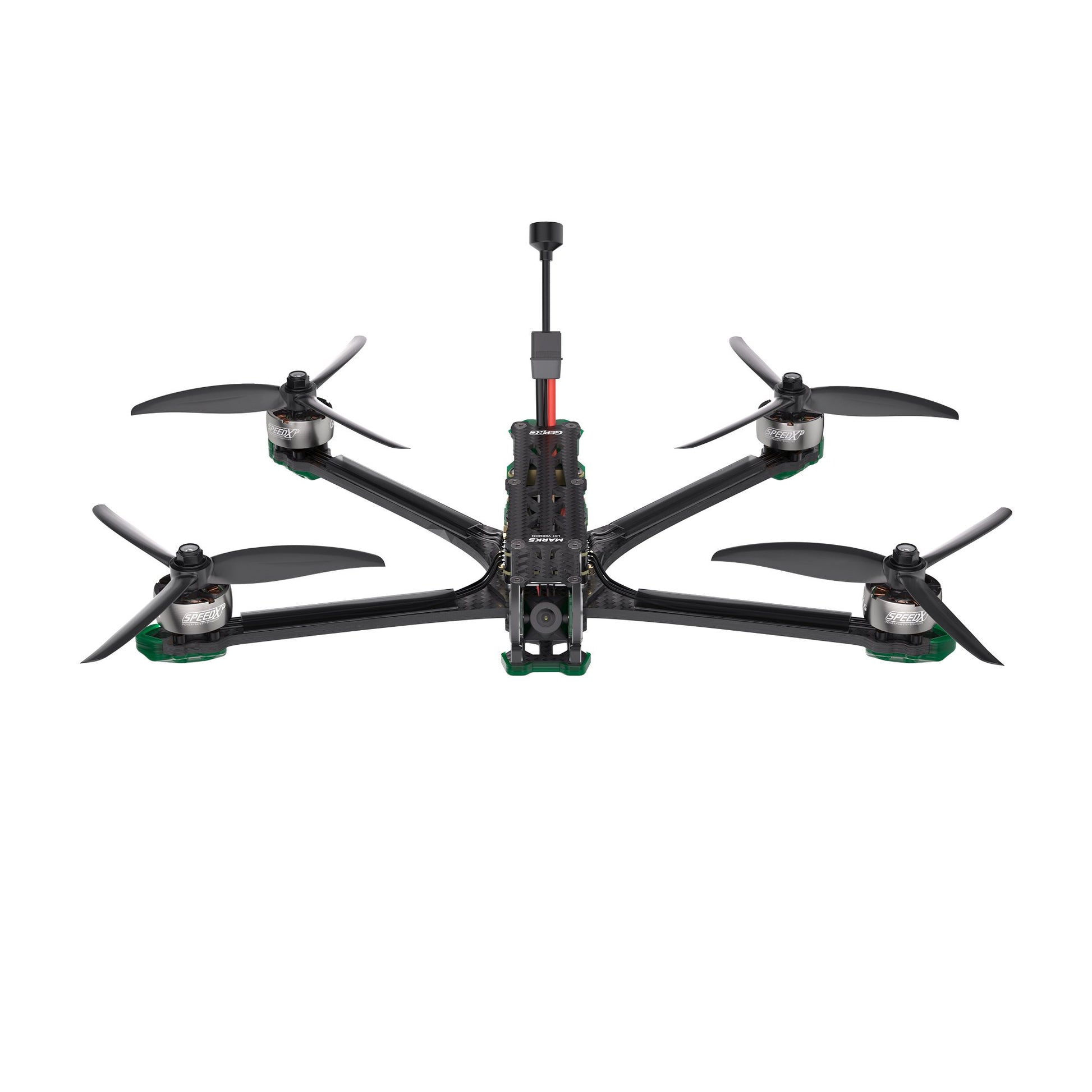

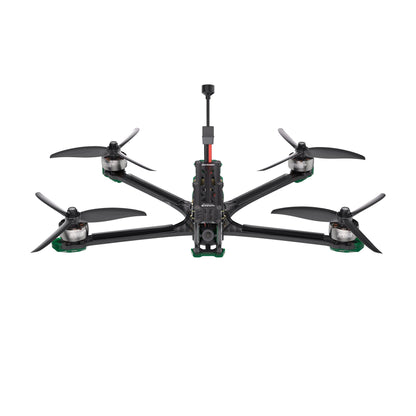

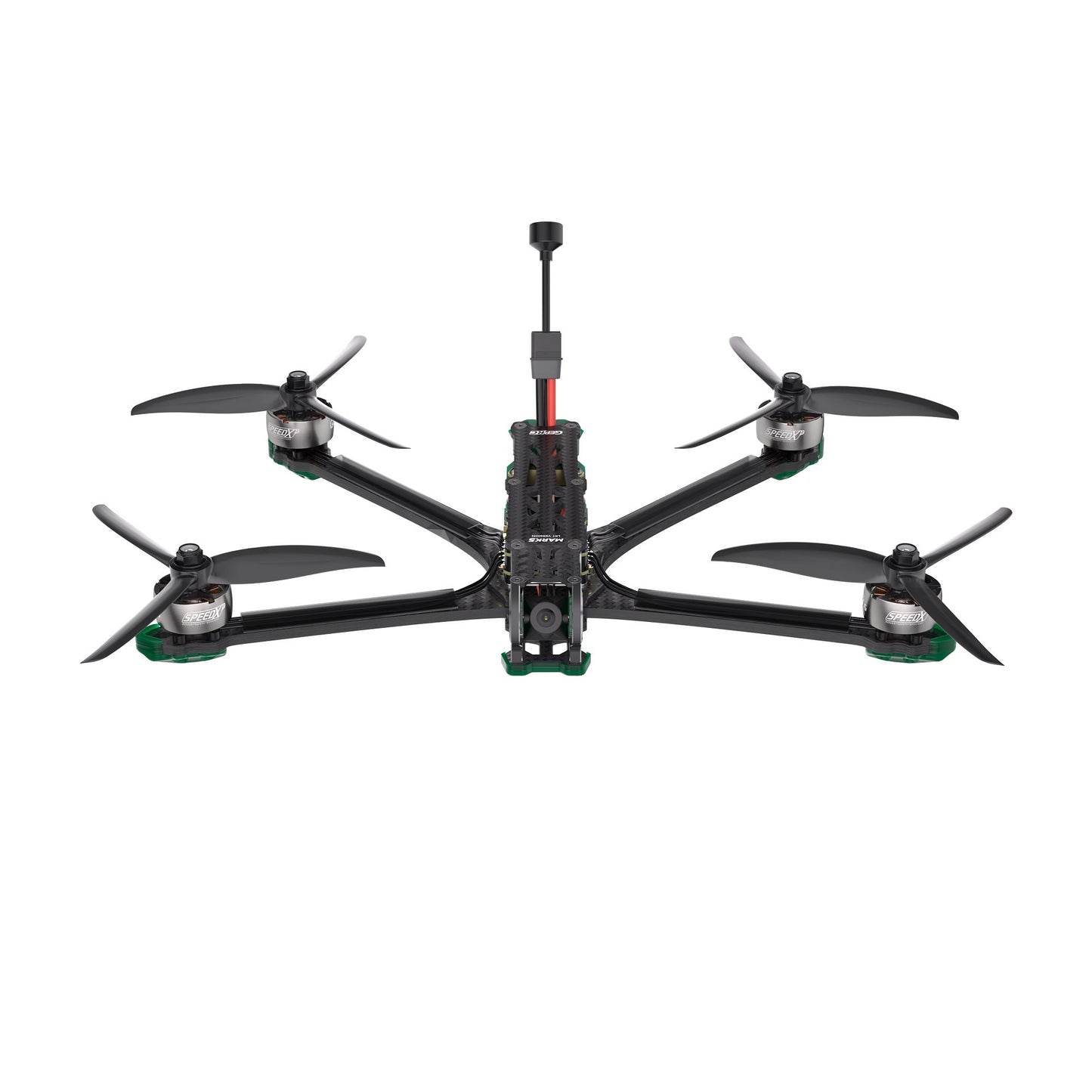

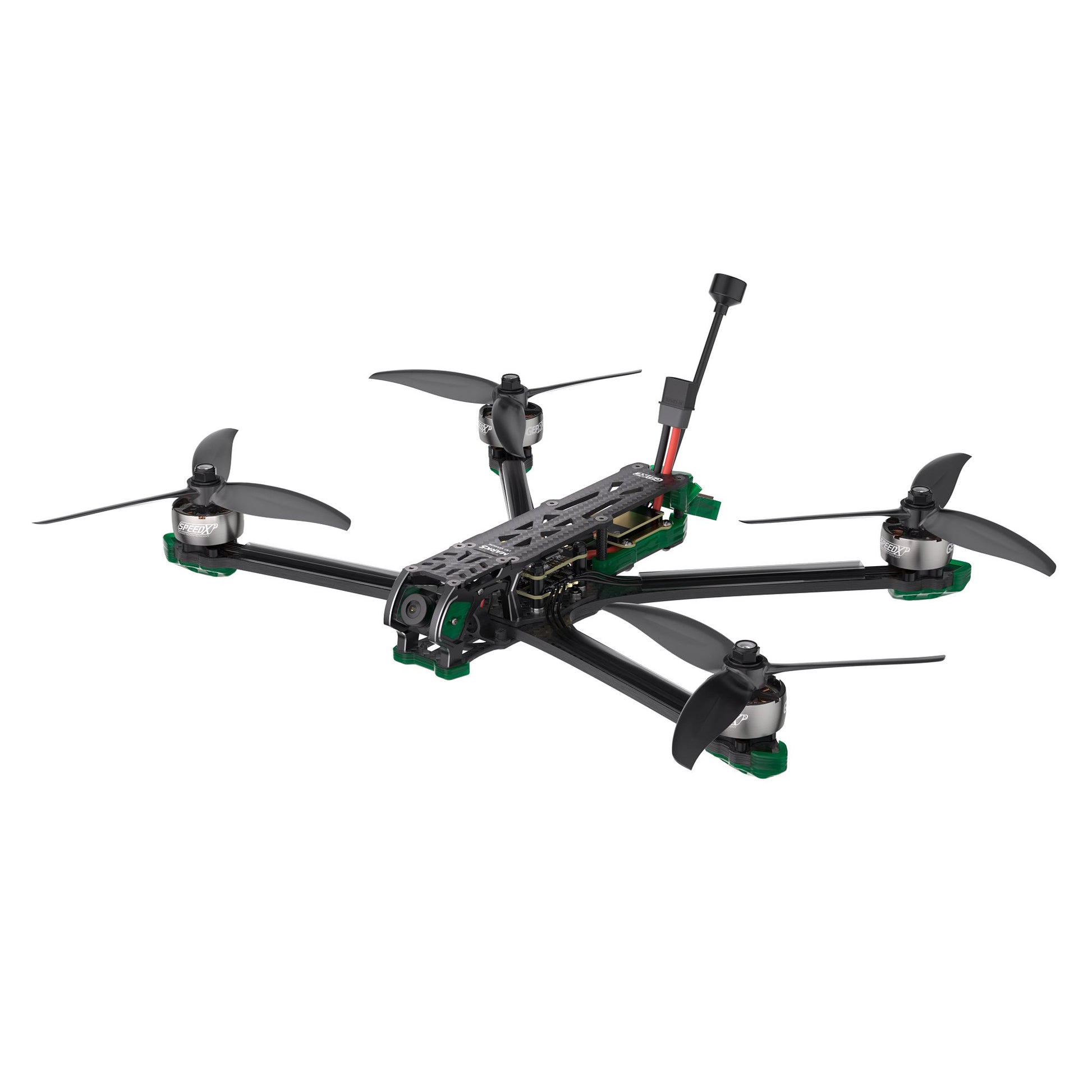

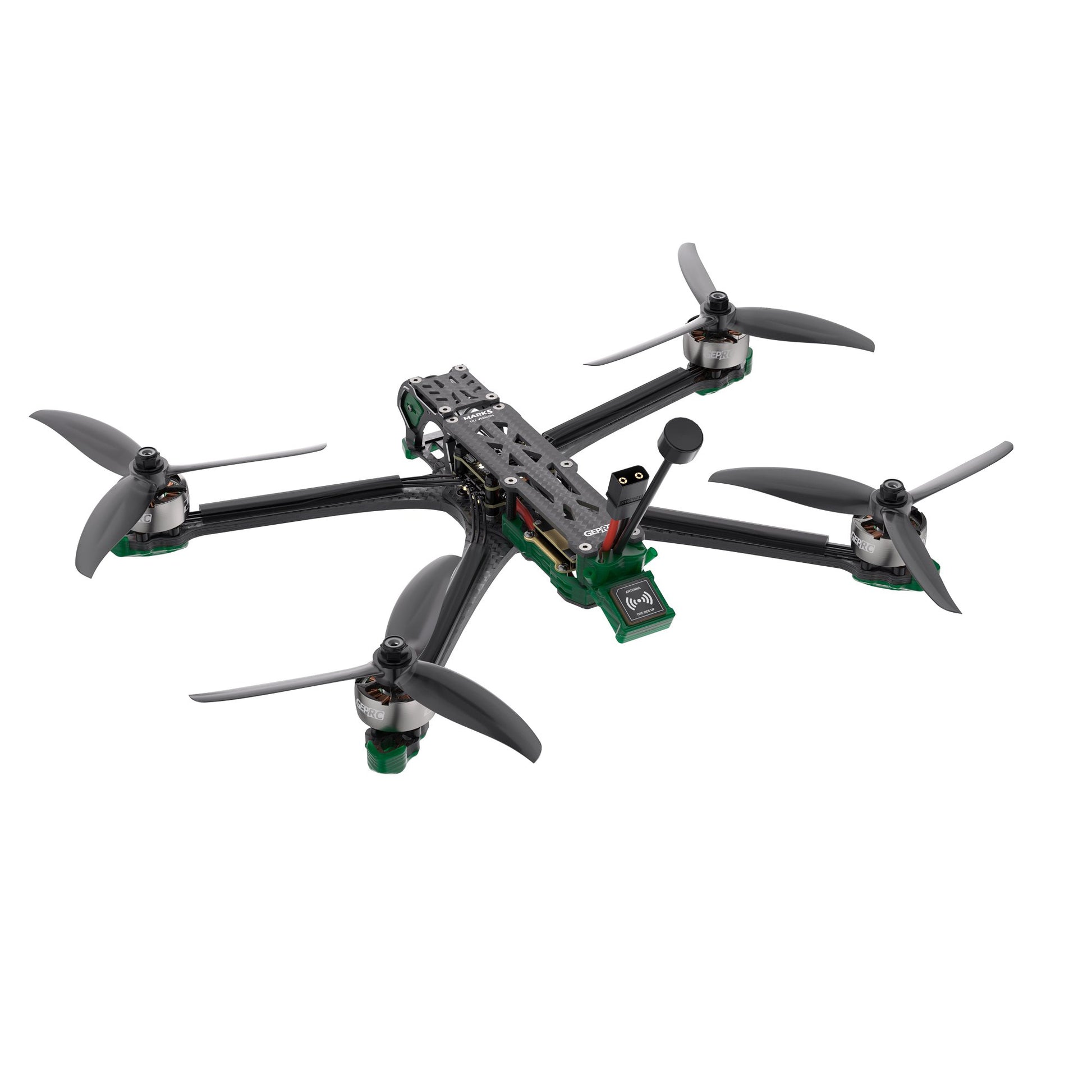

MK5D-LR7 Analog GPS_ELRS2.4
The MK5D-LR7 is a 7-inch model upgraded from the MARK5 model. The mainstream video transmission system has four versions: O3 Air Unit, Vista, Walksnail and analog version.
The strength of the arm structure is optimized without losing the original design style, while the strength is increased and resistance to flight disturbances is improved. It is equipped with the new small GPS M8U GPS GEPRC and provides a strong guarantee for your long-distance flight. The MK5D-LR7 uses a GEPRC SPAN F722-BT-HD V2 stack. The flight controller is equipped with an ICM 42688P gyroscope, which has smooth flight, redundant power and ports, and supports Bluetooth wireless connection for parameter setting. GEP-2806.5 engine, with HQ Prop 7X4X3 propeller, strong power.
Function:
1. Upgraded aluminum alloy lens side plate, durable and visual impact.
2. Built-in Bluetooth, supports mobile phone wireless connection for tuning parameters.
3. The strength of the arm is improved without losing the original style and at the same time the strength is higher.
4. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
5. Independent space for capacitor and buzzer, the operating environment of the whole machine is extremely stable, no vibration, no vibration.
6. Design two kinds of mounting bases that can be installed with a whole range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
7. With GEP-VTC6-6000mAh battery, the flight time is 30 minutes, and with GoPro 10, the flight time is 20 minutes.
Specifications:
Model: MK5D-LR7
Frame: GEP-MK5D-LR7
Dimensions: 230mm x 350mm
Wheelbase: 335 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 6.0 mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
ICM: 42688-P (SPI)
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
Propeller: HQ Prop 7X4X3 three blade propeller
Motor: SPEEDX2 2806.5 1350KV (6S version)
GPS: GEP-M10
Antenna: Momoda 5.8G RHCP MMCX90 100MM
Weight: 570g (MK5D-LR7 analog version includes 3D printing parts)
Receiver version: ELRS 2.4G
Recommended battery: LiPo 6S 6000mAh (6S version)
