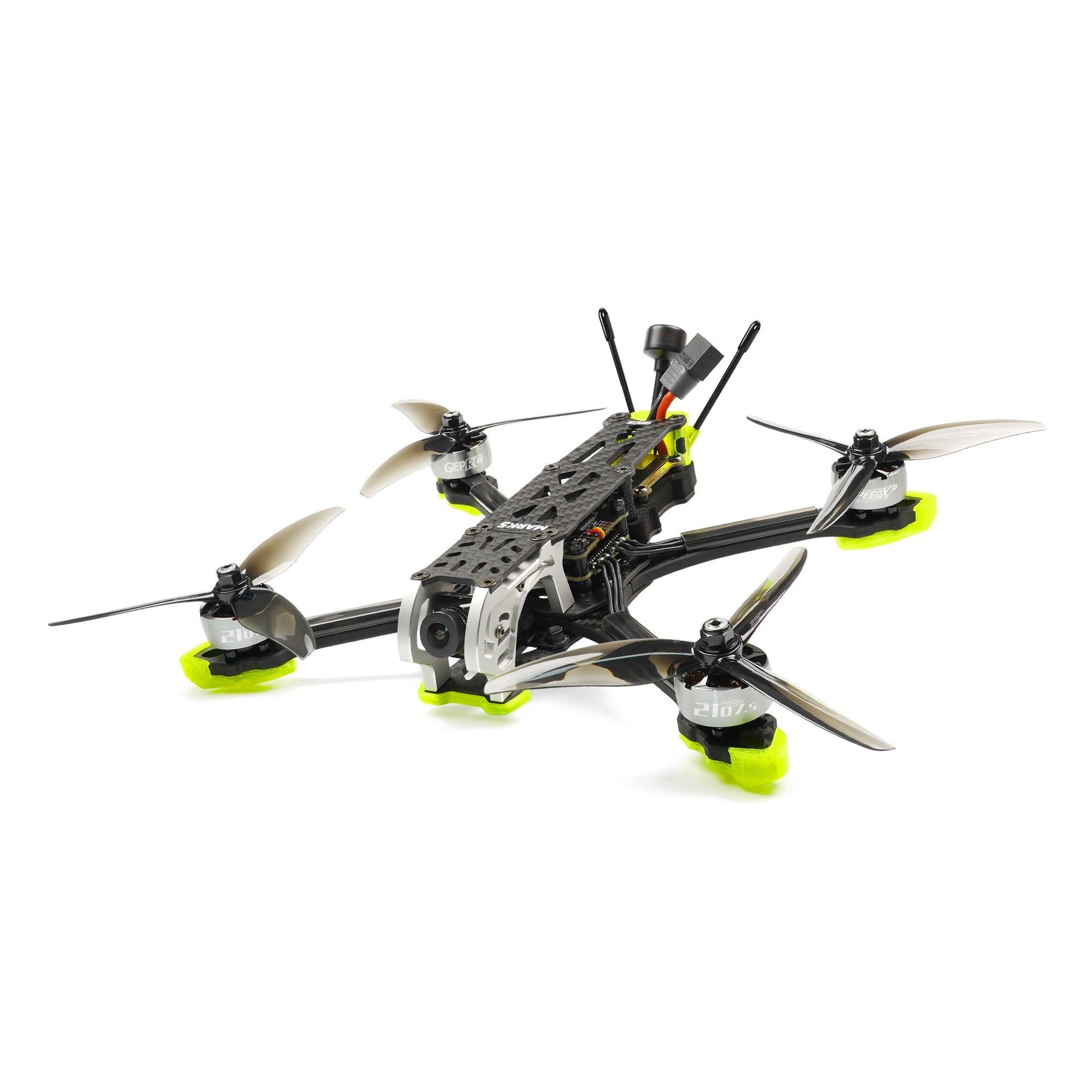

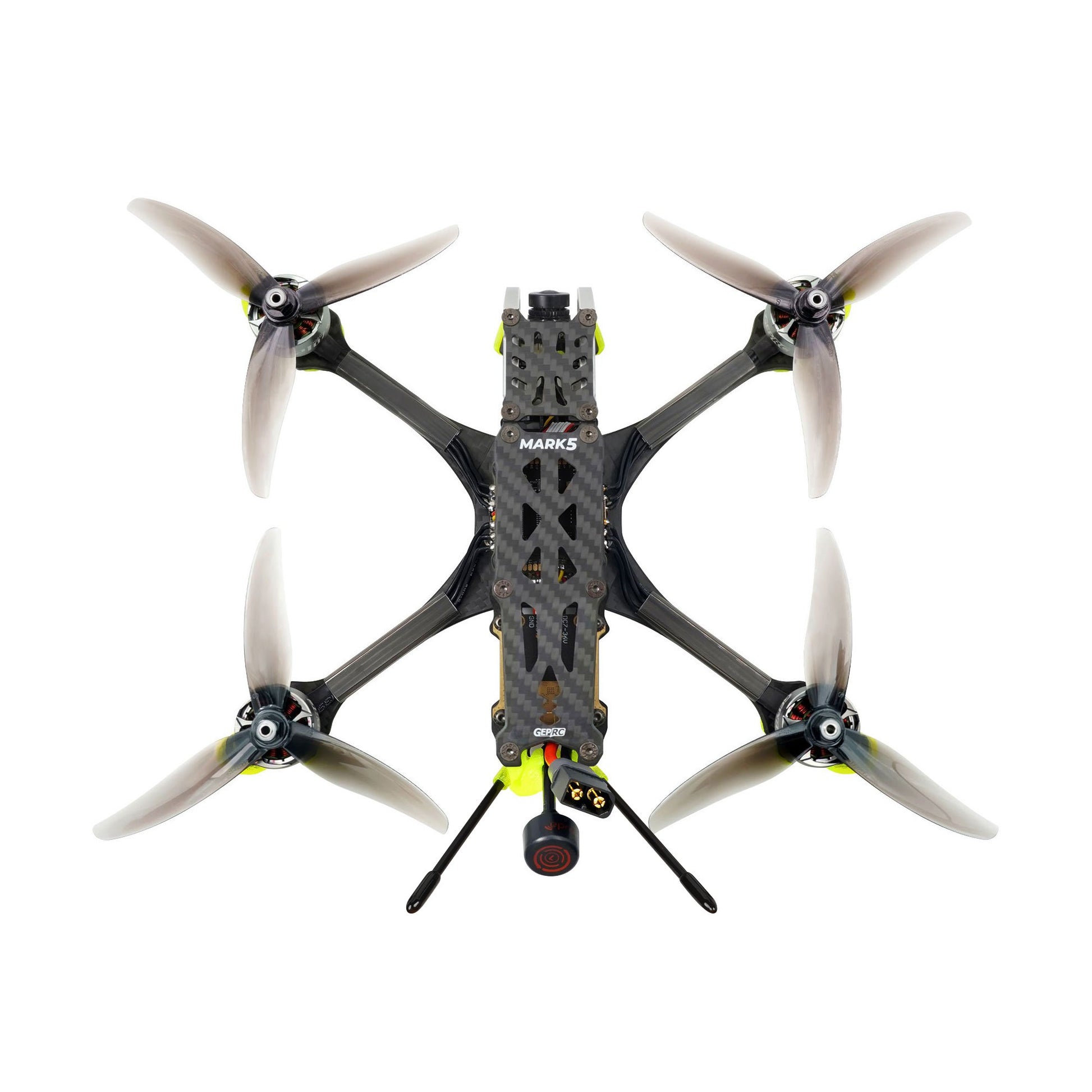

MARK5 analog ELRS 915M (6S)
The new generation GEPRC MARK5 freestyle drone is specially developed for freestyle with a compressed X arm. The unique design of the shock-absorbing structure, less vibration and resonance provide the electronic system with a stable operating environment. The aluminum alloy side plates not only look amazing, but reduce weight and increase durability. MARK5 features the latest GEPRC SPAN F722-BT-HD V2 FC with high performance and plenty of ports, supporting Bluetooth wireless connection for easy field tuning. The newly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with the latest 2107.5 GEPRC motor, has great explosive power and very fast response. The new HQ Ethix S5 5×4×3 propellers provide a gentle and silky smooth flight. MARK5 comes with two different 3D printed action mounts that can be mounted with GP 8/9/10, Naked camera GP8, Insta 360 GO2 and Caddx Peanut. After continuous testing and tuning by the GEPRC R&D team, we are proud to say that this is another GEPRC drone that comes perfectly tuned right out of the box. MARK5 is most ideal for freestyle flying and resistant to bando-bushing.
Tips: It is recommended to use the latest betaflight 10.8.0 to match the corresponding FC Firmware and Factory CLI Dump to avoid setup errors.
Specifications:
- Model: MARK5 Analog Quadcopter
- Brand: GEPRC
- Frame: GEP-MK5
- Wheelbase: 225 mm
- Top plate: 2.5 mm
- Bottom plate: 2.5 mm
- Shoulder plate: 5 mm
- FC system: SPAN F722-BT-HD V2 (no barometer, but more stable)
- MCU: STM32F722
- Gyroscope: 42688-P
- OSD: BetaFlight OSD with AT7456E chip
- ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
- VTX: RAD VTX 5.8G 1.6W
- Camera: Caddx Ratel2
- Charging connector: XT60
- Propeller: HQ Ethix S5 5×4×3
Antenna: GEPRC Momoda 5.8G MMCX RHCP 100mm
- Motor: SPEEDX2 2107.5-1960KV
- Weight: 385.0 g (MARK5 Analog 6S TBS)
- Receiver: ELRS 915M
- Recommended battery: LiPo 6S 1050mAh-1550mAh
