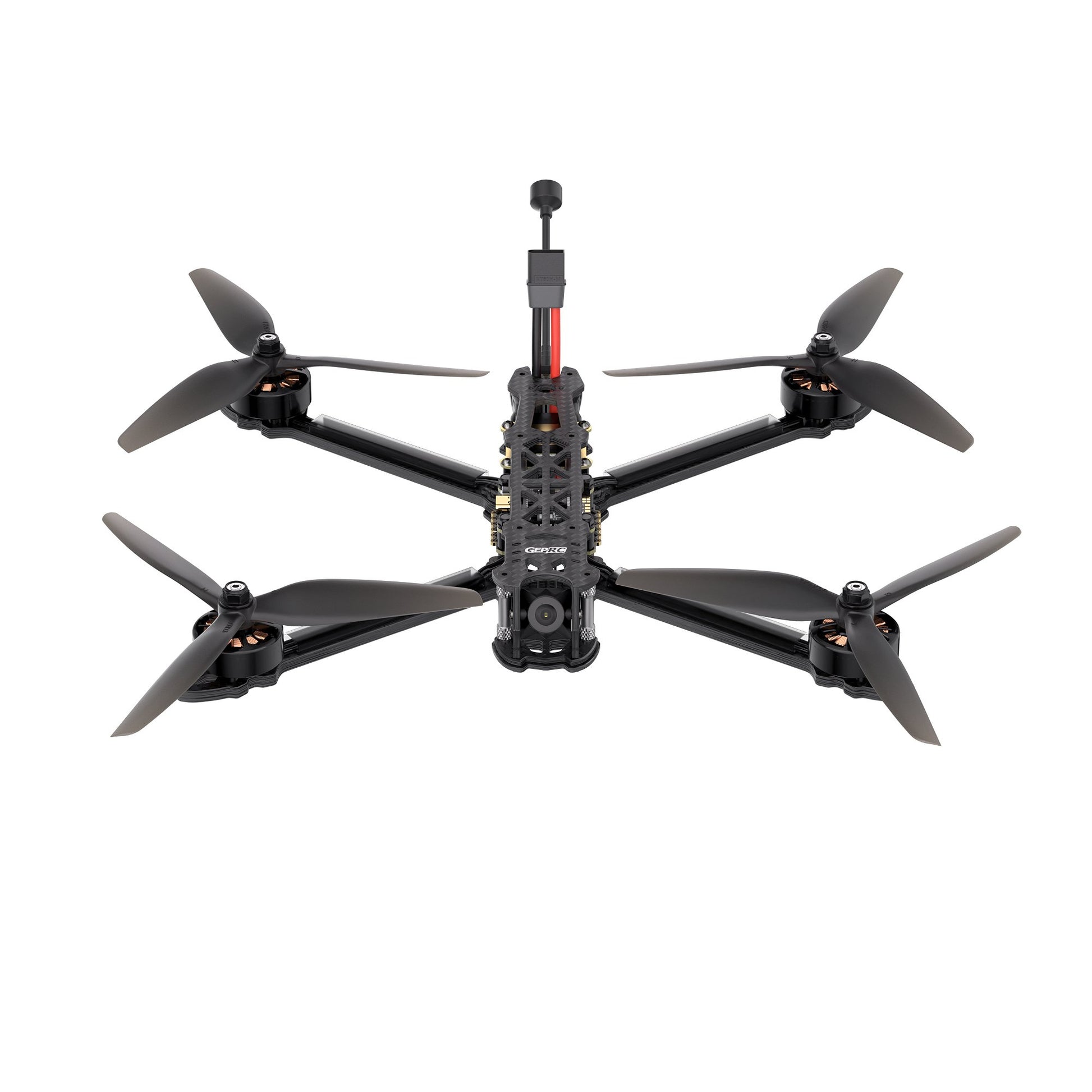

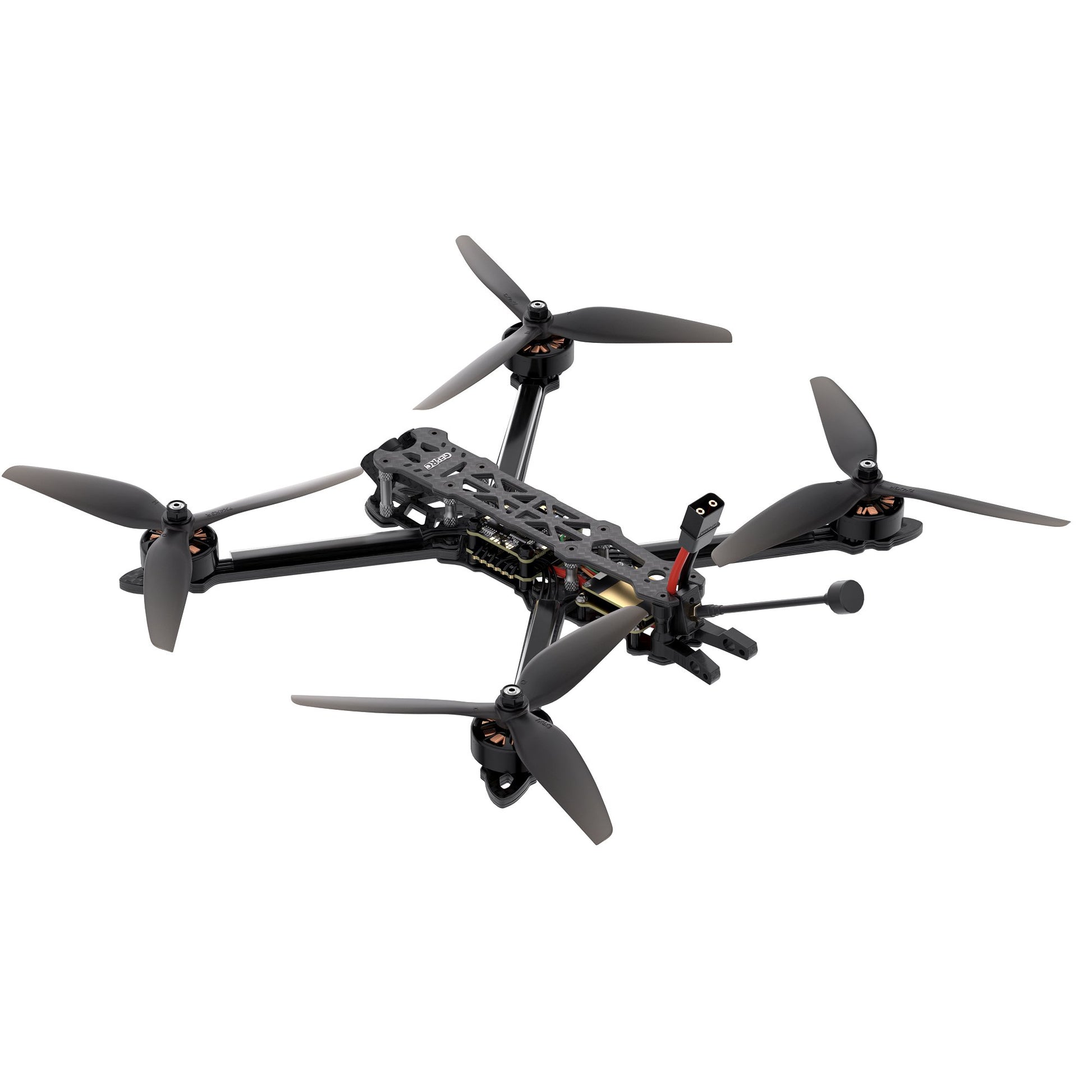

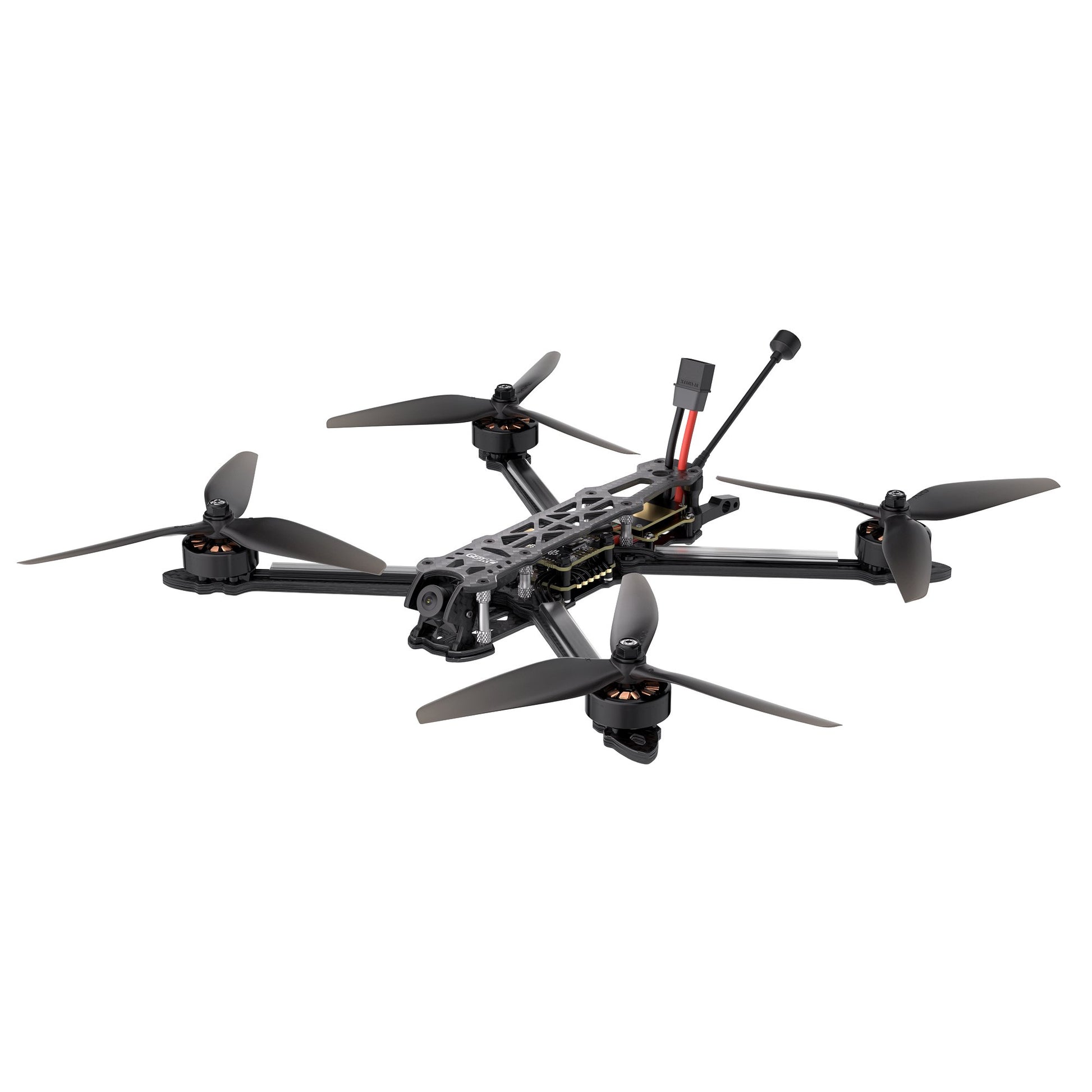

MARK4-LR7 Analog Elrs915
1. Classic and attractive appearance
2. Adopt RAD 5.8G 1.6W high power VTX to ensure stable and reliable signal
3. For GEPRC E2806.5 1350KV motor, it is recommended to use 6S battery to ensure strong performance
4. Using F405 flight controller and BLheli_S 50A ESC with stable performance, the overall performance is stable and the hand feels comfortable
5. Using Caddx H1 camera, good visual experience
Specifications
Model: MARK4 7 inch FPV
Frame: GEP-MK4-7
Wheelbase: 295 mm
Top plate: 3 mm
Bottom plate: 3 mm
Shoulder plate: 5 mm
Slat plate: 2 mm
FC: GEPRC F405 V2
ESC: SPAN 50A BLHeli_S
MCU: STM32F405RGT6
Gyroscope: ICM-42688-P
OSD: Betaflight OSD with AT7456E chip
VTX: GEPRC RAD 5.8G 1.6W
Camera: Caddx H1
Antenna: Momoda 5.8G RHCP RP-SMA 120mm
Engine: GEPRC E2806.5 1350KV
Propeller: Gemfan 7037-3
Weight: 455g
Receiver: ELRS 915
Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah
Flight time: 12-30 minutes
