Please note that this version does not include GPS M-10.

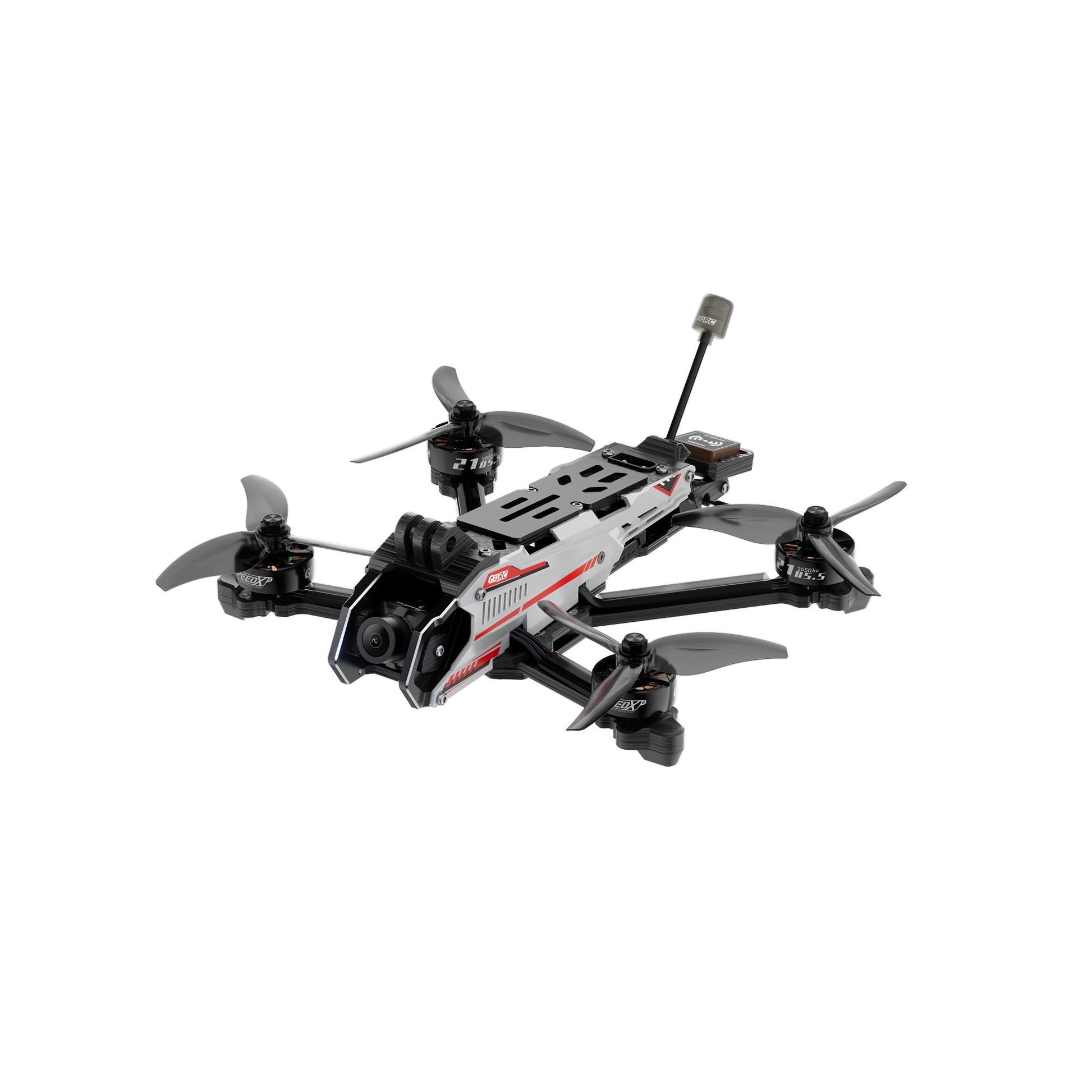

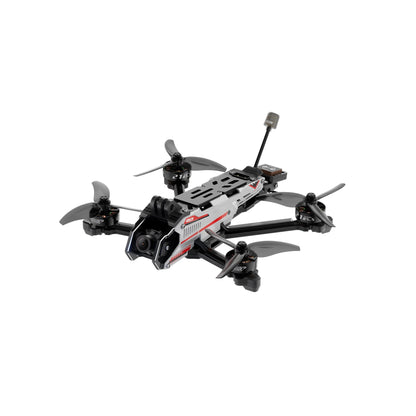

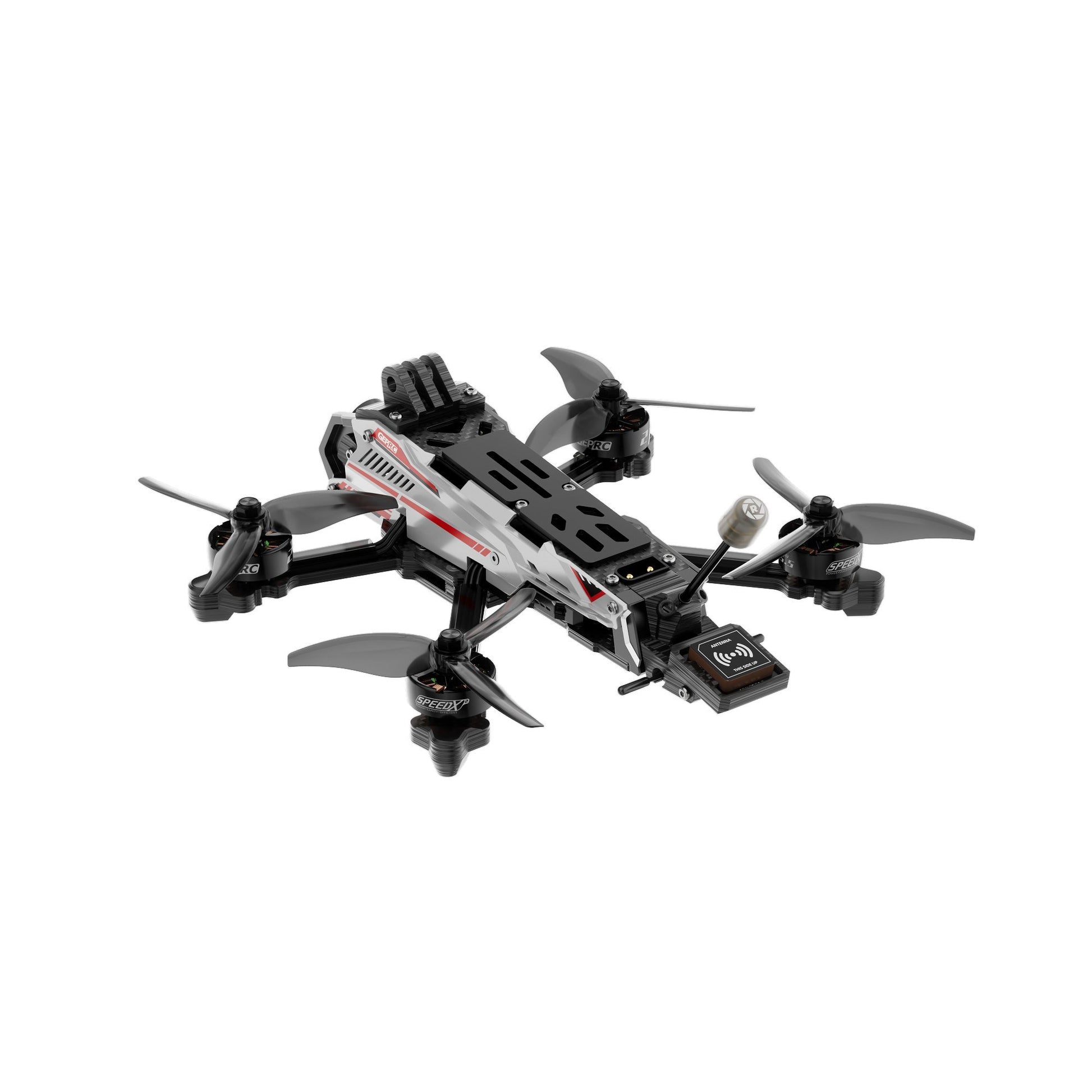

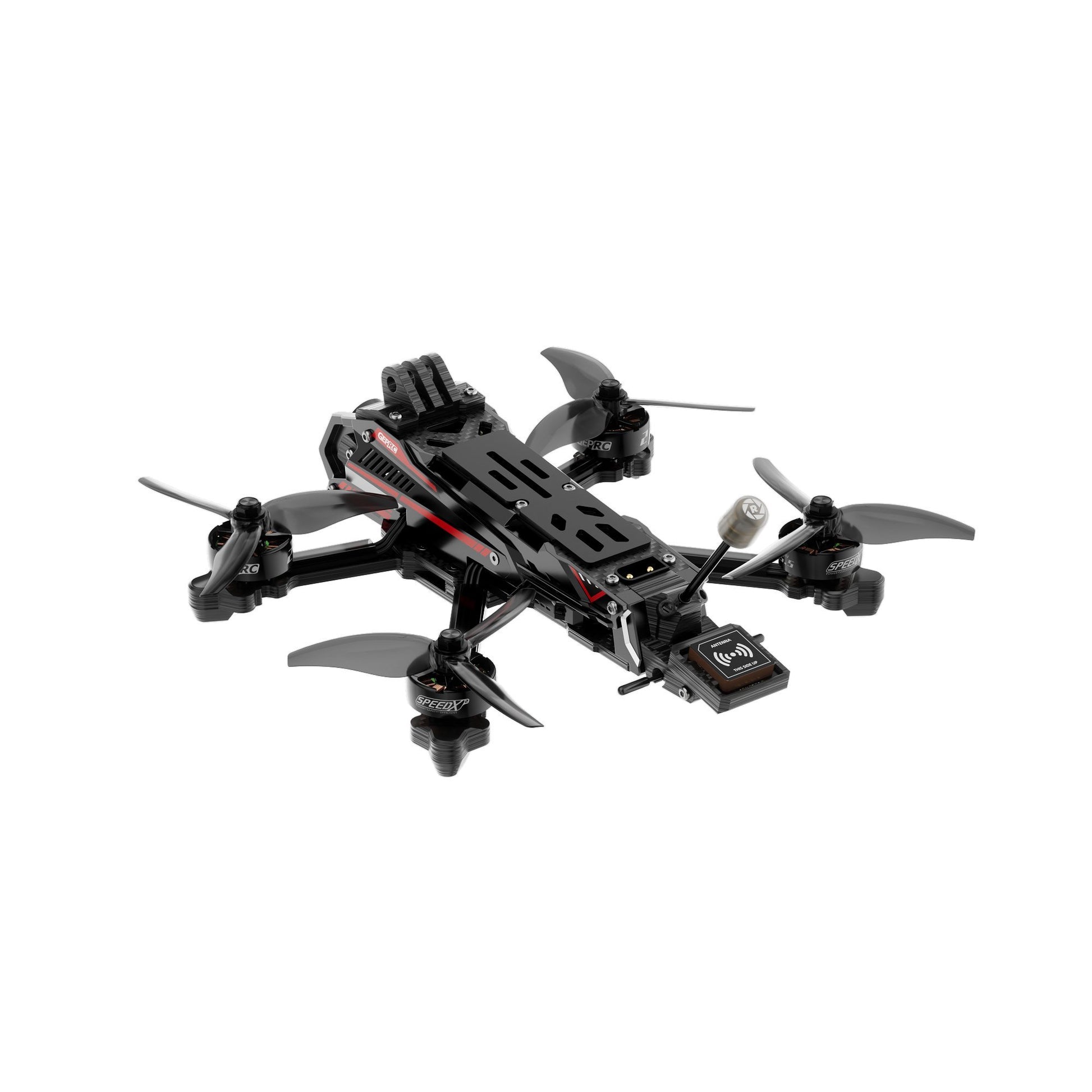

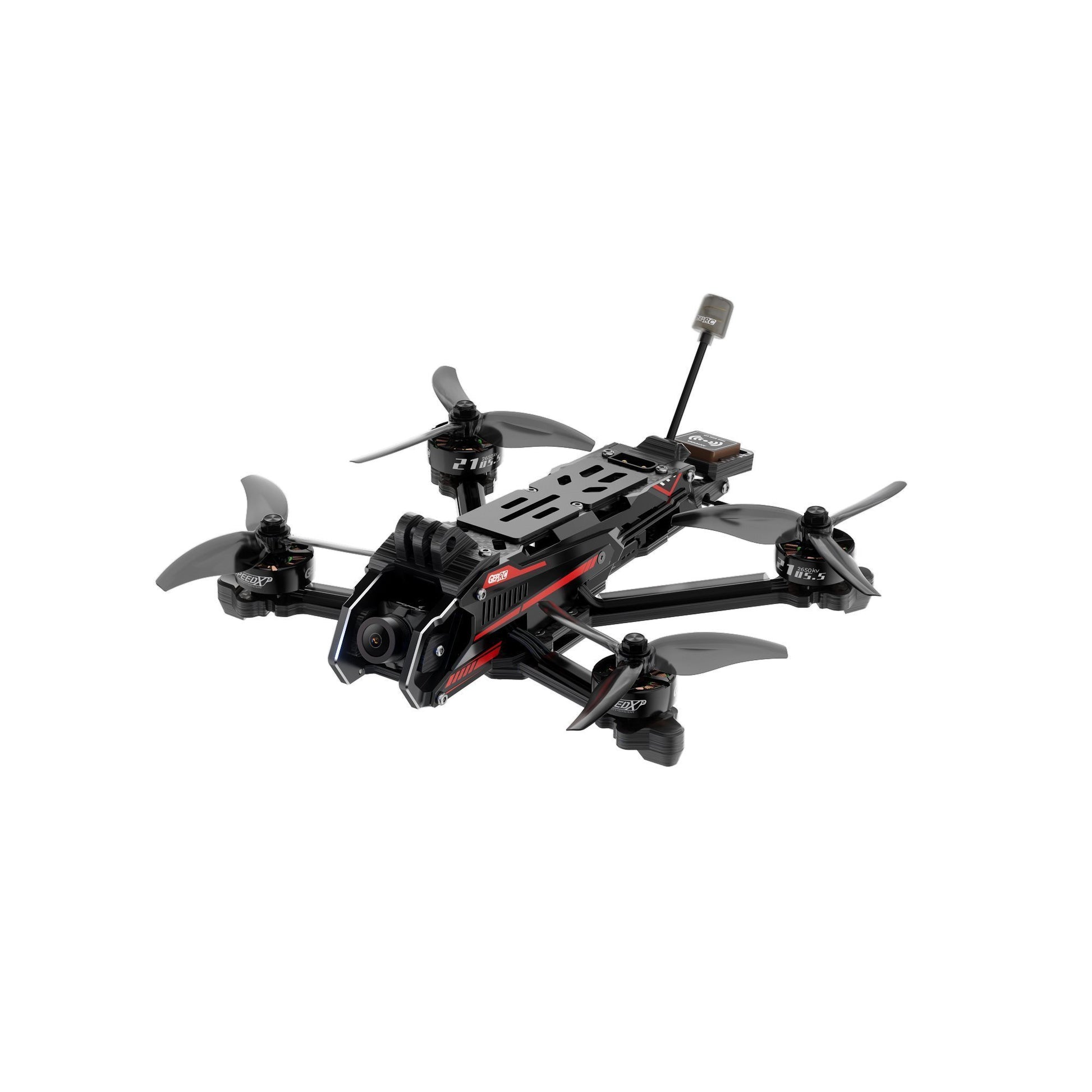

FPV drone GEPRC DoMain 4.2 Analog ELRS2.4G
Features:
- The unique design increases the stability of the frame structure.
- The new side panel design is integrated and supports custom side panel stickers. Greater creativity and diversity.
- Thanks to sufficient performance, it can also handle demanding freestyle flights.
- Supports full-frame GOPRO camera or GOPRO camera without housing, so you can capture perfect shots from all angles.
- DC structure design, the frame looks elegant and compact. Extra high integration, no propellers in the field of view, so you see a clear image.
Specifications:
Product Name: GEPRC DoMain 4.2 Analog ELRS2.4G FPV Drone
Frame: GEP-DoMain Frame
Wheelbase: 194 mm
Thickness of the top plate: 2 mm
Base plate thickness: 2.5 mm
Arm thickness: 4.0 mm
Middle plate thickness: 3 mm
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyroscope: MPU6000
OSD: AT7456E
VTX: GEPRC/GEPRC RAD MINI 1W VTX
Camera: Runcam phoenix2p
Antenna: Momoda-MMCX90-R-BR-100MM black background with red lettering, elbow, right rotation
Engine: SPEEDX2 2105.5 2650KV( M5 Shift)
Propeller: GEMFAN 4023 – 3
Weight: 310 g ±5 g
Receiver: ELRS2.4G
Recommended battery: Lipo 6S 1050-1300 mAh
Connector: XT60
Contains
1 x Domain
2 x GEMFAN 4023 – 3 (1 pair)
2 x M15*200mm battery cable clip
1 x bag of spare screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2 mm)
1 x M8 wrench
1x left and right side panel
