Please note that this version does not include the M-10 GPS. FPV Drone GEPRC DoMain 3.6 analog PNP function
Unique structure design, Increase the stability of the frame structure.
The new side panel design is integrated and supports side panel stickers. Greater creativity and diversity.
Equipped with enough power, it can complete a difficult free flight.
Support a full-size GOPRO or a naked GOPRO by itself, shooting all the perfect shots in sight
DC construction construction, the frame looks elegant and compact. Extra high integration, no support in view, will show you a clear picture.
Equipped with M-10 GPS to ensure the safety of every flight with rescue mode.
Specifications

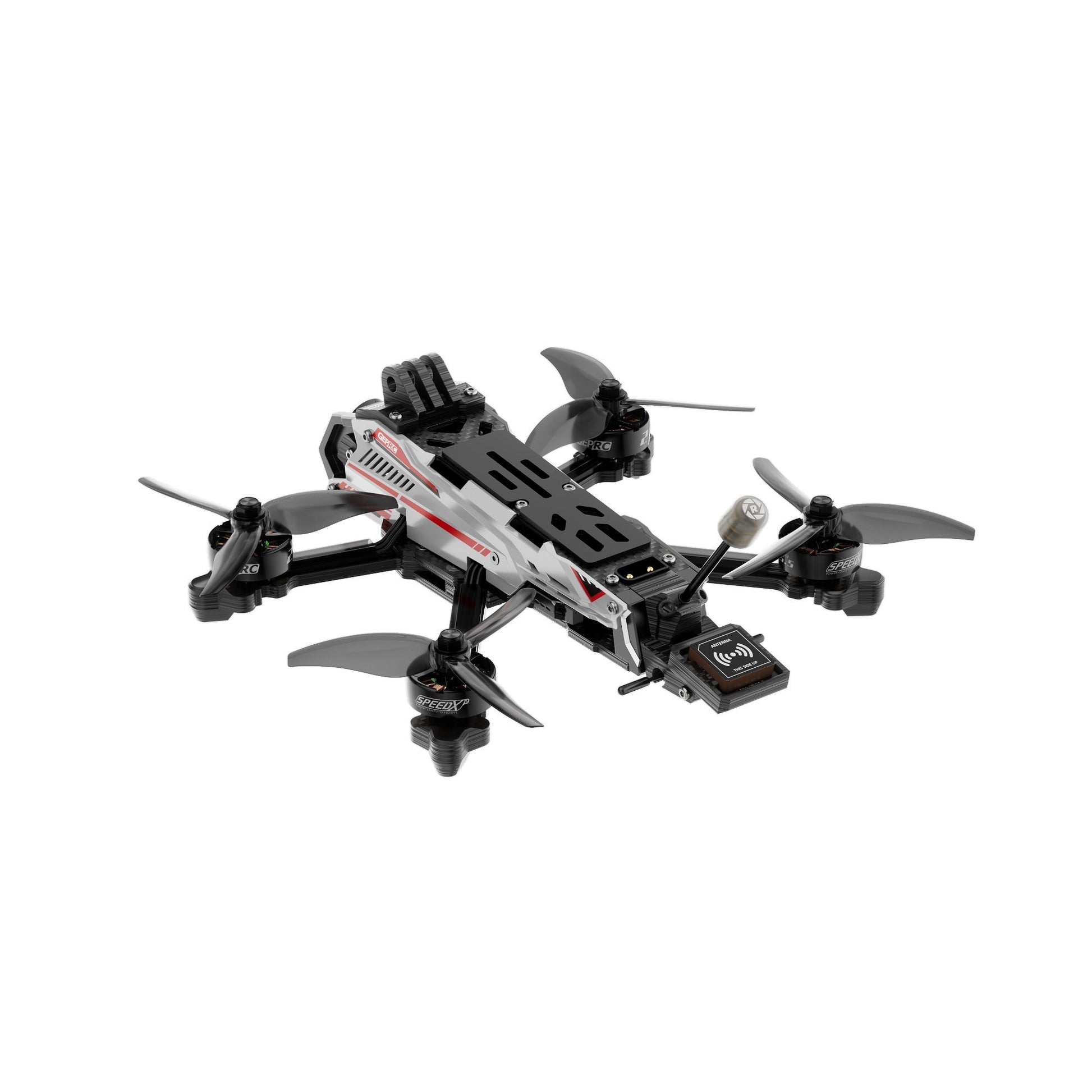

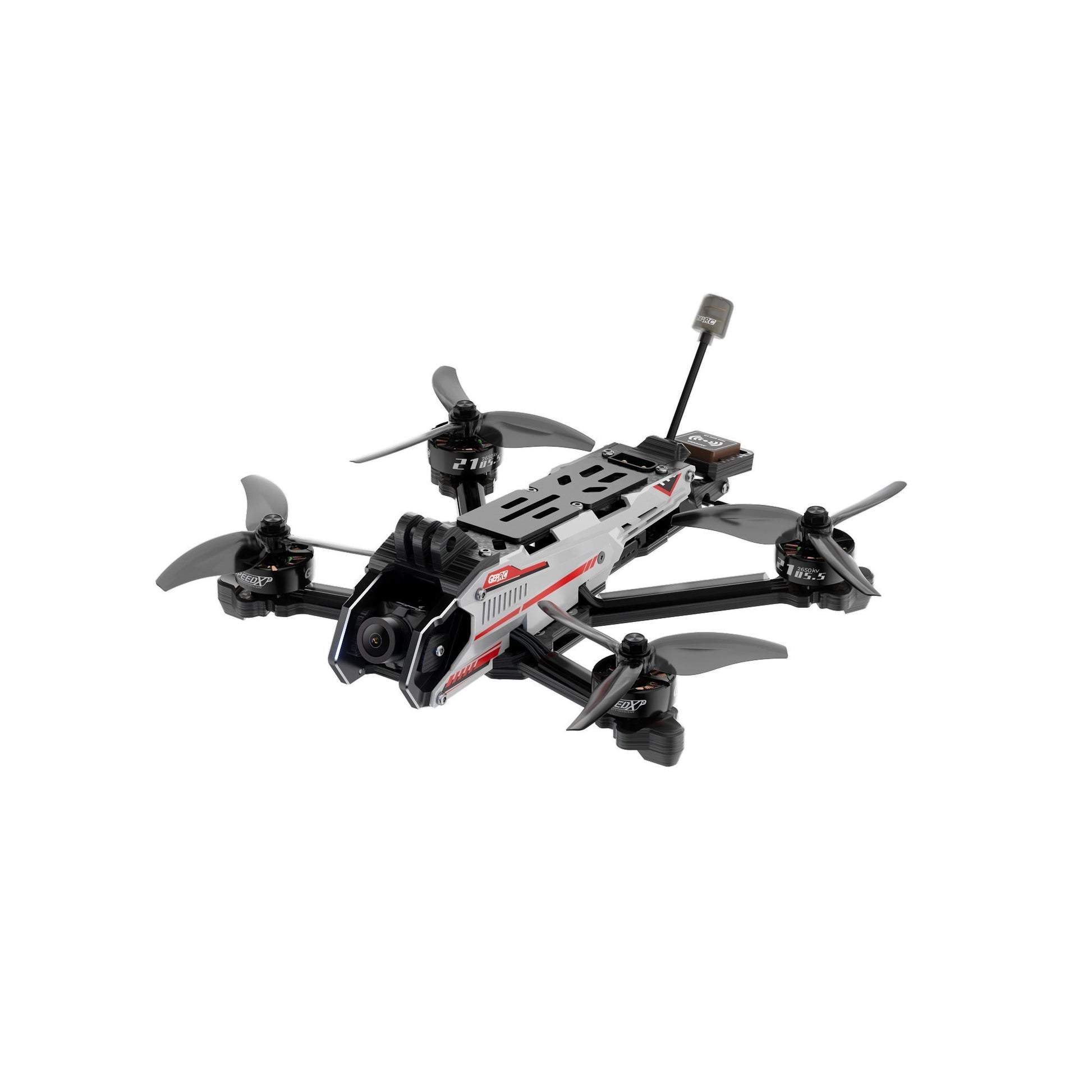

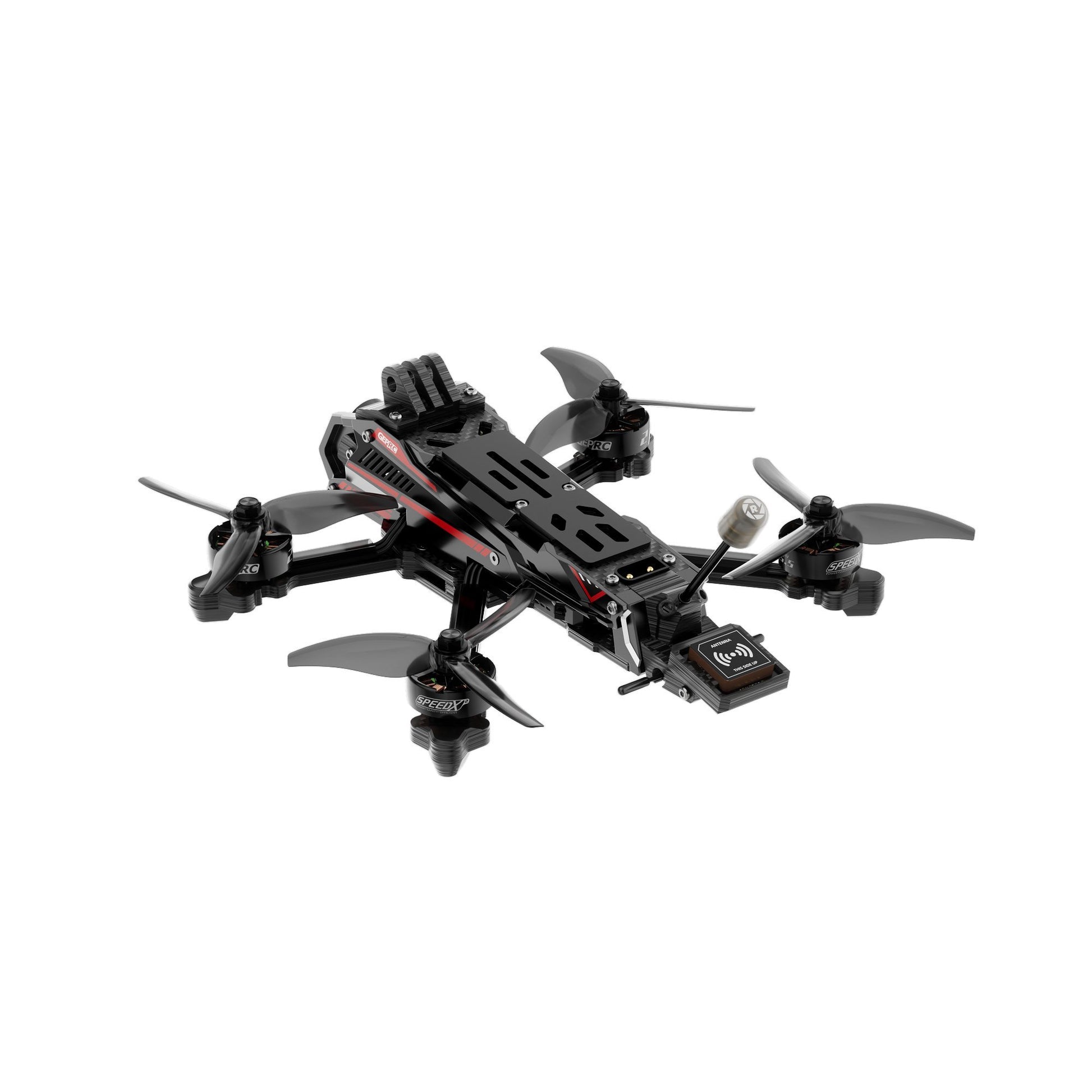

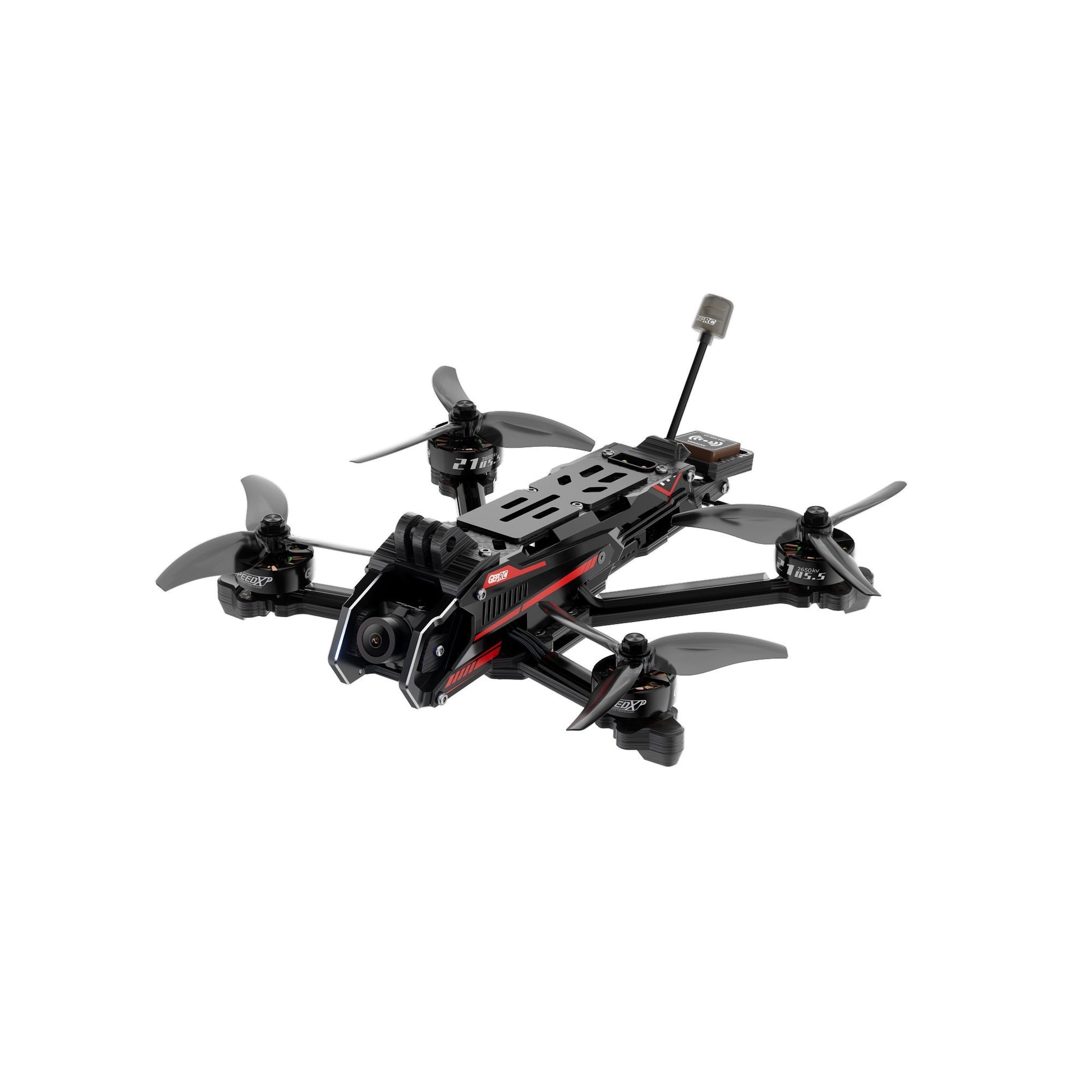

Product Name: FPV Drone GEPRC DoMain 3.6 Analog PNP
Framework: GEP-DoMain framework
Wheelbase: 170 mm
Roof thickness: 2 mm
Base plate thickness: 2.5 mm
Arm thickness: 4.0 mm
Center plate thickness: 3 mm
FC: TAKER F722 SE
ESC：TAKER E55A 32Bit 4V1
MCU: STM32F722RET6
Gyro: MPU 6000
OSD: AT7456E
VTX：GEPRC/GEPRC RAD MINI 1W VTX
Camera: Runcam phoenix2p
Antenna: Momoda-MMCX90-R-BR-100MM black background with red words, elbow, right rotation
Engine: SPEEDX2 2105.5 2650KV (M5 Shift)
Propeller: GEMFAN 3630 – 3
Weight: 279g ±5g
Receiver: PNP
Recommended battery: Lipo 6S 1050-1300 mAh
Connector: XT60
Includes
1 x Domain
2 x GEMFAN 3630-3 (1 pair)
2 x M15*200mm battery strap
1 x spare screw bag
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2 mm)
1x M8 key
1x Left and right side panel
