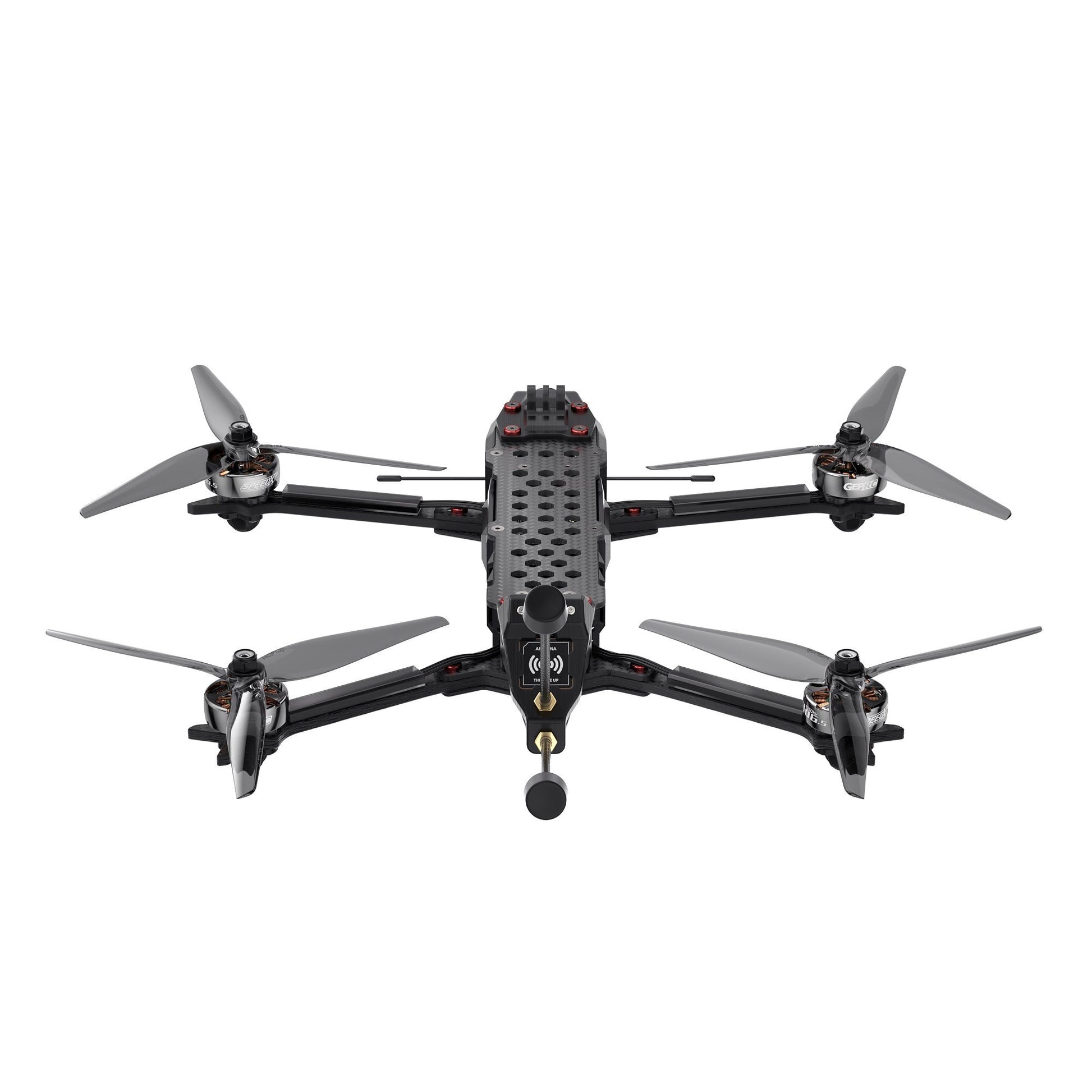

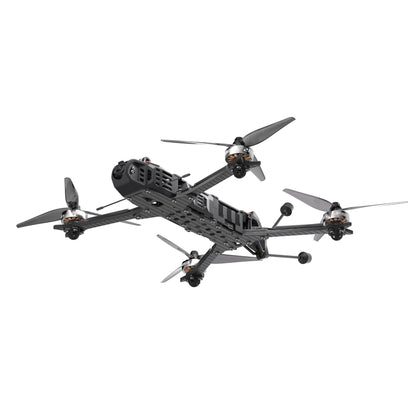

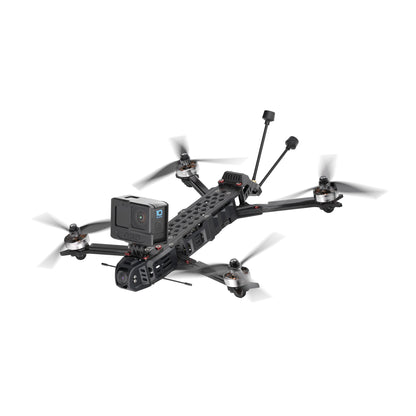

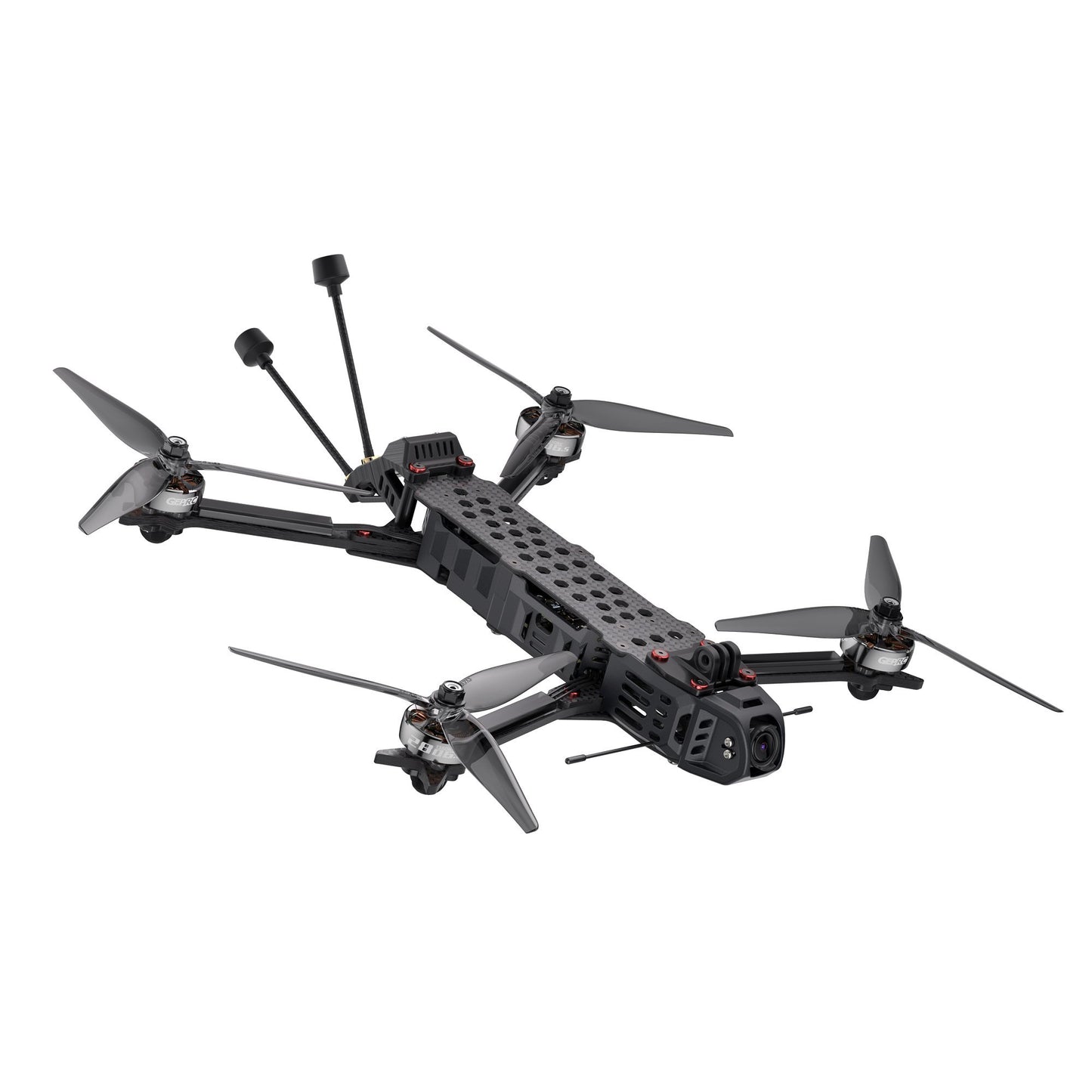

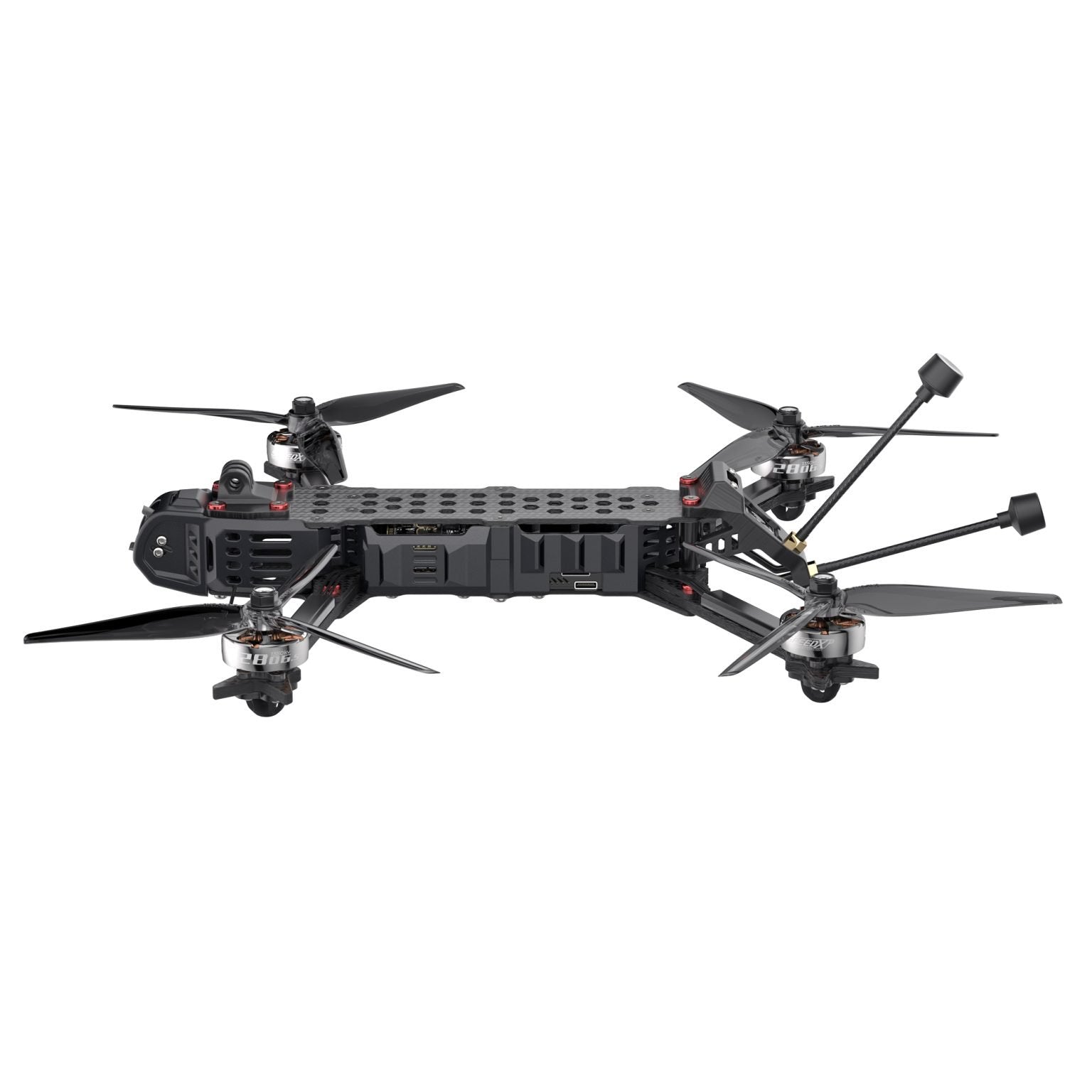

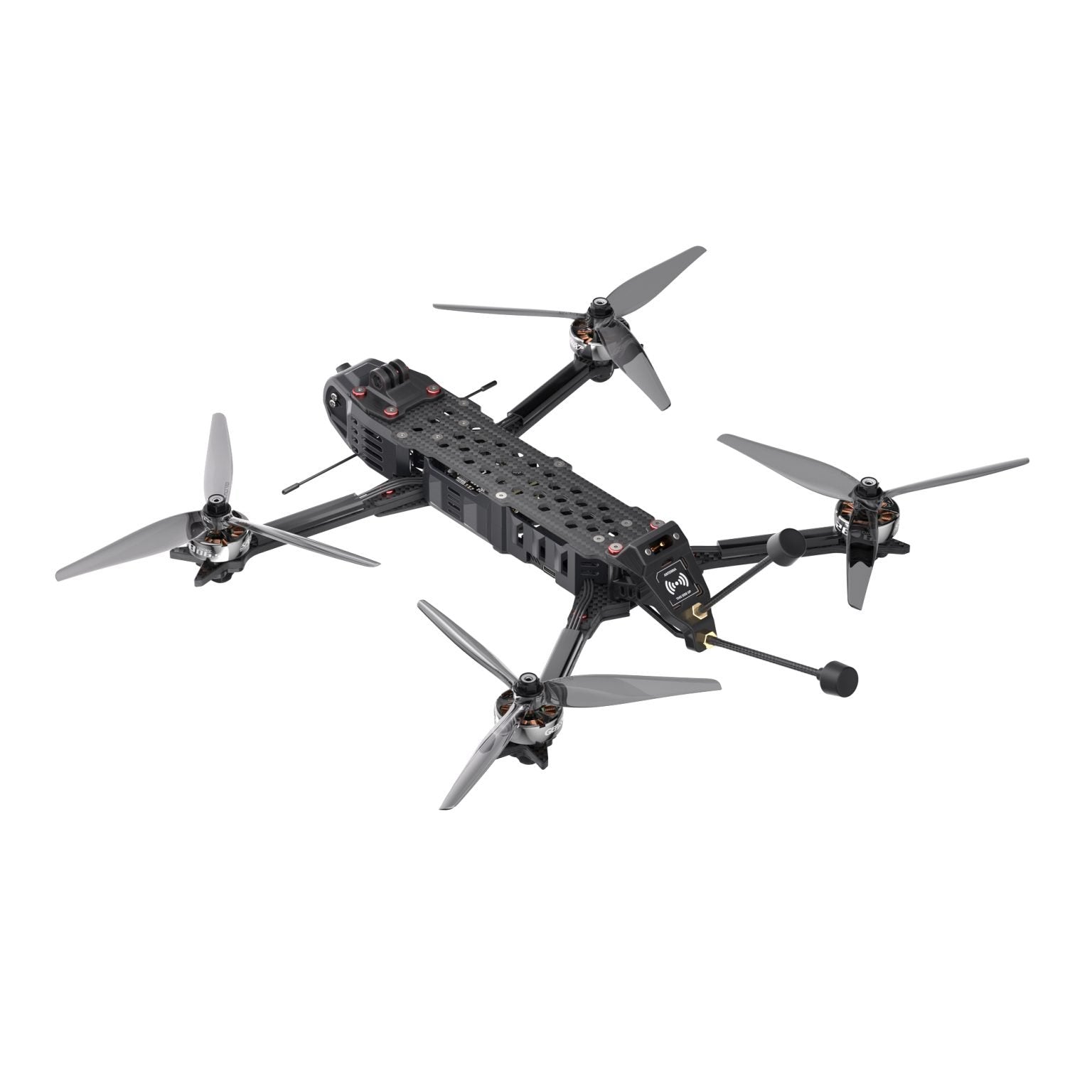

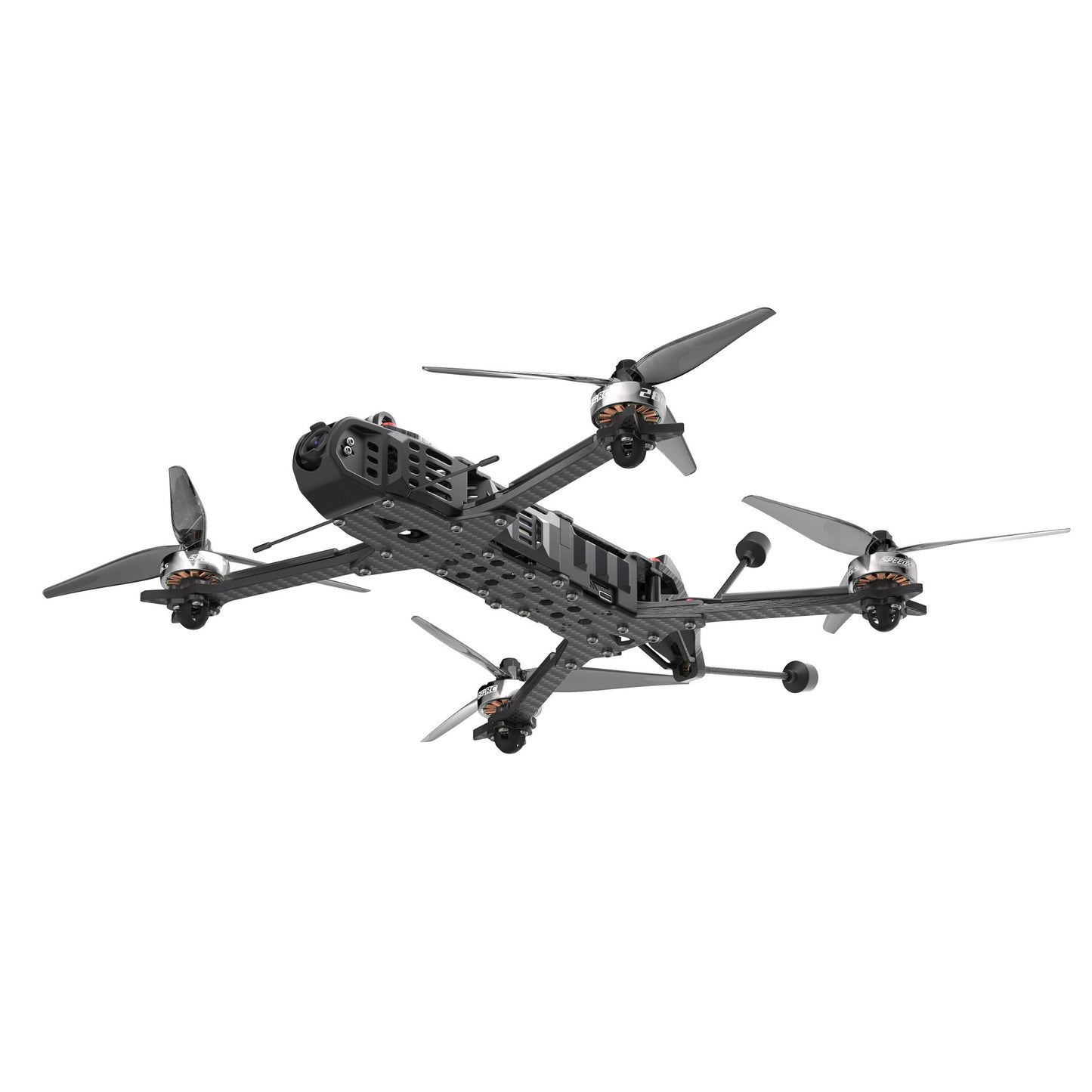

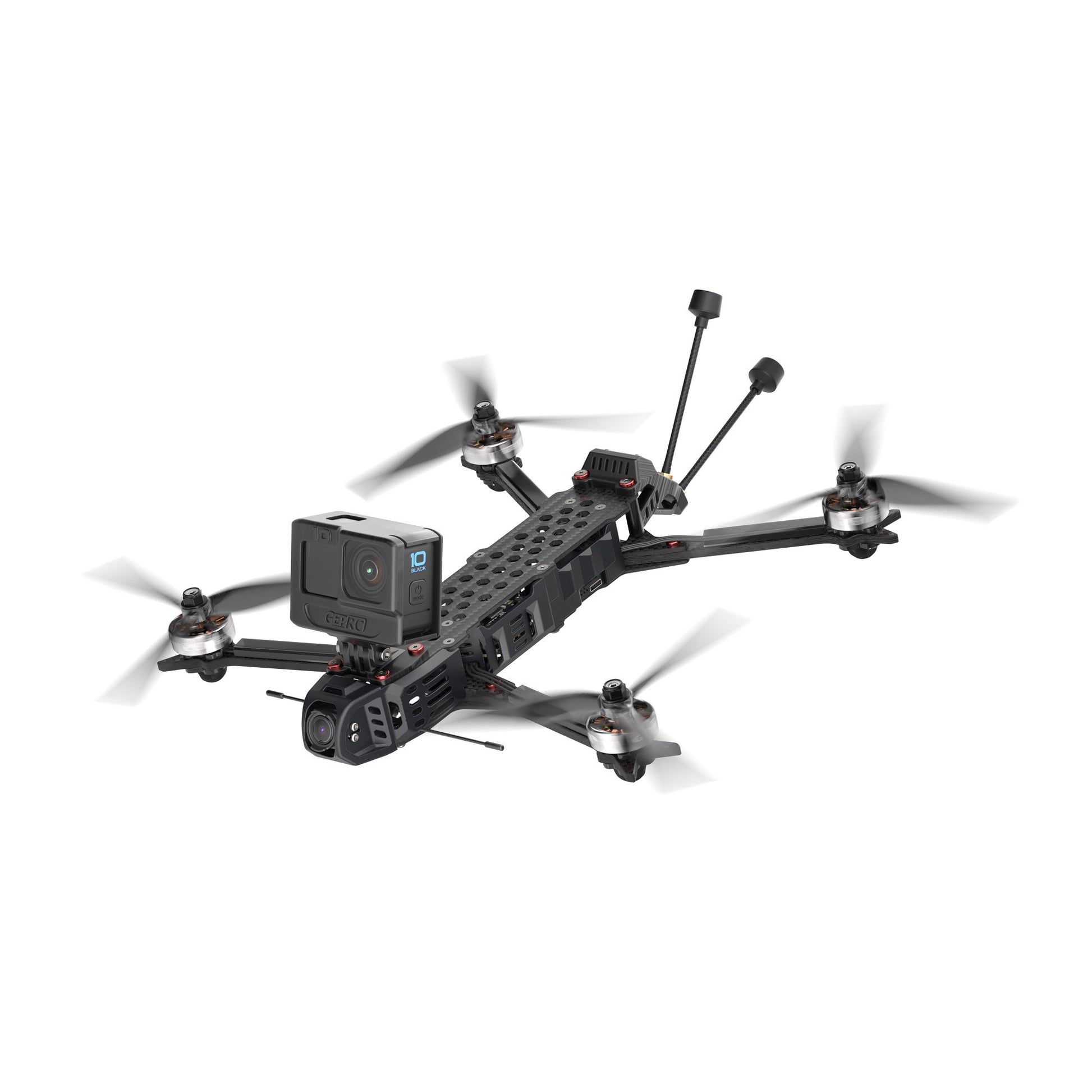

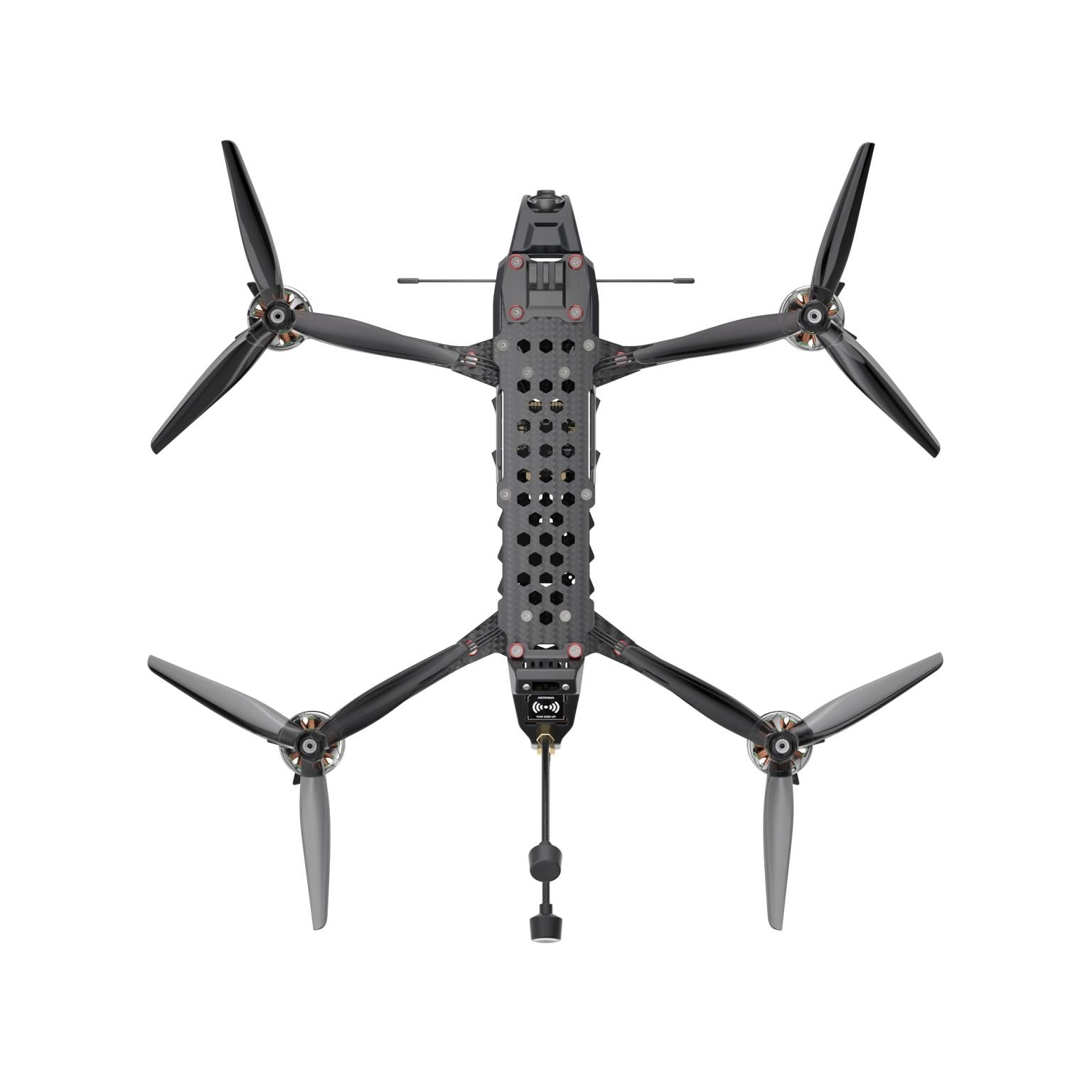

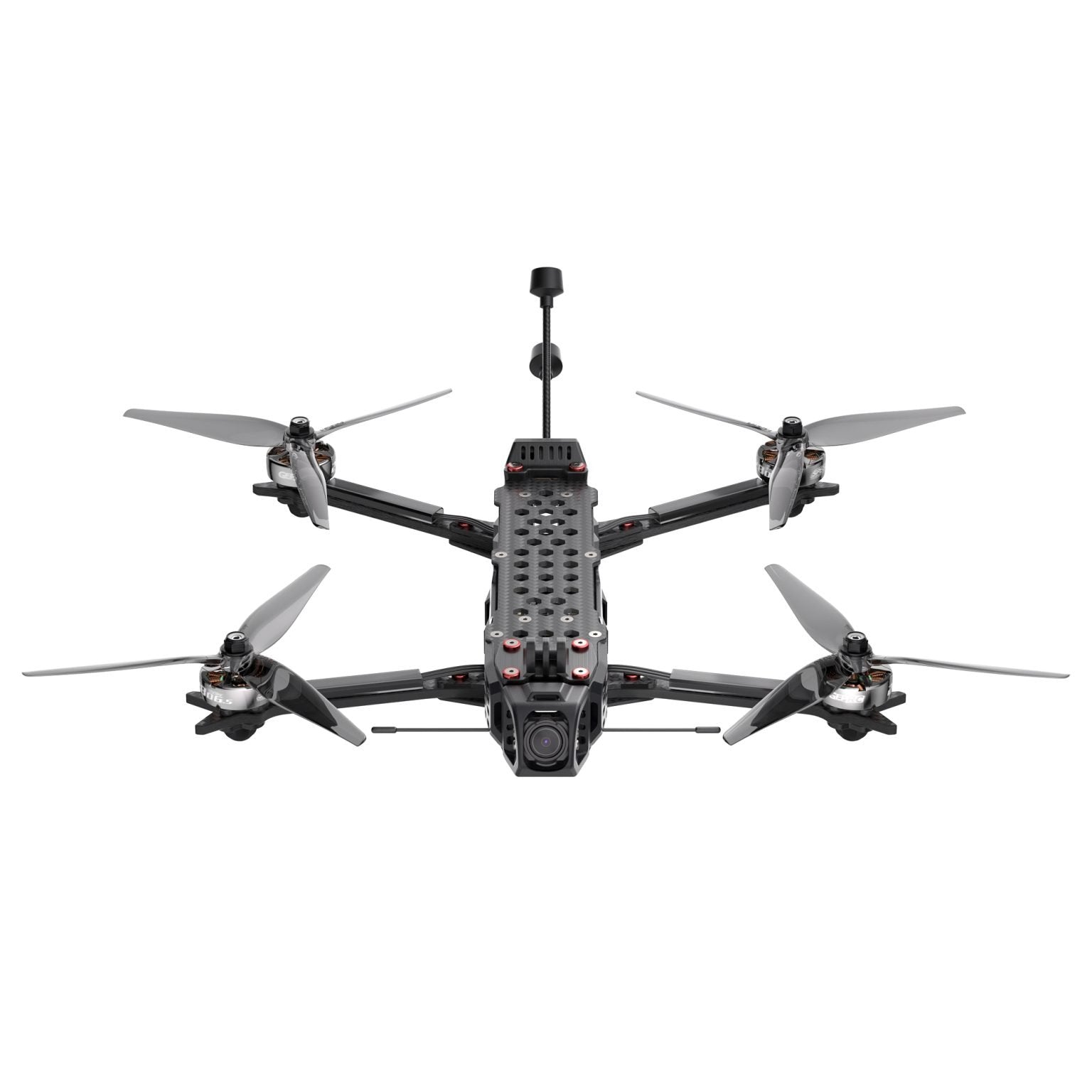

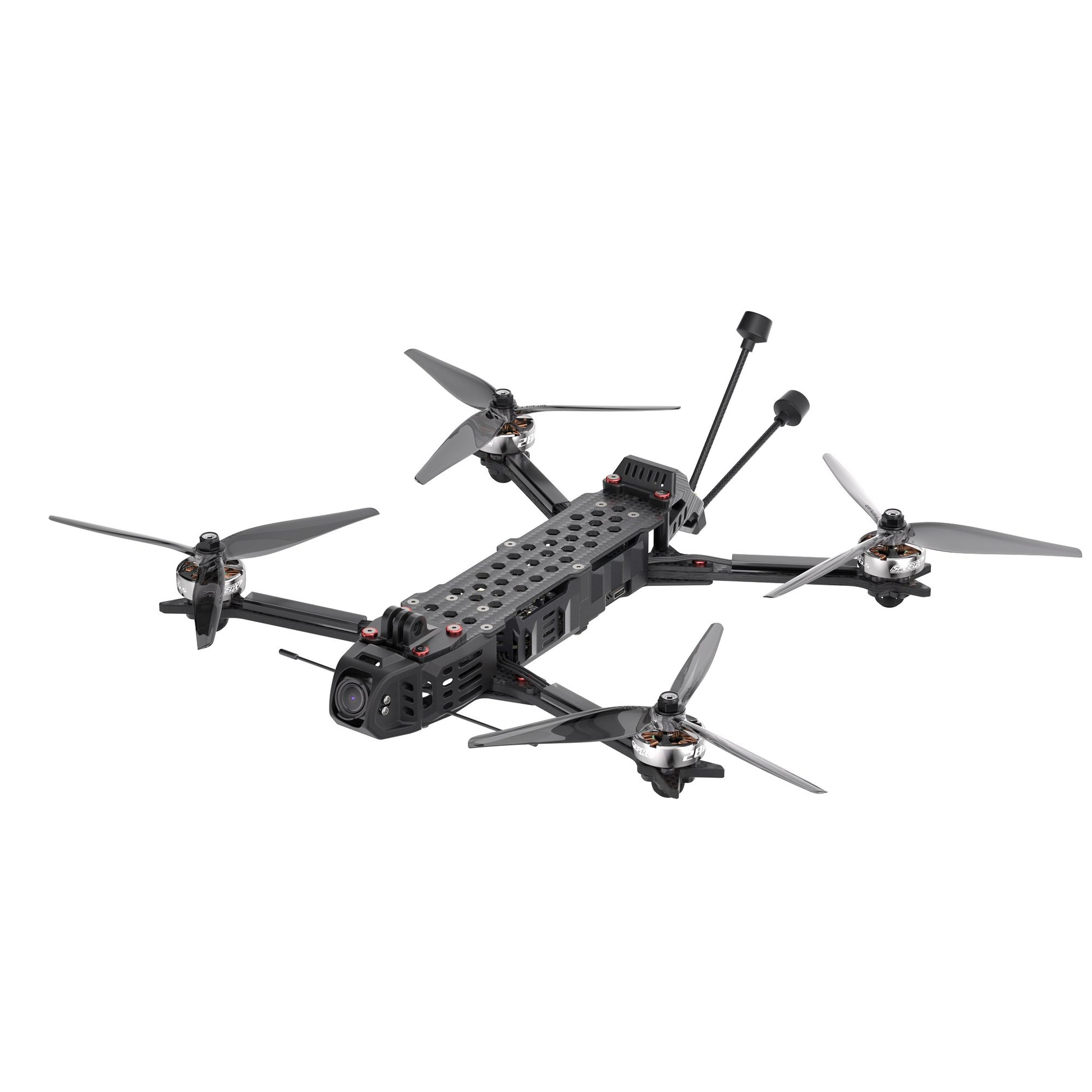

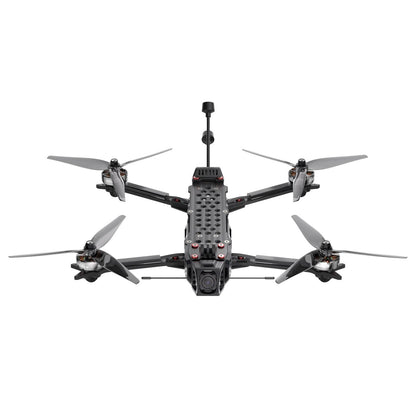

Analog PNP Crocodile75 V3
The appearance of the Crocodile75 V3 adopts a new design, the overall structure is strengthened to effectively reduce the vibration of the hull and make the flight experience smoother and more stable.
The Crocodile75 V3 is equipped with an O3 air unit with other special cooling components for efficient cooling.
The battery plug is integrated into the hull for convenient application. The power is upgraded with SPAN G50A BLHeli_32 4IN1 ESC and 2806.5 1350KV motor, enough power. When it comes to energy consumption in flight, you save energy and efficiency.
Features
1. Adopt a new appearance design, strengthen the hull structure, and reduce the impact of hull vibration on the gyroscope sampling data.
2. Equipped with SPEEDX2 2806.5 1350KV and HQ7.5×3.7×3 motor with sufficient power and high efficiency.
3. Upgrade SPAN G50A BLHeli_32 4IN1.
4. Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution
5. The integrated design of the battery plug and the body simplifies the operation after power-on, simplicity and beauty.
6. Equipped with O3 air unit and added special heatsink, excellent heat dissipation to prevent O3 air unit from overheating and stop recording.
7. Crocodile75 V3 has a longer fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
8. Perfect fit for 7 inch or 7.5 inch propellers.
Specifications:
Model: Analog Crocodile75 V3
Frame: GEP-LC75 V3
Wheelbase: 342 mm
Top plate: 2.5mm
Bottom plate: 3.0mm
Shoulder plate: 6.0 mm
Slat plate: 2.5 mm
FC: SPAN F722-BT-HD V2
ESC: SPAN G50A BLHeli_32 4V1
MCU: STM32F722RET6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E chip
VTX: GEPRC RAD 5.8G 1.6W
Camera: Caddx Ratel2
GPS: GEP-M8U
Antenna: Momoda 5.8G RHCP RP-SMA 120mm
Engine: SPEEDX2 2806.5 1350KV
Propellers: HQProp7.5×3.7×3
Weight: 597.5g
Receiver: PNP
Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah
Flight time: 12-30 min
