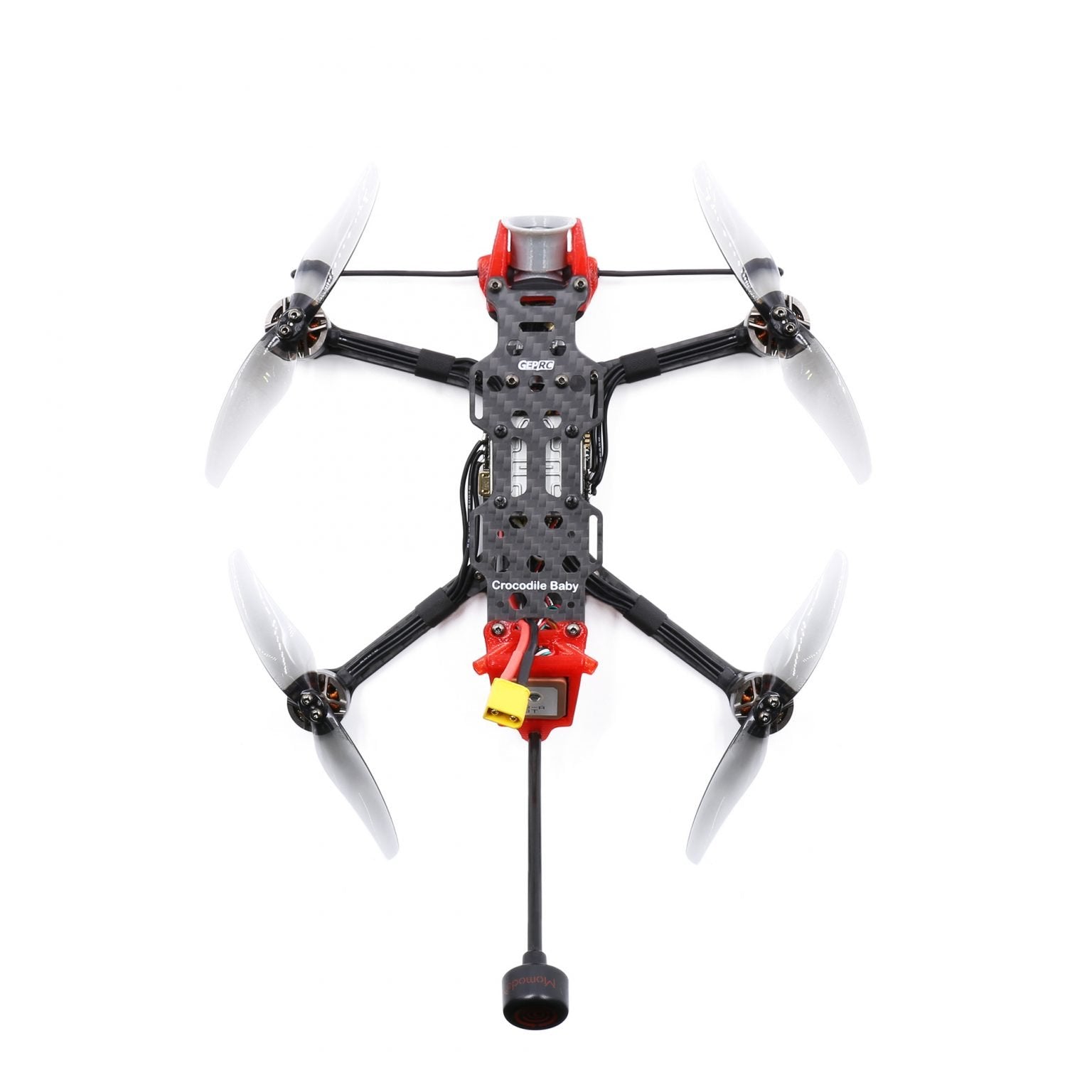

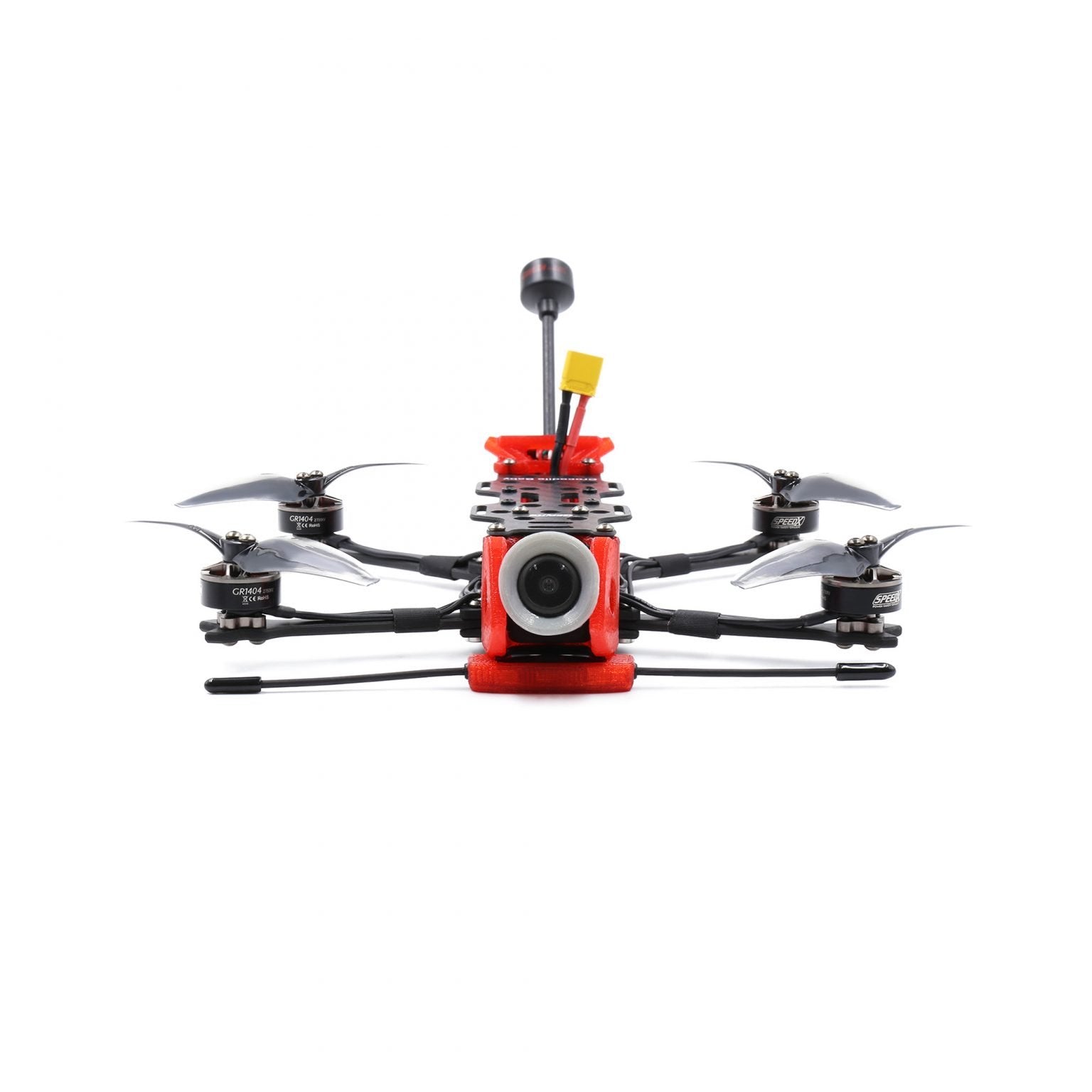

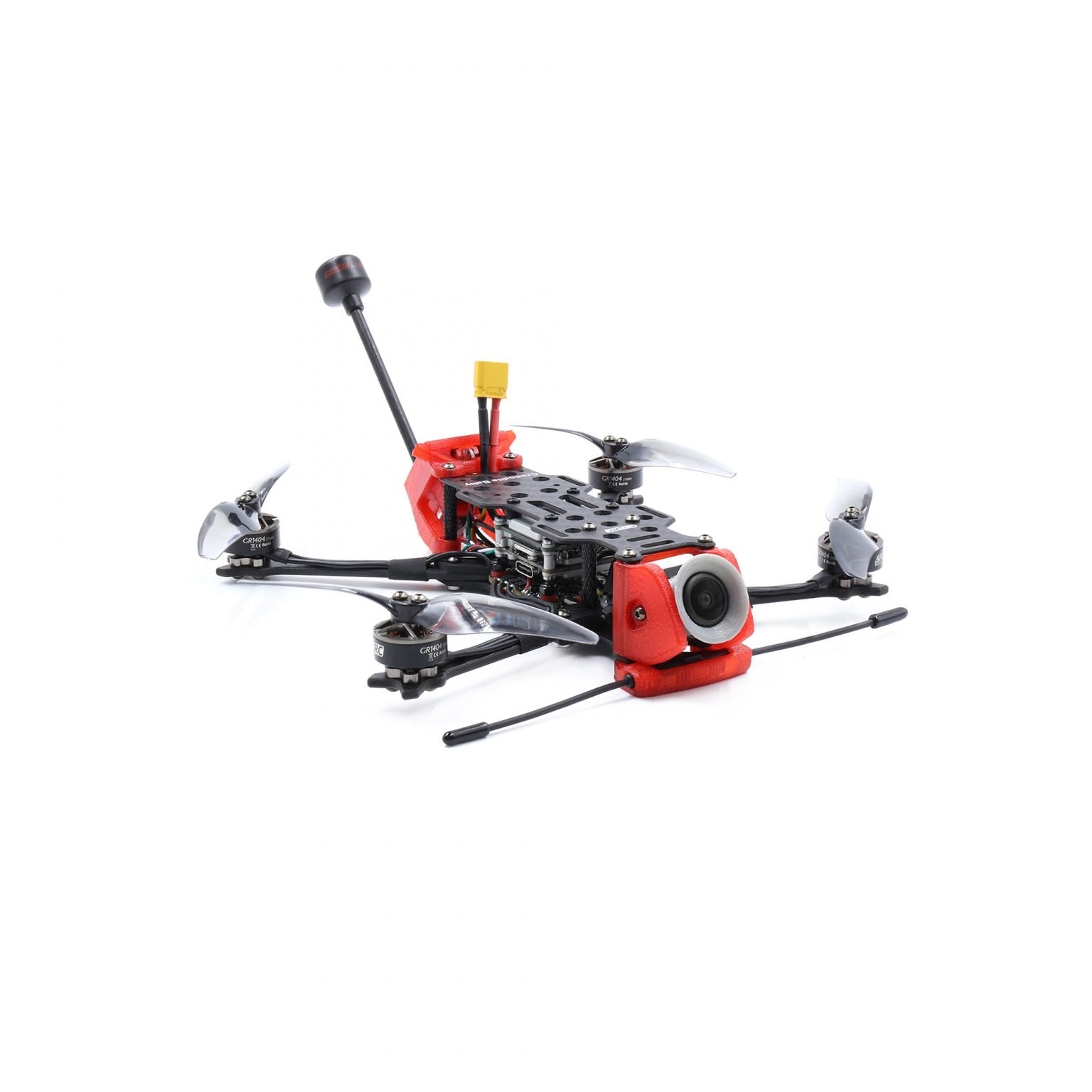

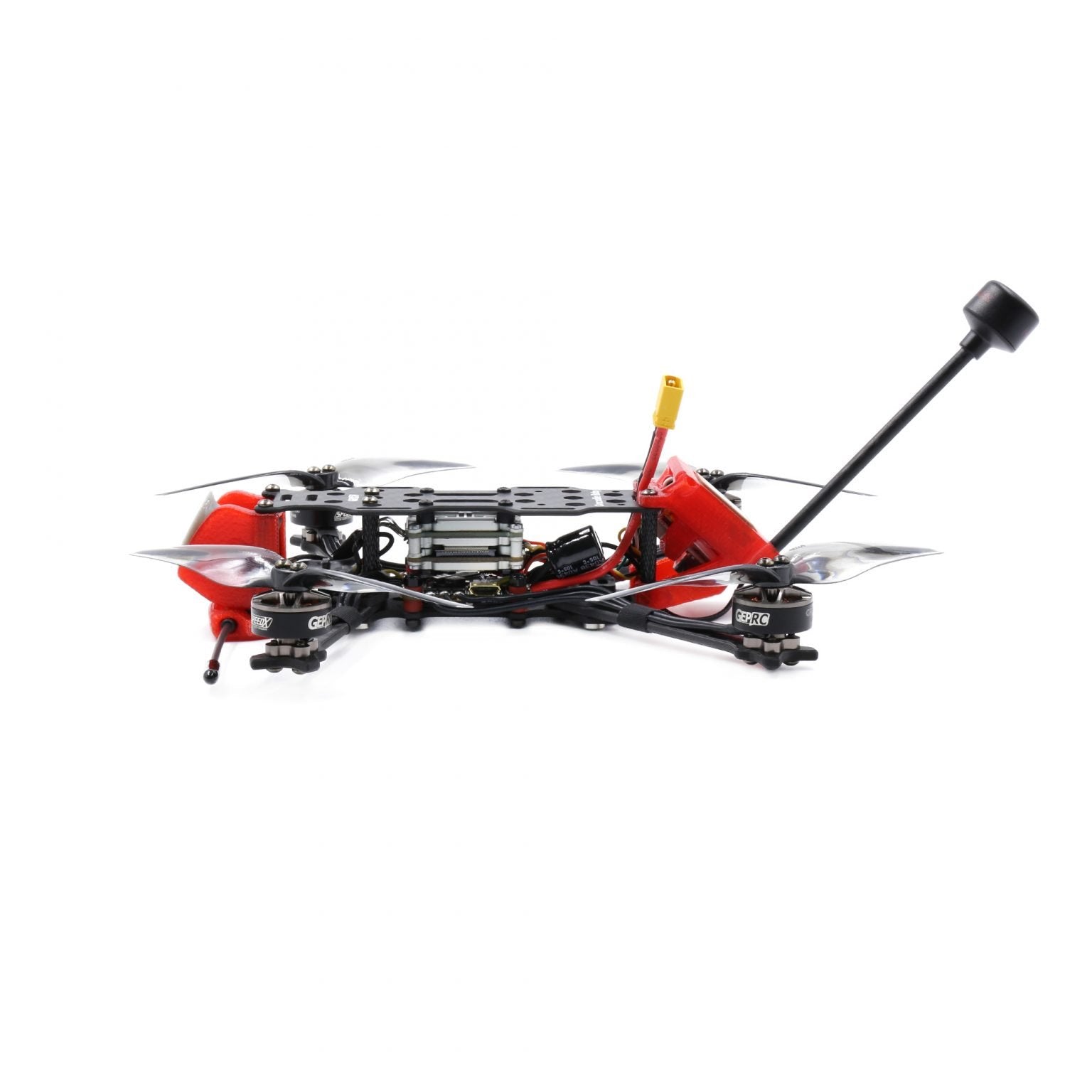

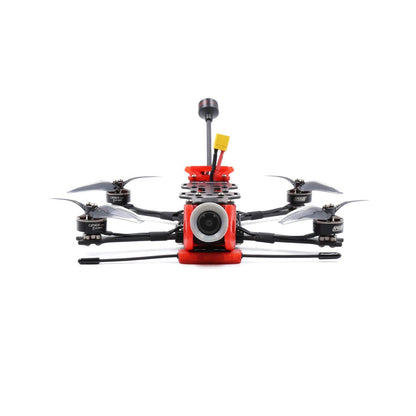

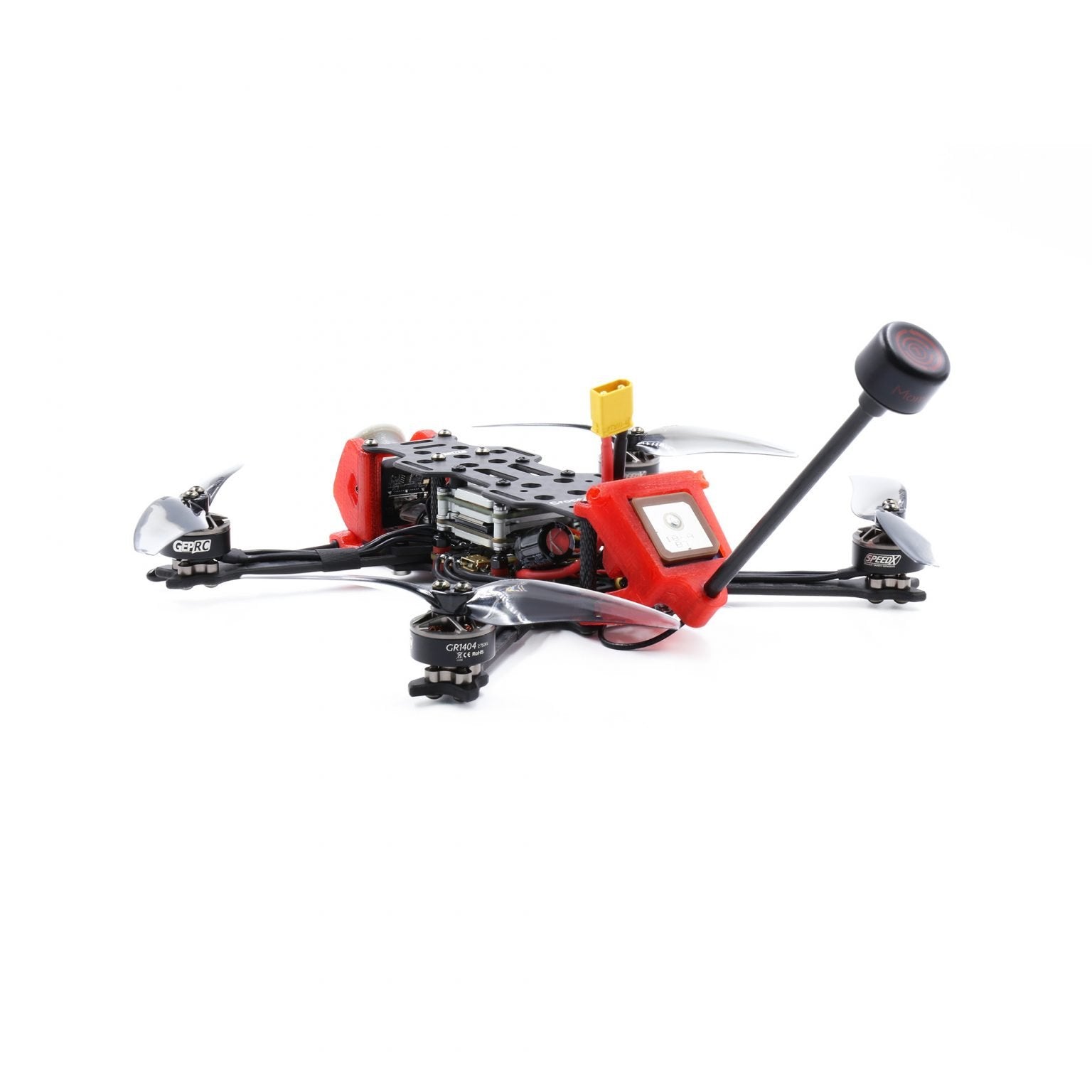

Crocodile4 Baby-HD-Wasp-PNP-F7
The GEPRC Crocodile Baby 4-inch is a long-range quadcopter with a lightweight frame and an impressive flight time of over 28 minutes. Available in two versions: DJI HD VTX and Analog VTX 5.8G 600MW.
It is equipped with a highly efficient power system, a newly developed GEPRC 1404 2750kv engine, Gemfan 4024 propellers, the latest GEP-20A-F4 AIO flight control system, and is equipped with a DJI HD image transmission system. These components ensure a stable flight and provide a feeling of "easy control".
Crocodile Baby 4-inch has an independently designed GPS module that implements GPS functions. In case of signal loss or control problems, the VTX can activate the Betaflight rescue mode (in case of emergency, the FPV drone will return to the approximate take-off point; once the signal is regained, a manual landing is required). Rescue mode does not perform an automatic landing. In addition, Crocodile Baby integrates GEPRC Finder, which activates an acoustic signal when the FPV drone loses power or disconnects the battery, helping to locate the device.
Specifications:
Brand: GEPRC
Model: Crocodile Baby 4″ HD
Frame: GEP-CB4
Wheelbase: 174 mm
Thickness of the top plate: 1.5 mm
Bottom plate thickness: 2.0 mm
Shoulder plate thickness: 2.5 mm
XT30 connector
Flight Control System: GEP-F7-35A (New AIO)
MCU: STM32F722RET6
Gyroscope: 6-axis
USB Type C interface
OSD: BetaFlight OSD with AT7456E chip
Integrated LC filter
Power: 4S LiPo
VTX: Caddx Vista
Props: Gemfan 4024
Antenna: GEPRC Momoda 5.8g long LHCP version
Motors: GR1404 2750KV
GPS: GEP-M10
Weight: 242g (including 4S 750mAh battery)
Receiver: PNP (with DJI receiver)
Recommended motors: GR1404 2750KV
Recommended battery: 4S 650mAh – 1300mAh Lipo or 4S Lion 3000mAh
