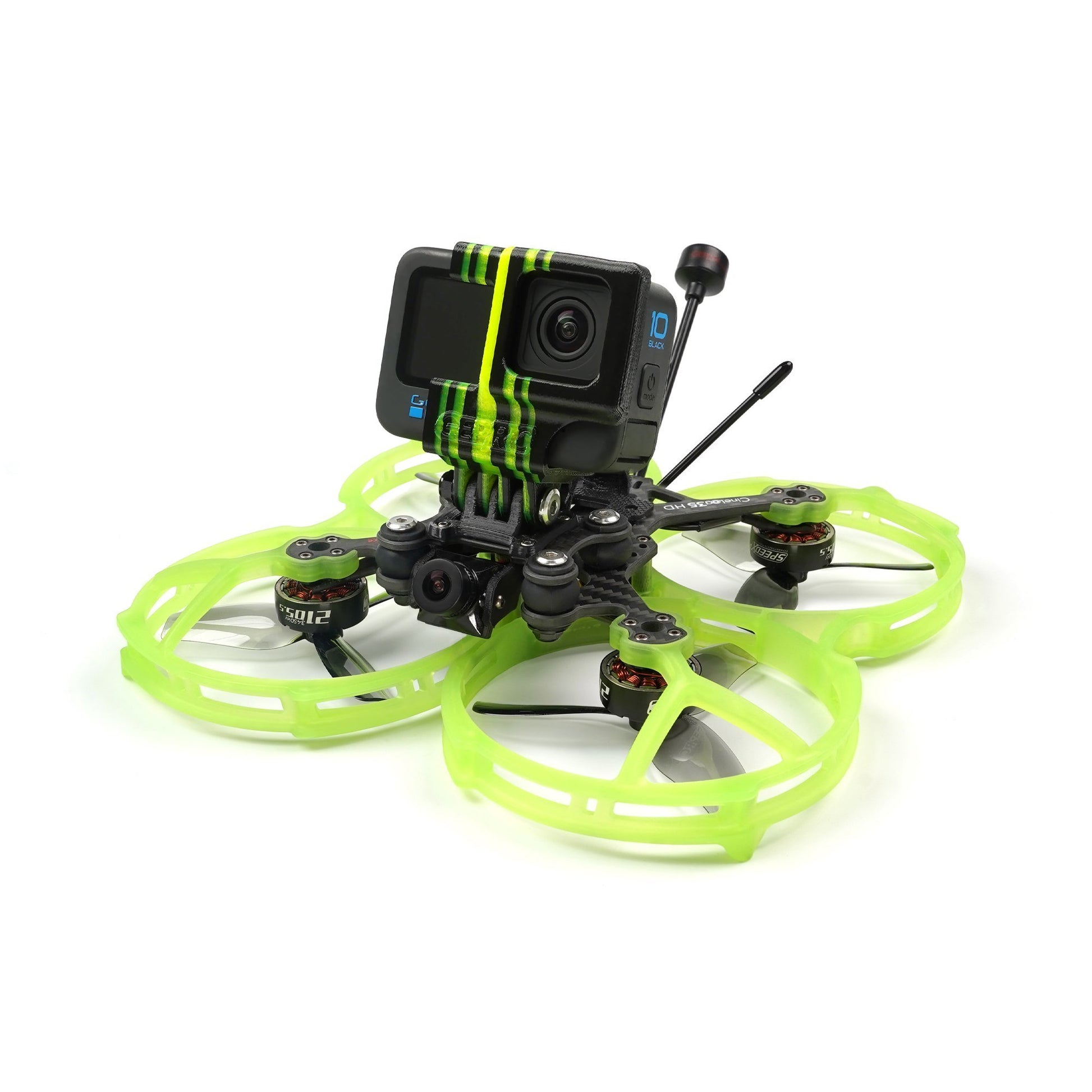

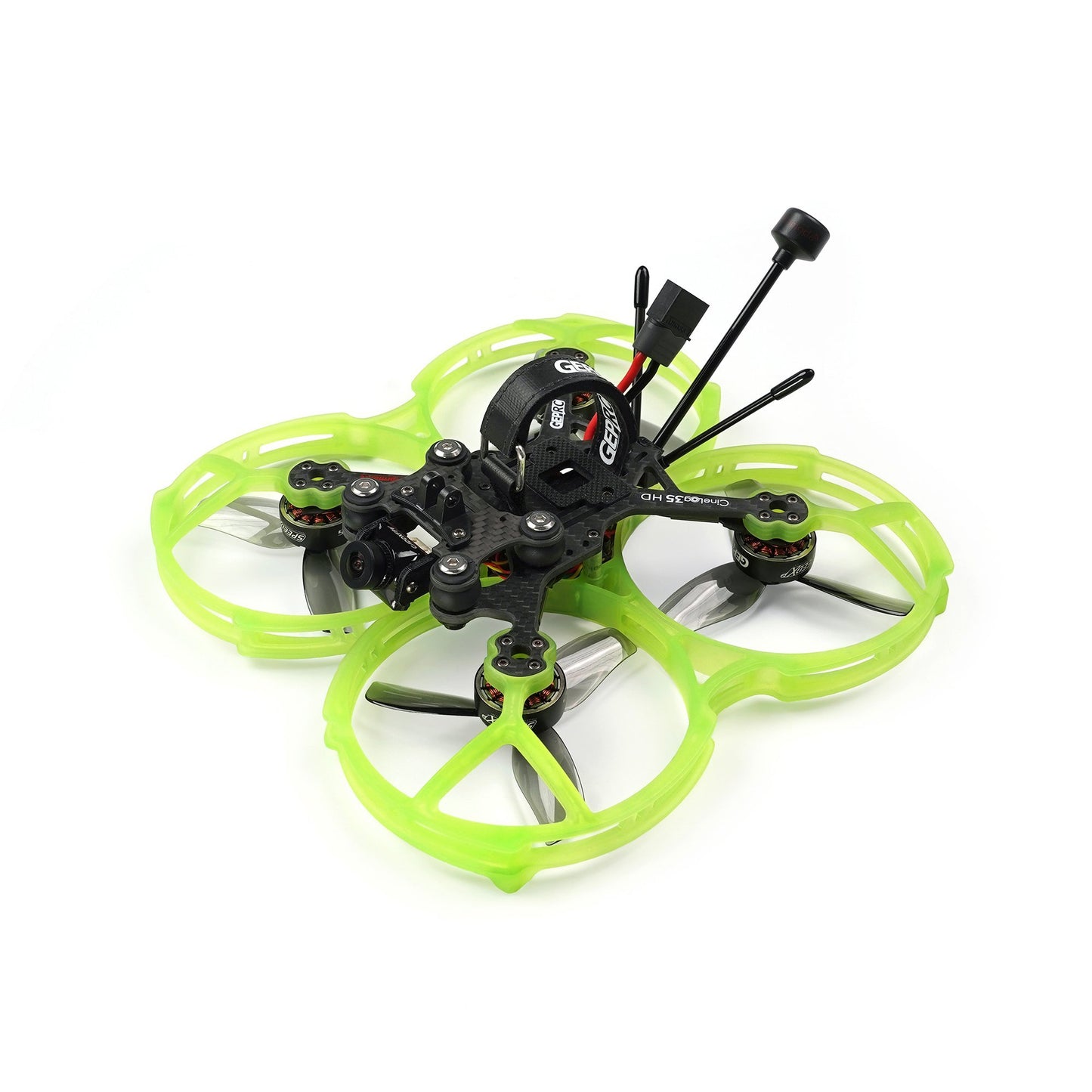

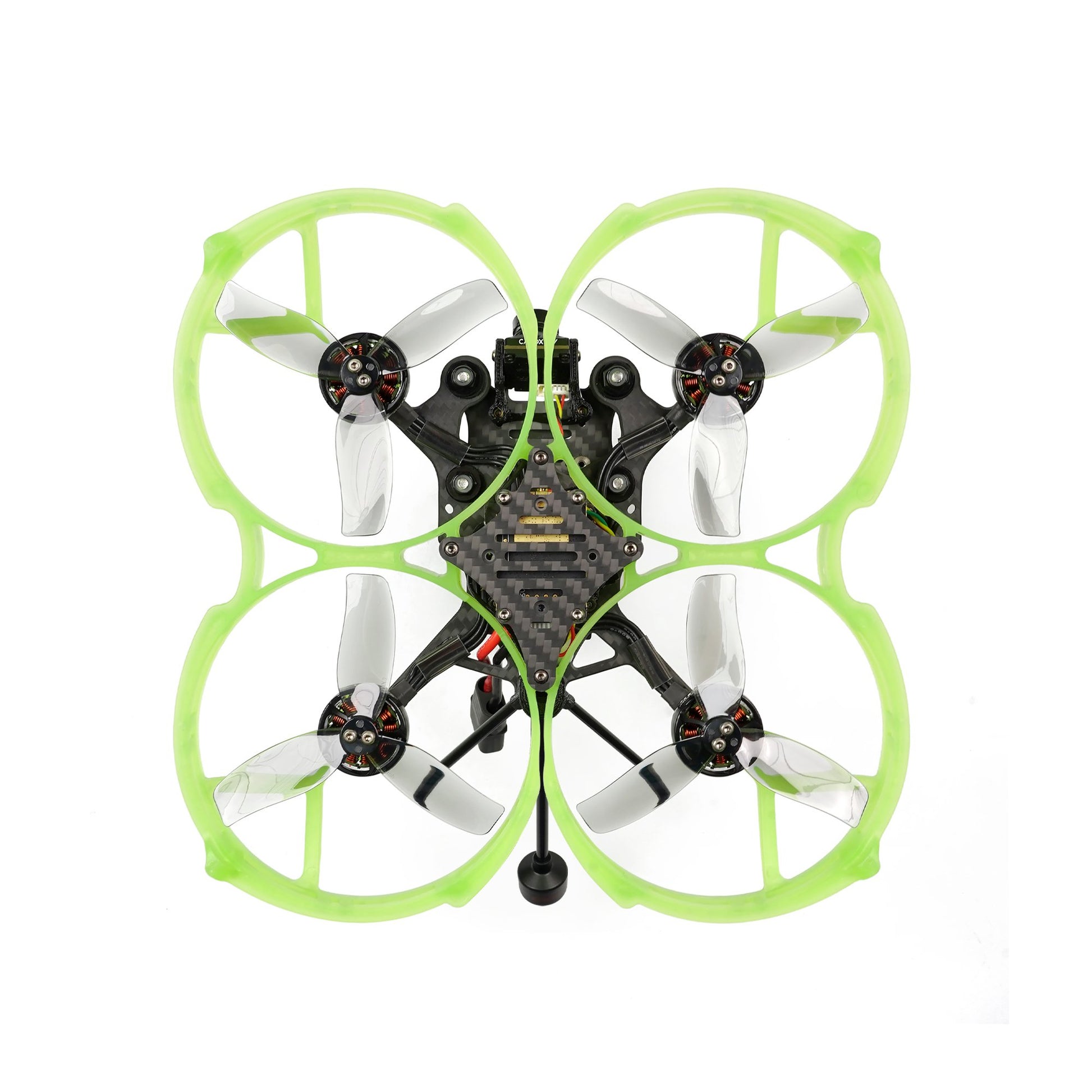

CineLog35 P Analog 6S TBSNanoRX
The CineLog35 Performance version is optimized and upgraded based on the standard version. There are 4 receiver options. CineLog35 is designed with lower weight and longer durability. It combines filming, freestyle, racing and sailing.
Improved power system: using F722-45A AIO with new SPEEDX2 2105.5 motor, which has stronger power and faster response.
It makes flying with a GP camera easier and allows you to perform challenging action flying. You can even Freestyle with the GEPRC Naked Camera GP8.
It uses 1.6W high power RAD VTX, stable signal transmission, strong anti-interference and longer signal transmission distance.
Travel flight time
6S 1550MAH battery: 5 minutes 30 seconds (with full size GP 10 mounted)
6S 1550MAH battery: 7 minutes 30 seconds (none)
Specifications
Model: CineLog35 Performance Analog
Brand: GEPRC
Frame: GEP-CL35 Performance
Wheelbase: 142 mm
Top plate: 2.5mm
Bottom plate: 2.0mm
Shoulder plate: 3.5 mm
FC system: GEP-F722-45A AIO
MCU: STM32F722
IMU: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: BLheli_S 45A
VTX: RAD 5.8G VTX 1.6W
Camera: Caddx Ratel2
Propeller: HQ DT90-3
Antenna: GEPRC Momoda 5.8g MMCX RHCP 195mm long version Antenna
Motor: SPEEDX2 2105.5-2650KV
Weight: 257.9g (CineLog35 Performance Analog 6S PNP)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS2.4G
Battery: LiPo 6S 850mAh-1300mAh/Li-HV 6S 1550mAh 60C
