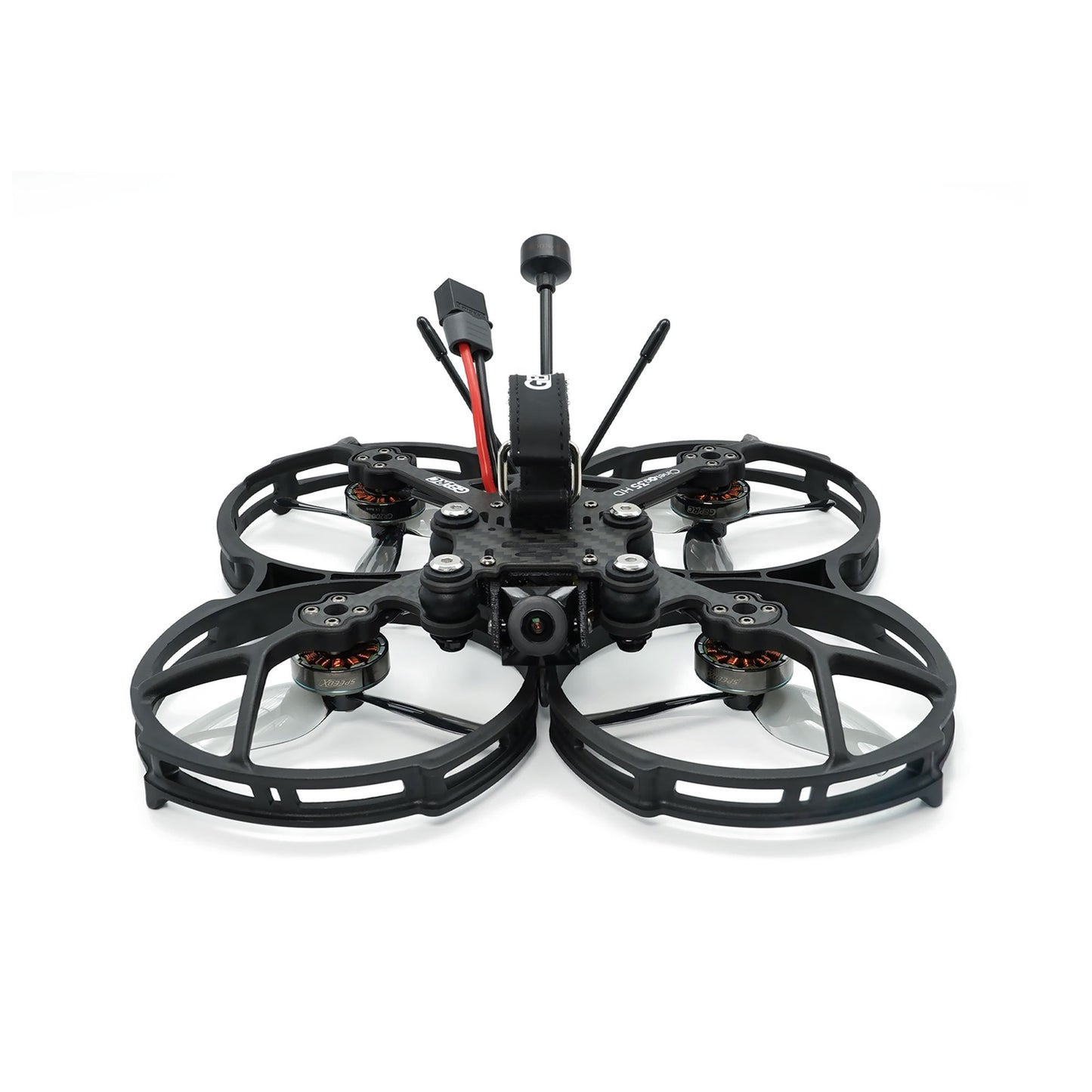

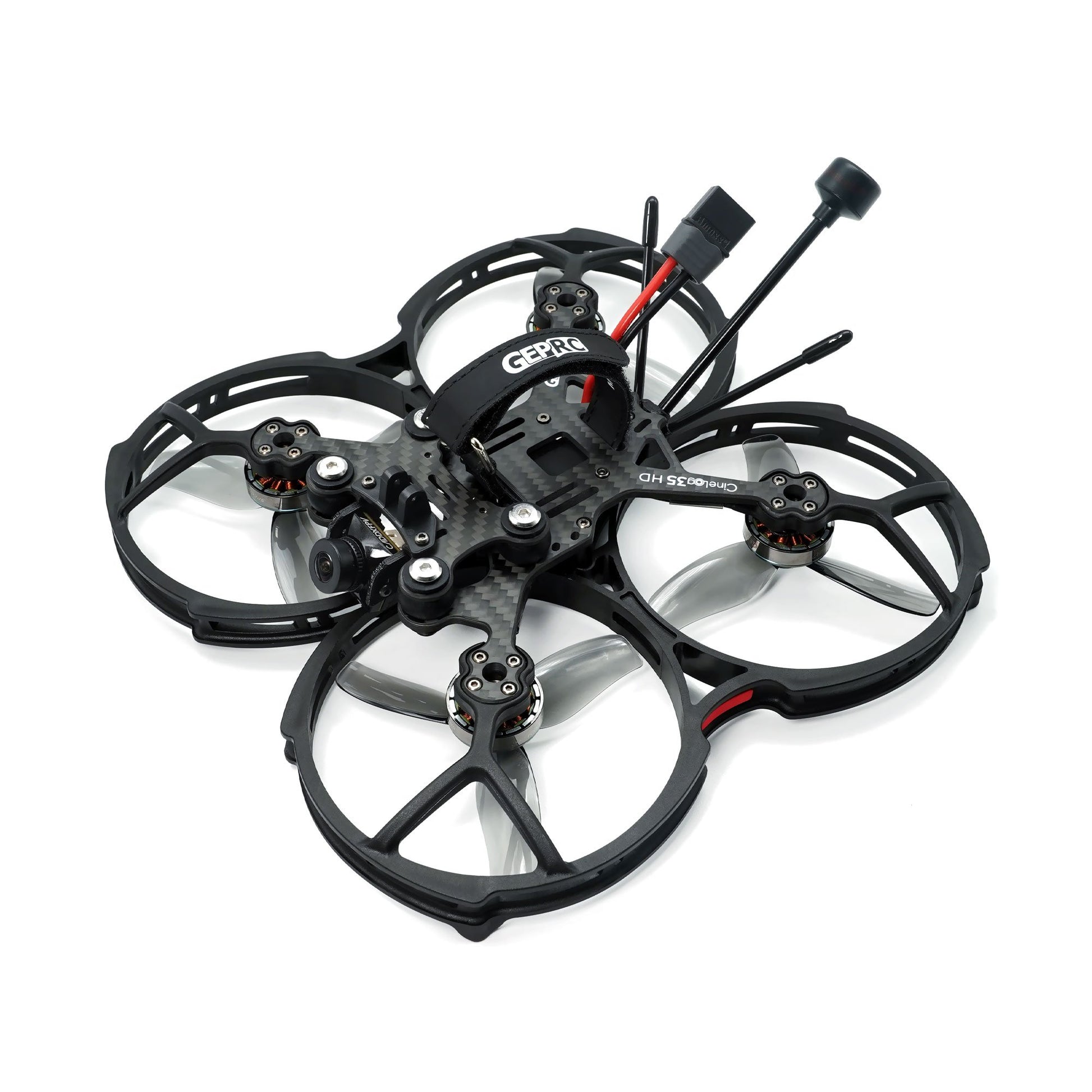

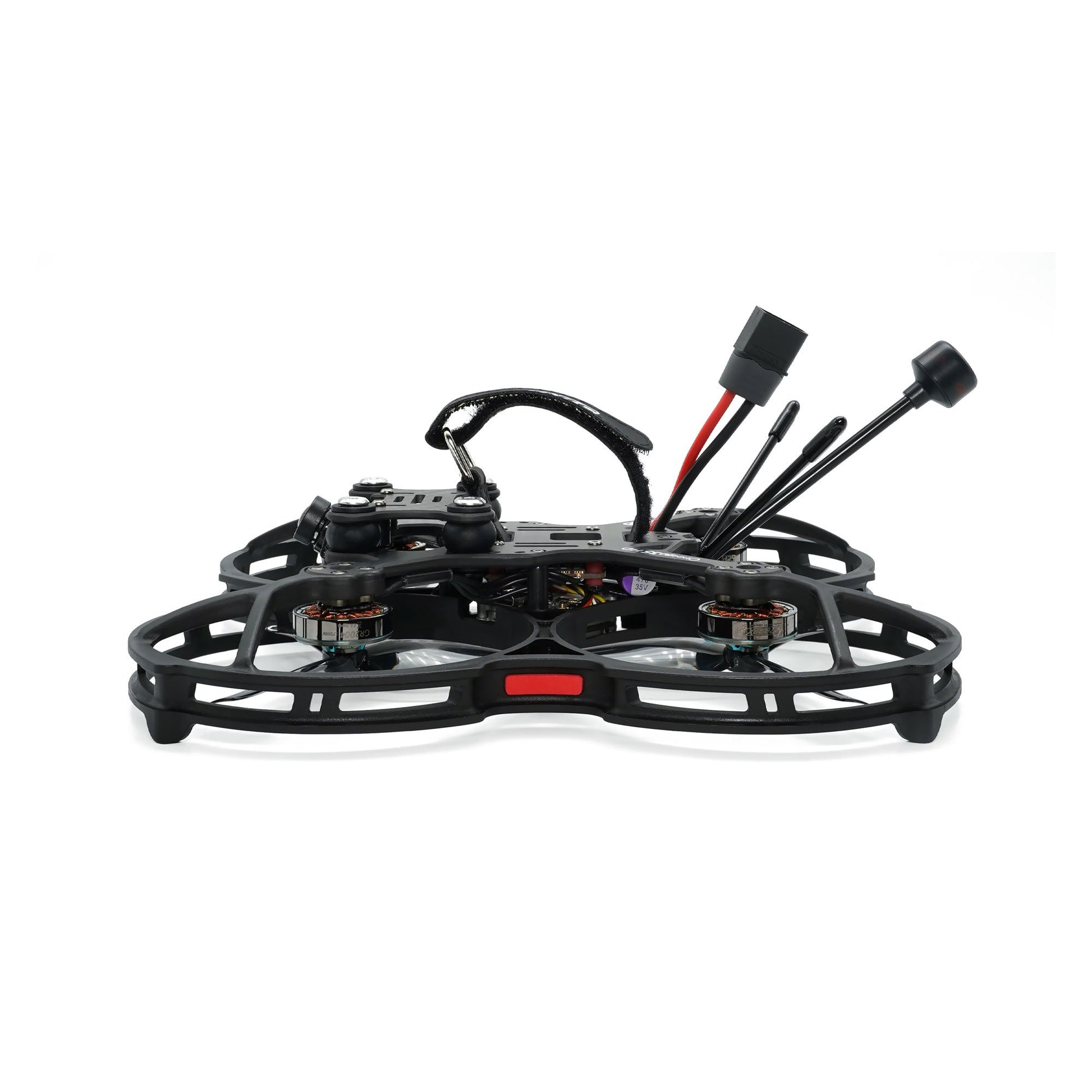

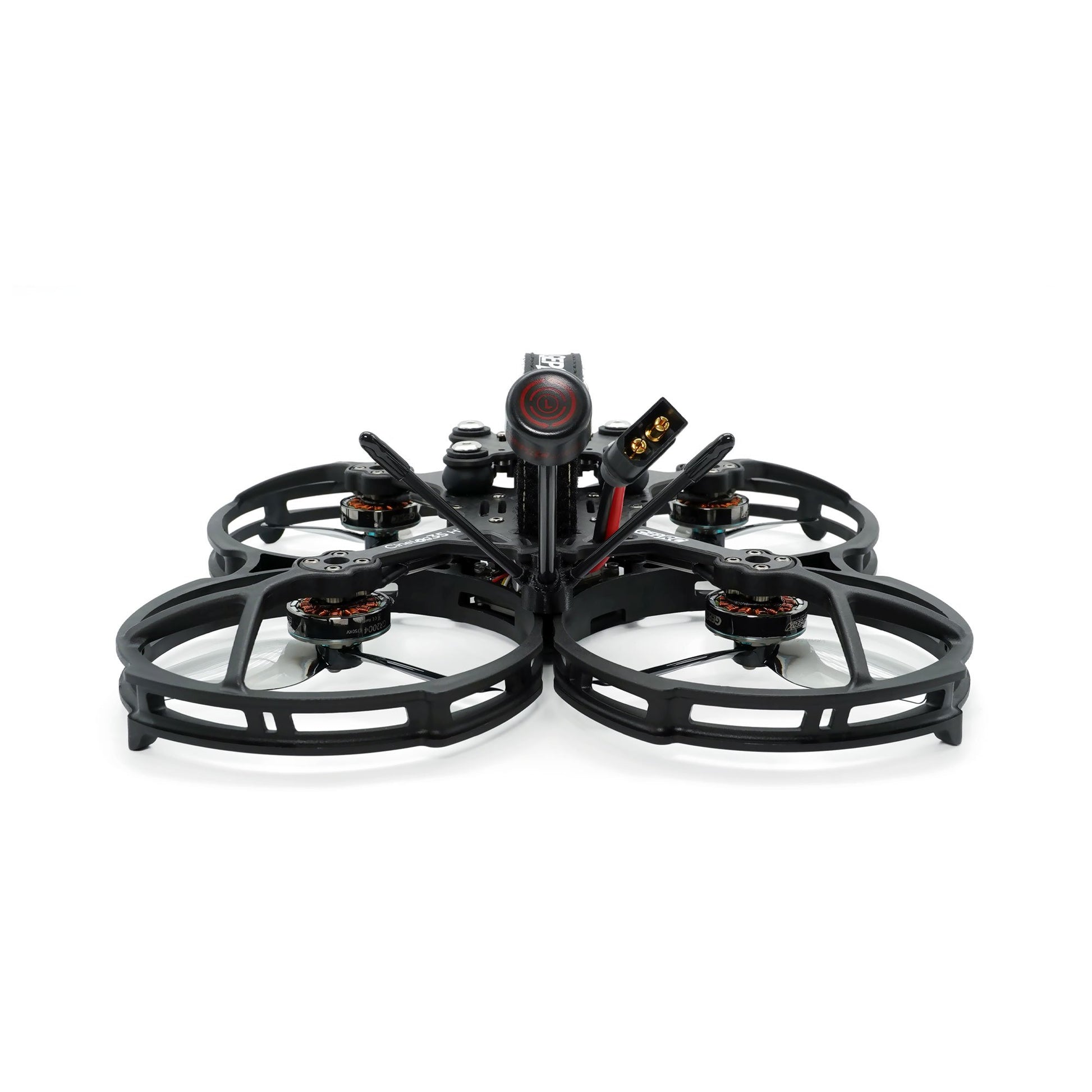

GEPRC CineLog35 Analog ELRS 2.4G (6S)
CineLog35 is improved and developed based on CineLog30. Integrated protective cover design, the overall structure is stronger and more durable. We adopt the latest FC with higher calculation speed and high efficiency, 4S version uses GEP-F722-35A AIO/6S version uses GEP-F722-45A AIO. 5 UART ports bring perfect performance and a sufficiently extended function. and the electronic system runs more stably.

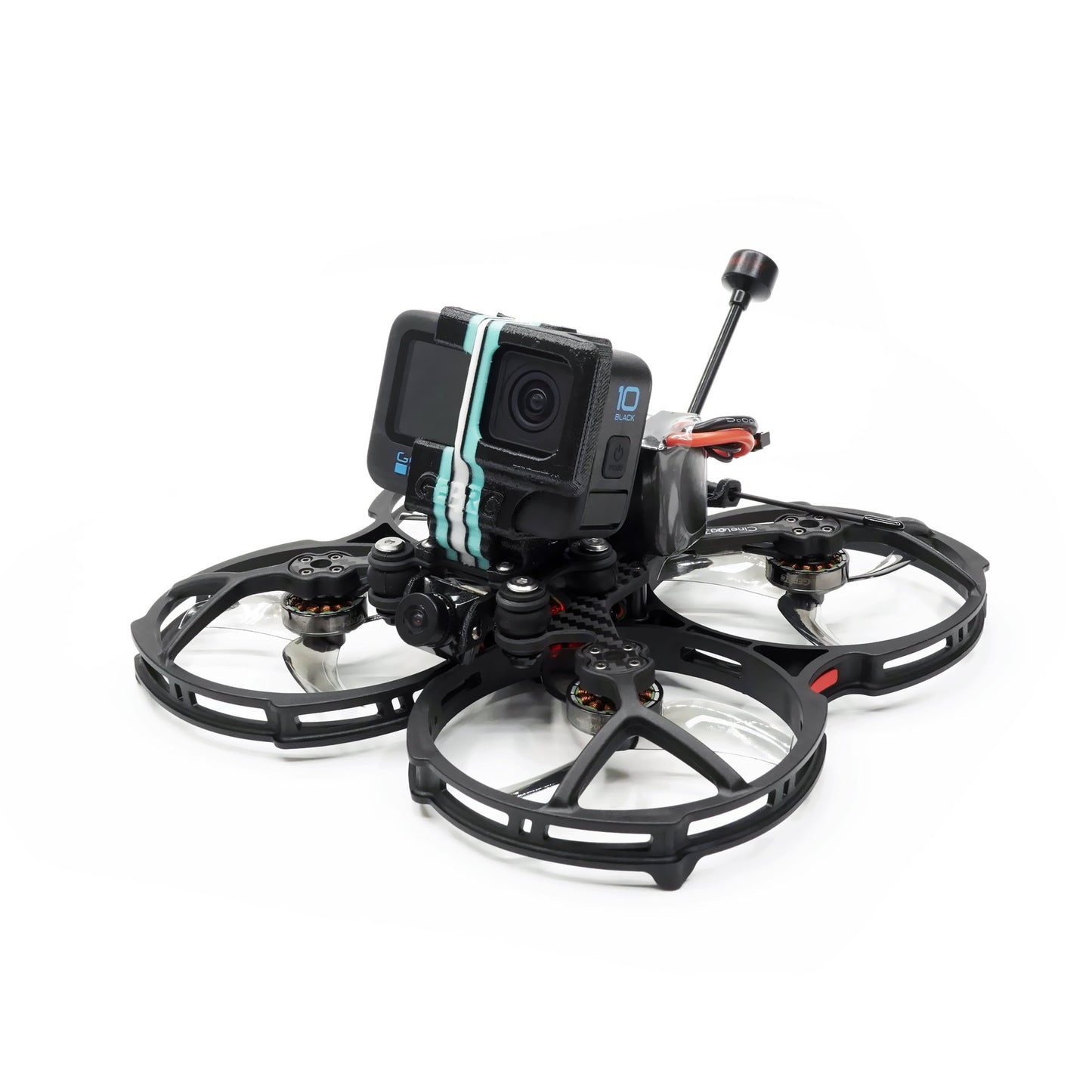

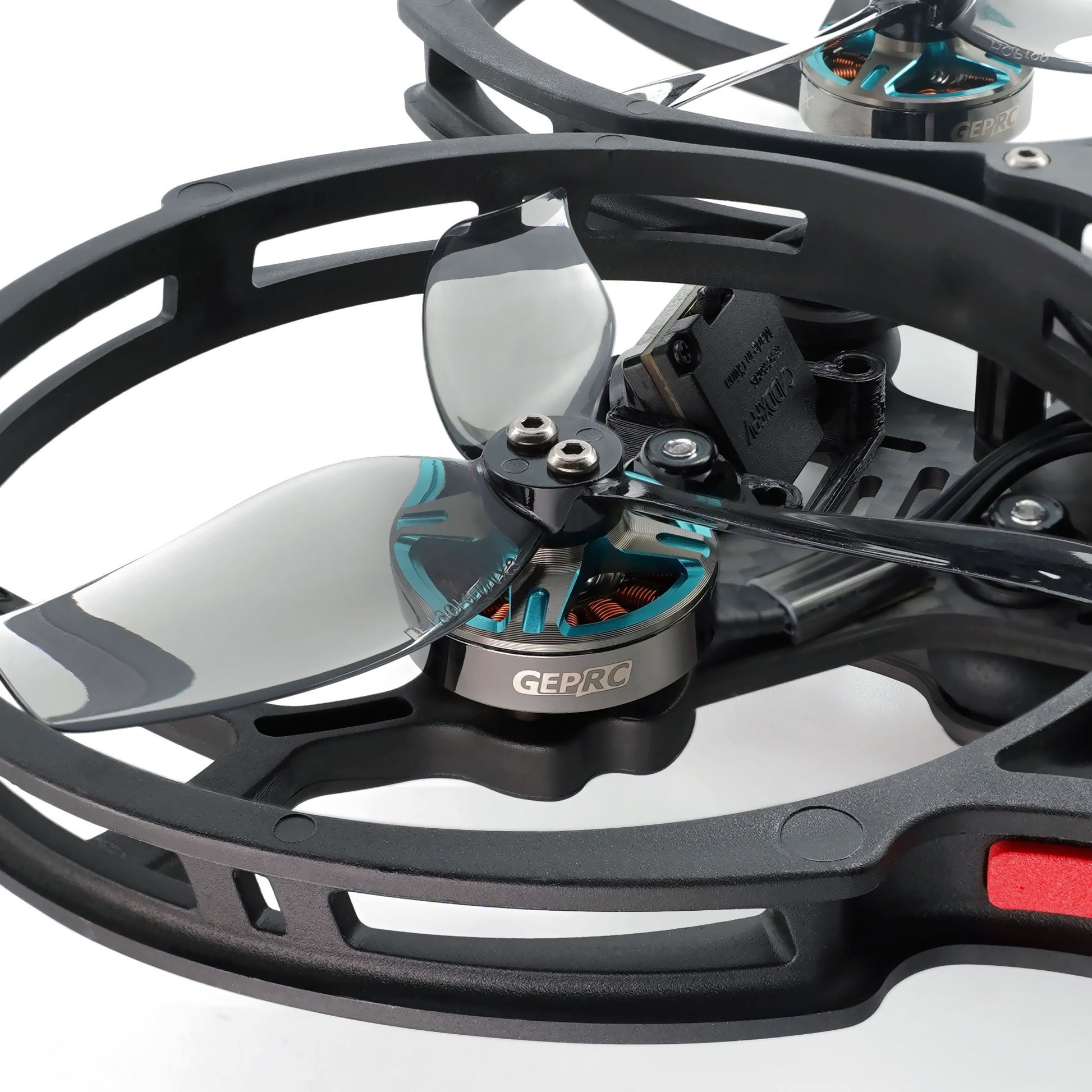

Upgraded power system, 2004 HQProp DT90MMX3 propeller motor has more power. It comes with a 3D print mount to install the GP 9 and GP 10. and the Incidental base can carry the Insta360 GO2/GEP Naked camera GP 8/Caddx Peanut camera.
There are currently two versions available: HD VISTA Nebula Pro and Analog.
Specifications:
Model: CineLog35 Analog
Brand: GEPRC
Frame: GEP-CL35
Wheelbase: 142 mm
Top plate: 2.5mm
bottom plate: 2.0 mm
Shoulder plate: 3.5 mm
FC system: GEP-F722-45A AIO
MCU: STM32F722
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: BLheli_S 45A
VTX: 600mW VTX wired
Camera: Caddx Ratel2
Propeller: HQProp DT90MMX3
Antenna: Momoda Long version MMCX RHCP 195mm Antenna
Motor: GR2004-1750KV
Weight: 220.5g
Receiver: ELRS 2.4G
Recommended battery: LiPo 6S 850mAh-1100mAh
