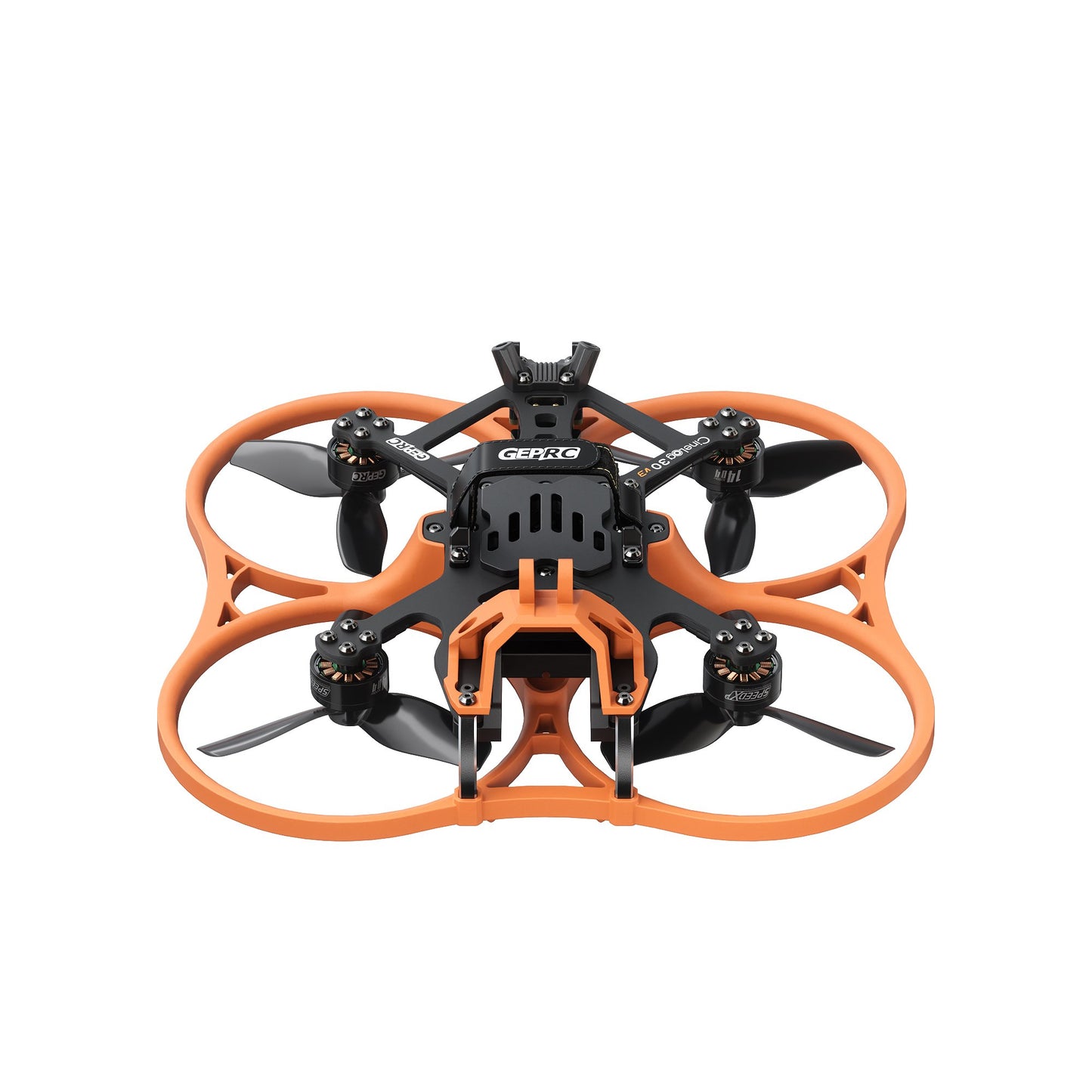

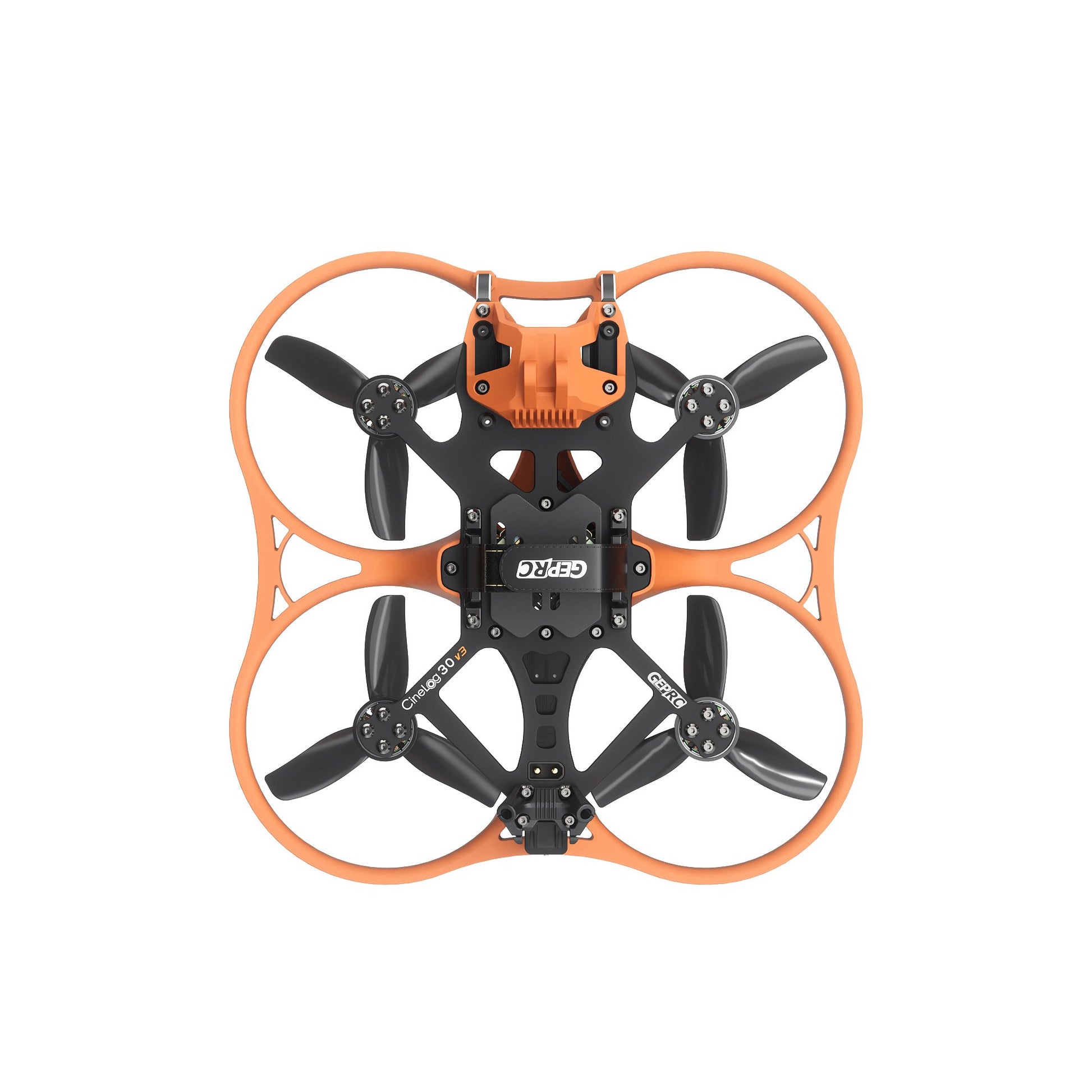

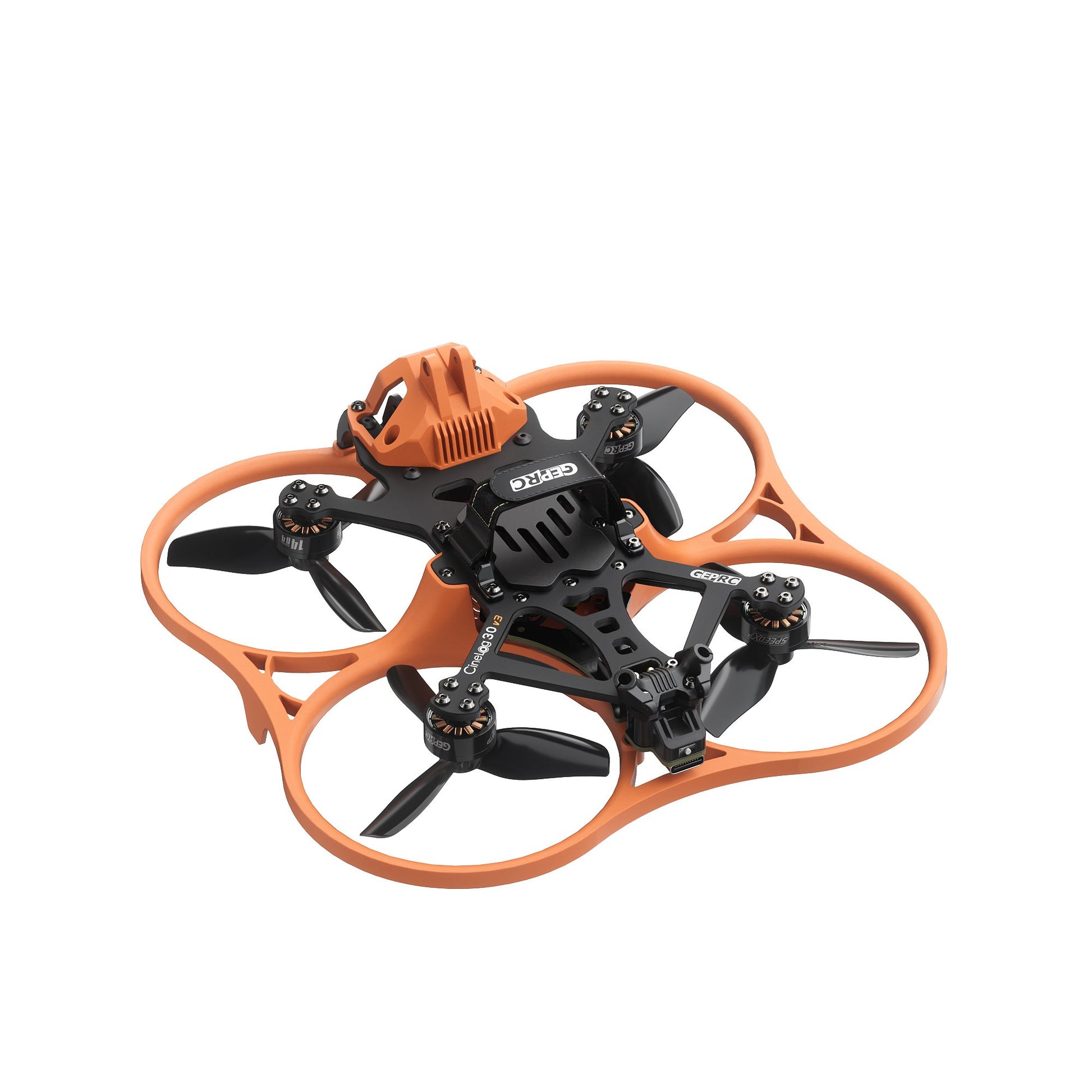

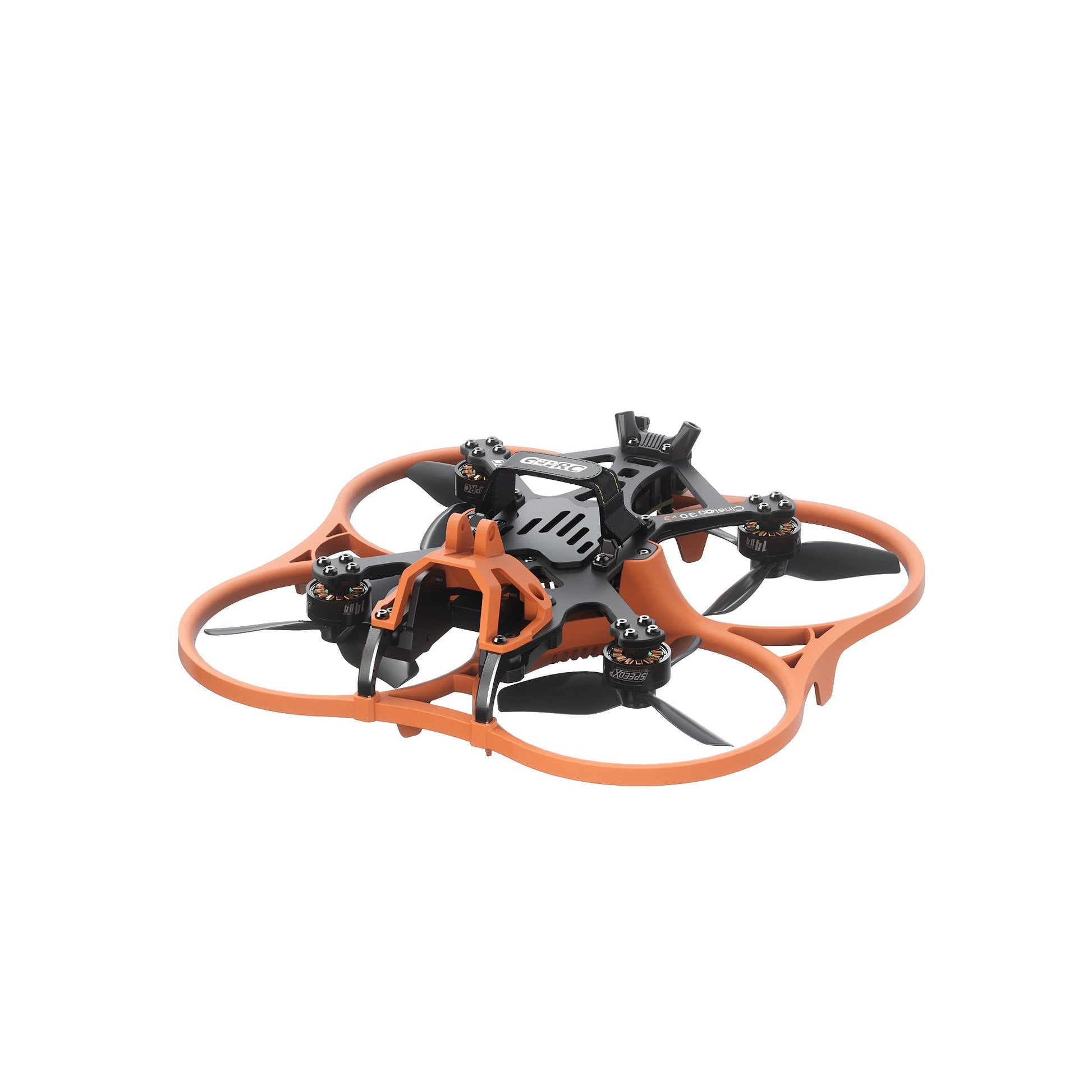

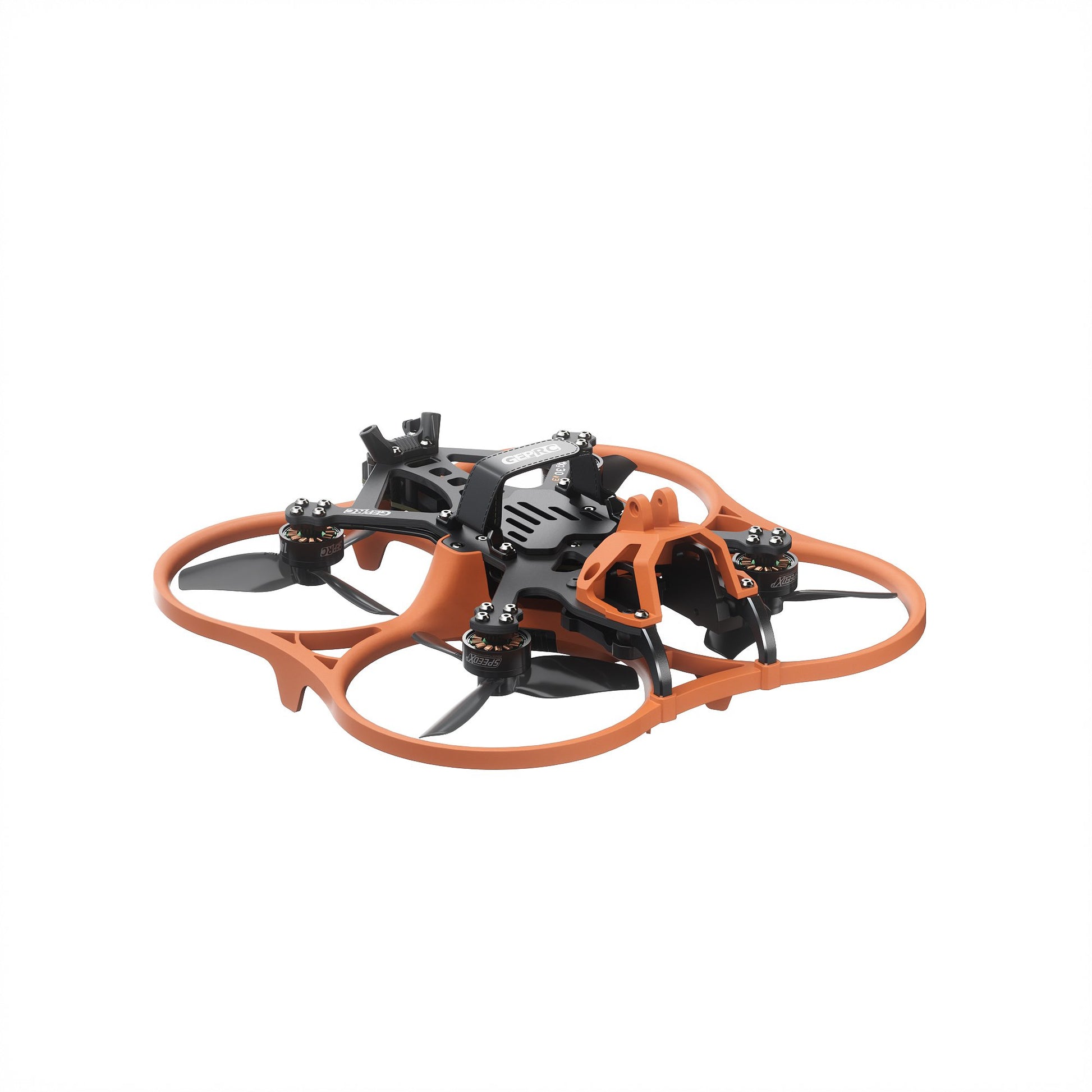

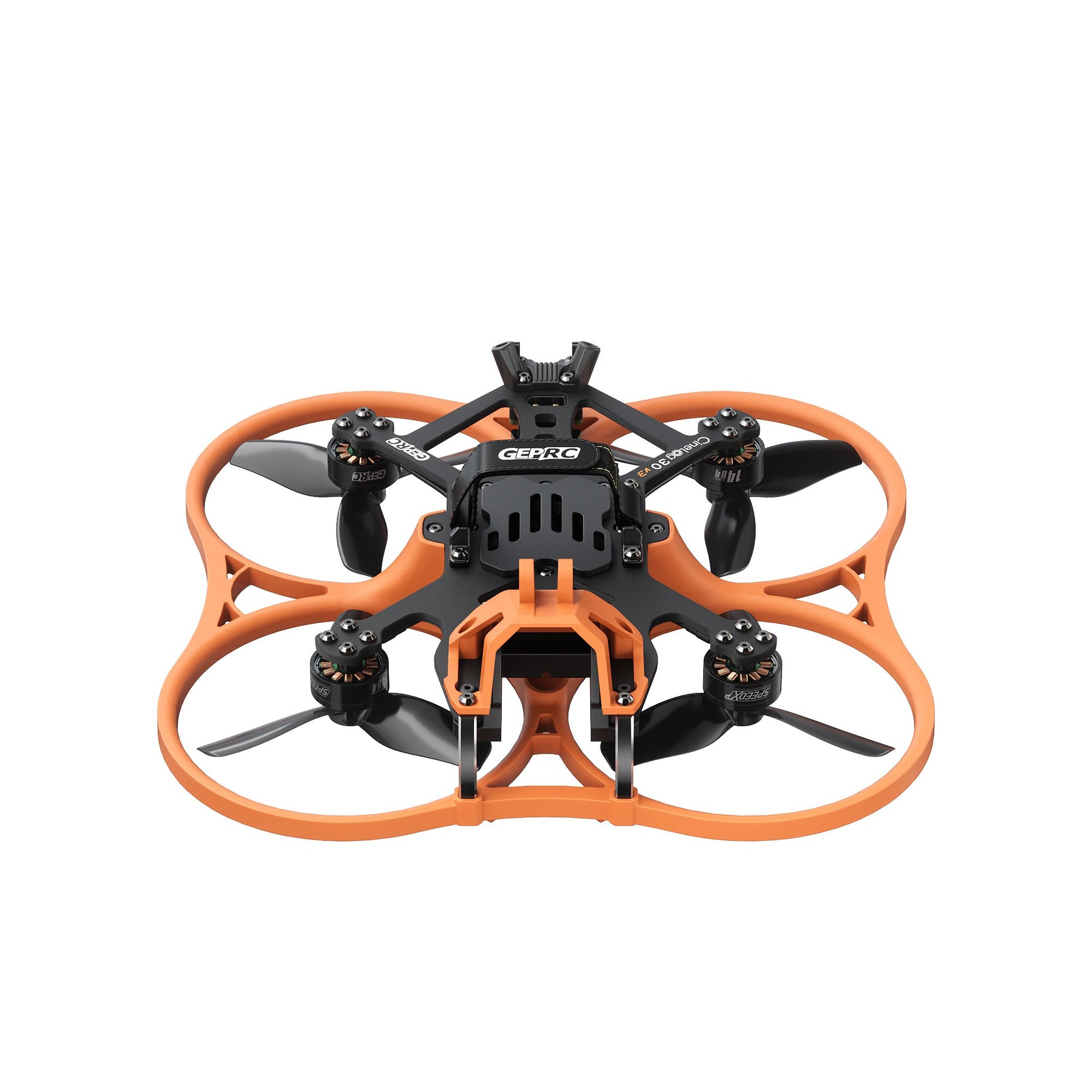

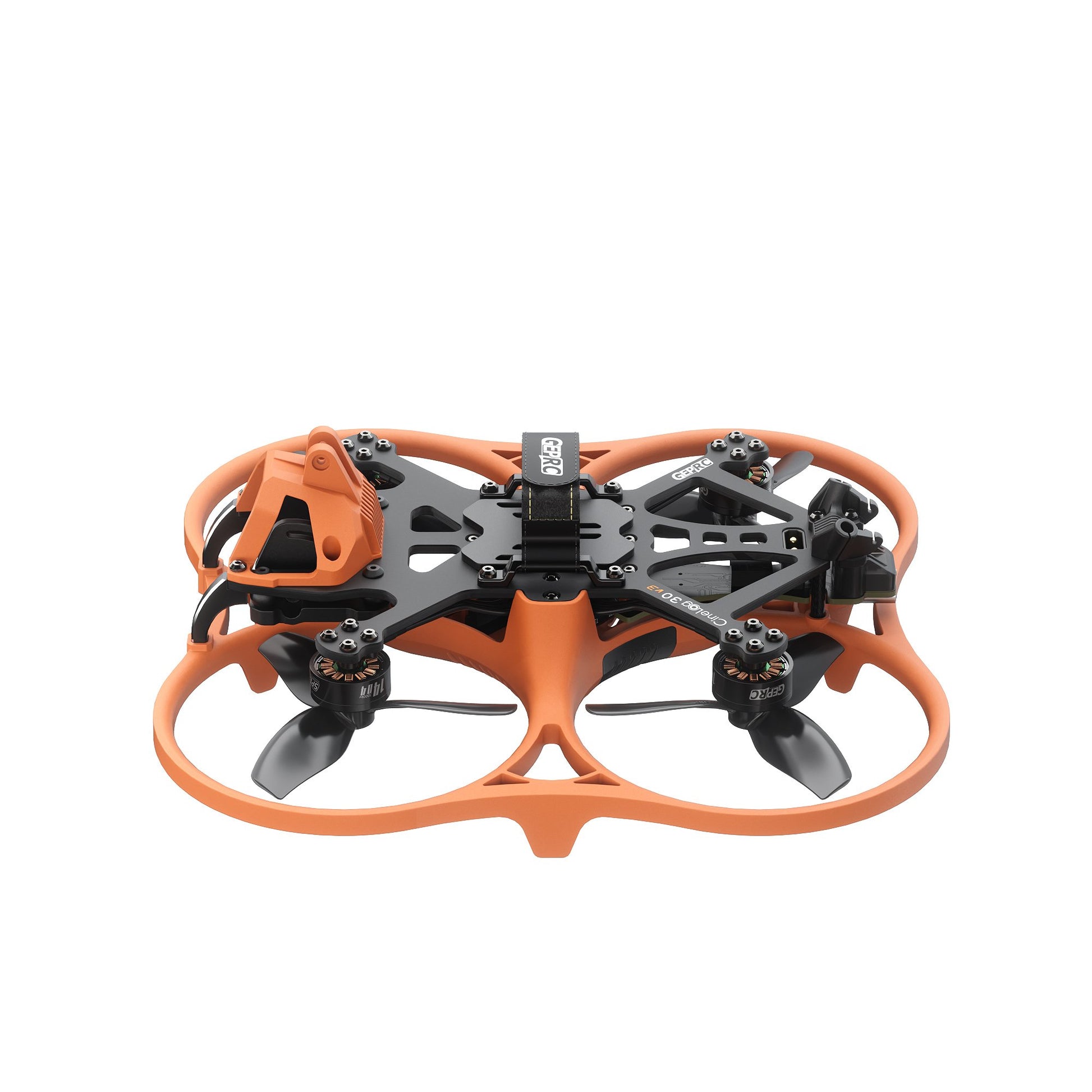

FPV drone GEPRC Cinelog30 V3 WTFPV PNP The GEPRC Cinelog30 V3 WTFPV PNP is a 3-inch FPV drone designed for smooth, stable and cinematic flight - especially in tight spaces. As part of the Cinelog30 V3 series, it offers a robust and sophisticated design with aluminum reinforced frame parts and a protective electronics cover that protects key components during flight and during impacts. This version does not include a VTX, camera or antenna, allowing pilots to customize the FPV system to their own needs. The drone is powered by GEPRC SPEEDX2 1404 3850KV motors coupled with HQprop DT76mmx3 V2 three-blade propellers for excellent control, efficiency and quiet operation - ideal for shooting smooth footage. The XT30 battery connector supports 4S LiHV batteries and ensures reliable power supply. Specifications: Model: Cinelog30 V3 WTFPV Quadcopter Frame model: GEP-CL30 V3 Carbon fiber plate thickness: 2.5mm Wheelbase: 128 mm Flight System: TAKER F722 45A 32Bit AIO MCU: STM32F722RET6 Gyroscope: ICM 42688-P FC firmware: GEPRC_F722_AIO Flash memory: 16MB ESC: 32Bit 45A Motor: SPEEDX2 1404 3850KV Propeller: HQprop DT76mmx3 V2 Battery connector: XT30 VTX: Not included Camera: Not included Antenna: Not included Receiver: Not included (PNP) Weight: 148 ±2g Recommended battery: LiHV 4S 660mAh-720mAh Flight time: 8’10″ (Tested in slow flight; actual time may vary depending on flying style.) The package contains: 1 x Cinelog30 V3 1 × Protective frame (transparent black) 2 × HQprop DT76mmx3 V2 (pair) 1 × Battery strap 15*150 mm 1 x L-wrench 1.5mm 1 × Gray cover 1 × Black cover 1 × Spare set of screws 1 × Non-slip mat under the battery 1 × Damper ball insertion tool 1 × Pairing pin
